Ever wondered how a car jack can lift a massive... Show more
Physics93 views·Updated May 23, 2026·3 pagesUnderstanding Hydraulics: Fluid Pressure Explained
1 / 3
1
of 3

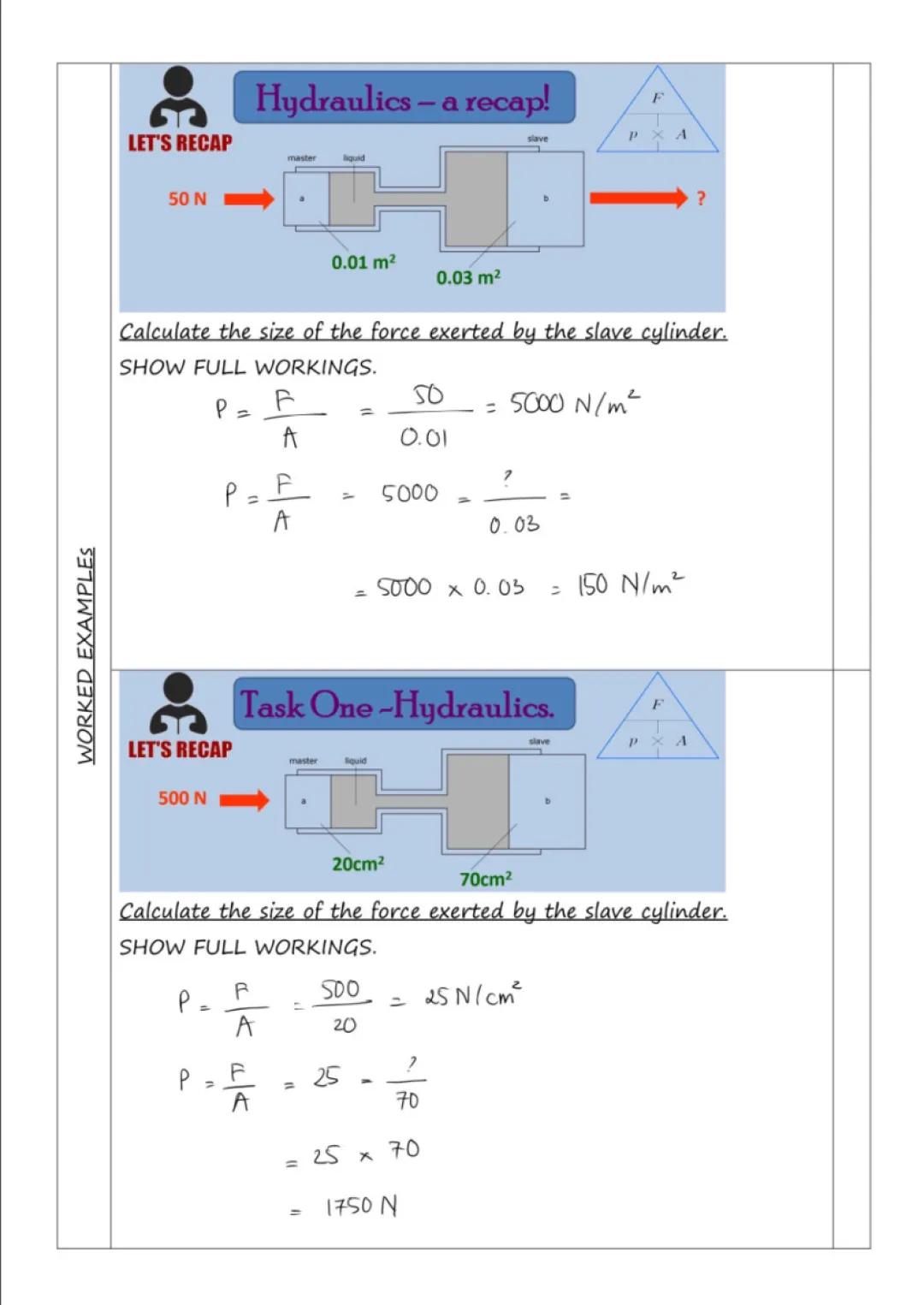

Hydraulic Force Calculations
Hydraulic systems work on a simple principle: pressure spreads equally through liquids. When you apply force to a small piston, that same pressure gets transmitted to a larger piston, creating a much bigger force output.
The key formula you need to master is P = F/A . Once you calculate the pressure from the master cylinder, you can work out the force produced by the slave cylinder.
Let's break down the first example: 50N force on 0.01m² creates 5000 N/m² pressure. Since pressure stays constant throughout the system, the larger 0.03m² slave cylinder produces 150N of force.
Top Tip: Always remember that pressure remains the same on both pistons - it's the different areas that create the force multiplication effect!
2
of 3

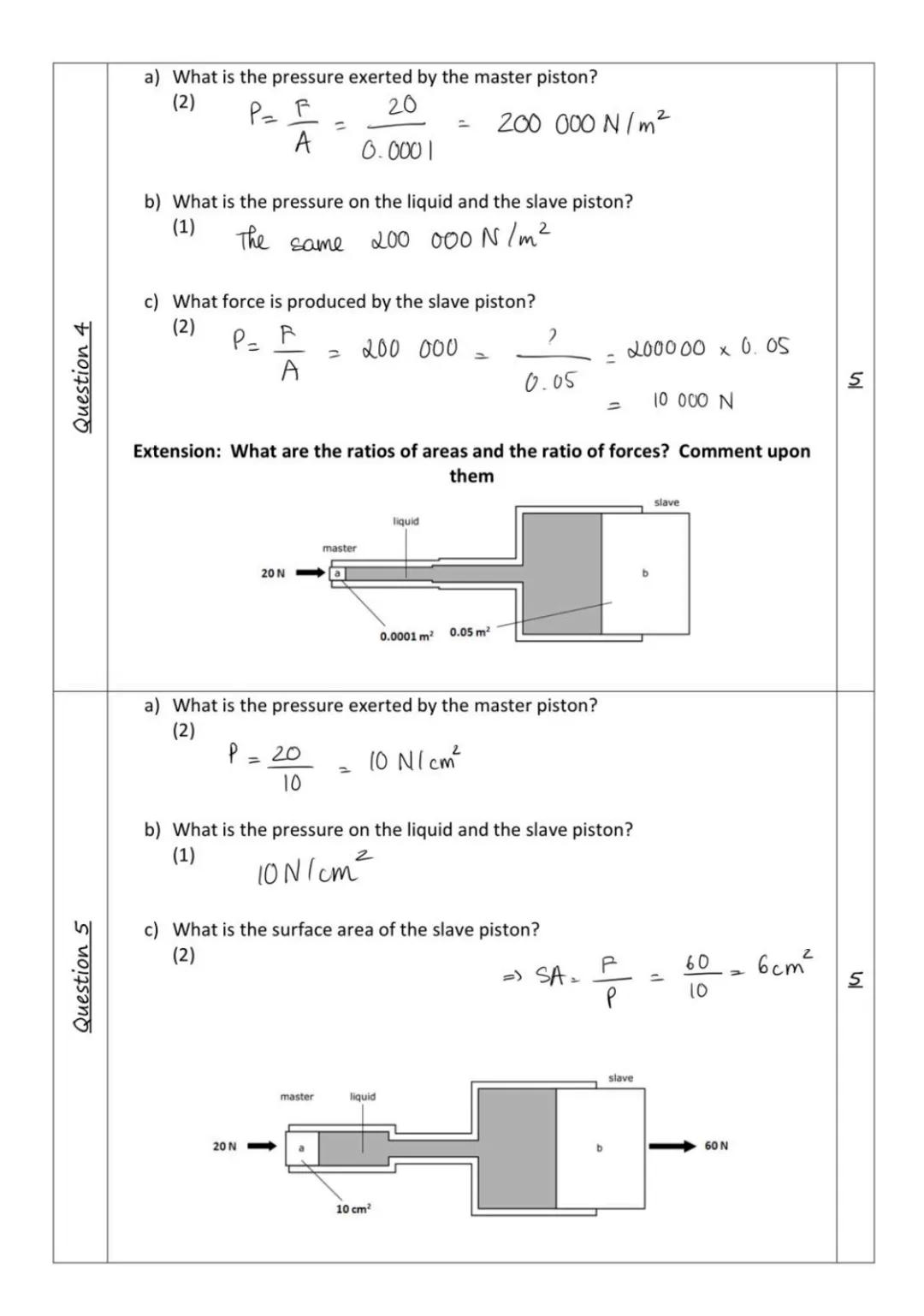

Step-by-Step Problem Solving
The second set of problems shows you exactly how to tackle hydraulic calculations systematically. Start by finding the pressure in the master cylinder, then use that same pressure value for the slave cylinder.
In Question 4, a tiny 20N force on a 0.0001m² piston creates an enormous 200,000 N/m² pressure. When this pressure acts on the much larger 0.05m² slave piston, you get a whopping 10,000N output force!
Question 5 switches things up by asking you to find the surface area instead of force. You rearrange the formula to get Area = Force ÷ Pressure, giving you 6cm² for the slave piston.
Remember: The pressure is always identical on both pistons - that's what makes hydraulics work so brilliantly!
3
of 3

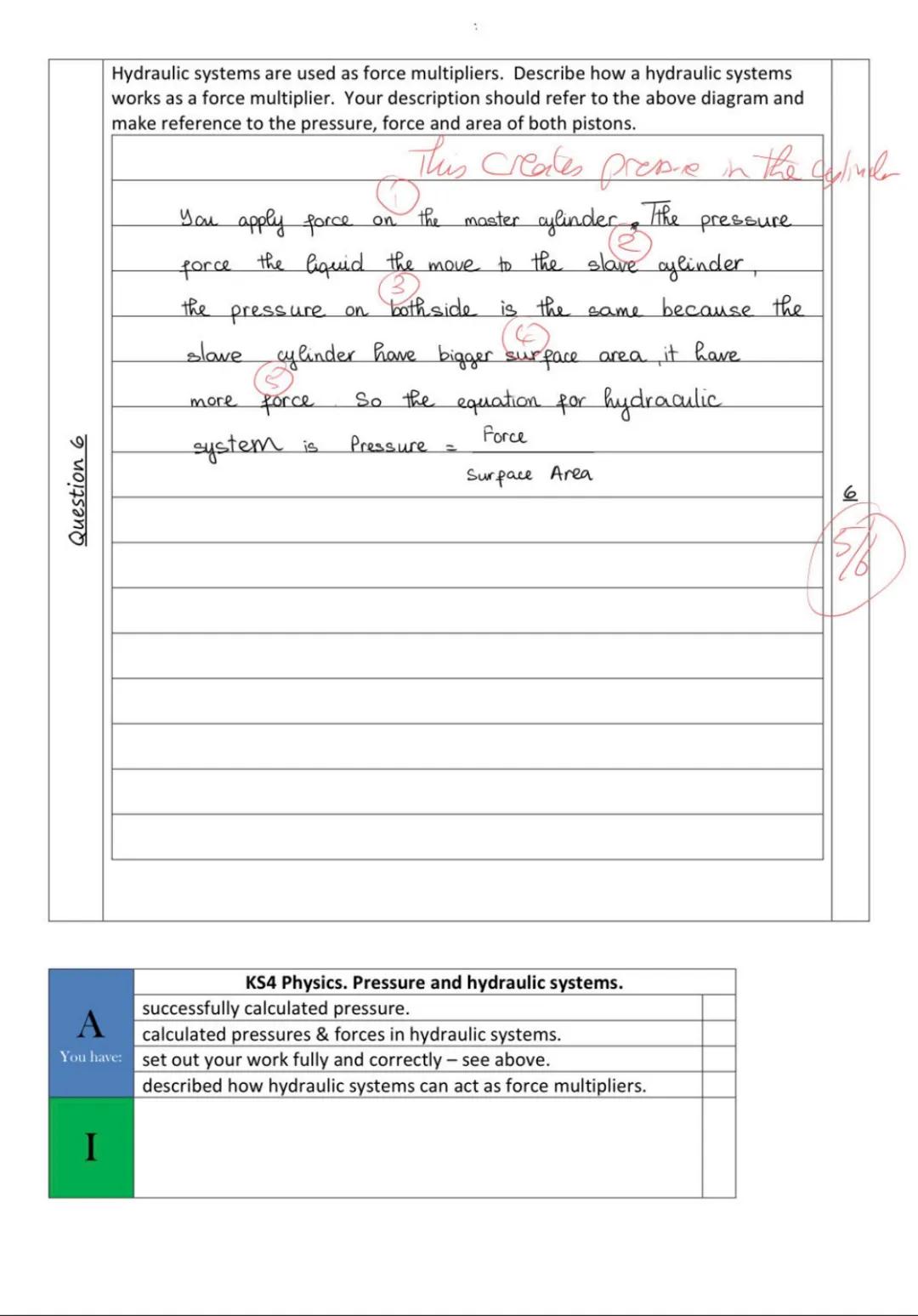

How Hydraulic Force Multipliers Work
Hydraulic force multipliers are genuinely fascinating pieces of engineering. When you push down on the master cylinder, you create pressure that travels through the liquid to reach the slave cylinder instantly.
The magic happens because pressure = force ÷ surface area. Since pressure stays constant throughout the system, a larger surface area on the slave cylinder automatically means a bigger force output. It's like getting something for nothing!
Think of it this way: if your slave cylinder has twice the surface area of your master cylinder, you'll get twice the force out. The trade-off? You'll need to move the master piston further to get the same distance movement on the slave piston.
Real-world connection: This is exactly how car brakes, hydraulic jacks, and even some theme park rides create their incredible forces from relatively small inputs!
