Comprehensive Guide to OCR H446: Contemporary Processor Features

Characteristics of Contemporary Processors

Modern processors are incredibly sophisticated machines that power everything from your smartphone to supercomputers. Understanding their core components will give you insight into how every digital device processes information.

This topic covers the essential building blocks of contemporary processors and how they work together to execute programs. You'll learn about the fundamental architecture that hasn't changed much in decades, yet continues to drive technological advancement.

Quick Tip: Think of a processor like a well-organised factory - each component has a specific job, and they all work together seamlessly to get things done efficiently.

Content Overview

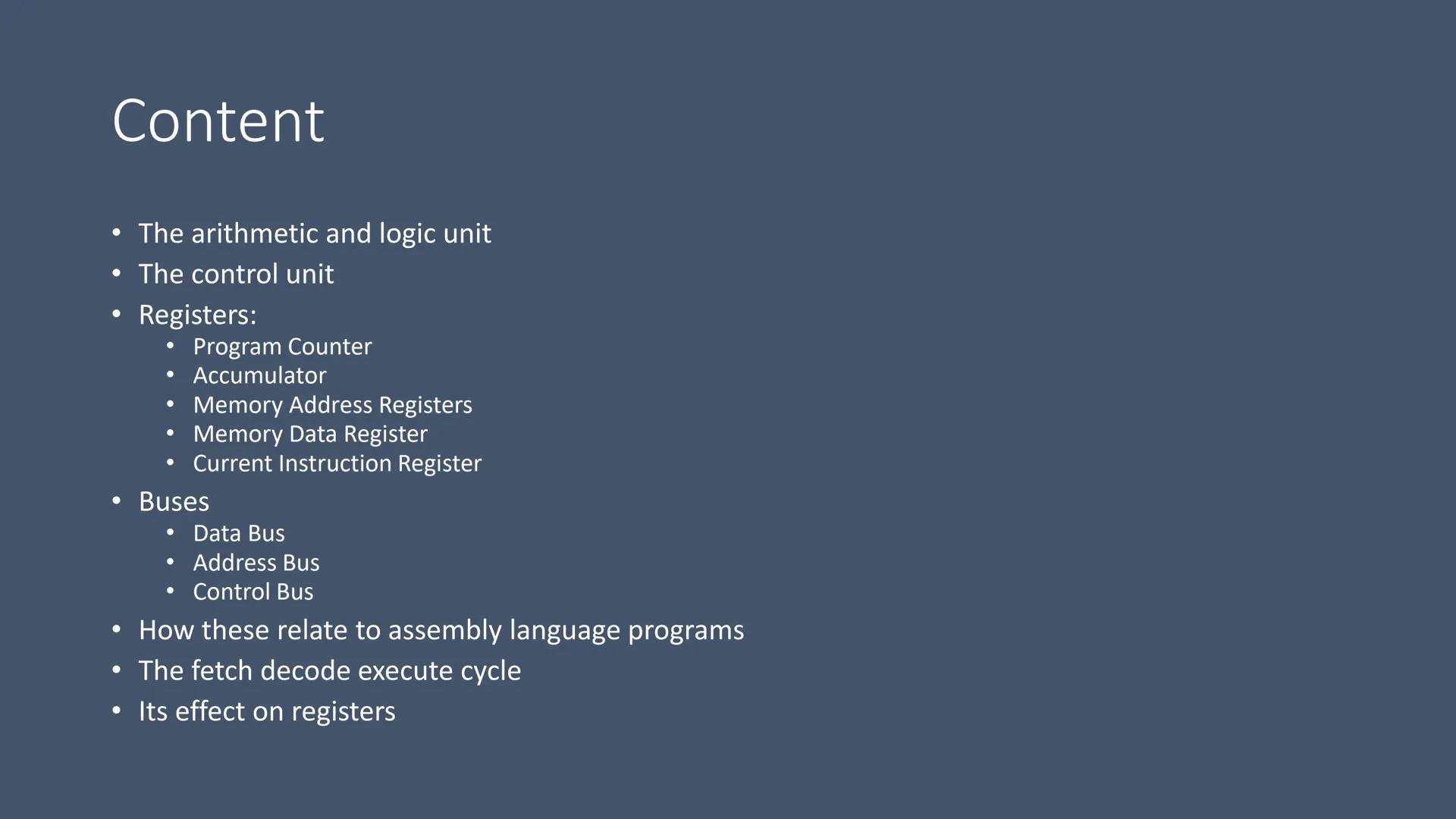

The fetch decode execute cycle is at the heart of everything your processor does. Every single instruction your computer runs goes through this same basic process, making it one of the most important concepts to master.

You'll need to understand how the ALU (Arithmetic and Logic Unit) handles all calculations whilst the control unit manages the entire operation. These work alongside various registers that store crucial data temporarily.

The three main buses (data, address, and control) act like highways, moving information between components. Getting comfortable with how these relate to assembly language programs will make programming concepts much clearer.

Remember: Each component has a specific role, but they're useless without the others - it's all about teamwork!

The Arithmetic and Logic Unit

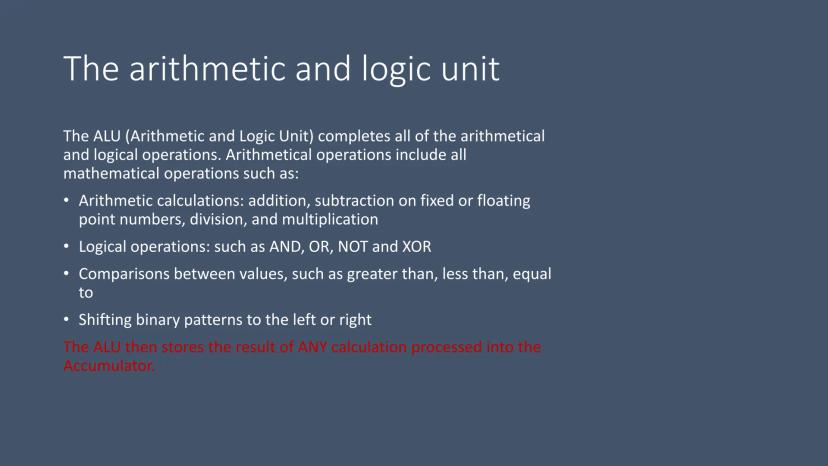

The ALU is basically your processor's calculator on steroids. It handles every single mathematical operation your computer performs, from simple addition to complex logical comparisons.

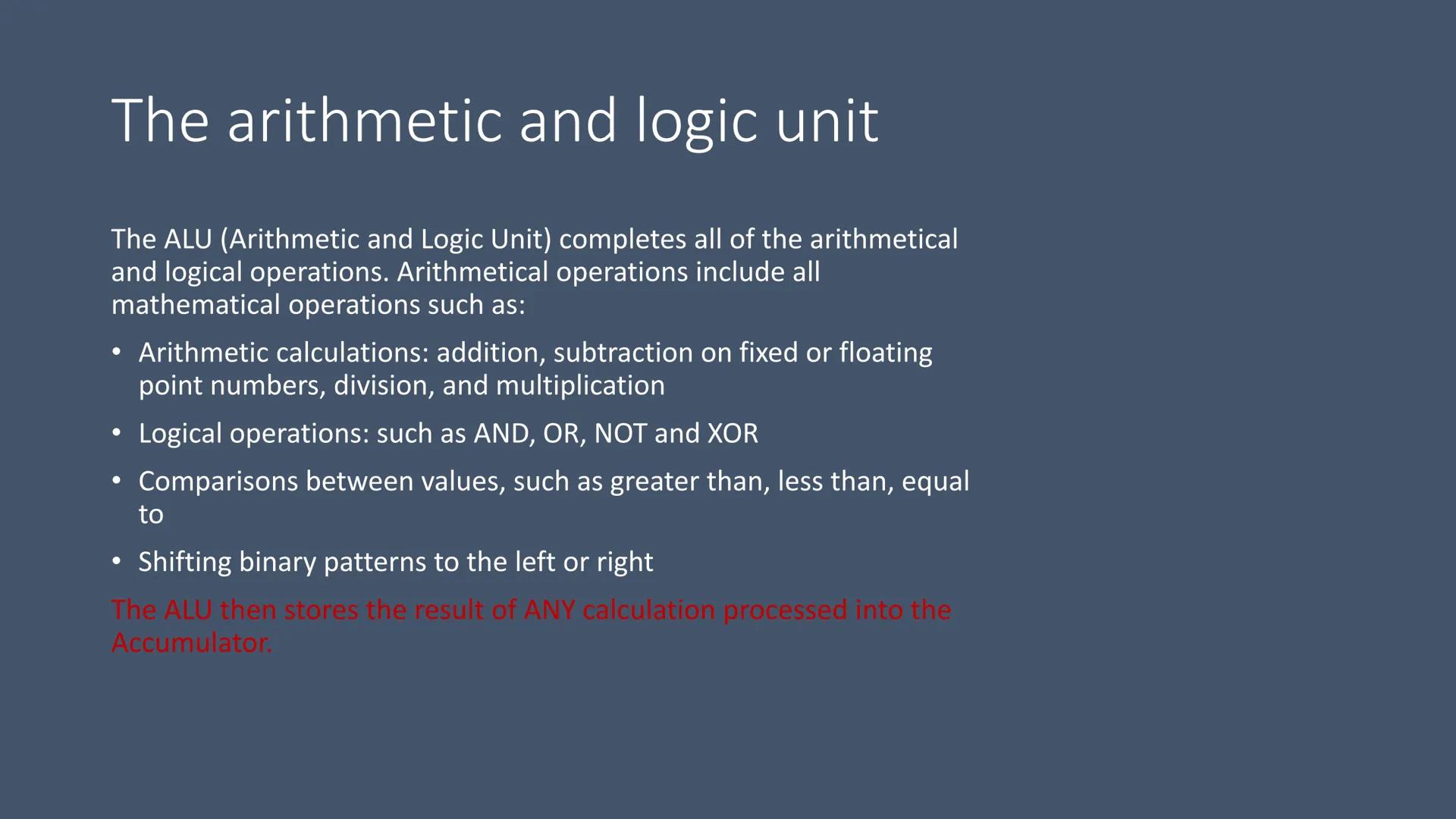

Arithmetic operations include the obvious ones like addition and subtraction, but also multiplication and division on both fixed and floating-point numbers. The logical operations (AND, OR, NOT, XOR) might seem abstract, but they're essential for decision-making in programs.

What's clever is that the ALU can also do comparisons (greater than, less than, equal to) and bit shifting operations. After completing any calculation, it stores the result in the Accumulator register.

Pro Tip: The ALU only works with integers by default - floating-point operations often need special handling!

ALU and the Execution Cycle

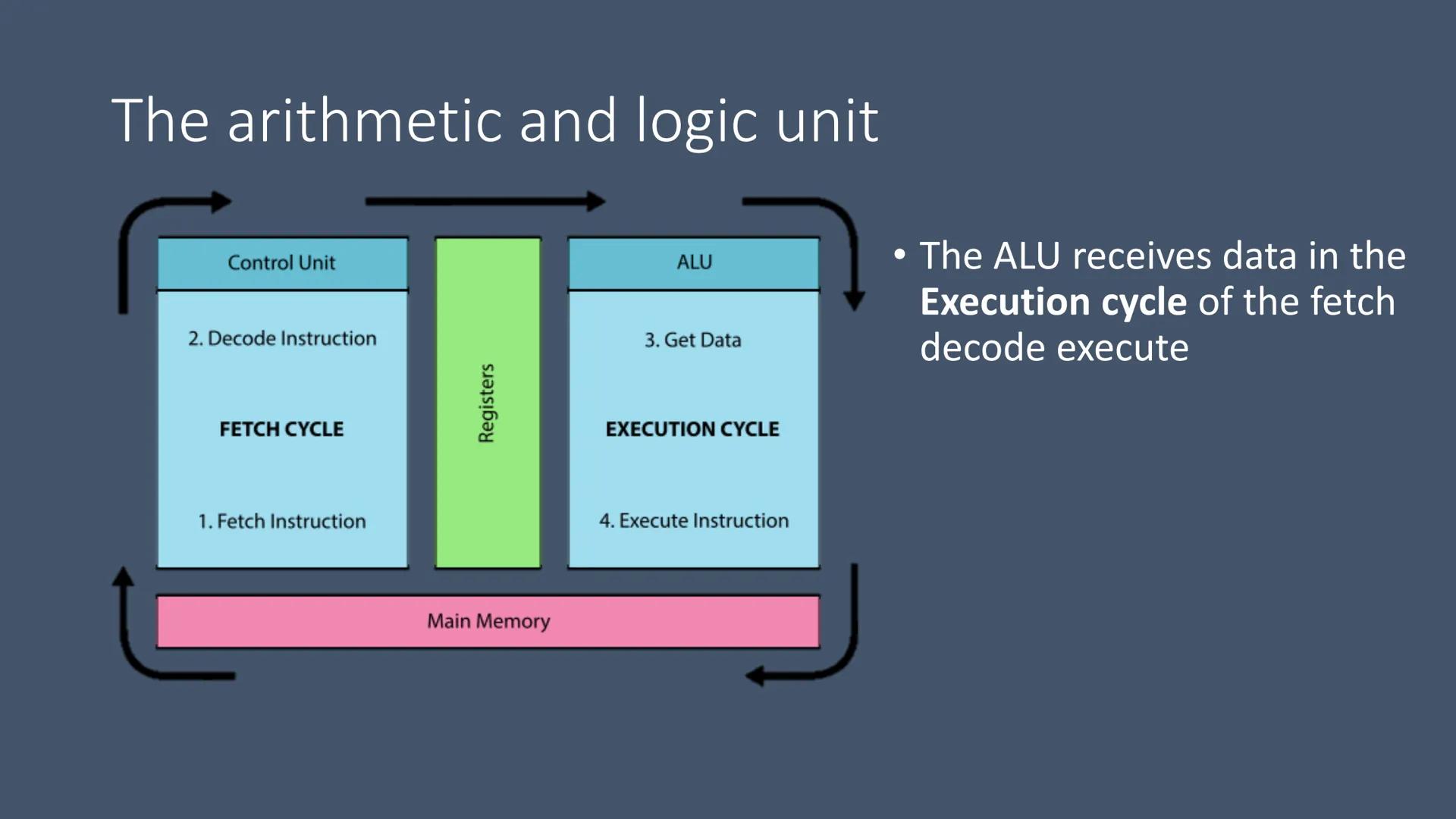

The ALU doesn't work in isolation - it's perfectly timed with the fetch decode execute cycle. During the execution phase, the ALU receives data and processes it according to the decoded instruction.

The control unit orchestrates this entire process, making sure instructions are fetched from memory, decoded properly, and then executed by the appropriate component. Think of it as the conductor of an orchestra.

The cycle is continuous: fetch the next instruction, decode what it means, execute the operation (often using the ALU), then repeat. This happens billions of times per second in modern processors.

Key Point: The ALU only gets involved during the execution phase - it's inactive during fetch and decode operations.

ALU Operations in Detail

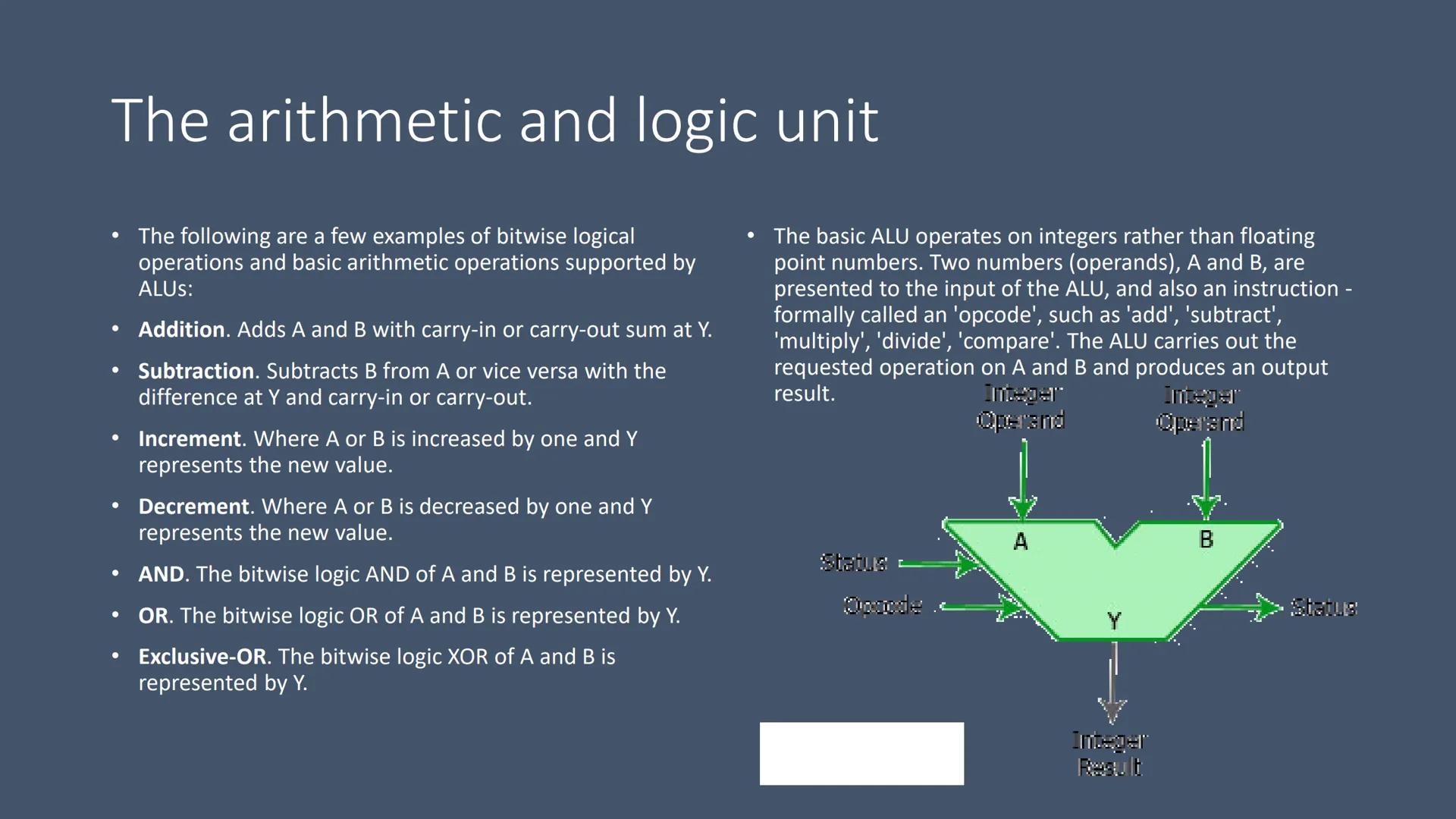

Understanding specific ALU operations helps you grasp how processors handle data at the lowest level. Addition and subtraction operations can include carry-in and carry-out values for handling larger numbers.

Increment and decrement operations simply add or subtract one from a value - sounds simple, but they're used constantly in loops and counting. The bitwise logical operations (AND, OR, XOR) work on individual bits and are crucial for masking and filtering data.

The ALU takes two operands (A and B) plus an opcode (the instruction like 'add' or 'subtract') and produces a result Y. This basic pattern underlies every calculation your computer performs.

Real-world Connection: Every time you use a calculator app, play a game, or stream video, these exact operations are happening millions of times!

The Control Unit

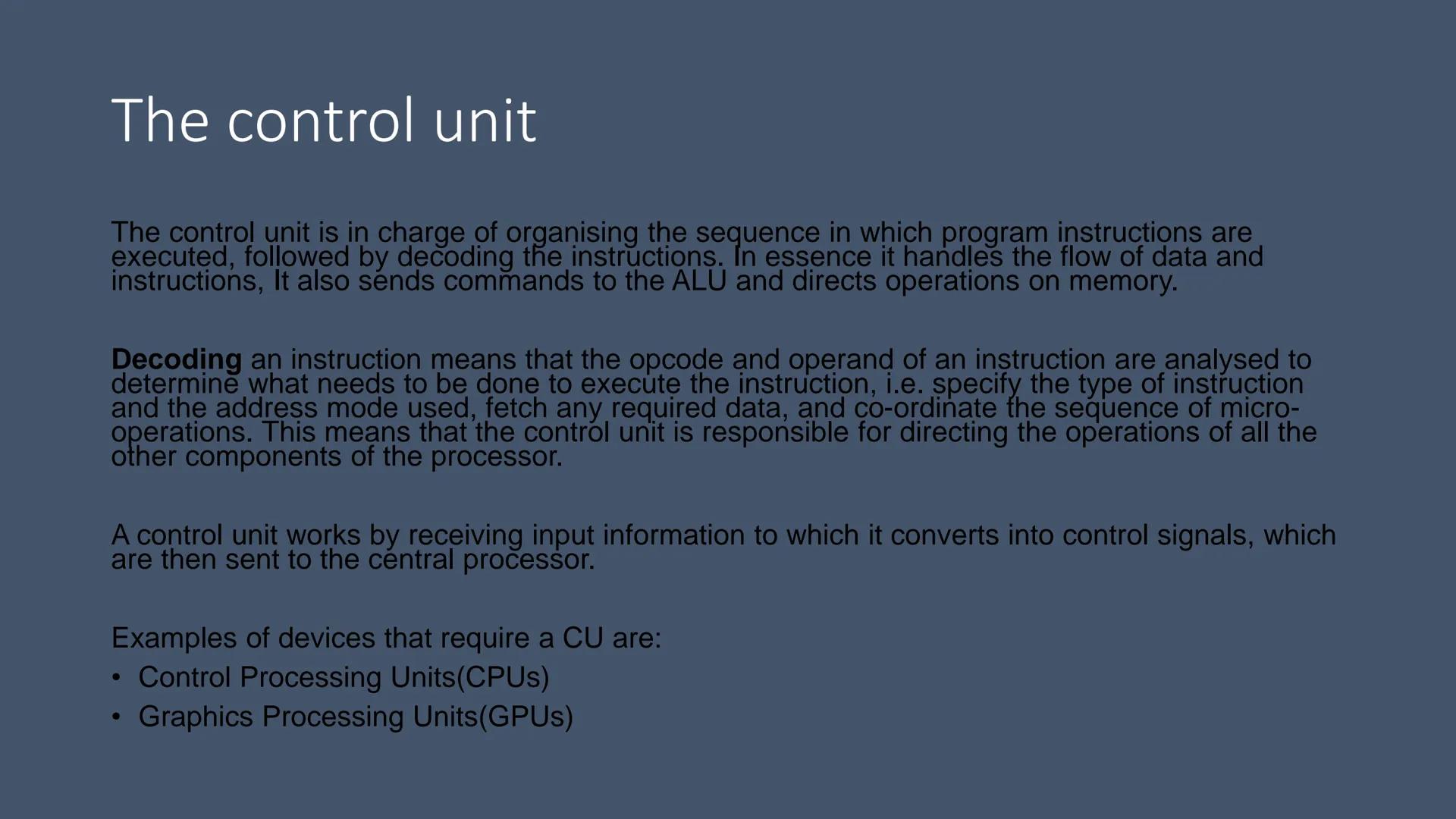

The control unit is like the manager of the processor - it doesn't do calculations itself, but organises everything else. It determines the sequence of instruction execution and decodes instructions to figure out what needs doing.

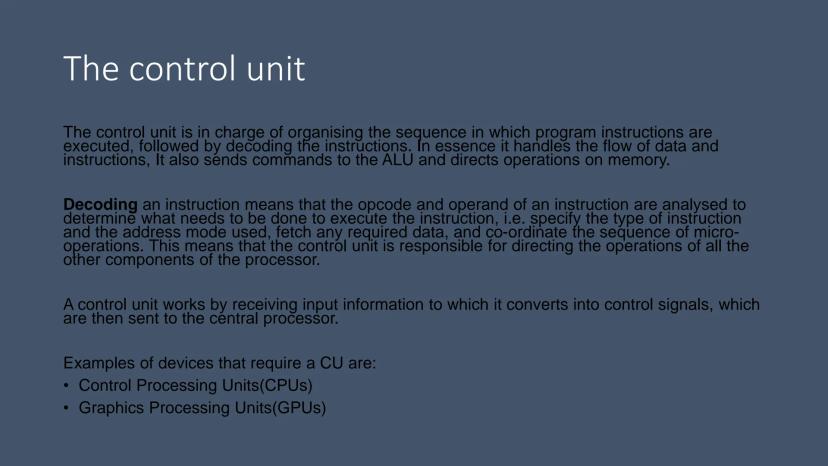

Decoding an instruction involves analysing the opcode and operand to determine the operation type and addressing mode. The control unit then coordinates fetching any required data and manages the sequence of micro-operations needed.

It sends control signals throughout the processor, directing the ALU's operations and managing data movement in memory. Both CPUs and GPUs rely on control units to function properly.

Think of it like this: If the ALU is the worker, the control unit is the supervisor making sure everyone knows what to do and when.

Control Unit Functions

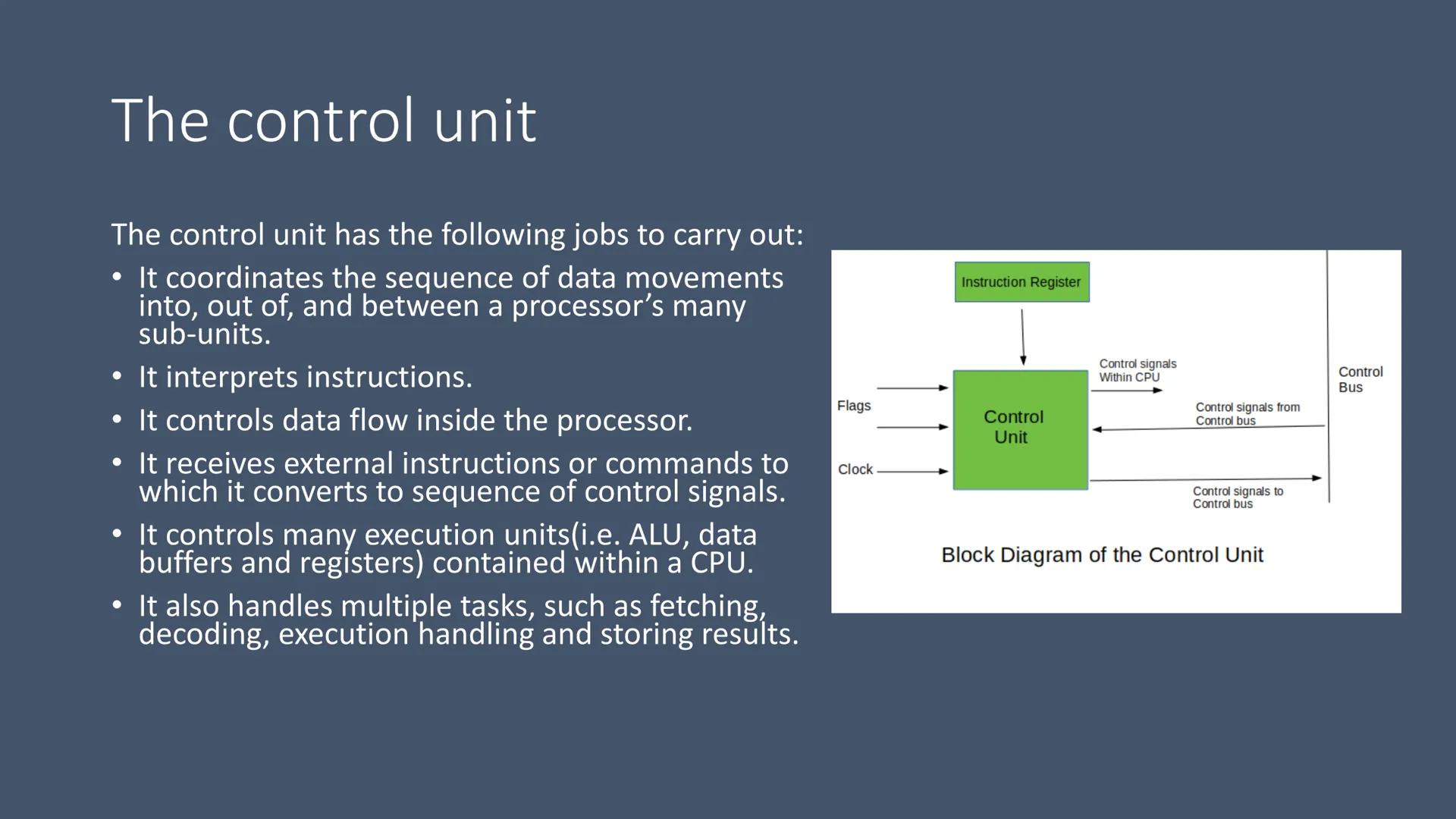

The control unit has several critical jobs that keep your processor running smoothly. It coordinates data movements between the processor's many components and interprets instructions to determine what actions are needed.

Managing data flow inside the processor requires precise timing - the wrong data at the wrong time would cause chaos. The control unit converts external instructions into control signals that other components can understand.

It also handles multiple tasks simultaneously: fetching, decoding, execution handling, and storing results. Modern processors can juggle dozens of instructions at once, all coordinated by the control unit.

Exam Tip: Remember that the control unit doesn't process data itself - it just tells other components what to do with the data.

Registers Overview

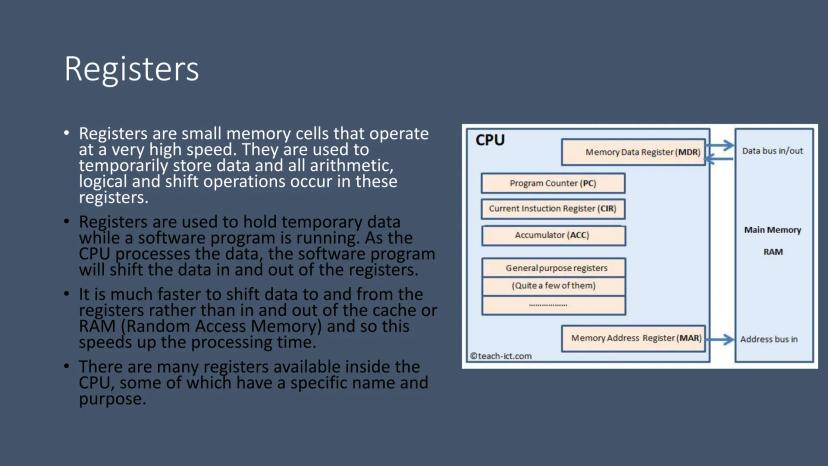

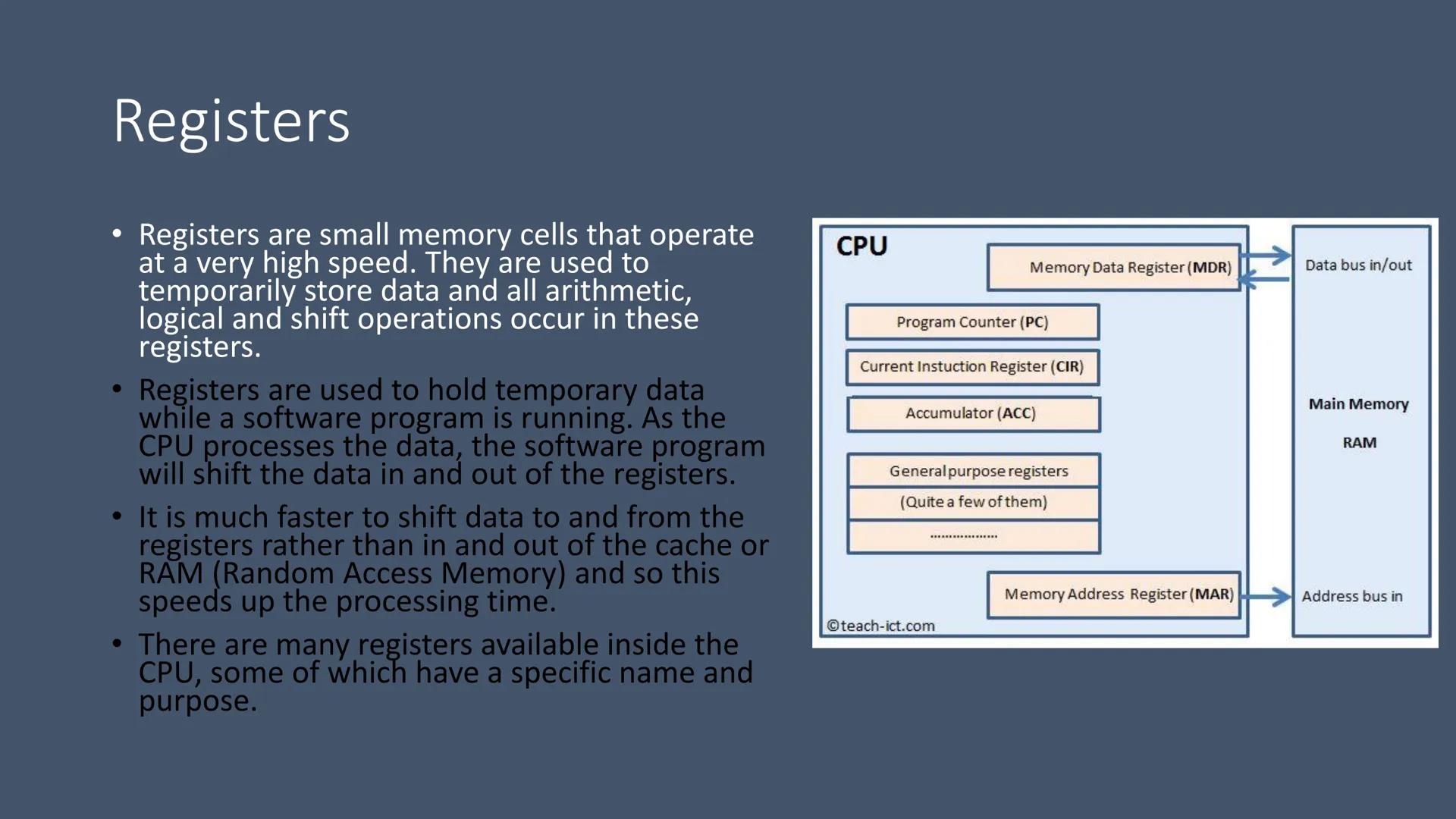

Registers are the speed demons of computer memory - tiny storage locations that operate much faster than RAM or cache. They temporarily hold data while the processor works on it, dramatically speeding up operations.

Think of registers as your desk space when studying - you keep the most important materials right at hand rather than constantly going to the filing cabinet. The CPU constantly shifts data in and out of registers as programs run.

Different registers have specific purposes: the Memory Address Register (MAR) holds addresses, the Memory Data Register (MDR) holds data, and the Program Counter (PC) tracks which instruction comes next.

Speed Matters: Accessing data from registers is roughly 100 times faster than accessing RAM - that's why processors have them!

Program Counter (PC)

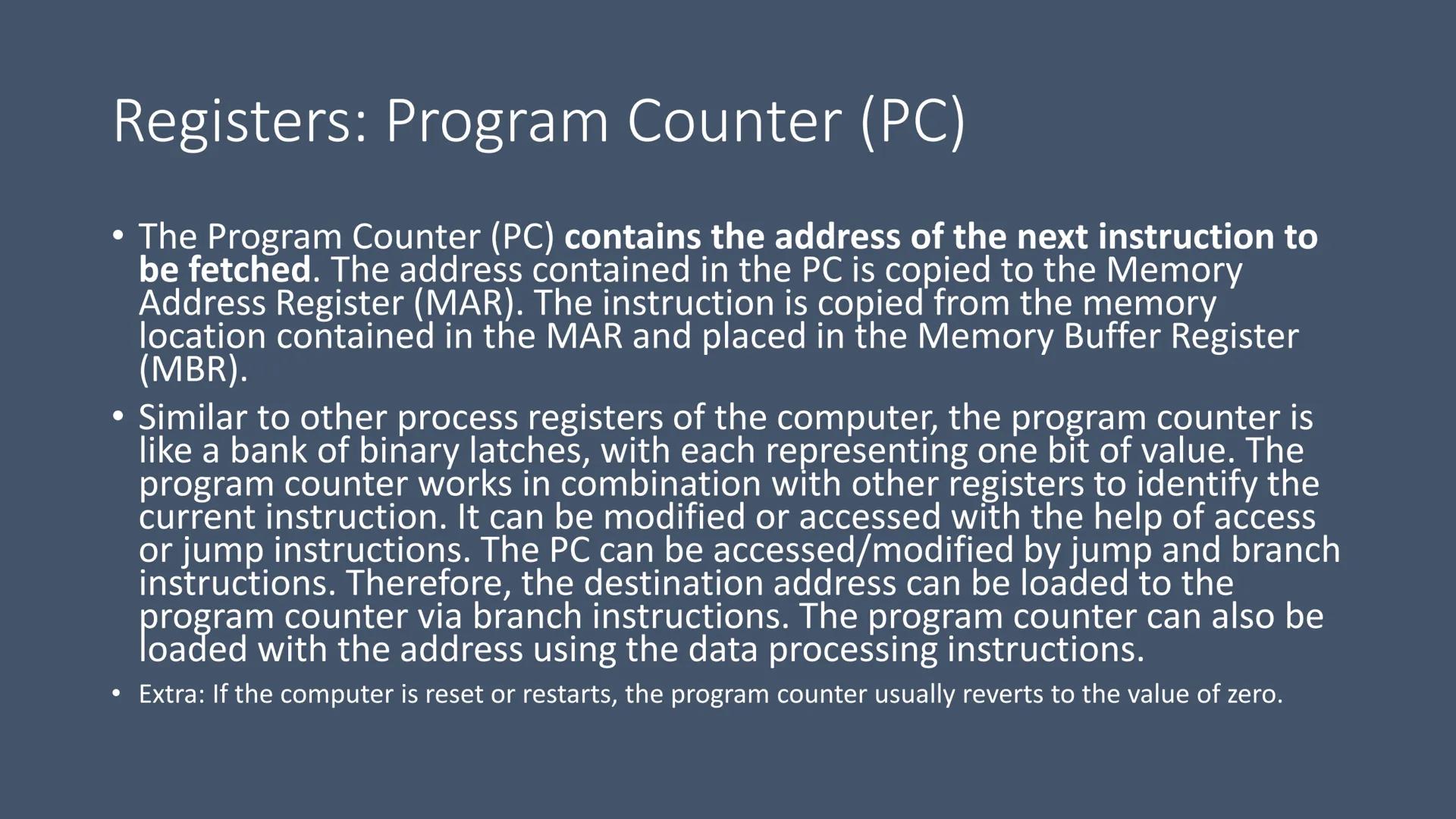

The Program Counter is arguably the most important register because it keeps track of where your program is going. It contains the address of the next instruction to be fetched from memory.

When the processor needs an instruction, it copies the address from the PC to the Memory Address Register (MAR). The instruction is then fetched from that memory location and placed in the Memory Buffer Register.

Jump and branch instructions can modify the PC directly, allowing programs to skip around rather than just executing instructions sequentially. This is how loops, conditionals, and function calls work at the processor level.

Reset Fact: When your computer restarts, the Program Counter usually goes back to zero - that's where the boot process begins!

Program Counter Instructions

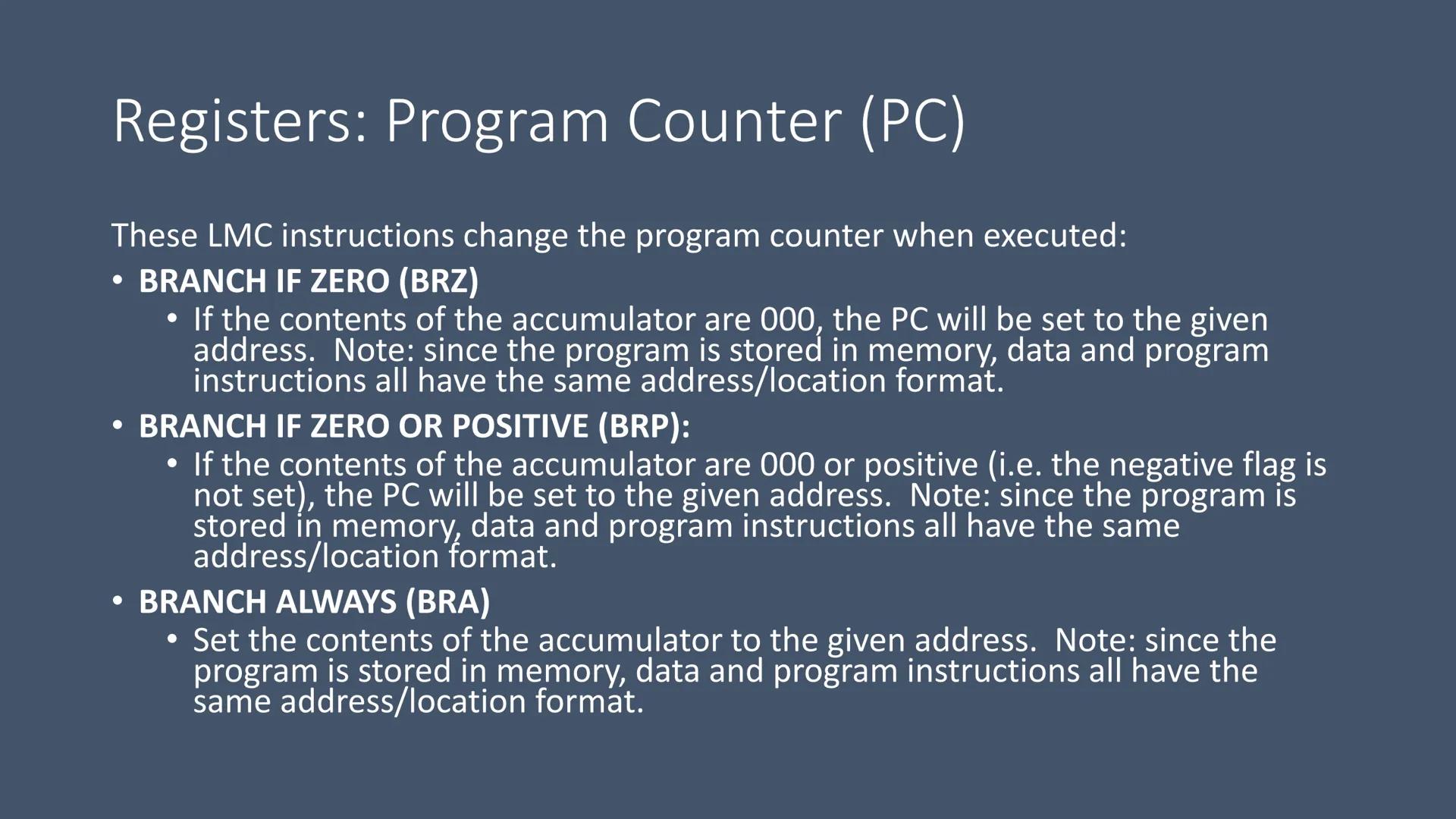

Understanding how branch instructions work helps explain how programs make decisions. BRANCH IF ZERO (BRZ) checks if the accumulator contains 000, and if so, sets the PC to a new address.

BRANCH IF ZERO OR POSITIVE (BRP) is similar but also branches when the accumulator is positive (negative flag not set). This allows for more complex conditional logic in programs.

BRANCH ALWAYS (BRA) unconditionally sets the PC to a given address - this is how unconditional jumps and loops work. These instructions are fundamental to program flow control.

Programming Connection: Every 'if' statement, 'while' loop, and function call in high-level languages ultimately uses these basic branching mechanisms!
