What's the Difference Between Von Neumann and Harvard Architecture?

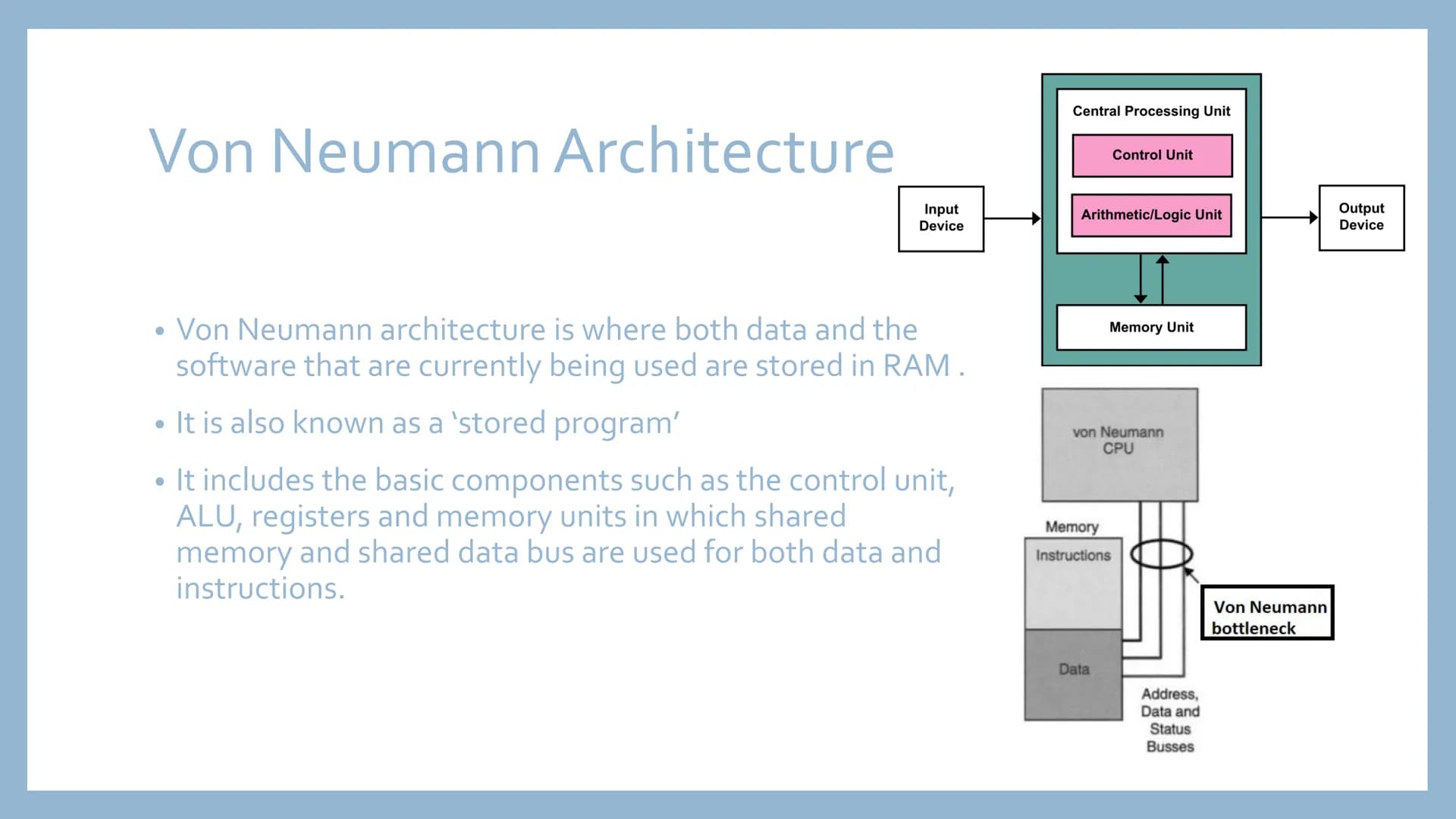

Page 2 explores the Von Neumann Architecture in detail, explaining its core components and functionality. This architecture represents a fundamental approach to computer design that remains influential today.

Definition: Von Neumann Architecture is a computer design model where both data and programs share the same memory space.

Highlight: The architecture includes key components such as the control unit, ALU, registers, and memory units, all connected through shared buses.

Vocabulary: Von Neumann bottleneck refers to the limitation caused by having a single bus for both data and instruction transfer.

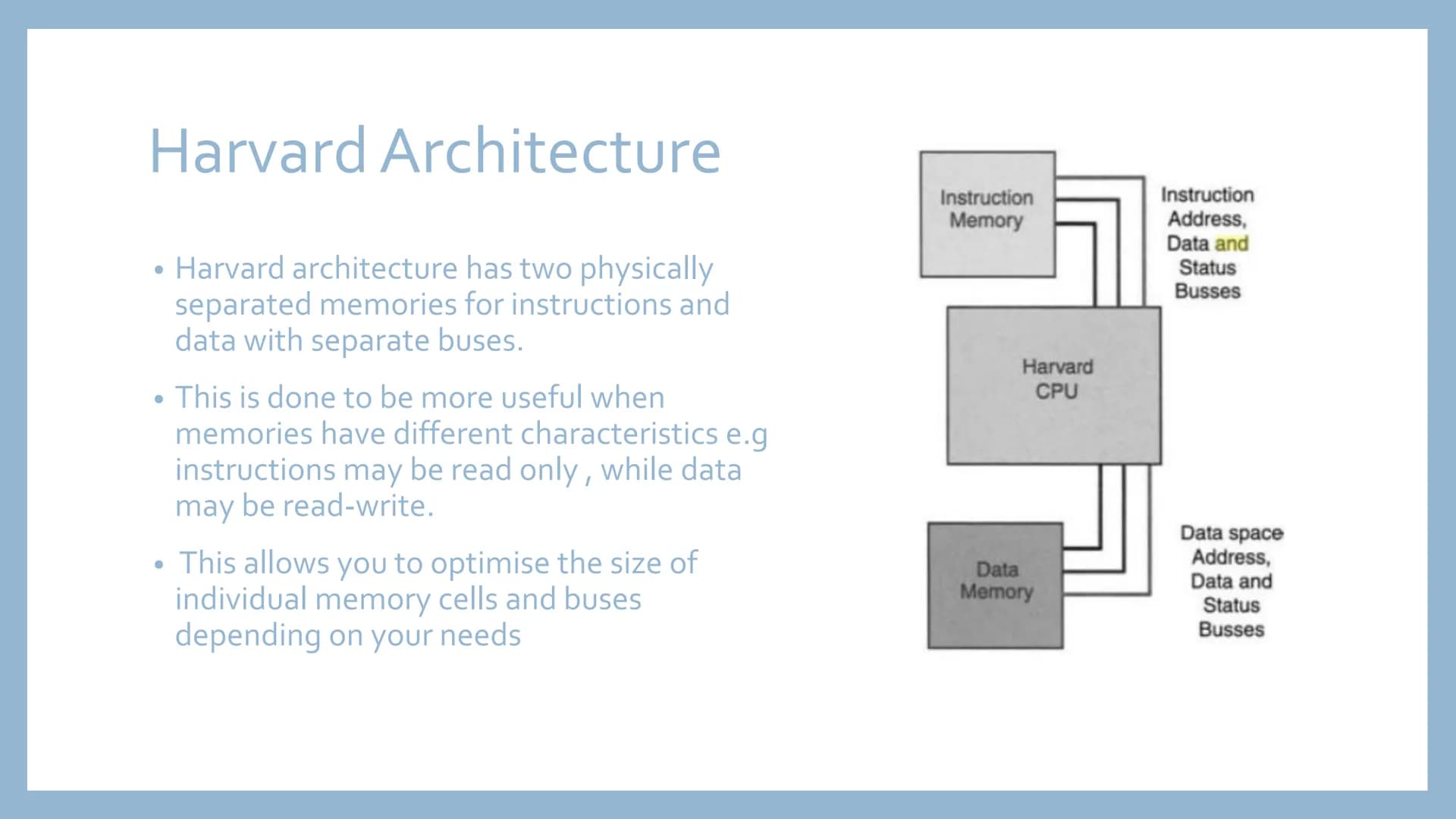

Page 3 details the Harvard Architecture, presenting its distinctive approach to memory organization and data handling.

Definition: Harvard Architecture features physically separated memories for instructions and data, each with its own dedicated buses.

Highlight: This separation allows for optimization of memory cells and buses based on specific requirements.

Example: Memory can be configured differently for instructions (read-only) and data (read-write) operations.

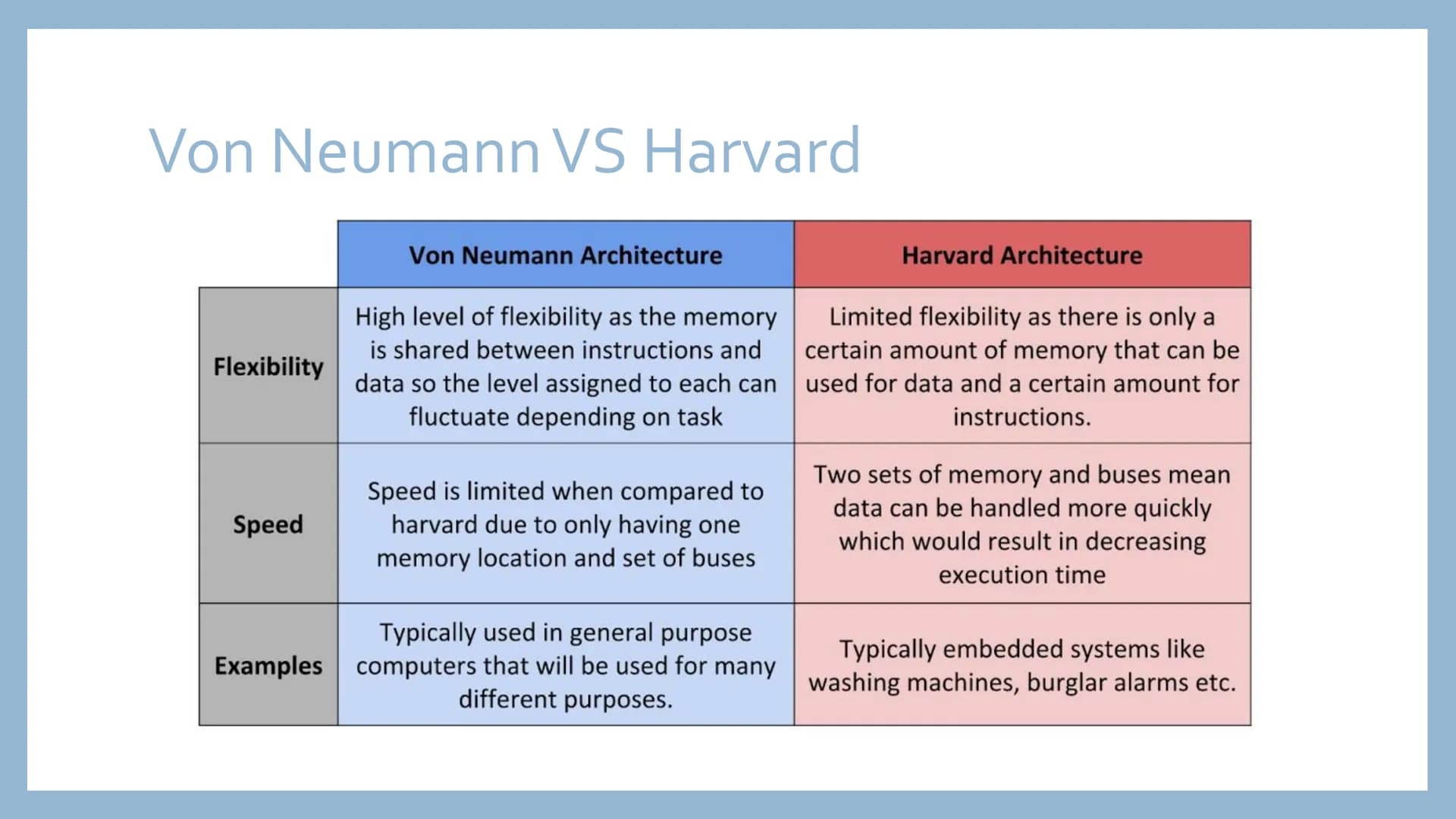

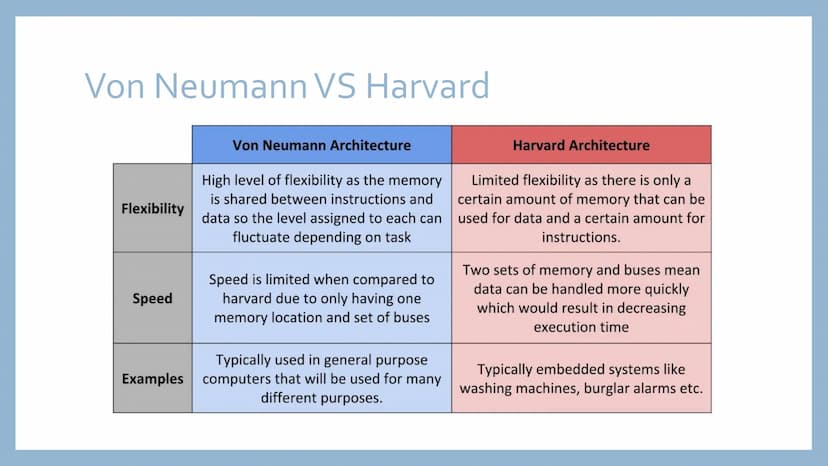

Page 4 provides a comprehensive comparison between Von Neumann and Harvard architectures, focusing on their practical applications.

Highlight: Von Neumann architecture offers greater flexibility with shared memory, while Harvard architecture provides superior speed through separate memory spaces.

Example: General-purpose computers typically use Von Neumann architecture, while embedded systems like washing machines employ Harvard architecture.

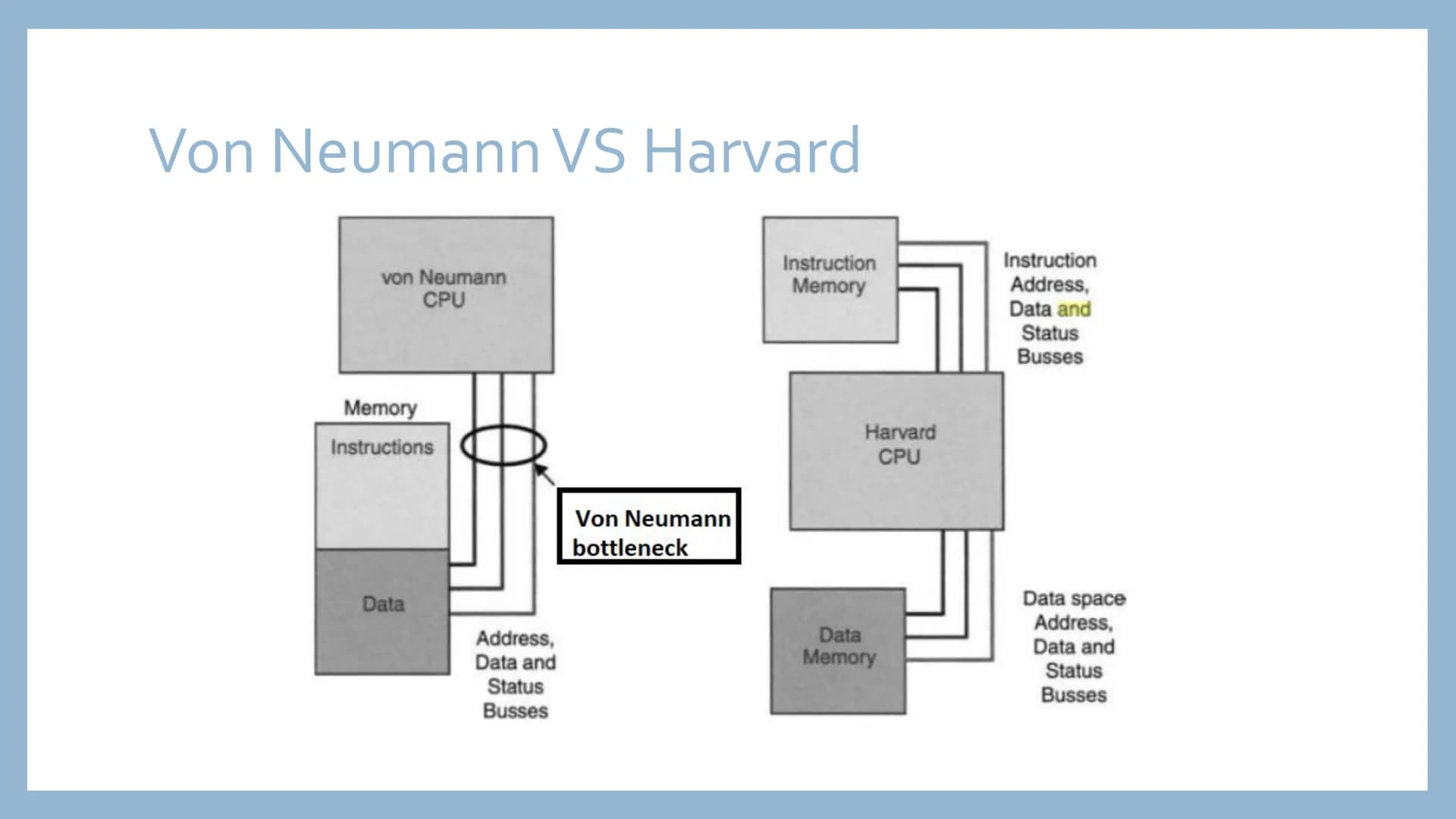

Page 5 presents visual representations of both architectures, illustrating their structural differences and operational characteristics.

Highlight: The diagrams clearly show the single memory system of Von Neumann architecture versus the dual memory system of Harvard architecture.

Definition: The bus structure in both architectures carries address, data, and status information between components.

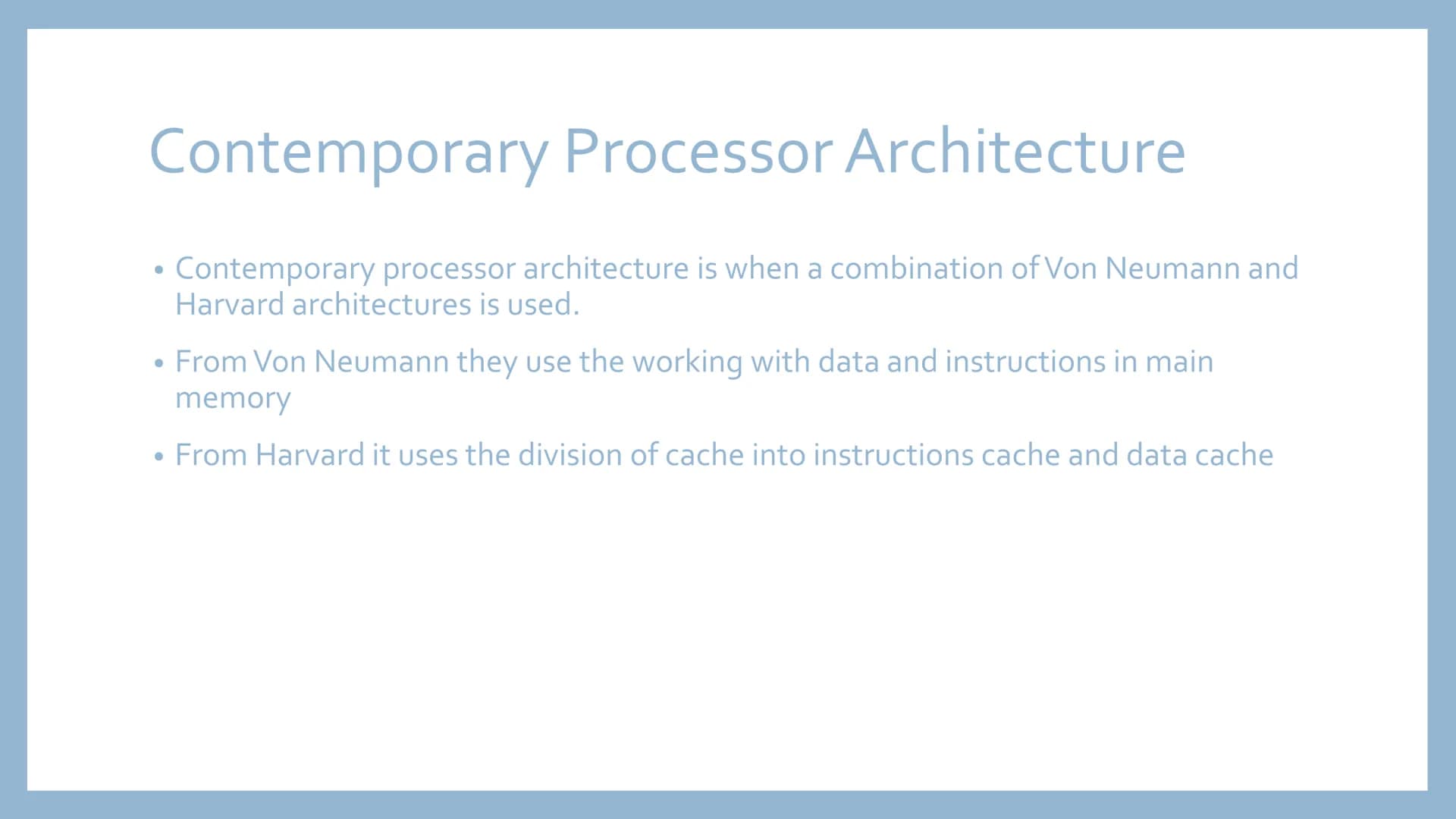

Page 6 introduces Contemporary Processor Architecture, explaining how modern processors combine elements from both traditional architectures.

Definition: Contemporary Processor Architecture integrates aspects of both Von Neumann and Harvard designs to optimize performance.

Highlight: Modern processors use Von Neumann's approach for main memory operations while implementing Harvard's separated cache structure.

Page 1 introduces Computer Architecture as the fundamental topic of discussion. This foundational concept forms the basis for understanding modern computing systems.

Definition: Computer Architecture refers to the organization and design of computer systems, including how different components interact to process information.
