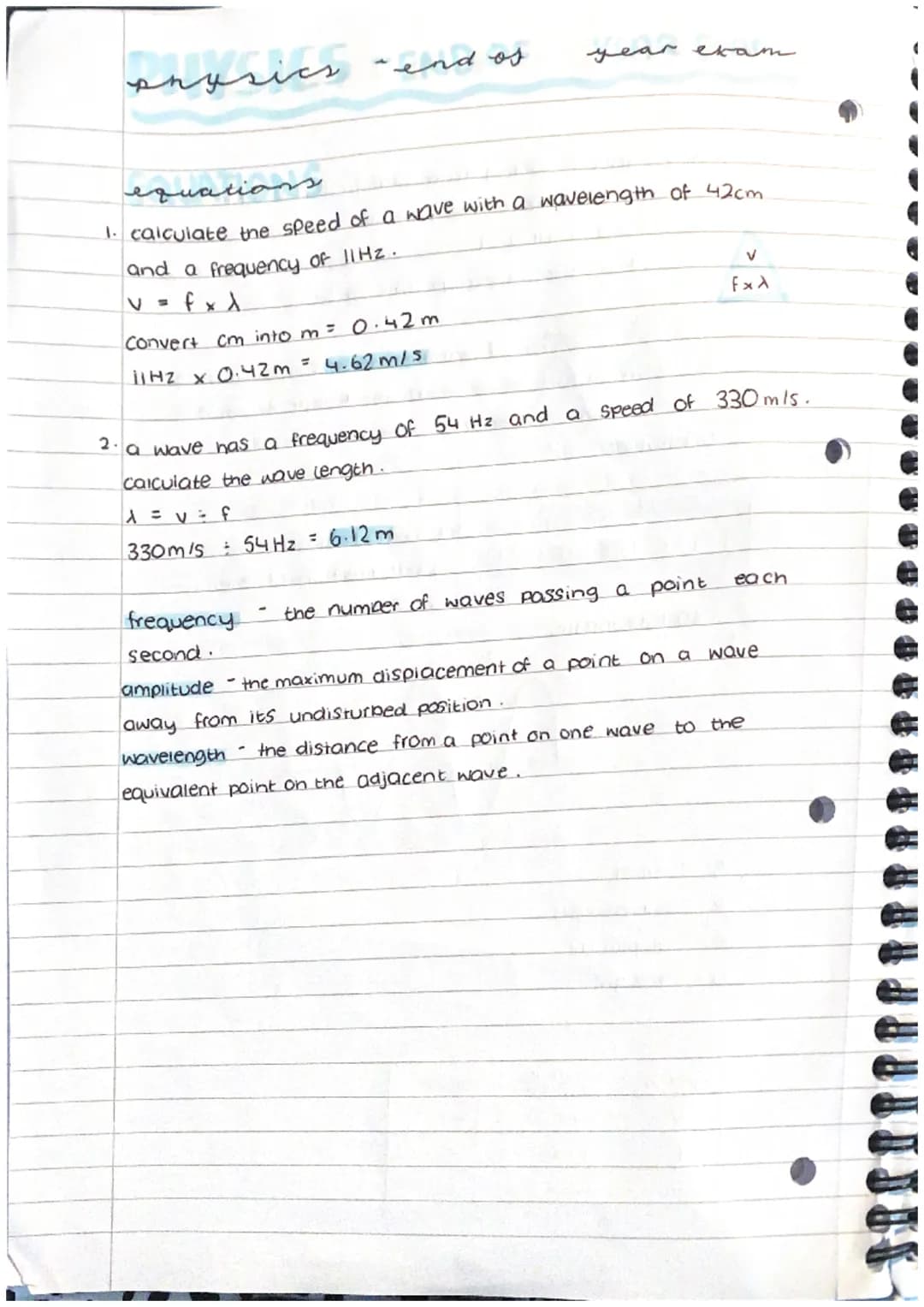

Wave Calculations and Equations

This page focuses on practical applications of wave equations, providing examples of how to calculate wave speed and frequency year 8 physics gcse.

Example: A wave with a wavelength of 42cm and a frequency of 11Hz has a speed of 4.62m/s, calculated using the wave speed equation: v = f × λ

The page introduces key equations for wave calculations:

Highlight:

• Wave speed equation: v = f × λ
• Wave speed unit: meters per second $m/s$
• Wave frequency formula: f = v ÷ λ

These equations are essential for solving problems in Year 8 physics test papers with answers pdf free.

The page also provides definitions for important wave properties:

Definition:

• Frequency: The number of waves passing a point each second
• Amplitude: The maximum displacement of a point on a wave from its undisturbed position
• Wavelength: The distance from a point on one wave to the equivalent point on the adjacent wave

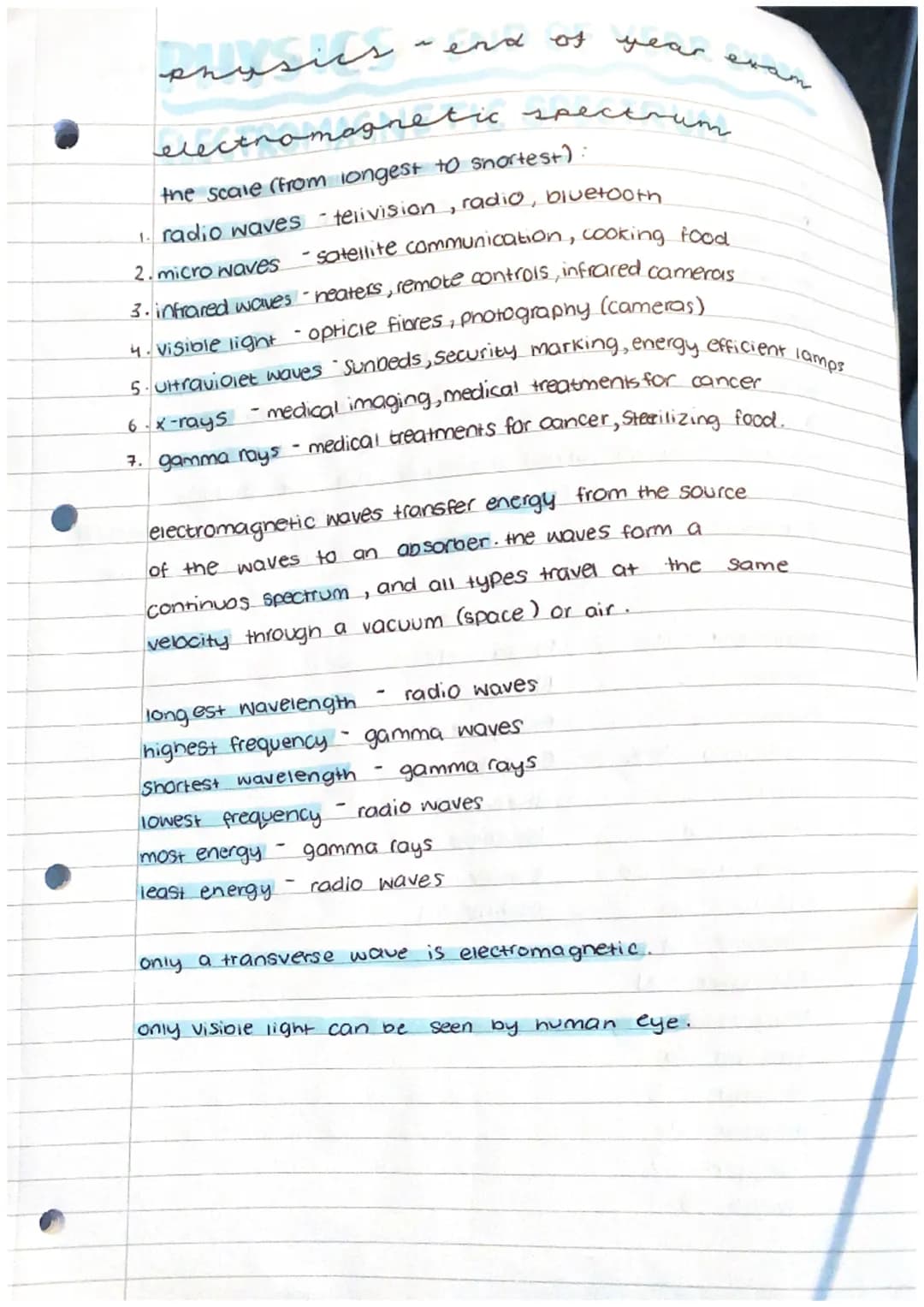

Electromagnetic Spectrum

This page provides a comprehensive overview of the electromagnetic spectrum, which is crucial for understanding electromagnetic spectrum study guide year 8 pdf materials.

Highlight: The electromagnetic spectrum is presented from longest to shortest wavelength: radio waves, microwaves, infrared waves, visible light, ultraviolet waves, X-rays, and gamma rays.

The page details applications for each type of electromagnetic wave:

Example:

• Radio waves: Used in television, radio, and Bluetooth communication
• Microwaves: Used in satellite communication and cooking food
• Infrared waves: Used in heaters, remote controls, and infrared cameras

Important characteristics of electromagnetic waves are discussed:

Definition: Electromagnetic waves transfer energy from the source to an absorber, forming a continuous spectrum. All types travel at the same velocity through a vacuum or air.

The page also highlights key relationships within the spectrum:

Highlight:

• Longest wavelength and lowest frequency: Radio waves
• Shortest wavelength and highest frequency: Gamma rays
• Most energy: Gamma rays
• Least energy: Radio waves

This information is essential for answering electromagnetic spectrum IGCSE questions.

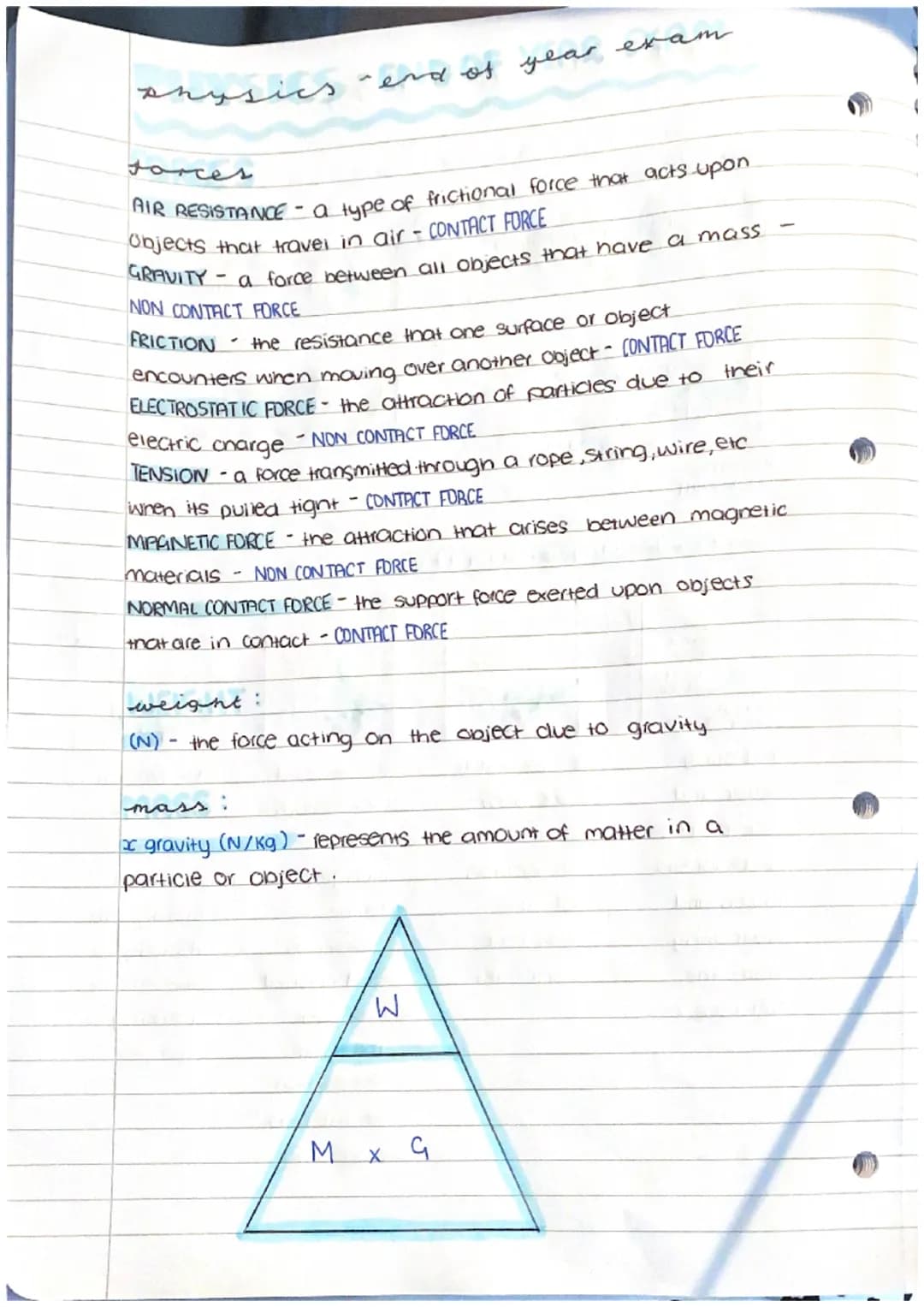

Forces

This page introduces various types of forces, which is crucial information for Year 8 forces test PDF preparation.

The page categorizes forces into contact and non-contact forces:

Definition:

• Contact forces: Forces that require physical contact between objects
• Non-contact forces: Forces that act between objects without physical contact

Examples of different forces are provided:

Vocabulary:

• Air resistance: A frictional force acting on objects moving through air $contact force$
• Gravity: A force between all objects with mass $non-contact force$
• Friction: Resistance encountered when one surface moves over another $contact force$
• Electrostatic force: Attraction between particles due to electric charge $non-contact force$
• Tension: Force transmitted through a taut rope or string $contact force$
• Magnetic force: Attraction between magnetic materials $non-contact force$
• Normal contact force: Support force exerted on objects in contact $contact force$

The page also introduces the concepts of weight and mass:

Definition:

• Weight: The force acting on an object due to gravity $measured in Newtons, N$
• Mass: The amount of matter in an object $measured in kilograms, kg$

This information is essential for answering GCSE Physics forces Questions and answers pdf.

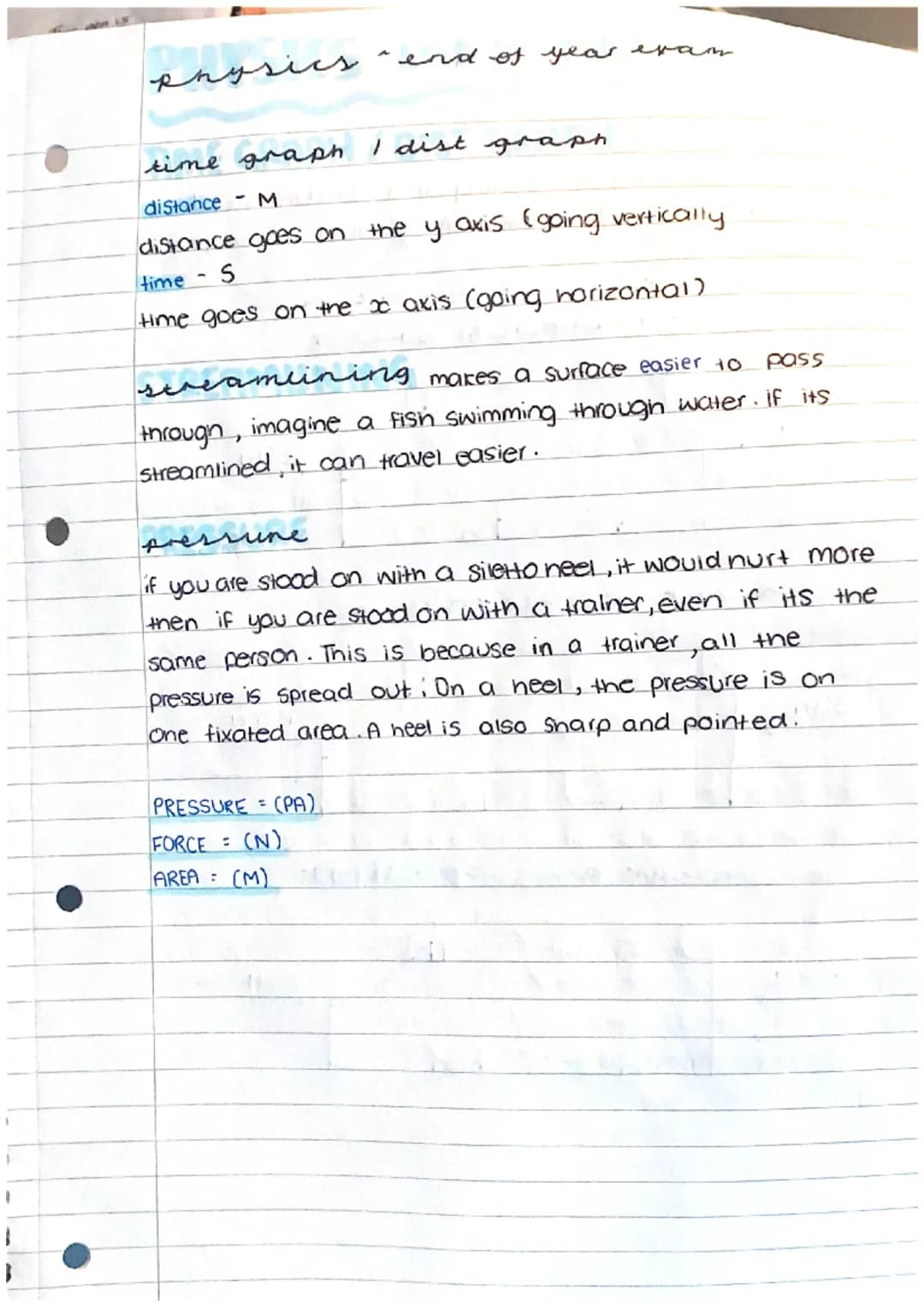

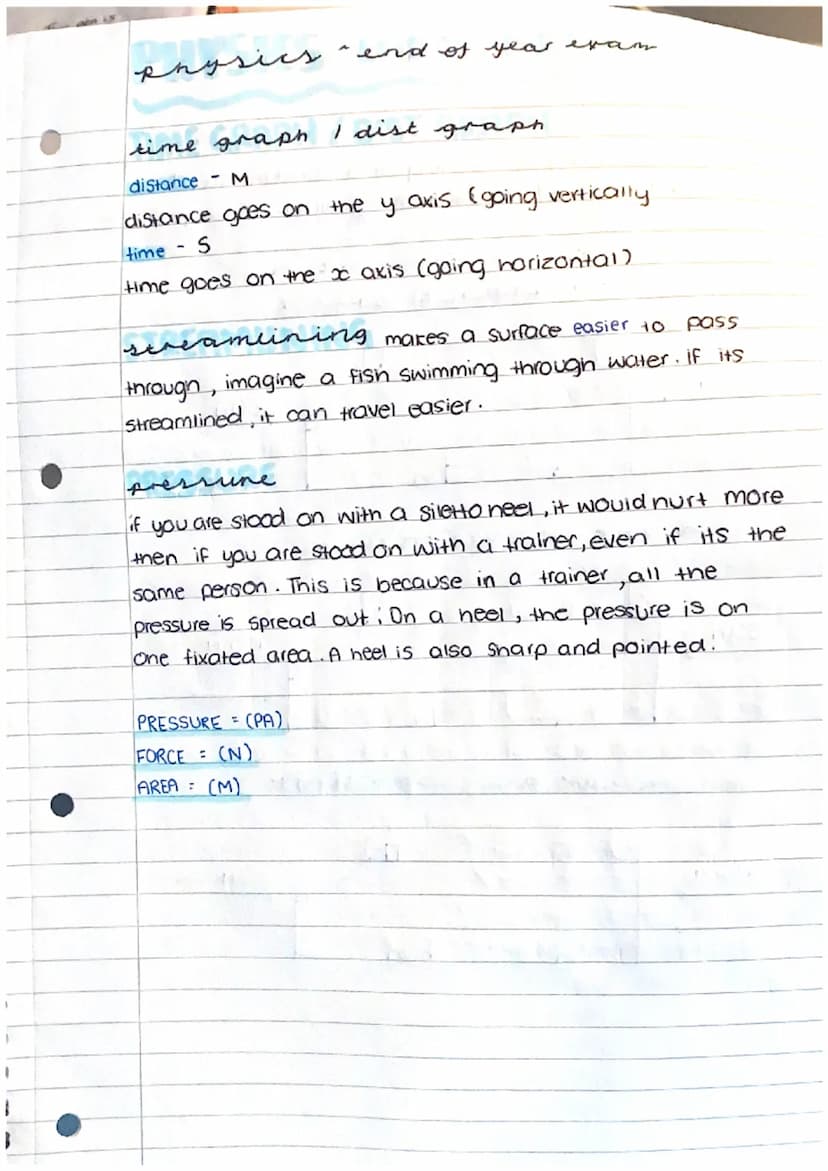

Distance-Time Graphs and Pressure

This page covers distance-time graphs and the concept of pressure, which are important topics in Year 7 forces test pdf with answers.

The page explains how to interpret distance-time graphs:

Highlight: In a distance-time graph, distance is plotted on the vertical y-axis, and time is plotted on the horizontal x-axis.

The concept of streamlining is introduced:

Definition: Streamlining makes a surface easier to pass through, reducing resistance. For example, a streamlined fish can swim more easily through water.

The page also explains pressure and its effects:

Example: A stiletto heel exerts more pressure than a trainer because the force is concentrated on a smaller area.

The pressure equation is provided:

Highlight: Pressure $Pa$ = Force $N$ ÷ Area $m²$

This information is crucial for solving problems related to pressure in Year 8 Physics test papers with answers pdf free.

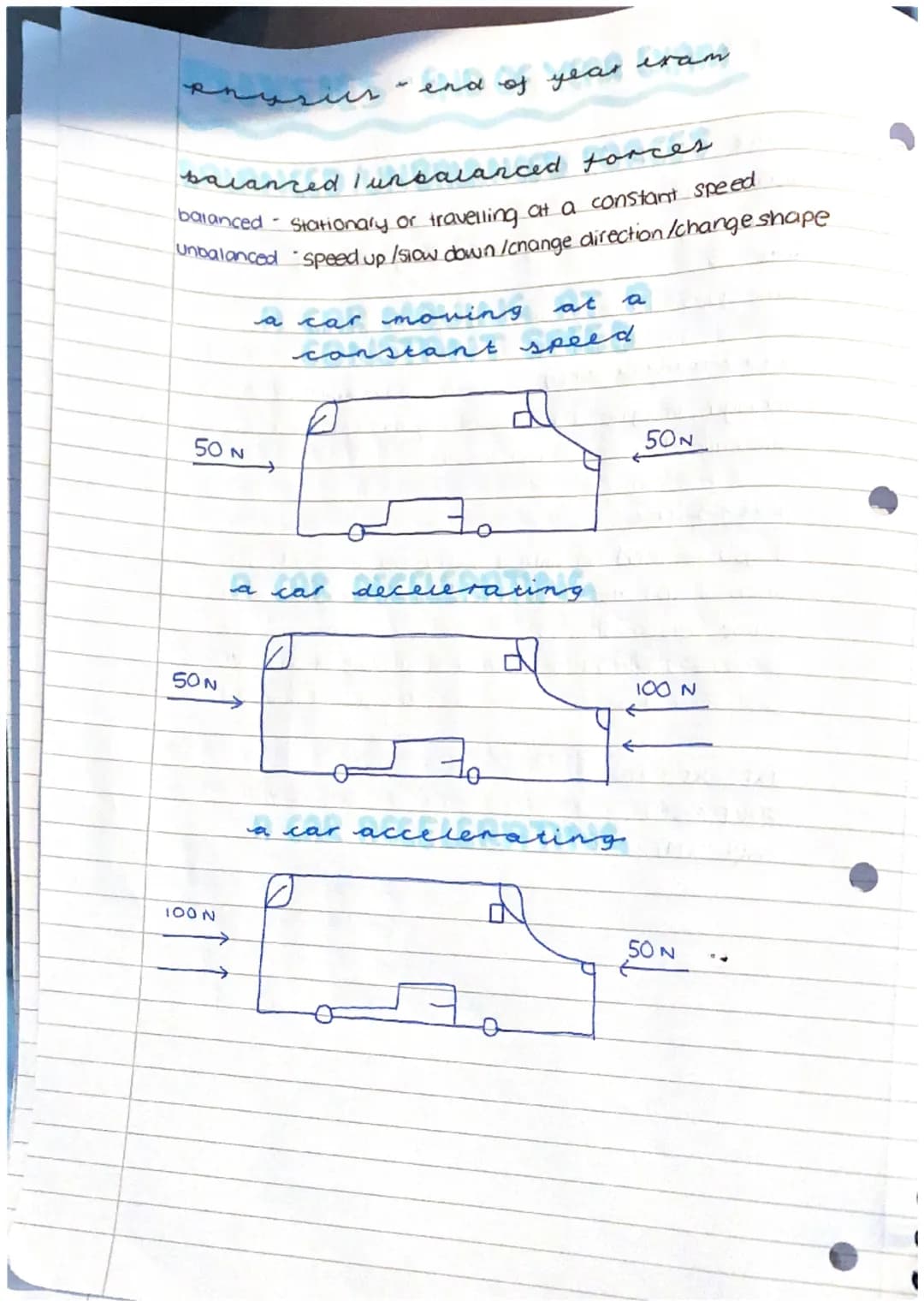

Balanced and Unbalanced Forces

This page discusses the effects of balanced and unbalanced forces on objects, which is essential knowledge for GCSE Physics forces Questions and answers pdf.

The page defines balanced and unbalanced forces:

Definition:

• Balanced forces: Result in an object remaining stationary or traveling at a constant speed
• Unbalanced forces: Cause an object to speed up, slow down, change direction, or change shape

The effects of forces are illustrated with examples:

Example:

• A car moving at constant speed experiences balanced forces
• A car accelerating or decelerating experiences unbalanced forces

The page also provides visual representations of balanced and unbalanced forces acting on objects.

This information helps students understand the practical applications of forces in everyday situations, preparing them for Year 8 physics waves and forces exam questions.

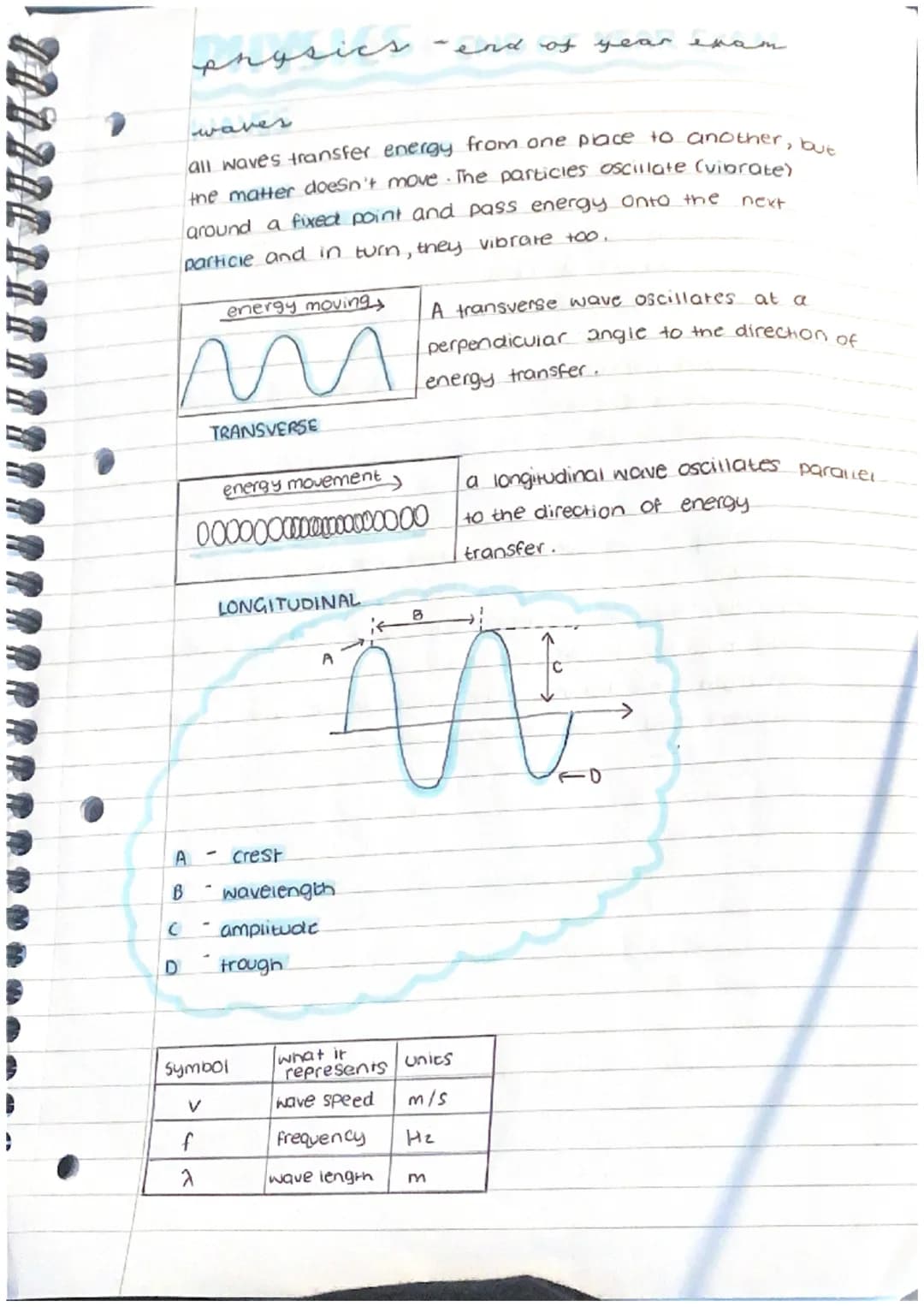

Waves and Energy Transfer

This page introduces fundamental concepts of waves and energy transfer in physics. It covers the characteristics of transverse and longitudinal waves, as well as key wave properties.

Definition: Waves transfer energy from one place to another without the movement of matter. Particles oscillate around a fixed point, passing energy to neighboring particles.

The page illustrates the differences between transverse and longitudinal waves:

Highlight: Transverse waves oscillate perpendicular to the direction of energy transfer, while longitudinal waves oscillate parallel to it.

Key wave properties are defined and illustrated:

Vocabulary:

• Wavelength: The distance between equivalent points on adjacent waves
• Amplitude: The maximum displacement of a point on a wave from its resting position
• Crest: The highest point of a transverse wave
• Trough: The lowest point of a transverse wave

The page also introduces important symbols and units used in wave calculations, which are crucial for solving Year 8 physics waves and forces exam questions.
