Fun with the Hertzsprung-Russell Diagram & Stellar Types for Kids!
K
Kunal
@wantedbythecia
1 / 4

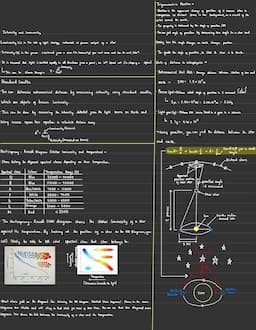

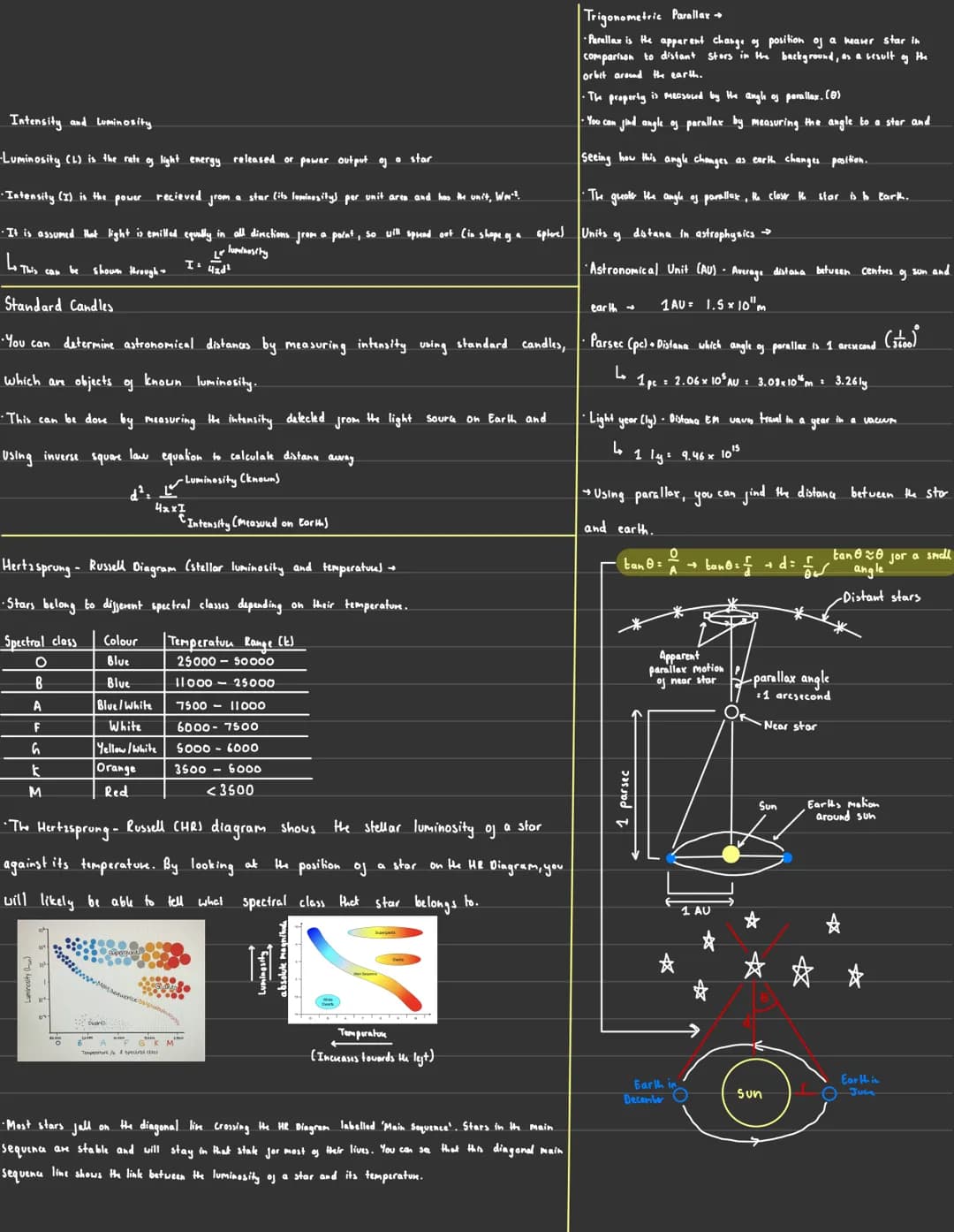

Intensity and Luminosity in Stellar Physics
This section explores the fundamental concepts of intensity and luminosity in the context of stellar physics.
Luminosity (L) is defined as the rate of light energy released or the power output of a star. In contrast, intensity (I) represents the power received from a star per unit area, measured in W/m². The relationship between these two quantities is governed by the inverse square law: I ∝ 1/d², where d is the distance from the star.
Definition: Luminosity is the total energy output of a star, while intensity is the energy received per unit area at a specific distance.
The concept of standard candles is introduced as a method for determining astronomical distances. These are objects with known luminosity, allowing astronomers to calculate distances by measuring the intensity of light received on Earth.
Example: Type Ia supernovae are often used as standard candles due to their consistent peak luminosity.
The Hertzsprung-Russell diagram is presented as a powerful tool for classifying stars based on their luminosity and temperature. It shows the relationship between these properties and allows for the identification of different spectral classes.
Highlight: The main sequence on the HR diagram represents stable stars that will remain in that state for most of their lives.
The section concludes with an explanation of trigonometric parallax, a method used to measure the distances to nearby stars. Various units of astronomical distance are defined, including the astronomical unit (AU), parsec (pc), and light-year (ly).
Vocabulary: Parallax is the apparent change in position of a nearby star relative to distant background stars, caused by Earth's orbit around the Sun.

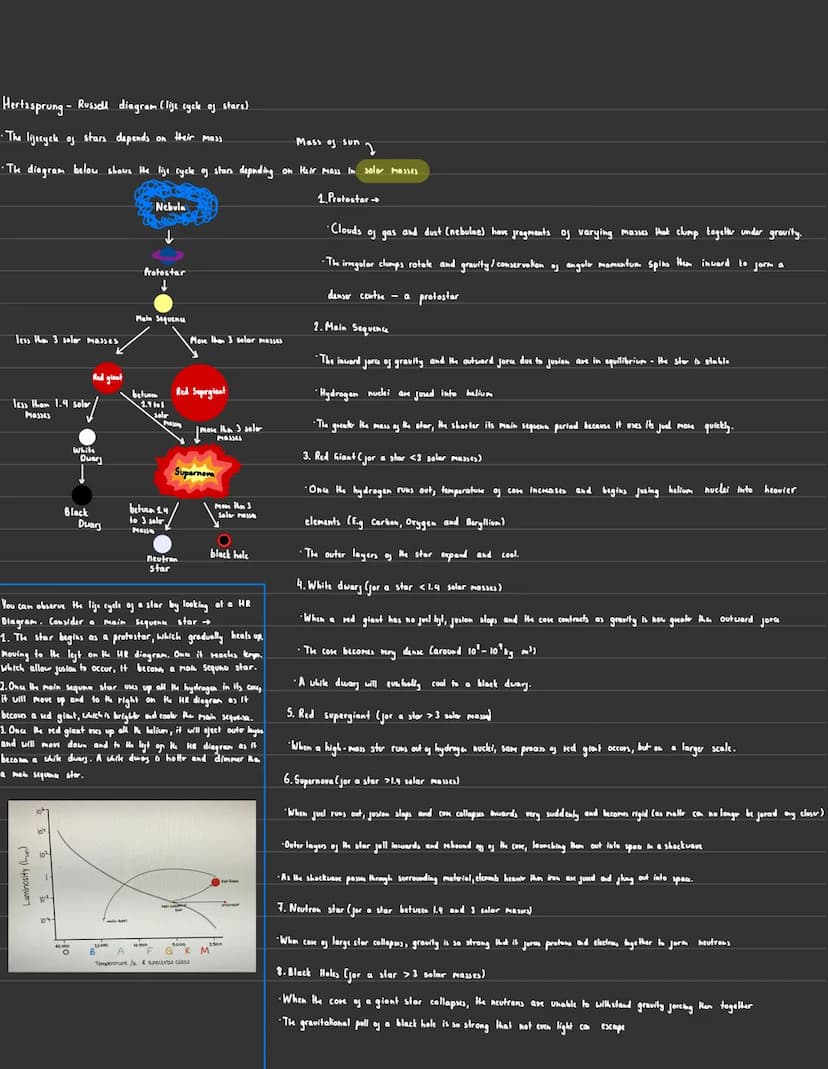

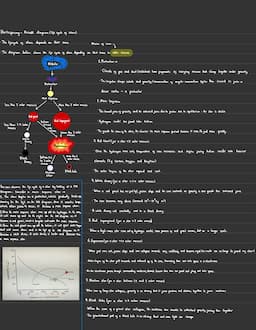

The Hertzsprung-Russell Diagram and Stellar Life Cycles
This section delves into the Hertzsprung-Russell diagram as a tool for understanding the life cycles of stars based on their mass.
The HR diagram is presented as a visual representation of stellar evolution, with different paths for stars of varying masses. The life cycles of stars are categorized into three main groups:
- Stars less than 1.4 solar masses
- Stars between 1.4 and 3 solar masses
- Stars more than 3 solar masses
Highlight: The mass of a star is the primary factor determining its evolutionary path and ultimate fate.
The typical life cycle of a main sequence star is described in detail:
- Protostar formation from nebulae
- Main sequence phase with stable hydrogen fusion
- Red giant phase as hydrogen is depleted
- End states such as white dwarfs, neutron stars, or black holes
Example: Our Sun, with a mass of 1 solar mass, will eventually become a red giant and then a white dwarf.
The section explains how to interpret a star's position on the HR diagram at different stages of its life. It emphasizes the relationship between a star's mass and its main sequence lifetime, with more massive stars burning through their fuel more quickly.
Quote: "The greater the mass of the star, the shorter its main sequence period because it uses its fuel more quickly."
The formation and characteristics of various stellar objects are described, including protostars, main sequence stars, red giants, and white dwarfs. The section concludes with an introduction to more massive stars and their potential to form neutron stars or black holes through supernova explosions.
Vocabulary: A supernova is a powerful and luminous stellar explosion that occurs at the end of a massive star's life.
Advanced Stellar Evolution
The final section elaborates on specific stages of stellar evolution:
Definition: A protostar is formed when nebulae fragments clump together under gravitational forces.
Vocabulary: Red giants form when hydrogen fusion ceases in the core, causing outer layers to expand and cool.
Example: White dwarfs have extremely high densities, around 10¹⁰ - 10¹² kg/m³.
Highlight: The transition between stages depends on the star's mass and available nuclear fuel.
Hertzsprung-Russell Diagram and Stellar Classification
The Hertzsprung-Russell diagram is a crucial tool in astrophysics for understanding stellar evolution and classification. This comprehensive guide explores:
- The relationship between stellar luminosity and temperature
- Stellar classification based on spectral classes
- The concept of standard candles in measuring cosmic distances
- The life cycles of stars with different masses
- Key astrophysical concepts like luminosity, intensity, and parallax
Key points:
- The HR diagram plots stellar luminosity against temperature, revealing different star types and evolutionary stages
- Most stars fall along the main sequence, showing a clear relationship between luminosity and temperature
- Standard candles are objects of known luminosity used to measure astronomical distances
- A star's mass determines its evolutionary path, from protostars to main sequence stars, and eventual end states like white dwarfs or black holes
- Understanding these concepts is crucial for GCSE, A-level physics, and beyond in the field of astronomy
