Levers and Moments

This section covers the principles of levers and moments in physics.

Levers in Action

The page provides examples of levers in everyday objects:

Example: Foot pumps, bottle openers, and tin lid openers are all examples of levers in action.

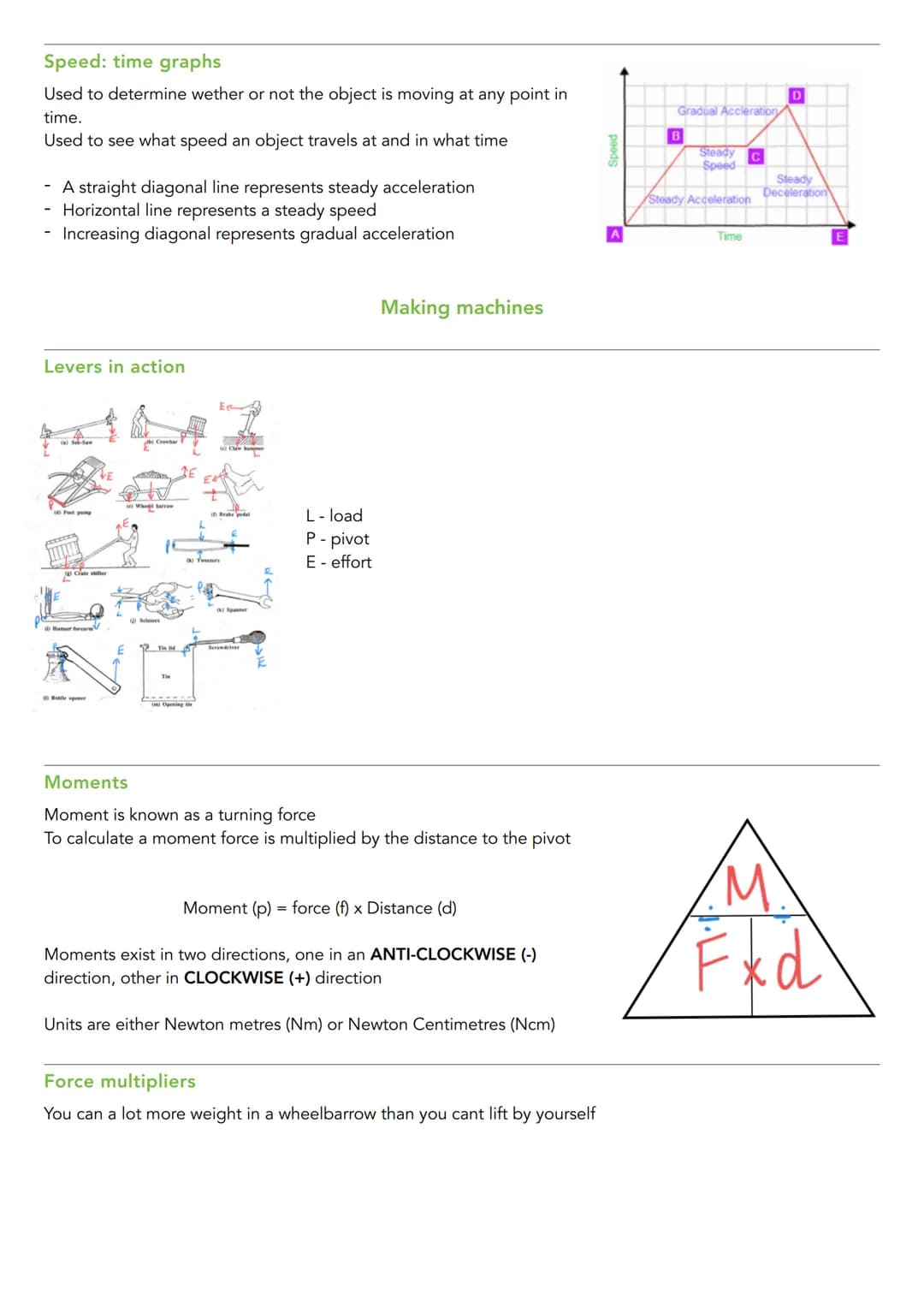

Moments

Definition: A moment is a turning force, calculated by multiplying force by the distance to the pivot.

Vocabulary: The formula for moment is Moment (M) = Force (F) × Distance $d$

The page explains that moments exist in two directions: clockwise (+) and anti-clockwise (-). The units for moments are Newton metres (Nm) or Newton centimetres (Ncm).

Force Multipliers

The concept of force multipliers is introduced, using a wheelbarrow as an example to demonstrate how levers can help lift heavier weights than possible by hand alone.

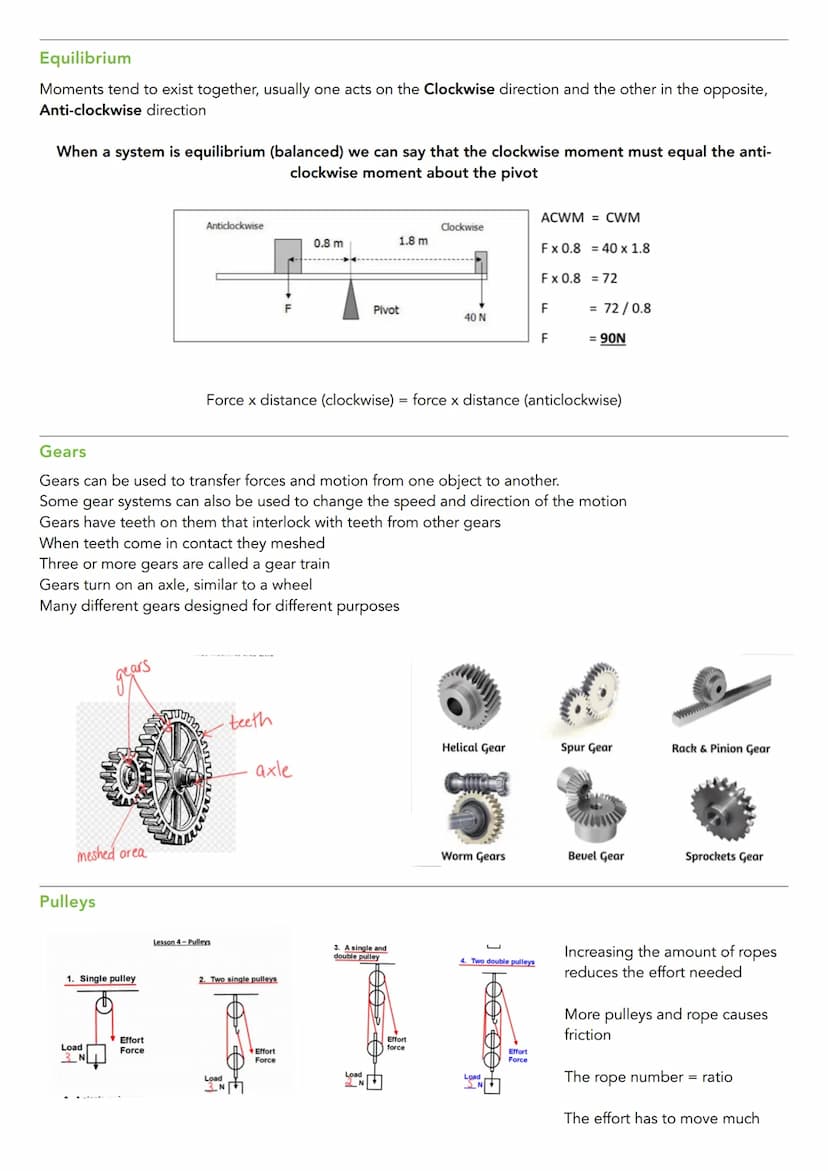

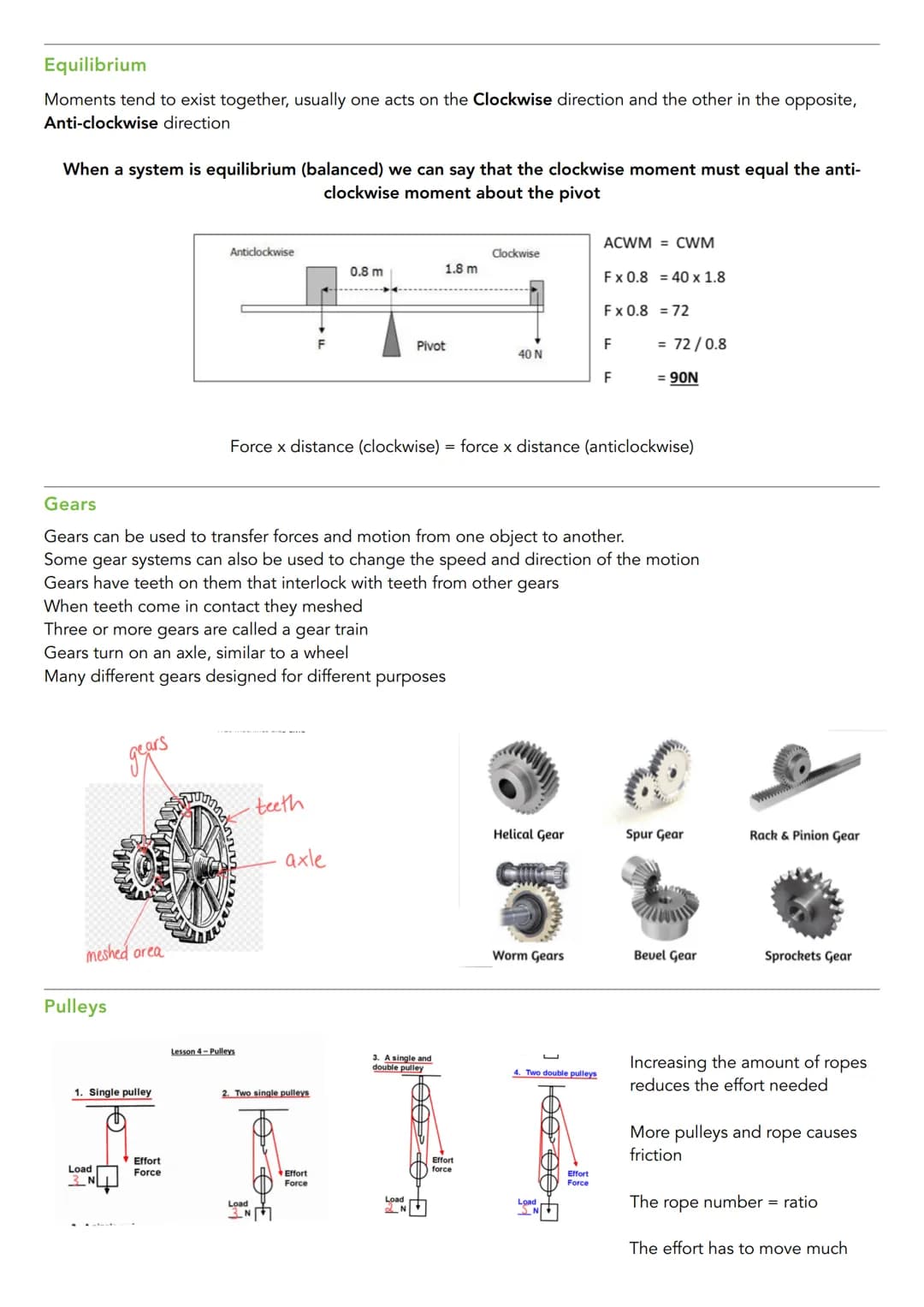

Equilibrium

Definition: A system is in equilibrium when the clockwise moment equals the anti-clockwise moment about the pivot.

The page includes a diagram illustrating the balance of moments in equilibrium, which is crucial for understanding levers and gears GCSE Physics concepts.

Pulleys and Gears

This section delves into the mechanics of pulleys and gears, essential topics for GCSE physics gears questions and levers, pulleys and gears ks2 worksheets.

Pulleys

The page presents four different pulley systems:

1. Single pulley
2. Two single pulleys
3. A single and double pulley
4. Two double pulleys

Highlight: Increasing the number of ropes in a pulley system reduces the effort needed to lift a load, but the rope must move a greater distance.

Example: In a system where one rope has three parallel pieces, each part lifts 1/3 of the load.

The relationship between load and effort in pulley systems is explained:

• Load = ropes × effort
• Effort = load / ropes

Gears

The page introduces various types of gears and their functions:

Vocabulary: Gears that interlock are said to be "meshed."

Definition: A gear train consists of three or more gears.

Different gear types are illustrated, including:

• Helical Gear
• Worm Gears
• Spur Gear
• Bevel Gear
• Rack & Pinion Gear
• Sprockets Gear

The section explains how gears transfer forces and motion between objects, and how they can change the speed and direction of motion, which is crucial for understanding how levers and gears transmit the rotational effects of forces.

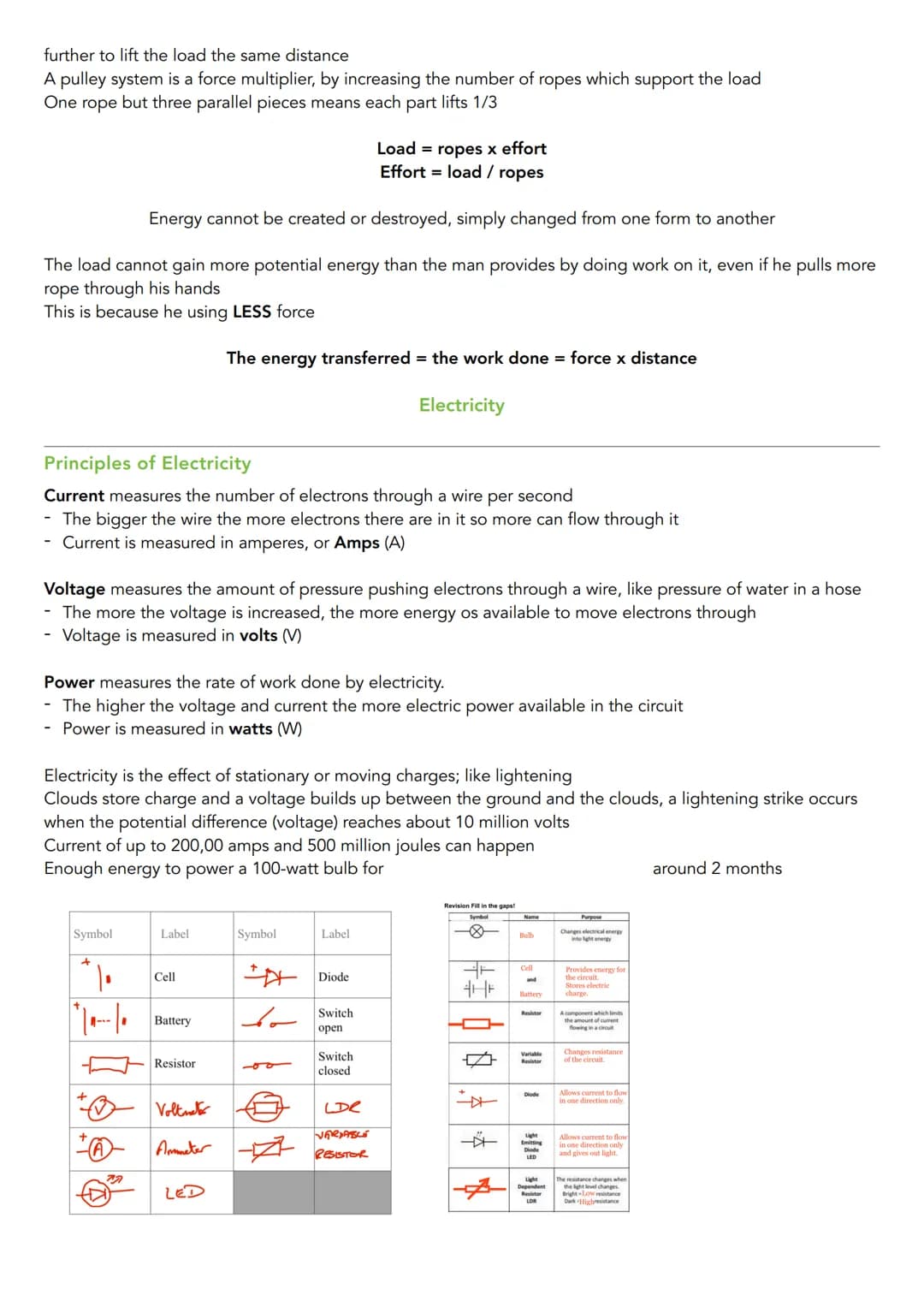

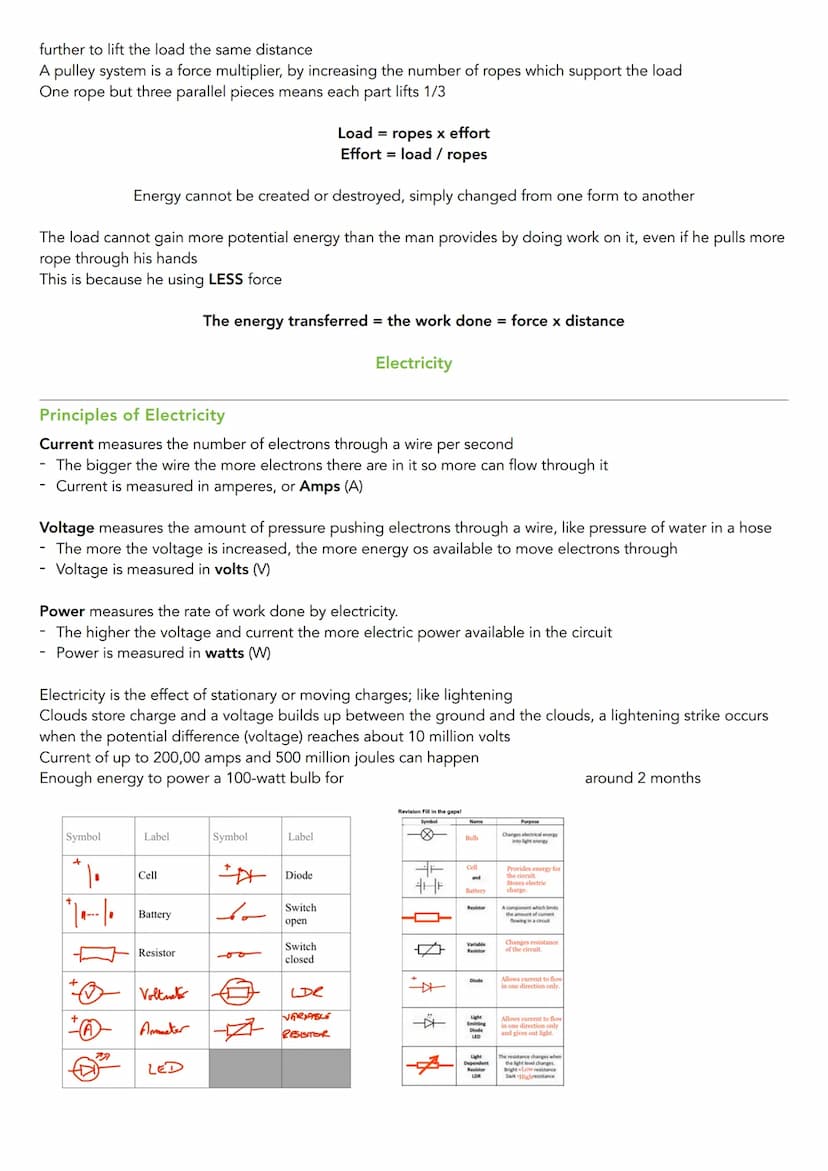

Principles of Electricity

This section introduces basic concepts of electricity, essential for understanding the broader context of mechanical systems in physics.

Current, Voltage, and Power

The page defines and explains three fundamental electrical concepts:

Definition: Current measures the number of electrons flowing through a wire per second, measured in amperes (A).

Definition: Voltage measures the pressure pushing electrons through a wire, analogous to water pressure in a hose, measured in volts (V).

Definition: Power measures the rate of work done by electricity, measured in watts (W).

Electricity in Nature

The page provides an example of electricity in nature:

Example: Lightning occurs when the voltage between clouds and the ground reaches about 10 million volts, with currents up to 200,000 amps and energy of 500 million joules.

Circuit Components

The section includes a comprehensive table of electrical circuit components, their symbols, and functions. Components covered include:

• Cell and Battery
• Resistor and Variable Resistor
• Voltmeter and Ammeter
• LED and Diode
• Switches (open and closed)
• LDR (Light Dependent Resistor)
• Bulb

This information is particularly useful for students studying levers and gears GCSE Physics and Bbc Bitesize levers and pulleys ks3, as it provides context for the electrical systems that often work alongside mechanical systems.

Revision and Practice

The final page of the guide offers a revision exercise for electrical components.

Fill in the Gaps Exercise

Students are presented with a table containing symbols and descriptions of various electrical components. They are tasked with matching the correct labels to each component.

Highlight: This exercise reinforces understanding of key electrical components and their functions, which is essential for comprehensive knowledge of physics principles.

Components included in the exercise are:

• Bulb
• Cell and Battery
• Resistor and Variable Resistor
• Diode and LED
• Light Dependent Resistor (LDR)

This revision section helps students consolidate their knowledge, preparing them for GCSE Physics questions on electricity and its relationship to mechanical systems like levers, pulleys, and gears.

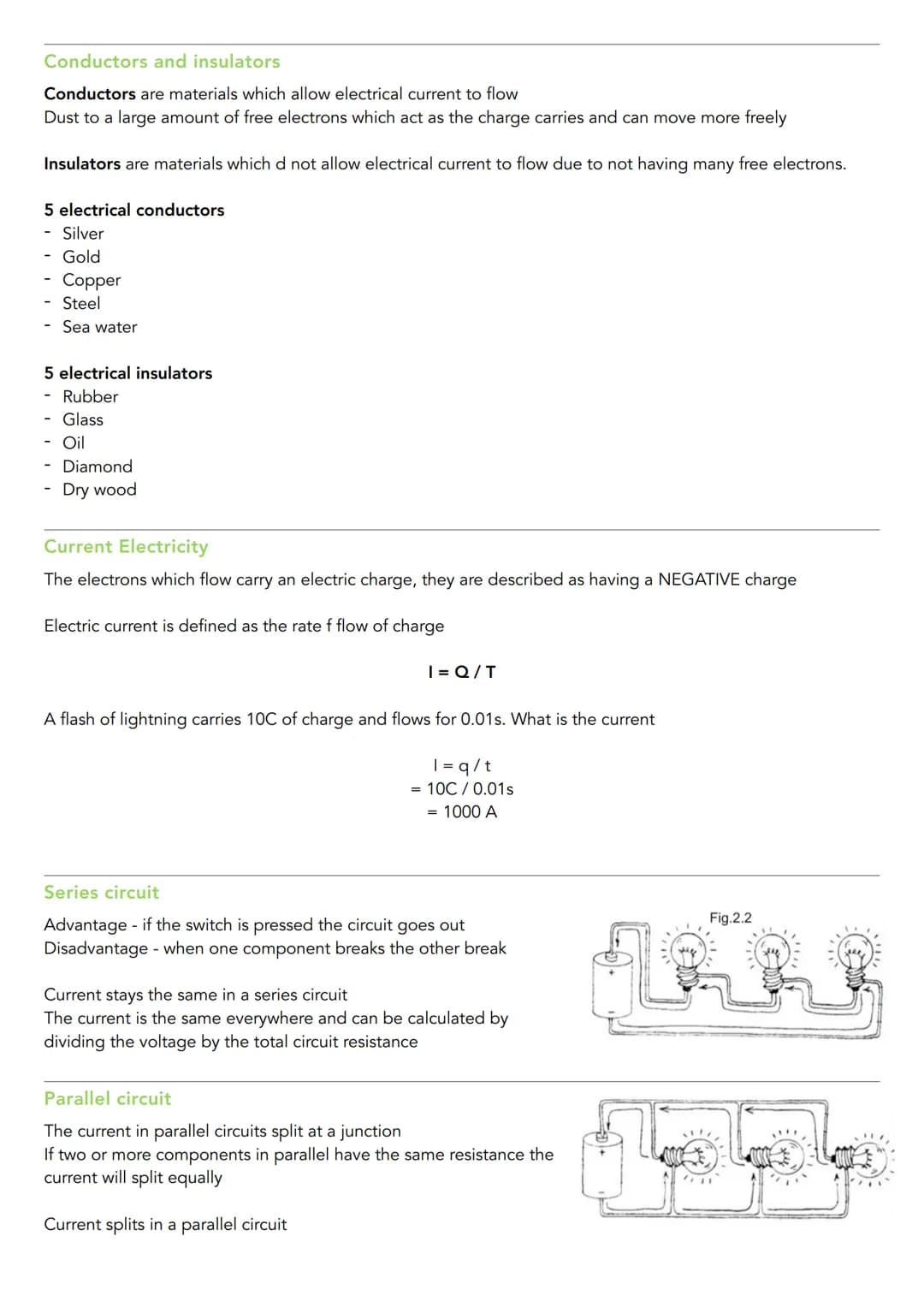

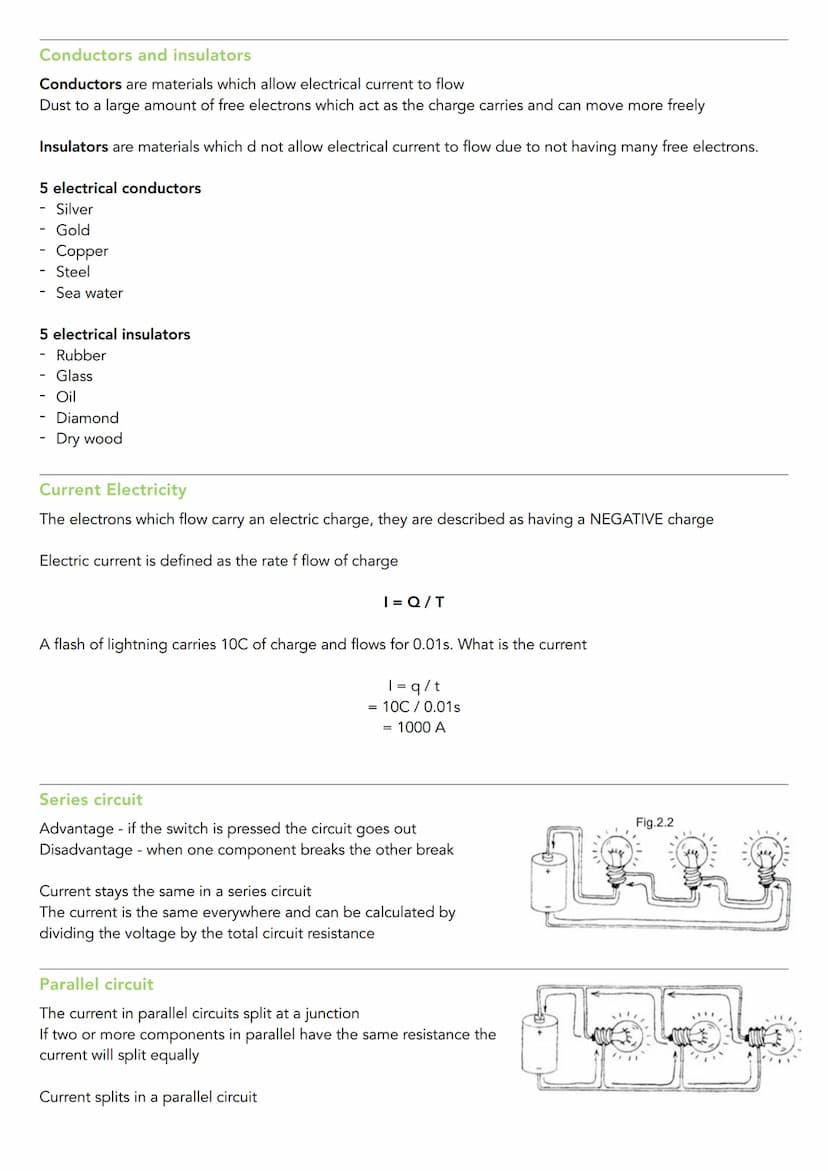

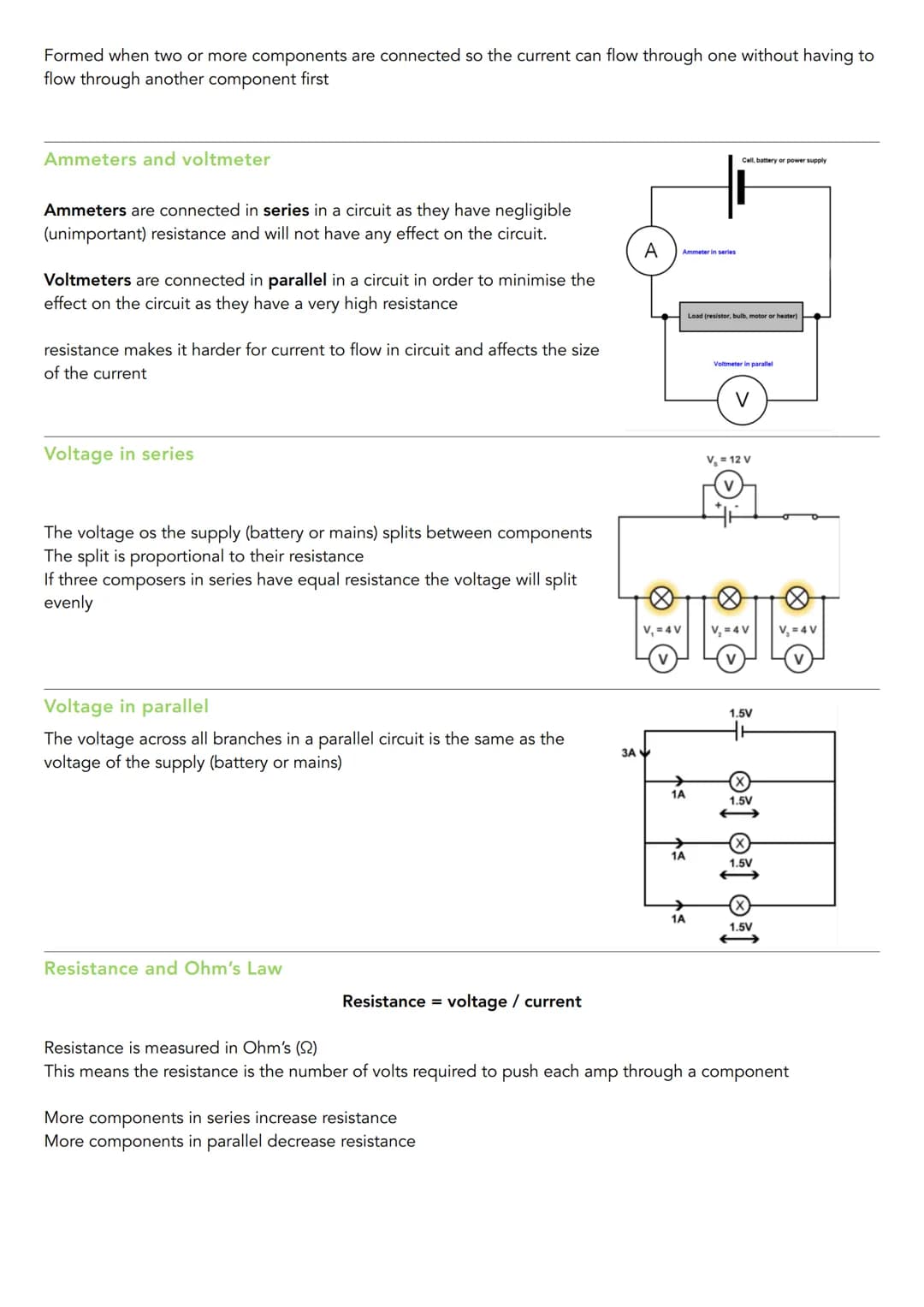

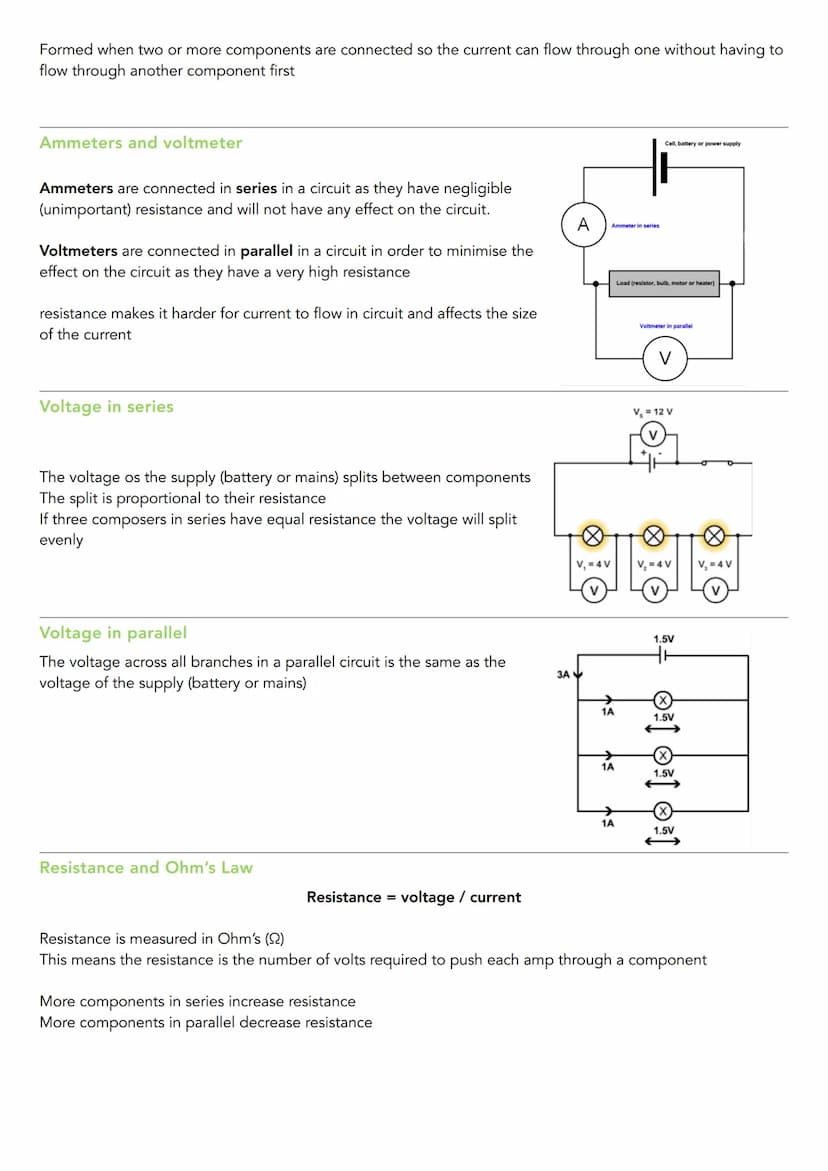

Conductors and Circuit Components

This final section covers electrical conductors and various circuit components, providing practical applications of electrical theory.

Definition: Conductors are materials that allow electrical current to flow easily through them.

Highlight: Different circuit components serve specific functions, such as resistors limiting current flow and LEDs converting electrical energy to light.

Example: Light-dependent resistors (LDRs) change their resistance based on light levels - high resistance in darkness and low resistance in bright conditions.

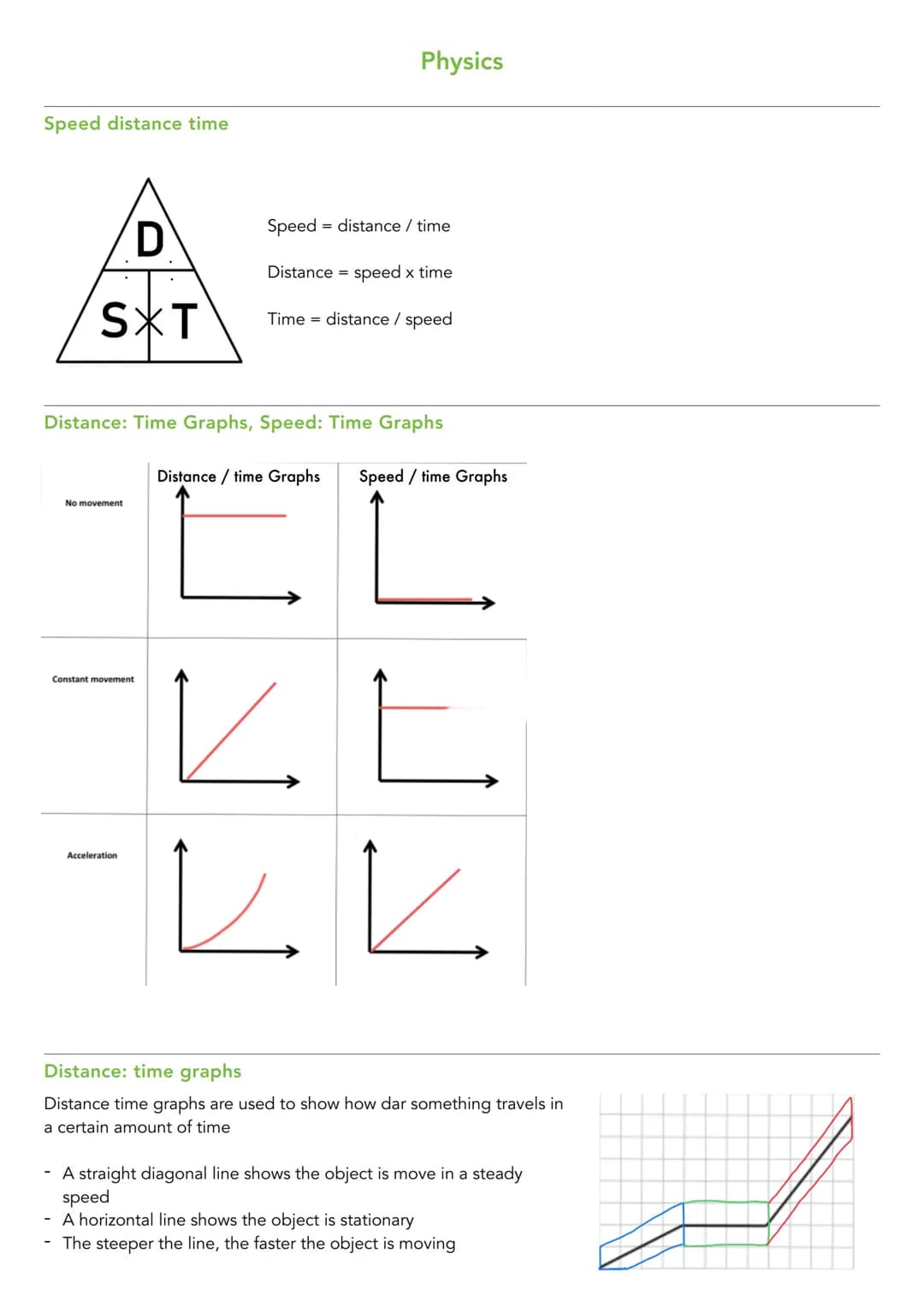

Speed, Distance, and Time

This section introduces fundamental concepts of motion in physics.

Speed-Distance-Time Relationships

The page explains the relationships between speed, distance, and time, providing formulas for calculations:

Definition: Speed = Distance / Time Definition: Distance = Speed × Time Definition: Time = Distance / Speed

Distance-Time Graphs

Distance-time graphs are used to visualize an object's movement over time:

Highlight: A straight diagonal line indicates constant speed, while a horizontal line shows the object is stationary. The steeper the line, the faster the object is moving.

Speed-Time Graphs

Speed-time graphs show how an object's speed changes over time:

Example: A straight diagonal line represents steady acceleration, a horizontal line indicates constant speed, and an increasing diagonal line shows gradual acceleration.

The page also includes diagrams illustrating different types of motion on speed-time graphs, such as gradual acceleration, steady speed, and steady deceleration.
