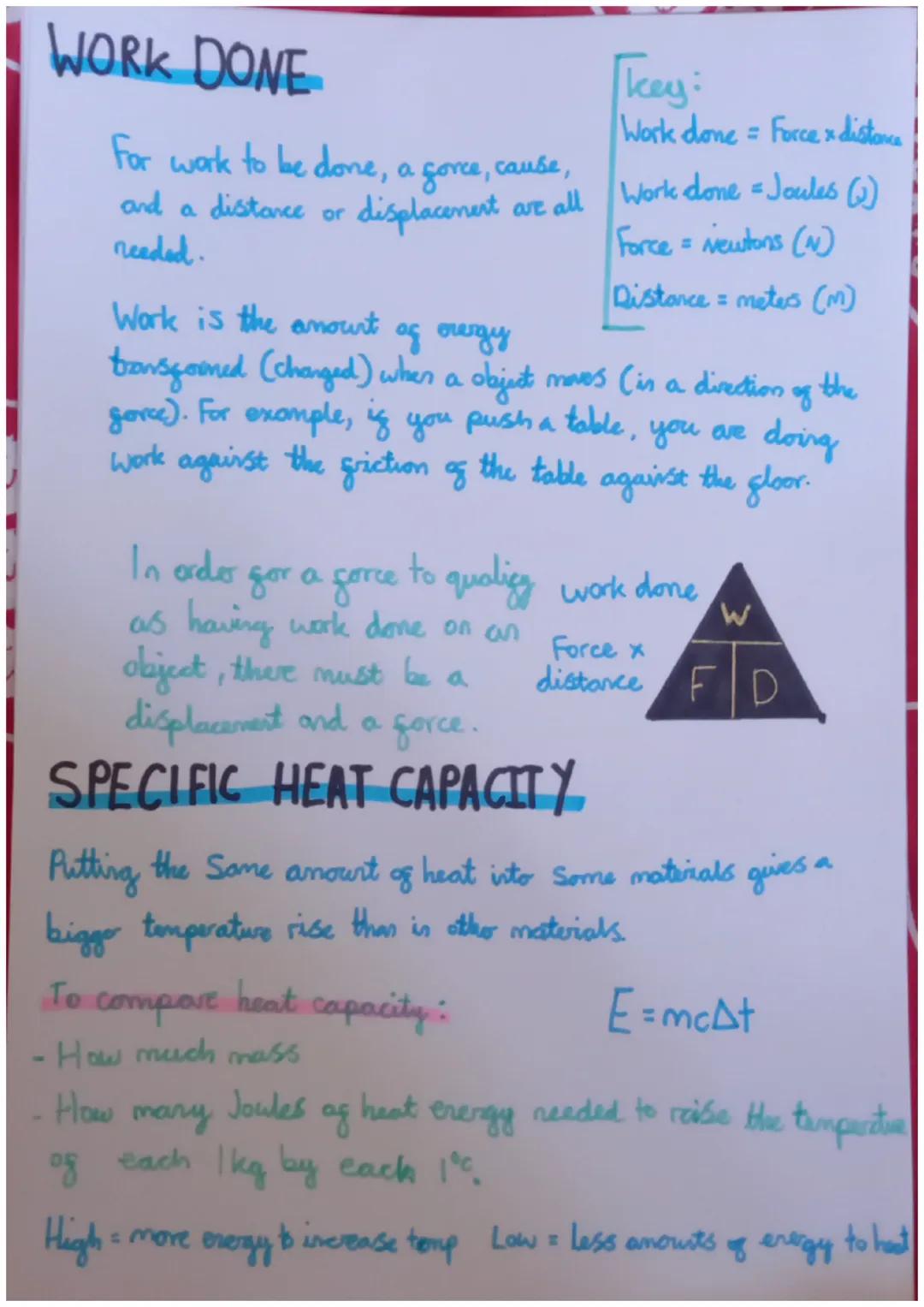

Work Done and Specific Heat Capacity

Work done is a fundamental concept in physics, relating force and displacement. It's essential for understanding energy transfer and transformation.

Definition: Work is the amount of energy transformed when an object moves in the direction of the applied force.

The formula for work done in Physics is:

Highlight: Work done = Force × Distance

Vocabulary: The work done unit is the Joule (J), force is measured in Newtons (N), and distance in meters (m).

Specific heat capacity is another important concept, comparing how different materials respond to heat input.

Example: The same amount of heat applied to different materials can result in varying temperature increases.

The equation for specific heat capacity is:

E = mcΔT

Where E is energy, m is mass, c is specific heat capacity, and ΔT is the change in temperature.

Highlight: Materials with high specific heat capacity require more energy to increase their temperature, while those with low specific heat capacity require less.

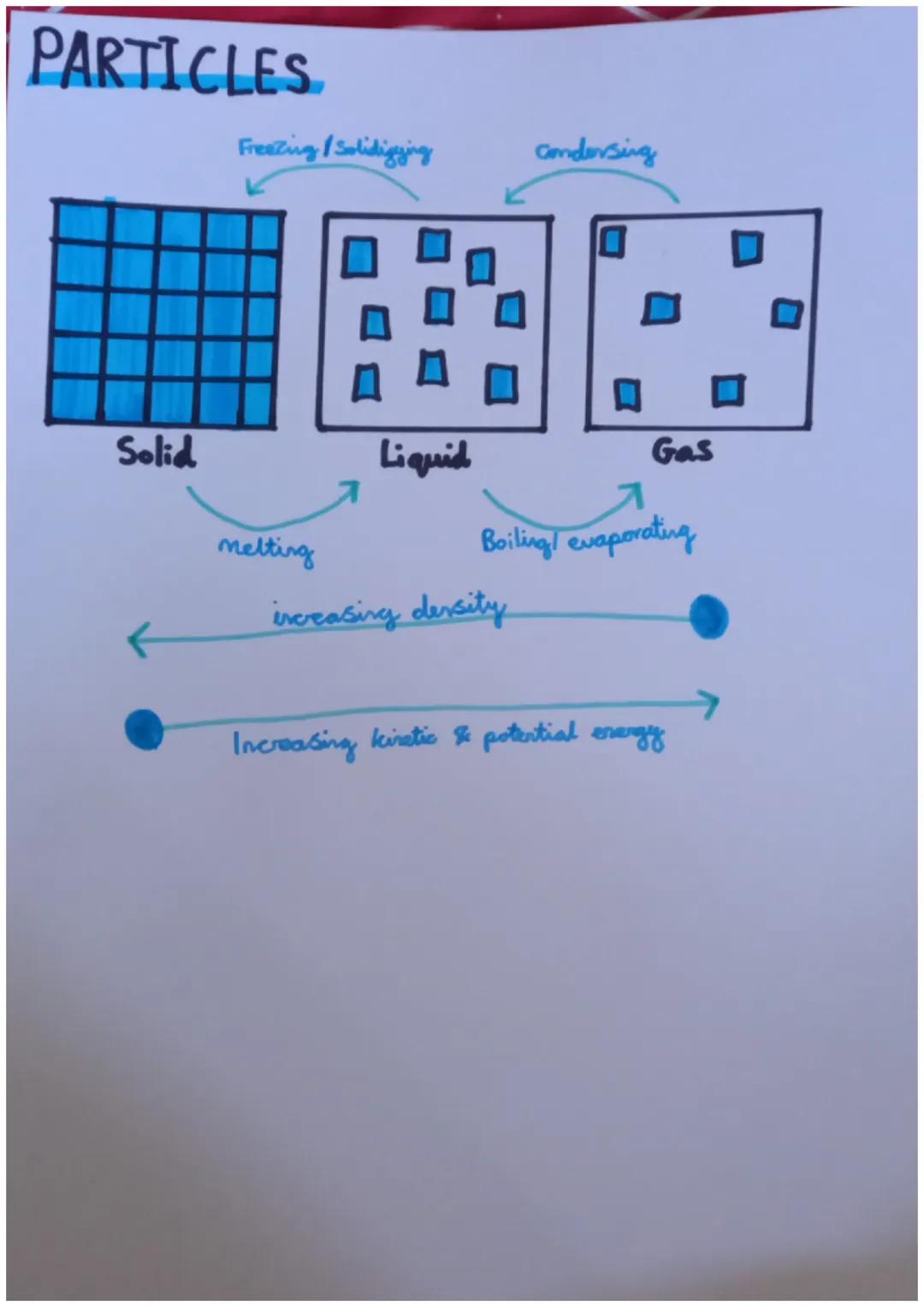

Particle Behavior and State Changes

Understanding particle behavior is crucial for grasping the concept of state changes in matter. This page illustrates the transitions between solid, liquid, and gas states.

Highlight: State changes involve processes such as freezing/solidifying, melting, condensing, and boiling/evaporating.

The diagram shows how particles behave during these transitions:

1. Solid to Liquid (Melting): Particles gain energy and become more mobile.
2. Liquid to Gas $Boiling/Evaporating$: Particles gain even more energy and move freely.
3. Gas to Liquid (Condensing): Particles lose energy and come closer together.
4. Liquid to Solid $Freezing/Solidifying$: Particles lose more energy and form a rigid structure.

Example: When water boils, the particles gain enough energy to overcome intermolecular forces, allowing them to move freely as steam.

These state changes are directly related to the concepts of latent heat discussed earlier. The energy required for these transitions is the latent heat of fusion or vaporization, depending on the change.

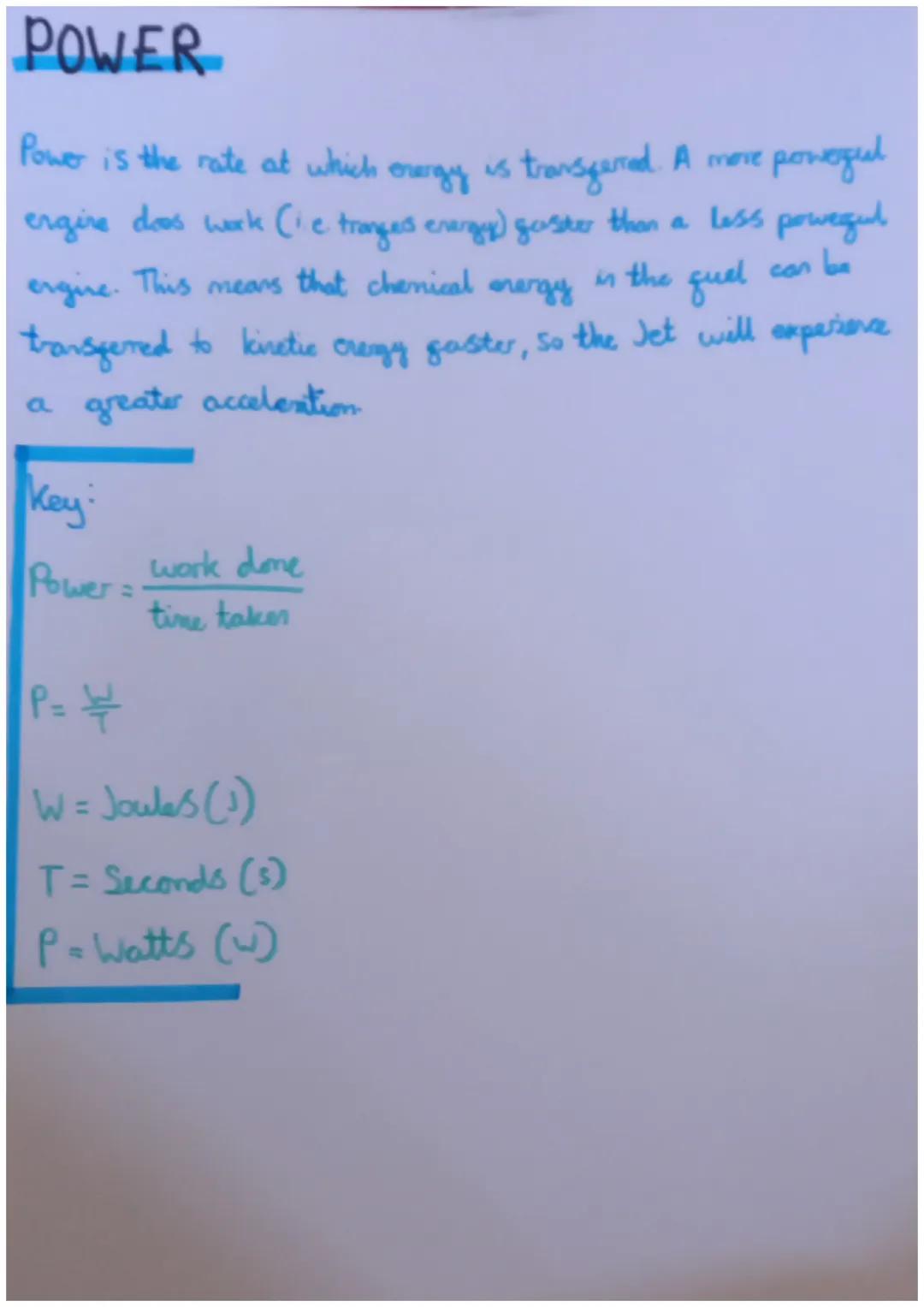

Power in Physics

Power is a crucial concept in physics, representing the rate at which energy is transferred or work is done.

Definition: Power is the rate at which energy is transferred or work is done.

The equation for power is:

Highlight: Power = Work done ÷ Time taken

Or in symbolic form: P = W ÷ T

Where:

• P is Power, measured in Watts (W)
• W is Work done, measured in Joules (J)
• T is Time taken, measured in seconds (s)

Example: A more powerful engine can transfer energy from chemical (fuel) to kinetic energy faster than a less powerful engine, resulting in greater acceleration.

Understanding power is essential in many practical applications, from designing engines to calculating energy efficiency in various systems.

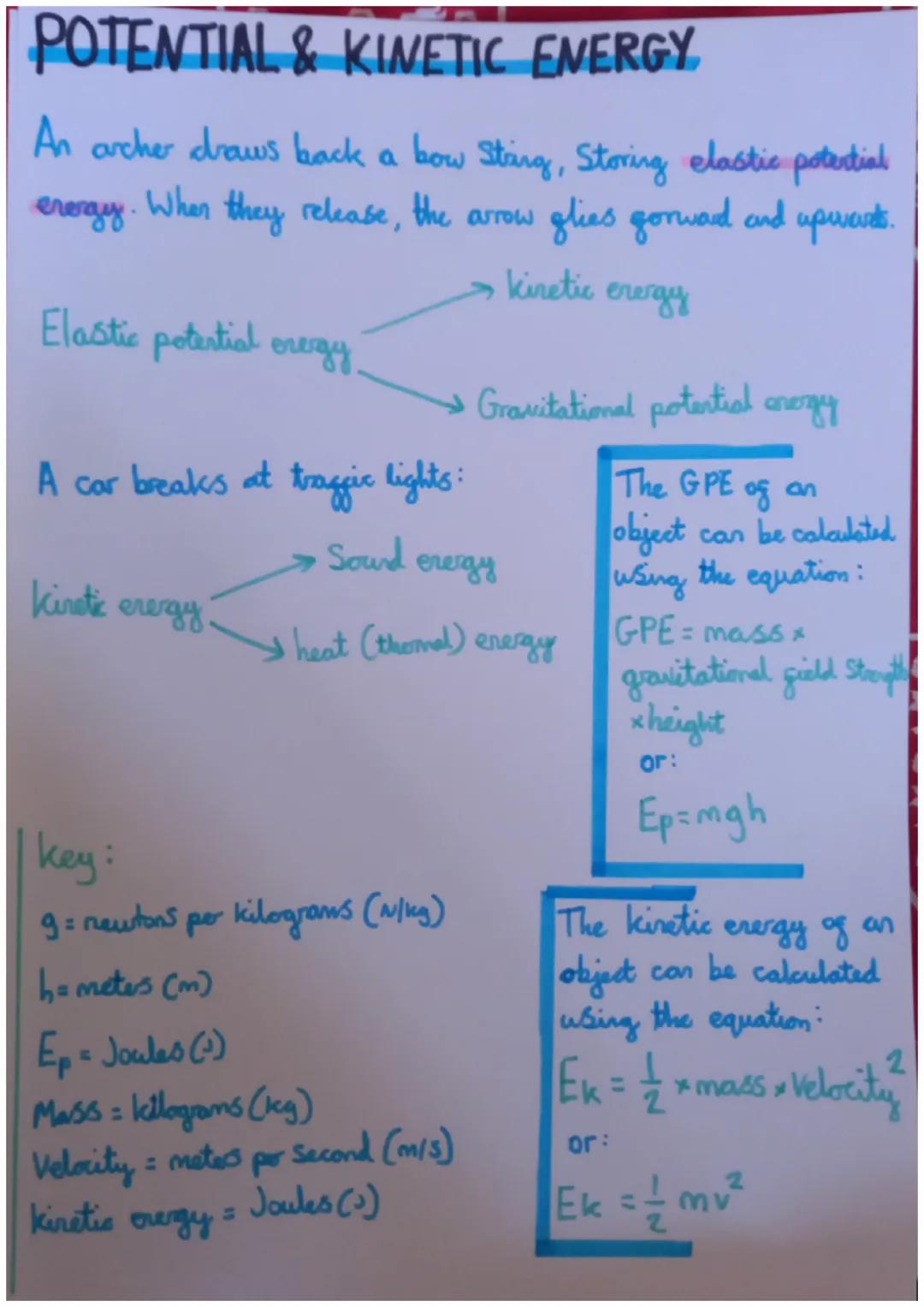

Potential and Kinetic Energy

This section explores the relationship between potential and kinetic energy, which are fundamental concepts in understanding energy transformations.

Definition: Potential energy is stored energy due to an object's position or configuration, while kinetic energy is the energy of motion.

Examples of energy transformations:

1. Archer drawing a bow:

   • Initial state: Elastic potential energy stored in the drawn bowstring
   • After release: Kinetic energy of the flying arrow

2. Car braking at traffic lights:

   • Initial state: Kinetic energy of the moving car
   • After braking: Transformed into sound energy and heat (thermal) energy

Key equations:

1. Gravitational Potential Energy (GPE):

   Highlight: GPE = mass × gravitational field strength × height Or: Ep = mgh

2. Kinetic Energy (KE):

   Highlight: KE = ½ × mass × velocity² Or: Ek = ½mv²

Vocabulary:

• g: gravitational field strength $N/kg$
• h: height (m)
• v: velocity $m/s$
• Ep and Ek: measured in Joules (J)

Understanding these energy forms and their transformations is crucial for analyzing various physical systems and processes.

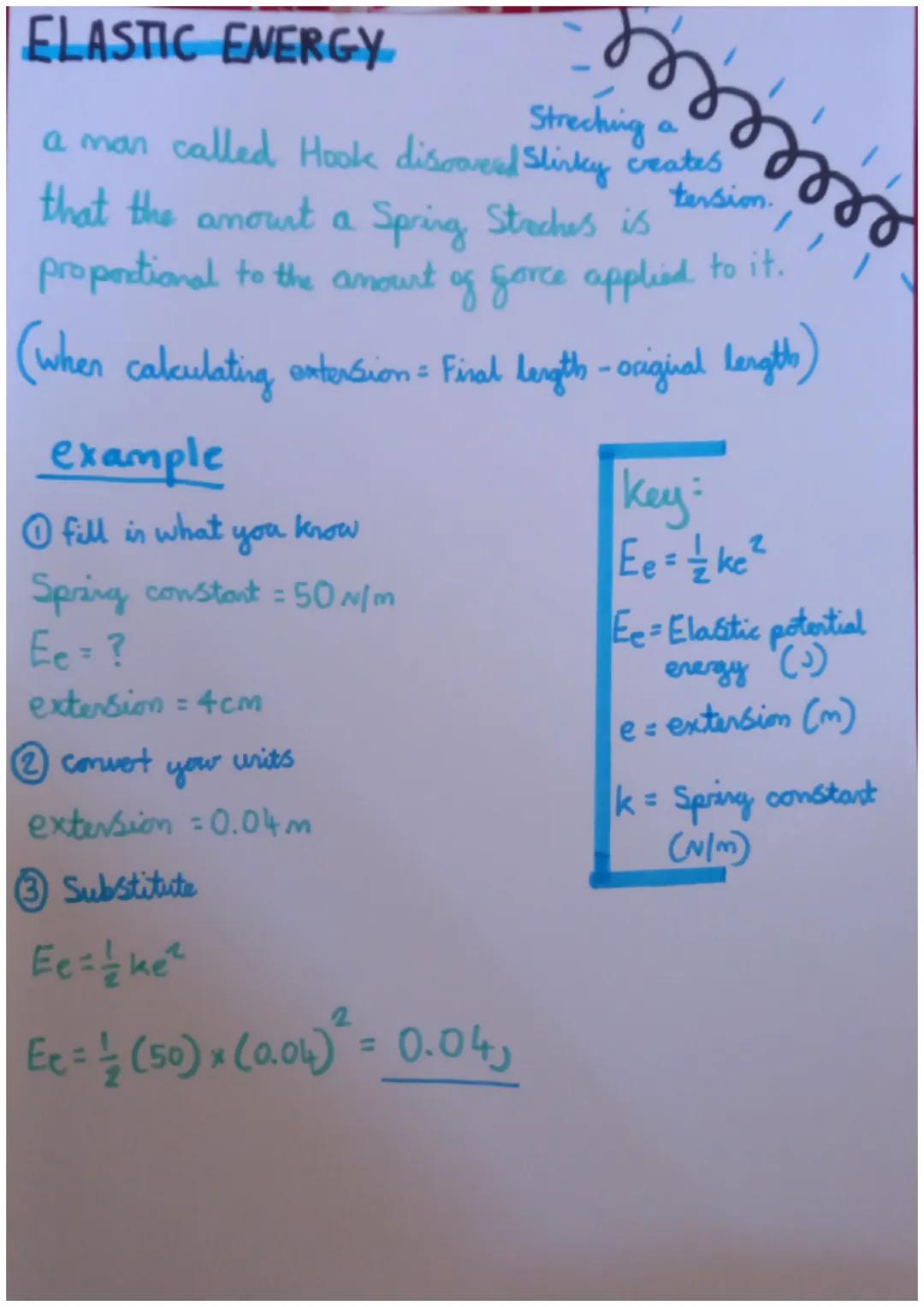

Elastic Energy and Hooke's Law

This section focuses on elastic potential energy and its relationship to Hooke's Law, which is fundamental in understanding spring behavior.

Highlight: Hooke's Law states that the amount a spring stretches is proportional to the force applied to it.

The equation for elastic potential energy is:

Definition: Elastic potential energy (Ee) = ½ × spring constant × extension² Or: Ee = ½ke²

Where:

• k is the spring constant $N/m$
• e is the extension (m)

Example: Calculating elastic potential energy: Given: Spring constant = 50 N/m, extension = 4 cm

1. Convert units: 4 cm = 0.04 m
2. Apply formula: Ee = ½ × 50 × (0.04)² = 0.04 J

Understanding elastic energy is crucial for analyzing systems involving springs, such as in engineering applications or in explaining the behavior of elastic materials.

Vocabulary: Extension is the difference between the final length and the original length of the spring.

This concept ties back to the earlier discussions on energy transformations, as elastic potential energy can be converted to kinetic energy when a stretched spring is released.

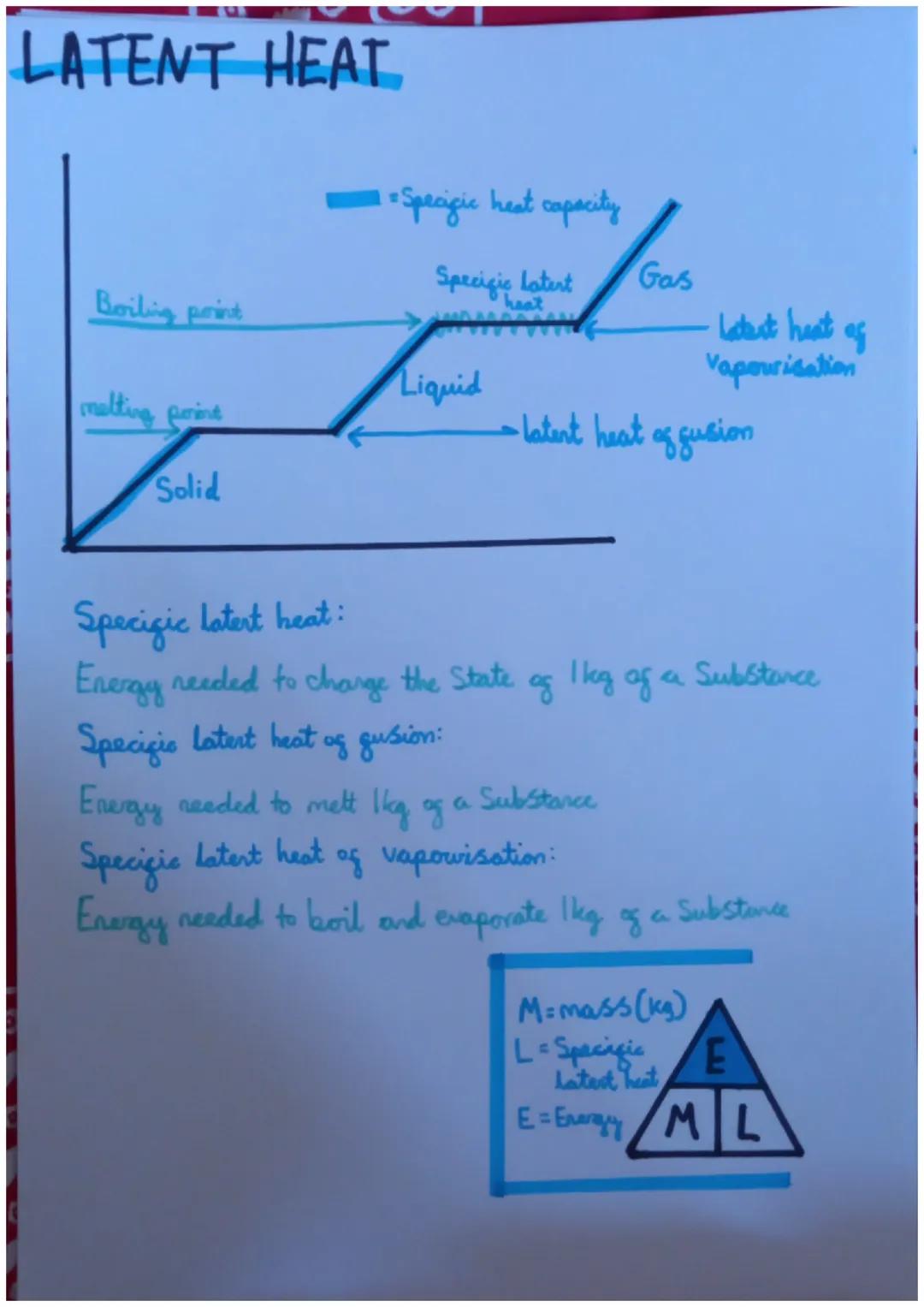

Latent Heat and State Changes

Latent heat is the energy required to change the state of a substance without changing its temperature. This concept is essential in understanding phase transitions.

Definition: Specific latent heat is the energy needed to change the state of 1 kg of a substance.

There are two types of specific latent heat:

1. Specific latent heat of fusion: Energy needed to melt 1 kg of a solid substance.
2. Specific latent heat of vaporization: Energy needed to boil and evaporate 1 kg of a liquid substance.

Highlight: The specific latent heat equation is E = ML, where E is energy, M is mass in kg, and L is the specific latent heat.

Vocabulary: Specific latent heat unit is typically measured in J/kg (Joules per kilogram).

Understanding latent heat is crucial for explaining phenomena like the constant temperature during phase changes, such as water boiling or ice melting.
