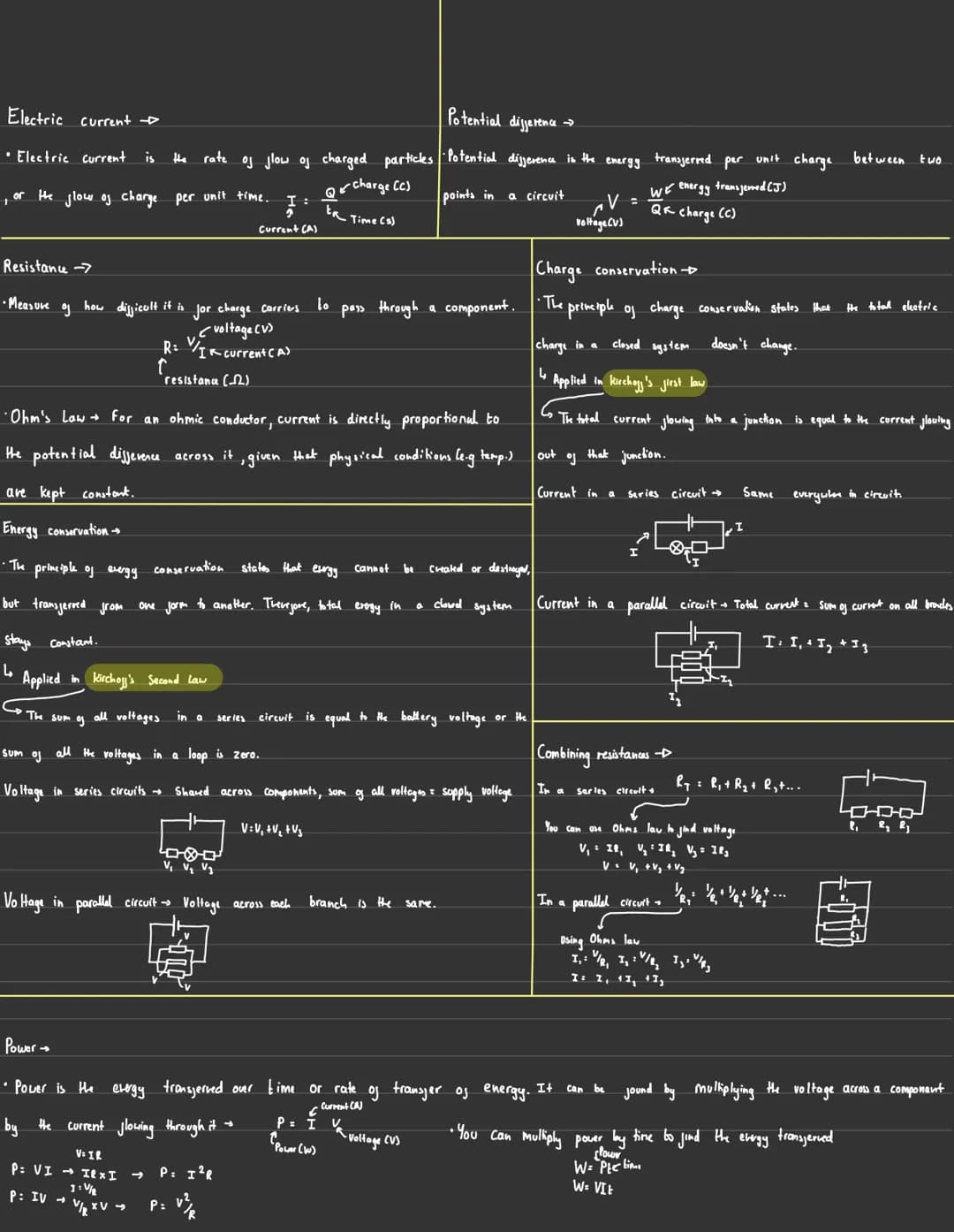

Ohm's Law and Circuit Analysis
This page delves into Ohm's law and its applications in circuit analysis, along with Kirchhoff's laws and power calculations.
Definition: Ohm's law states that for an ohmic conductor, current is directly proportional to the potential difference across it, given that physical conditions (e.g., temperature) remain constant.
The relationship between voltage, current, and resistance is expressed as V = IR, where V is voltage, I is current, and R is resistance.
Kirchhoff's laws are introduced:
- Kirchhoff's First Law (Current Law): The total current flowing into a junction equals the current flowing out of that junction.
- Kirchhoff's Second Law (Voltage Law): The sum of all voltages in a loop is zero.
Example: In a series circuit, voltage is shared across components: V = V₁ + V₂ + V₃
The page also covers power calculations in electric circuits:
Highlight: Power can be calculated using three formulas: P = VI, P = I²R, and P = V²/R
These formulas are essential for understanding energy transfer in electrical systems and are widely used in electrical engineering applications.

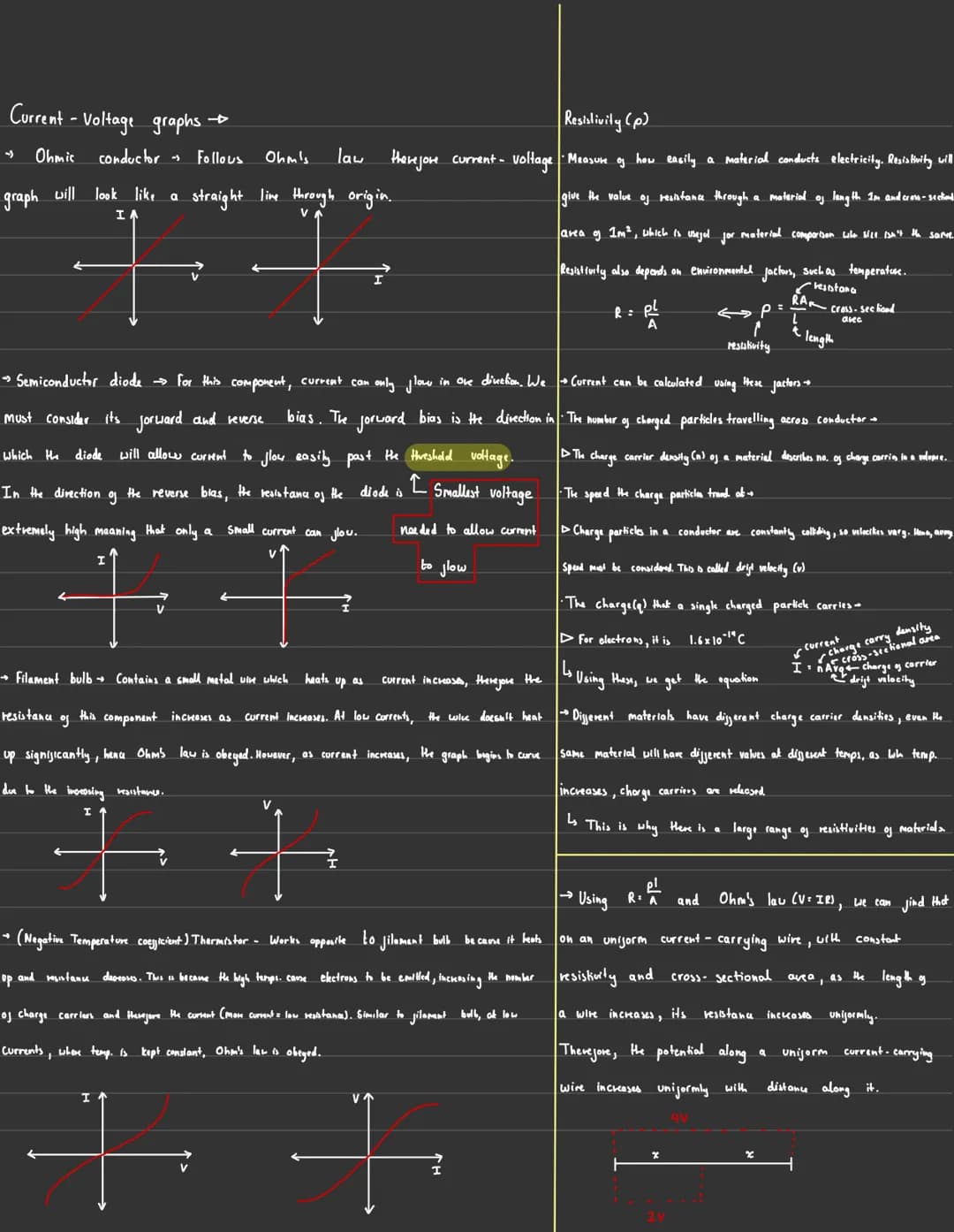

Current-Voltage Graphs and Material Properties
This page explores the behavior of different electrical components through current-voltage graphs and introduces the concept of resistivity.
Definition: Resistivity is a measure of how easily a material conducts electricity. It gives the value of resistance through a material of length 1m and cross-sectional area of 1m².
The page discusses various components and their current-voltage characteristics:
- Ohmic conductor: Follows Ohm's law with a straight-line graph through the origin.
- Semiconductor diode: Current flows in only one direction, with forward and reverse bias considerations.
- Filament bulb: Resistance increases as current increases due to heating.
- Thermistor (Negative Temperature Coefficient): Resistance decreases as temperature increases.
Example: For a thermistor, at high temperatures, electrons are emitted, increasing the number of charge carriers and therefore the current .
The page also introduces the concept of charge carrier density and its relationship to resistivity and current flow.
Highlight: The equation I = nAvq relates current to charge carrier density (n), cross-sectional area (A), drift velocity (v), and charge per carrier (q).
This equation is fundamental in understanding how material properties affect electrical conductivity and resistance.

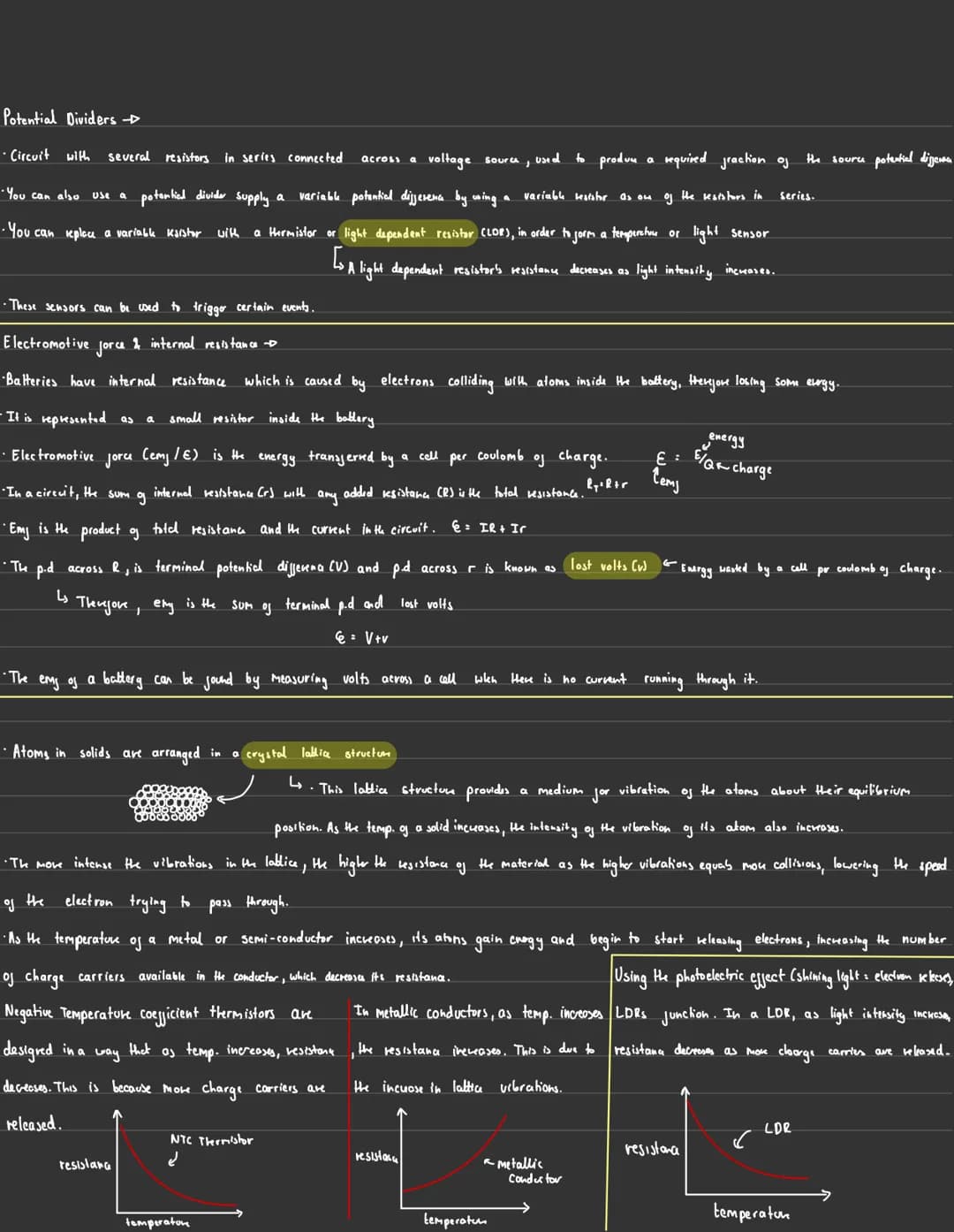

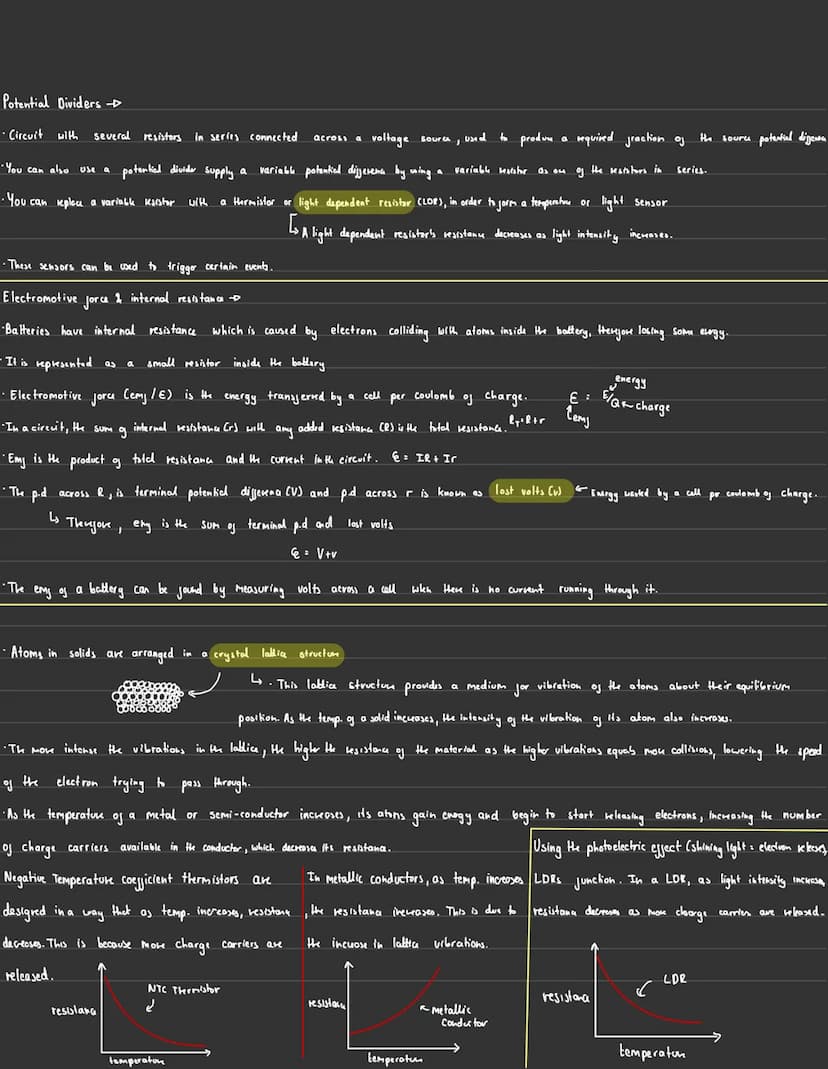

Resistivity and Wire Properties
This final page delves deeper into resistivity and its relationship to wire properties, expanding on the concepts introduced in the previous pages.
Definition: Resistivity (ρ) is a material property that determines how easily electricity flows through it, independent of the object's shape or size.
The page explains how resistance is related to resistivity and wire dimensions:
R = ρL/A
Where R is resistance, ρ is resistivity, L is length, and A is cross-sectional area.
Highlight: For a uniform current-carrying wire with constant resistivity and cross-sectional area, as the length of the wire increases, its resistance increases uniformly.
This relationship is crucial for designing electrical systems and understanding power transmission over long distances.
The page also discusses how temperature affects resistivity:
Example: In most metals, resistivity increases with temperature due to increased atomic vibrations, which impede electron flow.
Understanding these relationships is essential for electrical engineers when designing circuits and selecting materials for specific applications.
Electric Circuits: Fundamental Concepts and Laws
This page introduces the basic components and principles of electric circuits, laying the foundation for understanding more complex electrical systems.
Vocabulary: Electric current is defined as the rate of flow of charged particles, or the flow of charge per unit time.
Definition: Potential difference is the energy transferred per unit charge between two points in a circuit.
The page also touches on resistance, which measures how difficult it is for charge carriers to pass through a component.
Highlight: The principle of energy conservation is introduced, stating that energy cannot be created or destroyed, only transferred from one form to another.
This concept is crucial for understanding the behavior of electrical systems and forms the basis for many circuit analysis techniques.
We thought you’d never ask...
What is the Knowunity AI companion?
Our AI Companion is a student-focused AI tool that offers more than just answers. Built on millions of Knowunity resources, it provides relevant information, personalised study plans, quizzes, and content directly in the chat, adapting to your individual learning journey.
Where can I download the Knowunity app?
You can download the app from Google Play Store and Apple App Store.
Is Knowunity really free of charge?
That's right! Enjoy free access to study content, connect with fellow students, and get instant help – all at your fingertips.
Most popular content: Resistance
Electric Current & Circuit Symbols
Explore key concepts of electric current, Ohm's Law, and essential circuit symbols in this detailed summary. Understand how potential difference influences current flow and the role of resistance in electrical circuits. Ideal for AQA Physics students preparing for exams.
Physics10
Most popular content in Physics
Most popular content
Can't find what you're looking for? Explore other subjects.
Students love us — and so will you.
4.6/5
App Store
4.7/5
Google Play
The app is very easy to use and well designed. I have found everything I was looking for so far and have been able to learn a lot from the presentations! I will definitely use the app for a class assignment! And of course it also helps a lot as an inspiration.
Stefan S
iOS user
This app is really great. There are so many study notes and help [...]. My problem subject is French, for example, and the app has so many options for help. Thanks to this app, I have improved my French. I would recommend it to anyone.
Samantha Klich
Android user
Wow, I am really amazed. I just tried the app because I've seen it advertised many times and was absolutely stunned. This app is THE HELP you want for school and above all, it offers so many things, such as workouts and fact sheets, which have been VERY helpful to me personally.
Anna
iOS user
Best app on earth! no words because it’s too good
Thomas R
iOS user
Just amazing. Let's me revise 10x better, this app is a quick 10/10. I highly recommend it to anyone. I can watch and search for notes. I can save them in the subject folder. I can revise it any time when I come back. If you haven't tried this app, you're really missing out.
Basil
Android user
This app has made me feel so much more confident in my exam prep, not only through boosting my own self confidence through the features that allow you to connect with others and feel less alone, but also through the way the app itself is centred around making you feel better. It is easy to navigate, fun to use, and helpful to anyone struggling in absolutely any way.
David K
iOS user
The app's just great! All I have to do is enter the topic in the search bar and I get the response real fast. I don't have to watch 10 YouTube videos to understand something, so I'm saving my time. Highly recommended!
Sudenaz Ocak
Android user
In school I was really bad at maths but thanks to the app, I am doing better now. I am so grateful that you made the app.
Greenlight Bonnie
Android user
very reliable app to help and grow your ideas of Maths, English and other related topics in your works. please use this app if your struggling in areas, this app is key for that. wish I'd of done a review before. and it's also free so don't worry about that.
Rohan U
Android user
I know a lot of apps use fake accounts to boost their reviews but this app deserves it all. Originally I was getting 4 in my English exams and this time I got a grade 7. I didn’t even know about this app three days until the exam and it has helped A LOT. Please actually trust me and use it as I’m sure you too will see developments.
Xander S
iOS user
THE QUIZES AND FLASHCARDS ARE SO USEFUL AND I LOVE Knowunity AI. IT ALSO IS LITREALLY LIKE CHATGPT BUT SMARTER!! HELPED ME WITH MY MASCARA PROBLEMS TOO!! AS WELL AS MY REAL SUBJECTS ! DUHHH 😍😁😲🤑💗✨🎀😮
Elisha
iOS user
This apps acc the goat. I find revision so boring but this app makes it so easy to organize it all and then you can ask the freeeee ai to test yourself so good and you can easily upload your own stuff. highly recommend as someone taking mocks now
Paul T
iOS user
The app is very easy to use and well designed. I have found everything I was looking for so far and have been able to learn a lot from the presentations! I will definitely use the app for a class assignment! And of course it also helps a lot as an inspiration.
Stefan S
iOS user
This app is really great. There are so many study notes and help [...]. My problem subject is French, for example, and the app has so many options for help. Thanks to this app, I have improved my French. I would recommend it to anyone.
Samantha Klich
Android user
Wow, I am really amazed. I just tried the app because I've seen it advertised many times and was absolutely stunned. This app is THE HELP you want for school and above all, it offers so many things, such as workouts and fact sheets, which have been VERY helpful to me personally.
Anna
iOS user
Best app on earth! no words because it’s too good
Thomas R
iOS user
Just amazing. Let's me revise 10x better, this app is a quick 10/10. I highly recommend it to anyone. I can watch and search for notes. I can save them in the subject folder. I can revise it any time when I come back. If you haven't tried this app, you're really missing out.
Basil
Android user
This app has made me feel so much more confident in my exam prep, not only through boosting my own self confidence through the features that allow you to connect with others and feel less alone, but also through the way the app itself is centred around making you feel better. It is easy to navigate, fun to use, and helpful to anyone struggling in absolutely any way.
David K
iOS user
The app's just great! All I have to do is enter the topic in the search bar and I get the response real fast. I don't have to watch 10 YouTube videos to understand something, so I'm saving my time. Highly recommended!
Sudenaz Ocak
Android user
In school I was really bad at maths but thanks to the app, I am doing better now. I am so grateful that you made the app.
Greenlight Bonnie
Android user
very reliable app to help and grow your ideas of Maths, English and other related topics in your works. please use this app if your struggling in areas, this app is key for that. wish I'd of done a review before. and it's also free so don't worry about that.
Rohan U
Android user
I know a lot of apps use fake accounts to boost their reviews but this app deserves it all. Originally I was getting 4 in my English exams and this time I got a grade 7. I didn’t even know about this app three days until the exam and it has helped A LOT. Please actually trust me and use it as I’m sure you too will see developments.
Xander S
iOS user
THE QUIZES AND FLASHCARDS ARE SO USEFUL AND I LOVE Knowunity AI. IT ALSO IS LITREALLY LIKE CHATGPT BUT SMARTER!! HELPED ME WITH MY MASCARA PROBLEMS TOO!! AS WELL AS MY REAL SUBJECTS ! DUHHH 😍😁😲🤑💗✨🎀😮
Elisha
iOS user
This apps acc the goat. I find revision so boring but this app makes it so easy to organize it all and then you can ask the freeeee ai to test yourself so good and you can easily upload your own stuff. highly recommend as someone taking mocks now
Paul T
iOS user
Ohm's Law & Electric Circuits for Class 10 - PDF Notes, Definitions, and Diagrams
K
Kunal
@wantedbythecia
Ohm's Law and electrical circuits fundamentals: A comprehensive guide for students covering key concepts in electrical engineering, including voltage, current, resistance relationships, Kirchhoff's laws, and power calculations.
- Explores the principles of Ohm's law, circuit analysis, and electrical power
- Covers... Show more

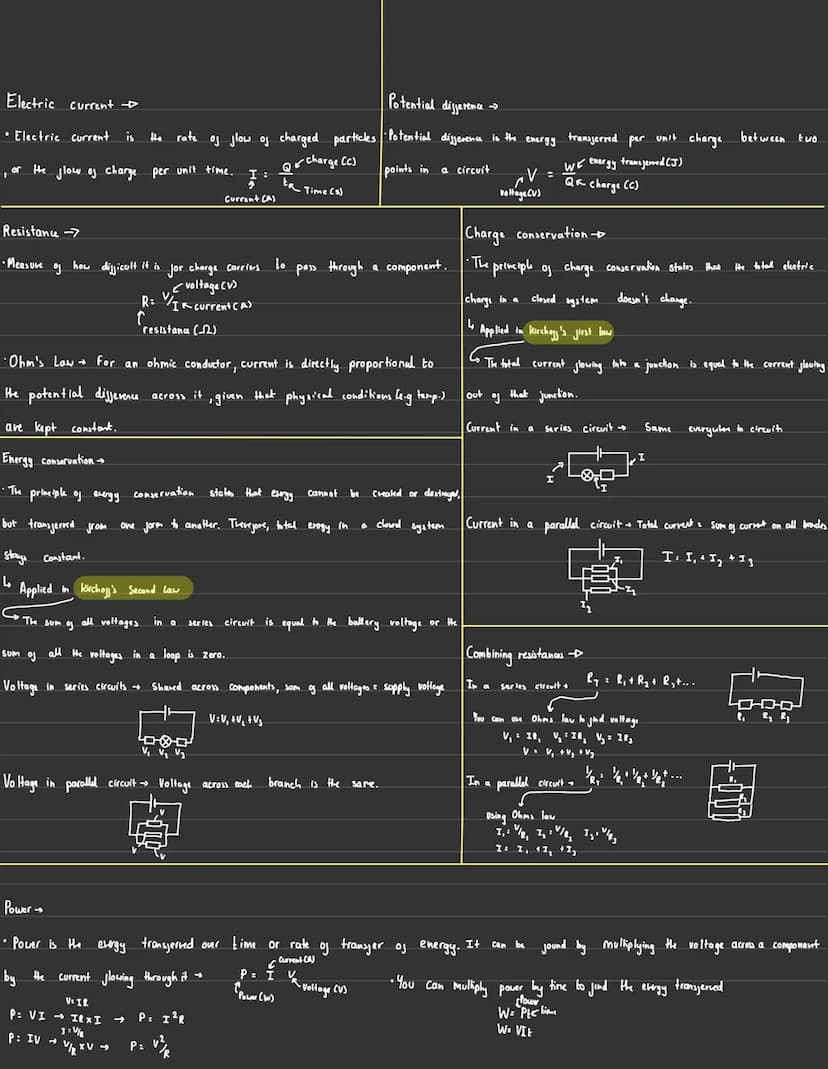

Ohm's Law and Circuit Analysis
This page delves into Ohm's law and its applications in circuit analysis, along with Kirchhoff's laws and power calculations.
Definition: Ohm's law states that for an ohmic conductor, current is directly proportional to the potential difference across it, given that physical conditions (e.g., temperature) remain constant.
The relationship between voltage, current, and resistance is expressed as V = IR, where V is voltage, I is current, and R is resistance.
Kirchhoff's laws are introduced:
- Kirchhoff's First Law (Current Law): The total current flowing into a junction equals the current flowing out of that junction.
- Kirchhoff's Second Law (Voltage Law): The sum of all voltages in a loop is zero.
Example: In a series circuit, voltage is shared across components: V = V₁ + V₂ + V₃
The page also covers power calculations in electric circuits:
Highlight: Power can be calculated using three formulas: P = VI, P = I²R, and P = V²/R
These formulas are essential for understanding energy transfer in electrical systems and are widely used in electrical engineering applications.
Sign up to see the contentIt's free!
Access to all documents
Improve your grades
Join milions of students

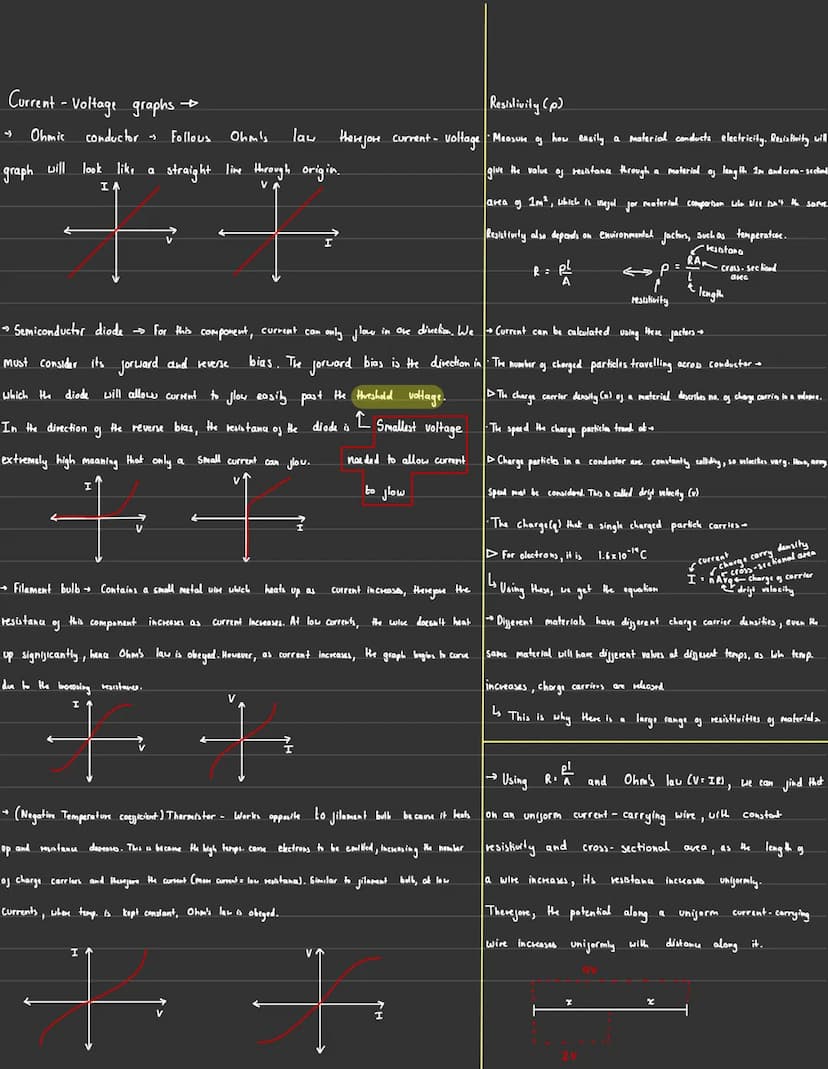

Current-Voltage Graphs and Material Properties

This page explores the behavior of different electrical components through current-voltage graphs and introduces the concept of resistivity.
Definition: Resistivity is a measure of how easily a material conducts electricity. It gives the value of resistance through a material of length 1m and cross-sectional area of 1m².
The page discusses various components and their current-voltage characteristics:
- Ohmic conductor: Follows Ohm's law with a straight-line graph through the origin.
- Semiconductor diode: Current flows in only one direction, with forward and reverse bias considerations.
- Filament bulb: Resistance increases as current increases due to heating.
- Thermistor (Negative Temperature Coefficient): Resistance decreases as temperature increases.
Example: For a thermistor, at high temperatures, electrons are emitted, increasing the number of charge carriers and therefore the current .
The page also introduces the concept of charge carrier density and its relationship to resistivity and current flow.
Highlight: The equation I = nAvq relates current to charge carrier density (n), cross-sectional area (A), drift velocity (v), and charge per carrier (q).
This equation is fundamental in understanding how material properties affect electrical conductivity and resistance.
Sign up to see the contentIt's free!
Access to all documents
Improve your grades
Join milions of students
Resistivity and Wire Properties
This final page delves deeper into resistivity and its relationship to wire properties, expanding on the concepts introduced in the previous pages.
Definition: Resistivity (ρ) is a material property that determines how easily electricity flows through it, independent of the object's shape or size.
The page explains how resistance is related to resistivity and wire dimensions:
R = ρL/A
Where R is resistance, ρ is resistivity, L is length, and A is cross-sectional area.
Highlight: For a uniform current-carrying wire with constant resistivity and cross-sectional area, as the length of the wire increases, its resistance increases uniformly.
This relationship is crucial for designing electrical systems and understanding power transmission over long distances.
The page also discusses how temperature affects resistivity:
Example: In most metals, resistivity increases with temperature due to increased atomic vibrations, which impede electron flow.
Understanding these relationships is essential for electrical engineers when designing circuits and selecting materials for specific applications.
Sign up to see the contentIt's free!
Access to all documents
Improve your grades
Join milions of students
Electric Circuits: Fundamental Concepts and Laws
This page introduces the basic components and principles of electric circuits, laying the foundation for understanding more complex electrical systems.
Vocabulary: Electric current is defined as the rate of flow of charged particles, or the flow of charge per unit time.
Definition: Potential difference is the energy transferred per unit charge between two points in a circuit.
The page also touches on resistance, which measures how difficult it is for charge carriers to pass through a component.
Highlight: The principle of energy conservation is introduced, stating that energy cannot be created or destroyed, only transferred from one form to another.
This concept is crucial for understanding the behavior of electrical systems and forms the basis for many circuit analysis techniques.
