Understanding series and parallel circuits is crucial for mastering electrical concepts in physics. This guide covers key components like current, voltage, and resistance, explaining how they behave differently in series and parallel configurations. Students will learn about circuit diagrams, calculations, and practical applications of these fundamental principles.

Series circuits have components connected in a single loop, where current is constant but voltage is divided.
Parallel circuits feature multiple loops, with voltage remaining constant across components while current is split.
• The guide explains how to calculate total resistance in both types of circuits.
• Key circuit symbols and their meanings are provided for better comprehension of circuit diagrams.

14/05/2023

468

ELECTRIC
PHYSICS-P4
DATE
*Keywords:
* current (I): A measure of the flow of
electrons around the circuit.
" Measured in amps (a) [water
Pote

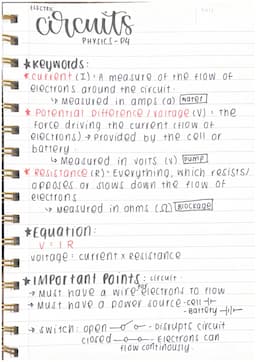

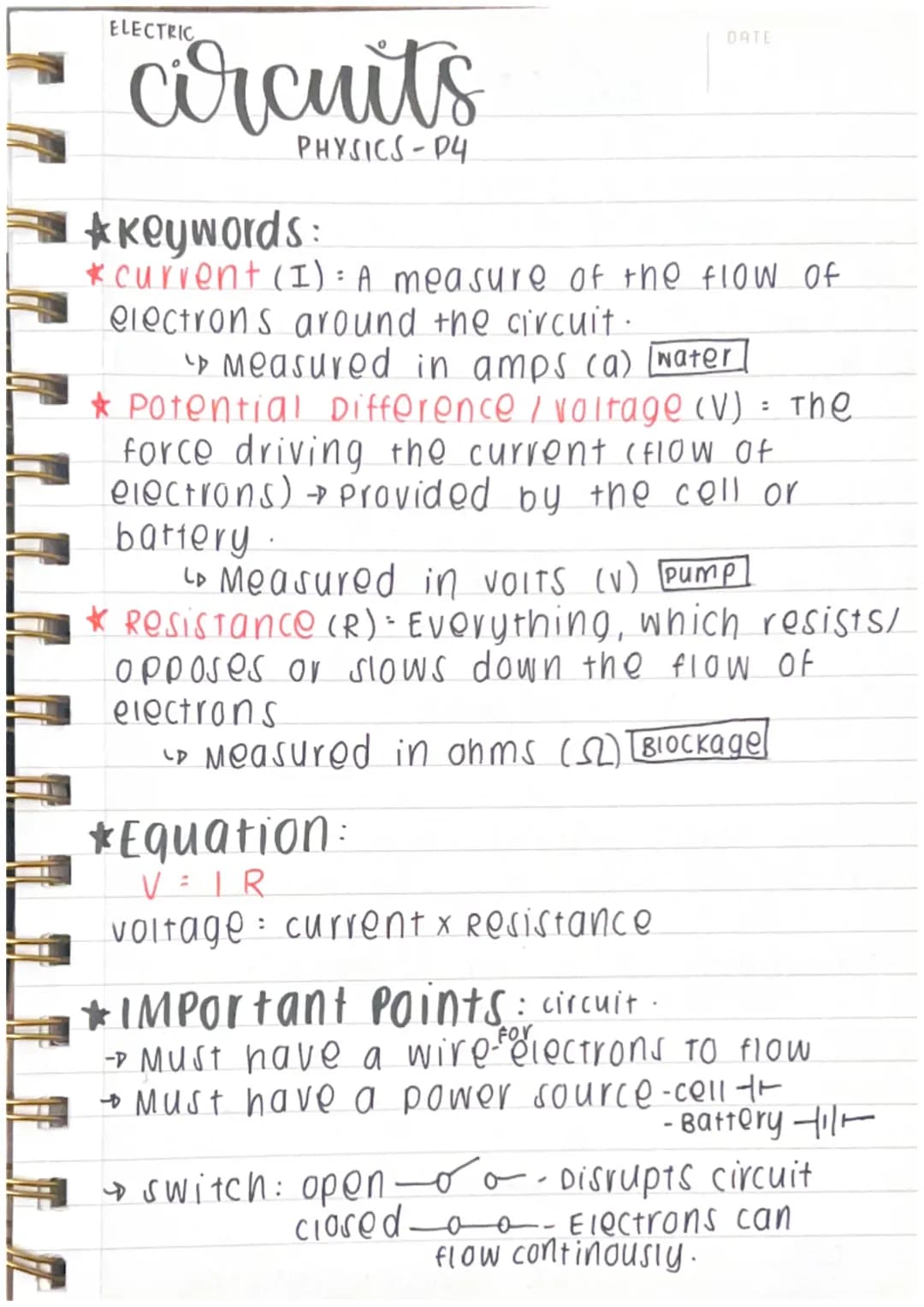

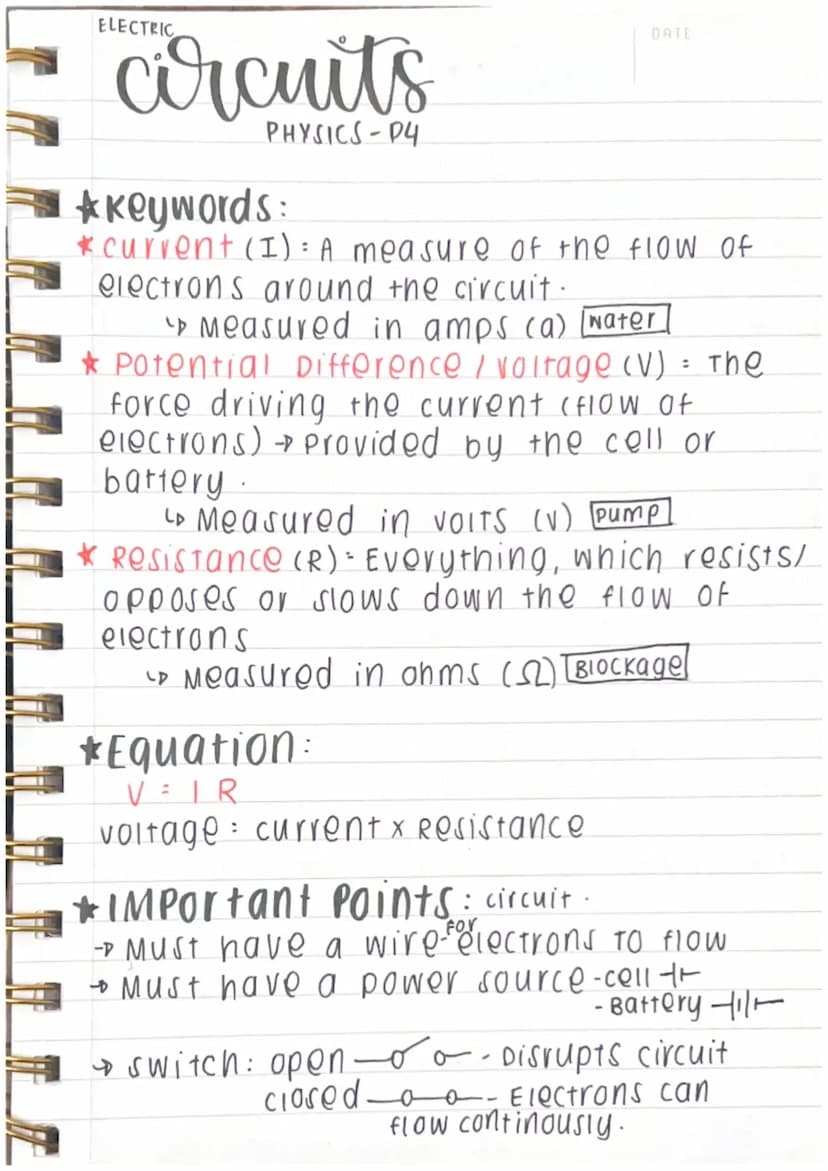

Electric Physics: Understanding Circuits

This page introduces the fundamental concepts of electric circuits, focusing on the key components that make up electrical systems. It provides essential definitions and explanations for students studying physics.

Vocabulary: Current (I) is defined as the measure of electron flow in a circuit, measured in amperes (A).

Vocabulary: Potential Difference or voltage (V) is described as the force driving the current, provided by cells or batteries and measured in volts (V).

Vocabulary: Resistance (R) is explained as anything that opposes or slows down the flow of electrons, measured in ohms (Ω).

The page also introduces the fundamental equation relating these components:

Highlight: V = I × R (Voltage = Current × Resistance)

Important points about circuits are outlined, emphasizing that a circuit must have a wire for electrons to flow, a power source (cell or battery), and may include a switch to control the flow of current.

Example: A closed switch allows electrons to flow continuously, while an open switch disrupts the circuit.

ELECTRIC
PHYSICS-P4
DATE
*Keywords:
* current (I): A measure of the flow of
electrons around the circuit.
" Measured in amps (a) [water
Pote

View

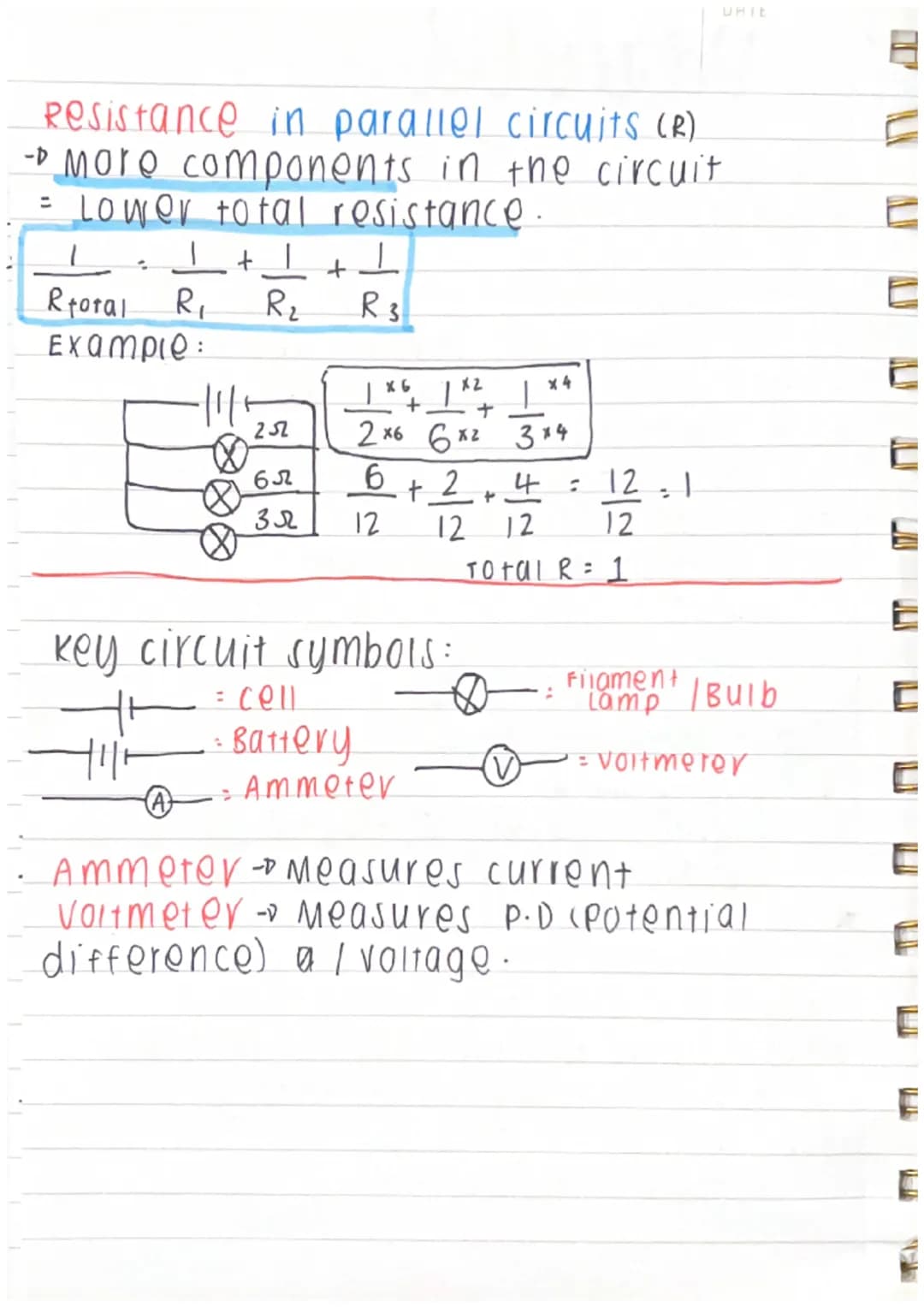

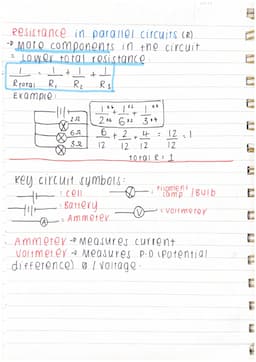

Resistance in Parallel Circuits and Circuit Symbols

This final page continues the discussion on resistance in parallel circuits and introduces key circuit symbols essential for understanding circuit diagrams.

Highlight: In parallel circuits, adding more components decreases the total resistance, contrary to series circuits.

The page provides the formula for calculating total resistance in parallel:

1/R_total = 1/R₁ + 1/R₂ + 1/R₃

Example: A detailed calculation is shown for a parallel circuit with resistances of 2Ω, 6Ω, and 3Ω.

The latter part of the page introduces essential circuit symbols:

Vocabulary:

  • Cell: Represented by a long and short line
  • Battery: Multiple cells connected
  • Filament lamp/bulb: Circle with a cross inside
  • Voltmeter: V in a circle
  • Ammeter: A in a circle

Definition: A voltmeter measures potential difference or voltage, while an ammeter measures current.

These symbols are crucial for reading and interpreting circuit diagrams, a fundamental skill in understanding series and parallel circuits in physics.

ELECTRIC
PHYSICS-P4
DATE
*Keywords:
* current (I): A measure of the flow of
electrons around the circuit.
" Measured in amps (a) [water
Pote

View

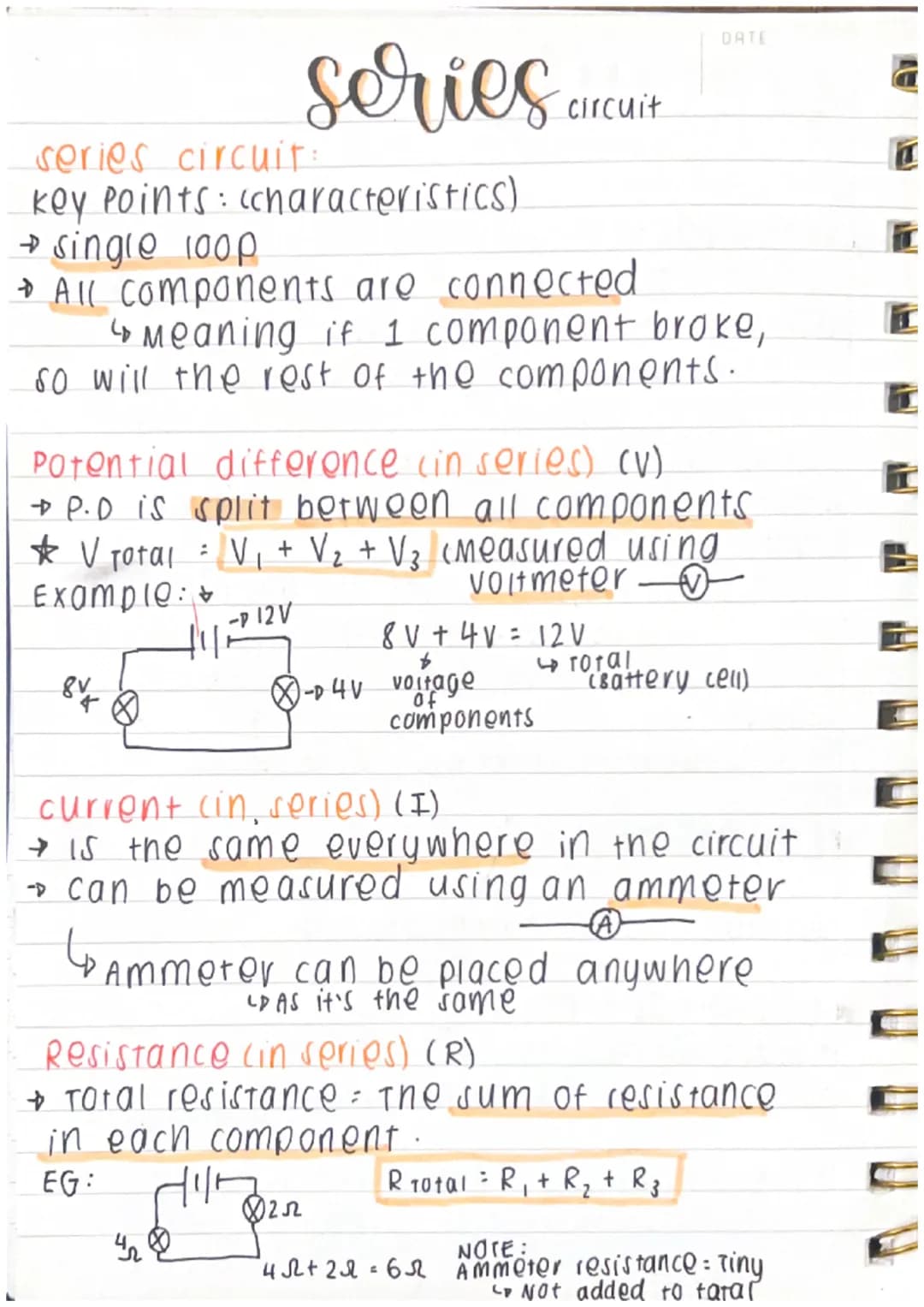

Series Circuits: Characteristics and Behavior

This page delves into the specifics of series circuits, explaining their key characteristics and how electrical components behave when connected in series.

Definition: A series circuit is defined as a circuit with a single loop where all components are connected sequentially.

The page highlights that if one component in a series circuit fails, it affects the entire circuit.

Highlight: In a series circuit, the potential difference (voltage) is split between all components, while the current remains the same throughout the circuit.

The behavior of voltage, current, and resistance in series circuits is explained in detail:

  1. Voltage in series: V_Total = V₁ + V₂ + V₃
  2. Current in series: Remains constant and can be measured using an ammeter placed anywhere in the circuit.
  3. Resistance in series: R_Total = R₁ + R₂ + R₃

Example: In a series circuit with two resistors of 2Ω each, the total resistance would be 2Ω + 2Ω = 4Ω.

The page also notes that the resistance of an ammeter is negligible and not added to the total resistance calculation.

ELECTRIC
PHYSICS-P4
DATE
*Keywords:
* current (I): A measure of the flow of
electrons around the circuit.
" Measured in amps (a) [water
Pote

View

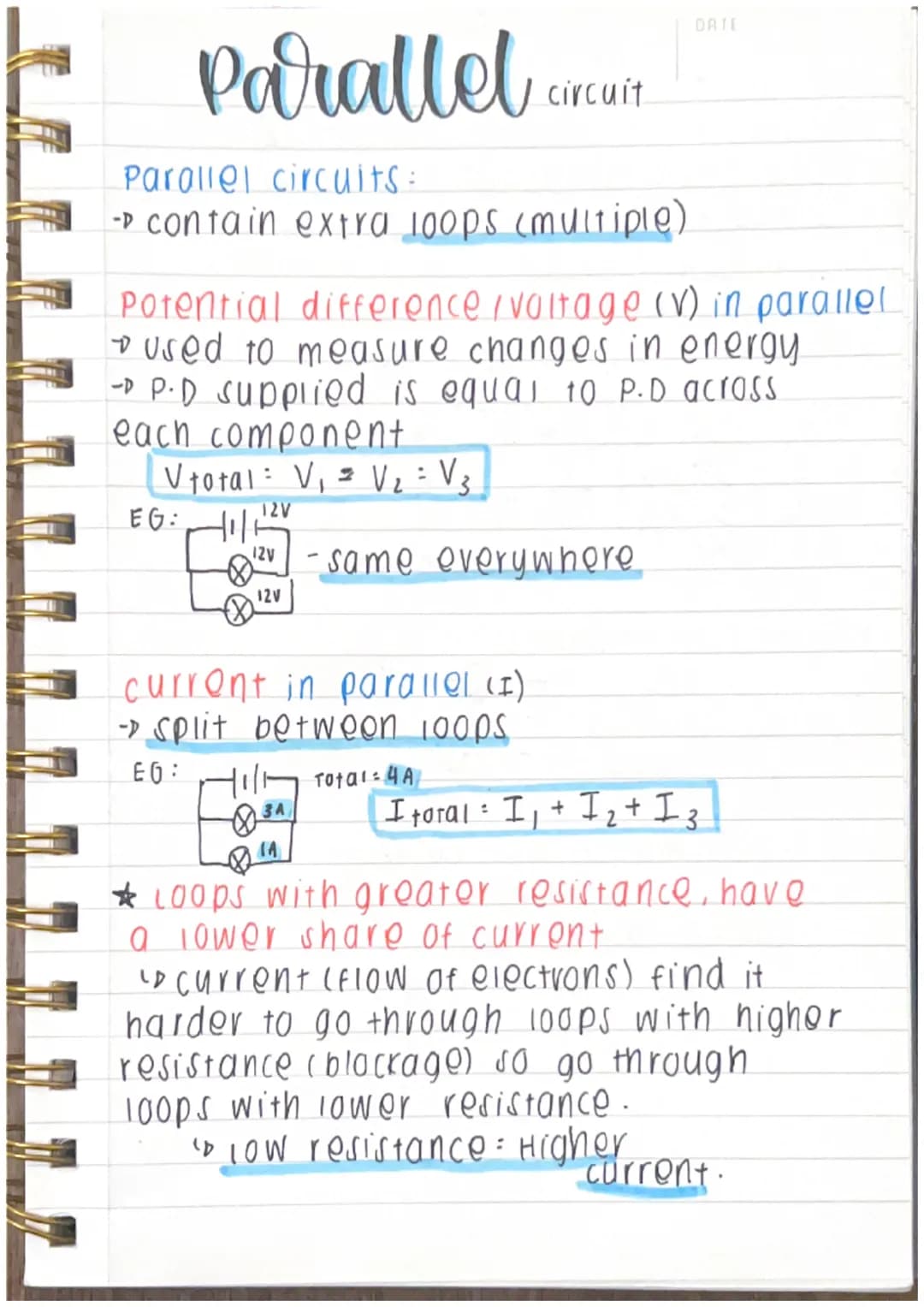

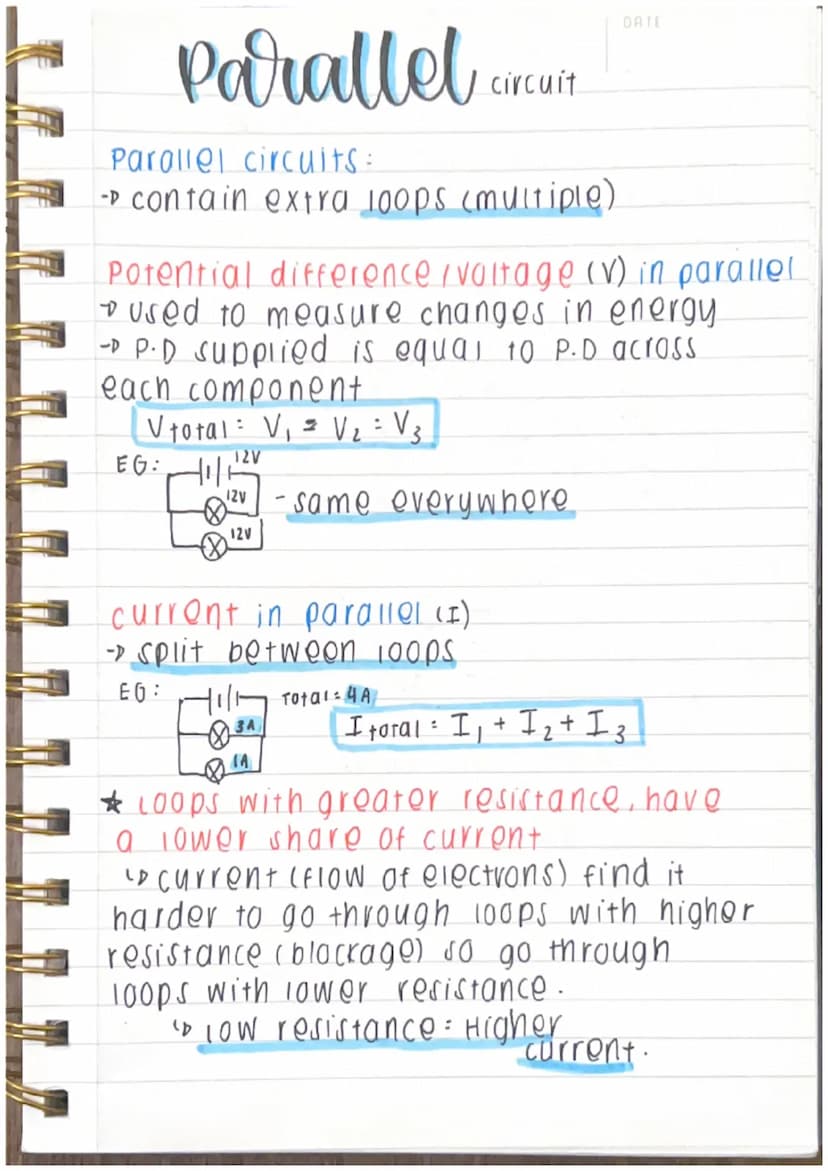

Parallel Circuits: Structure and Electrical Behavior

This page focuses on parallel circuits, explaining their structure and how electrical components behave when connected in parallel.

Definition: Parallel circuits are defined as circuits containing multiple loops, allowing for alternative paths for current flow.

The page details the behavior of voltage, current, and resistance in parallel circuits:

  1. Voltage in parallel: The potential difference remains the same across all components.

    Example: In a 12V parallel circuit, each component will have 12V across it.

  2. Current in parallel: The total current is split between the loops.

    Highlight: Loops with greater resistance have a lower share of the current.

  3. Resistance in parallel: More components in parallel result in lower total resistance.

Example: In a parallel circuit with a total current of 4A, if one loop draws 3A, the other must draw 1A to satisfy I_total = I₁ + I₂.

The page explains that current tends to flow more easily through paths with lower resistance, which is why loops with lower resistance carry a higher share of the current.
