Learn the Basics of Electricity and Ohm's Law: Why Some Materials Resist More!

Understanding the Fundamentals of Electrical Principles

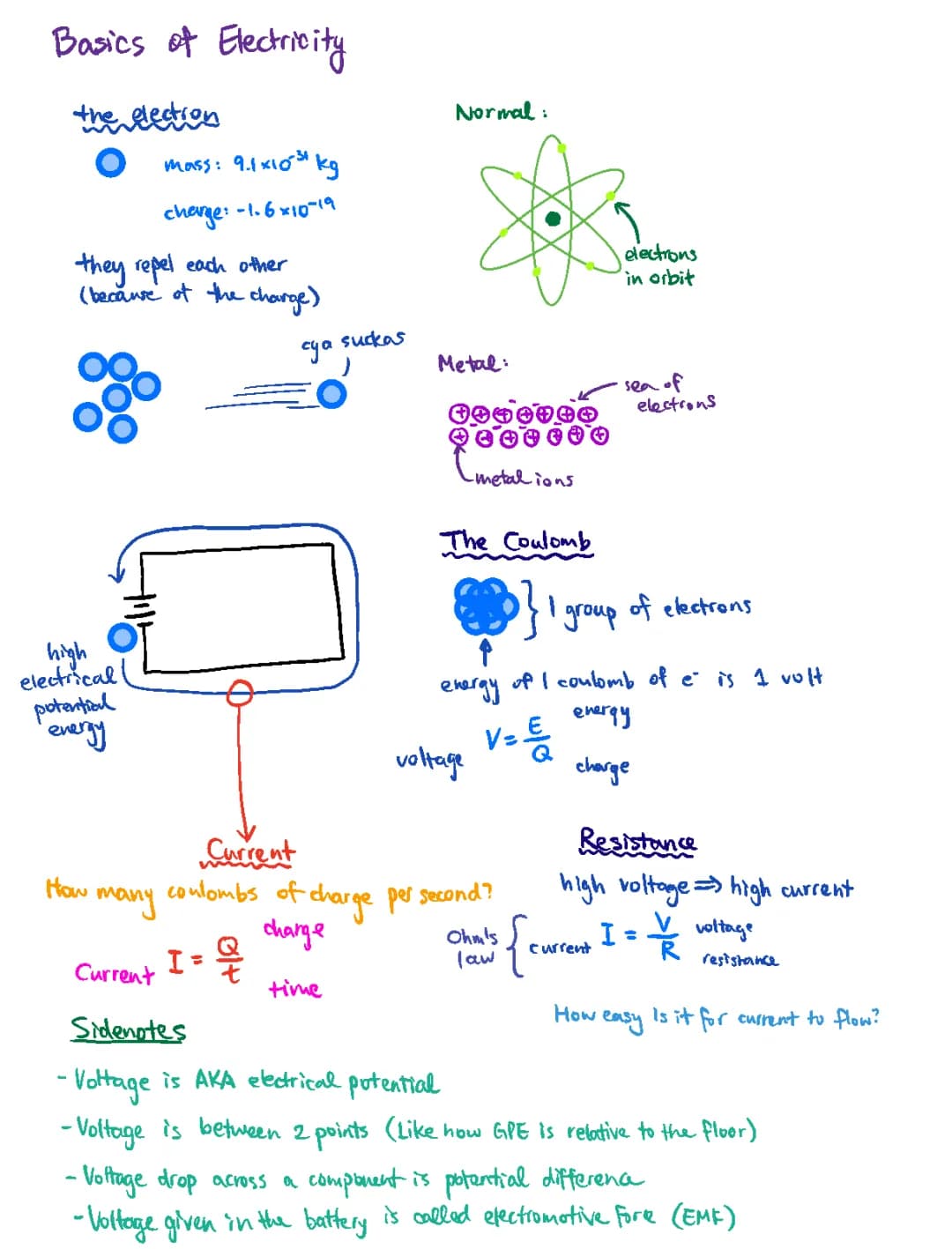

The basics of electricity and Ohm's Law form the foundation of electrical engineering and physics. Electrons, the fundamental particles carrying electrical charge, interact through repulsion and attraction, creating the basis for electrical current flow. These particles have a specific mass of 9.1x10-31 kg and carry a charge of -1.6x10-19 coulombs.

Definition: Voltage, also known as electrical potential difference, measures the energy per unit charge between two points in an electrical circuit.

In metals, free electrons create a "sea of electrons" that enables electrical conduction. Current, measured in amperes, represents the flow rate of electrical charge, while voltage provides the driving force for this movement. The relationship between these quantities is governed by Ohm's Law, which states that voltage equals current multiplied by resistance $V=IR$.

Understanding electrical resistance is crucial as it determines how easily current flows through a material. Higher voltage results in increased current flow, but resistance acts to limit this flow. This relationship is fundamental to designing and analyzing electrical circuits.

Exploring Current Flow and Power Relationships

Conventional current flow moves from positive to negative terminals, although electrons actually flow in the opposite direction. This convention helps standardize electrical analysis and calculations.

Example: A car battery rated at 50 Ah (amp-hours) contains 180,000 coulombs of charge. With a 200A output, it can operate for 900 seconds.

Power in electrical circuits can be calculated using several equivalent formulas: P=IV, P=I²R, or P=V²/R. These relationships help engineers and technicians determine energy consumption and component specifications. The choice of formula depends on which quantities are known in a particular situation.

Analyzing Current-Voltage Relationships and Conductor Behavior

Different materials exhibit varying responses to applied voltage. Ohmic conductors show a linear relationship between current and voltage, while non-ohmic conductors display nonlinear behavior.

Highlight: When analyzing non-ohmic conductors, resistance must be calculated using specific voltage and current values rather than graph gradients.

Common examples of non-ohmic conductors include semiconductors, diodes, and light bulbs. Their resistance changes with temperature or applied voltage, making their behavior more complex than simple resistors. This characteristic is crucial in modern electronics and semiconductor applications.

Material Properties and Understanding Resistivity in Different Materials

Resistivity (ρ) characterizes how strongly materials oppose electrical current flow. Different materials exhibit vastly different resistivity values - copper has a resistivity of 1.69×10-8 Ωm, while quartz's resistivity is much higher at 5×1016 Ωm.

Vocabulary: Resistivity is measured in ohm-meters (Ωm) and depends on material composition, temperature, and physical structure.

The effects of temperature on electrical resistance and superconductors demonstrate how material properties change under different conditions. Higher temperatures typically increase resistance due to increased atomic vibrations, while some materials become superconductors at extremely low temperatures, exhibiting zero resistance. Cross-sectional area and length also affect total resistance, following the relationship R = ρL/A, where L is length and A is cross-sectional area.

Understanding Temperature Effects on Electrical Resistance

The relationship between temperature and electrical resistance is fundamental to electronics and electrical engineering. When examining the effects of temperature on electrical resistance, materials generally show increased resistance as temperature rises. This occurs because higher temperatures cause more atomic vibrations, making it harder for electrons to flow through the conductor.

NTC thermistors (Negative Temperature Coefficient) demonstrate unique behavior where resistance decreases as temperature increases. These components are crucial in temperature sensing applications like fire alarms and thermal protection circuits. The resistance change in NTC thermistors is predictable and repeatable, making them ideal for precise temperature measurements.

Superconductors represent a fascinating phenomenon in electrical conductivity. When certain materials are cooled below their critical temperature (Tc), they exhibit zero electrical resistance. This breakthrough discovery has enabled numerous technological advances, from magnetic resonance imaging (MRI) machines to maglev trains. Each superconducting material has its unique critical temperature, below which it transitions into a superconducting state.

Definition: Superconductivity is a phenomenon where a material's electrical resistance drops to absolutely zero below a specific critical temperature.

Kirchhoff's Laws and Circuit Analysis

Understanding the basics of electricity and Ohm's Law becomes more powerful when combined with Kirchhoff's Laws. These fundamental principles govern current and voltage behavior in electrical circuits. Kirchhoff's Current Law (KCL) states that the sum of currents entering a node equals the sum of currents leaving it, reflecting charge conservation.

Kirchhoff's Voltage Law (KVL) establishes that the sum of all voltage drops around any closed loop in a circuit equals zero. This principle helps analyze complex circuits with multiple components and paths. When applied to series and parallel circuits, these laws help determine total resistance and current distribution.

Highlight: In series circuits, total resistance is the sum of individual resistances. In parallel circuits, the reciprocal of total resistance equals the sum of reciprocals of individual resistances.

Potential Dividers and Voltage Control

Potential dividers are essential circuit configurations that allow precise voltage control. They consist of two or more resistors connected in series across a voltage source, with output voltage taken across one resistor. This arrangement enables voltage scaling and signal conditioning in various electronic applications.

Thermistors can be incorporated into potential divider circuits to create temperature-dependent voltage outputs, useful in temperature sensing and control systems. Similarly, potentiometers (variable resistors) in potential divider configurations enable adjustable voltage outputs, essential for volume controls and other variable settings.

Example: A 10kΩ potentiometer in a potential divider can provide smoothly variable output voltage from 0V to the supply voltage, depending on the wiper position.

Internal Resistance and Power Supply Characteristics

Real power sources, like batteries and generators, possess internal resistance that affects their performance. This internal resistance causes voltage drop within the source itself, resulting in lower terminal voltage as current draw increases. Understanding internal resistance is crucial for proper power supply selection and circuit design.

The relationship between terminal voltage and current follows the equation E = V + Ir, where E is the electromotive force (EMF), V is terminal voltage, I is current, and r is internal resistance. This relationship can be analyzed graphically to determine both EMF and internal resistance of a power source.

Vocabulary: EMF (Electromotive Force) - The maximum potential difference available from a power source under ideal conditions (no current flow).

Understanding Electrical Resistivity Through Experimentation

The study of basics of electricity and Ohm's Law forms the foundation for understanding how electrical resistance works in different materials. When examining the resistivity of Constantan, a copper-nickel alloy commonly used in electrical applications, we can observe several key principles that demonstrate the relationship between resistance, length, and cross-sectional area of conductors.

Definition: Resistivity (ρ) is a fundamental property of materials that measures how strongly they oppose the flow of electric current. It is expressed in ohm-meters (Ω⋅m).

The mathematical relationship between resistance and resistivity is expressed through the equation R = ρL/A, where R represents resistance, ρ is the material's resistivity, L is the wire length, and A is its cross-sectional area. This relationship demonstrates that resistance increases linearly with length while being inversely proportional to the cross-sectional area of the conductor.

When plotting resistance against wire length, we observe a direct proportional relationship, resulting in a straight line passing through the origin. This linear relationship is crucial for understanding resistivity in different materials as it allows us to calculate the resistivity constant for any conducting material by measuring the gradient of this graph.

Example: For a Constantan wire, doubling the length will double the resistance, while doubling the cross-sectional area will halve the resistance. This relationship can be verified through careful measurements using ammeters, voltmeters, and micrometer gauges.

Temperature Effects and Advanced Resistivity Concepts

The effects of temperature on electrical resistance and superconductors represent a fascinating aspect of electrical conductivity. As temperature changes, the resistivity of most materials changes as well, typically increasing with rising temperature in metallic conductors like Constantan.

Highlight: Understanding temperature coefficients of resistance is crucial for designing electrical systems that operate across various temperature ranges. Some materials, known as superconductors, lose all electrical resistance when cooled below a critical temperature.

When conducting resistivity experiments, precise measurements are essential. This includes accurate readings of current using ammeters, voltage using voltmeters, and dimensional measurements using micrometer gauges. The resistance can be determined using Ohm's Law $V=IR$, where voltage measurements are divided by current readings.

The practical applications of resistivity knowledge extend to numerous fields, from designing heating elements to developing temperature sensors. Engineers must consider both the material's inherent resistivity and its temperature coefficient when selecting materials for specific applications. This understanding has led to innovations in various technologies, from simple resistive heaters to complex electronic devices.

Vocabulary: Temperature coefficient of resistance (TCR) - A measure of how a material's resistance changes with temperature, typically expressed in parts per million per degree Celsius $ppm/°C$.
