How to Make Capacitors Store More Energy

A comprehensive guide to capacitors and their fundamental principles in electrical circuits, focusing on how to increase capacitance in capacitors and their behavior in different configurations.

  • Capacitors are electrical devices consisting of two parallel conducting plates separated by an insulator, designed to store electrical charge
  • Factors affecting capacitor efficiency in circuits include plate surface area, separation distance, and the presence of dielectric materials
  • The capacitance can be enhanced by increasing plate area, reducing separation distance, or using dielectric materials
  • Energy storage in parallel connected capacitors allows for increased total capacitance and charge storage capability
  • Understanding charging and discharging patterns is crucial for optimal capacitor performance in circuits
...

31/03/2023

193

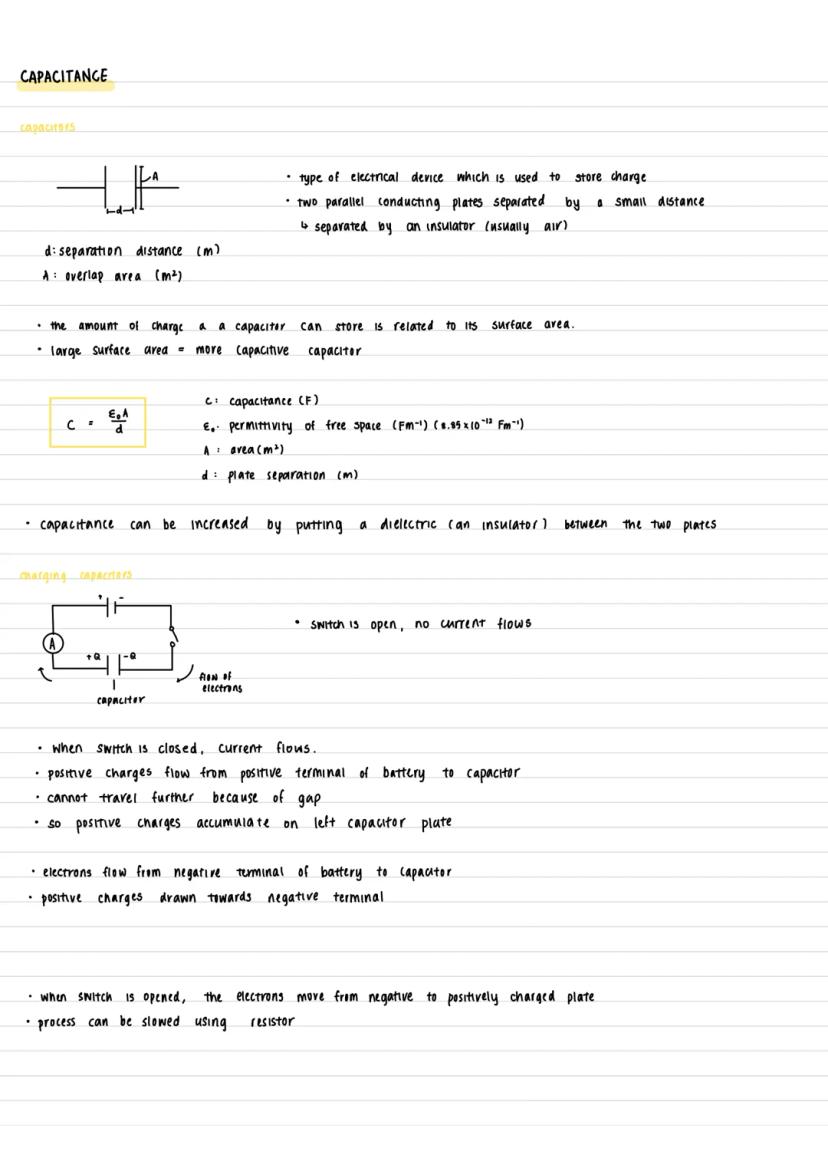

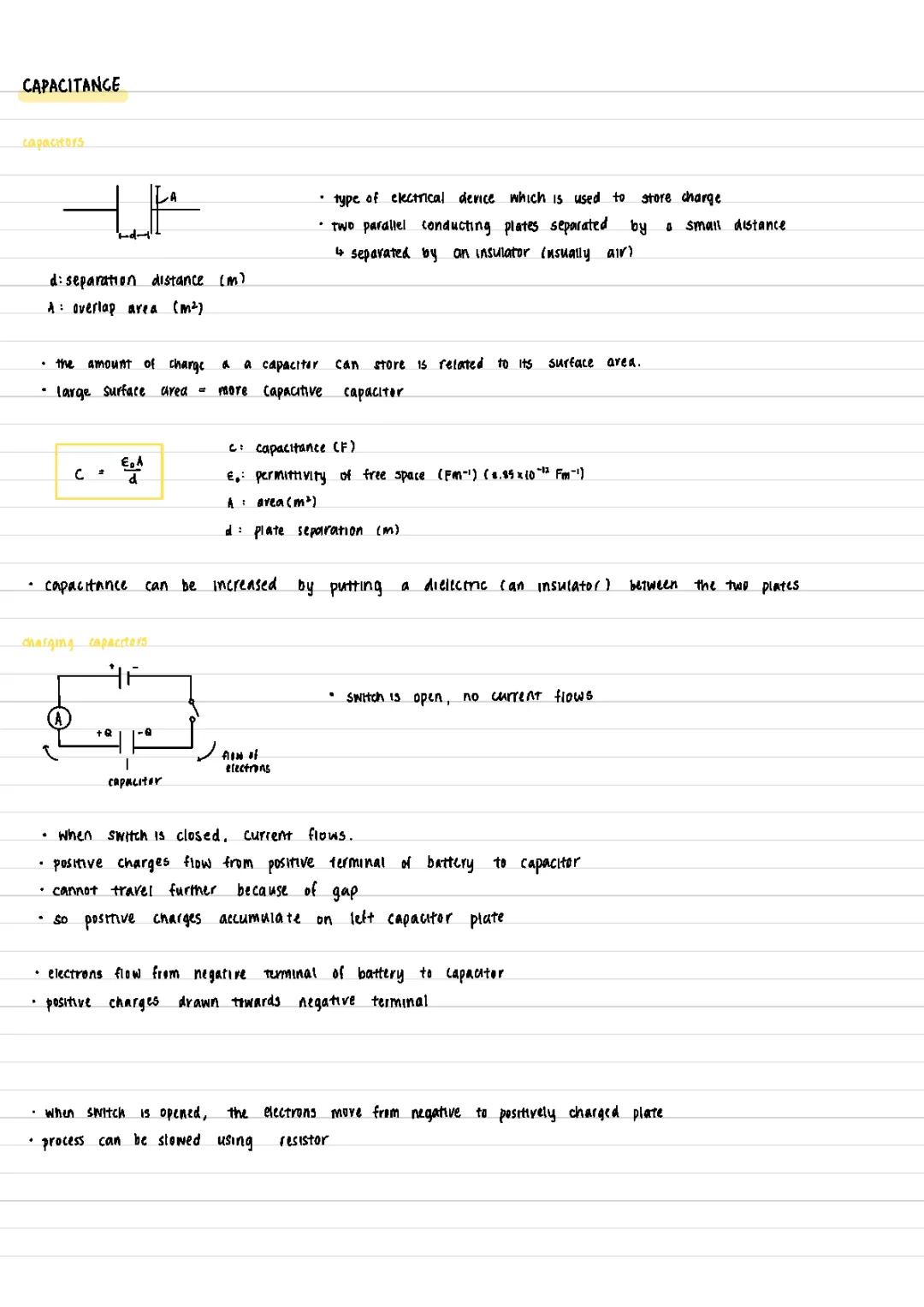

CAPACITANCE capacitors LE d: separation distance (m) A overlap area (m²) • the amount of charge a a capacitor can store is related to its su

View

Electric Fields and Capacitance Factors

The second page delves into electric fields and the factors affecting capacitance. When charges accumulate on capacitor plates, they generate a uniform electric field between them.

Definition: Capacitance is defined as the charge stored per unit potential difference, measured in Farads.

Highlight: The electric field created between plates is uniform except at the edges, and it generates a potential difference proportional to the field strength.

Example: A larger plate overlap area allows charges to spread further apart, reducing repulsive forces and increasing capacitance.

CAPACITANCE capacitors LE d: separation distance (m) A overlap area (m²) • the amount of charge a a capacitor can store is related to its su

View

Energy Storage and Parallel Configurations

Page three explores energy storage in capacitors and their behavior in parallel configurations.

Definition: The energy stored in a capacitor is given by U = ½QV = ½CV² = ½Q²/C, where U is the stored energy in Joules.

Highlight: In parallel connections, the total capacitance is the sum of individual capacitances, while the potential difference remains equal across all capacitors.

Example: When capacitors are connected in parallel, the total charge is the sum of individual charges: Qₜₒₜₐₗ = Q₁ + Q₂ + Q₃ + ... + Qₙ

CAPACITANCE capacitors LE d: separation distance (m) A overlap area (m²) • the amount of charge a a capacitor can store is related to its su

View

Capacitor Discharge Characteristics

The final page covers the discharge behavior of capacitors and their practical applications.

Definition: The RC time constant determines the rate of capacitor charging and discharging, measured in seconds.

Highlight: During discharge, both current and voltage decay exponentially, following the equations V = V₀e⁻ᵗ/ᴿᶜ and I = I₀e⁻ᵗ/ᴿᶜ.

Example: Capacitors can provide a temporary current source, but unlike batteries, they cannot maintain a constant current output due to their exponential discharge characteristics.
