Angle Relationships in Geometry

This section covers fundamental angle relationships in geometry, which are essential for solving various GCSE maths problems.

The page illustrates three key angle relationships:

1. Corresponding angles

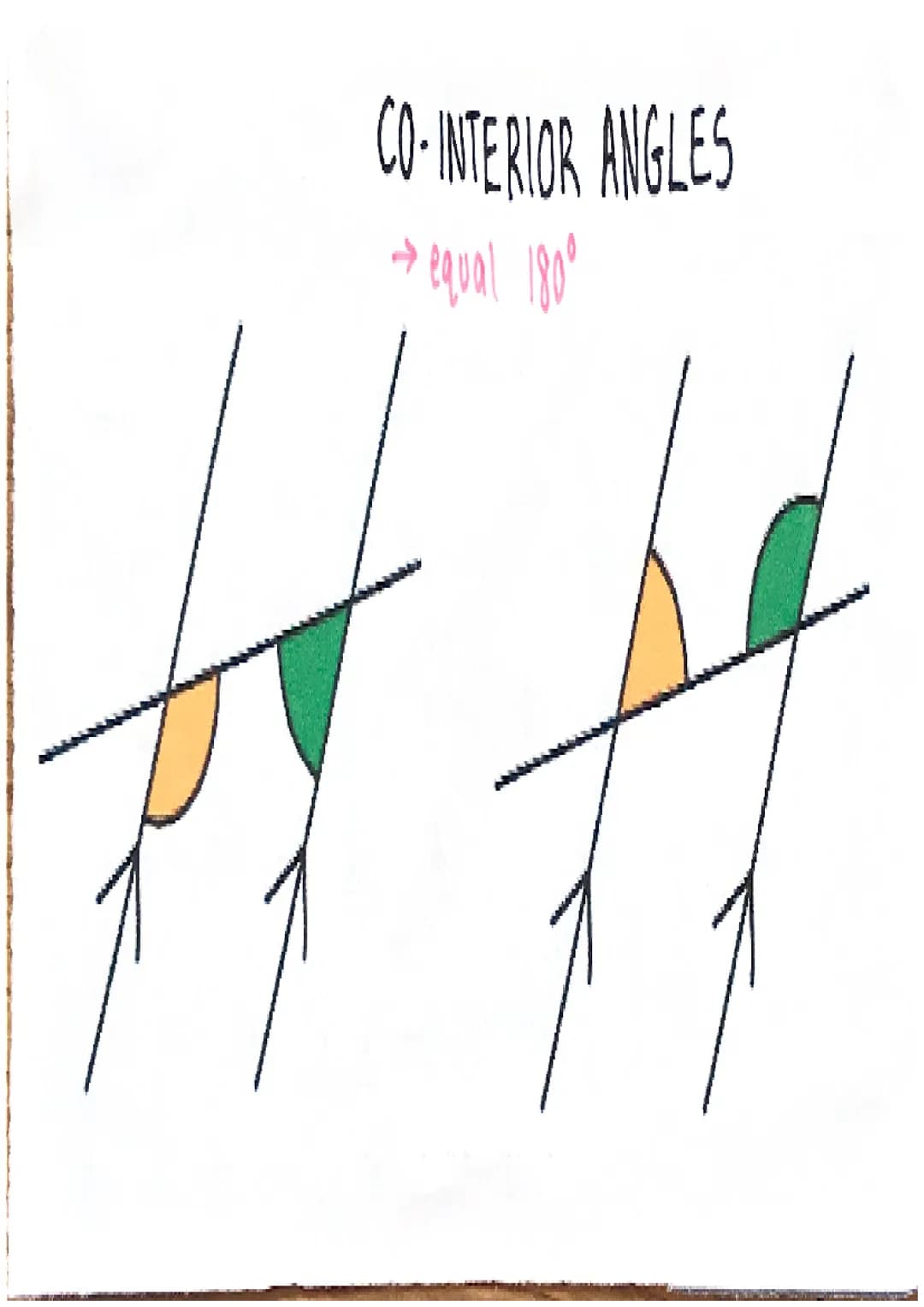

2. Co-interior angles

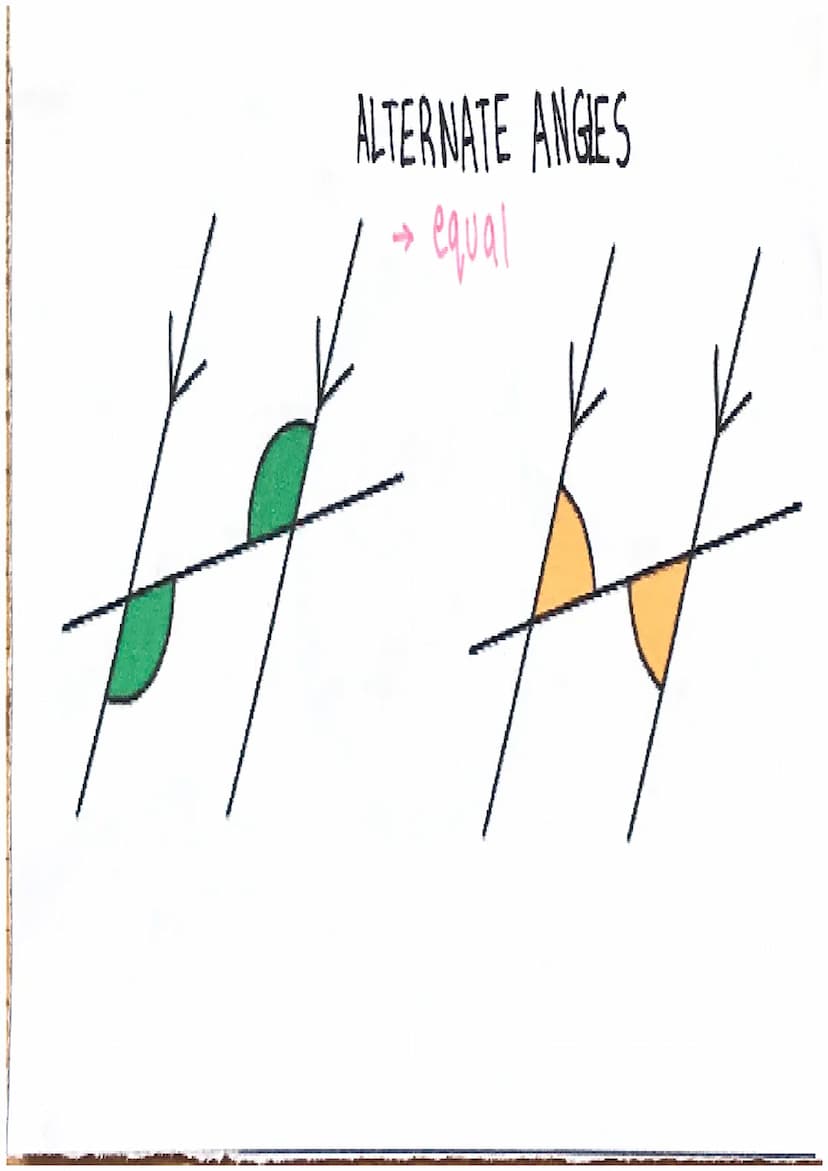

3. Alternate angles

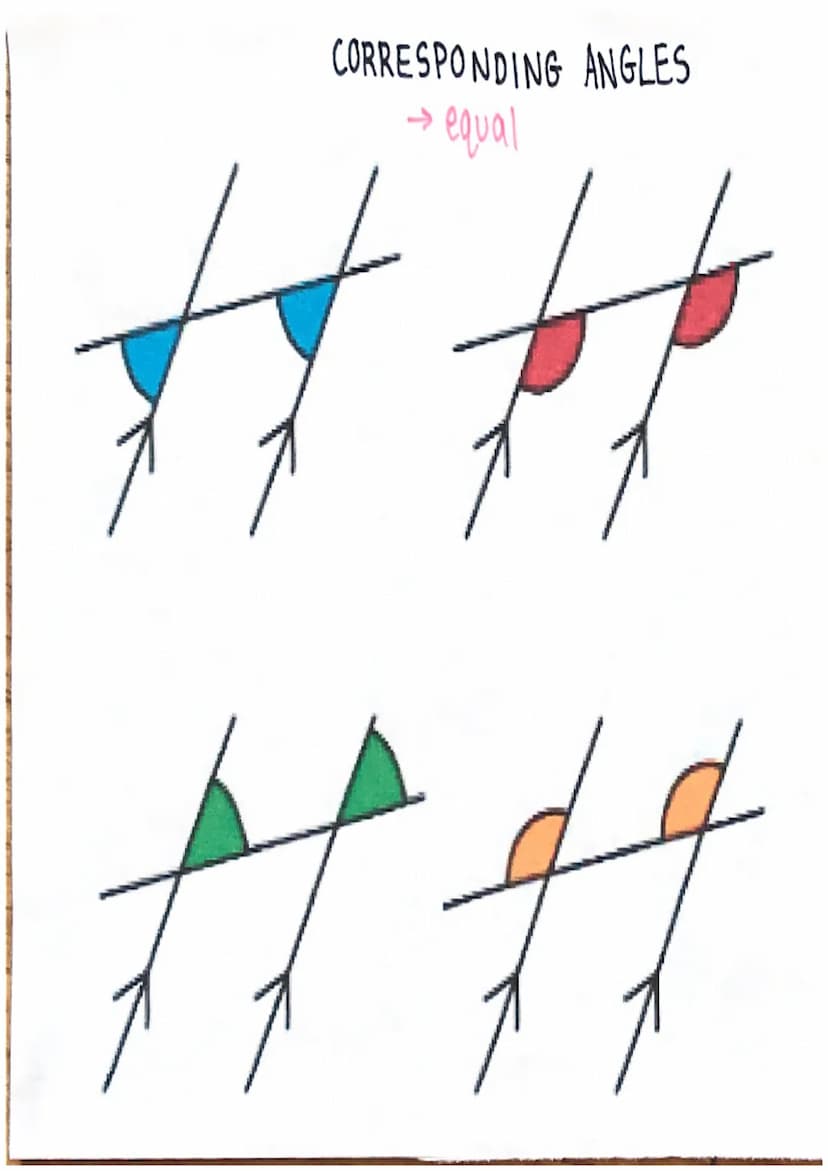

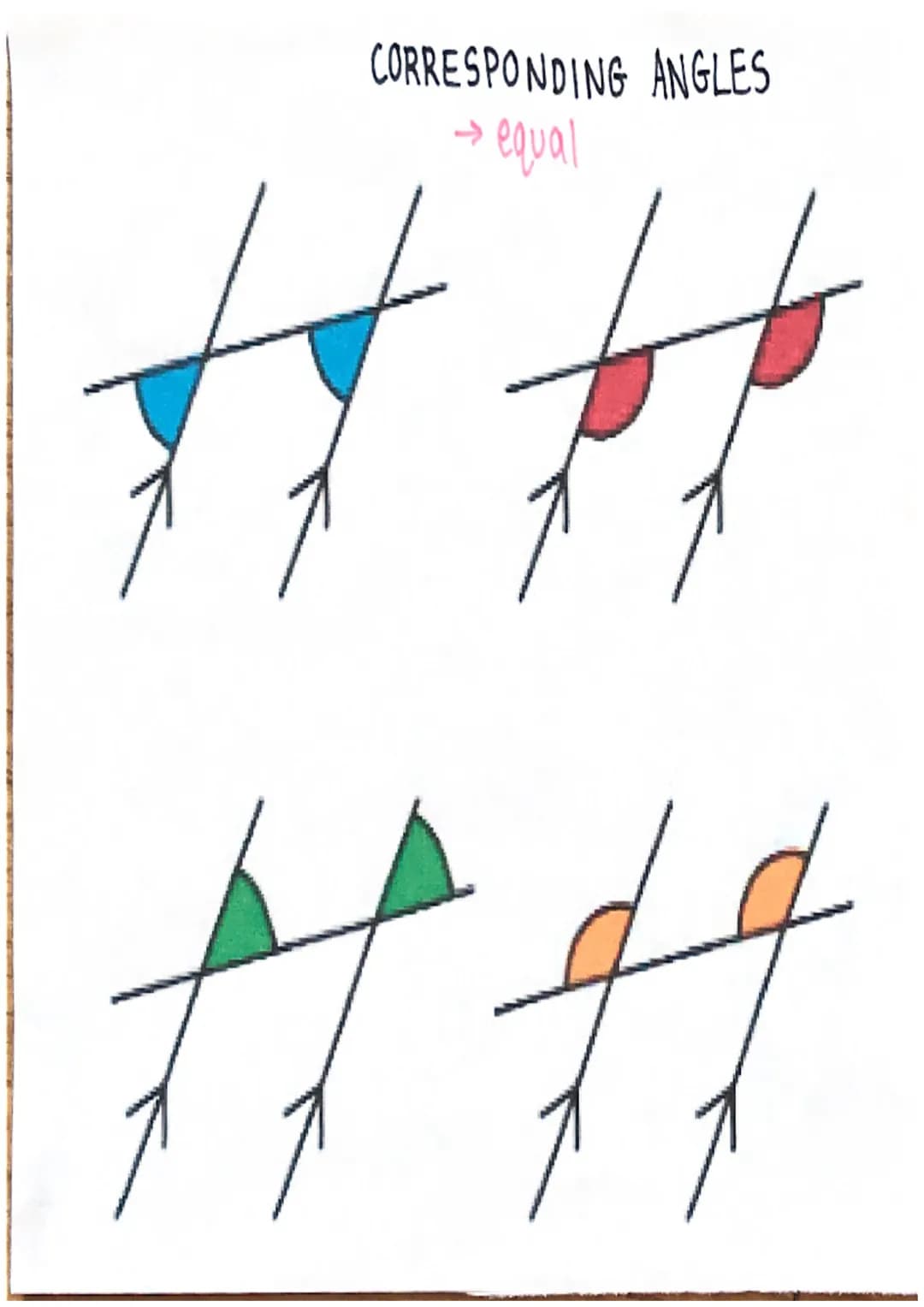

Definition: Corresponding angles are equal angles that appear in the same relative position when a line intersects two other lines.

Highlight: Understanding these angle relationships is crucial for solving complex geometric problems and proofs.

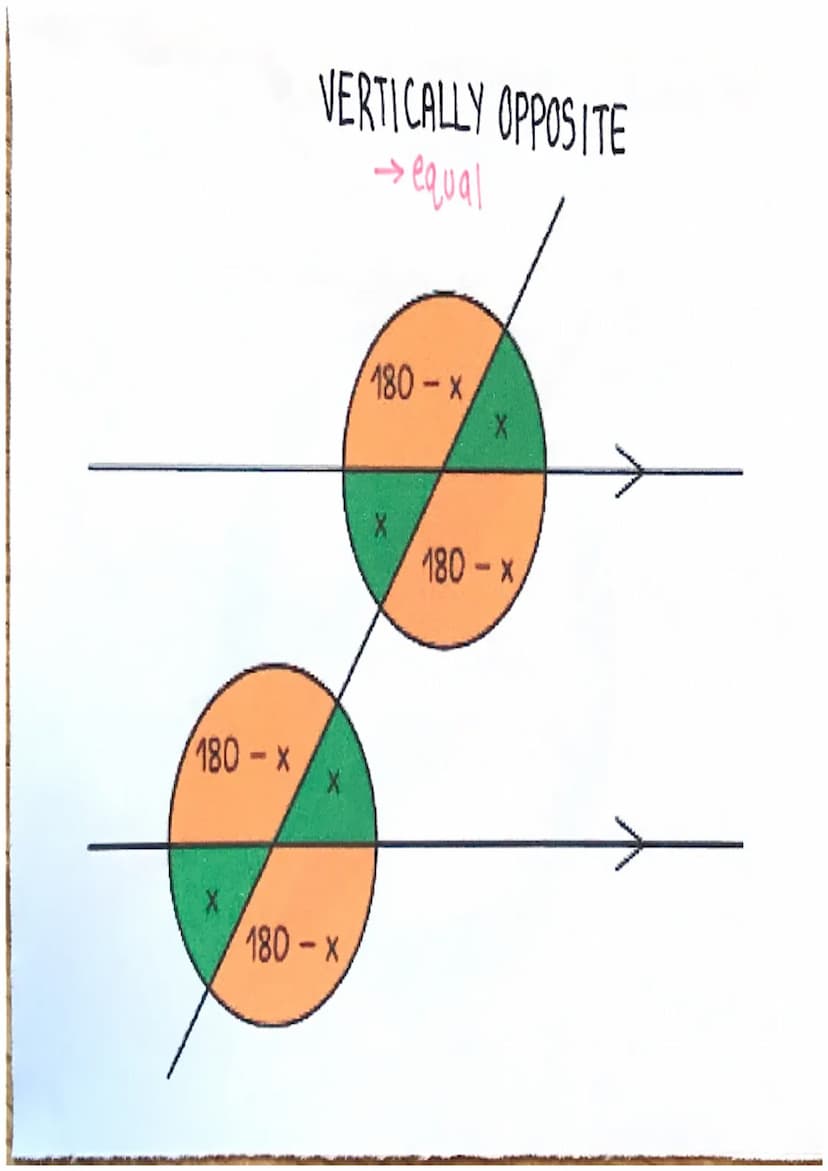

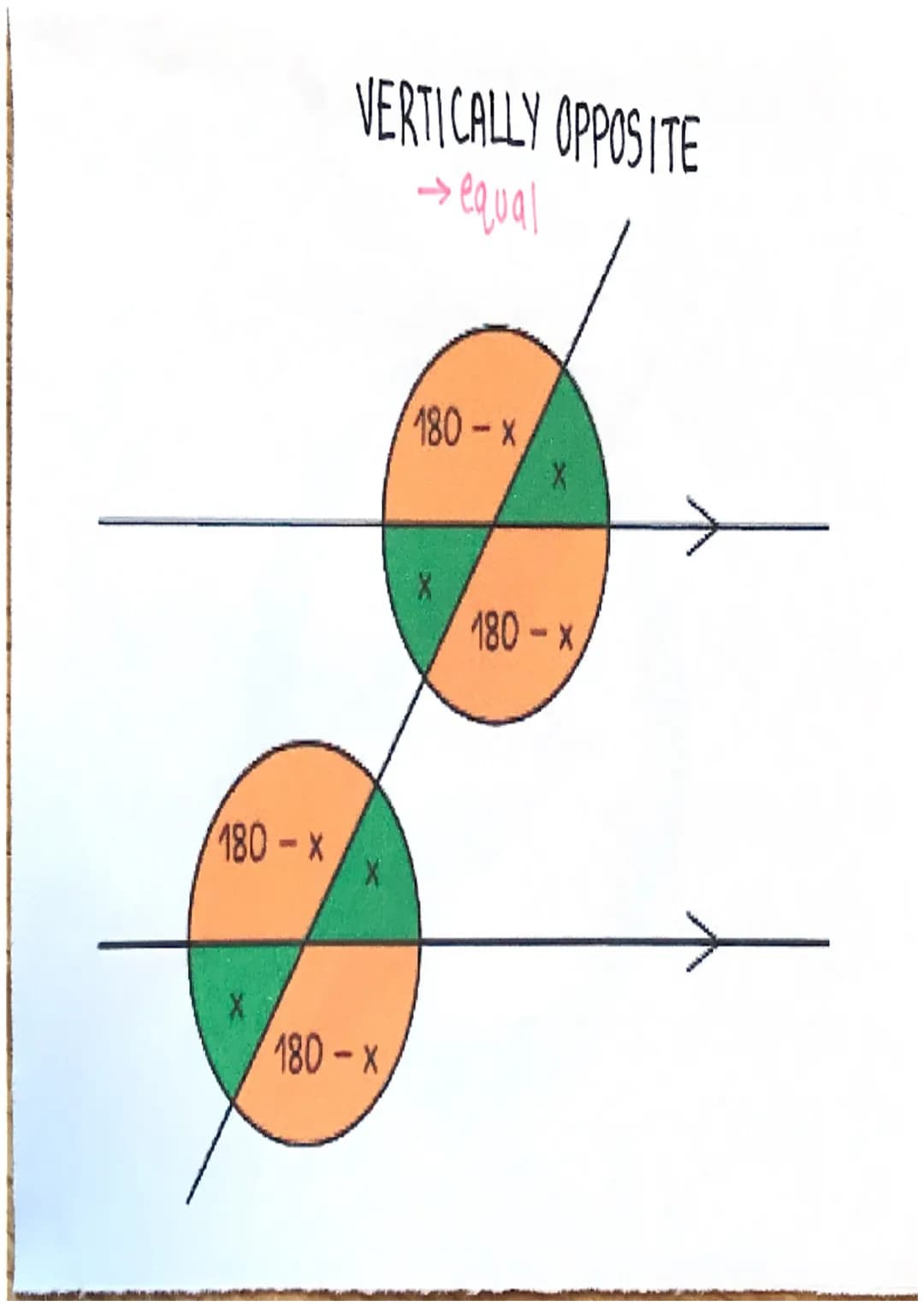

Vertically Opposite Angles

This page focuses on vertically opposite angles, another important concept in geometry and GCSE maths.

The diagram illustrates that vertically opposite angles are equal. This principle is demonstrated with angles labeled as x and 180-x.

Definition: Vertically opposite angles are pairs of angles opposite each other when two lines intersect.

Highlight: The equality of vertically opposite angles is a fundamental principle used in many geometric proofs and problem-solving scenarios.

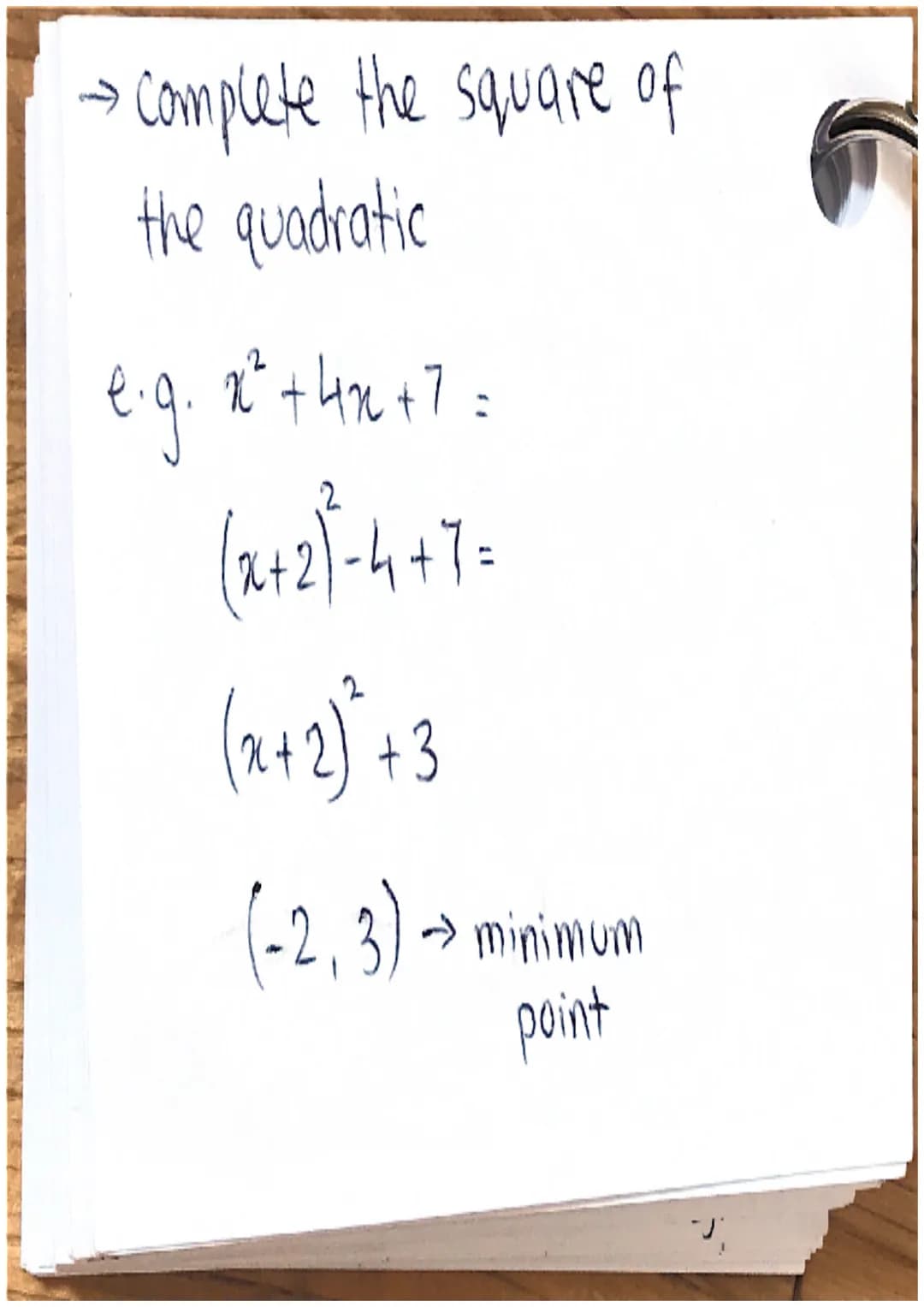

Quadratic Equations: Completing the Square

This page introduces the method of completing the square for solving quadratic equations, an important technique in GCSE maths.

The process of completing the square is demonstrated step-by-step, showing how to transform a quadratic equation into the form $x + p$² + q.

Example: For the equation x² + 4x + 7 = 0, the completed square form is $x + 2$² - 4 + 7 = 0.

Highlight: Completing the square is useful for finding the minimum point of a quadratic function, which in this case is $-2, 3$.

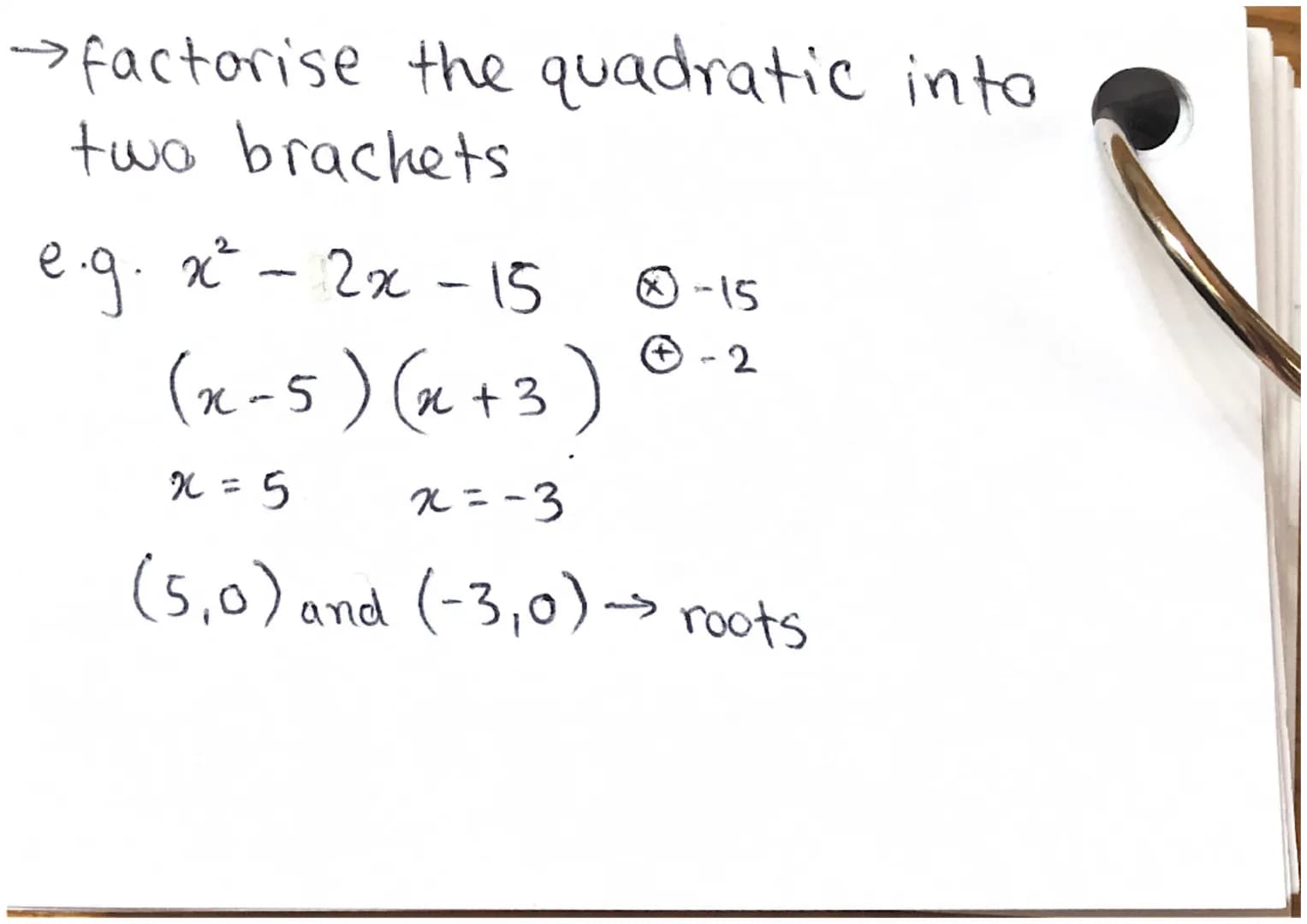

Quadratic Equations: Factorization

This page covers the factorization method for solving quadratic equations, another essential skill in GCSE maths.

The process of factoring a quadratic equation into two brackets is demonstrated, using the example x² - 2x - 15.

Example: x² - 2x - 15 factorizes to x - 5$$x + 3, giving roots at x = 5 and x = -3.

Highlight: Factorization allows for easy identification of the roots (x-intercepts) of a quadratic function, which are (5, 0) and $-3, 0$ in this case.

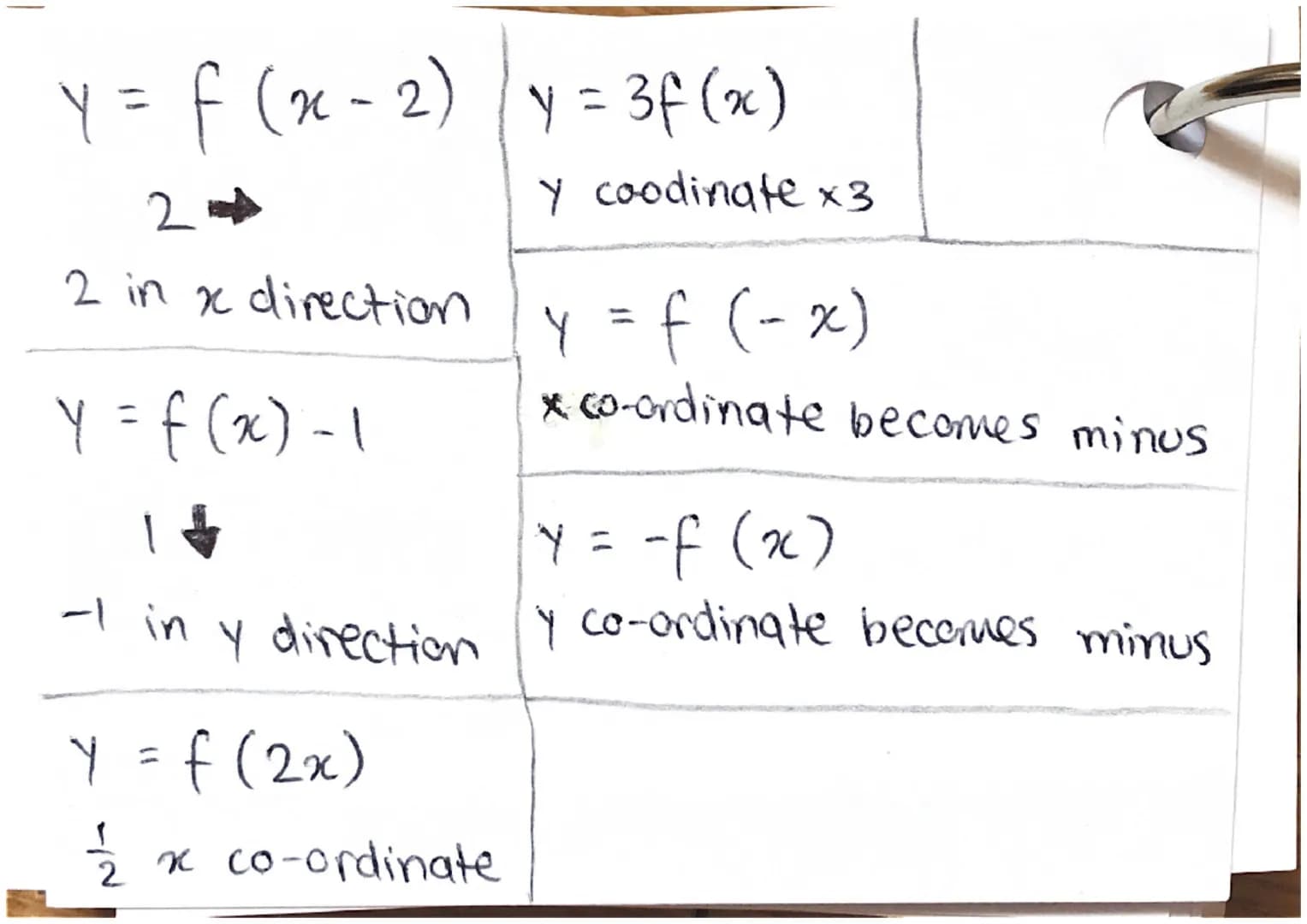

Transformations of Functions

This page explains various transformations of functions, an important topic in GCSE maths that relates to graph sketching and manipulation.

Different transformations are illustrated:

• y = f$x - 2$: Shift 2 units right
• y = 3f$x$: Stretch vertically by a factor of 3
• y = f$x$ - 2: Shift 2 units down
• y = f$-x$: Reflection in the y-axis
• y = f(2x): Horizontal compression by a factor of 1/2
• y = -f$x$: Reflection in the x-axis

Highlight: Understanding these transformations is crucial for sketching and interpreting graphs of various functions.

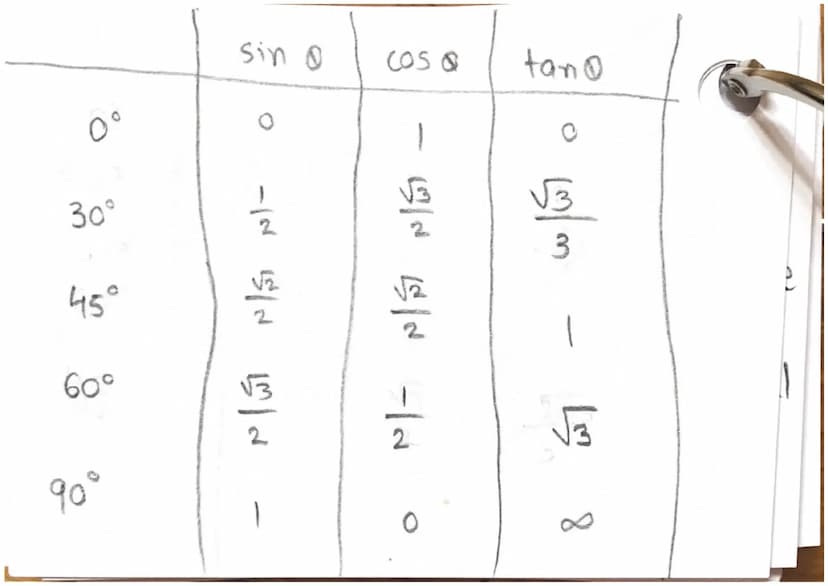

Trigonometric Ratios

This page presents a diagram showing the trigonometric ratios for common angles (30°, 45°, 60°, 90°) in a right-angled triangle.

The ratios of sine, cosine, and tangent are provided for these angles.

Vocabulary: Sine (sin), cosine (cos), and tangent (tan) are the main trigonometric ratios used in GCSE maths.

Highlight: Memorizing these common angle ratios is essential for solving trigonometric problems efficiently.

Circle Equation

This page introduces the general equation of a circle, an important concept in coordinate geometry and GCSE maths.

The equation $x - a$² + $y - b$² = r² is presented, where:

• (a, b) represents the center of the circle
• r² is the square of the radius

Definition: This equation describes all points (x, y) that lie on a circle with center (a, b) and radius r.

Highlight: Understanding this equation is crucial for solving problems involving circles in coordinate geometry.

Circle Theorems

This page provides a comprehensive overview of circle theorems, which are fundamental to GCSE maths and geometry.

The page covers several important theorems:

1. Alternate segment theorem
2. Angles in the same segment theorem
3. Perpendicular from center to chord theorem
4. Angle at the center theorem
5. Angles in a semicircle theorem
6. Cyclic quadrilateral theorem
7. Tangent-radius theorem

Example: The alternate segment theorem states that the angle between a tangent and a chord at the point of contact is equal to the angle in the alternate segment.

Highlight: These theorems are essential for solving complex geometric problems involving circles and are frequently tested in GCSE maths exams.

Sine Function Graph

This page illustrates the graph of y = sin$x$, a fundamental trigonometric function in GCSE maths.

Key features of the sine graph are highlighted:

• The graph starts at (0, 0)
• It cycles through the values 1, 0, -1, 0 every 90°
• The period of the function is 360°

Definition: The sine function relates the angle of a right-angled triangle to the ratio of the opposite side to the hypotenuse.

Highlight: Understanding the shape and properties of the sine graph is crucial for solving trigonometric equations and modeling periodic phenomena.

Cosine Function Graph

This page shows the graph of y = cos$x$, another important trigonometric function in GCSE maths.

Key features of the cosine graph are noted:

• The graph starts at (0, 1)
• It cycles through the values 0, -1, 0, 1 every 90°
• The period of the function is 360°

Definition: The cosine function relates the angle of a right-angled triangle to the ratio of the adjacent side to the hypotenuse.

Highlight: The cosine graph is similar to the sine graph but shifted by 90°, which is important to recognize in trigonometric problems.
