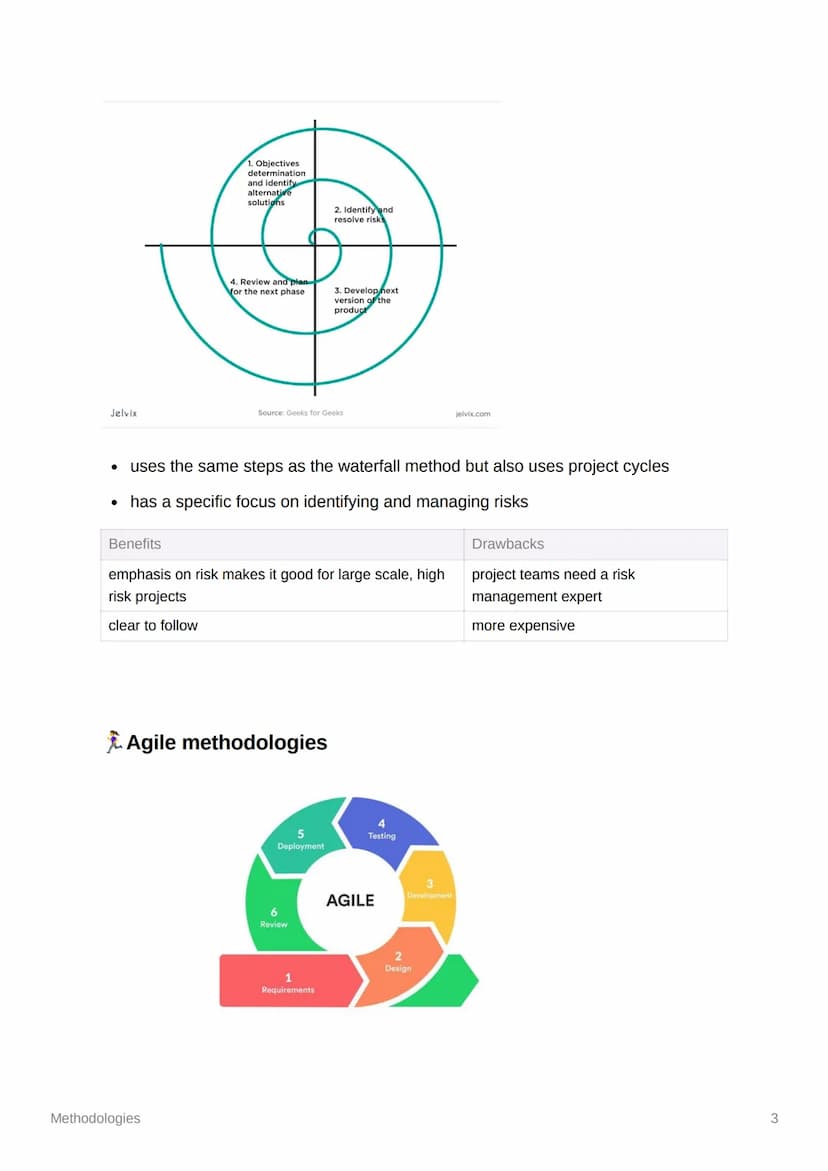

The Spiral Model

The spiral model is an evolution of the waterfall approach that incorporates risk management and iterative development cycles.

Key features of the spiral model include:

1. Objectives determination and identification of alternative solutions
2. Risk identification and resolution
3. Development of the next product version
4. Review and planning for the next phase

Example: In a spiral model approach, a software team might start by identifying project objectives and potential risks, then create a prototype to address those risks before moving on to full-scale development.

Benefits of the spiral model:

• Emphasis on risk management makes it suitable for large-scale, high-risk projects
• Clear structure to follow

Drawbacks:

• Requires expertise in risk management
• Can be more expensive than simpler models

Agile Methodologies

Agile methodologies represent a shift towards more flexible, iterative approaches to software development. These methods use the same basic steps as the waterfall model but organize them into shorter project cycles or sprints.

Definition: Agile methodologies are a set of practices for software development that emphasize flexibility, collaboration, and rapid delivery of working software.

Key characteristics of agile methodologies include:

• Focus on identifying and managing risks
• Emphasis on stakeholder satisfaction
• Building prototypes and incorporating feedback early and often

Benefits of agile methodologies:

• Suitable for a wide range of projects
• Allows for decomposition of large projects across multiple teams
• Facilitates stakeholder feedback throughout the development process

Highlight: Comparing waterfall and agile methodologies in software development reveals that agile approaches offer more flexibility and stakeholder involvement, while waterfall provides more structure and predictability.

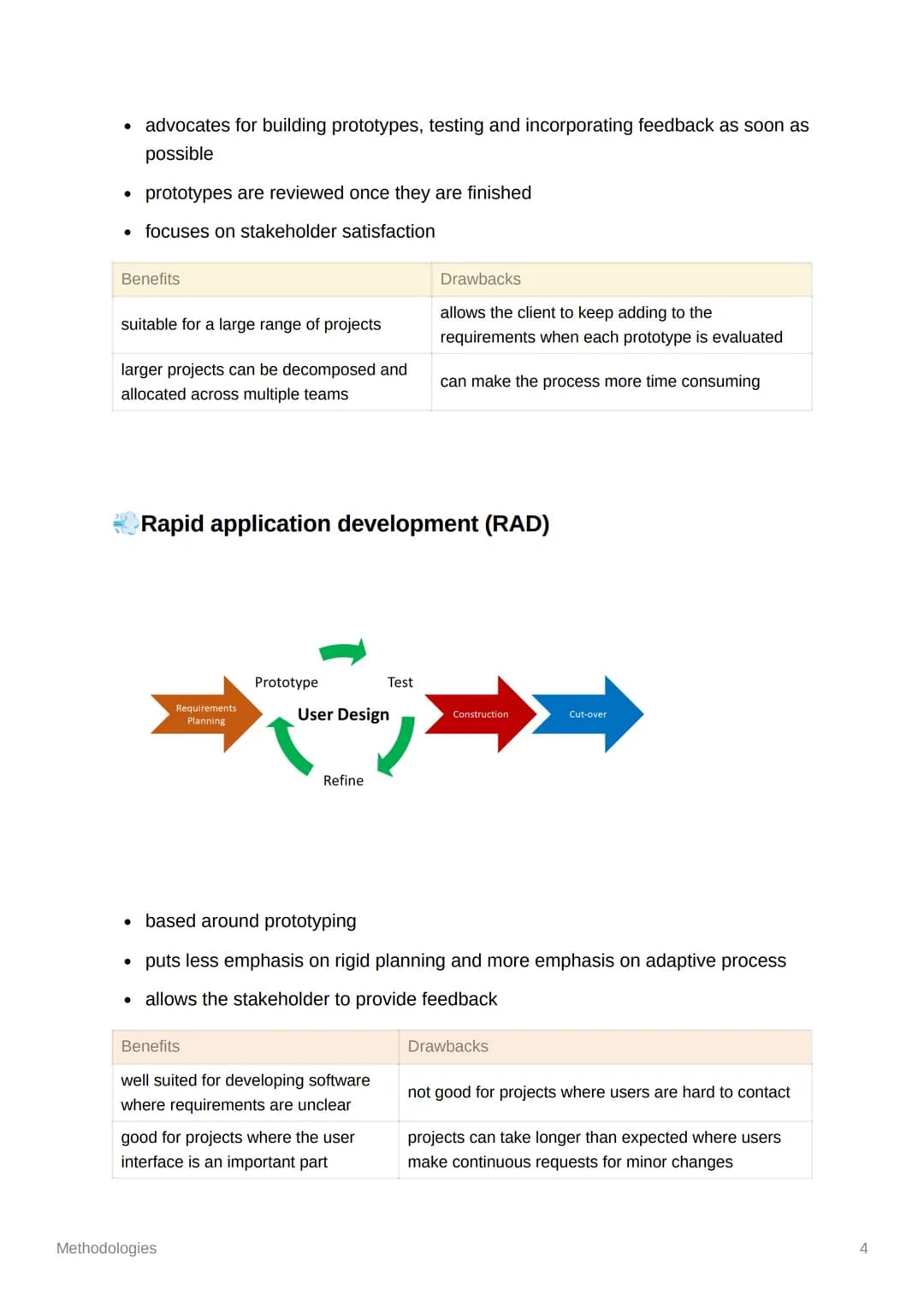

Rapid Application Development (RAD)

Rapid Application Development (RAD) is an agile methodology that places a strong emphasis on prototyping and iterative development.

Key features of RAD include:

• Focus on building prototypes quickly
• Regular testing and incorporation of feedback
• Less emphasis on rigid planning, more on adaptive processes

Example: In a RAD project, developers might create a basic user interface prototype within days of project initiation, then refine it based on immediate user feedback.

Rapid application development benefits and drawbacks include:

Benefits:

• Well-suited for projects with unclear requirements
• Effective for projects where the user interface is crucial
• Allows for continuous stakeholder input

Drawbacks:

• Can lead to scope creep as clients continuously add requirements
• May result in longer development times due to frequent changes
• Not ideal for projects where user access is limited

The RAD process typically follows these stages:

1. Requirements Planning
2. User Design
3. Construction
4. Cutover (Implementation)

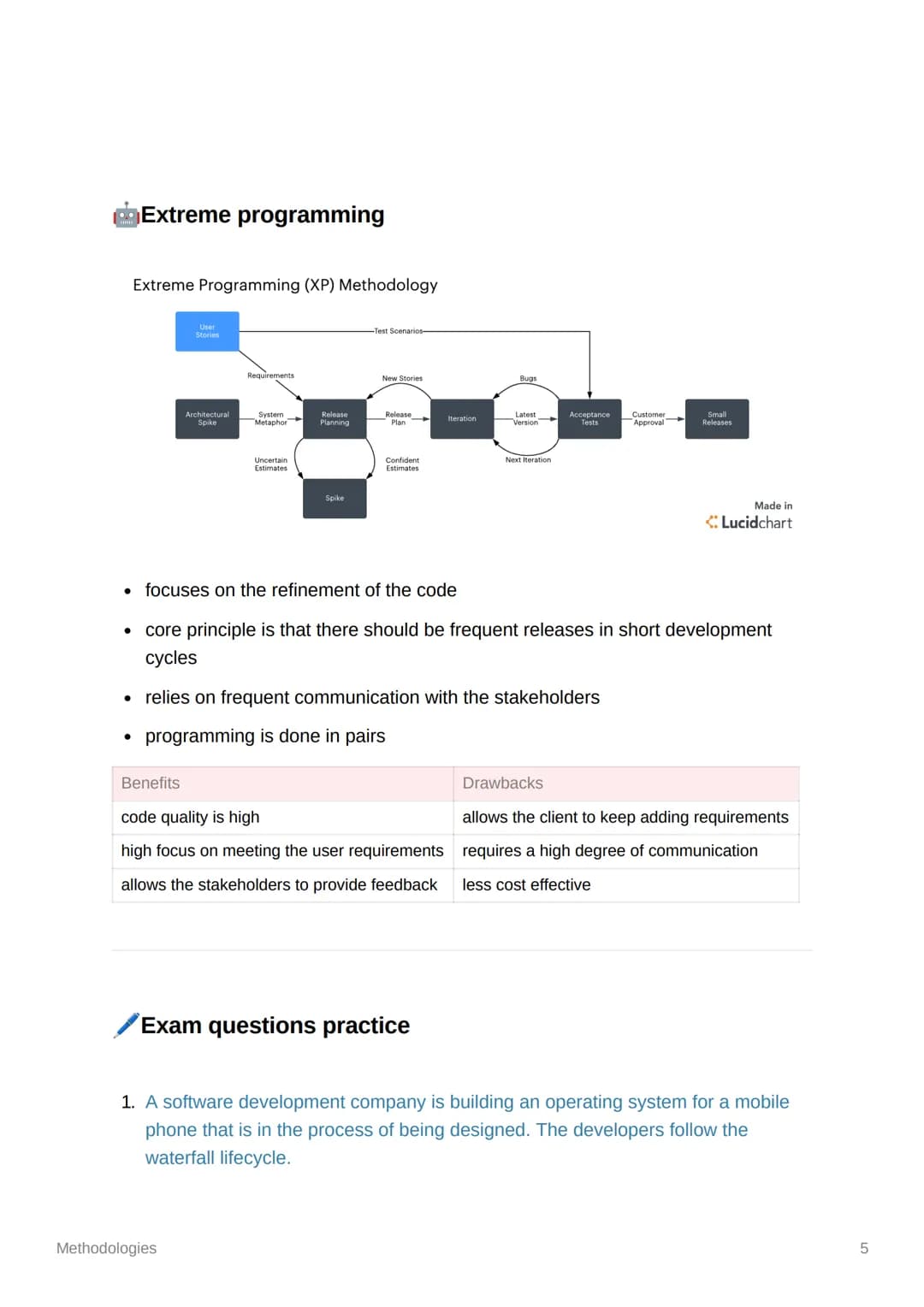

Extreme Programming (XP)

Extreme Programming (XP) is an agile methodology that emphasizes code quality, frequent releases, and close collaboration with stakeholders.

Key principles of XP include:

• Frequent releases in short development cycles
• Pair programming
• Continuous communication with stakeholders
• Focus on meeting user requirements

Vocabulary: Pair programming is a technique where two programmers work together at one workstation, with one writing code while the other reviews each line of code as it's typed in.

Benefits of XP:

• High code quality due to pair programming and frequent reviews
• Strong focus on meeting user requirements
• Regular stakeholder feedback incorporated into development

Drawbacks:

• Can lead to scope creep as clients continuously add requirements
• Requires a high degree of communication and collaboration
• May be less cost-effective for certain types of projects

The XP process involves several iterative stages, including:

1. User Stories
2. Release Planning
3. Iteration
4. Acceptance Tests
5. Small Releases

Highlight: XP's emphasis on frequent releases and continuous feedback makes it particularly well-suited for projects with evolving requirements or where close user involvement is crucial.

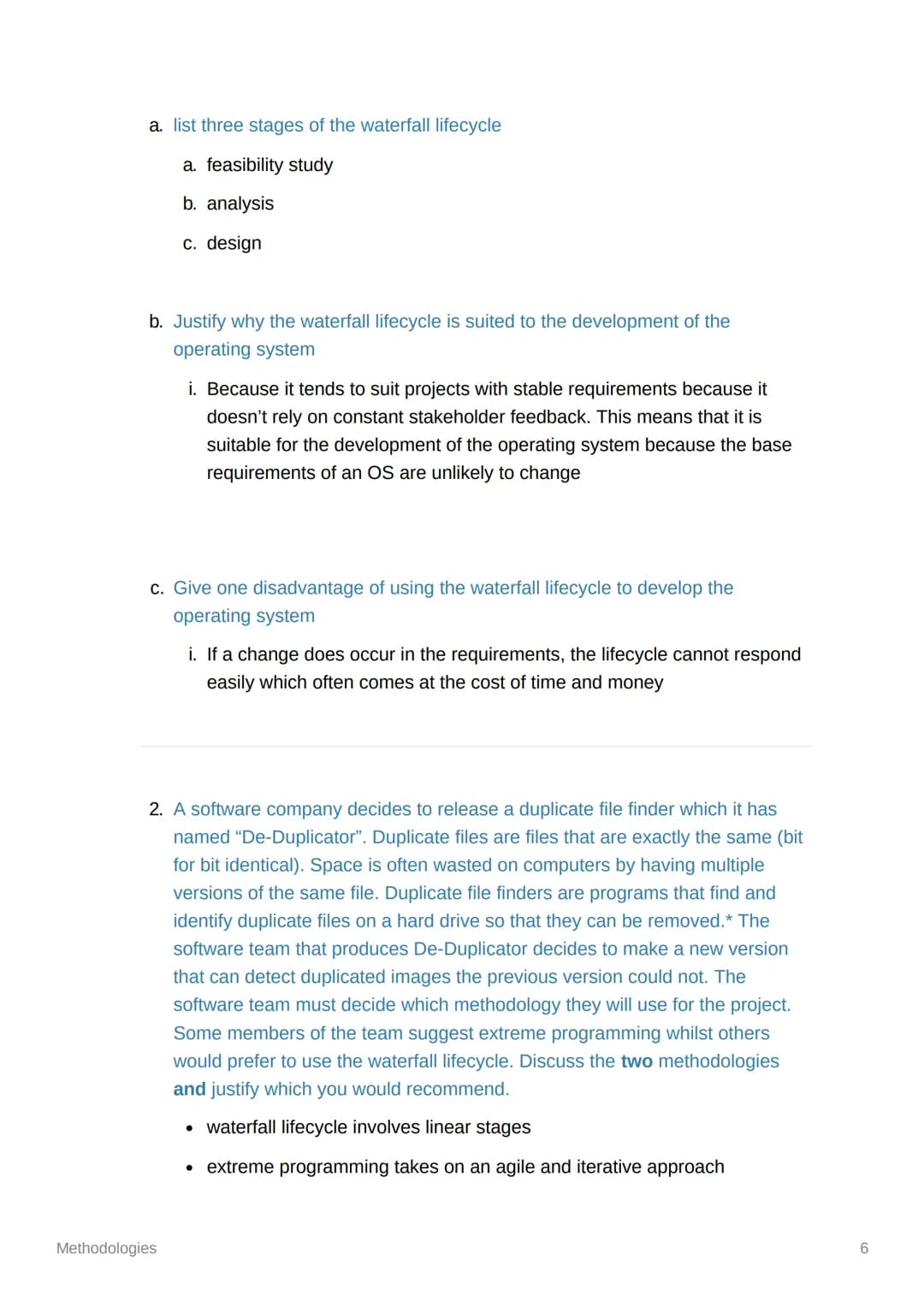

Exam Question Practice

This section provides practice questions related to software development methodologies, focusing on the waterfall lifecycle.

Question 1 asks about the stages of the waterfall lifecycle, its suitability for developing a mobile phone operating system, and potential disadvantages.

Key points:

• Three stages of the waterfall lifecycle: feasibility study, analysis, and design
• The waterfall lifecycle is suited for OS development due to stable requirements
• A disadvantage is its inflexibility in responding to requirement changes

Question 2 introduces a scenario about developing a duplicate file finder software called "De-Duplicator."

Example: A duplicate file finder like De-Duplicator might scan a hard drive, create hash values for each file, and compare these hashes to identify identical files, helping users free up storage space.

This question sets the stage for further discussion on software development approaches for evolving product features.

Page 7: De-Duplicator Case Study

The final page presents a practical case study of software development through the lens of a duplicate file finder application.

Definition: A duplicate file finder is specialized software that identifies and manages identical files on a computer system to optimize storage space.

Example: The De-Duplicator project demonstrates how different development methodologies might be applied to a practical software solution.

Highlight: This case study provides a concrete example of how theoretical methodology concepts apply to real-world software development scenarios.

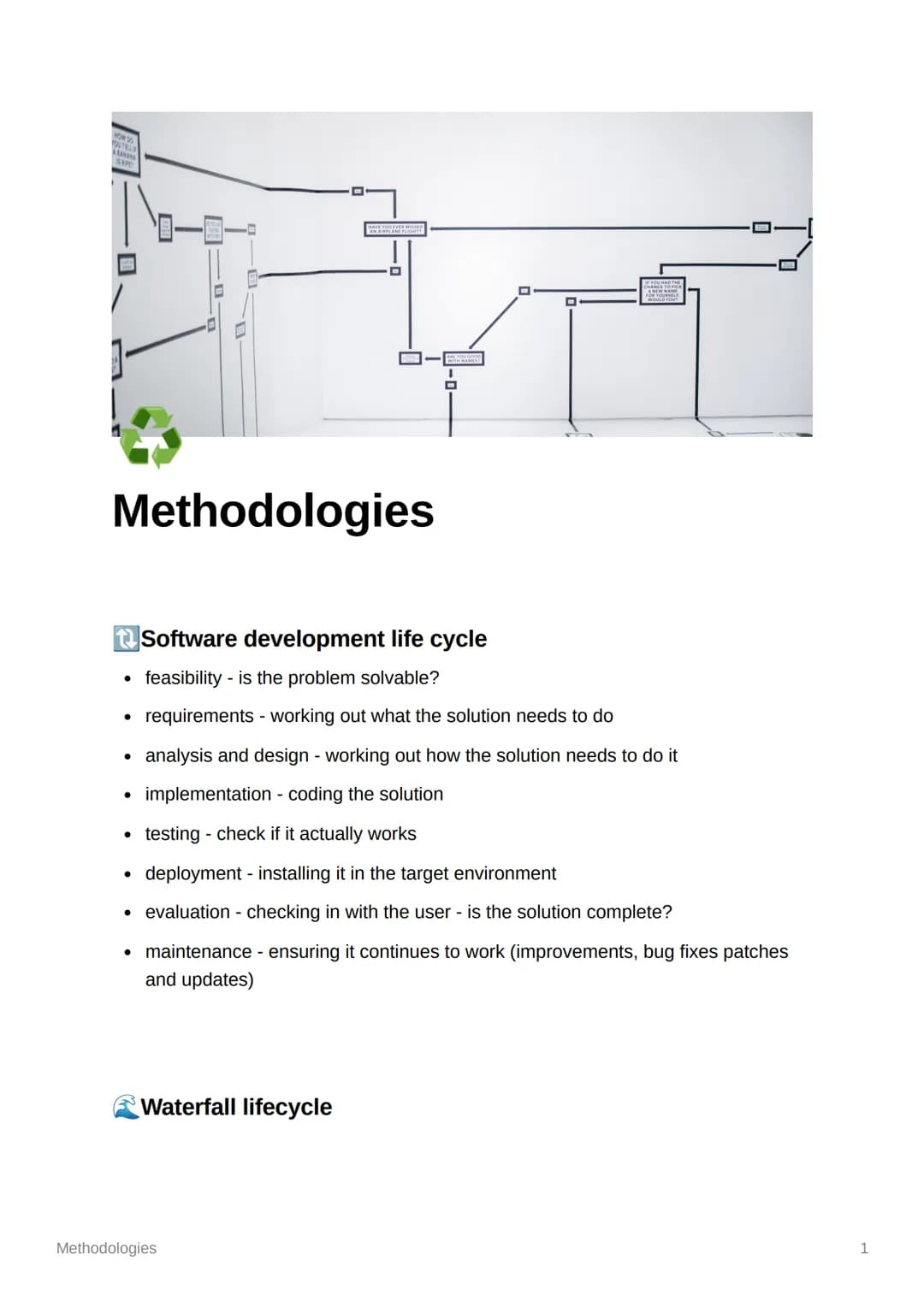

Software Development Methodologies Overview

The software development lifecycle (SDLC) consists of several key phases, including feasibility assessment, requirements gathering, analysis and design, implementation, testing, deployment, evaluation, and maintenance. Different methodologies structure these phases in various ways to suit different project needs.

Definition: The software development lifecycle (SDLC) is a process used by the software industry to design, develop and test high quality software.

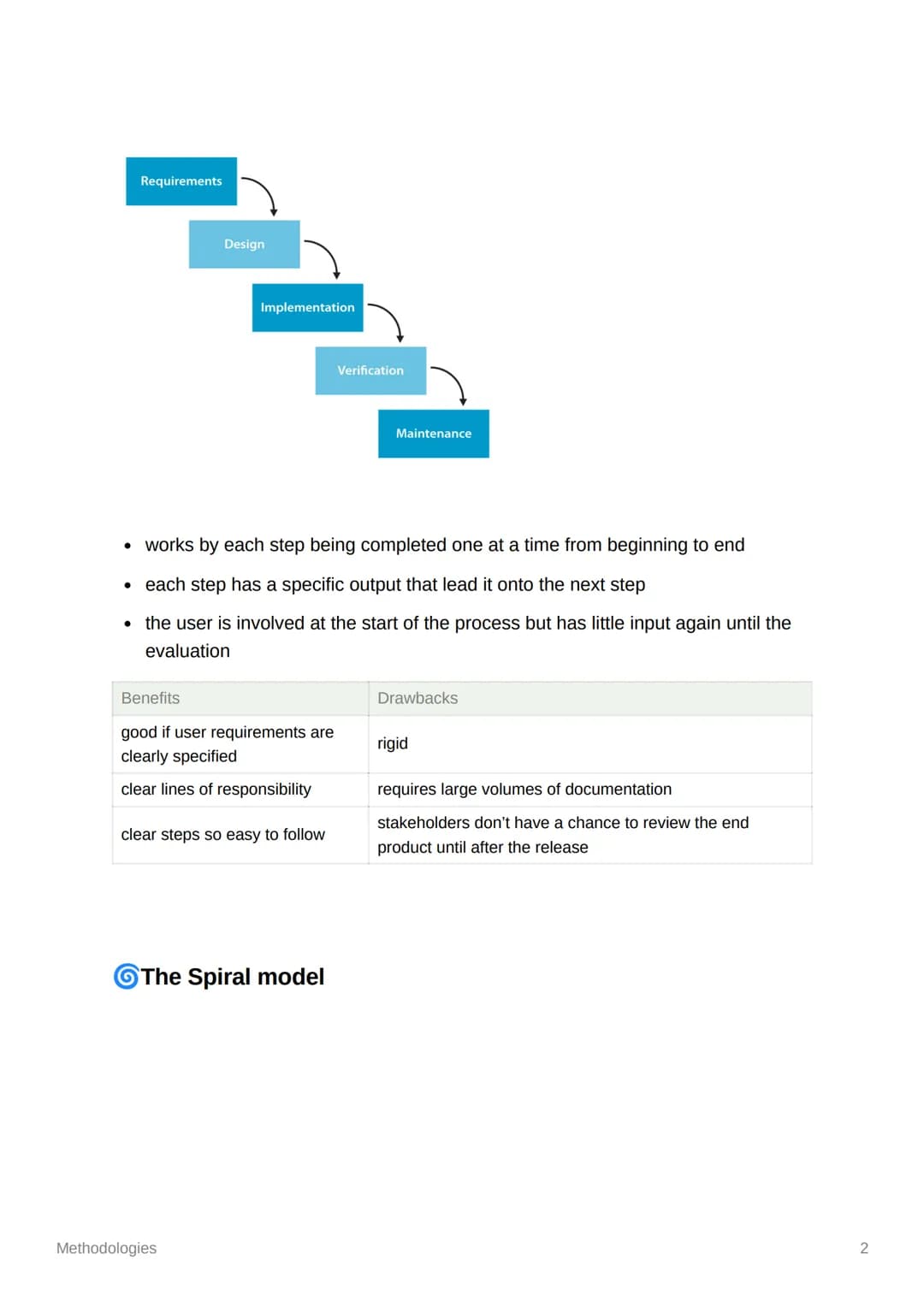

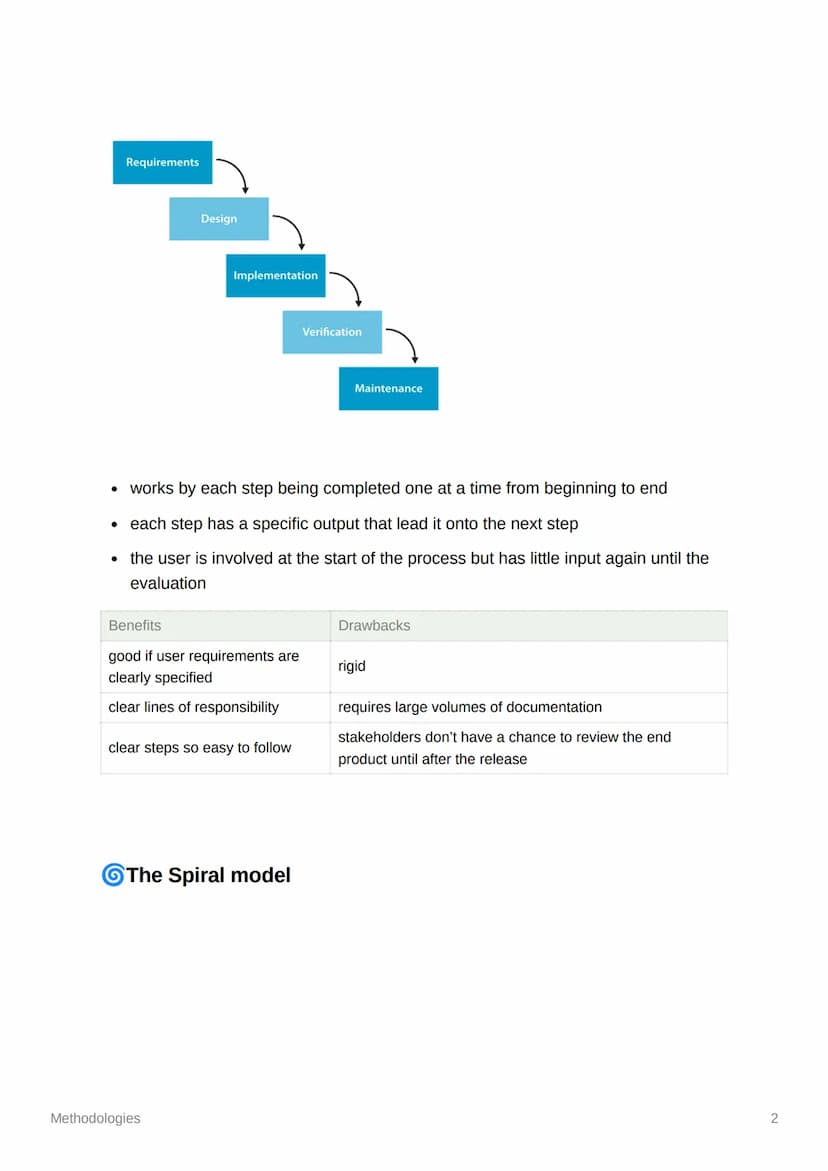

The waterfall model is a traditional approach that follows a linear, sequential path through these phases. Each phase must be completed before moving to the next, with clear outputs at each stage.

Highlight: The waterfall model is best suited for projects with well-defined, stable requirements and clear objectives from the outset.

Advantages and disadvantages of waterfall methodology include:

Benefits:

• Suitable for projects with clearly specified user requirements
• Clear lines of responsibility
• Easy to follow due to distinct steps

Drawbacks:

• Rigid structure
• Requires extensive documentation
• Limited stakeholder input until late in the process
