Detailed Analysis of Emission and Absorption Spectra

This page delves deeper into the specifics of emission and absorption spectra, providing quantitative examples and exploring the energy transitions involved in these processes.

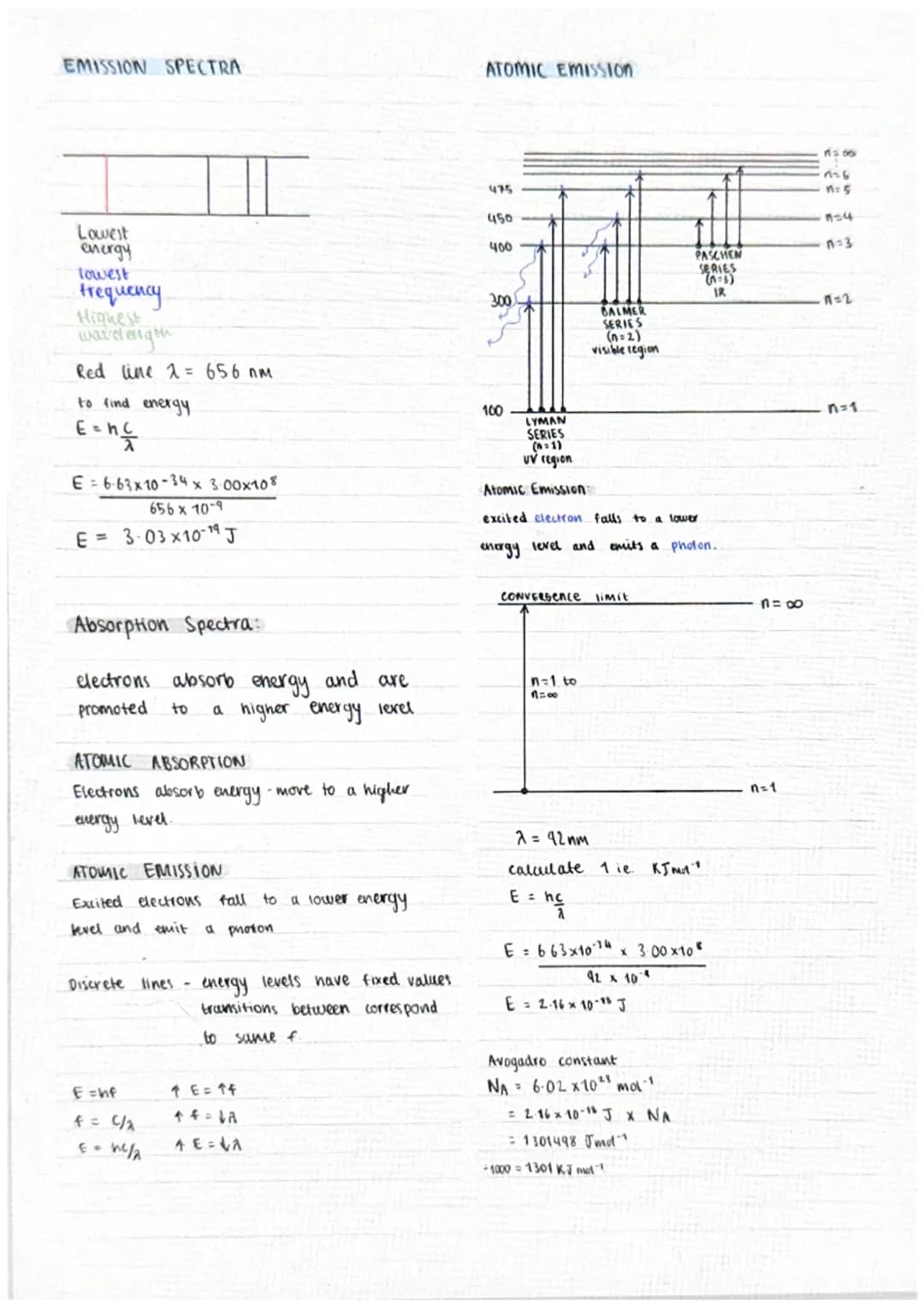

Emission Spectra Calculations

The energy of a photon emitted during an electron transition can be calculated using the equation E = hc/λ. For example, the red line in the hydrogen spectrum has a wavelength of 656 nm.

Example: To find the energy of this red photon: E = $6.63 x 10⁻³⁴ J·s × 3.00 × 10⁸ m/s$ / (656 × 10⁻⁹ m) = 3.03 × 10⁻¹⁹ J

Absorption vs. Emission Processes

Absorption spectra result from electrons absorbing energy and being promoted to higher energy levels. Conversely, emission spectra occur when excited electrons fall to lower energy levels, emitting photons in the process.

Definition: Atomic absorption is the process where electrons absorb energy and move to a higher energy level, while atomic emission is the process where excited electrons fall to a lower energy level and emit a photon.

Hydrogen Spectrum Series

The hydrogen atom's emission spectrum consists of several series of lines, each corresponding to transitions to a particular energy level:

• Lyman series $n=1$: Transitions to the ground state, occurring in the ultraviolet region.
• Balmer series $n=2$: Transitions to the second energy level, visible in the optical spectrum.
• Paschen series $n=3$: Transitions to the third energy level, occurring in the infrared region.

Highlight: The convergence limit of a spectral series represents the highest possible energy transition within that series, corresponding to an electron falling from the highest energy level $n=∞$ to the series' final level.

Energy Calculations in Atomic Spectra

The energy difference between levels in an atom can be calculated using the Rydberg formula. For example, the energy required to ionize a hydrogen atom (moving an electron from n=1 to n=∞) can be calculated:

E = 2.18 × 10⁻¹⁸ J

When converted to kJ/mol using Avogadro's constant (6.02 × 10²³ mol⁻¹), this energy is approximately 1301 kJ/mol.

Vocabulary: The Avogadro constant $N_A$ is the number of constituent particles (usually atoms or molecules) in one mole of a substance.

Understanding these concepts and calculations is crucial for interpreting visible light spectra in chemistry and analyzing the absorption and emission spectra of elements.

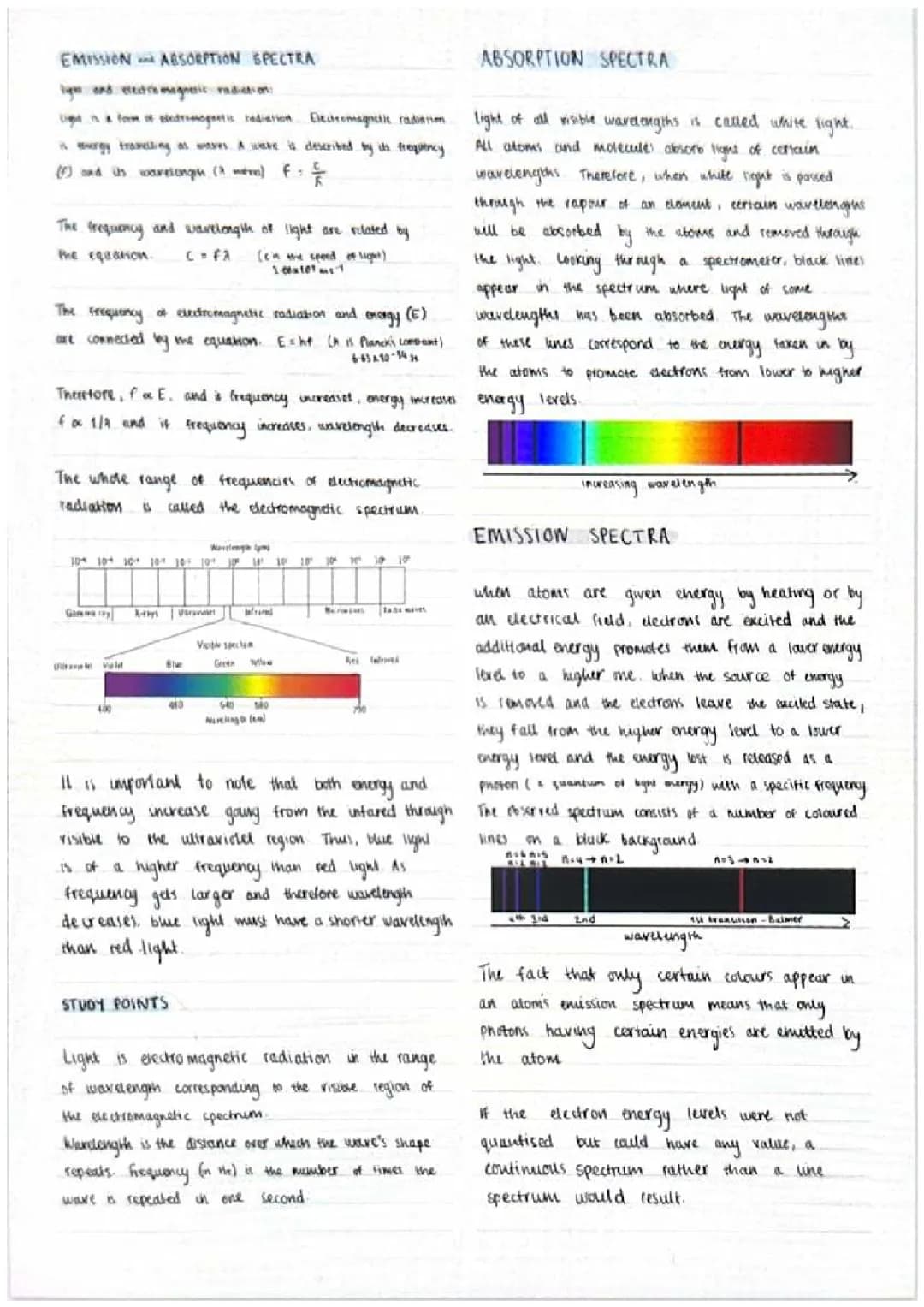

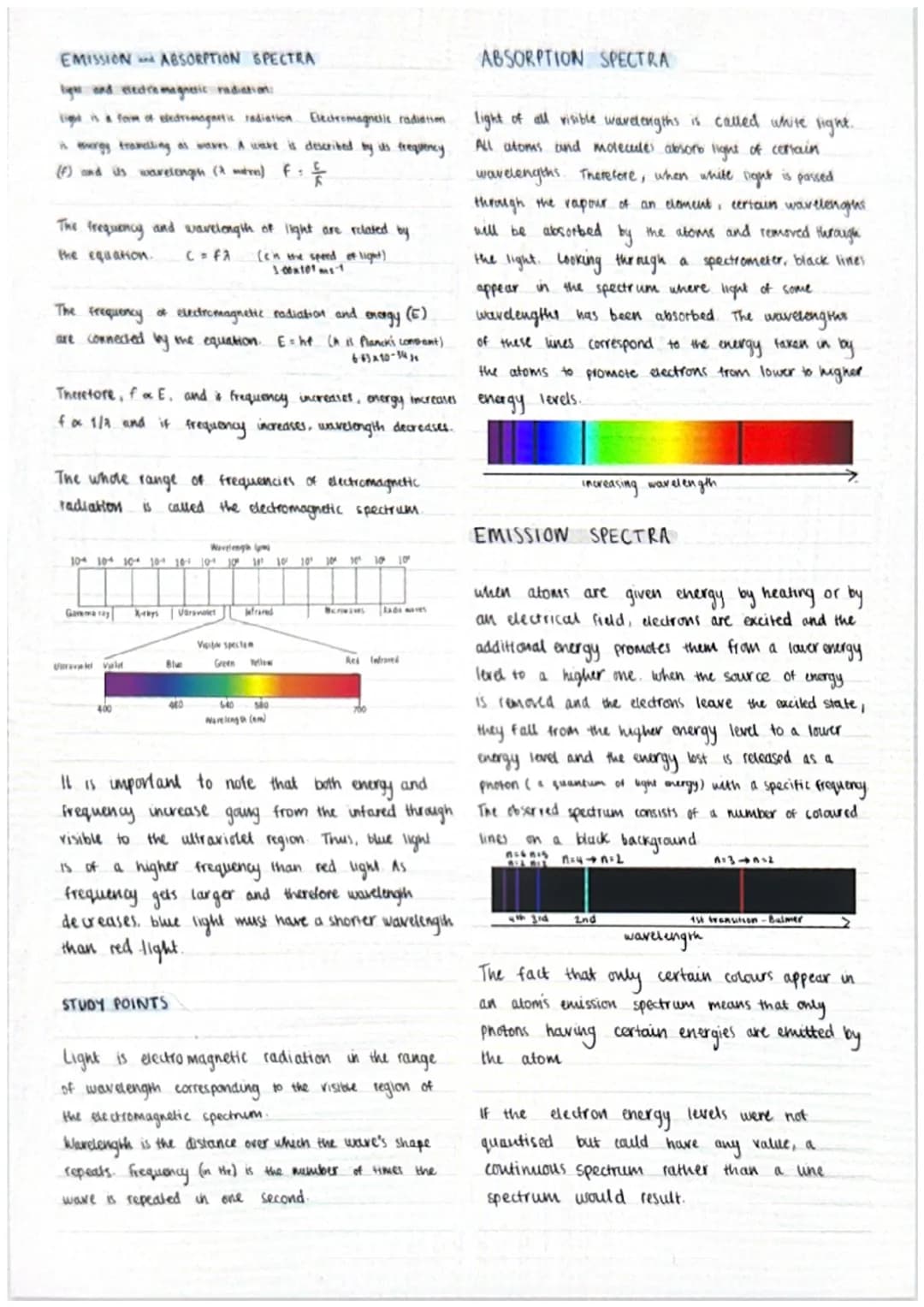

Light and Electromagnetic Radiation

Light is a form of electromagnetic radiation, which is energy traveling as waves. These waves are characterized by their frequency $f$ and wavelength (λ). The relationship between frequency and wavelength is described by the equation c = fλ, where c is the speed of light $3.00 x 10⁸ m/s$.

The energy (E) of electromagnetic radiation is related to its frequency by the equation E = hf, where h is Planck's constant (6.63 x 10⁻³⁴ J·s). This relationship shows that as frequency increases, energy increases, while wavelength decreases.

Highlight: The electromagnetic spectrum encompasses the entire range of electromagnetic radiation frequencies, from low-energy radio waves to high-energy gamma rays.

The visible spectrum, which is what we perceive as light, occupies a small portion of the electromagnetic spectrum. It ranges from about 400 nm (violet) to 700 nm (red) in wavelength.

Vocabulary: Wavelength is the distance over which a wave's shape repeats, while frequency is the number of times the wave repeats in one second.

Absorption Spectra

When white light (containing all visible wavelengths) passes through the vapor of an element, certain wavelengths are absorbed by the atoms. This process creates an absorption spectrum, characterized by dark lines in the otherwise continuous spectrum.

Definition: An absorption spectrum is a series of dark lines or bands in an otherwise continuous spectrum, resulting from the absorption of specific wavelengths of radiation by atoms or molecules.

These absorption lines correspond to the energy required to promote electrons from lower to higher energy levels within the atoms.

Emission Spectra

Emission spectra are produced when atoms are energized, typically by heat or an electrical field. This excitation causes electrons to move to higher energy levels. When the electrons return to lower energy states, they release energy in the form of photons with specific frequencies.

Example: The emission spectrum of hydrogen shows distinct colored lines corresponding to specific electron transitions, such as the Balmer series in the visible region.

The discrete nature of emission spectra provides evidence for the quantized energy levels in atoms. If electron energy levels were continuous rather than quantized, we would observe a continuous spectrum instead of distinct lines.
