How Electrochemical Cells Work: Fun Facts and Their Cool Uses

Page 2: Standard Conditions and Commercial Applications

This page details the importance of standardized conditions in measuring electrode potentials and introduces commercial applications of electrochemical cells.

Definition: Standard electrode conditions require 1 atm pressure, 1 mol/dm³ concentration, and 298 K temperature.

Highlight: The more negative the EMF value, the better the reducing agent performs in the cell.

Example: Lithium cells have a cell potential of 3.6V and can be recharged by applying an external current.

Vocabulary: EMF (Electromotive Force) - The potential difference or voltage generated by the cell.

Page 3: Fuel Cells and Their Impact

The final page focuses on fuel cell technology, particularly the hydrogen-oxygen fuel cell, and discusses their societal implications.

Definition: Fuel cells generate electrical current through continuous chemical reactions without requiring electrical recharging.

Example: In a hydrogen-oxygen fuel cell, the overall reaction produces water: 2H₂ + O₂ → 2H₂O

Highlight: Fuel cells offer high efficiency and produce only water as a byproduct, but hydrogen storage presents safety challenges.

Quote: "High efficiency → more energy out of the same amount of fuel than less efficient devices"

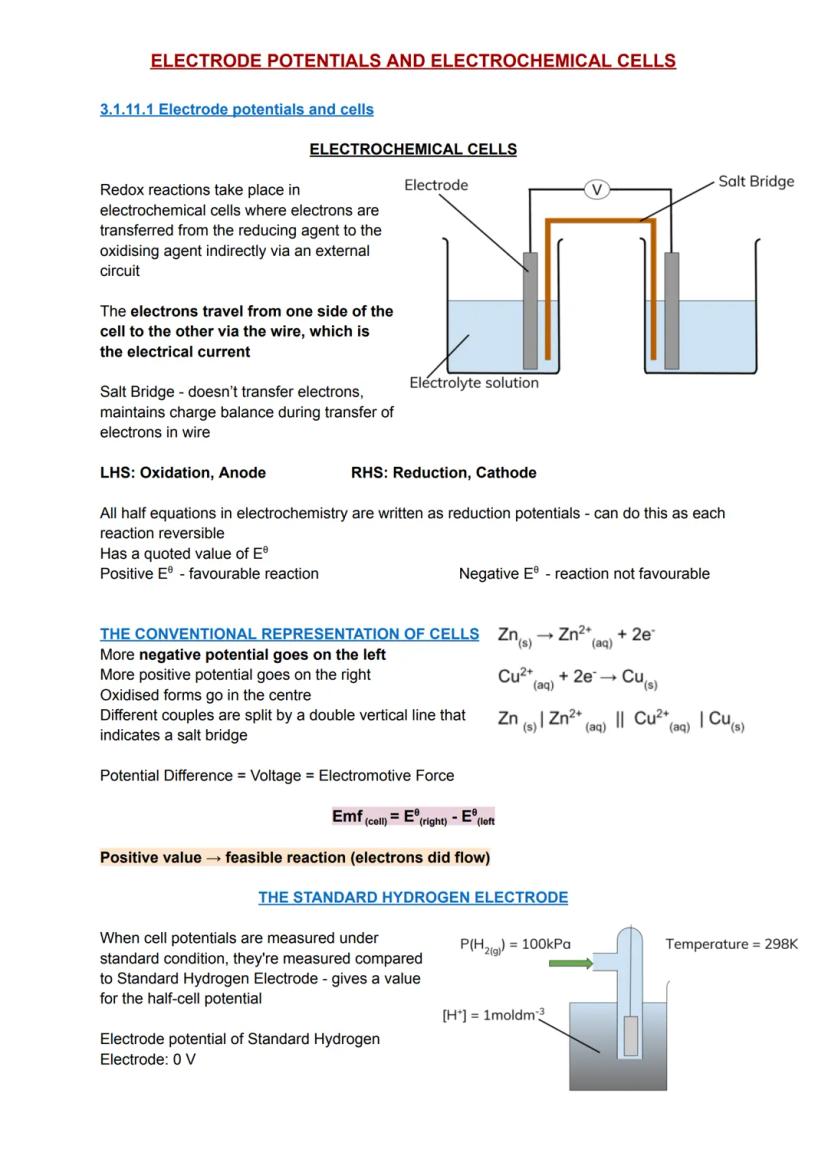

Page 1: Fundamentals of Electrochemical Cells

The first page introduces the basic concepts of electrochemical cells and their components. The cell structure consists of two electrodes connected by a salt bridge, allowing for controlled electron transfer through an external circuit.

Definition: Electrochemical cells are devices where redox reactions occur through indirect electron transfer via an external circuit.

Vocabulary: Salt Bridge - A component that maintains charge balance without transferring electrons between half-cells.

Highlight: The conventional representation places the more negative potential on the left and the more positive potential on the right.

Example: In a Zinc-Copper cell (Zn$s$|Zn²⁺||Cu²⁺|Cu$s$), electrons flow from zinc to copper through the external circuit.
