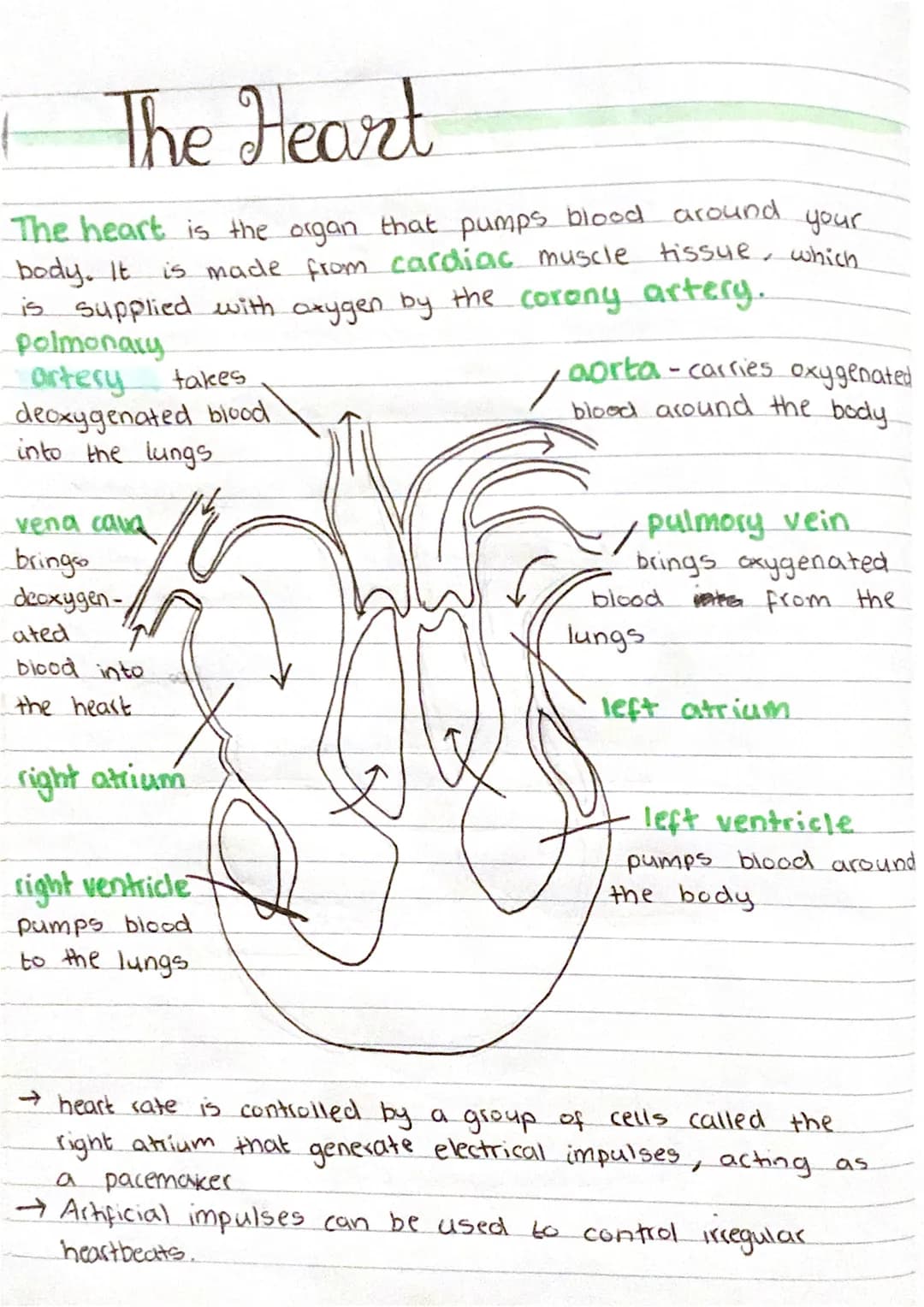

# The Heart

The heart is the organ that pumps blood around your
body. It is made from cardiac muscle tissue, which
is supplied with oxygen

The Heart: Structure and Function

The heart is a crucial organ in the human body, responsible for pumping blood throughout the circulatory system. It is composed of specialized cardiac muscle tissue, which receives its oxygen supply from the coronary artery. The heart's structure and function are intricately designed to ensure efficient blood flow through the heart | step by step.

Vocabulary: Cardiac muscle tissue - A type of involuntary striated muscle found in the walls and histological foundation of the heart.

The heart consists of four main chambers that work together to circulate blood. The right atrium and right ventricle handle deoxygenated blood, while the left atrium and left ventricle manage oxygenated blood. These chambers are connected to major blood vessels that play specific roles in the circulatory process.

Definition: The pumping of heart is called the cardiac cycle, which involves the contraction (systole) and relaxation (diastole) of the heart muscles.

The 12 steps of blood flow through the heart involve a complex sequence of events:

  1. Deoxygenated blood enters the right atrium through the vena cava.
  2. The right atrium contracts, pushing blood into the right ventricle.
  3. The right ventricle pumps blood to the lungs via the pulmonary artery.
  4. Blood becomes oxygenated in the lungs.
  5. Oxygenated blood returns to the heart through the pulmonary vein.
  6. The left atrium receives the oxygenated blood.
  7. The left atrium contracts, pushing blood into the left ventricle.
  8. The left ventricle contracts forcefully.
  9. Oxygenated blood is pumped into the aorta.
  10. The aorta distributes blood to the body's tissues.
  11. Blood becomes deoxygenated as it supplies oxygen to tissues.
  12. Deoxygenated blood returns to the right atrium, completing the cycle.

Highlight: The left ventricle is the part of the heart that pumps blood to the body, making it the most muscular chamber of the heart.

The heart's rhythm is controlled by a group of specialized cells located in the right atrium, known as the sinoatrial (SA) node. This natural pacemaker generates electrical impulses that regulate the heart rate.

Vocabulary: Sinoatrial (SA) node - The natural pacemaker of the heart is called the SA node, and its location is in the upper wall of the right atrium.

In cases of irregular heartbeats or other cardiac issues, artificial pacemakers can be used to provide electrical stimulation and maintain a proper heart rhythm. These devices are particularly useful for patients with certain heart conditions that require a pacemaker, such as bradycardia or heart block.

Example: Types of pacemaker for heart block include single-chamber, dual-chamber, and biventricular pacemakers, each designed to address specific cardiac conduction abnormalities.

Understanding the heart's structure and function is essential for maintaining cardiovascular health and recognizing potential issues. Regular check-ups and a healthy lifestyle can help ensure that this vital organ continues to perform its crucial role in sustaining life.
