Data Collection and Analysis

This page presents raw data collected from the enzyme catalysis experiment, showing the volume of oxygen produced at different hydrogen peroxide concentrations over time.

Key aspects of the data presentation:

• Data is organized in a table format
• Hydrogen peroxide concentrations range from 2 vol. to 20 vol.
• Oxygen production is measured at 30-second intervals up to 180 seconds
• Three trials are conducted for each concentration
• Mean and standard deviation are calculated for each time point

Highlight: The raw data demonstrates the importance of replication in scientific experiments, with three trials conducted for each concentration.

The page emphasizes proper data recording practices:

• All raw data should be recorded to the same number of decimal places
• Means can be an exception but should still maintain consistency

Vocabulary: Vol. (volume) - A unit of concentration for hydrogen peroxide solutions, where 1 vol. is equivalent to 0.1% w/v hydrogen peroxide.

This data collection approach allows for a thorough analysis of the effect of substrate concentration on enzyme reaction rates, enabling students to observe trends and calculate reaction rates.

Example: At 20 vol. concentration, oxygen production increases from 0.0 cm³ at 30 seconds to 8.7 cm³ at 180 seconds, demonstrating the progress of the enzyme-catalyzed reaction.

The inclusion of standard deviation calculations highlights the importance of standard deviation calculation in biological experiments for assessing the reliability and variability of results.

Standard Deviation Calculation

This page provides a detailed breakdown of the standard deviation calculation process, reinforcing the importance of standard deviation calculation in biological experiments.

The calculation is presented in a step-by-step format:

1. Calculate the mean (x̄) of the dataset
2. For each data point, calculate $x - x̄$²
3. Sum all $x - x̄$² values to get Σ$x - x̄$²
4. Divide Σ$x - x̄$² by $n-1$, where n is the number of data points
5. Take the square root of the result to obtain the standard deviation

Definition: Standard Deviation - A measure that quantifies the amount of variation or dispersion of a set of data values from their mean.

The page emphasizes key points in the calculation:

• The mean (x̄) is subtracted from each data point
• Squaring the differences ensures all values are positive
• Dividing by $n-1$ accounts for the sample size

Highlight: Understanding and calculating standard deviation is crucial for assessing the variability and reliability of experimental results in biological research.

This calculation method can be applied to the data collected in the enzyme catalase reaction with hydrogen peroxide experiment, allowing students to quantify the variability in their measurements of oxygen production at different substrate concentrations.

Example: In the enzyme experiment, calculating the standard deviation for oxygen production at each time point and concentration helps assess the consistency of the catalase activity across trials.

By incorporating standard deviation calculations, students can better interpret their results and draw more robust conclusions about the effect of substrate concentration on enzyme reaction rates.

Data Analysis and Interpretation

This page would typically contain guidance on analyzing and interpreting the data collected from the enzyme catalysis experiment, though specific content is not provided in the transcript.

Key aspects that would likely be covered:

1. Graphing the results:

   • Plotting oxygen production against time for each hydrogen peroxide concentration
   • Using error bars to represent standard deviation

2. Calculating reaction rates:

   • Determining the initial rate of reaction for each substrate concentration
   • Comparing rates across different concentrations

3. Interpreting the results:

   • Analyzing how the effect of substrate concentration on enzyme reaction rates is demonstrated by the data
   • Discussing the relationship between substrate concentration and reaction rate

Highlight: Proper data analysis and interpretation are crucial for drawing meaningful conclusions from the enzyme catalase reaction with hydrogen peroxide experiment.

4. Discussing experimental limitations and potential sources of error

5. Relating results to enzyme kinetics theory:

   • Explaining how the results demonstrate substrate saturation
   • Introducing concepts like Vmax and Km if appropriate for the educational level

Vocabulary: Vmax - The maximum rate of an enzyme-catalyzed reaction, achieved when all enzyme active sites are saturated with substrate.

Example: As hydrogen peroxide concentration increases from 2 vol. to 20 vol., students might observe an initial increase in reaction rate followed by a plateau, demonstrating enzyme saturation.

6. Emphasizing the importance of standard deviation calculation in biological experiments:
   • Explaining how standard deviation helps assess the reliability of the results
   • Discussing how to interpret overlapping or non-overlapping error bars

By thoroughly analyzing and interpreting their data, students can gain a deeper understanding of enzyme kinetics and the factors that influence reaction rates in biological systems.

Page 4: Advanced Data Analysis

This section continues with detailed standard deviation calculations for different time intervals and concentrations.

Highlight: Multiple trials and careful calculations ensure statistical reliability of results.

The page shows:

• Continued SD calculations
• Different time intervals (30-180 seconds)
• Various concentration measurements

Vocabulary: Mean - The average value calculated by summing all measurements and dividing by the number of measurements.

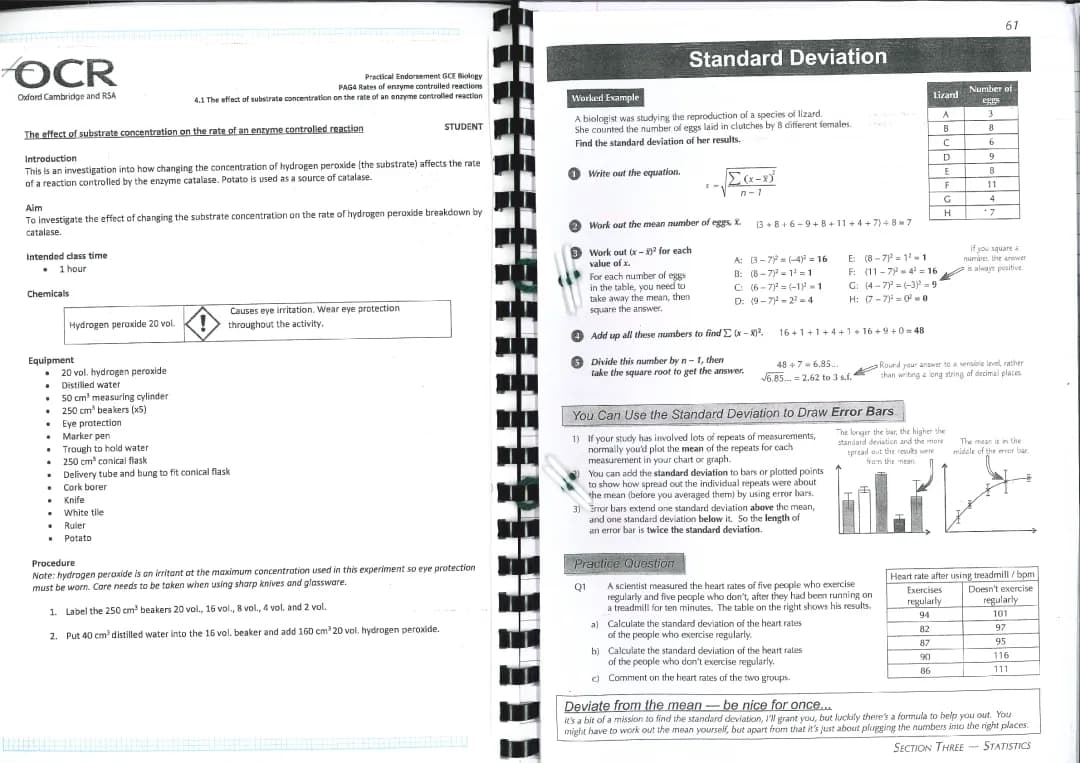

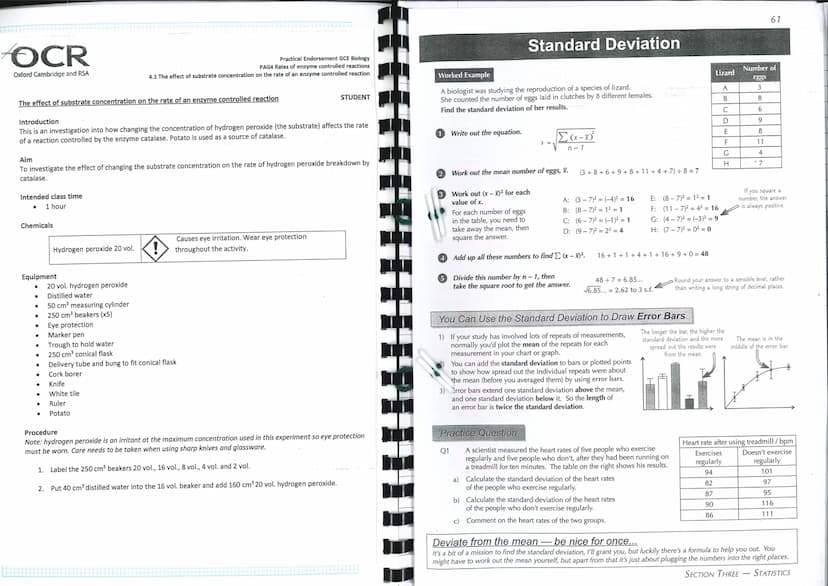

Introduction and Experimental Setup

This page outlines the introduction and setup for an experiment investigating the effect of substrate concentration on enzyme reaction rates.

The experiment focuses on the enzyme catalase reaction with hydrogen peroxide, using potato as a source of catalase. Students will measure how changing the concentration of hydrogen peroxide (the substrate) affects the rate of its breakdown by the enzyme.

Key experimental details:

• Intended class time: 1 hour
• Chemicals: 20 vol. hydrogen peroxide, distilled water
• Equipment: Measuring cylinders, beakers, conical flask, delivery tube, cork borer, potato

Safety precautions are emphasized, including wearing eye protection due to hydrogen peroxide being an eye irritant at the concentrations used.

Highlight: The experiment demonstrates a fundamental principle in enzyme kinetics - how substrate concentration impacts reaction rate.

Vocabulary: Catalase - An enzyme found in living organisms that catalyzes the decomposition of hydrogen peroxide to water and oxygen.

The page also includes a worked example on calculating standard deviation for a biological dataset involving lizard egg counts. This demonstrates the importance of standard deviation calculation in biological experiments for quantifying variability in results.

Example: The worked example walks through calculating standard deviation for 8 lizard clutch sizes, showing each step from finding the mean to the final calculation.

Definition: Standard Deviation - A measure of the amount of variation or dispersion of a set of values from their mean.

The example explains how to use standard deviation to create error bars on graphs, providing a visual representation of data spread.
