Comparing Microscopes: Light, Electron, and Confocal - A Level Biology
1 / 3

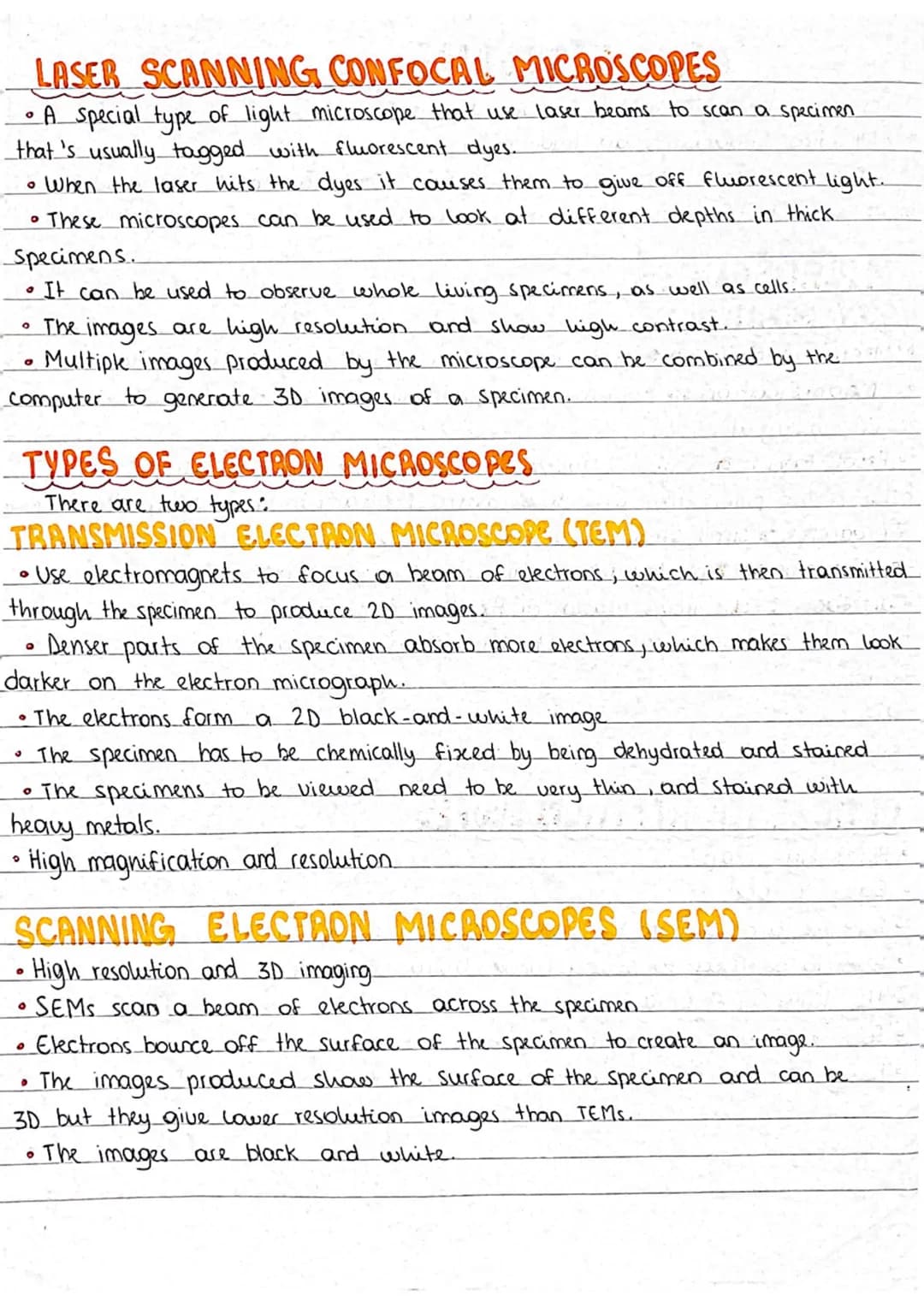

Advanced Microscopy Techniques
This page delves into more sophisticated microscopy methods, particularly the Laser Scanning Confocal Microscope and detailed information on electron microscopes.
Laser Scanning Confocal Microscopes:
- Utilize laser beams to scan specimens tagged with fluorescent dyes
- Can examine different depths in thick specimens
- Produce high-resolution, high-contrast images
- Capable of generating 3D images through computer processing
- Suitable for observing whole living specimens and individual cells
Transmission Electron Microscope (TEM):
- Uses electromagnets to focus an electron beam
- Produces 2D black-and-white images
- Requires chemically fixed, dehydrated, and stained specimens
- Offers extremely high magnification and resolution
- Ideal for studying internal cellular structures
Scanning Electron Microscope (SEM):
- Scans electron beams across specimen surfaces
- Creates 3D surface images
- Produces black-and-white images
- Lower resolution compared to TEM, but excellent for surface details
Vocabulary: Artifacts are false images created during the staining process or by conditions inside the electron microscope.
Example: In confocal microscopy, multiple images at different depths can be combined to create a detailed 3D representation of a cell or tissue.
Highlight: The ability of laser scanning confocal microscopes to observe living specimens while providing high-resolution images makes them invaluable for studying dynamic cellular processes.

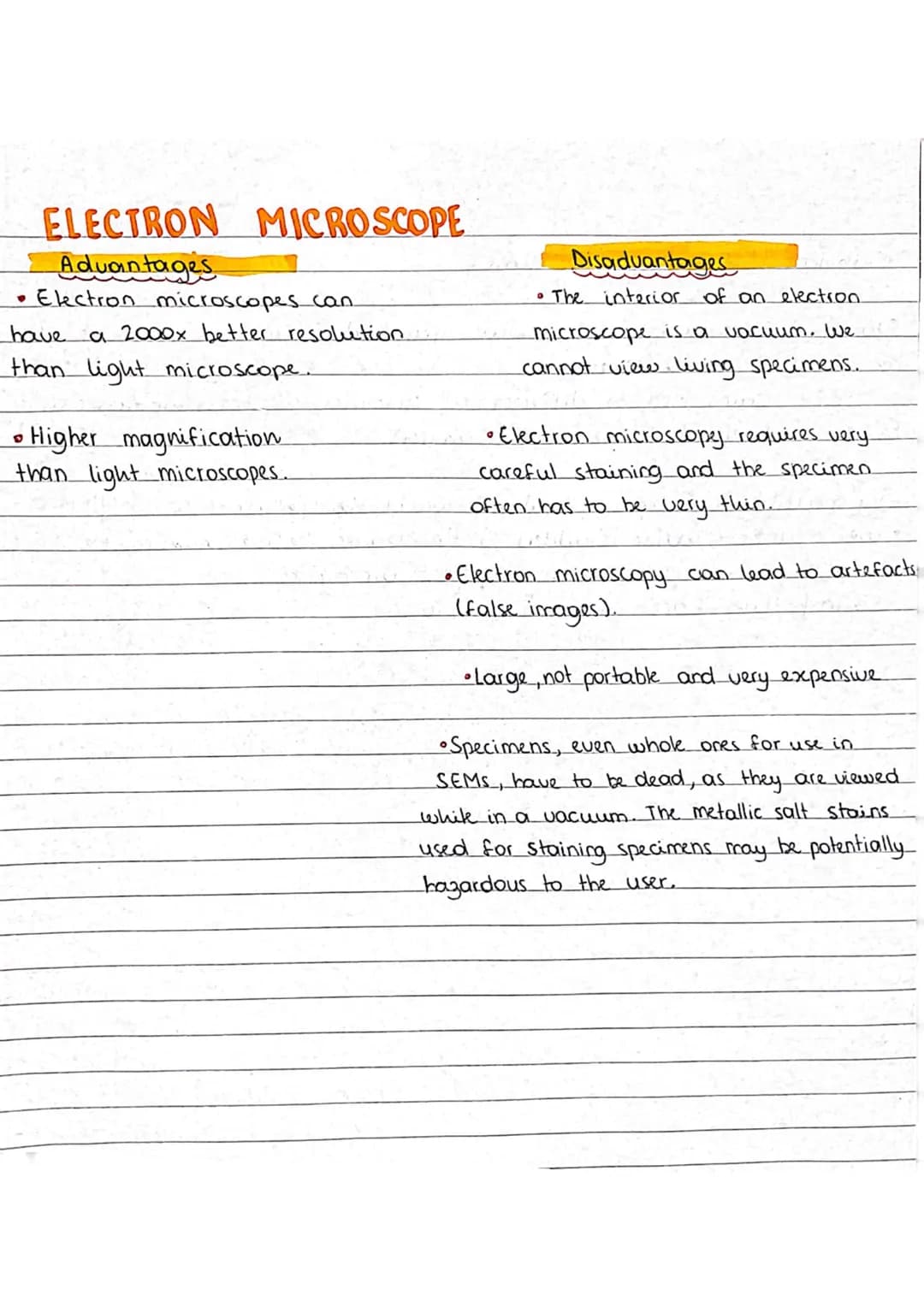

Comparing Microscopy Techniques
This page compares the advantages and disadvantages of electron microscopes with light microscopes, providing crucial information for OCR A level Biology microscopy questions.
Advantages of Electron Microscopes:
- Significantly higher resolution (up to 2000 times better than light microscopes)
- Much greater magnification capabilities
- Ability to visualize extremely small cellular structures
Disadvantages of Electron Microscopes:
- Cannot view living specimens due to vacuum environment
- Requires complex specimen preparation, including thin sectioning and staining
- May produce artifacts (false images)
- Large, non-portable, and expensive
- Potential hazards from metallic salt stains used in specimen preparation
Advantages of Light Microscopes (implied from electron microscope disadvantages):
- Can examine living specimens
- Simpler specimen preparation
- More portable and less expensive
- Lower risk of artifacts
Highlight: The choice between light and electron microscopy depends on the specific research needs, with each type offering unique benefits for cellular study.
Example: While a light microscope might be sufficient for observing cell division in living organisms, an electron microscope would be necessary to study the detailed structure of a mitochondrion.
Vocabulary: A vacuum is a space devoid of matter, which is required in electron microscopes to prevent electron scattering.

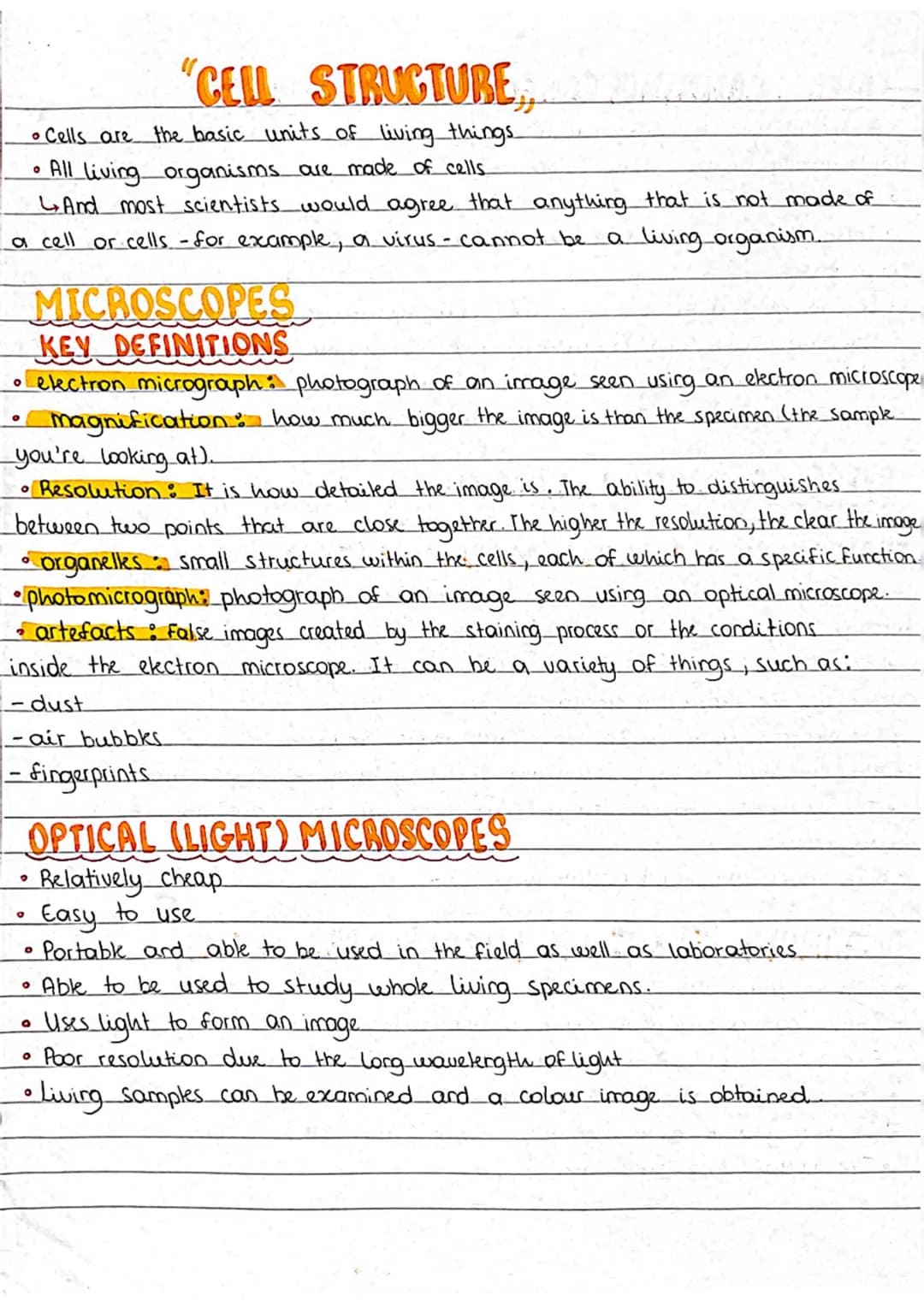

Microscopes in Cell Biology
This page introduces key concepts related to microscopy in cell biology, focusing on light microscopes and electron microscopes.
Cell Structure Fundamentals:
- Cells are the fundamental units of all living organisms
- Living things are composed of cells
- Organelles are specialized structures within cells that perform specific functions
Types of Microscopes:
-
Optical (Light) Microscopes:
- Relatively inexpensive and easy to use
- Portable and suitable for field and laboratory use
- Can examine living specimens
- Produce color images
- Limited resolution due to light wavelength
-
Electron Microscopes:
- Use electron beams instead of light
- Provide much higher magnification and resolution
- Two main types: Transmission Electron Microscope (TEM) and Scanning Electron Microscope (SEM)
Vocabulary: Magnification refers to how much larger the image is compared to the actual specimen.
Definition: Resolution is the ability to distinguish between two closely spaced points, determining image clarity.
Highlight: Electron microscopes can achieve up to 2000 times better resolution than light microscopes, making them invaluable for studying cellular ultrastructure.
Example: A photomicrograph is an image captured using an optical microscope, while an electron micrograph is produced by an electron microscope.
We thought youโd never ask...
What is the Knowunity AI companion?
Our AI Companion is a student-focused AI tool that offers more than just answers. Built on millions of Knowunity resources, it provides relevant information, personalised study plans, quizzes, and content directly in the chat, adapting to your individual learning journey.
Where can I download the Knowunity app?
You can download the app from Google Play Store and Apple App Store.
Is Knowunity really free of charge?
That's right! Enjoy free access to study content, connect with fellow students, and get instant help โ all at your fingertips.
Most popular content: Microscope
Most popular content in Biology
Most popular content
Can't find what you're looking for? Explore other subjects.
Students love us โ and so will you.
4.9/5
App Store
4.8/5
Google Play
The app is very easy to use and well designed. I have found everything I was looking for so far and have been able to learn a lot from the presentations! I will definitely use the app for a class assignment! And of course it also helps a lot as an inspiration.
Stefan S
iOS user
This app is really great. There are so many study notes and help [...]. My problem subject is French, for example, and the app has so many options for help. Thanks to this app, I have improved my French. I would recommend it to anyone.
Samantha Klich
Android user
Wow, I am really amazed. I just tried the app because I've seen it advertised many times and was absolutely stunned. This app is THE HELP you want for school and above all, it offers so many things, such as workouts and fact sheets, which have been VERY helpful to me personally.
Anna
iOS user
Best app on earth! no words because itโs too good
Thomas R
iOS user
Just amazing. Let's me revise 10x better, this app is a quick 10/10. I highly recommend it to anyone. I can watch and search for notes. I can save them in the subject folder. I can revise it any time when I come back. If you haven't tried this app, you're really missing out.
Basil
Android user
This app has made me feel so much more confident in my exam prep, not only through boosting my own self confidence through the features that allow you to connect with others and feel less alone, but also through the way the app itself is centred around making you feel better. It is easy to navigate, fun to use, and helpful to anyone struggling in absolutely any way.
David K
iOS user
The app's just great! All I have to do is enter the topic in the search bar and I get the response real fast. I don't have to watch 10 YouTube videos to understand something, so I'm saving my time. Highly recommended!
Sudenaz Ocak
Android user
In school I was really bad at maths but thanks to the app, I am doing better now. I am so grateful that you made the app.
Greenlight Bonnie
Android user
very reliable app to help and grow your ideas of Maths, English and other related topics in your works. please use this app if your struggling in areas, this app is key for that. wish I'd of done a review before. and it's also free so don't worry about that.
Rohan U
Android user
I know a lot of apps use fake accounts to boost their reviews but this app deserves it all. Originally I was getting 4 in my English exams and this time I got a grade 7. I didnโt even know about this app three days until the exam and it has helped A LOT. Please actually trust me and use it as Iโm sure you too will see developments.
Xander S
iOS user
THE QUIZES AND FLASHCARDS ARE SO USEFUL AND I LOVE THE SCHOOLGPT. IT ALSO IS LITREALLY LIKE CHATGPT BUT SMARTER!! HELPED ME WITH MY MASCARA PROBLEMS TOO!! AS WELL AS MY REAL SUBJECTS ! DUHHH ๐๐๐ฒ๐ค๐โจ๐๐ฎ
Elisha
iOS user
This apps acc the goat. I find revision so boring but this app makes it so easy to organize it all and then you can ask the freeeee ai to test yourself so good and you can easily upload your own stuff. highly recommend as someone taking mocks now
Paul T
iOS user
The app is very easy to use and well designed. I have found everything I was looking for so far and have been able to learn a lot from the presentations! I will definitely use the app for a class assignment! And of course it also helps a lot as an inspiration.
Stefan S
iOS user
This app is really great. There are so many study notes and help [...]. My problem subject is French, for example, and the app has so many options for help. Thanks to this app, I have improved my French. I would recommend it to anyone.
Samantha Klich
Android user
Wow, I am really amazed. I just tried the app because I've seen it advertised many times and was absolutely stunned. This app is THE HELP you want for school and above all, it offers so many things, such as workouts and fact sheets, which have been VERY helpful to me personally.
Anna
iOS user
Best app on earth! no words because itโs too good
Thomas R
iOS user
Just amazing. Let's me revise 10x better, this app is a quick 10/10. I highly recommend it to anyone. I can watch and search for notes. I can save them in the subject folder. I can revise it any time when I come back. If you haven't tried this app, you're really missing out.
Basil
Android user
This app has made me feel so much more confident in my exam prep, not only through boosting my own self confidence through the features that allow you to connect with others and feel less alone, but also through the way the app itself is centred around making you feel better. It is easy to navigate, fun to use, and helpful to anyone struggling in absolutely any way.
David K
iOS user
The app's just great! All I have to do is enter the topic in the search bar and I get the response real fast. I don't have to watch 10 YouTube videos to understand something, so I'm saving my time. Highly recommended!
Sudenaz Ocak
Android user
In school I was really bad at maths but thanks to the app, I am doing better now. I am so grateful that you made the app.
Greenlight Bonnie
Android user
very reliable app to help and grow your ideas of Maths, English and other related topics in your works. please use this app if your struggling in areas, this app is key for that. wish I'd of done a review before. and it's also free so don't worry about that.
Rohan U
Android user
I know a lot of apps use fake accounts to boost their reviews but this app deserves it all. Originally I was getting 4 in my English exams and this time I got a grade 7. I didnโt even know about this app three days until the exam and it has helped A LOT. Please actually trust me and use it as Iโm sure you too will see developments.
Xander S
iOS user
THE QUIZES AND FLASHCARDS ARE SO USEFUL AND I LOVE THE SCHOOLGPT. IT ALSO IS LITREALLY LIKE CHATGPT BUT SMARTER!! HELPED ME WITH MY MASCARA PROBLEMS TOO!! AS WELL AS MY REAL SUBJECTS ! DUHHH ๐๐๐ฒ๐ค๐โจ๐๐ฎ
Elisha
iOS user
This apps acc the goat. I find revision so boring but this app makes it so easy to organize it all and then you can ask the freeeee ai to test yourself so good and you can easily upload your own stuff. highly recommend as someone taking mocks now
Paul T
iOS user
Comparing Microscopes: Light, Electron, and Confocal - A Level Biology
Two types of microscopes OCR A level Biology: Light microscopes and electron microscopes are essential tools for studying cell structure and function.
Key points:
- Cells are the basic units of all living organisms
- Microscopes enable detailed examination of cellular... Show more

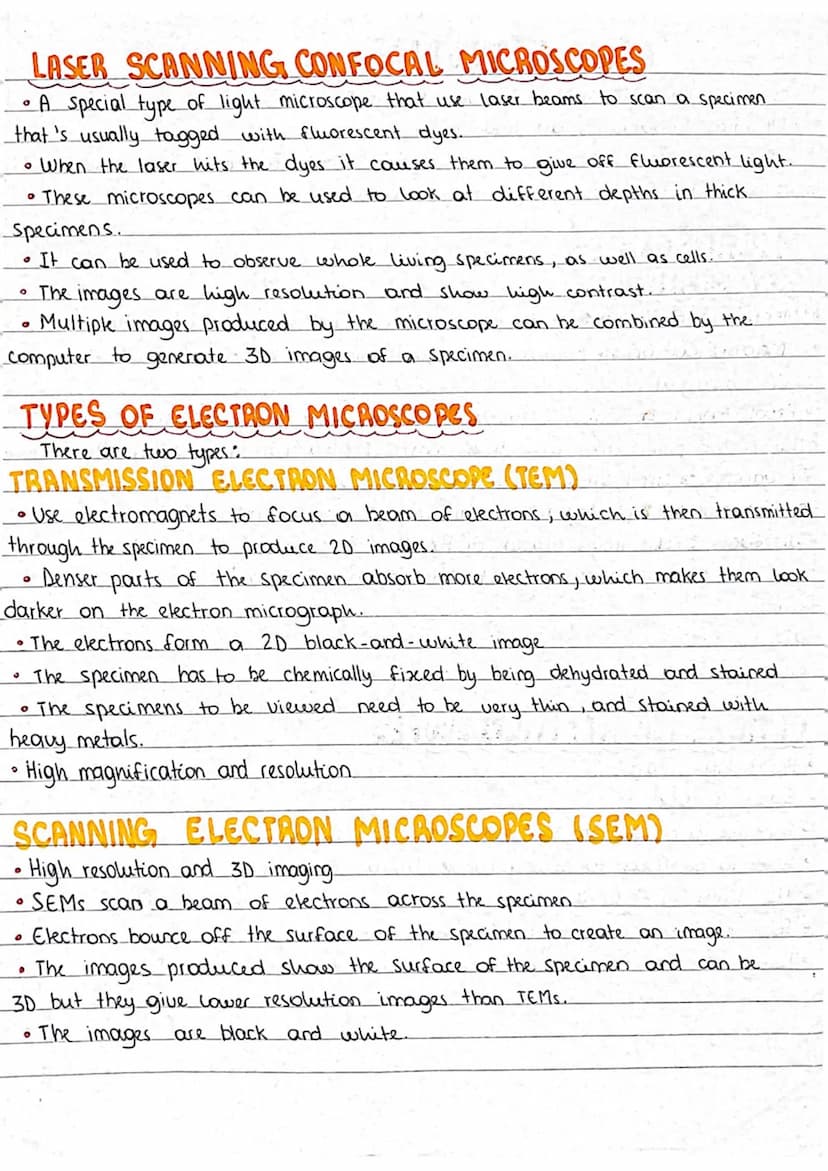

Advanced Microscopy Techniques
This page delves into more sophisticated microscopy methods, particularly the Laser Scanning Confocal Microscope and detailed information on electron microscopes.
Laser Scanning Confocal Microscopes:
- Utilize laser beams to scan specimens tagged with fluorescent dyes
- Can examine different depths in thick specimens
- Produce high-resolution, high-contrast images
- Capable of generating 3D images through computer processing
- Suitable for observing whole living specimens and individual cells
Transmission Electron Microscope (TEM):
- Uses electromagnets to focus an electron beam
- Produces 2D black-and-white images
- Requires chemically fixed, dehydrated, and stained specimens
- Offers extremely high magnification and resolution
- Ideal for studying internal cellular structures
Scanning Electron Microscope (SEM):
- Scans electron beams across specimen surfaces
- Creates 3D surface images
- Produces black-and-white images
- Lower resolution compared to TEM, but excellent for surface details
Vocabulary: Artifacts are false images created during the staining process or by conditions inside the electron microscope.
Example: In confocal microscopy, multiple images at different depths can be combined to create a detailed 3D representation of a cell or tissue.
Highlight: The ability of laser scanning confocal microscopes to observe living specimens while providing high-resolution images makes them invaluable for studying dynamic cellular processes.
Sign up to see the contentIt's free!
Access to all documents
Improve your grades
Join milions of students
By signing up you accept Terms of Service and Privacy Policy

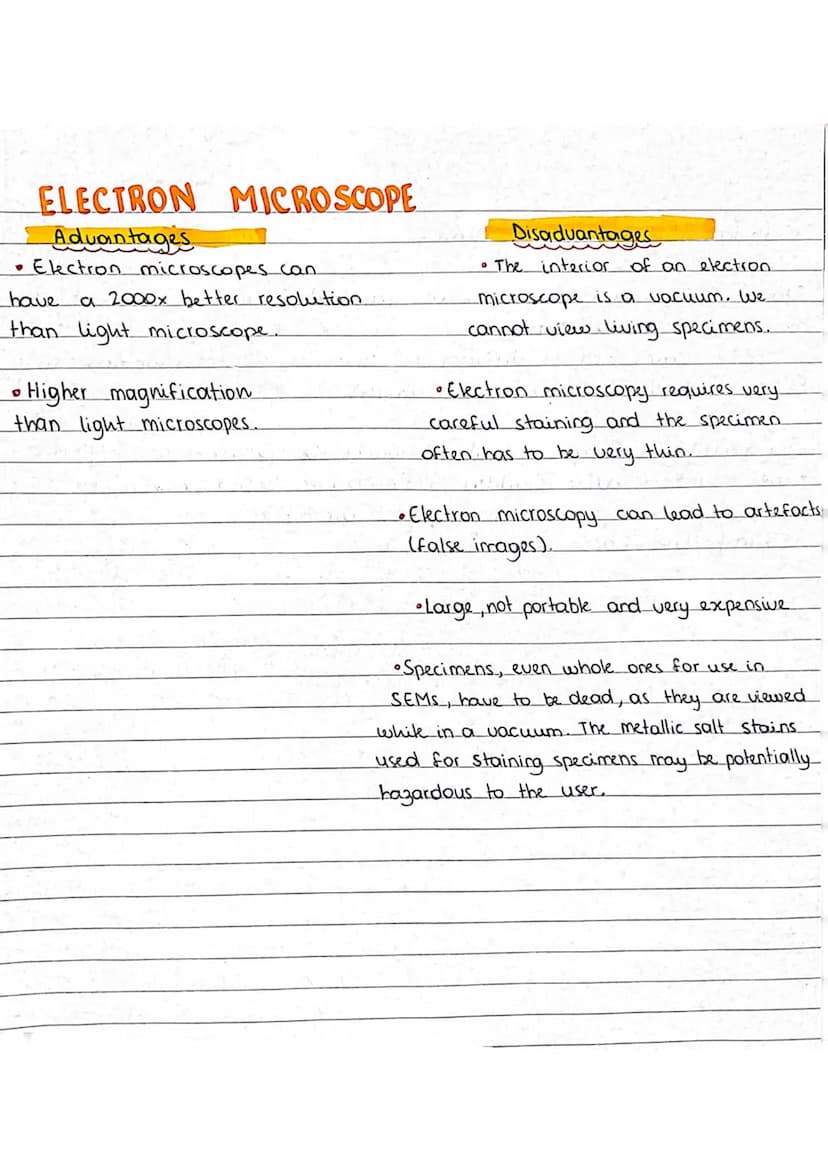

Comparing Microscopy Techniques
This page compares the advantages and disadvantages of electron microscopes with light microscopes, providing crucial information for OCR A level Biology microscopy questions.
Advantages of Electron Microscopes:
- Significantly higher resolution (up to 2000 times better than light microscopes)
- Much greater magnification capabilities
- Ability to visualize extremely small cellular structures
Disadvantages of Electron Microscopes:
- Cannot view living specimens due to vacuum environment
- Requires complex specimen preparation, including thin sectioning and staining
- May produce artifacts (false images)
- Large, non-portable, and expensive
- Potential hazards from metallic salt stains used in specimen preparation
Advantages of Light Microscopes (implied from electron microscope disadvantages):
- Can examine living specimens
- Simpler specimen preparation
- More portable and less expensive
- Lower risk of artifacts
Highlight: The choice between light and electron microscopy depends on the specific research needs, with each type offering unique benefits for cellular study.
Example: While a light microscope might be sufficient for observing cell division in living organisms, an electron microscope would be necessary to study the detailed structure of a mitochondrion.
Vocabulary: A vacuum is a space devoid of matter, which is required in electron microscopes to prevent electron scattering.
Sign up to see the contentIt's free!
Access to all documents
Improve your grades
Join milions of students
By signing up you accept Terms of Service and Privacy Policy

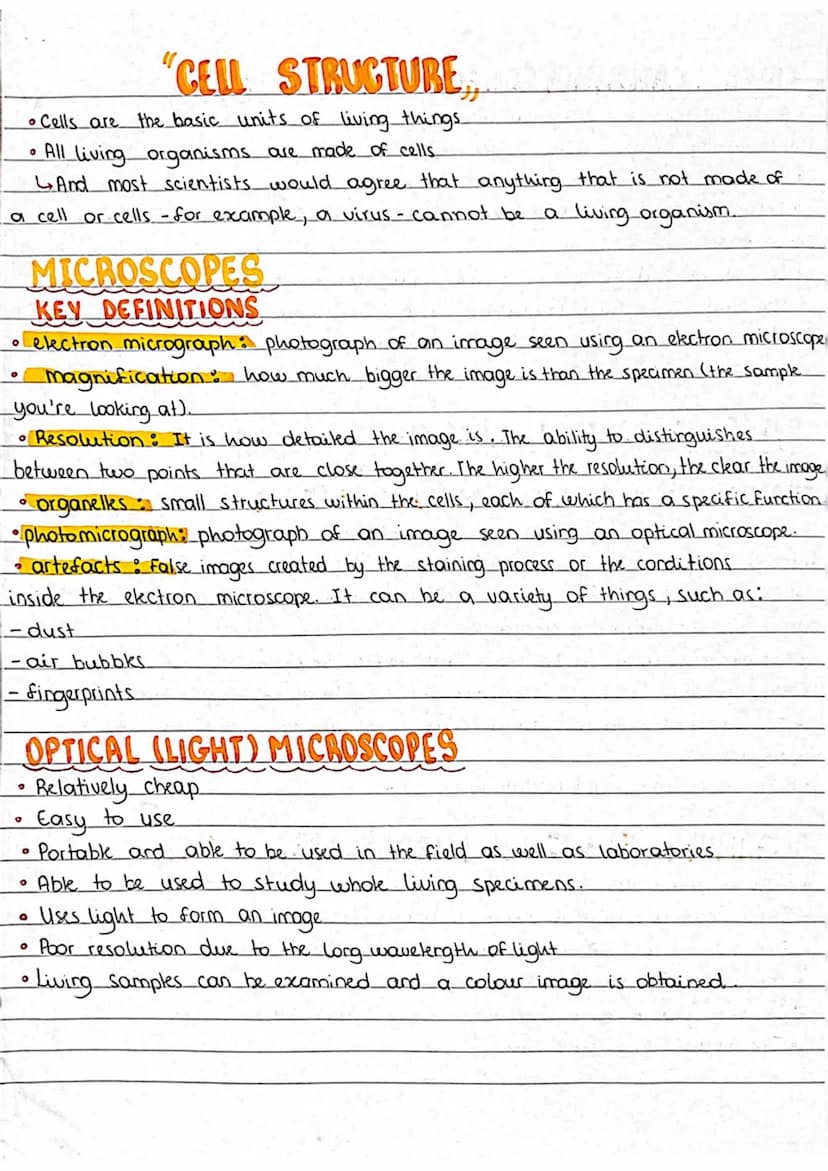

Microscopes in Cell Biology
This page introduces key concepts related to microscopy in cell biology, focusing on light microscopes and electron microscopes.
Cell Structure Fundamentals:
- Cells are the fundamental units of all living organisms
- Living things are composed of cells
- Organelles are specialized structures within cells that perform specific functions
Types of Microscopes:
-
Optical (Light) Microscopes:
- Relatively inexpensive and easy to use
- Portable and suitable for field and laboratory use
- Can examine living specimens
- Produce color images
- Limited resolution due to light wavelength
-
Electron Microscopes:
- Use electron beams instead of light
- Provide much higher magnification and resolution
- Two main types: Transmission Electron Microscope (TEM) and Scanning Electron Microscope (SEM)
Vocabulary: Magnification refers to how much larger the image is compared to the actual specimen.
Definition: Resolution is the ability to distinguish between two closely spaced points, determining image clarity.
Highlight: Electron microscopes can achieve up to 2000 times better resolution than light microscopes, making them invaluable for studying cellular ultrastructure.
Example: A photomicrograph is an image captured using an optical microscope, while an electron micrograph is produced by an electron microscope.
We thought youโd never ask...
What is the Knowunity AI companion?
Our AI Companion is a student-focused AI tool that offers more than just answers. Built on millions of Knowunity resources, it provides relevant information, personalised study plans, quizzes, and content directly in the chat, adapting to your individual learning journey.
Where can I download the Knowunity app?
You can download the app from Google Play Store and Apple App Store.
Is Knowunity really free of charge?
That's right! Enjoy free access to study content, connect with fellow students, and get instant help โ all at your fingertips.
23
Smart Tools NEW
Transform this note into: โ 50+ Practice Questions โ Interactive Flashcards โ Full Mock Exam โ Essay Outlines
Mock Exam
Quiz
Flashcards
Essay
Similar content
Electron Configuration Essentials
Explore the fundamentals of electron configuration, including quantum numbers, the Aufbau principle, and the Pauli exclusion principle. This summary covers how to write shorthand electron configurations using noble gases, the structure of the periodic table, and the arrangement of electrons in subshells. Ideal for students studying atomic structure and periodic trends.
Biology12
Cellular Respiration Overview
Explore the key stages of cellular respiration, including Glycolysis, the Citric Acid Cycle, and the Electron Transport Chain. Understand ATP production, the role of NADH, and the process of fermentation. This summary provides a clear breakdown of how energy is generated from glucose in both aerobic and anaerobic conditions.
BiologyS5
SQA Higher Biology Exam Insights
Explore comprehensive sample responses for SQA Higher Biology extended questions, covering key topics such as enzyme action, cellular respiration, photosynthesis, and biodiversity. This resource is essential for mastering exam techniques and understanding complex biological concepts.
BiologyS5
Carbon Cycle & Ecosystem Dynamics
Explore the intricate relationships within ecosystems, focusing on the carbon cycle, energy transfer, and the impact of greenhouse gases. This comprehensive summary covers key concepts such as photosynthesis, respiration, trophic levels, and the effects of climate change on biodiversity. Ideal for IB Biology HL students seeking to deepen their understanding of ecological principles and biogeochemical cycles.
Biology12
Alevel Biology WJEC unit 3 revision guide
Unit 3 notes
Biology13
Most popular content: Microscope
Most popular content in Biology
Most popular content
Can't find what you're looking for? Explore other subjects.
Students love us โ and so will you.
4.9/5
App Store
4.8/5
Google Play
The app is very easy to use and well designed. I have found everything I was looking for so far and have been able to learn a lot from the presentations! I will definitely use the app for a class assignment! And of course it also helps a lot as an inspiration.
Stefan S
iOS user
This app is really great. There are so many study notes and help [...]. My problem subject is French, for example, and the app has so many options for help. Thanks to this app, I have improved my French. I would recommend it to anyone.
Samantha Klich
Android user
Wow, I am really amazed. I just tried the app because I've seen it advertised many times and was absolutely stunned. This app is THE HELP you want for school and above all, it offers so many things, such as workouts and fact sheets, which have been VERY helpful to me personally.
Anna
iOS user
Best app on earth! no words because itโs too good
Thomas R
iOS user
Just amazing. Let's me revise 10x better, this app is a quick 10/10. I highly recommend it to anyone. I can watch and search for notes. I can save them in the subject folder. I can revise it any time when I come back. If you haven't tried this app, you're really missing out.
Basil
Android user
This app has made me feel so much more confident in my exam prep, not only through boosting my own self confidence through the features that allow you to connect with others and feel less alone, but also through the way the app itself is centred around making you feel better. It is easy to navigate, fun to use, and helpful to anyone struggling in absolutely any way.
David K
iOS user
The app's just great! All I have to do is enter the topic in the search bar and I get the response real fast. I don't have to watch 10 YouTube videos to understand something, so I'm saving my time. Highly recommended!
Sudenaz Ocak
Android user
In school I was really bad at maths but thanks to the app, I am doing better now. I am so grateful that you made the app.
Greenlight Bonnie
Android user
very reliable app to help and grow your ideas of Maths, English and other related topics in your works. please use this app if your struggling in areas, this app is key for that. wish I'd of done a review before. and it's also free so don't worry about that.
Rohan U
Android user
I know a lot of apps use fake accounts to boost their reviews but this app deserves it all. Originally I was getting 4 in my English exams and this time I got a grade 7. I didnโt even know about this app three days until the exam and it has helped A LOT. Please actually trust me and use it as Iโm sure you too will see developments.
Xander S
iOS user
THE QUIZES AND FLASHCARDS ARE SO USEFUL AND I LOVE THE SCHOOLGPT. IT ALSO IS LITREALLY LIKE CHATGPT BUT SMARTER!! HELPED ME WITH MY MASCARA PROBLEMS TOO!! AS WELL AS MY REAL SUBJECTS ! DUHHH ๐๐๐ฒ๐ค๐โจ๐๐ฎ
Elisha
iOS user
This apps acc the goat. I find revision so boring but this app makes it so easy to organize it all and then you can ask the freeeee ai to test yourself so good and you can easily upload your own stuff. highly recommend as someone taking mocks now
Paul T
iOS user
The app is very easy to use and well designed. I have found everything I was looking for so far and have been able to learn a lot from the presentations! I will definitely use the app for a class assignment! And of course it also helps a lot as an inspiration.
Stefan S
iOS user
This app is really great. There are so many study notes and help [...]. My problem subject is French, for example, and the app has so many options for help. Thanks to this app, I have improved my French. I would recommend it to anyone.
Samantha Klich
Android user
Wow, I am really amazed. I just tried the app because I've seen it advertised many times and was absolutely stunned. This app is THE HELP you want for school and above all, it offers so many things, such as workouts and fact sheets, which have been VERY helpful to me personally.
Anna
iOS user
Best app on earth! no words because itโs too good
Thomas R
iOS user
Just amazing. Let's me revise 10x better, this app is a quick 10/10. I highly recommend it to anyone. I can watch and search for notes. I can save them in the subject folder. I can revise it any time when I come back. If you haven't tried this app, you're really missing out.
Basil
Android user
This app has made me feel so much more confident in my exam prep, not only through boosting my own self confidence through the features that allow you to connect with others and feel less alone, but also through the way the app itself is centred around making you feel better. It is easy to navigate, fun to use, and helpful to anyone struggling in absolutely any way.
David K
iOS user
The app's just great! All I have to do is enter the topic in the search bar and I get the response real fast. I don't have to watch 10 YouTube videos to understand something, so I'm saving my time. Highly recommended!
Sudenaz Ocak
Android user
In school I was really bad at maths but thanks to the app, I am doing better now. I am so grateful that you made the app.
Greenlight Bonnie
Android user
very reliable app to help and grow your ideas of Maths, English and other related topics in your works. please use this app if your struggling in areas, this app is key for that. wish I'd of done a review before. and it's also free so don't worry about that.
Rohan U
Android user
I know a lot of apps use fake accounts to boost their reviews but this app deserves it all. Originally I was getting 4 in my English exams and this time I got a grade 7. I didnโt even know about this app three days until the exam and it has helped A LOT. Please actually trust me and use it as Iโm sure you too will see developments.
Xander S
iOS user
THE QUIZES AND FLASHCARDS ARE SO USEFUL AND I LOVE THE SCHOOLGPT. IT ALSO IS LITREALLY LIKE CHATGPT BUT SMARTER!! HELPED ME WITH MY MASCARA PROBLEMS TOO!! AS WELL AS MY REAL SUBJECTS ! DUHHH ๐๐๐ฒ๐ค๐โจ๐๐ฎ
Elisha
iOS user
This apps acc the goat. I find revision so boring but this app makes it so easy to organize it all and then you can ask the freeeee ai to test yourself so good and you can easily upload your own stuff. highly recommend as someone taking mocks now
Paul T
iOS user
