Data Representation and Graphing

This page focuses on various methods of representing and visualizing data in biology experiments.

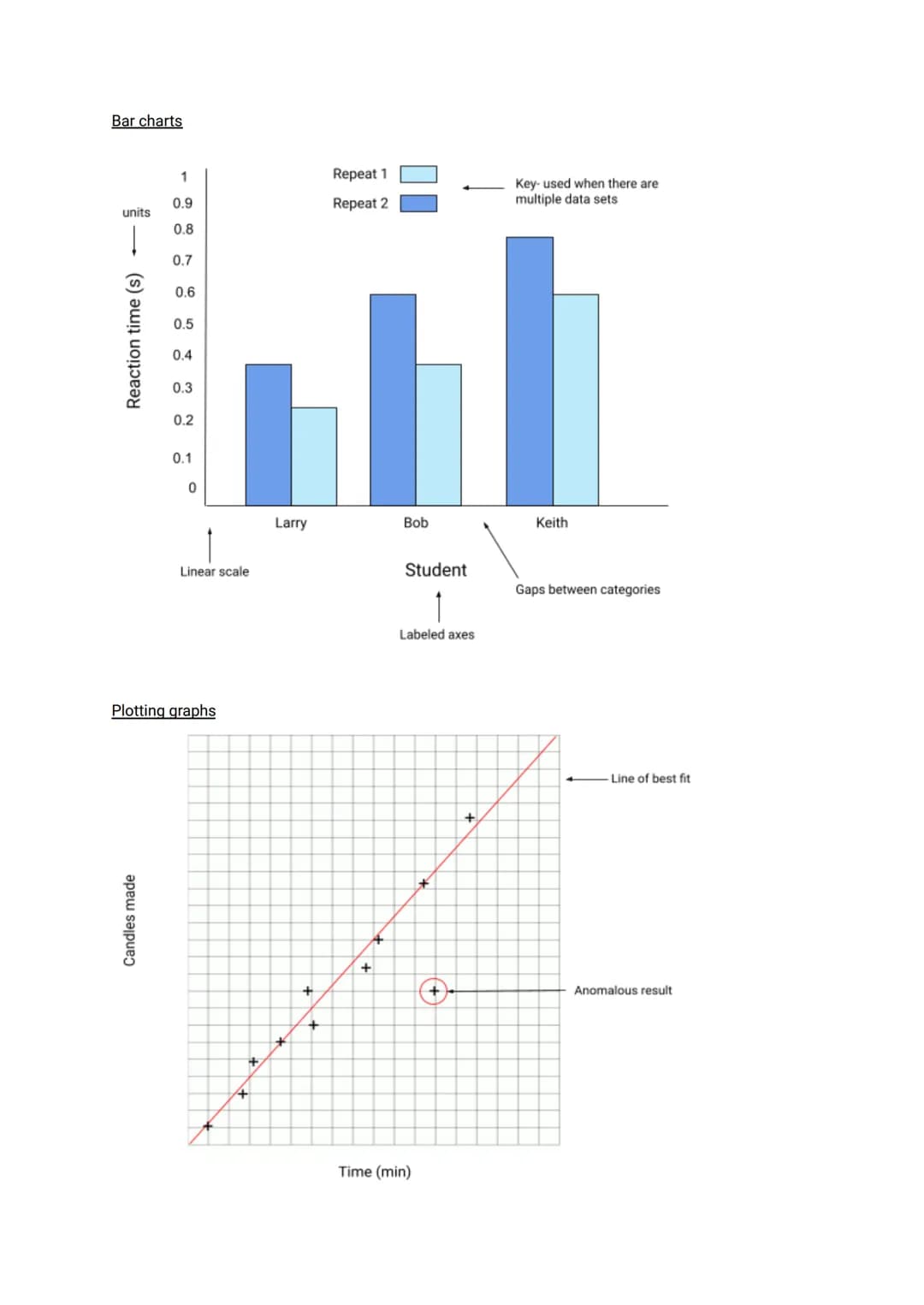

Bar charts are introduced as a way to display categorical data. Key elements of a well-constructed bar chart include:

• Labeled axes with units
• Gaps between categories
• A linear scale
• A key for multiple data sets

Example: A bar chart showing reaction times for different students, with time on the y-axis and student names on the x-axis.

The page also covers line graphs, emphasizing the importance of:

• Plotting points with small, neat crosses
• Using sensible scales on axes
• Labeling axes with correct units
• Placing the dependent variable on the y-axis and the independent variable on the x-axis

Highlight: Understanding how to properly construct and interpret graphs is essential for analyzing independent, dependent and controlled variables examples in biology experiments.

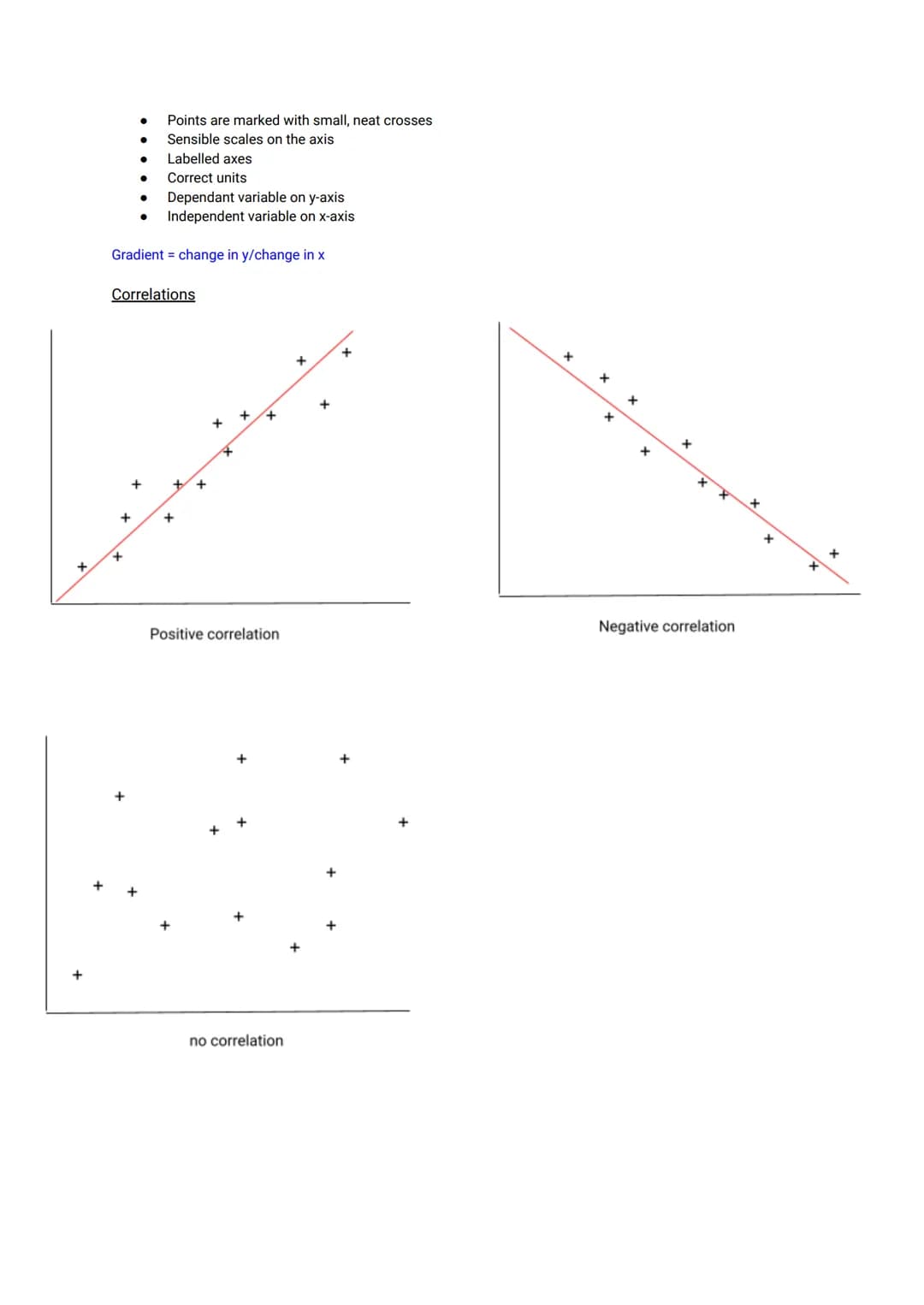

Correlations and Graph Interpretation

This section delves deeper into graph interpretation, focusing on correlations and gradient calculations.

Three types of correlations are explained:

1. Positive correlation: As one variable increases, the other increases
2. Negative correlation: As one variable increases, the other decreases
3. No correlation: No clear relationship between variables

Definition: Gradient is calculated as the change in y divided by the change in x.

The page emphasizes the importance of:

• Marking points with small, neat crosses
• Using sensible scales on axes
• Labeling axes with correct units
• Placing the dependent variable on the y-axis and the independent variable on the x-axis

Highlight: Recognizing correlations is crucial for understanding relationships between independent and dependent variables in biology GCSE experiments.

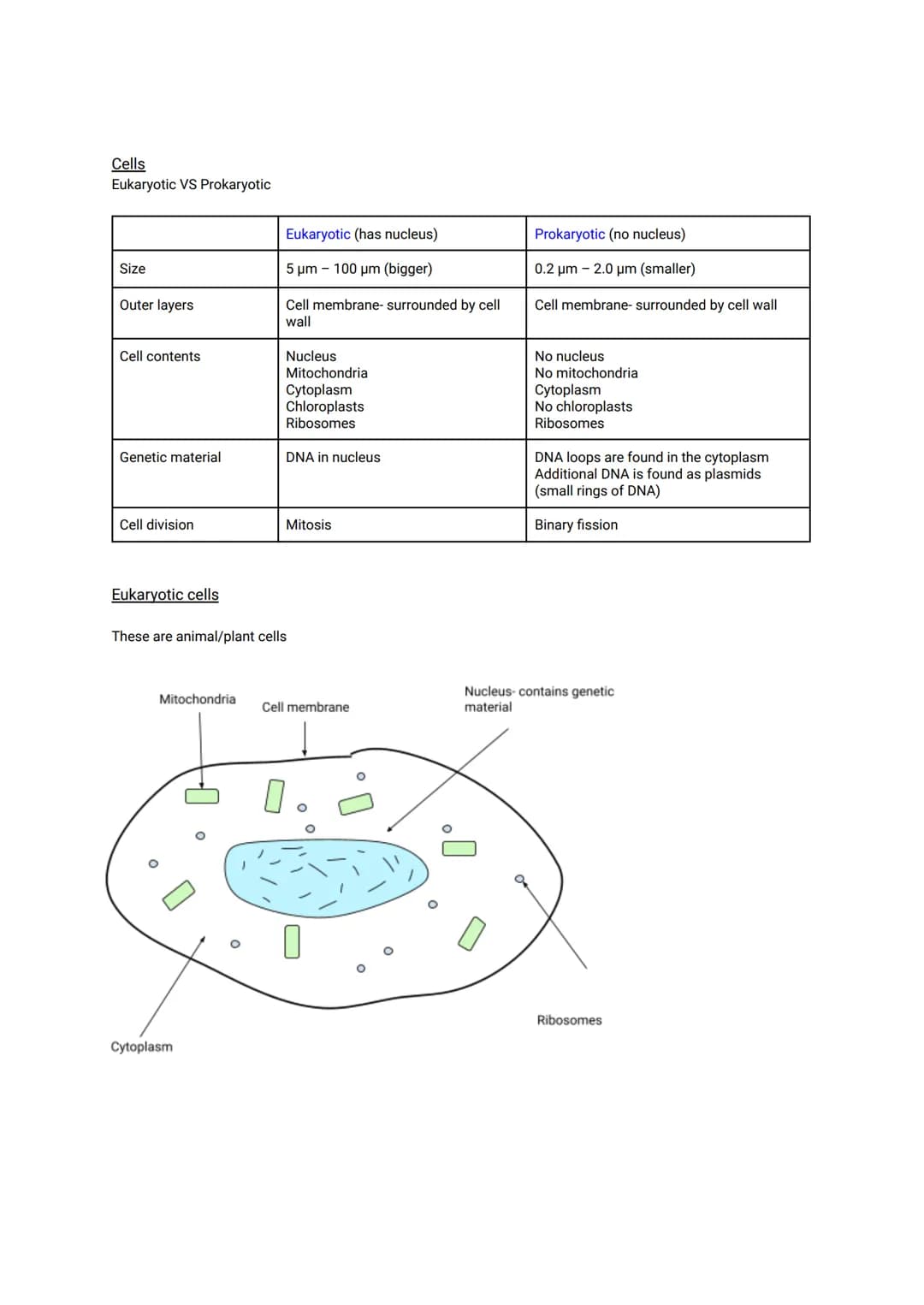

Eukaryotic vs Prokaryotic Cells

This page provides a detailed comparison between eukaryotic and prokaryotic cells, highlighting their key differences.

Definition: Eukaryotic cells have a nucleus, while prokaryotic cells do not.

The comparison covers several aspects:

• Size: Eukaryotic cells $5-100 μm$ are generally larger than prokaryotic cells $0.2-2.0 μm$
• Outer layers: Both have a cell membrane, but prokaryotes have an additional cell wall
• Cell contents: Eukaryotes have organelles like mitochondria and chloroplasts, which prokaryotes lack
• Genetic material: In eukaryotes, DNA is found in the nucleus; in prokaryotes, it's in the cytoplasm
• Cell division: Eukaryotes undergo mitosis, while prokaryotes use binary fission

Highlight: Understanding the difference between prokaryotic and eukaryotic cell structures is fundamental to GCSE biology.

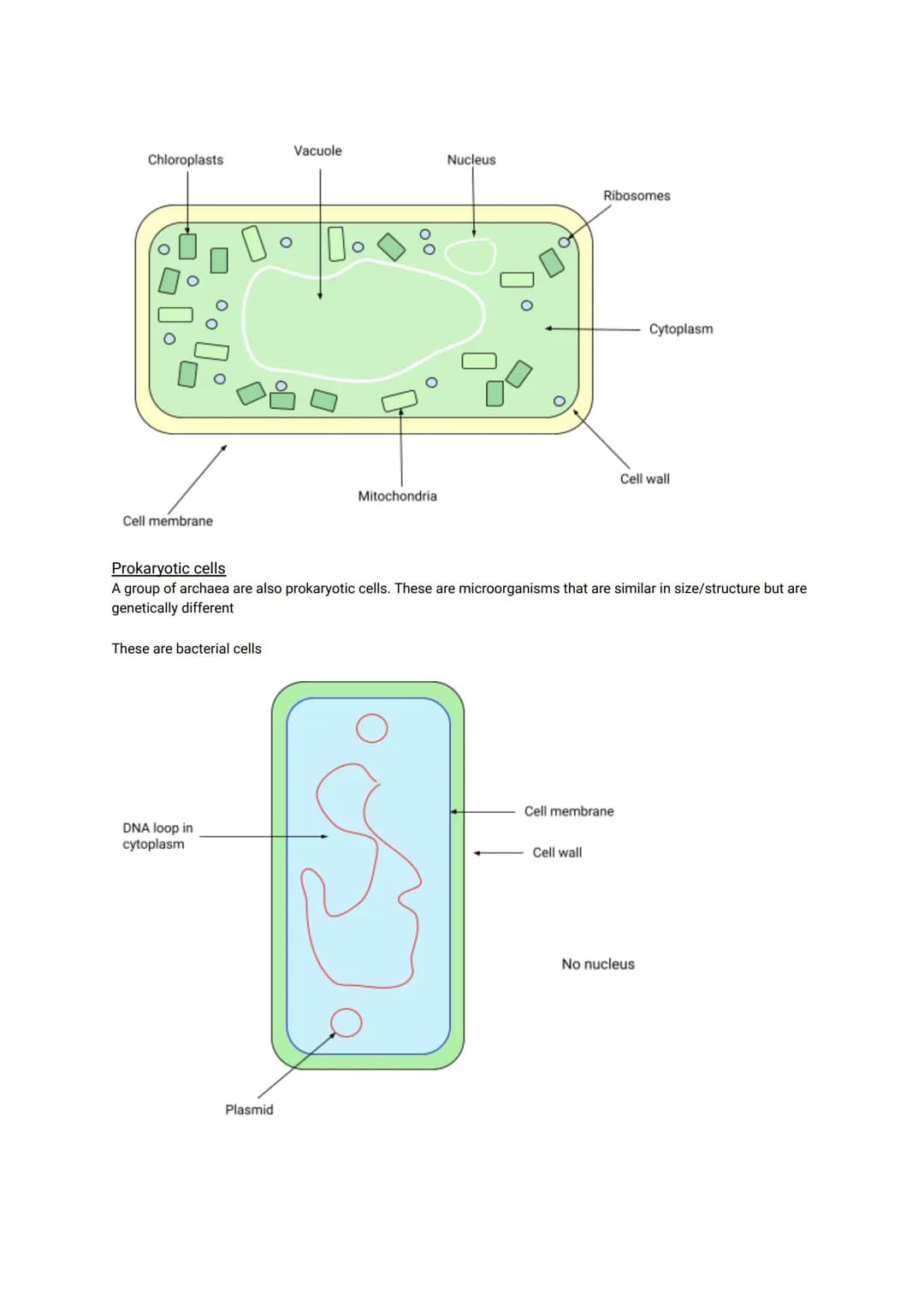

Prokaryotic Cells in Detail

This page focuses on the structure of prokaryotic cells, particularly bacterial cells.

Key components of prokaryotic cells include:

• Cell membrane
• Cell wall
• Cytoplasm
• DNA loop in the cytoplasm
• Plasmids (small rings of DNA)
• Ribosomes

Vocabulary: Archaea are a group of microorganisms that are similar in size and structure to bacteria but genetically different.

Highlight: Prokaryotic cells, including bacteria, lack a nucleus and other membrane-bound organelles found in eukaryotic cells.

Example: To answer the question "Do prokaryotic cells have mitochondria?" - No, prokaryotic cells do not have mitochondria. This is one of the key differences between prokaryotic and eukaryotic cells.

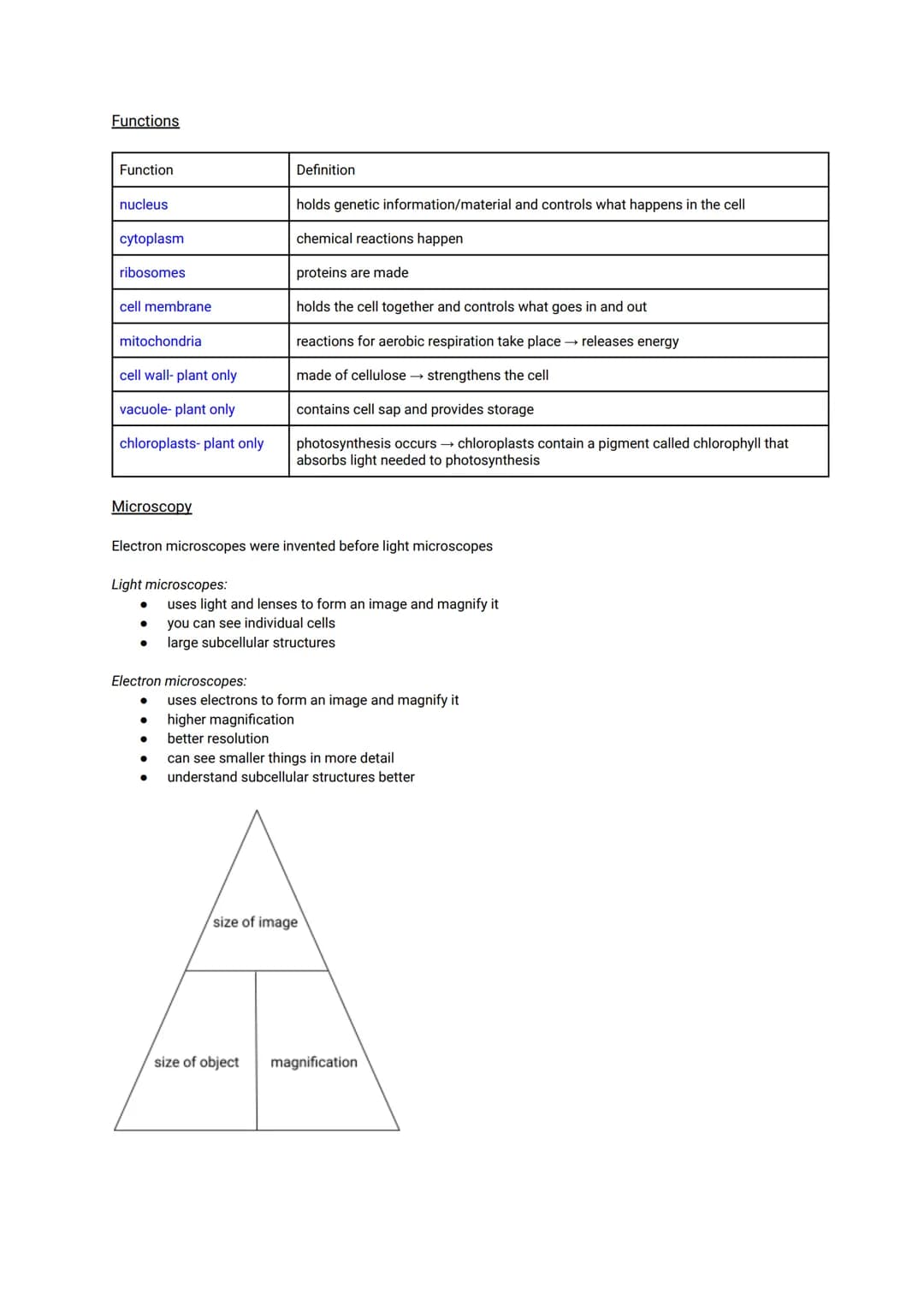

Cell Structures and Functions

This page provides a comprehensive overview of cell structures and their functions, covering both plant and animal cells.

Key structures and their functions include:

• Nucleus: Holds genetic information and controls cell activities
• Cytoplasm: Where chemical reactions occur
• Ribosomes: Site of protein synthesis
• Cell membrane: Controls what enters and exits the cell
• Mitochondria: Site of aerobic respiration, releasing energy
• Cell wall (plant only): Provides strength and support
• Vacuole (plant only): Storage and maintains cell shape
• Chloroplasts (plant only): Site of photosynthesis

The page also introduces microscopy techniques:

1. Light microscopes: Use light and lenses to form and magnify images
2. Electron microscopes: Use electrons for higher magnification and better resolution

Highlight: Understanding the functions of different cell structures is crucial for eukaryotic cell GCSE studies.

Vocabulary: Chlorophyll is a pigment in chloroplasts that absorbs light for photosynthesis.

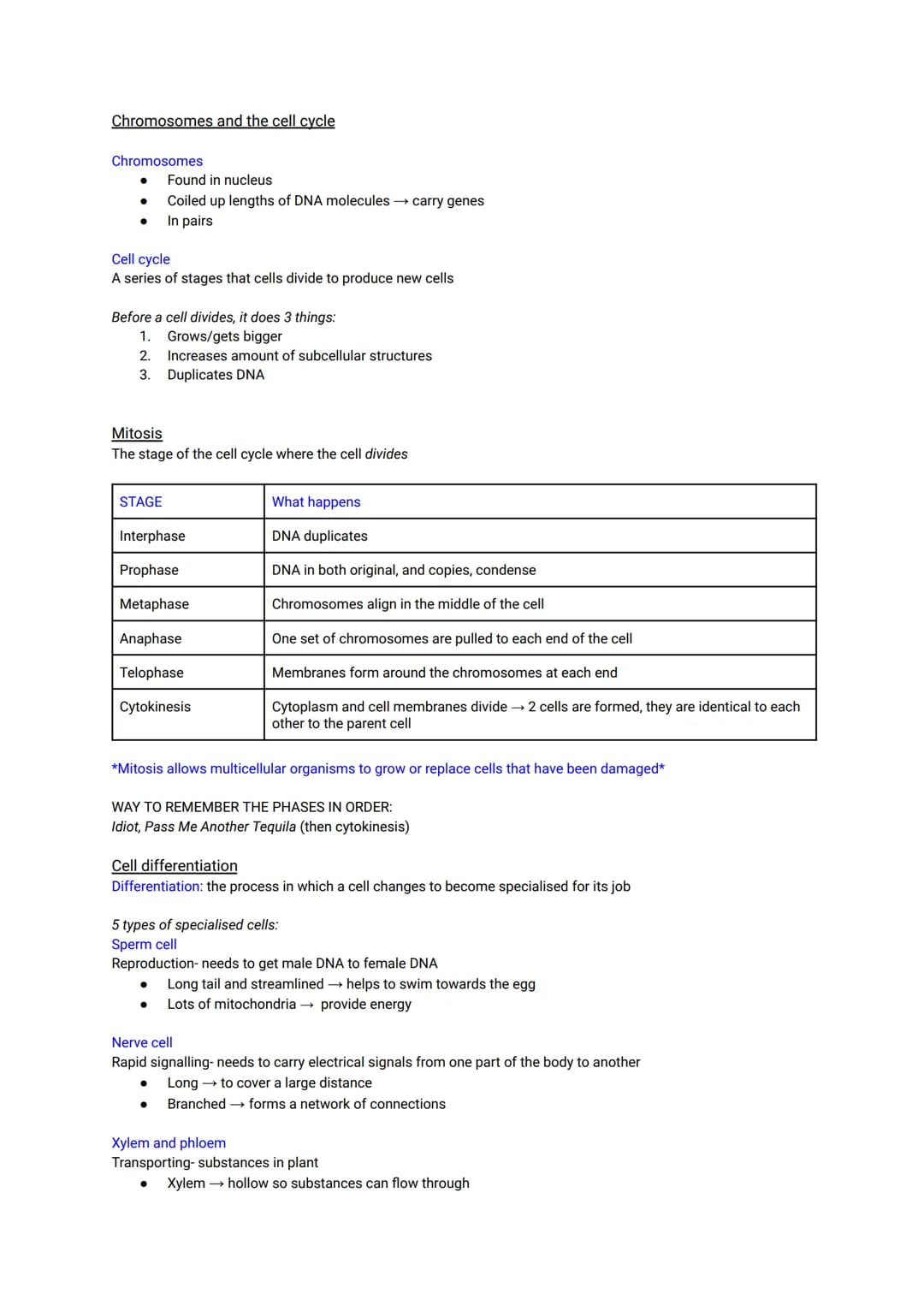

Chromosomes and the Cell Cycle

This page focuses on chromosomes and the cell cycle, including the process of mitosis.

Definition: Chromosomes are coiled up lengths of DNA molecules found in the nucleus that carry genes.

The cell cycle is described as a series of stages that cells go through to produce new cells. Before division, cells:

1. Grow larger
2. Increase the number of subcellular structures
3. Duplicate their DNA

Mitosis is explained in detail, with the following stages:

1. Interphase: DNA duplication
2. Prophase: DNA condensation
3. Metaphase: Chromosome alignment
4. Anaphase: Chromosome separation
5. Telophase: Membrane formation around chromosomes
6. Cytokinesis: Cell division completed

Highlight: Mitosis is crucial for growth and cell replacement in multicellular organisms.

The page concludes with an introduction to cell differentiation, the process by which cells become specialized for specific functions.

Example: Sperm cells are a type of specialized cell adapted for reproduction.

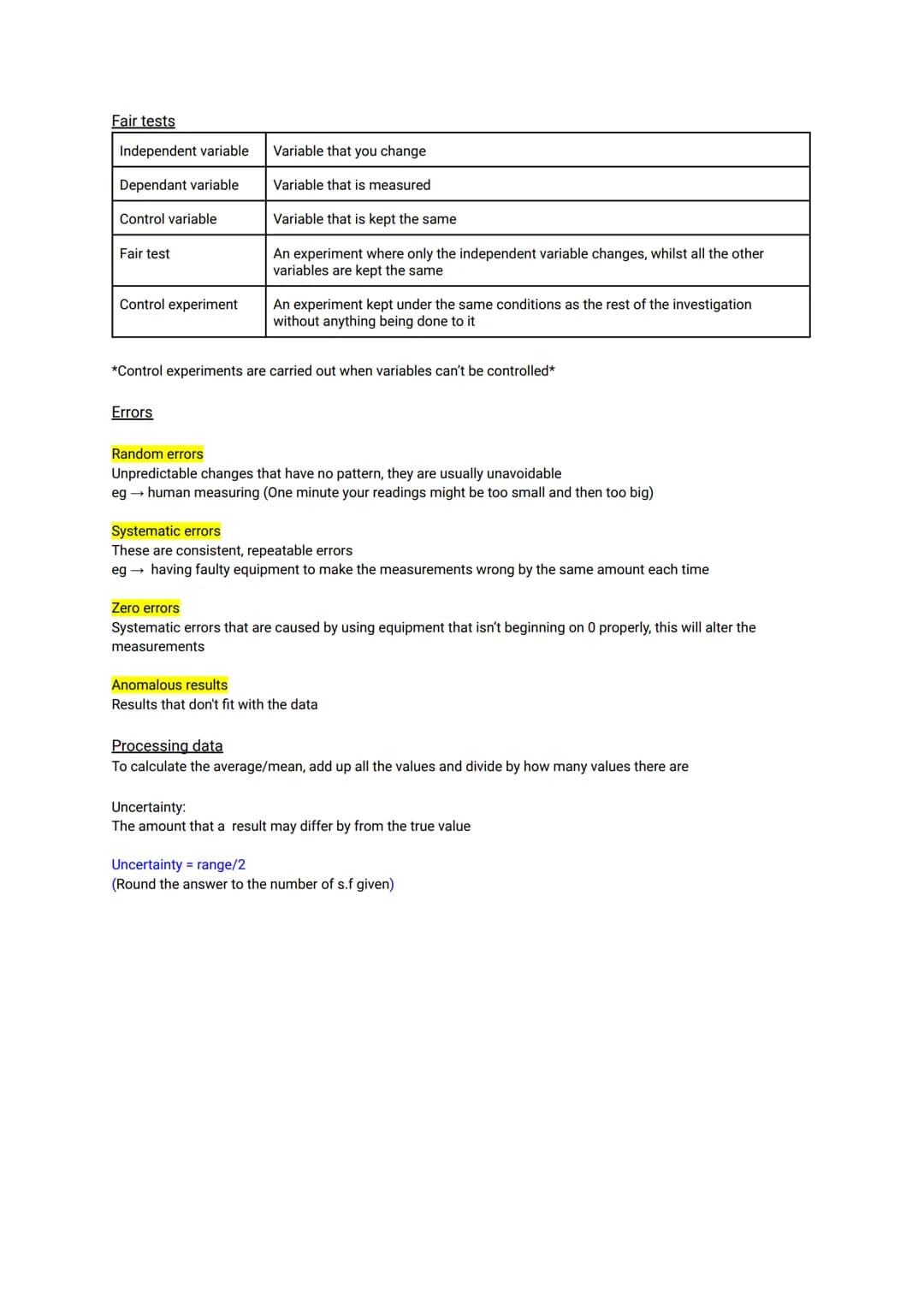

Fair Tests and Variables

This section introduces the concept of fair tests and the different types of variables in scientific experiments.

Independent variable Biology is defined as the variable that is changed in an experiment. The dependent variable biology is the variable that is measured as a result of changing the independent variable. Control variables are kept constant throughout the experiment.

Definition: A fair test is an experiment where only the independent variable changes, while all other variables are kept the same.

The page also covers different types of errors in experiments:

• Random errors: Unpredictable changes with no pattern
• Systematic errors: Consistent, repeatable errors
• Zero errors: Systematic errors caused by equipment not starting at zero

Highlight: Understanding the difference between independent, dependent and controlled variables is crucial for conducting valid scientific experiments.

The section concludes with information on processing data, including calculating averages and uncertainty.
