Understanding Wave Motion in Physics: Core Concepts and Properties

Wave motion is a fundamental concept in physics that describes how energy travels through matter or space. When studying wave motion in physics, we must understand several key properties that characterize waves.

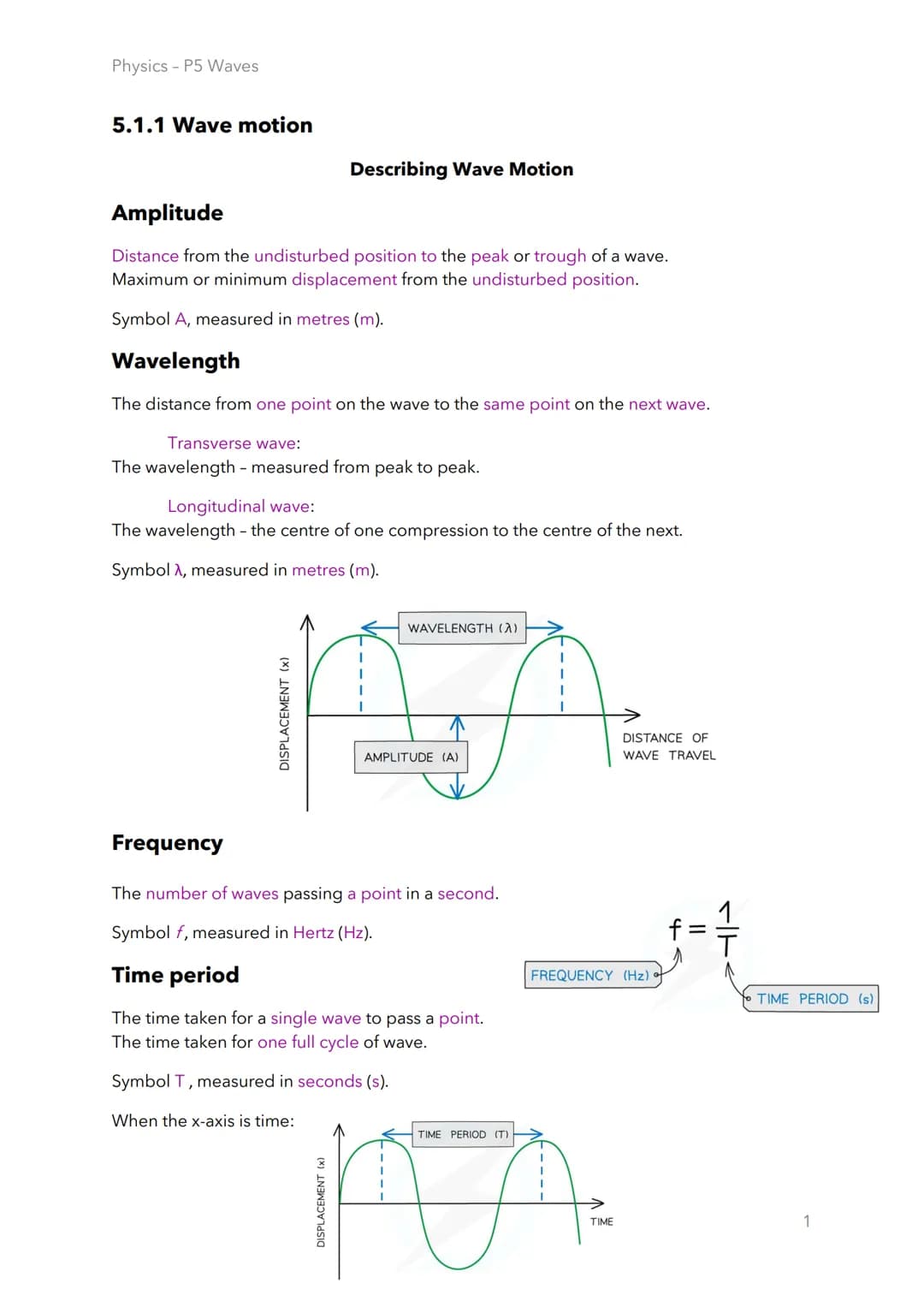

The amplitude (A) of a wave represents the maximum displacement from its rest position, measured in meters $m$. This crucial measurement determines the wave's energy - larger amplitudes indicate more energy being transferred. When observing waves, whether they're ocean waves or sound waves, the amplitude is visible as the height from the middle position to either the peak or trough.

Wavelength (λ) plays an essential role in wave motion physics. It measures the distance between two consecutive identical points on a wave, such as peak-to-peak or trough-to-trough. Understanding wavelength helps us analyze wave patterns and calculate important wave characteristics.

Definition: Wave frequency $f$ represents the number of complete wave cycles passing a fixed point per second, measured in Hertz (Hz). The time period (T) is the time taken for one complete wave cycle, measured in seconds $s$.

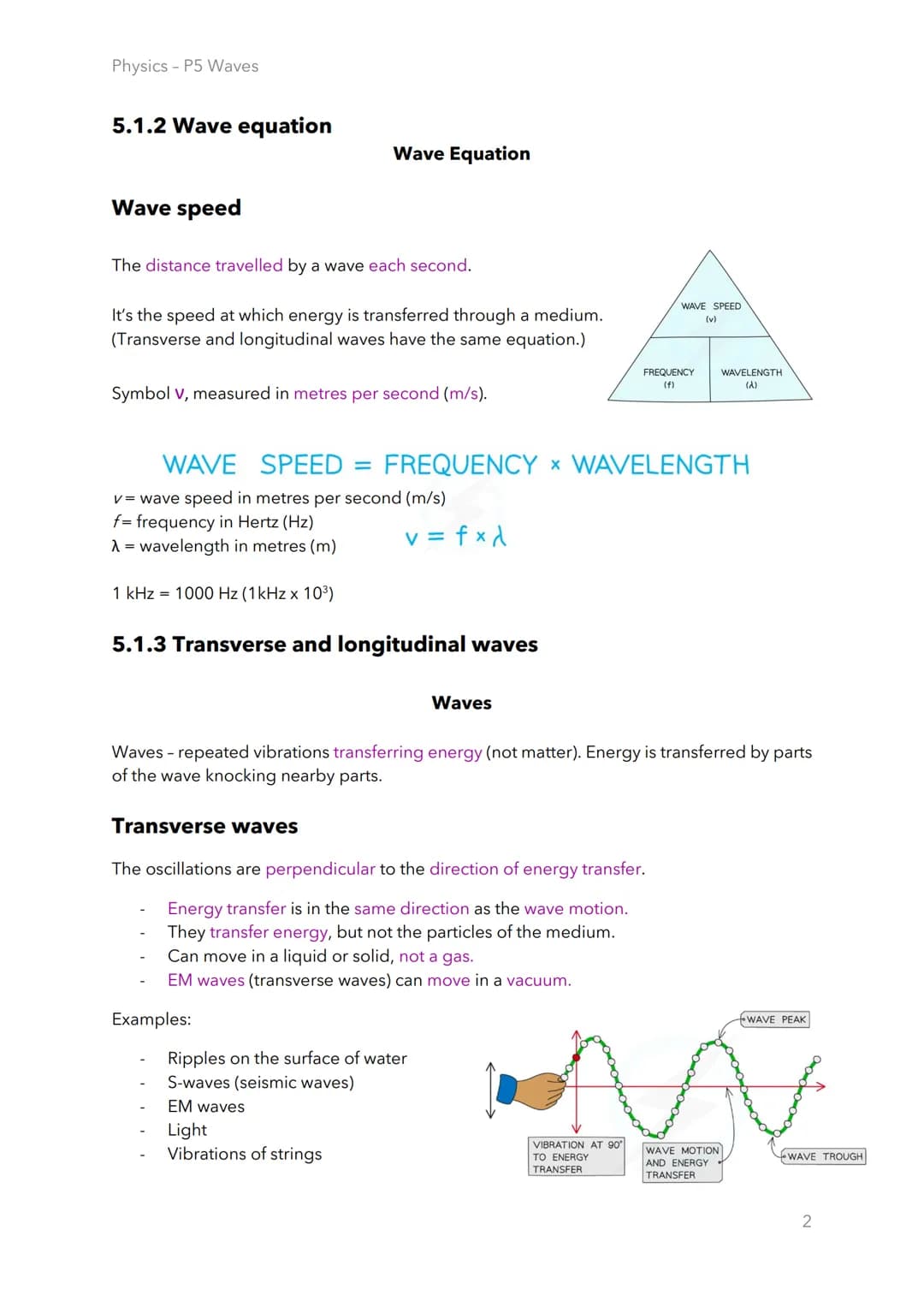

Wave Speed and Mathematical Relationships

The wave speed formula connects several fundamental wave properties. Wave speed $v$ represents how quickly the wave disturbance travels through a medium, measured in meters per second (m/s).

Highlight: The wave speed equation is v = f × λ, where:

• v is wave speed in m/s
• f is frequency in Hz
• λ is wavelength in meters

Understanding wave speed calculation using frequency and wavelength is crucial for solving physics problems. When working with this formula, remember that increasing frequency while keeping wavelength constant will increase wave speed proportionally.

The relationship between frequency and time period is inverse - as frequency increases, time period decreases. This relationship is expressed as f = 1/T, where T is the time period in seconds.

Example: If a wave has a frequency of 2 Hz and a wavelength of 3 meters, its speed would be: v = f × λ = 2 Hz × 3 m = 6 m/s

Types of Waves: Transverse and Longitudinal

Understanding the difference between transverse and longitudinal waves is fundamental in wave physics. These two wave types differ in their particle motion relative to the direction of energy transfer.

In transverse waves, particles oscillate perpendicular to the wave's direction of travel. Common examples of transverse waves include:

• Light waves
• Water ripples
• Electromagnetic waves
• Vibrating strings

Vocabulary: Transverse waves show distinct peaks (crests) and valleys (troughs), with particles moving up and down while the wave moves horizontally.

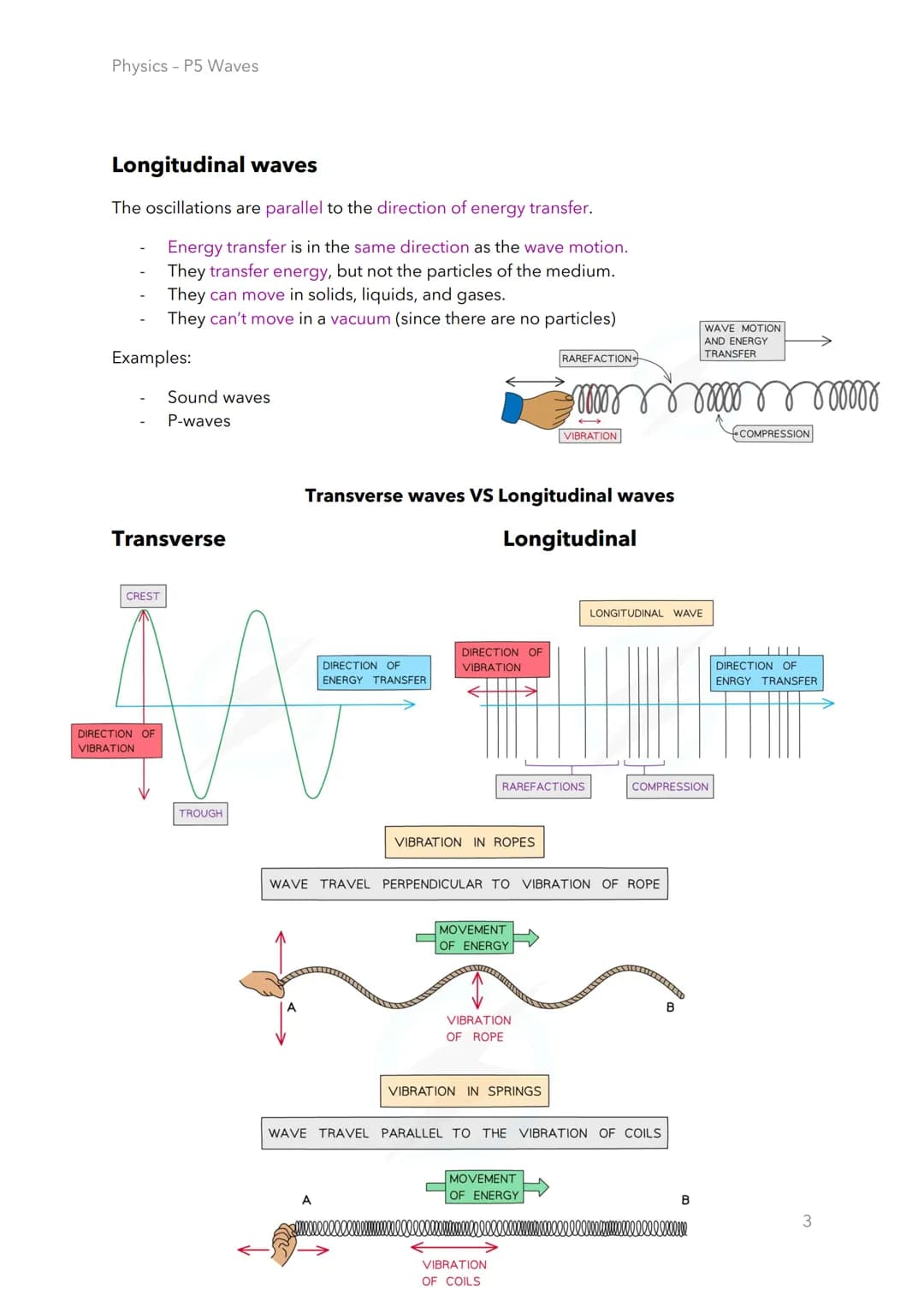

Longitudinal waves, conversely, feature particle motion parallel to the wave's direction. These waves show compressions and rarefactions rather than crests and troughs. Sound waves are the most common example of longitudinal waves.

Wave Behavior and Practical Applications

The behavior of waves varies depending on their type and the medium through which they travel. What is wave motion in physics becomes clearer when we examine these practical applications.

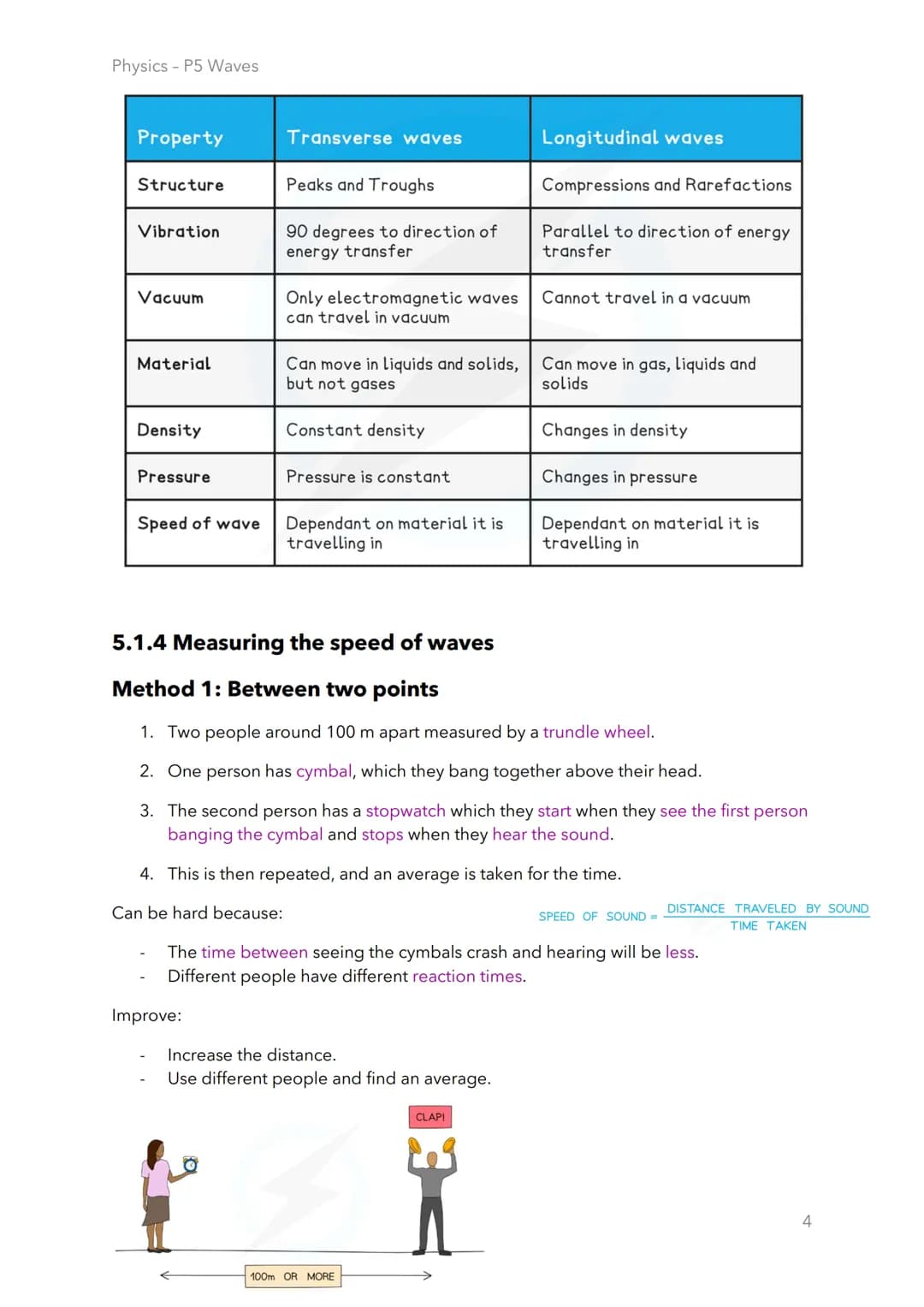

Transverse waves can propagate through solids and liquids but not gases. However, electromagnetic waves (a special type of transverse wave) can travel through vacuum. This property makes them crucial for space communication and solar energy transmission.

Longitudinal waves require a medium for propagation and can travel through all states of matter - solids, liquids, and gases. This explains why sound can travel through air but not through space.

Example: When measuring wave speed:

1. Distance between observation points must be known
2. Time for wave to travel between points is measured
3. Speed is calculated using distance/time
4. Multiple measurements improve accuracy

Understanding Wave Motion and Measurement Methods in Physics

What is wave motion in physics involves understanding how waves transfer energy through various mediums. When studying wave propagation, scientists employ several methods to measure wave properties, particularly the speed of sound and light waves.

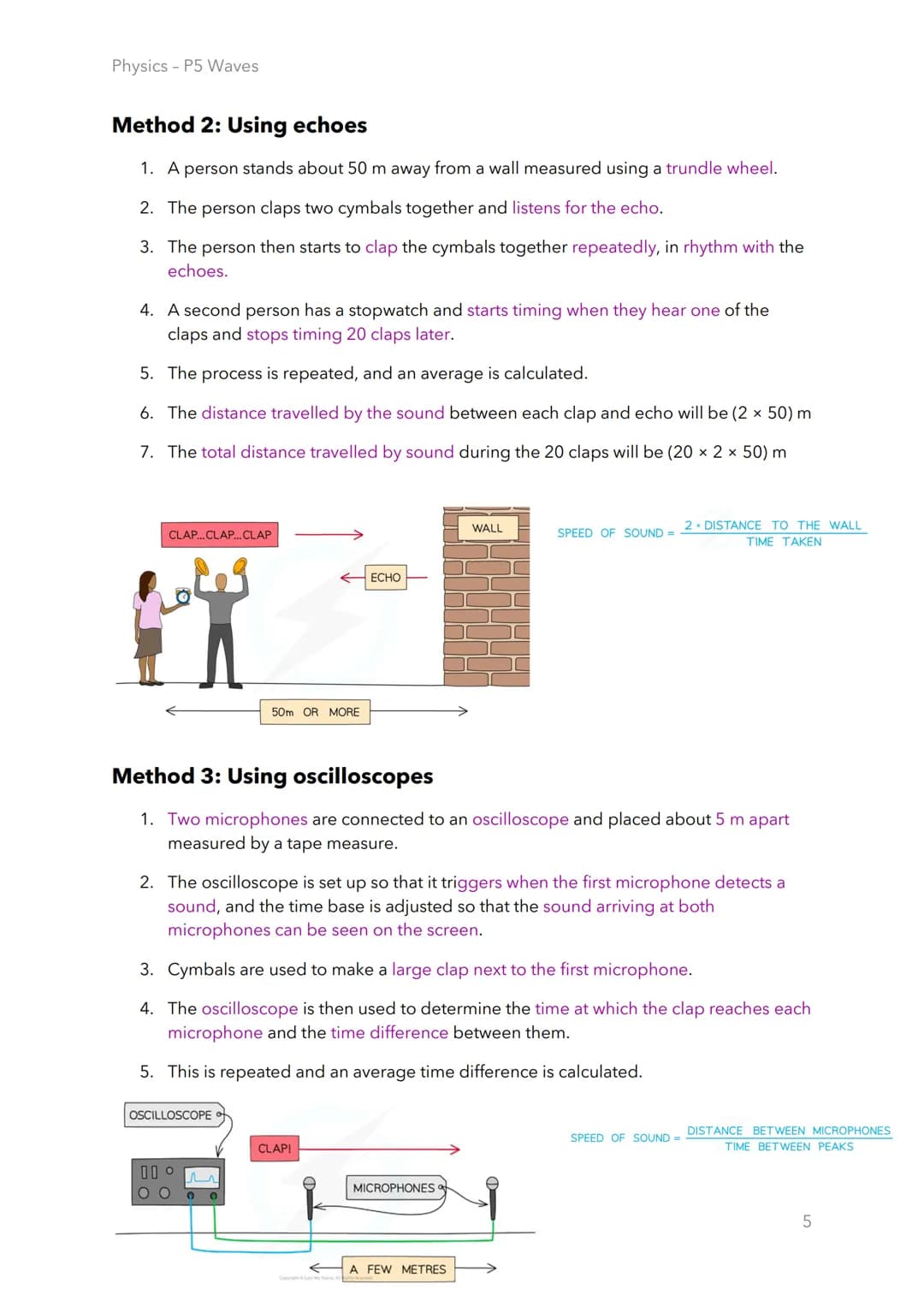

The measurement of sound waves can be accomplished through multiple sophisticated techniques. One notable method involves using echoes, where wave motion is analyzed by measuring the time taken for sound to reflect off surfaces. In this method, a person stands approximately 50 meters from a wall and creates rhythmic sounds using cymbals, timing the echoes to calculate speed.

A more precise approach utilizes oscilloscopes with two microphones placed at a measured distance. This setup allows for exact measurement of wave speed by recording the time difference between sound detection at each microphone. The wave speed calculation using frequency and wavelength becomes more accurate with this method as it eliminates many variables that could affect measurement accuracy.

Definition: Wave speed is calculated using the formula: Speed = Distance/Time, where distance is either twice the distance to the wall (for echoes) or the distance between microphones (for direct measurement).

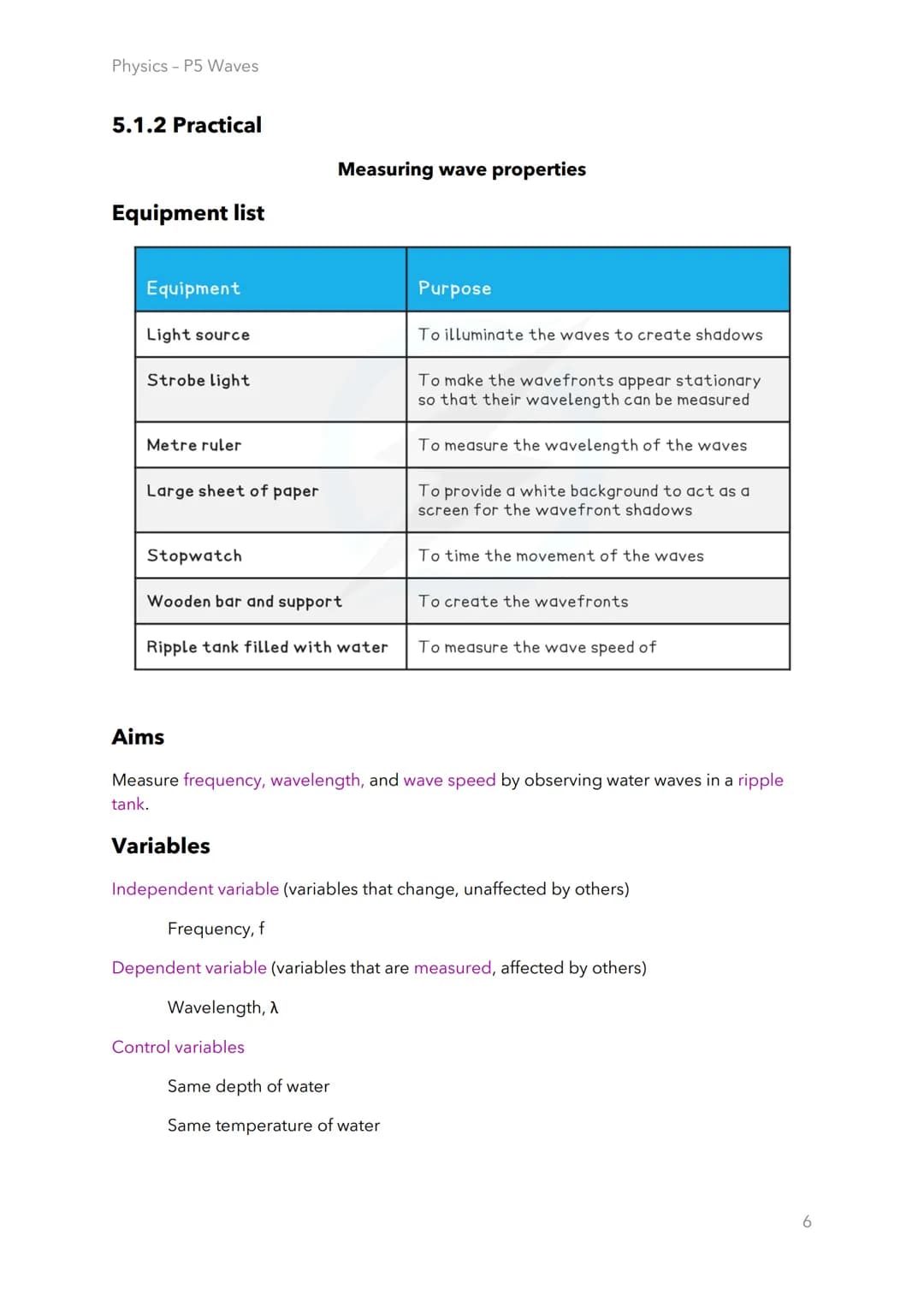

Practical Wave Properties Measurement Using Ripple Tanks

Understanding types of wave motion requires hands-on experimentation with ripple tanks. This setup allows students to observe and measure fundamental wave properties including frequency, wavelength, and speed.

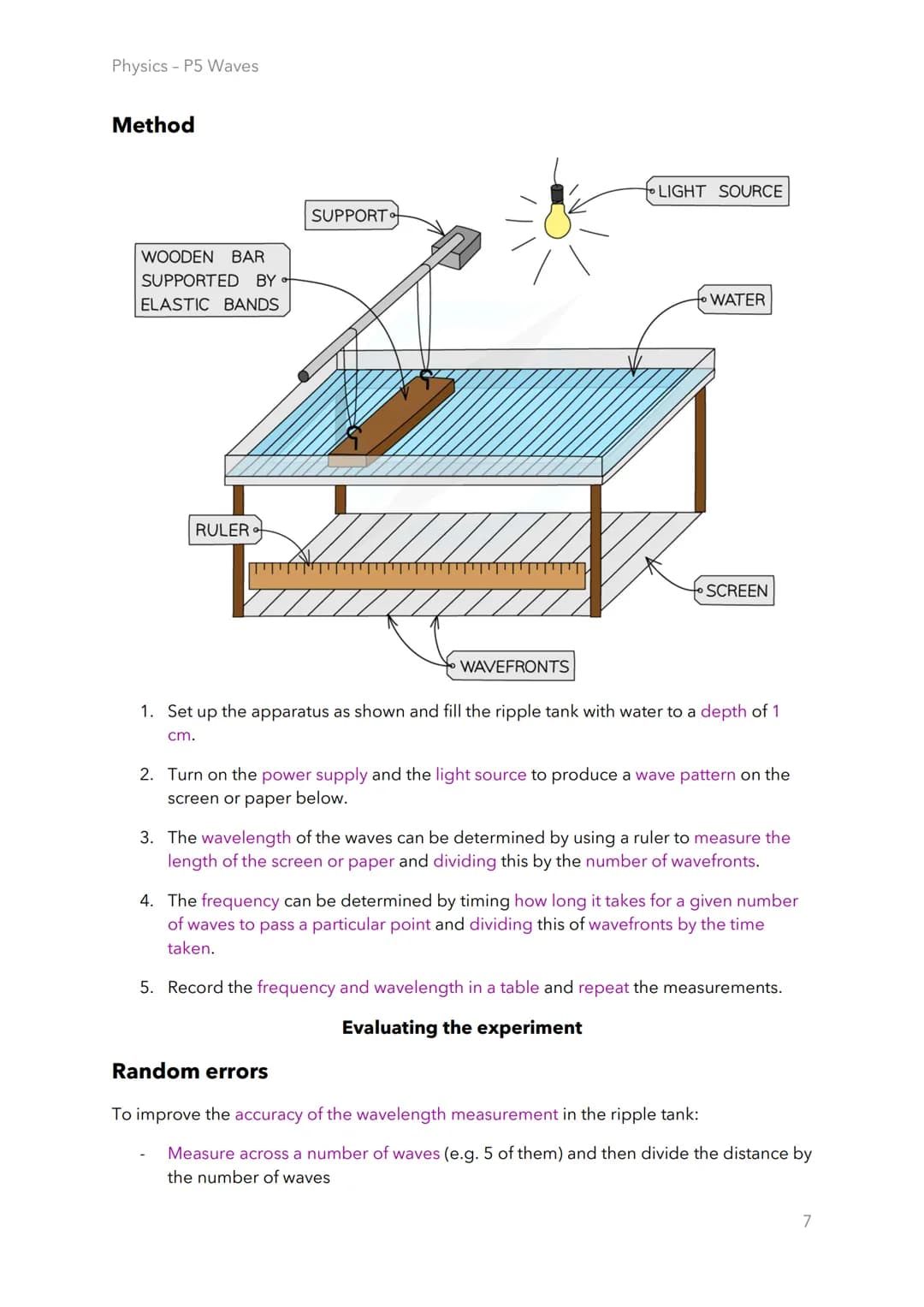

The experimental setup includes essential equipment such as a light source, strobe light, meter ruler, and a ripple tank filled with water. Control variables must be maintained, including consistent water depth and temperature, to ensure accurate measurements of wave motion Physics.

When conducting the experiment, wavelength measurements are taken by counting wavefronts and measuring their total distance. The wave frequency formula is applied by timing the passage of waves past a fixed point.

Highlight: To improve accuracy, measure multiple wavelengths and divide by the number of waves, and time multiple wave periods rather than single occurrences.

Wave Motion Analysis and Error Reduction

In studying wave motion Class 12 level concepts, understanding potential errors and their mitigation is crucial. Random errors in ripple tank experiments can be reduced through multiple measurements and averaging results.

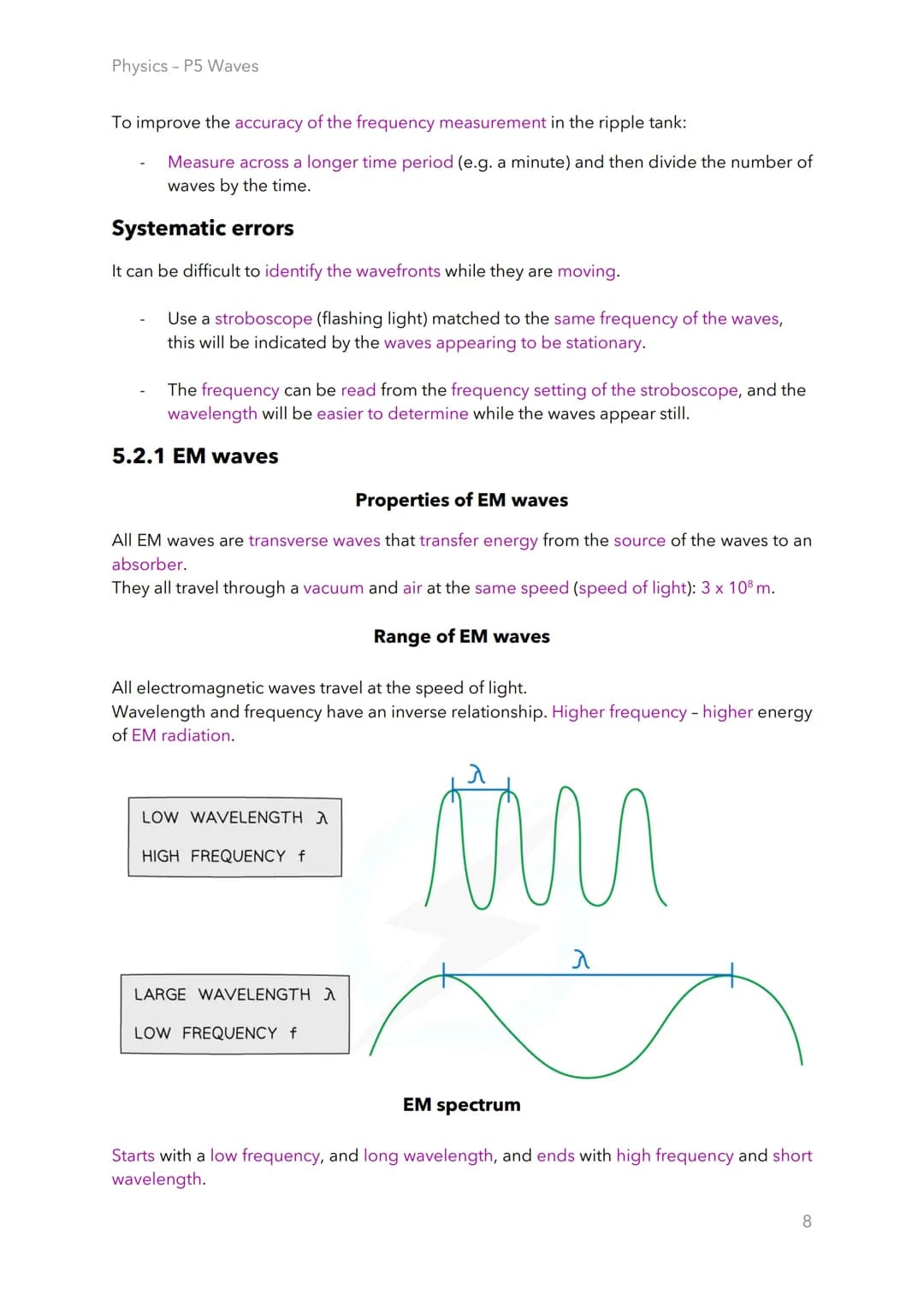

Systematic errors often occur due to difficulties in identifying moving wavefronts. Using a stroboscope synchronized to the wave frequency creates an apparently stationary wave pattern, allowing for more precise measurements of both frequency and wavelength.

The relationship between wave speed, frequency and wavelength follows the fundamental equation: wave speed = frequency × wavelength. This relationship remains constant for all types of waves in a given medium.

Example: When measuring waves in a ripple tank, if you count 20 waves passing a point in 10 seconds, the frequency would be 2 Hz. If the wavelength is measured as 5 cm, the wave speed would be 10 cm/s.

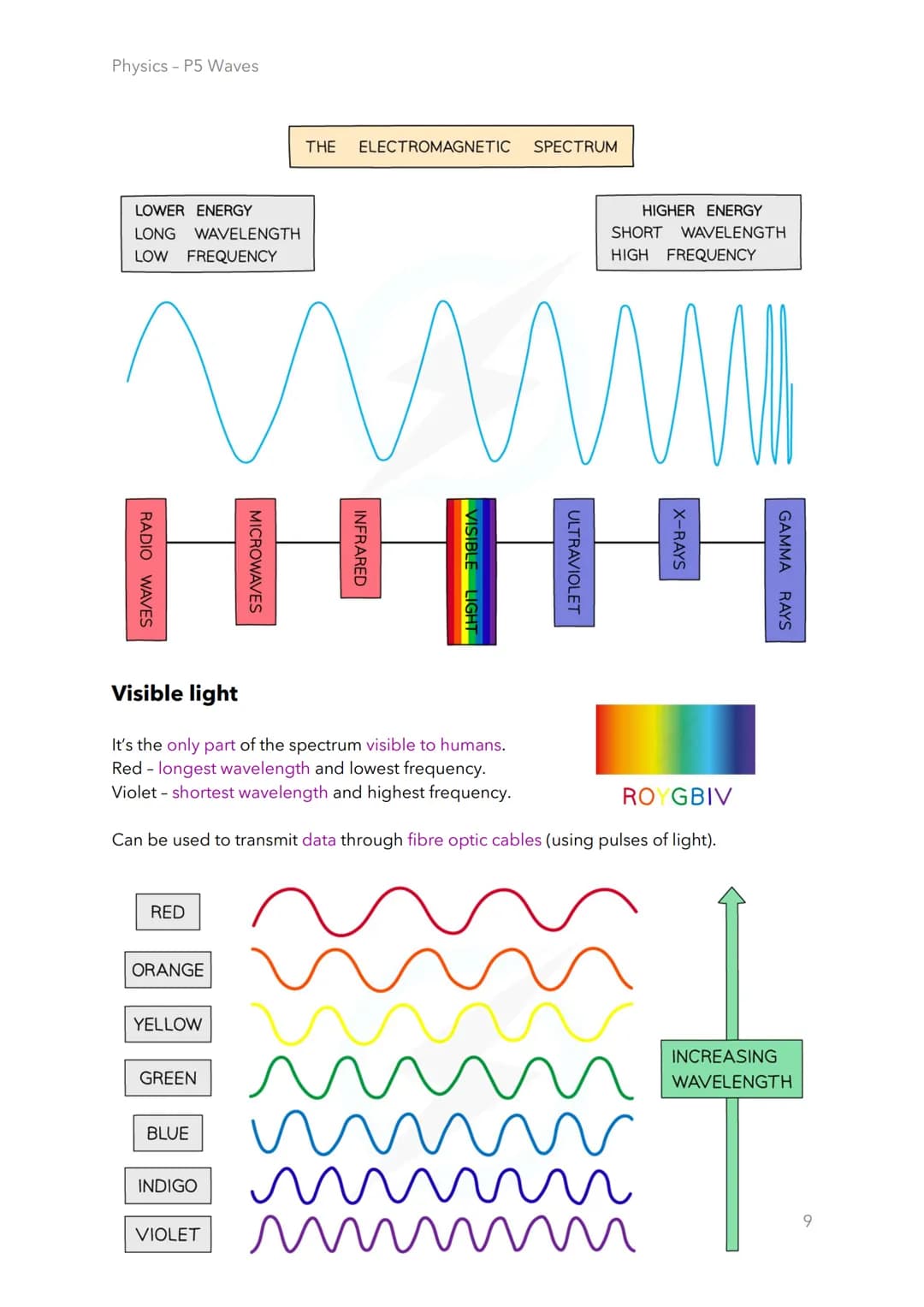

Electromagnetic Waves and the Visible Spectrum

Understanding transverse and longitudinal waves examples is essential when studying electromagnetic (EM) waves. All EM waves are transverse waves that transfer energy through space and matter.

The electromagnetic spectrum encompasses waves with varying frequencies and wavelengths, from radio waves to gamma rays. The wave speed unit remains constant for all EM waves in a vacuum at 3 × 10⁸ m/s (the speed of light).

Visible light represents a small portion of the EM spectrum, with wavelengths ranging from red (longest) to violet (shortest). This understanding is crucial for applications like fiber optic communications and spectroscopy.

Vocabulary: ROYGBIV (Red, Orange, Yellow, Green, Blue, Indigo, Violet) represents the sequence of visible light colors in order of increasing frequency and decreasing wavelength.

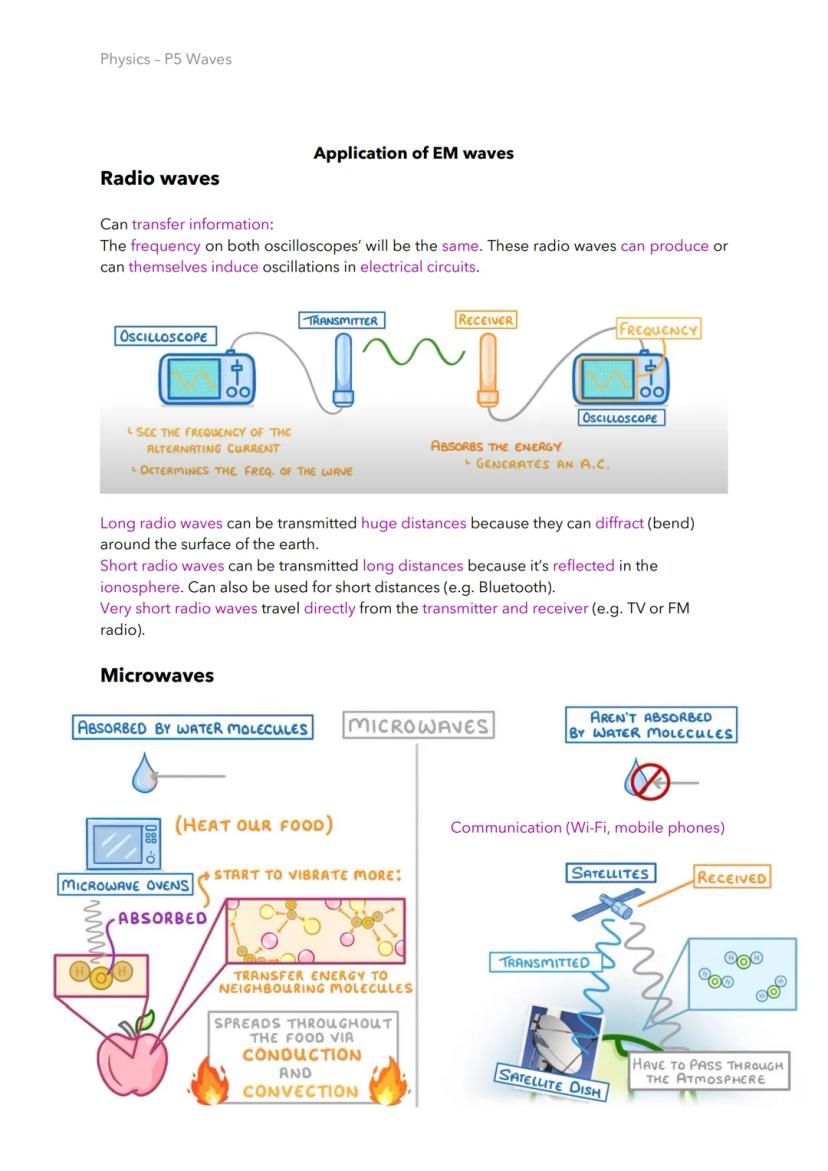

Understanding Radio Waves and Microwaves in Physics

Radio waves and microwaves play crucial roles in modern communication and technology. These electromagnetic waves demonstrate key principles of wave motion in physics through their behavior and applications.

Radio waves exhibit different characteristics based on their wavelengths. Long radio waves can travel enormous distances by diffracting around Earth's curvature, making them ideal for long-range communication. Short radio waves utilize the ionosphere's reflective properties for transmission, enabling technologies like Bluetooth. Very short radio waves travel in straight lines between transmitters and receivers, powering TV and FM radio broadcasts.

Definition: Wave diffraction occurs when waves bend around obstacles or through openings, demonstrating fundamental wave motion behavior.

The relationship between radio waves and electrical circuits is fundamental to communication systems. When radio waves interact with receiving circuits, they induce electrical oscillations that match the original transmission frequency. This principle underlies all wireless communication technologies, from basic radio to sophisticated mobile networks.

Microwaves demonstrate distinct properties, particularly in their interaction with water molecules. In microwave ovens, these waves are absorbed by water molecules in food, causing them to vibrate more rapidly. This increased molecular motion generates heat, which spreads throughout the food through conduction and convection processes.

Example: In a microwave oven, the wave frequency typically operates at 2.45 GHz, optimized for water molecule absorption. This frequency is crucial for efficient heating while maintaining safe operation.

The practical applications of these waves extend to modern communication infrastructure. Satellites use microwave signals for various purposes, including telecommunications and broadcasting. These signals must be carefully designed to penetrate the atmosphere effectively while maintaining signal integrity.

Wave Motion and Communication Systems

Understanding wave motion in physics is essential for grasping how modern communication systems function. The transmission and reception of electromagnetic waves form the backbone of wireless technology, demonstrating practical applications of wave motion physics.

Highlight: The wave speed calculation using frequency and wavelength is crucial in designing communication systems. The formula v = fλ (where v is wave speed, f is frequency, and λ is wavelength) helps engineers optimize signal transmission.

Communication systems utilize oscilloscopes to visualize and measure wave characteristics. These devices display the frequency of alternating currents, allowing technicians to monitor and adjust signal properties. The frequency of the electrical oscillations in the transmitting circuit determines the frequency of the electromagnetic waves produced.

Vocabulary: An oscilloscope is an instrument that graphically displays electrical signals and their changes over time, essential for analyzing wave motion characteristics.

The transmission path of radio waves varies depending on their frequency and wavelength. This relationship demonstrates key principles of wave motion Class 12 physics, showing how different frequencies serve different communication needs. For instance, satellite communications require precise frequency selection to minimize atmospheric interference while maximizing signal strength.

Modern applications like Wi-Fi and mobile phones rely on specific frequency bands optimized for their intended use. These technologies exemplify the practical application of wave motion physics notes, showing how theoretical principles translate into everyday technologies.
