Electrical Current Types and Earthing Systems

This section explores the fundamental differences between AC and DC currents, alongside crucial earthing safety mechanisms.

Definition: Earthing provides a safe path for fault currents to flow to ground instead of through human contact, preventing electrical shocks.

Highlight: UK mains electricity operates at 50Hz, meaning the current alternates direction 50 times per second.

Example: While batteries provide DC current flowing in one direction, mains electricity uses AC current that constantly changes direction.

National Grid Distribution System

This comprehensive overview details the UK's power distribution infrastructure and voltage transformation processes.

Definition: The National Grid is the nationwide network of cables and transformers that distributes electricity from power stations to consumers.

Highlight: Power stations utilize step-up transformers to increase voltage for efficient long-distance transmission, followed by step-down transformers for safe consumer delivery.

Example: Voltage levels vary from 132kV or higher in the transmission network to 230V for domestic consumers, with intermediate voltages (33kV, 11kV) for industrial use.

Home Electricity Safety and Plug Components

This section provides a detailed examination of domestic plug wiring and safety components essential for safe electrical operations in UK homes.

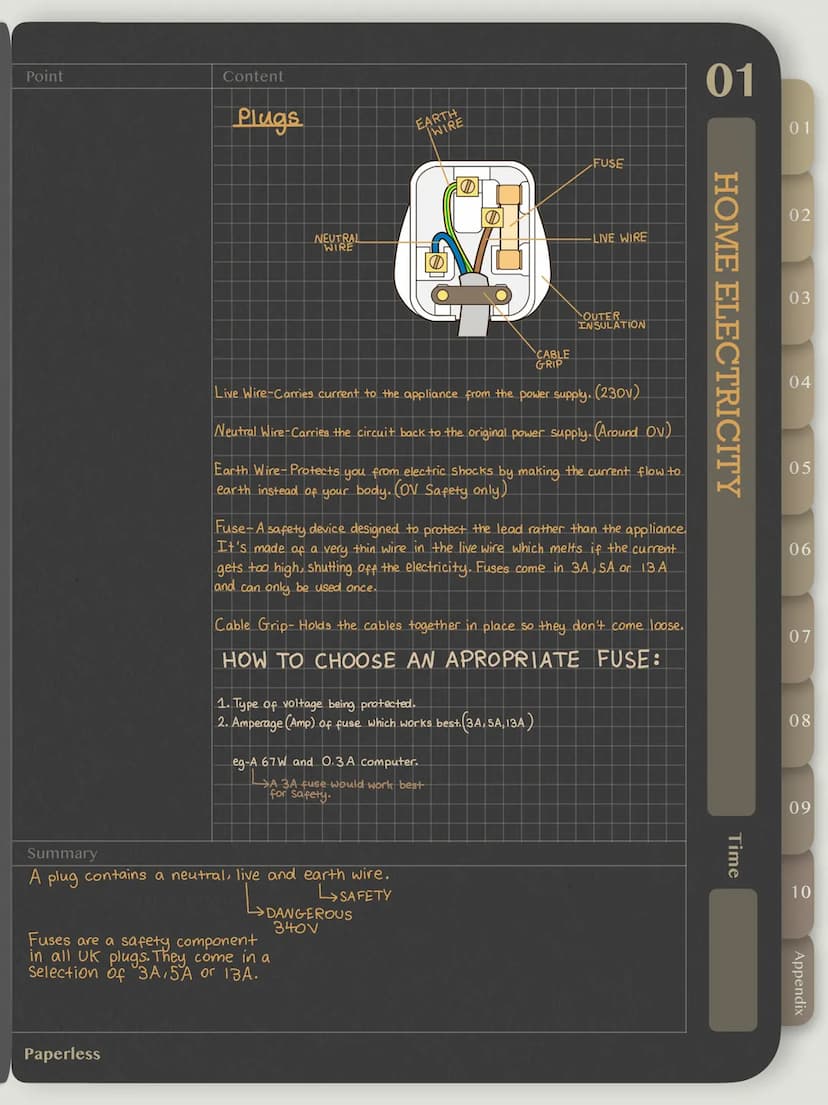

Definition: A plug is a standardized electrical connector containing three wires: live, neutral, and earth, each serving specific safety and operational functions.

Highlight: The live wire carries 230V current to appliances, while the neutral wire completes the circuit at approximately 0V.

Example: When selecting fuses, consider the appliance's power rating - a 67W computer drawing 0.3A would be best protected by a 3A fuse.

Vocabulary: Cable grip - A mechanical component that secures electrical cables within the plug, preventing strain on internal connections.
