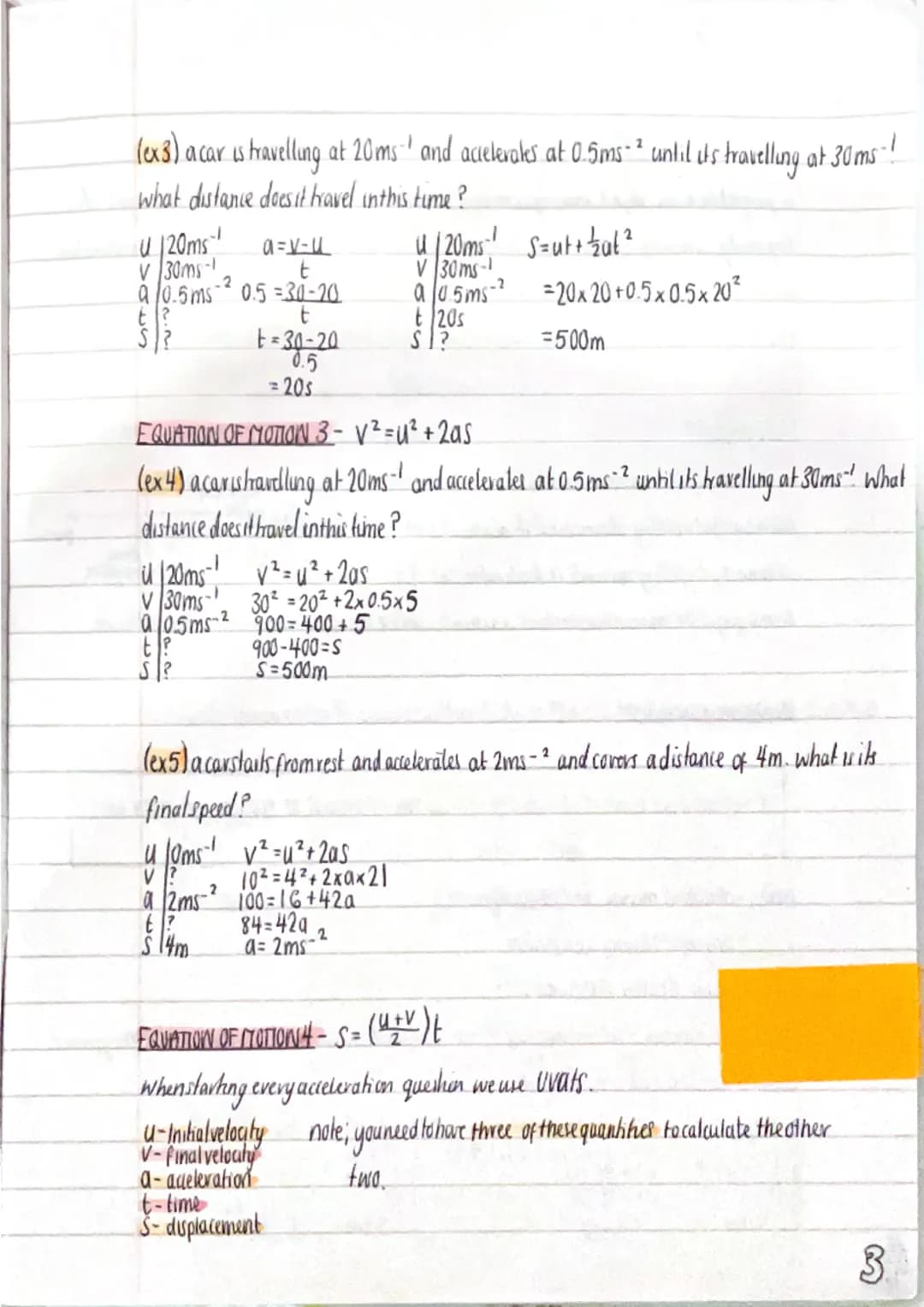

Page 2: Advanced Equations of Motion

This page expands on kinematics equations, introducing the third equation of motion and providing practical examples of their application in real-world scenarios.

Definition: The third equation of motion $v² = u² + 2as$ relates final velocity to initial velocity, acceleration, and displacement without requiring time.

Example: A detailed problem solving example shows a car accelerating from 20ms⁻¹ to 30ms⁻¹ with acceleration of 0.5ms⁻², calculating the distance traveled.

Highlight: The UVATS system (Initial velocity, Final velocity, Acceleration, Time, Displacement) is essential for solving kinematics problems - you need three quantities to find the other two.

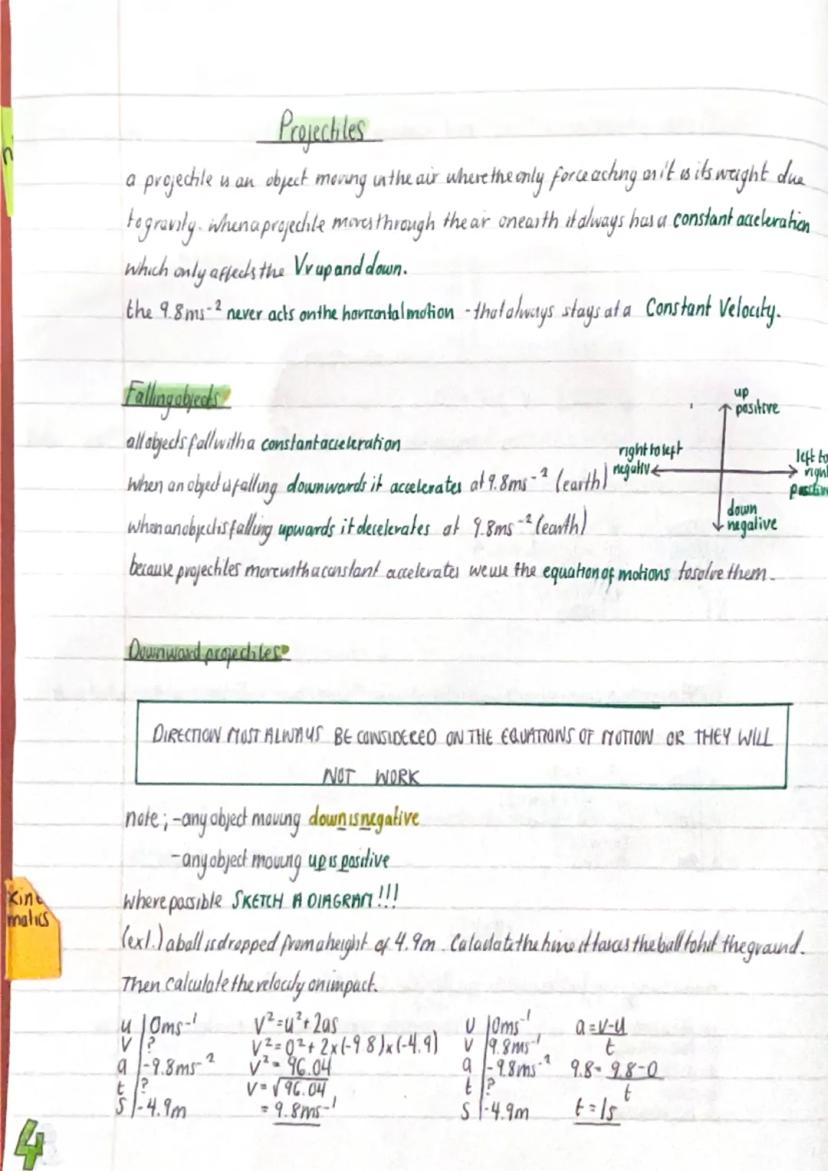

Page 3: Introduction to Projectile Motion

This page introduces the concept of projectile motion and the effects of gravity on falling objects.

Definition: A projectile is an object moving through air under the influence of gravity alone, experiencing constant acceleration of 9.8ms⁻² downward.

Highlight: Horizontal motion maintains constant velocity while vertical motion experiences constant acceleration due to gravity.

Vocabulary:

• Projectile: Object moving under gravity's influence
• Constant acceleration: Unchanging rate of change in velocity
• Gravity: Force causing 9.8ms⁻² acceleration downward

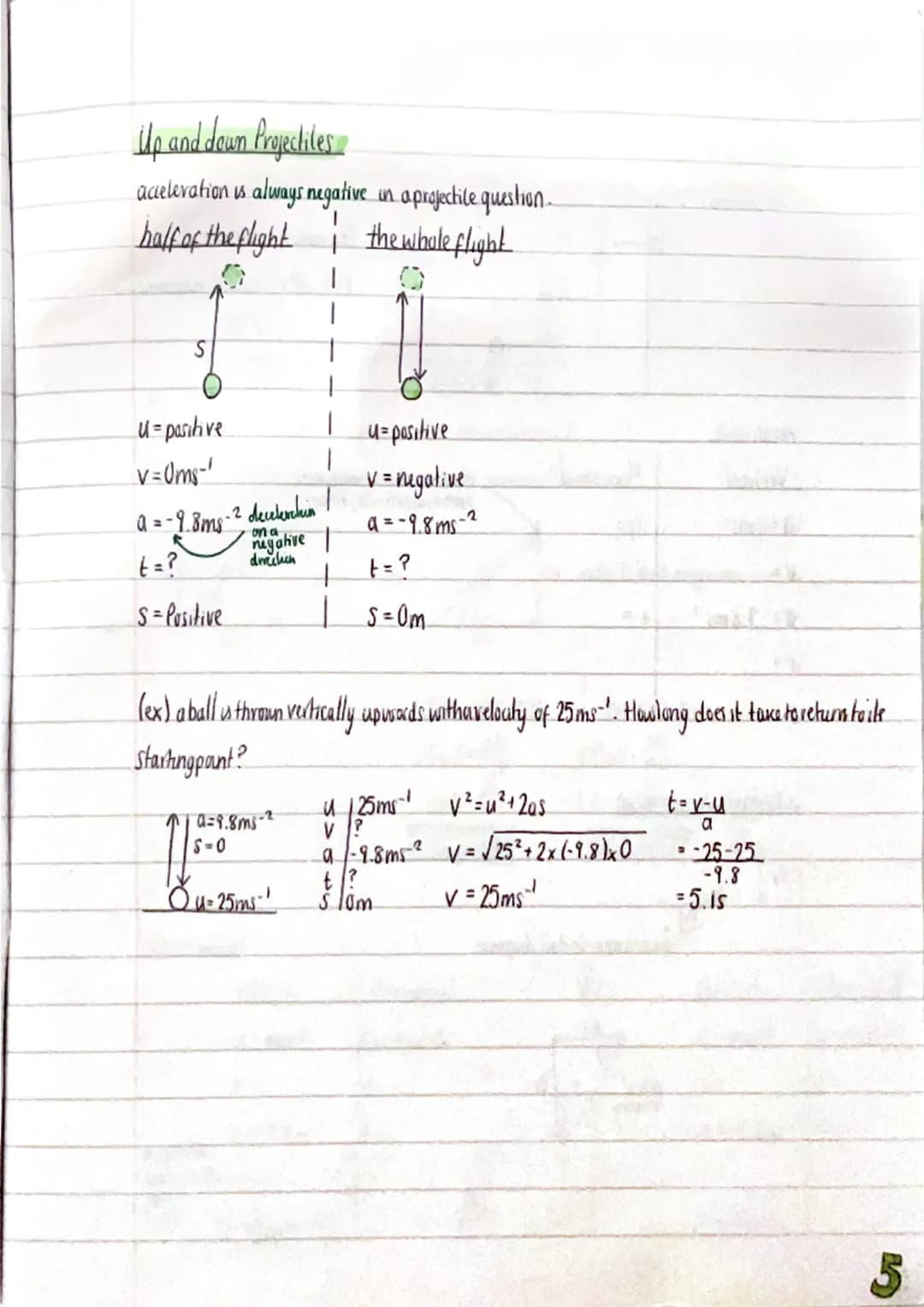

Page 4: Vertical Projectile Motion

This page focuses on the analysis of objects thrown vertically upward and their motion characteristics.

Example: A ball thrown upward at 25ms⁻¹ demonstrates the principles of deceleration during ascent and acceleration during descent.

Highlight: In vertical projectile motion, acceleration is always negative $-9.8ms⁻²$, affecting both upward and downward motion.

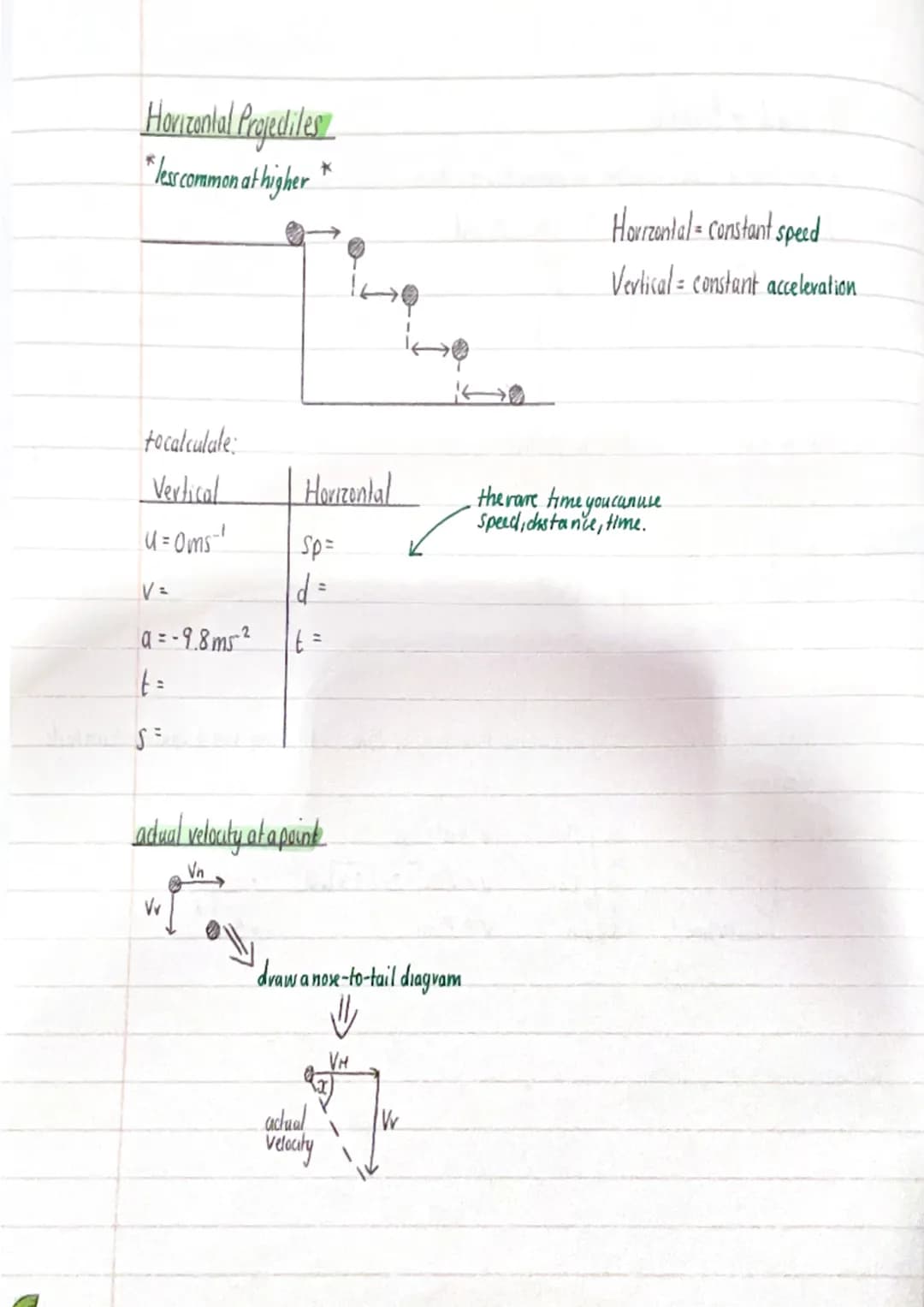

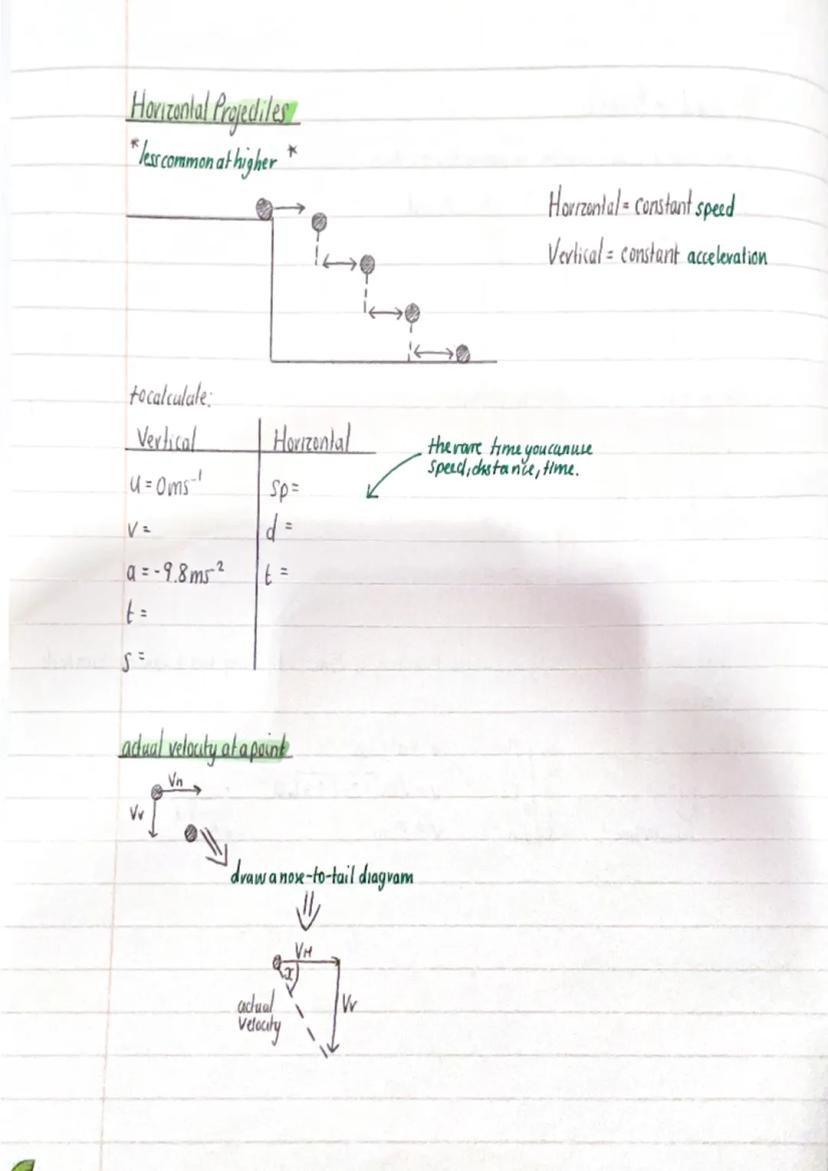

Page 5: Horizontal Projectile Motion

This page examines the characteristics and calculations involved in horizontal projectile motion.

Definition: Horizontal projectile motion combines constant horizontal velocity with vertical acceleration due to gravity.

Highlight: The actual velocity at any point can be determined using vector addition of horizontal and vertical components.

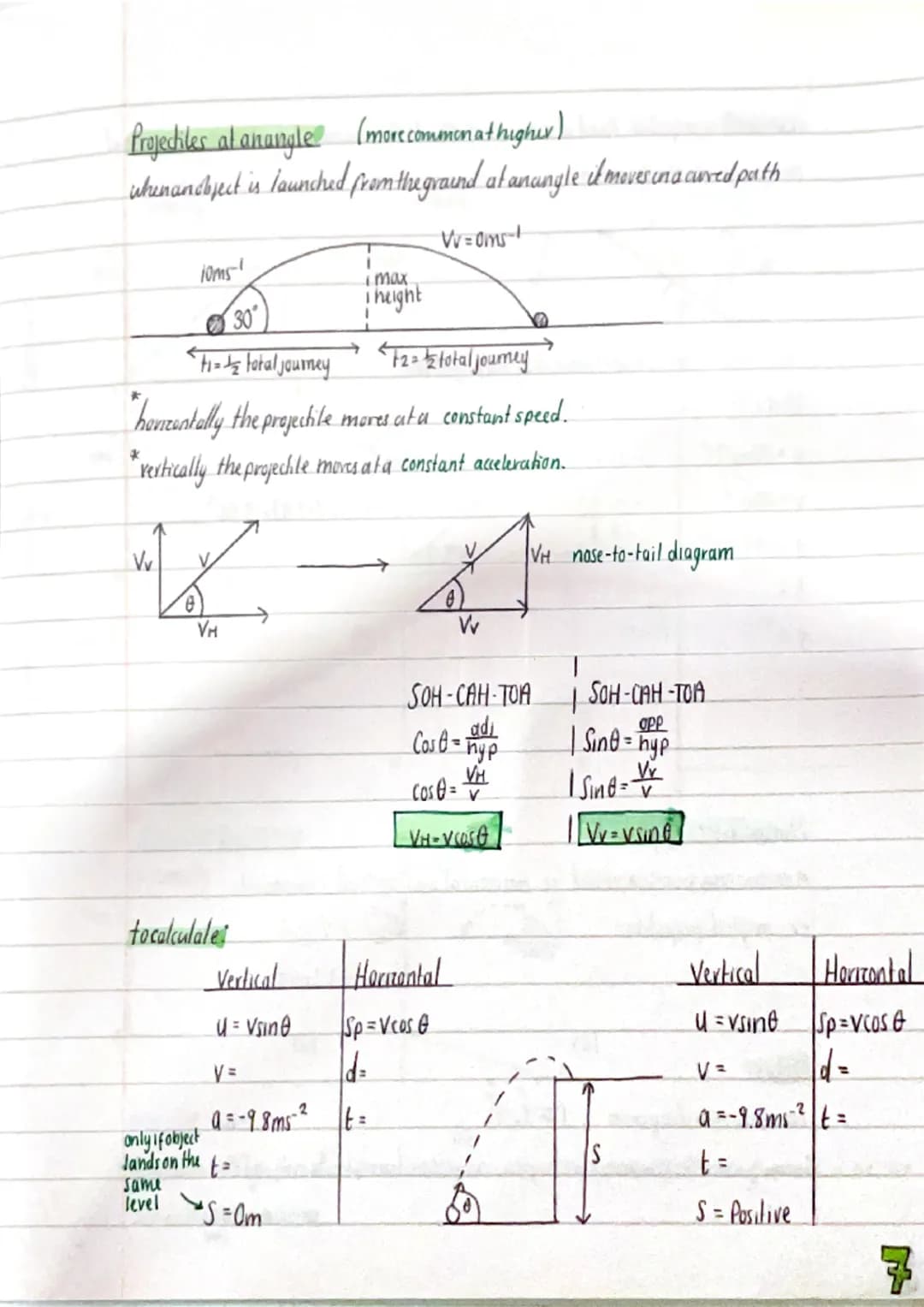

Page 6: Projectiles at Angles

This page explores projectile motion when objects are launched at angles to the horizontal.

Definition: Angled projectile motion combines both horizontal and vertical components, creating a curved path.

Vocabulary:

• SOH-CAH-TOA: Trigonometric relationships used in component analysis
• Component vectors: Horizontal and vertical parts of velocity

Page 7: Force Components and Applications

This page concludes with practical applications of projectile motion and force components.

Example: A projectile fired at 45° with initial vertical velocity component of 30ms⁻¹ demonstrates maximum height calculation.

Highlight: Vector components can be calculated using trigonometric relationships:

• Horizontal velocity = V cos θ
• Vertical velocity = V sin θ

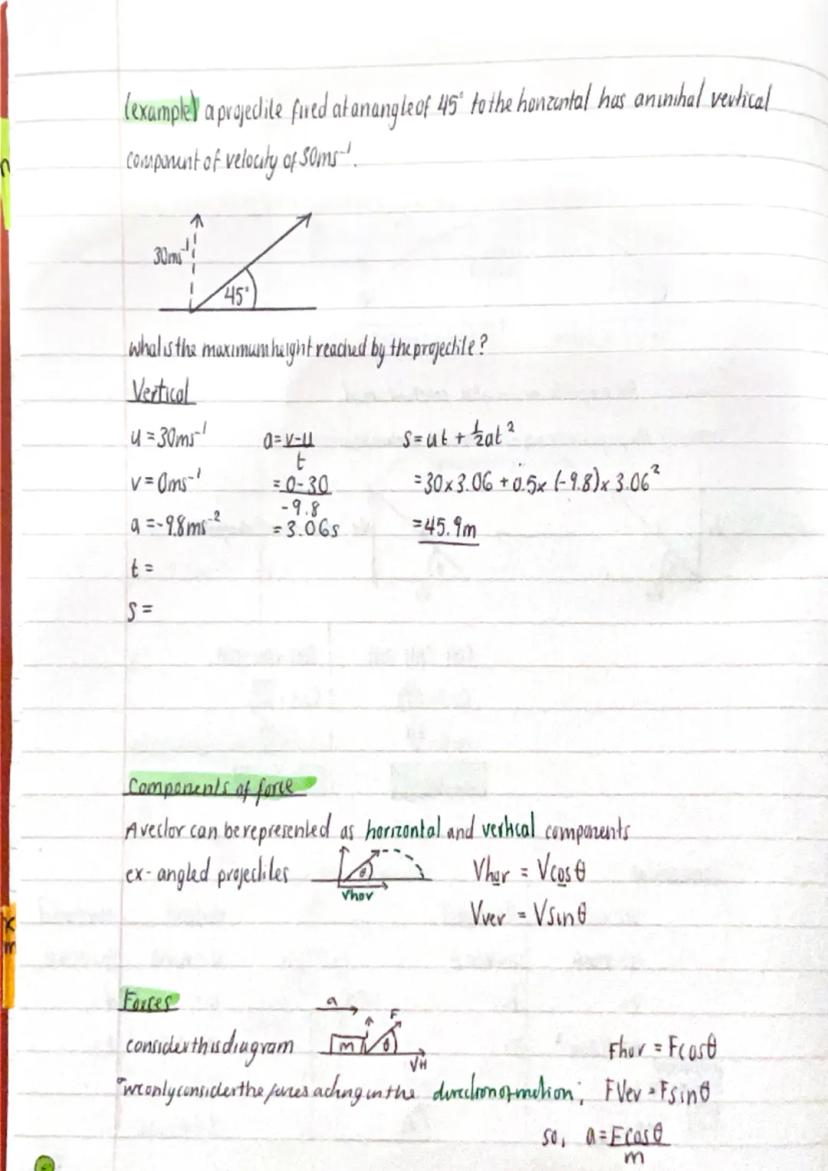

Page 7: Vector Components and Forces

This page examines vector resolution and force components in projectile motion.

Example: A projectile fired at 45° with initial vertical velocity of 30ms⁻¹ demonstrates maximum height calculations.

Definition: Vector components are the horizontal and vertical parts of a vector quantity.

Vocabulary: Component resolution involves breaking down vectors into horizontal (Vcosθ) and vertical (Vsinθ) components.

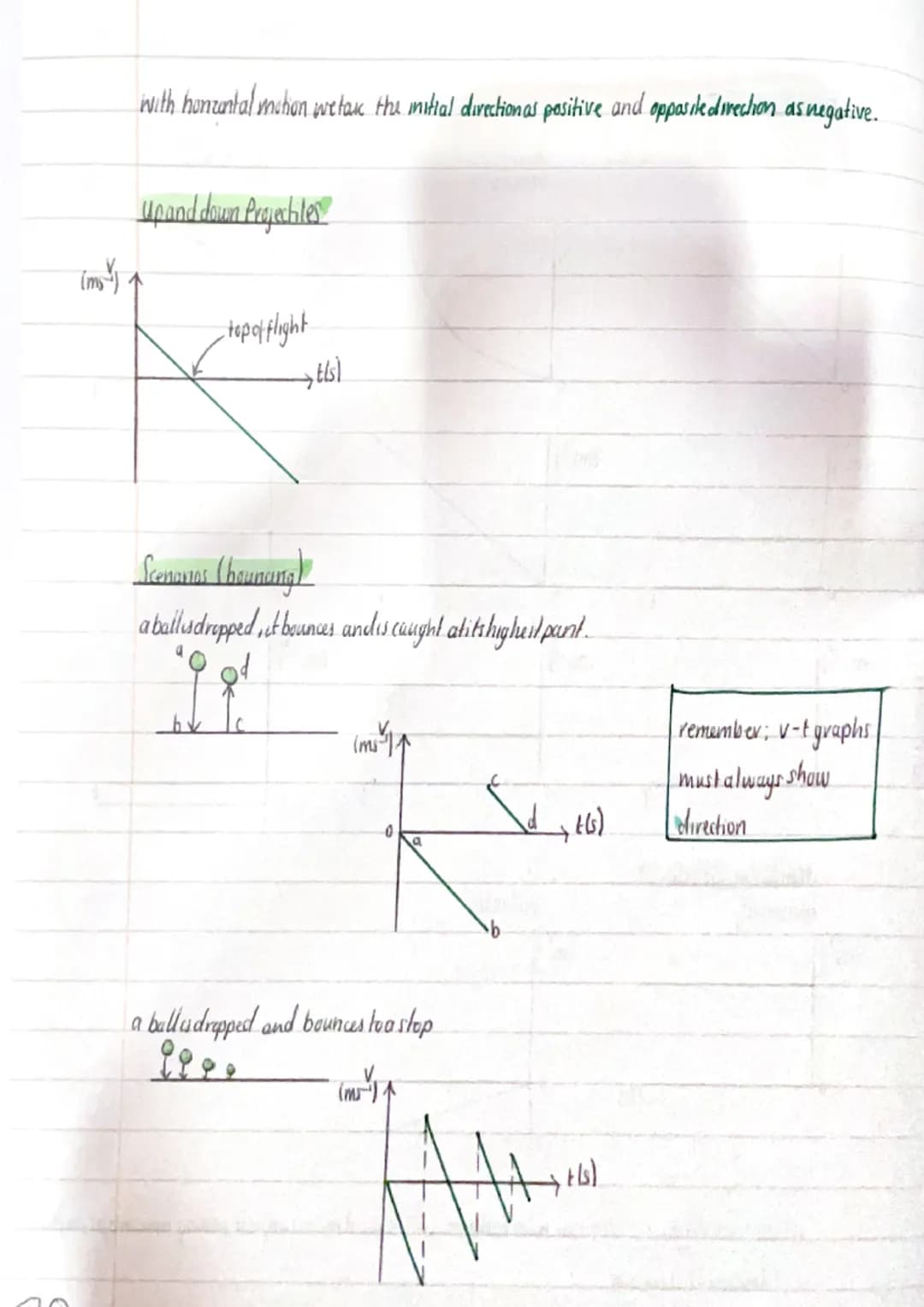

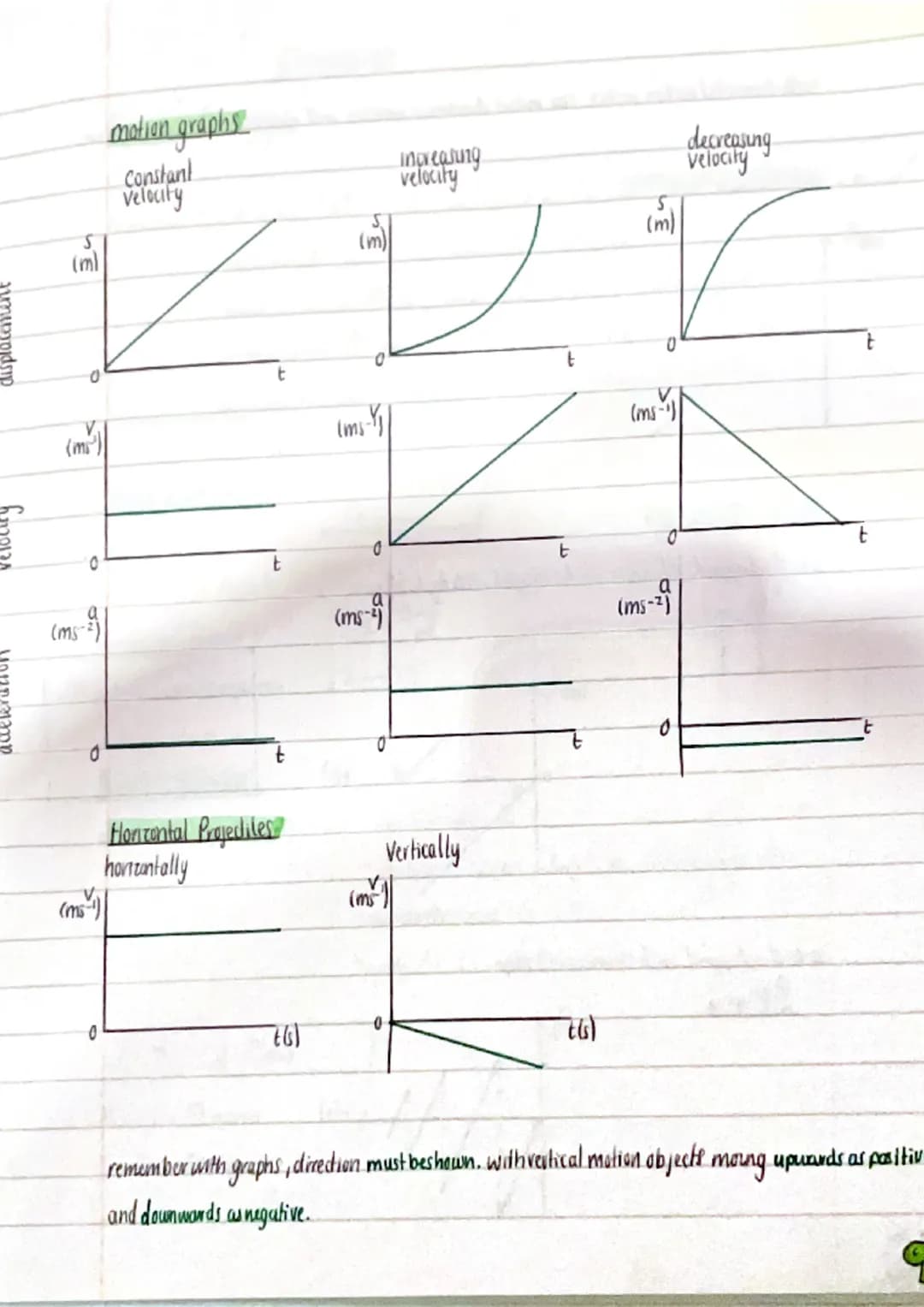

Page 8: Motion Graphs

This page presents various types of motion graphs and their interpretation.

Definition: Motion graphs show relationships between displacement, velocity, acceleration, and time.

Highlight: Different types of motion produce characteristic graph shapes that can be analyzed to understand motion behavior.

Vocabulary: Graph interpretation requires understanding of positive and negative directions in both horizontal and vertical motion.

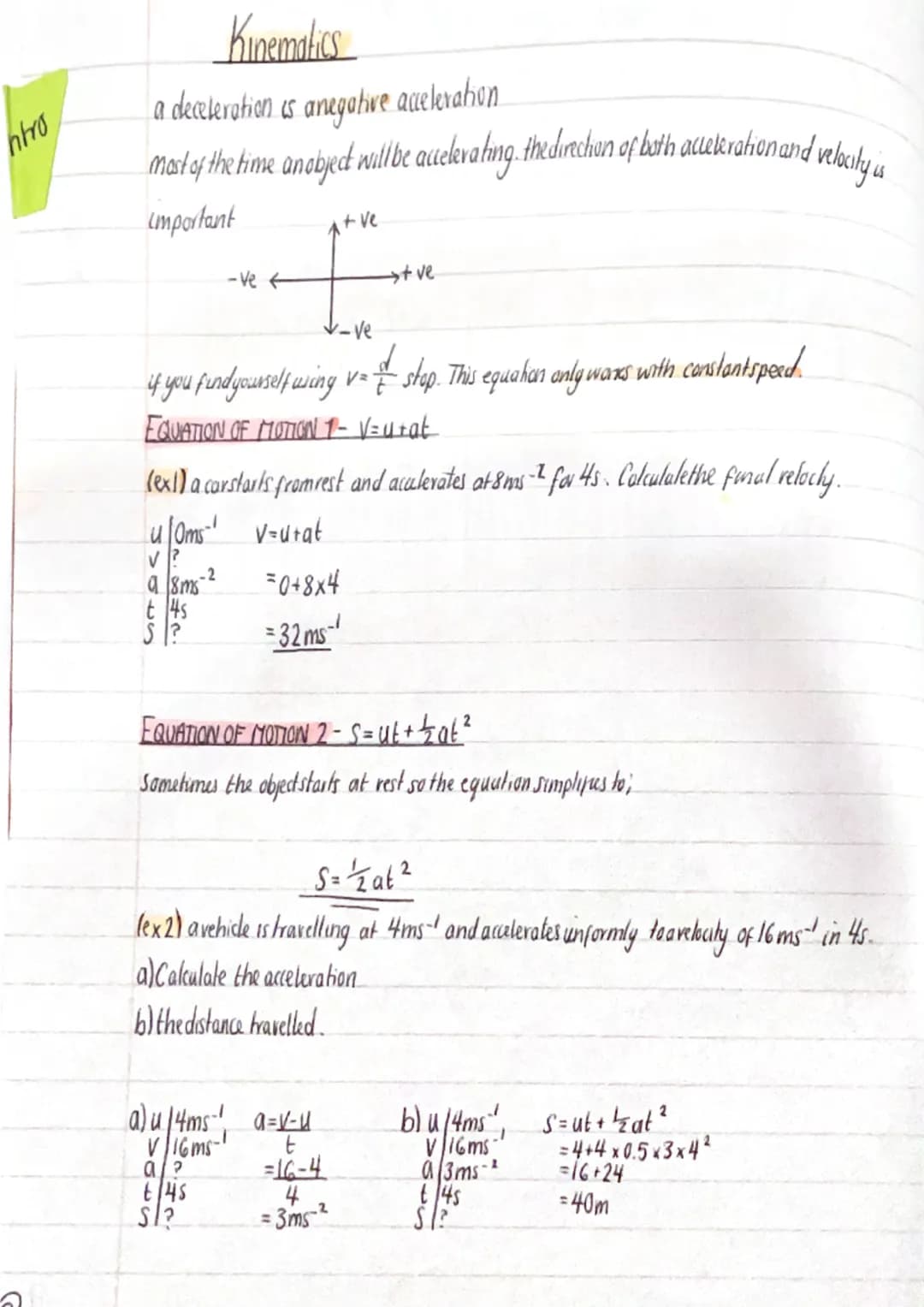

Page 1: Introduction to Kinematics

This page introduces fundamental concepts in kinematics and presents the first two equations of motion. The content focuses on understanding acceleration, velocity, and displacement calculations.

Definition: Deceleration is defined as negative acceleration, occurring when an object's velocity decreases over time.

Highlight: The first equation of motion $v = u + at$ is crucial for calculating final velocity when initial velocity, acceleration, and time are known.

Example: A car starting from rest accelerates at 8ms⁻² for 4 seconds, reaching a final velocity of 32ms⁻¹.

Vocabulary:

• u: Initial velocity
• v: Final velocity
• a: Acceleration
• t: Time
• s: Displacement
