Understanding Waves in GCSE Physics
Ella Biggins
@ellabiggins
1 / 5

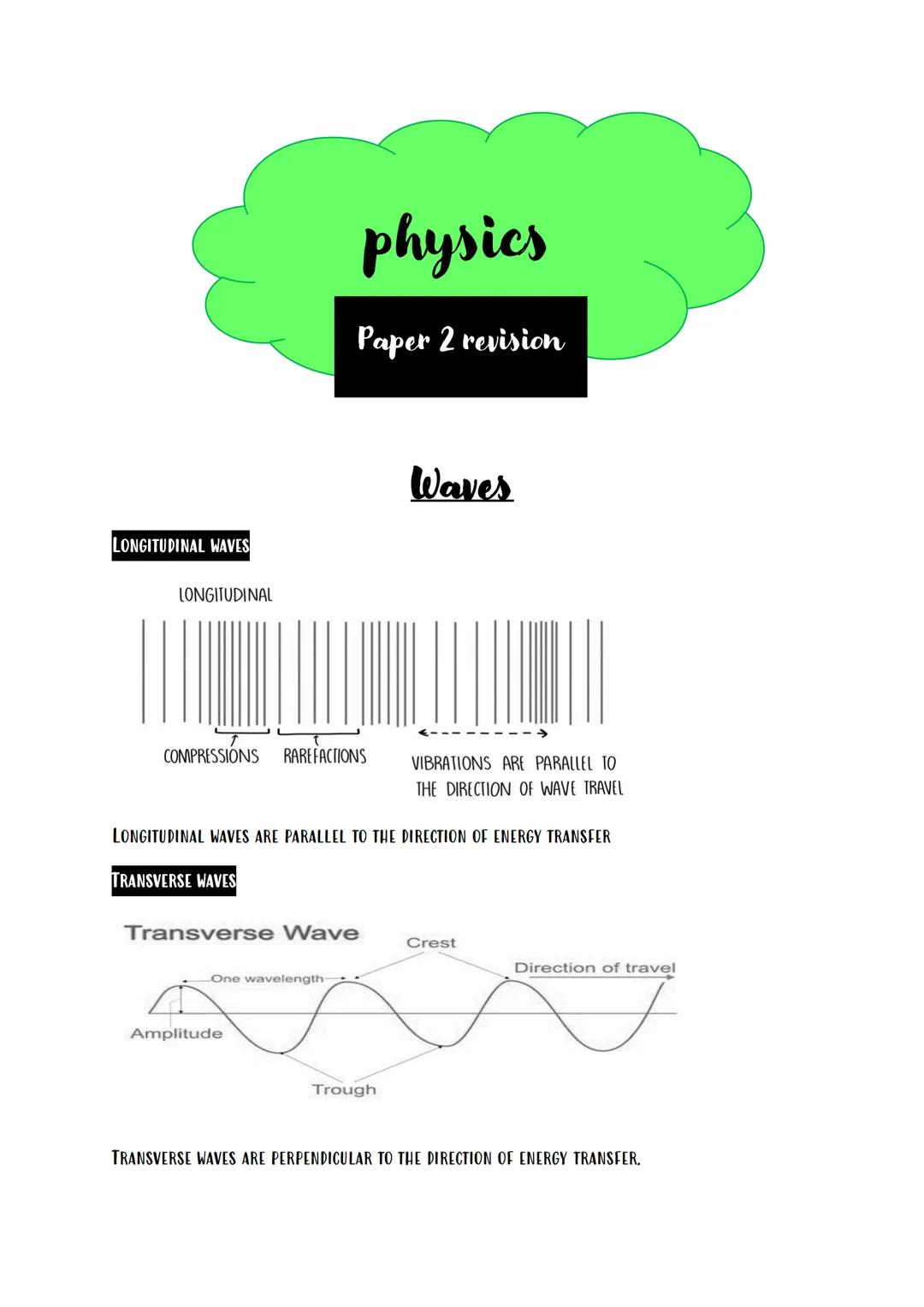

Wave Types and Properties
Ever wonder why sound travels through walls but light doesn't? It all comes down to wave types. Longitudinal waves have vibrations that move parallel to the direction the wave travels - think of a slinky being pushed and pulled. Sound waves work this way, creating compressions (squashed bits) and rarefactions (stretched bits) in the air.
Transverse waves are completely different - their vibrations move perpendicular (at right angles) to the wave's direction. Picture a guitar string vibrating up and down while the wave energy moves along the string. These waves have clear crests (peaks) and troughs (dips).
The key difference? Longitudinal waves vibrate parallel to energy transfer, while transverse waves vibrate perpendicular to it. This simple rule helps you identify any wave type you encounter.
Quick Tip: Remember "T for Transverse = T for Top and bottom movement" - the vibrations go up and down while the wave goes forward!

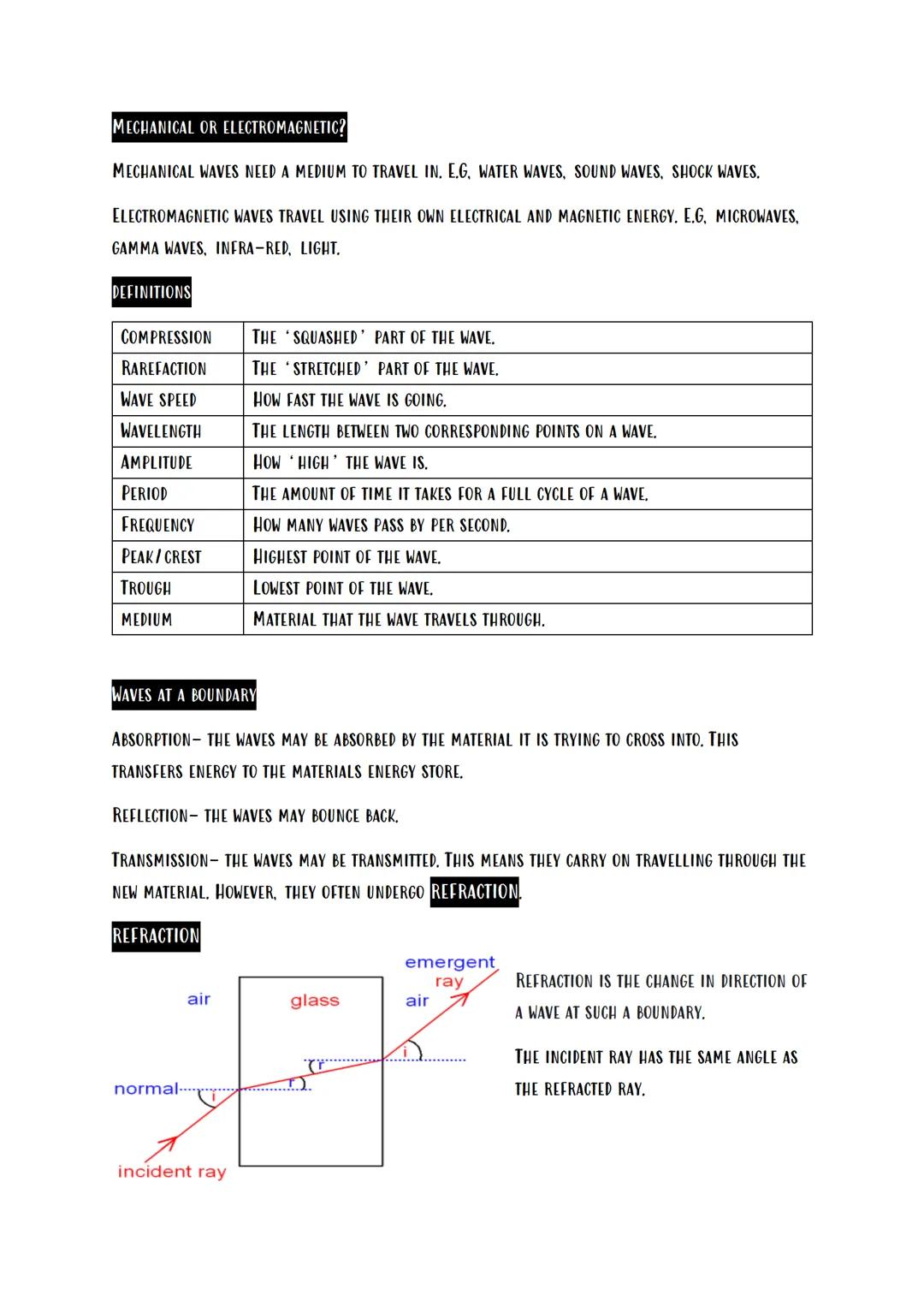

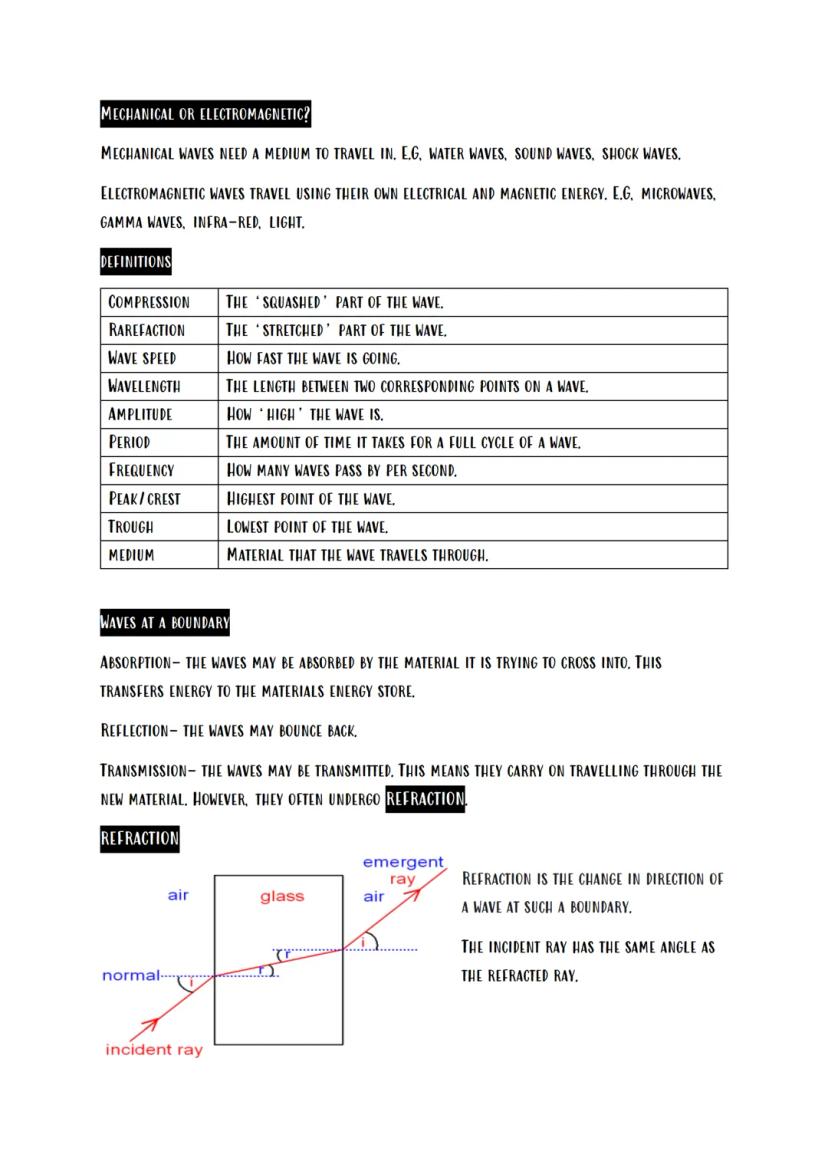

Mechanical vs Electromagnetic Waves
Not all waves are created equal! Mechanical waves are like that friend who needs constant support - they must have a medium (material) to travel through. Water waves need water, sound waves need air, and shock waves need solid materials.
Electromagnetic waves are the independent ones - they create their own electrical and magnetic energy to travel through empty space. Light, microwaves, and gamma rays all belong to this group.
When waves hit boundaries between different materials, three things can happen: absorption (energy gets soaked up), reflection (waves bounce back), or transmission (waves continue through but often bend). This bending process is called refraction - it's why a straw looks bent in a glass of water.
Wave speed, wavelength, amplitude, frequency, and period are your essential wave vocabulary. Master these terms and you'll understand how waves behave in any situation.
Remember: Mechanical waves are needy (need a medium), electromagnetic waves are independent (travel through space)!

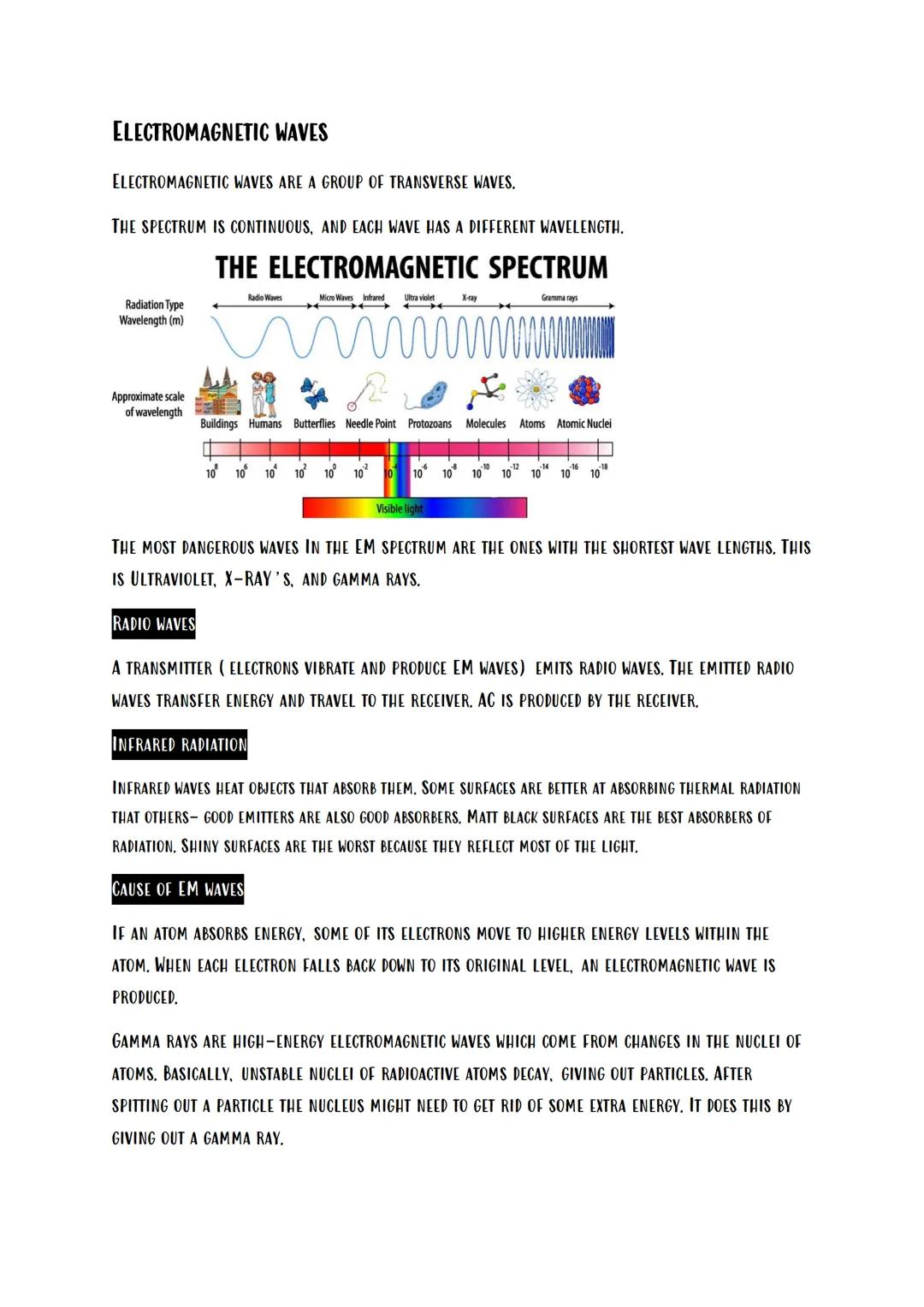

The Electromagnetic Spectrum
The electromagnetic spectrum is like a massive family of waves, all related but with different personalities. From radio waves (longest wavelength) to gamma rays (shortest wavelength), each type has unique properties and uses.
Here's the danger rule: shorter wavelengths = more dangerous. The most hazardous waves are ultraviolet, X-rays, and gamma rays because they pack serious energy. Radio waves and visible light? Pretty harmless for everyday exposure.
Electromagnetic waves form when electrons in atoms get excited and jump to higher energy levels, then fall back down and release energy. Gamma rays are special - they come from changes in atomic nuclei, usually when radioactive atoms decay and need to dump extra energy.
Infrared radiation heats objects that absorb it. Matt black surfaces are brilliant absorbers, while shiny surfaces reflect most radiation away. This is why car dashboards get scorching hot in summer but mirrors stay relatively cool.
Safety Note: The shorter the wavelength, the more dangerous the wave - remember this for UV exposure and medical procedures!

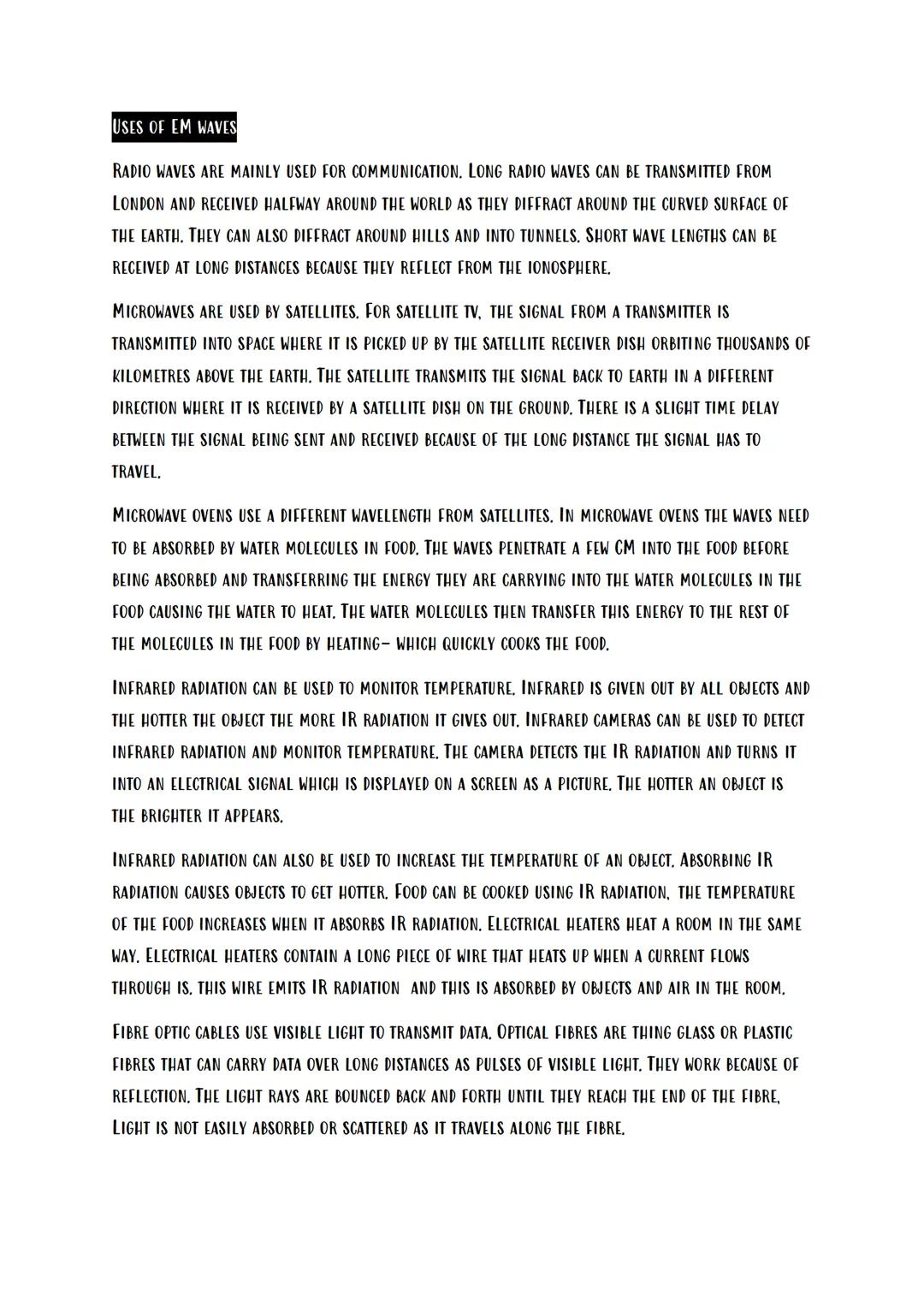

Practical Uses of EM Waves
Radio waves are communication superstars. Long radio waves can travel around Earth's curved surface by diffracting around obstacles, while short waves bounce off the ionosphere to reach distant places. This is how radio stations broadcast globally.
Microwaves power both satellite TV and your kitchen appliances, but they use different wavelengths. Satellite microwaves travel to space and back (causing slight delays), while microwave ovens use waves that water molecules love to absorb, heating your food from the inside out.
Infrared cameras detect heat by measuring IR radiation - the hotter an object, the more infrared it emits. Electrical heaters work by emitting infrared that gets absorbed by objects and air in your room.
Fibre optic cables use visible light to transmit internet data. Light pulses bounce back and forth inside thin glass fibres using reflection, carrying information over huge distances without getting absorbed or scattered.
Tech Fact: Your microwave oven and satellite dish both use microwaves, but completely different wavelengths - that's why your phone doesn't interfere with your dinner!

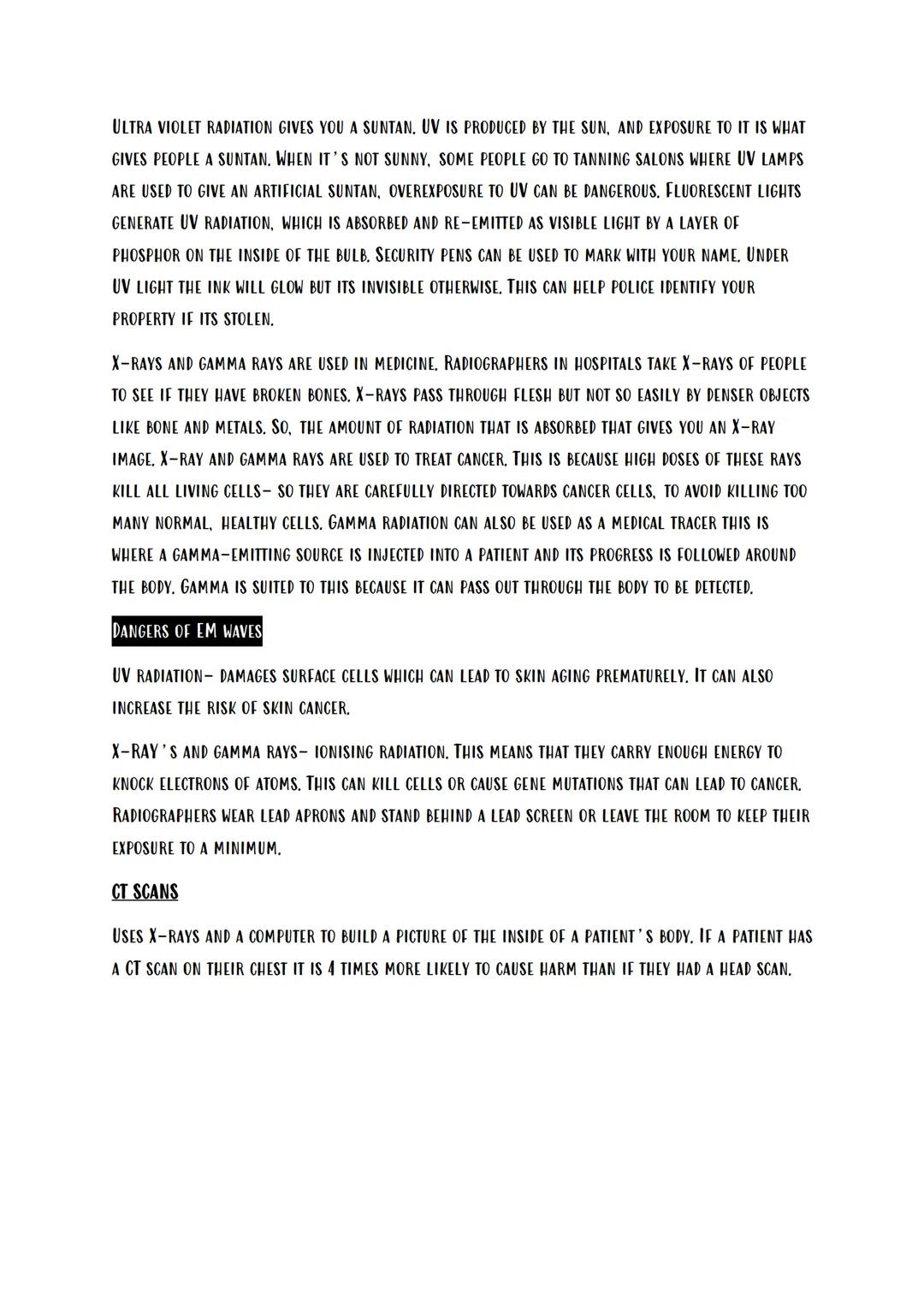

Medical Applications and Safety
Ultraviolet radiation gives you that summer tan, but overexposure causes premature skin aging and increases cancer risk. UV lamps in tanning salons and security pens (invisible ink that glows under UV) use this same radiation type.
X-rays and gamma rays are medical game-changers. X-rays pass through soft tissue but get blocked by bones and metal, creating those familiar skeleton images. Both X-rays and gamma rays can kill cancer cells when carefully directed, and gamma rays work as medical tracers to follow processes inside your body.
The danger factor is real though. UV radiation damages surface cells, while X-rays and gamma rays are ionising radiation - they carry enough energy to knock electrons off atoms, potentially killing cells or causing gene mutations.
CT scans use X-rays and computers to build detailed body pictures. Interestingly, a chest CT scan is four times more likely to cause harm than a head scan. This is why radiographers wear lead aprons and hide behind screens during procedures.
Safety Reality: Medical staff protect themselves from radiation exposure because even helpful radiation can be harmful with repeated exposure!
