Understanding Waves - GCSE Combined Science Higher (Part 1)

user profile picture

✨Pabs✨ @pabs_loveprada

Waves are everywhere - from the light you see to the sound you hear to the radio waves... Show more

- Radio micro
waves waves
Infra visible ultra
red Irght violet X-rays gamma
rays
Im-10m 102m 10-5m 107m 10-8m 10-10m 10-15m
long
wavelength,

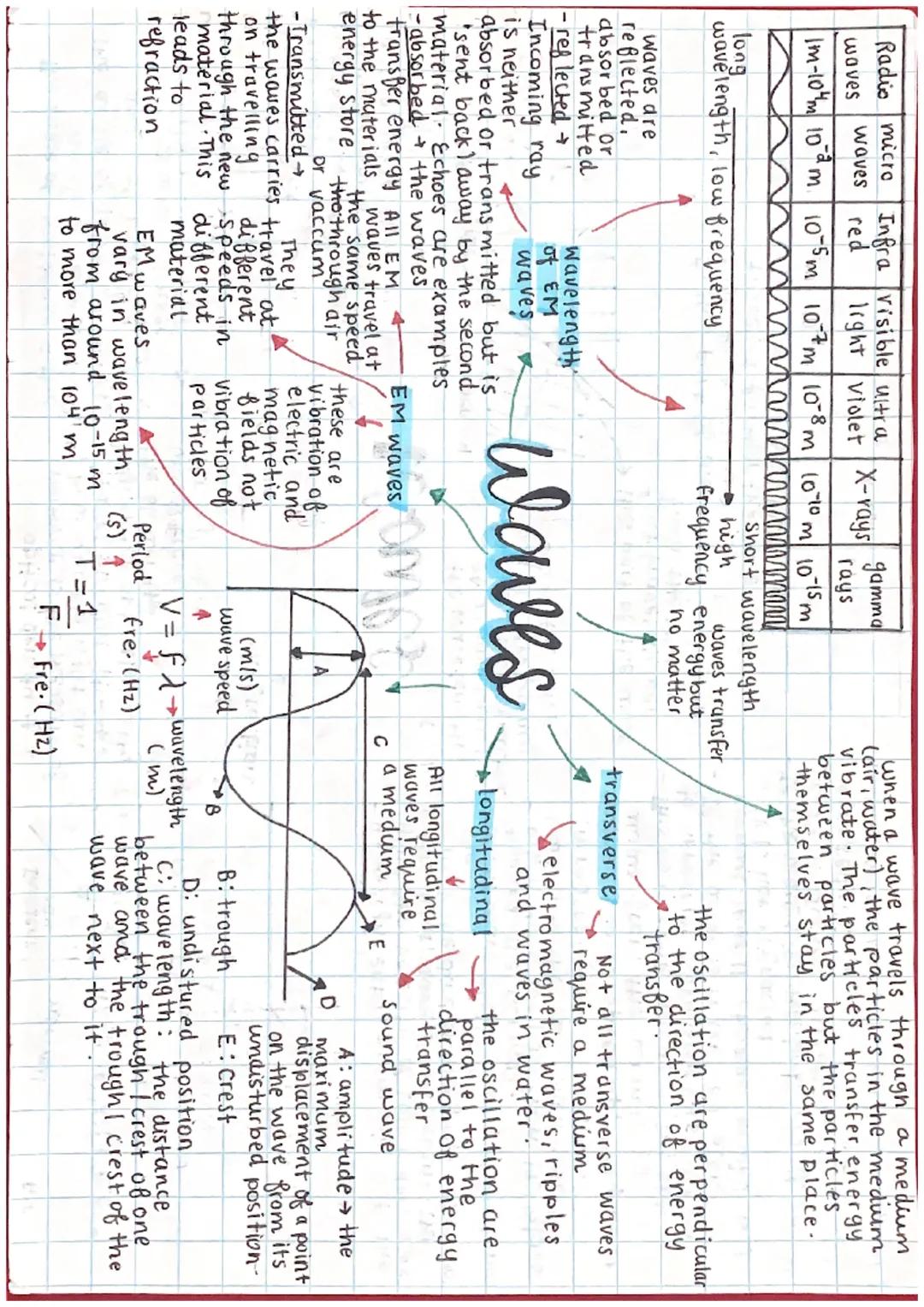

The Electromagnetic Spectrum and Wave Basics

The electromagnetic spectrum is like nature's ultimate playlist - it includes radio waves, microwaves, infrared, visible light, ultraviolet, X-rays, and gamma rays. What's brilliant is that they're all essentially the same thing, just with different wavelengths and frequencies.

Here's what makes waves special they transfer energy without transferring matter. Think of it like a Mexican wave at a football stadium - the wave moves around the stadium, but each person stays in their seat. The particles in the medium vibrate and pass energy along, but they don't actually travel with the wave.

Transverse waves have oscillations perpendicular to the direction of energy transfer (like electromagnetic waves and water ripples), whilst longitudinal waves have oscillations parallel to the energy direction (like sound waves). The key equation you need to remember is v = fλ wavespeed=frequency×wavelengthwave speed = frequency × wavelength.

Quick Tip All electromagnetic waves travel at the same speed through air or vacuum - that's the speed of light at 3 × 10⁸ m/s!

- Radio micro
waves waves
Infra visible ultra
red Irght violet X-rays gamma
rays
Im-10m 102m 10-5m 107m 10-8m 10-10m 10-15m
long
wavelength,

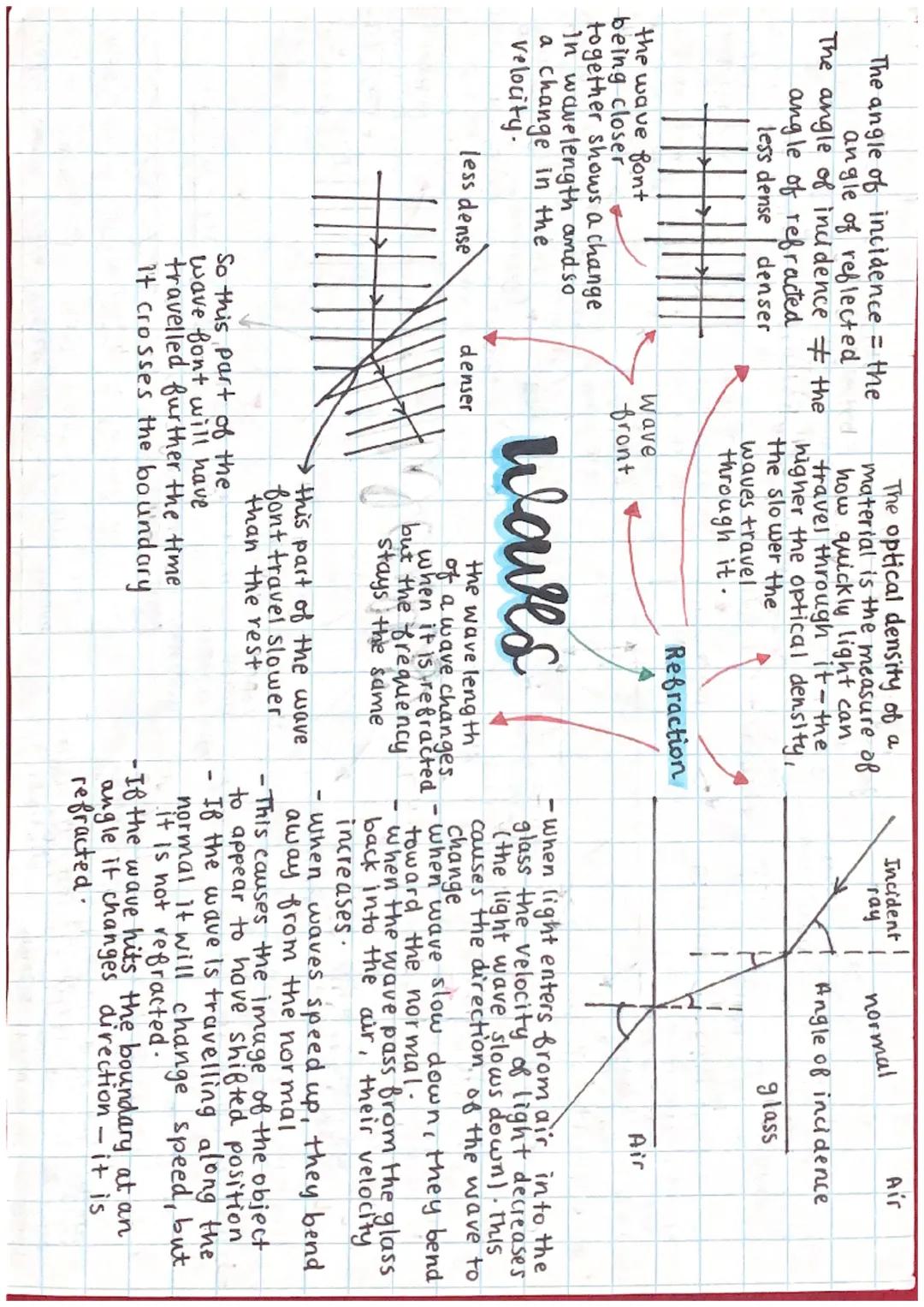

Refraction - When Waves Change Direction

Refraction happens when waves change speed as they move between different materials, causing them to bend. It's why a straw looks bent in a glass of water or why swimming pools appear shallower than they actually are.

The optical density of a material determines how quickly light can travel through it. When light moves from a less dense material (like air) into a denser one (like glass), it slows down and bends towards the normal. When it speeds up going the other way, it bends away from the normal.

Here's the crucial bit when waves refract, their frequency stays constant but their wavelength changes. The wave fronts get closer together when the wave slows down, showing the change in velocity and wavelength.

Remember If a wave hits the boundary straight on (along the normal), it changes speed but doesn't change direction - no refraction occurs!
