Ever wondered why ice floats on water or how a...
Understanding the Particle Model of Matter - Topic 3

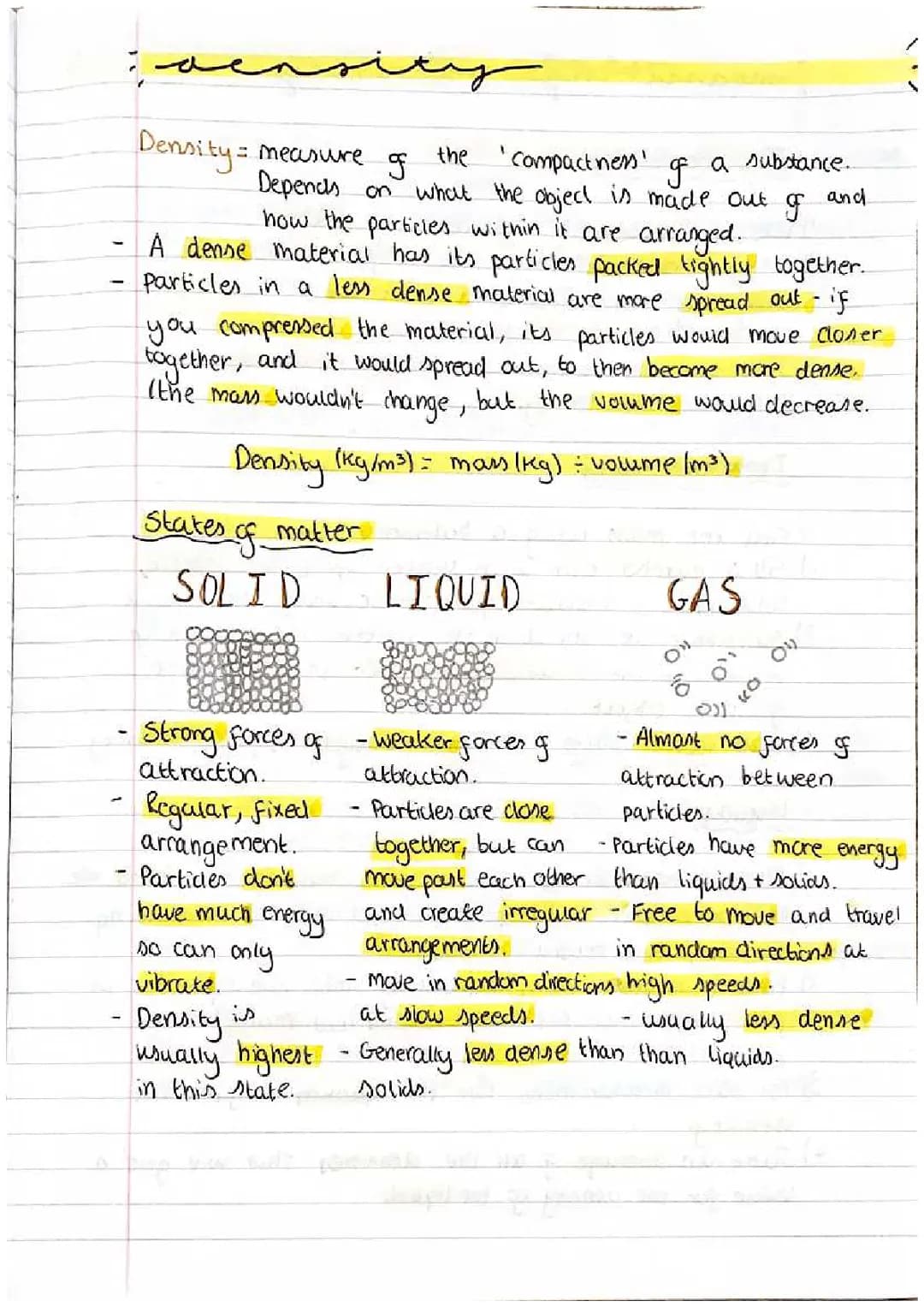

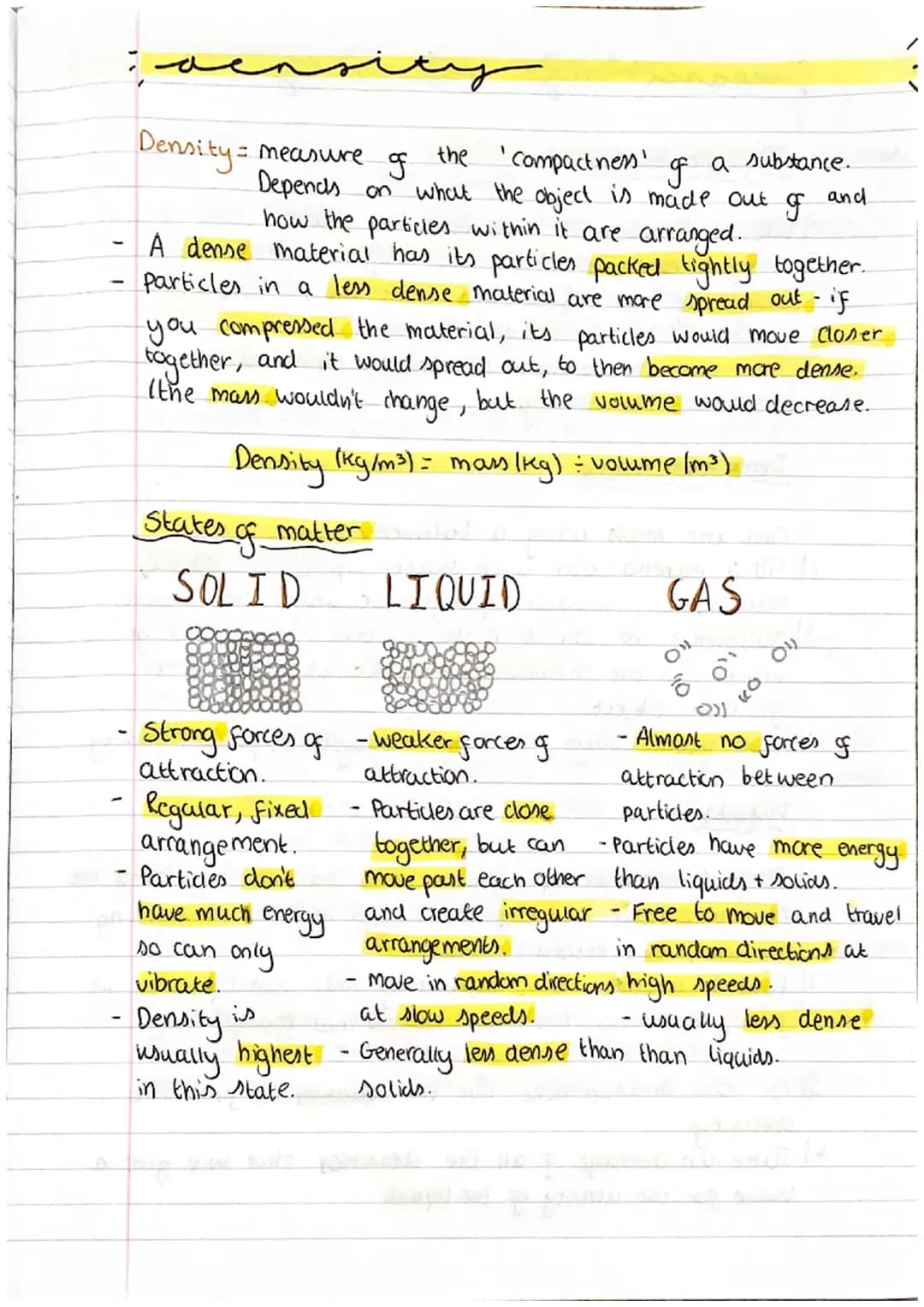

Understanding Density and States of Matter
Density is basically how tightly packed the particles in a substance are - think of it as measuring how "squashed together" everything is. Dense materials like lead have particles crammed close together, whilst less dense materials like foam have particles spread out with lots of gaps.
The density formula is straightforward: Density = mass ÷ volume (measured in kg/m³). This means if you compress something into a smaller space, it becomes denser because the mass stays the same but the volume shrinks.
Solids are the densest because particles are locked in fixed positions with strong forces holding them together - they can only vibrate on the spot. Liquids are less dense since particles can slide past each other, even though they're still close together. Gases are usually the least dense because particles zoom around freely with almost no forces between them.
Quick Tip: Remember that ice is unusual - it's actually less dense than liquid water, which is why it floats!

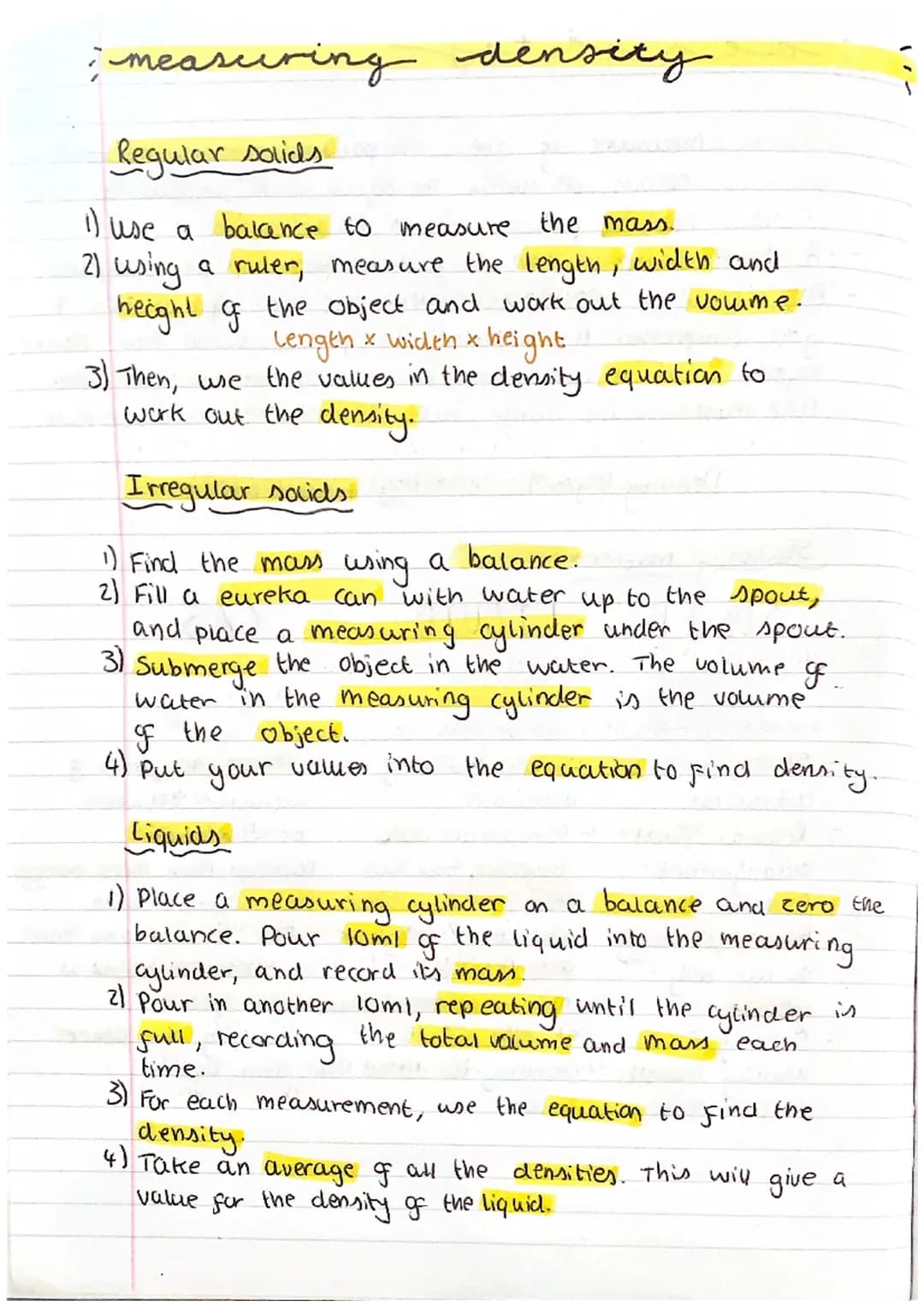

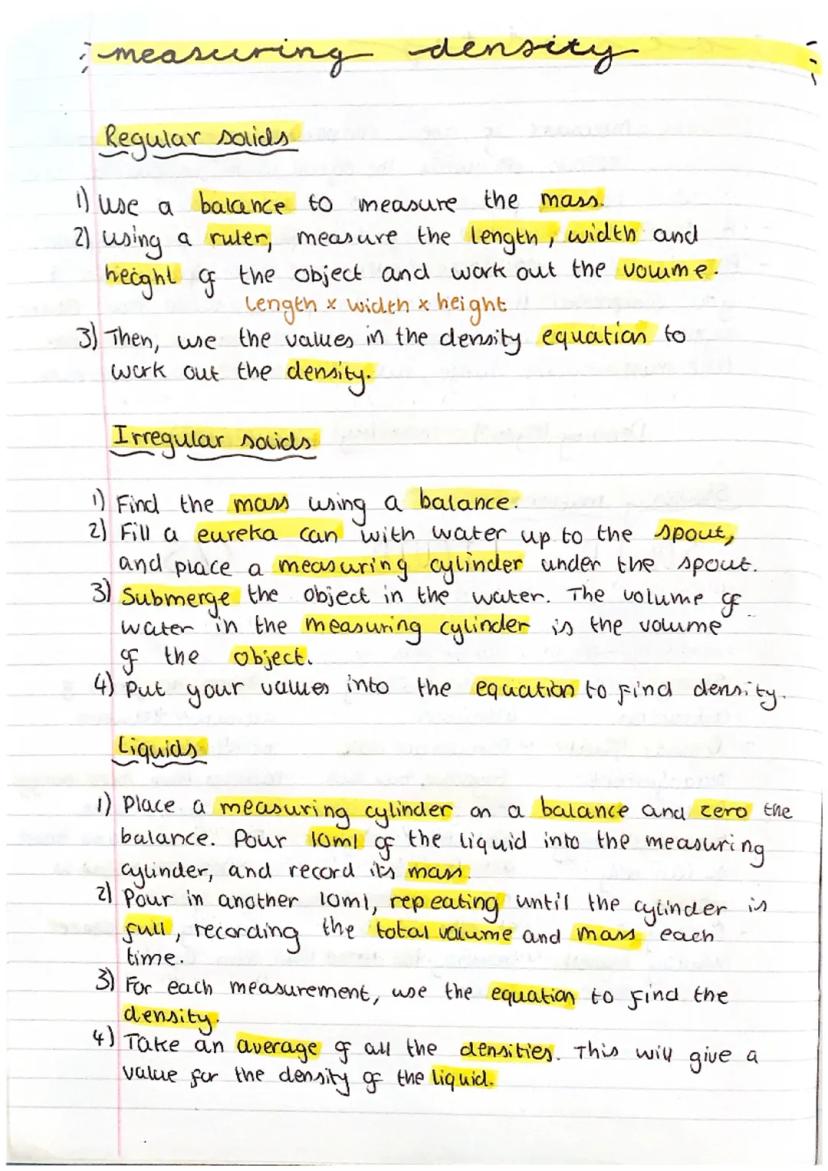

Measuring Density in the Lab
Regular solids are dead easy - just weigh them, measure length × width × height for volume, then use your density equation. Job done!
Irregular solids need the displacement trick. You'll use a eureka can filled to the spout, then drop your object in. The water that overflows into your measuring cylinder tells you the object's volume - clever, right?
Liquids require a bit more patience. Zero your balance with an empty measuring cylinder, then add 10ml at a time, recording the mass each time. Calculate density for each measurement, then find the average for accuracy.
Lab Hack: Always take multiple readings and average them out - it makes your results much more reliable and shows examiners you understand experimental accuracy!

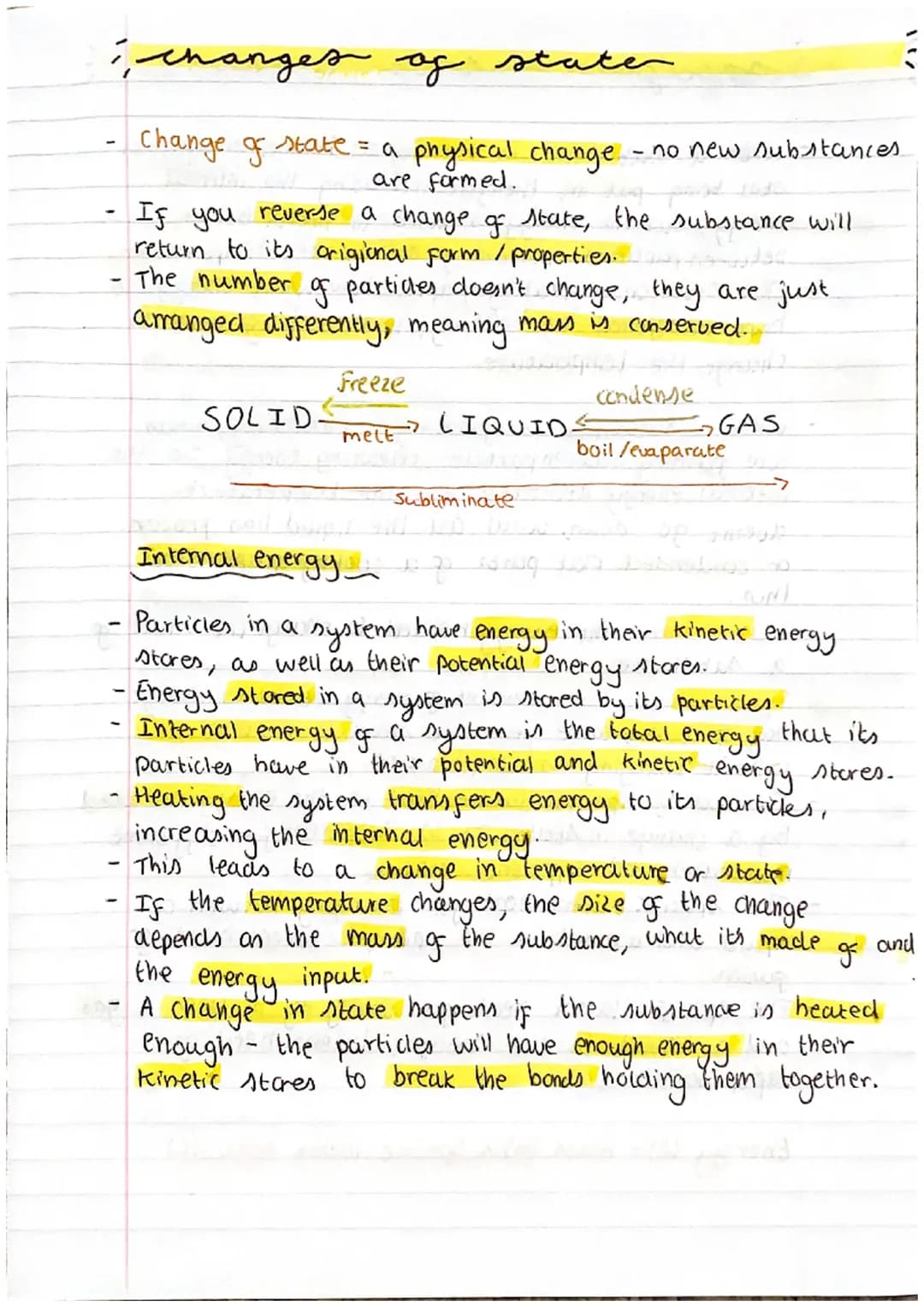

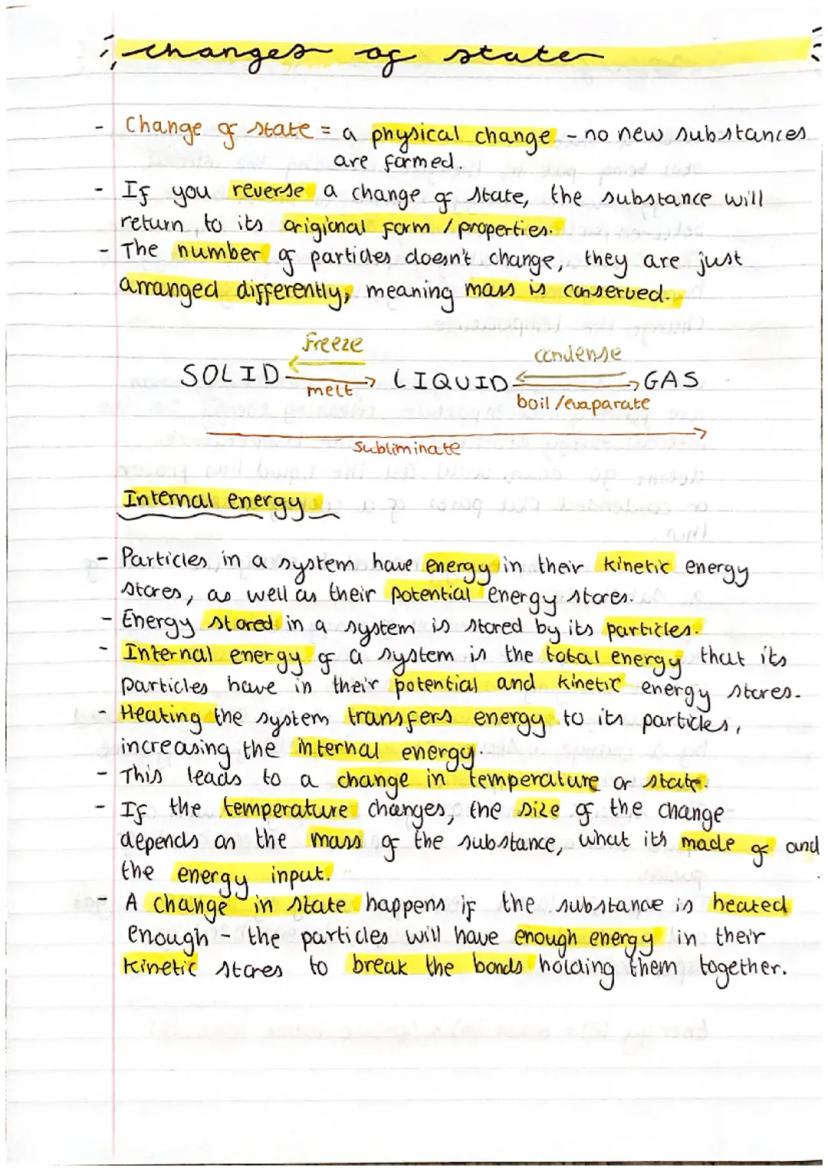

Changes of State and Internal Energy
Changes of state are physical changes, not chemical ones - this means you can always reverse them and get back exactly what you started with. The particles don't disappear or change; they just rearrange themselves differently.
Internal energy is the total energy stored by all the particles in a system, including their movement energy (kinetic) and position energy (potential). When you heat something, you're adding energy to this internal store.
Temperature rises when particles move faster, but during melting or boiling, the temperature stays constant even though you're still adding energy. This energy goes into breaking the bonds between particles instead of speeding them up.
The opposite happens during freezing or condensing - particles form new bonds and release energy, but temperature stays steady until the change is complete.
Memory Aid: Think of it like a crowded dance floor - particles need energy to break free from their partners (change state) before they can dance faster (increase temperature)!

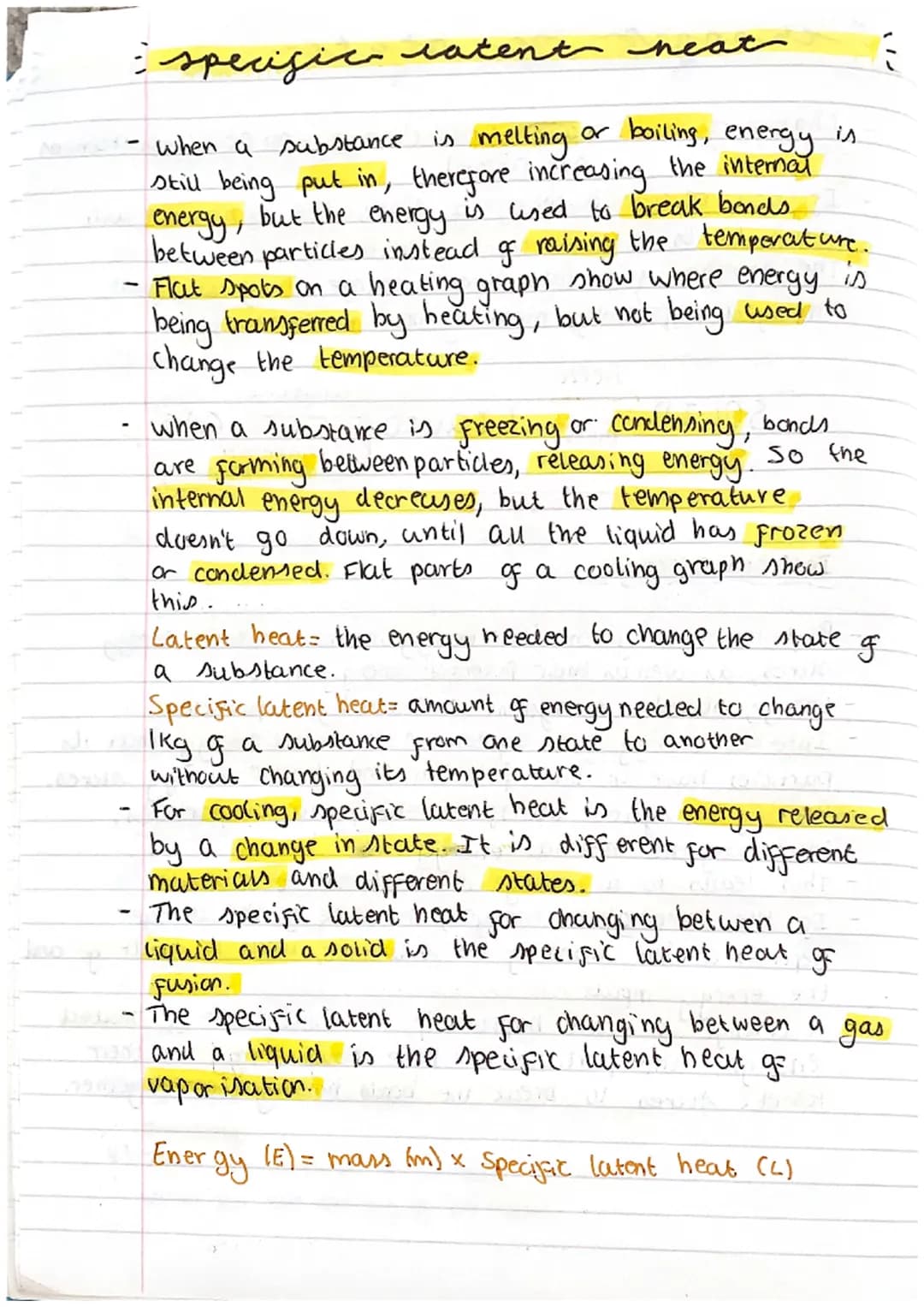

Specific Latent Heat
Latent heat is the energy needed to change state without changing temperature - it's the "hidden" energy that goes into breaking or forming bonds between particles.
Specific latent heat tells you exactly how much energy you need to change 1kg of a substance from one state to another. Different materials need different amounts of energy, which explains why some things melt or boil much more easily than others.
There are two types you need to know: specific latent heat of fusion (solid ↔ liquid changes) and specific latent heat of vaporisation (liquid ↔ gas changes). The equation is simple: Energy = mass × specific latent heat.
This explains those flat bits on heating and cooling graphs - the temperature stays constant whilst all the energy goes into changing state rather than changing temperature.
Real-World Example: This is why sweating cools you down - your body heat provides the latent heat of vaporisation to turn sweat into water vapour!

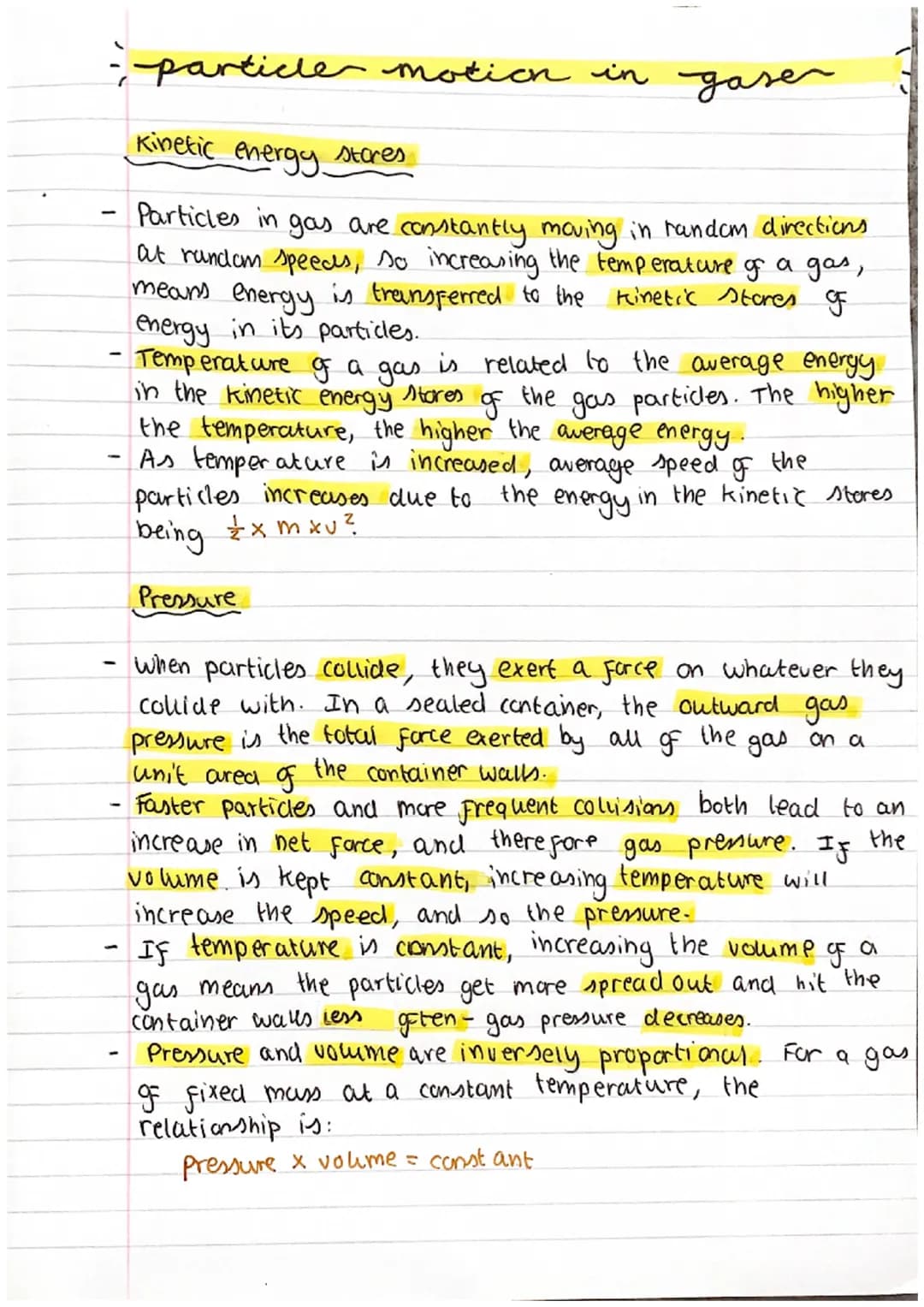

Particle Motion and Gas Pressure
Gas particles are like tiny bouncing balls, constantly moving in random directions at different speeds. When you heat a gas, you're giving these particles more energy, so they move faster on average.
Temperature is directly linked to the average kinetic energy of the particles - higher temperature means faster-moving particles. Since kinetic energy depends on speed squared (½mv²), even small temperature increases make a big difference to particle speed.
Pressure happens when these speedy particles bash into container walls. More collisions or harder collisions both increase pressure. Heat up a gas and particles move faster, creating more force when they hit the walls.
The pressure-volume relationship is inversely proportional: if you squash a gas into half the space, you double the pressure (assuming temperature stays constant). The rule is: pressure × volume = constant.
Safety Note: This explains why aerosol cans warn against heating - higher temperature means higher pressure, which could cause the can to explode!
