Ever wondered why some wires heat up more than others,...
Physics118 views·Updated 2 Sept 2026·5 pagesResistance of a Wire: GCSE Study Guide
1 / 5
1
of 5

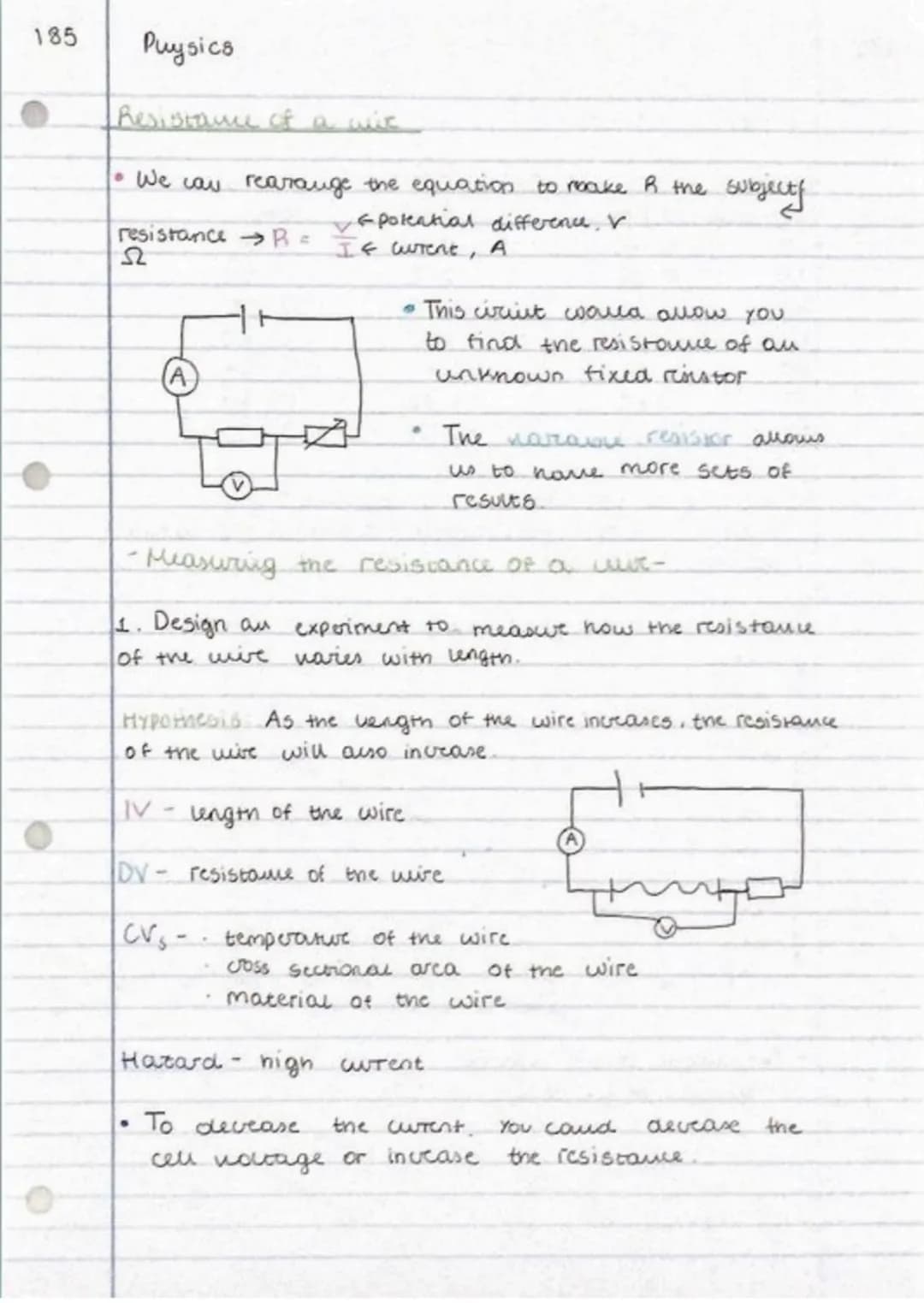

Finding Resistance Using Ohm's Law
Working out a wire's resistance is actually dead simple once you know the formula. You just need to rearrange Ohm's law to get R = V/I, where V is potential difference (in volts) and I is current (in amps).
Setting up the experiment requires a basic circuit with your unknown resistor, plus a variable resistor to give you multiple readings. The variable resistor is brilliant because it lets you change the current and get loads of different measurements.
Your hypothesis should predict that longer wires have higher resistance. Remember to identify your variables clearly: length is your independent variable, resistance is dependent, and you must keep temperature, material, and wire thickness constant.
Safety Alert: High current can cause burns! Always use low voltage or add extra resistance to keep current manageable.
2
of 5

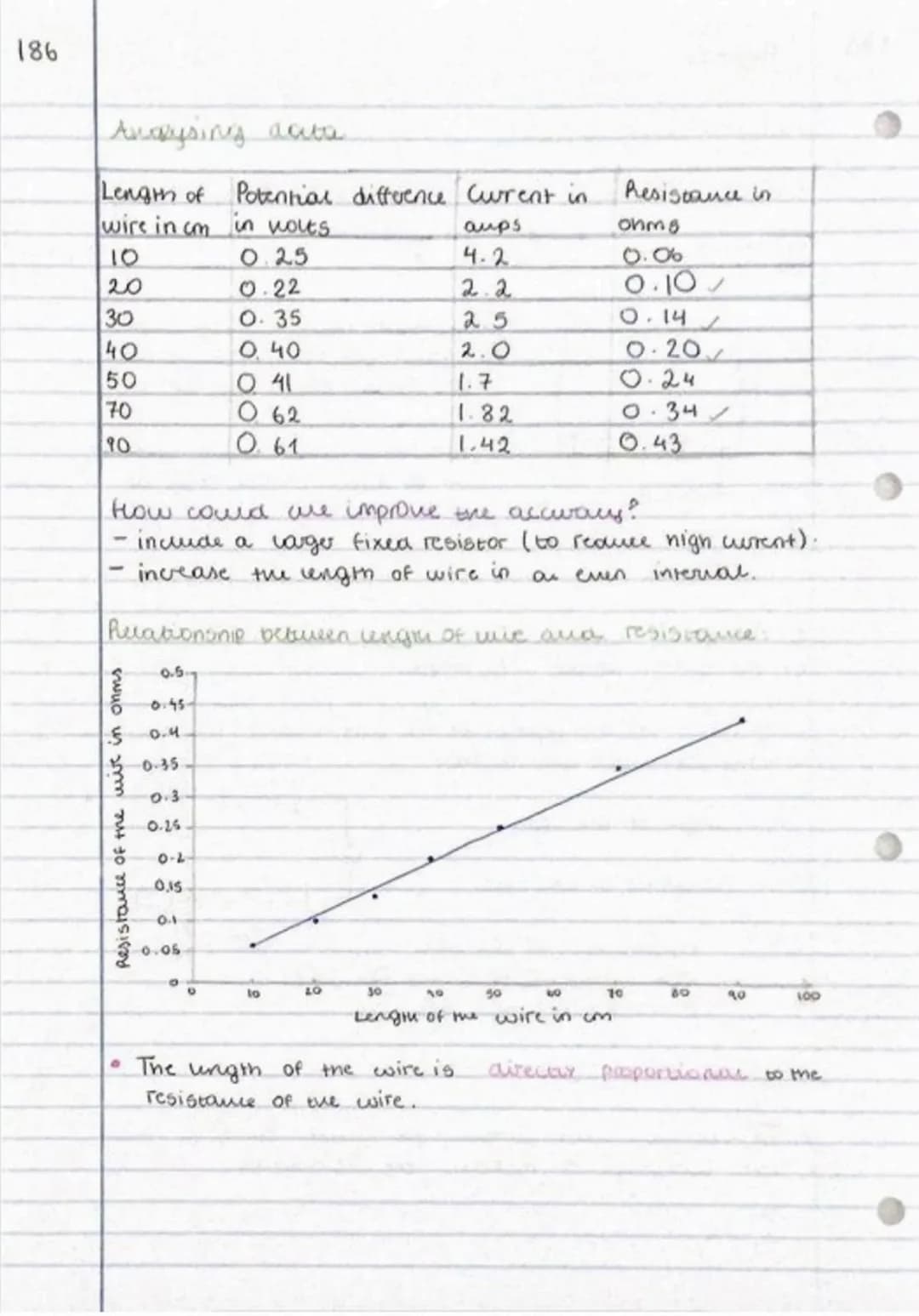

Analysing Your Results
The data table shows exactly what you'd expect - as wire length increases, so does resistance. Notice how the 10cm reading looks dodgy compared to the others? That's why you need multiple measurements to spot anomalies.
The graph reveals a directly proportional relationship between length and resistance. This means if you double the length, you double the resistance - dead useful for predictions!
To improve accuracy, chuck in a fixed resistor to reduce current, and use consistent length intervals (like 10cm steps). This gives cleaner data and safer working conditions.
Top Tip: Always plot your results on a graph - it makes patterns obvious and helps you spot rogue readings instantly.
3
of 5

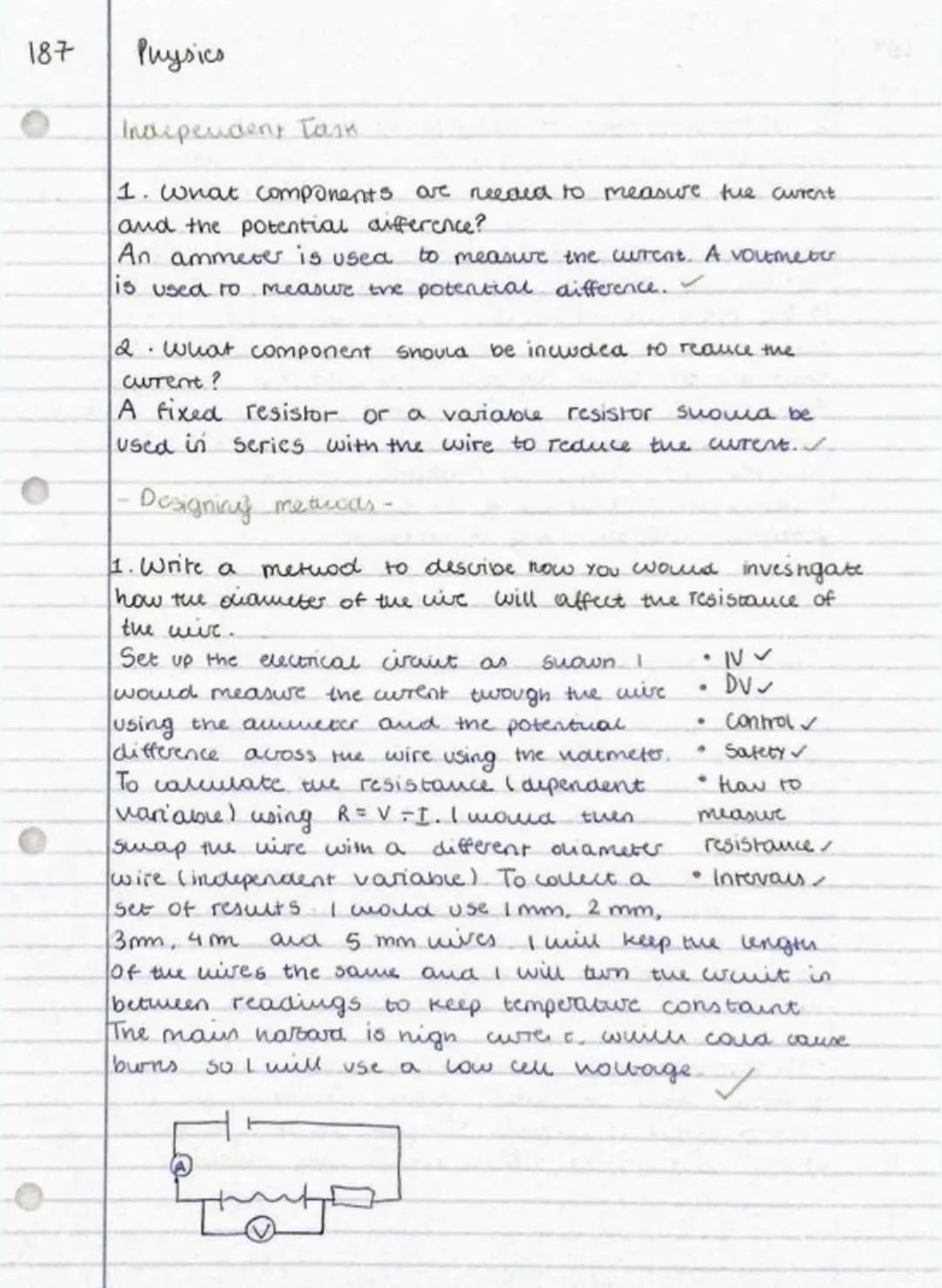

Designing Better Experiments
When investigating wire diameter, your method needs to be systematic. Use the same circuit setup, but swap wires of different thicknesses (1mm, 2mm, 3mm, etc.) while keeping length constant.
Circuit components are straightforward: an ammeter measures current, a voltmeter measures potential difference, and a variable resistor controls current flow. Turn the circuit off between readings to prevent heating.
Safety remains crucial - high current causes burns and can melt thin wires. Always use low voltage and consider adding protective resistors to your circuit.
Pro Method: Write down your control variables first - it'll stop you forgetting important factors like wire material and temperature.
4
of 5

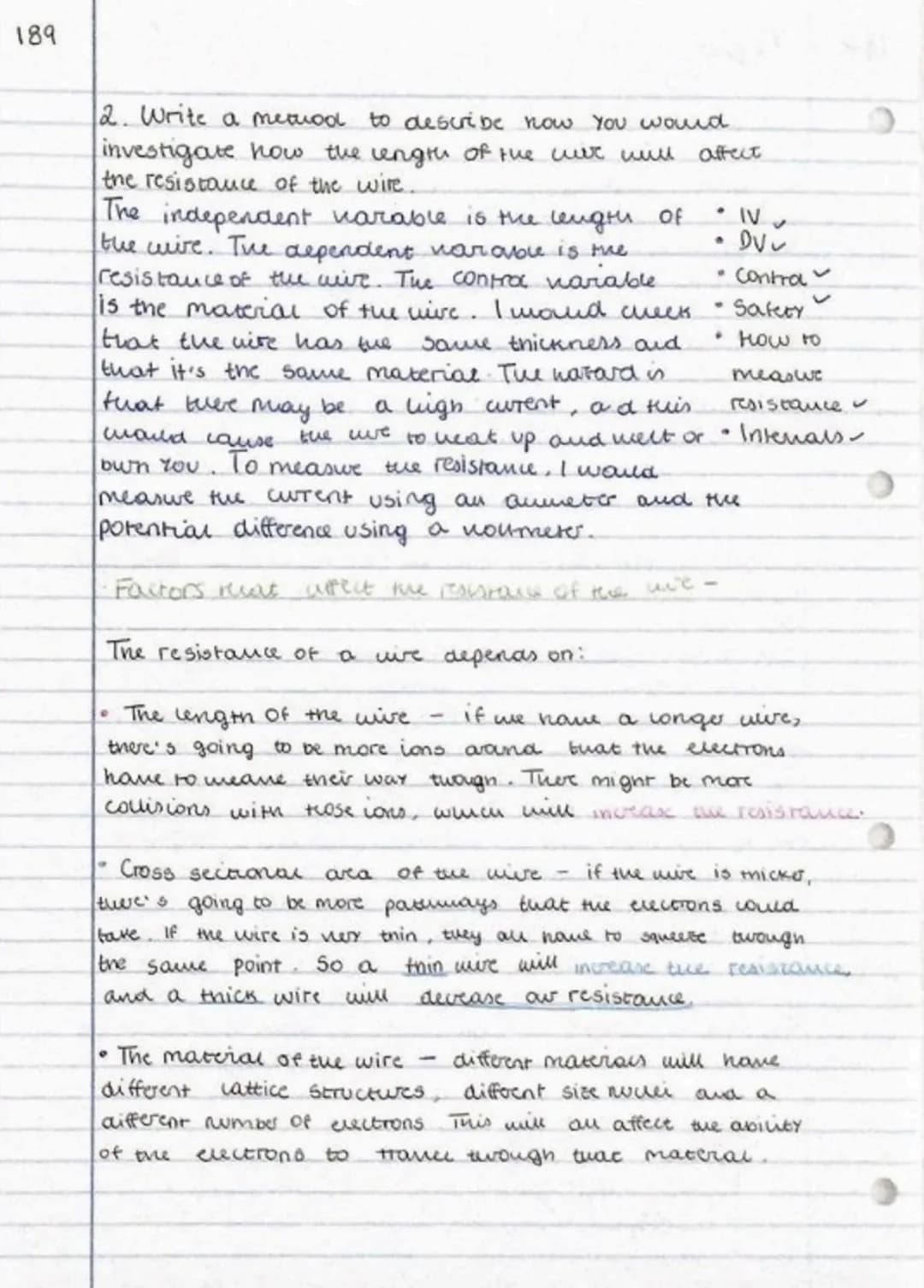

What Actually Affects Resistance
Wire length matters because electrons have to weave through more ions in longer wires, causing more collisions and higher resistance. It's like trying to run through a longer crowd - more obstacles mean slower progress.
Cross-sectional area works oppositely - thicker wires give electrons more pathways, reducing resistance. Think of it as multiple lanes on a motorway versus a single country road.
Material type affects resistance because different metals have varying lattice structures and electron availability. Temperature increases ion vibration, making it harder for electrons to pass through and boosting resistance.
Memory Trick: Remember "LTMT" - Length and Temperature increase resistance, while Material and Thickness (cross-sectional area) depend on the specific situation.
5
of 5

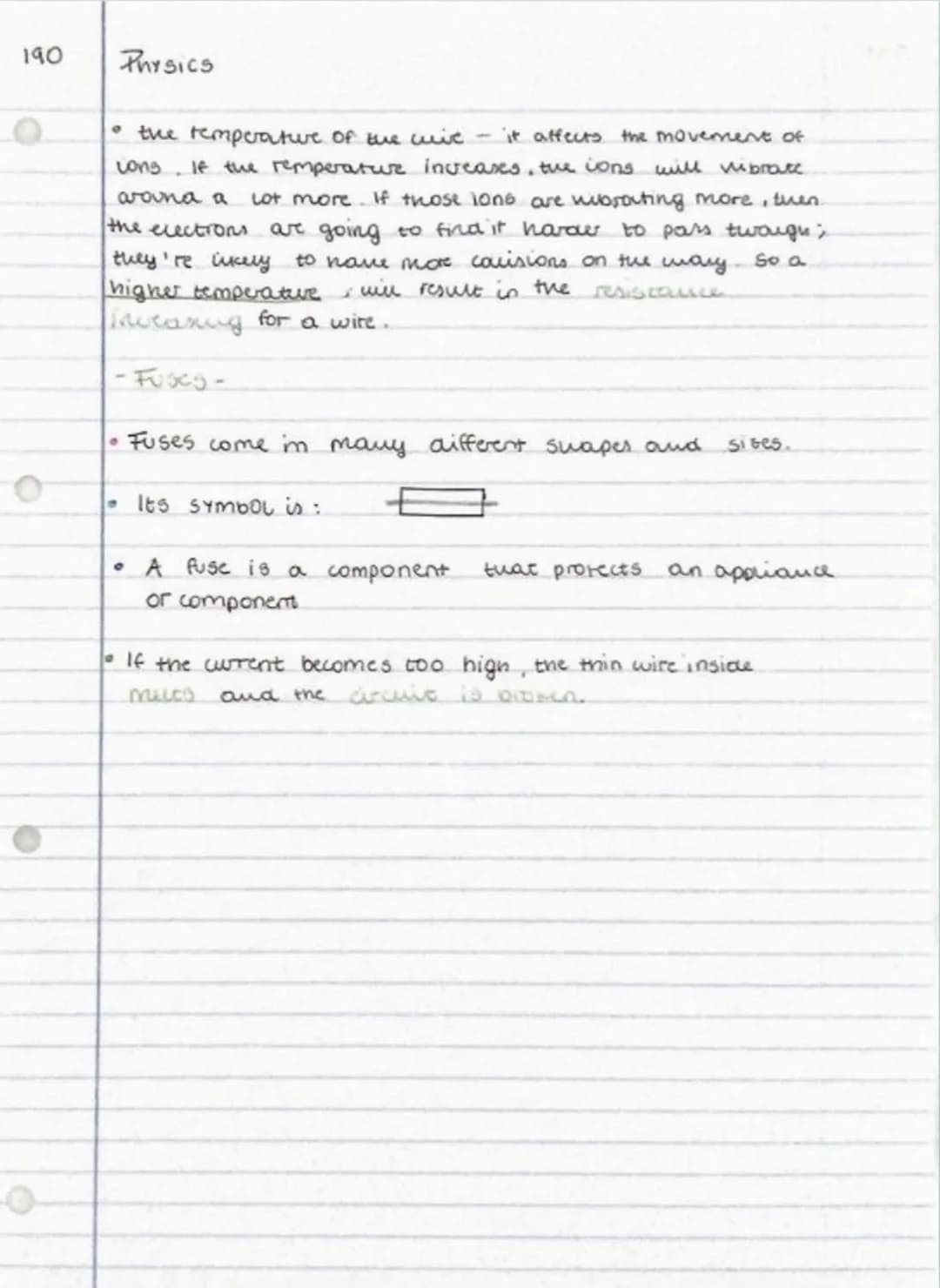

Fuses: Safety in Action
Fuses are basically controlled weak points in circuits - they're designed to fail first when current gets dangerously high. Inside each fuse is a thin wire that melts at a specific current, instantly breaking the circuit.
This protection mechanism saves expensive appliances and prevents fires. When the fuse wire melts, electricity stops flowing completely, keeping you and your devices safe.
Fuses come in different ratings for different applications - a 3A fuse protects smaller devices, while 13A fuses handle higher-power appliances like kettles and heaters.
Real-world Connection: Every plug in your house has a fuse - next time one "blows," you'll know it's actually doing its job protecting you!
