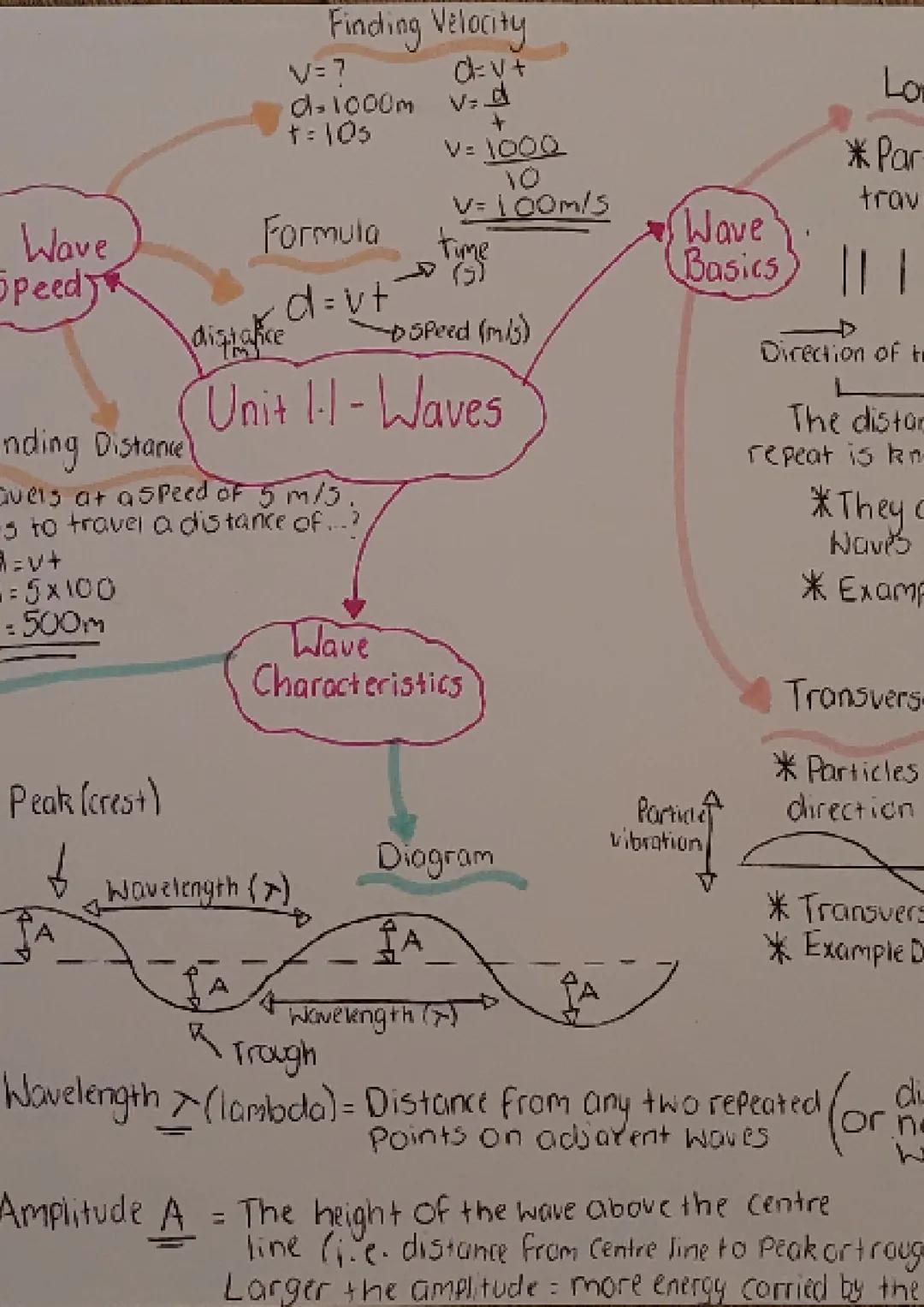

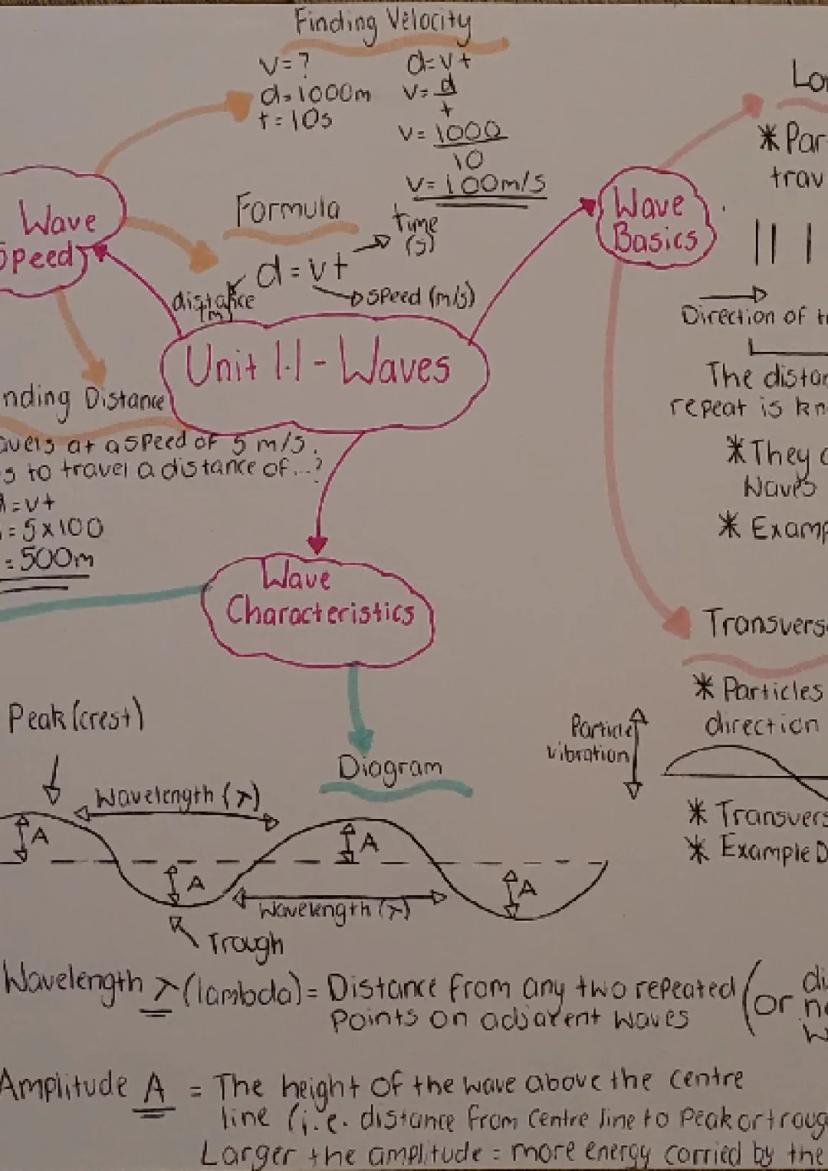

Wave Speed and Basic Characteristics

Wave calculations become straightforward once you grasp the fundamental wave speed equation: v = d/t. This formula connects distance, velocity, and time in ways you'll use constantly in physics problems.

Every wave has distinct features you need to recognise. The peak (or crest) represents the highest point, whilst the trough marks the lowest point. Understanding these basics helps you tackle more complex wave problems with confidence.

Wavelength (λ) measures the distance between any two identical points on adjacent waves - think peak to peak or trough to trough. Meanwhile, amplitude shows the wave's height from the centre line to either peak or trough, directly indicating the energy the wave carries.

Key Insight: Larger amplitude means more energy - this explains why bigger ocean waves pack more punch than smaller ripples!

Physics Waves Unit 1 Nat5 Mind Map – page 2

Sign up to see the content.
It's free!

By signing up you accept Terms of Service and Privacy Policy

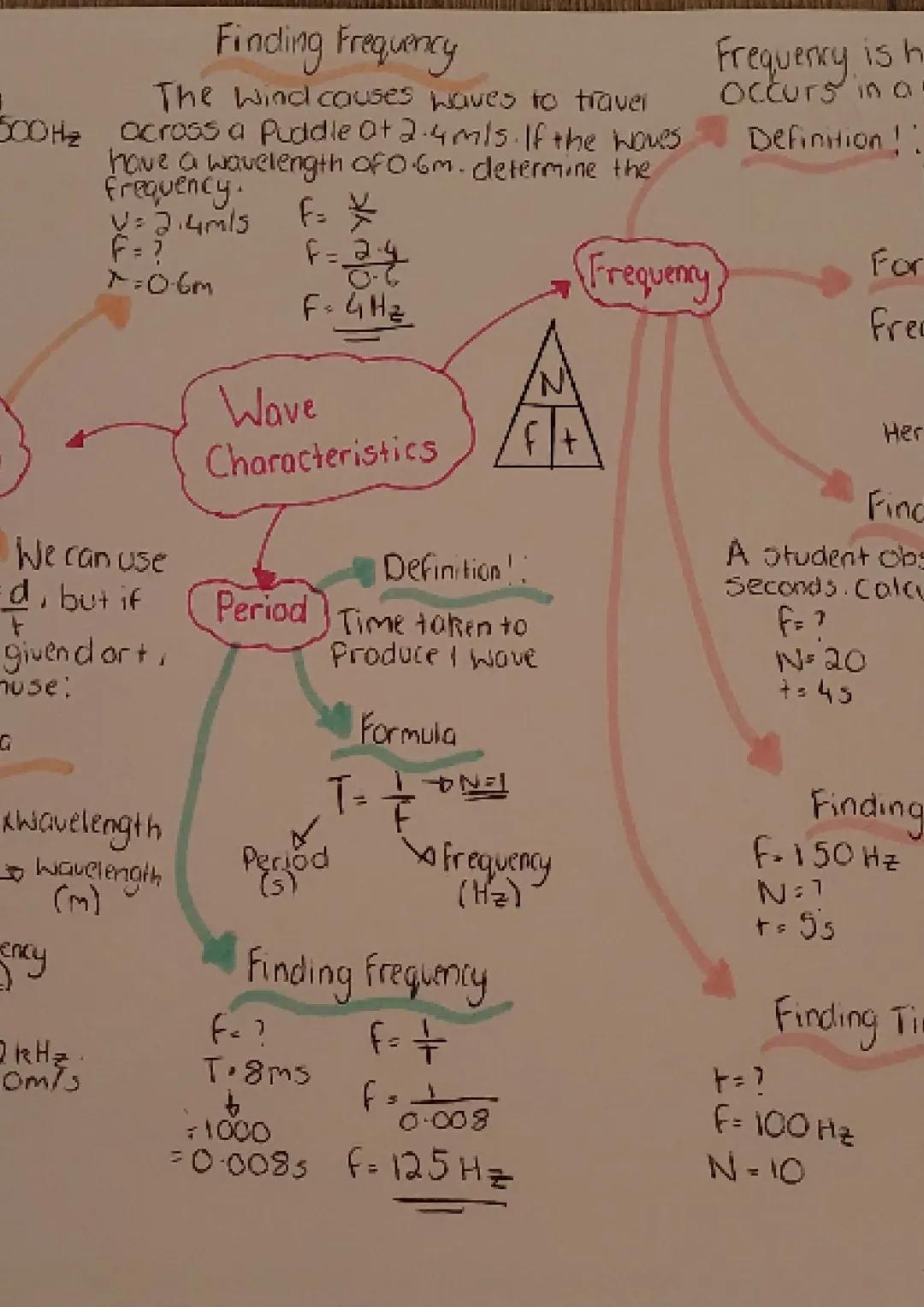

Frequency and Period Calculations

Frequency tells you how many complete waves pass a point in one second, measured in Hertz (Hz). It's incredibly useful for solving wave problems because it connects directly to wavelength and wave speed.

The wave equation v = fλ becomes your best friend for calculations. When you know any two values (velocity, frequency, or wavelength), you can always find the third. This formula appears in countless exam questions, so practice using it regularly.

Period represents the time needed to produce one complete wave. The relationship f = 1/T links frequency and period perfectly - they're mathematical opposites that describe the same wave behaviour from different angles.

Exam Tip: Always check your frequency units are in Hz and your period is in seconds before calculating - unit mistakes cost marks!

Physics Waves Unit 1 Nat5 Mind Map – page 3

Sign up to see the content.
It's free!

By signing up you accept Terms of Service and Privacy Policy

Diffraction and Wave Behaviour

Diffraction describes how waves bend around obstacles in their path. This wave behaviour affects everything from sound traveling around buildings to light passing through narrow gaps.

Longer wavelength waves diffract more dramatically than shorter ones. This principle explains why you can hear low-frequency bass music from next door but struggle to hear high-pitched sounds through walls.

Practice problems involving counting waves over time periods help solidify your understanding. When you observe waves passing a fixed point, divide the number of waves by the time period to find frequency, then use v = fλ to calculate wave speed.

Real-World Connection: Diffraction explains why radio waves (long wavelength) reach around hills better than visible light (short wavelength) - it's physics in action!
