Understanding the difference between transverse and longitudinal waves is crucial... Show more

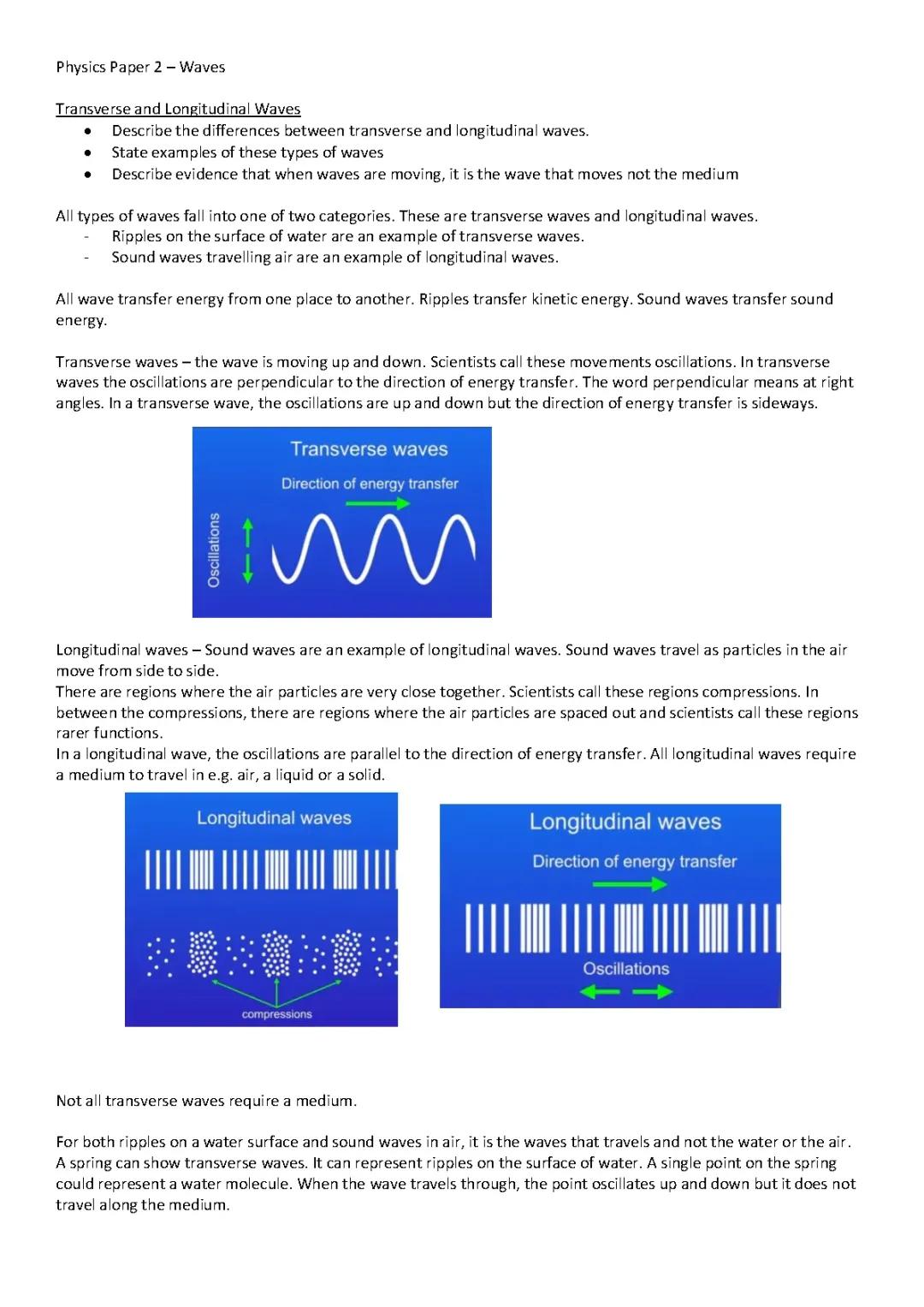

Ever wondered why ripples on water look so different from sound waves? All waves fall into two distinct categories: transverse waves and longitudinal waves. Both types transfer energy from one place to another, but they do it in completely different ways.
Transverse waves are like ripples on water - they oscillate up and down whilst the energy travels sideways. The key thing to remember is that oscillations happen perpendicular (at right angles) to the direction of energy transfer. Picture a wave moving horizontally across a pond whilst the water moves vertically up and down.
Longitudinal waves, like sound waves, work differently. Here, particles move back and forth in the same direction as the energy travels. The oscillations are parallel to the direction of energy transfer. Sound creates regions where air particles bunch together (compressions) and areas where they spread out (rarefactions).
Quick Test Tip: Remember "T for Transverse = up and down oscillations" and "L for Longitudinal = back and forth oscillations"
Here's something that might surprise you: when waves travel, it's only the wave pattern that moves, not the actual medium! This is brilliant evidence that waves transfer energy without transferring matter.
Think of a spring demonstration. For transverse waves, imagine a single point on the spring representing a water molecule. When the wave passes through, that point bounces up and down but doesn't actually travel along the spring. The wave pattern moves sideways, but the "molecule" stays in roughly the same position.

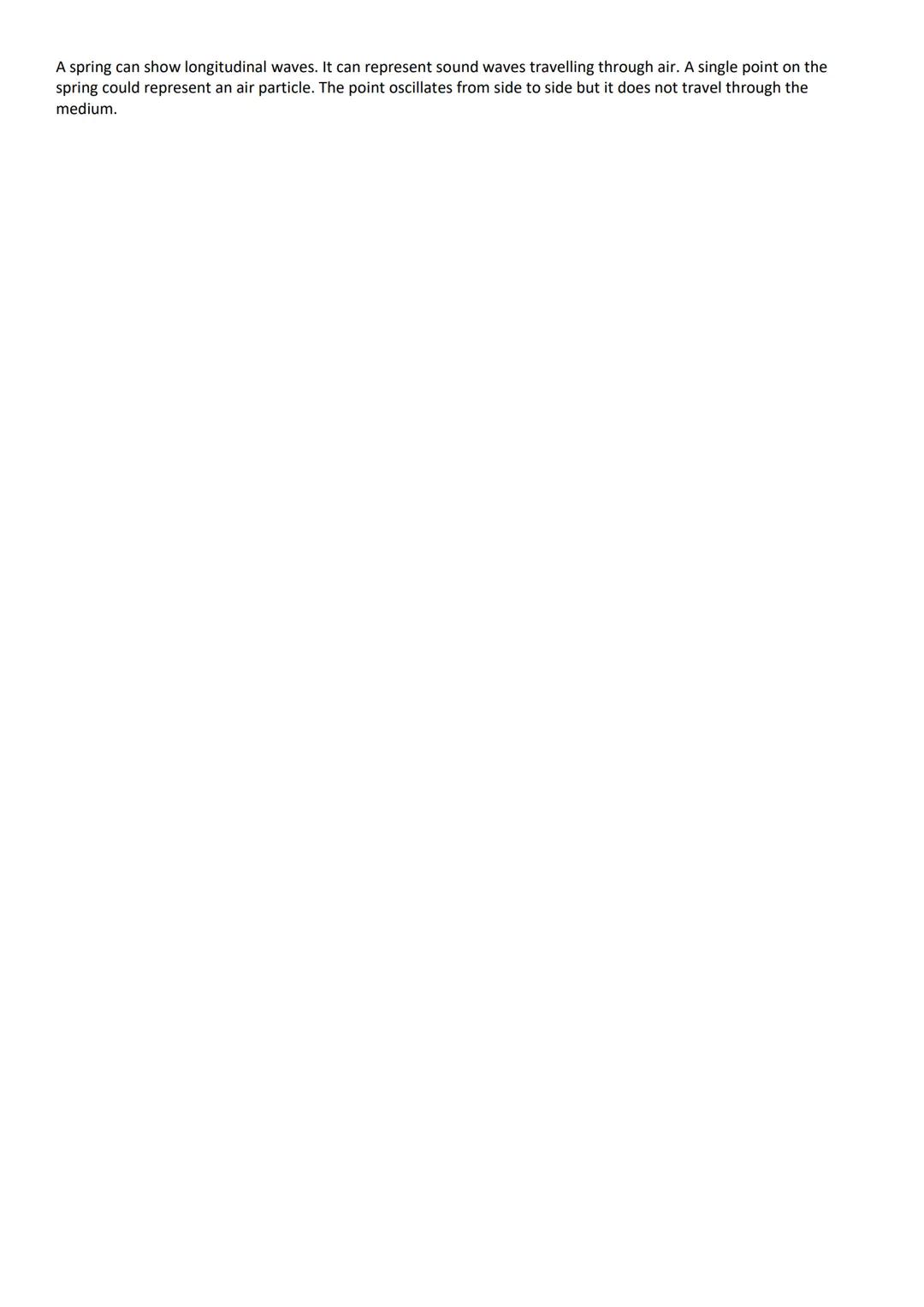

The same principle applies to longitudinal waves. A point on the spring representing an air particle oscillates back and forth as the sound wave passes, but doesn't travel through the medium. This is why you don't feel a gust of wind when someone shouts at you - the sound energy reaches you, but the air particles stay put.
Real-World Connection: This is why surfers can ride waves - the water moves up and down, but doesn't carry them towards shore. Only the wave energy moves forward!
