Understanding Electricity: Physics Paper 1 for Combined Science
T
Tilly Brudenell
@tillybrudenell_ndau
Circuit Symbols and Basic Electricity
Learning circuit symbols is like learning a new language - once you know them, you can read any electrical diagram. Key symbols include open/closed switches (control flow), lamps (show current), voltmeters (measure voltage), ammeters (measure current), and resistors (limit current flow).
Electric charge is simply a property that makes objects experience forces in electric fields - think of it as the "stuff" that creates electricity. Current measures how fast this charge flows through a wire, just like water flowing through a pipe.
Series circuits have all components connected in one single loop, so current flows through each part in turn. Parallel circuits split into different branches, allowing current to take multiple paths simultaneously.
Quick Tip: In series, if one bulb breaks, all go out. In parallel, other bulbs stay on - that's why your house lights work this way!
Power Supply and the National Grid

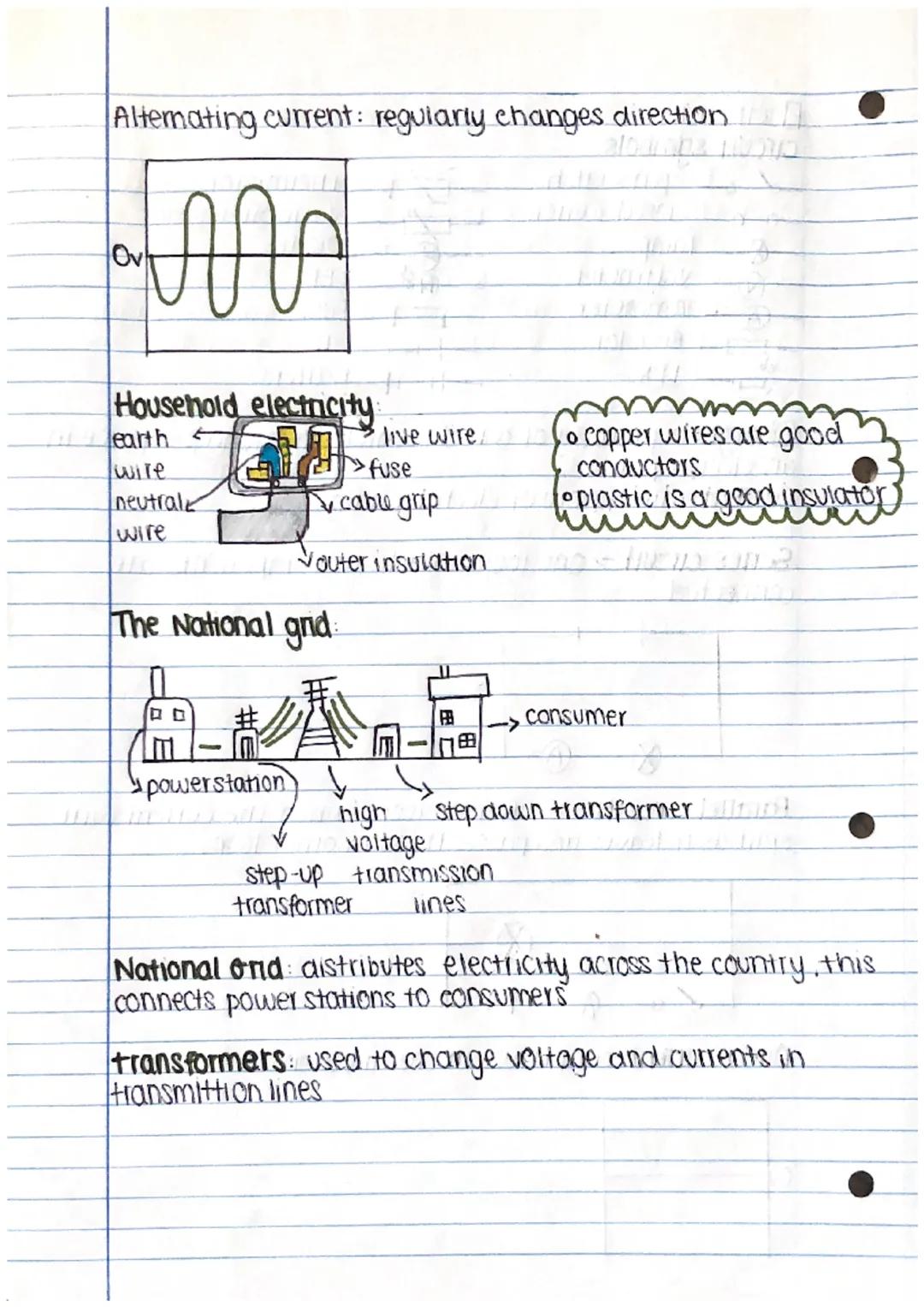

Direct current (DC) flows steadily in one direction, like water down a hill. Alternating current (AC) constantly changes direction - this is what comes from your wall sockets because it's more efficient for long-distance transmission.
Household electricity uses three wires: the live wire (carries current), neutral wire (completes the circuit), and earth wire (safety feature). The fuse acts like a safety valve, breaking the circuit if too much current flows.
The National Grid is Britain's massive electrical network connecting power stations to every home and business. Step-up transformers increase voltage for efficient long-distance transmission through high-voltage lines, whilst step-down transformers reduce it to safe levels for household use.
Remember: High voltage = less energy loss over long distances, which is why the National Grid uses such high voltages between cities.
