GCSE AQA P7 Magnetism & Electromagnetism Revision Notes

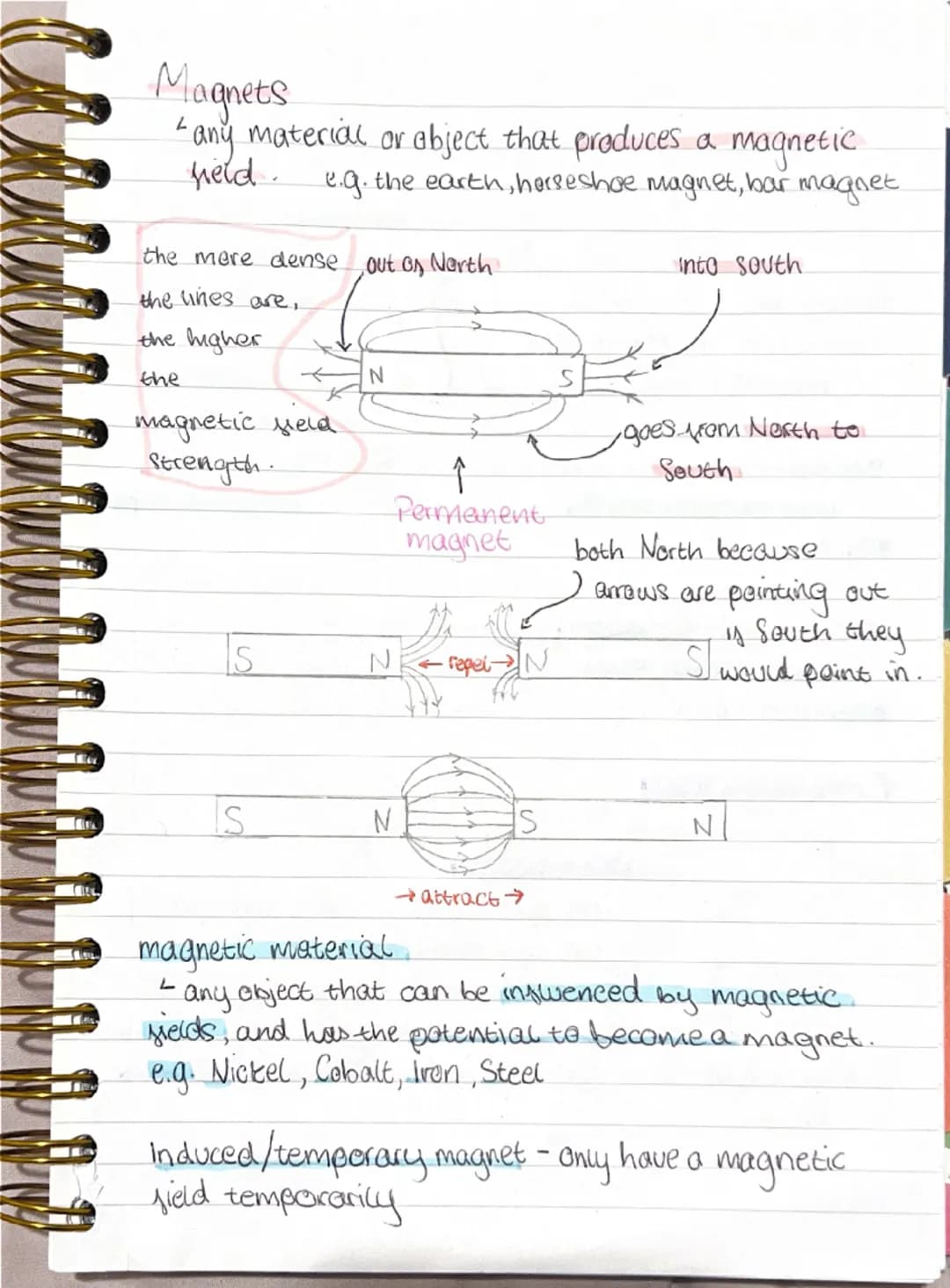

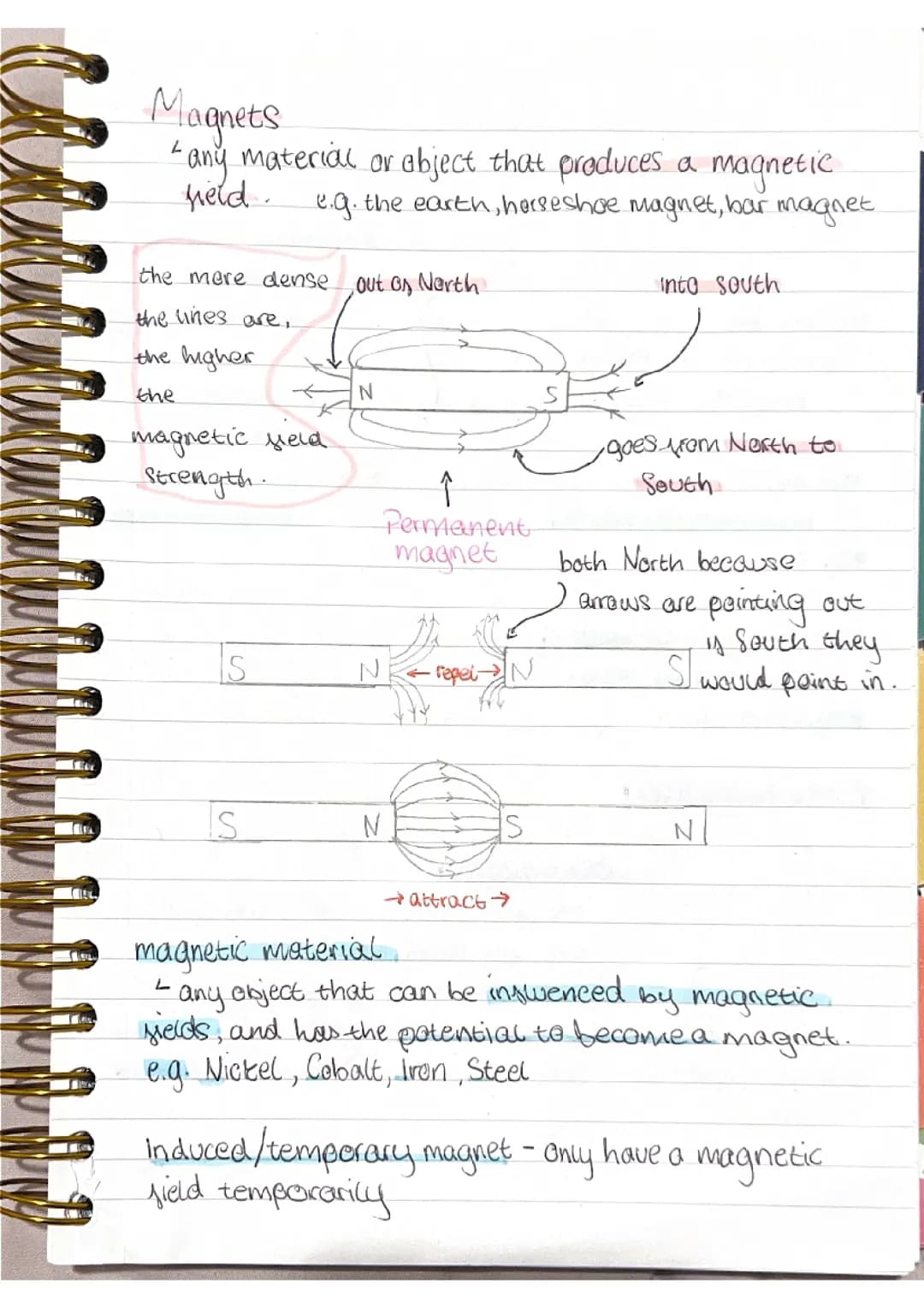

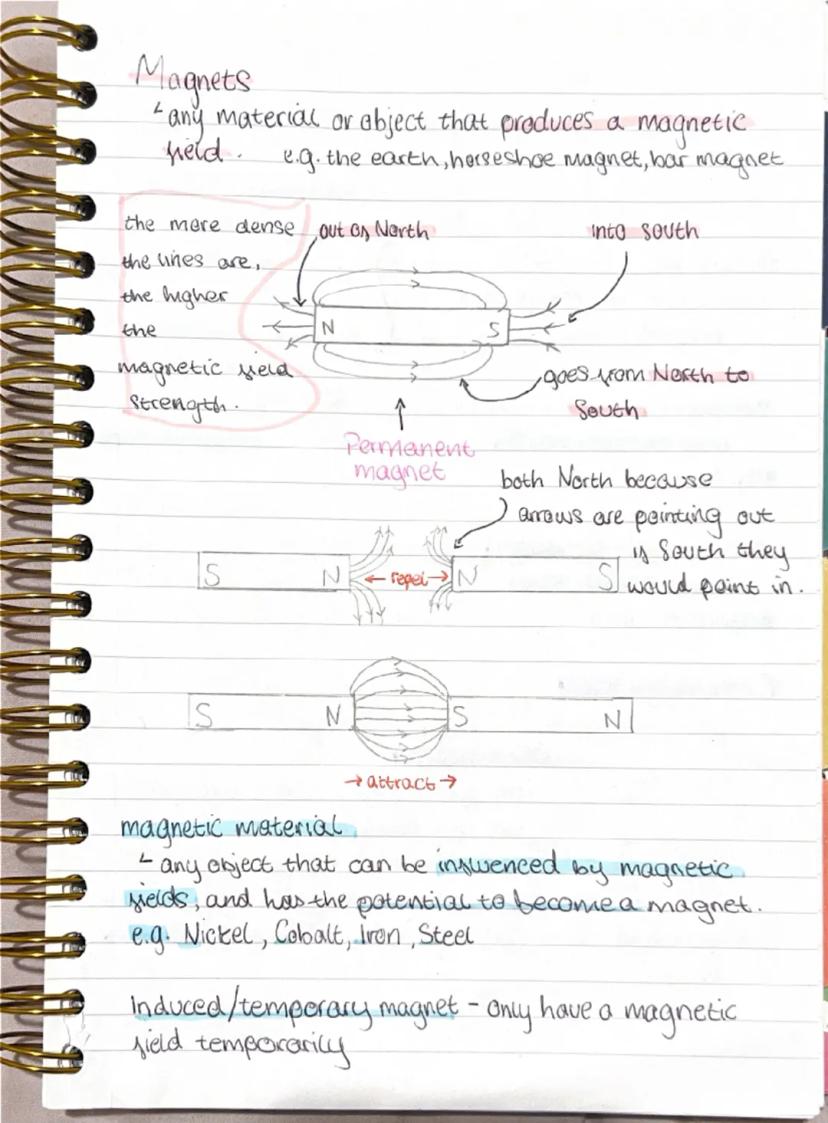

What Are Magnets and Magnetic Materials?

Ever wondered why some objects stick to your fridge whilst others don't? A magnet is any material that produces a magnetic field - think of Earth itself, horseshoe magnets, or simple bar magnets.

Magnetic field lines always flow from North to South poles, and the closer these lines are packed together, the stronger the magnetic field. When you see two North poles near each other, they repel because the field lines point outward from both - but opposite poles attract.

Don't confuse magnets with magnetic materials like iron, steel, nickel, and cobalt. These materials can be influenced by magnetic fields and have the potential to become magnets themselves, but they're not automatically magnetic.

Quick Tip: Remember that magnetic field lines are invisible, but iron filings can help you see their patterns!

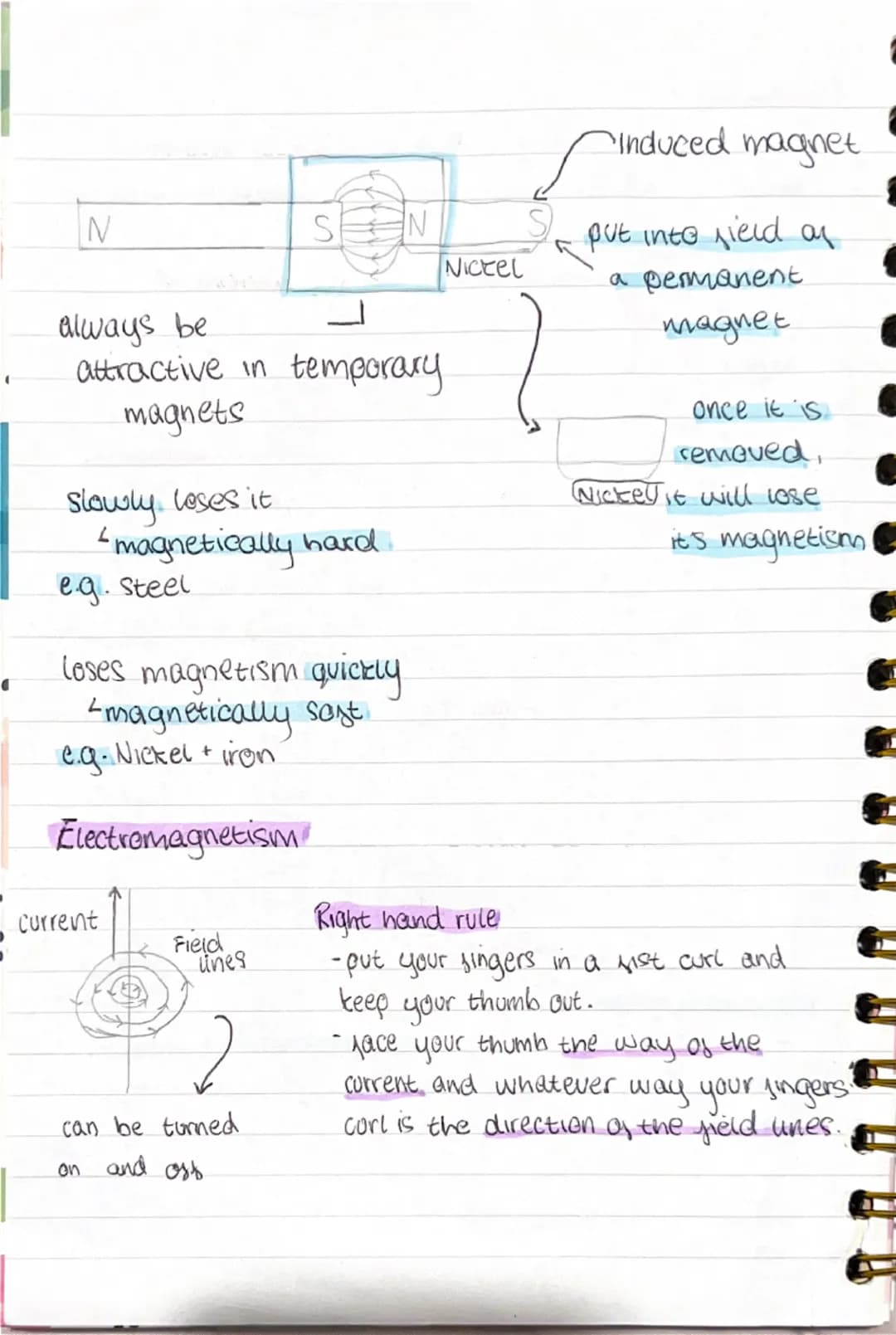

Temporary vs Permanent Magnets

Here's something fascinating - not all magnets are created equal! Induced or temporary magnets only have magnetic properties when they're near a permanent magnet, losing their magnetism once removed.

The key difference lies in how quickly they lose their magnetic power. Magnetically hard materials like steel hold onto their magnetism stubbornly, whilst magnetically soft materials like iron and nickel lose it rapidly.

Electromagnetism changes everything by using electric current to create magnetic fields. The right-hand rule helps you work out field direction - curl your fingers in a fist with your thumb out, point your thumb along the current direction, and your curled fingers show the magnetic field direction.

Pro Tip: Electromagnets can be switched on and off, making them incredibly useful in everyday devices!

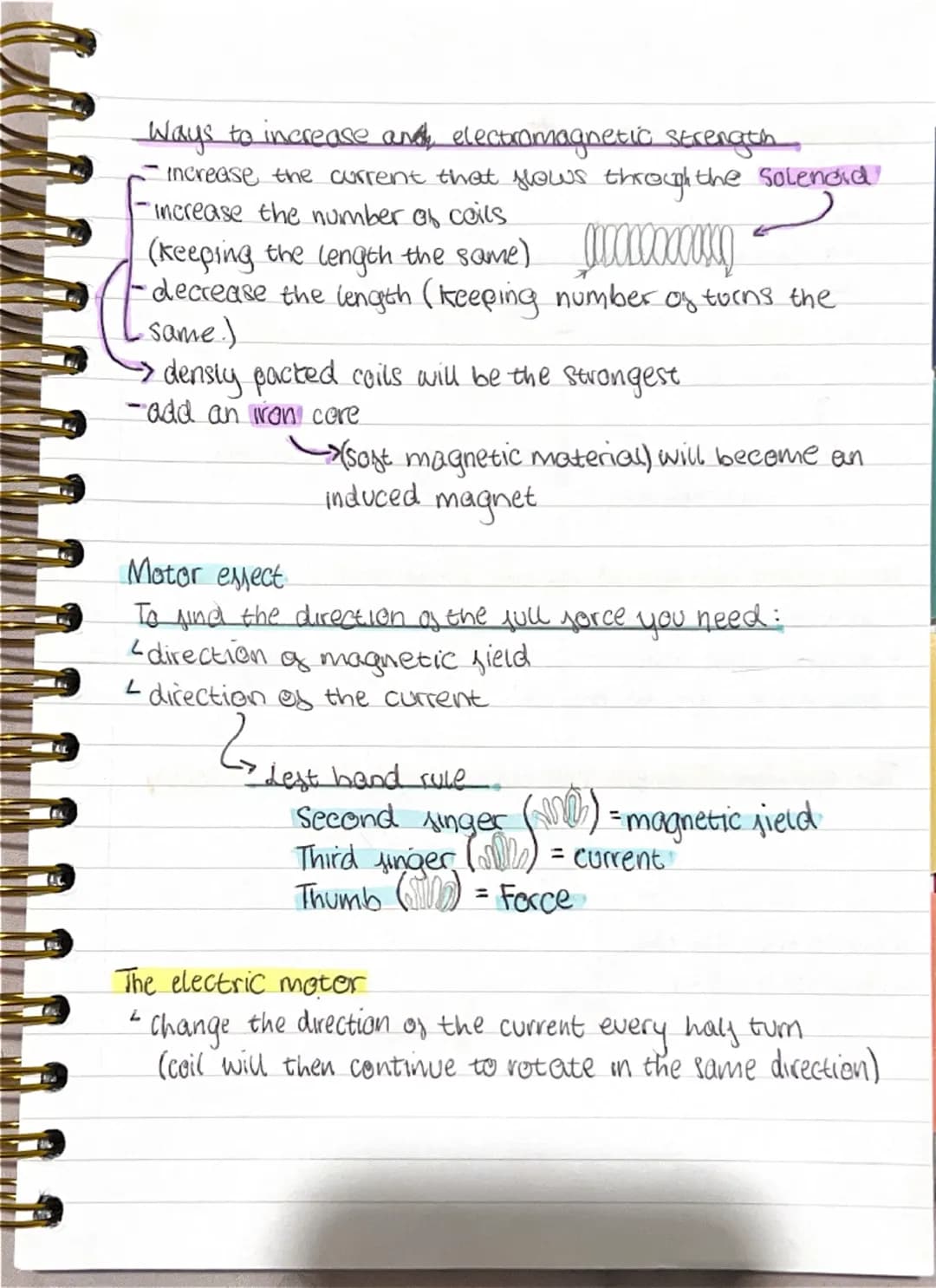

Making Electromagnets Stronger and the Motor Effect

Want to supercharge an electromagnet? You've got several options that work brilliantly. Increase the current flowing through the wire, add more coils (whilst keeping the same length), or decrease the length whilst maintaining the number of turns.

The real game-changer is adding an iron core - this soft magnetic material becomes an induced magnet and dramatically boosts the electromagnetic strength. Densely packed coils create the most powerful effects.

The motor effect occurs when a current-carrying wire sits in a magnetic field, experiencing a force. Use the left-hand rule to find this force direction: second finger points along the magnetic field, middle finger follows the current, and your thumb shows the force direction.

Electric motors work by changing the current direction every half turn, keeping the coil spinning continuously in the same direction - that's the magic behind countless devices you use daily.

Mind-Blowing Fact: Electric motors convert electrical energy into mechanical motion, powering everything from hair dryers to electric cars!

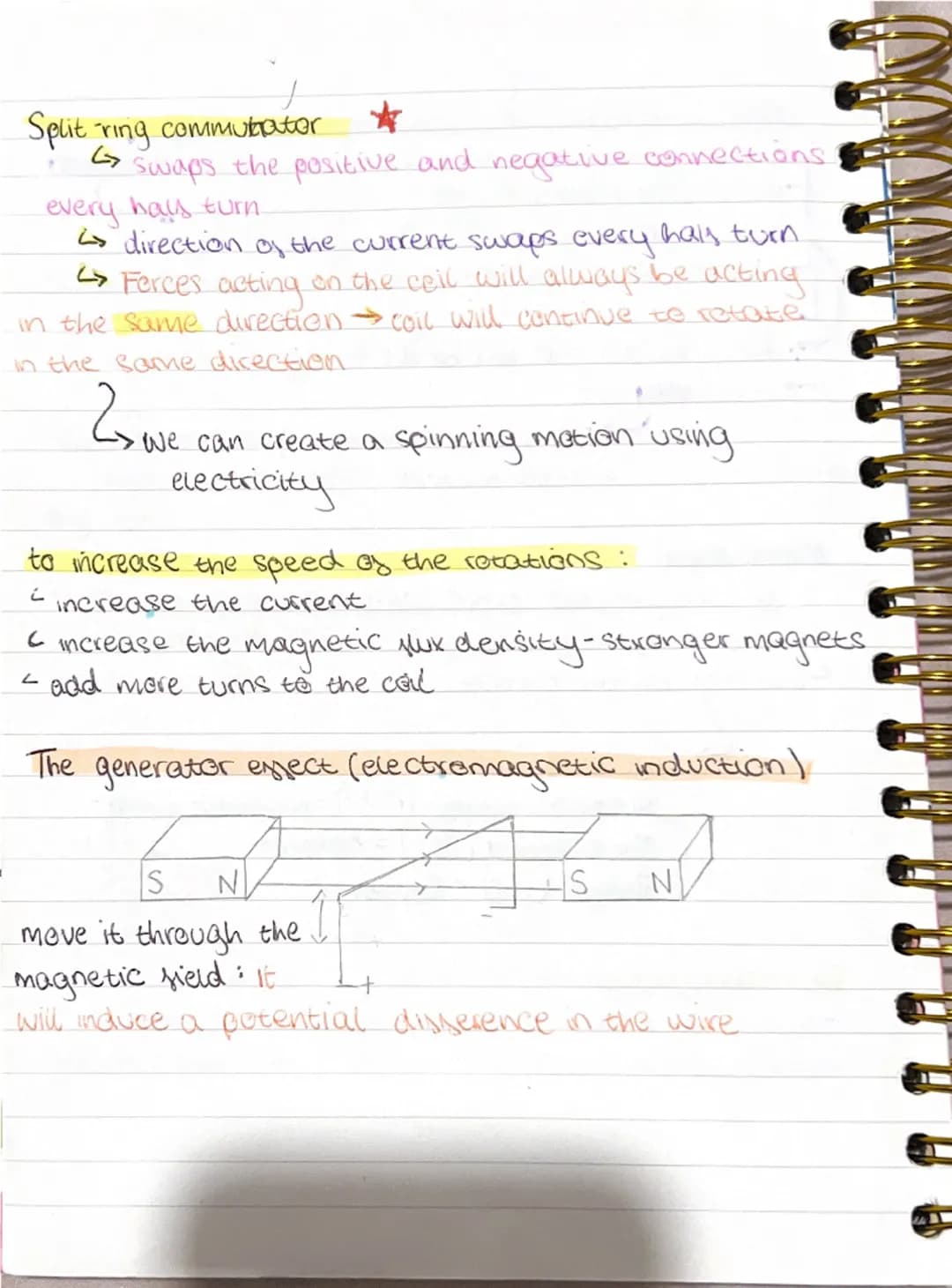

Split Ring Commutators and Generators

The split ring commutator is the clever component that makes motors work smoothly. It swaps positive and negative connections every half turn, ensuring the current direction changes but the coil keeps rotating in the same direction.

To speed up motor rotations, you can increase the current, use stronger magnets (higher magnetic flux density), or add more turns to the coil. It's like fine-tuning a racing car's engine!

The generator effect (electromagnetic induction) works in reverse - instead of using electricity to create motion, you use motion to create electricity. Move a wire through a magnetic field, and you'll induce a potential difference that can power circuits.

This principle powers everything from bicycle dynamos to massive power station generators. Moving the wire faster or using stronger magnetic fields increases the voltage generated.

Real-World Connection: Every time you ride a bike with lights powered by wheel rotation, you're experiencing electromagnetic induction in action!
