Wave Properties and Oscilloscope Analysis

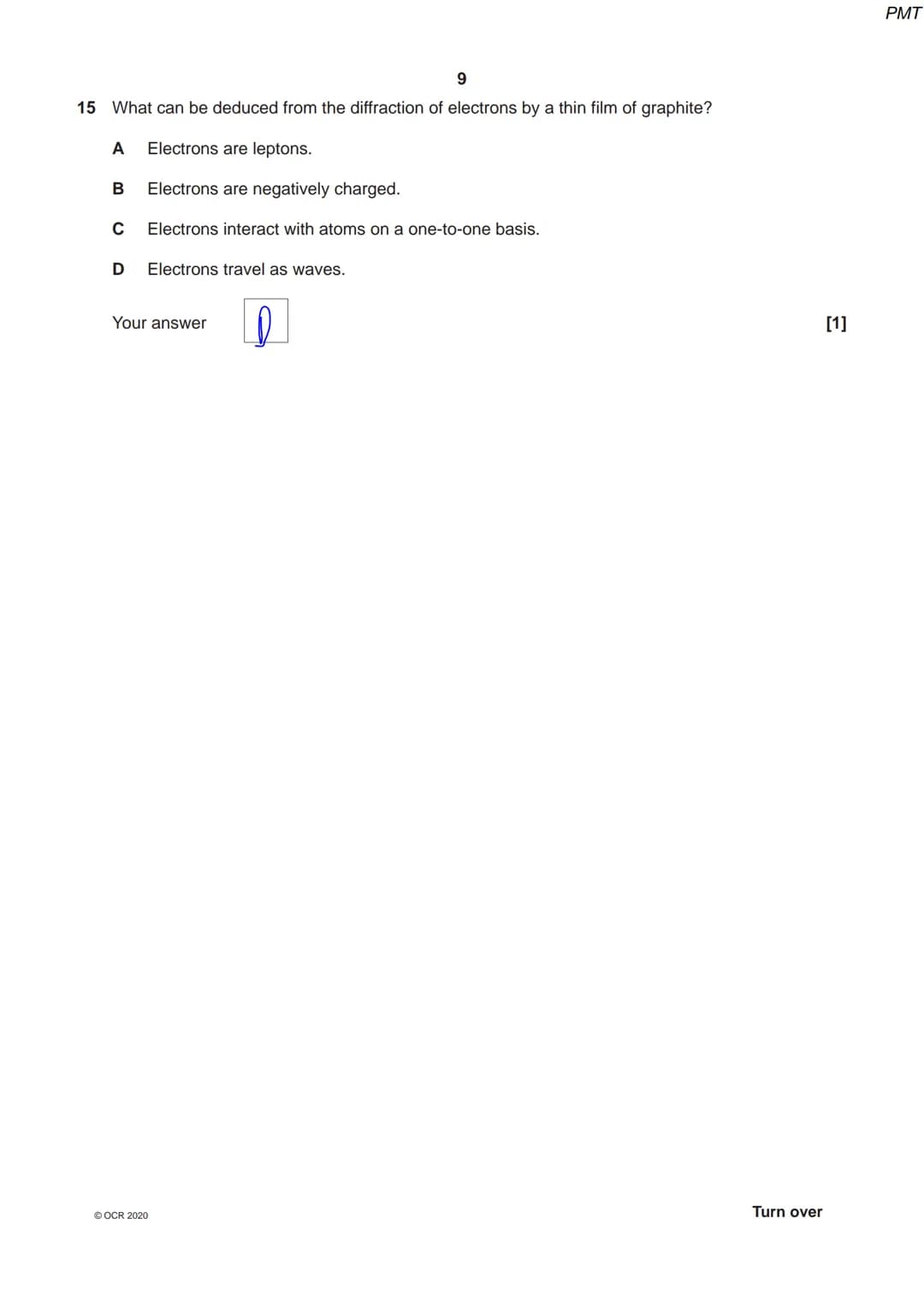

Understanding wave properties requires careful analysis of both progressive and stationary waves. Progressive waves transport energy through a medium, while stationary waves result from the superposition of waves traveling in opposite directions.

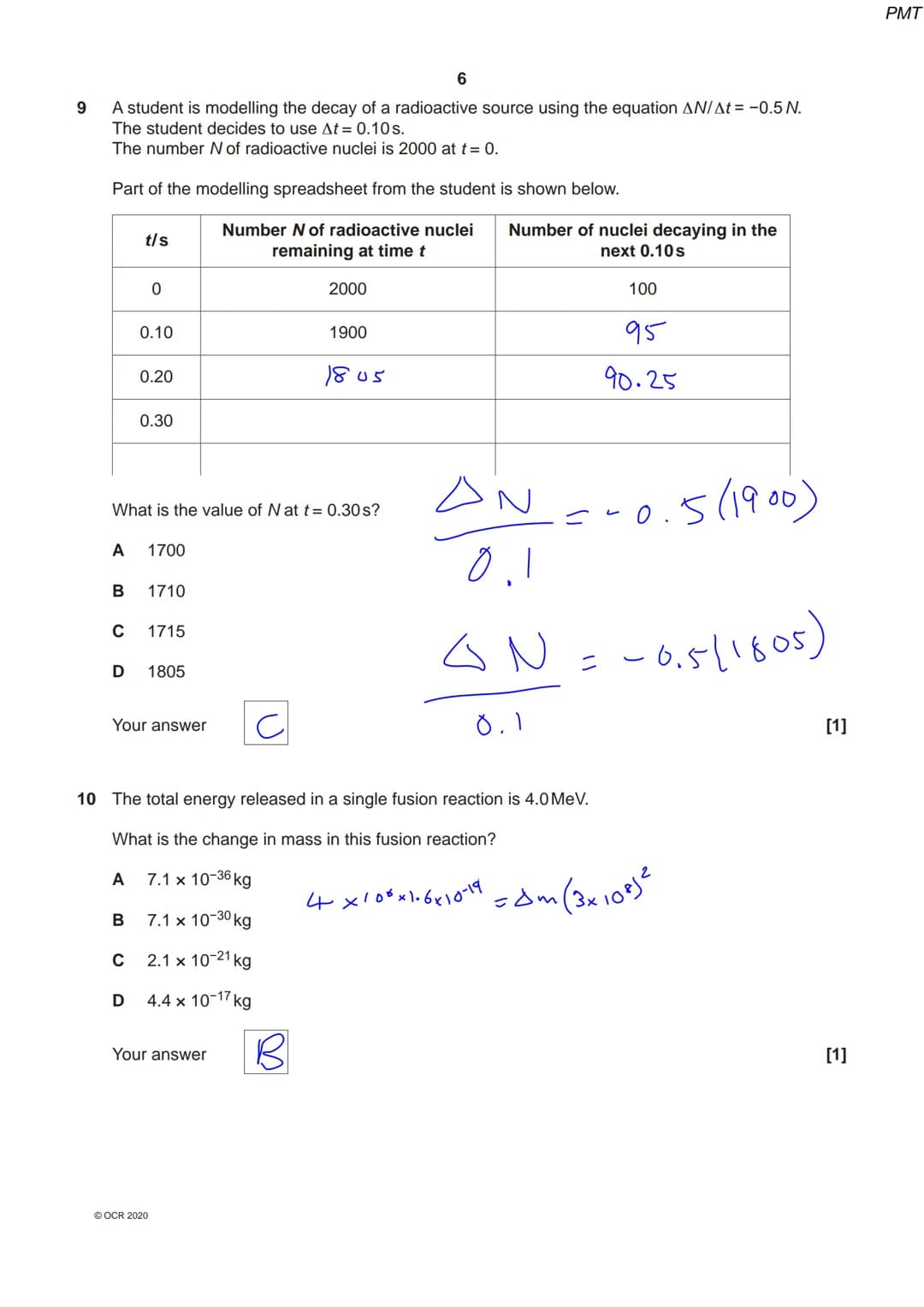

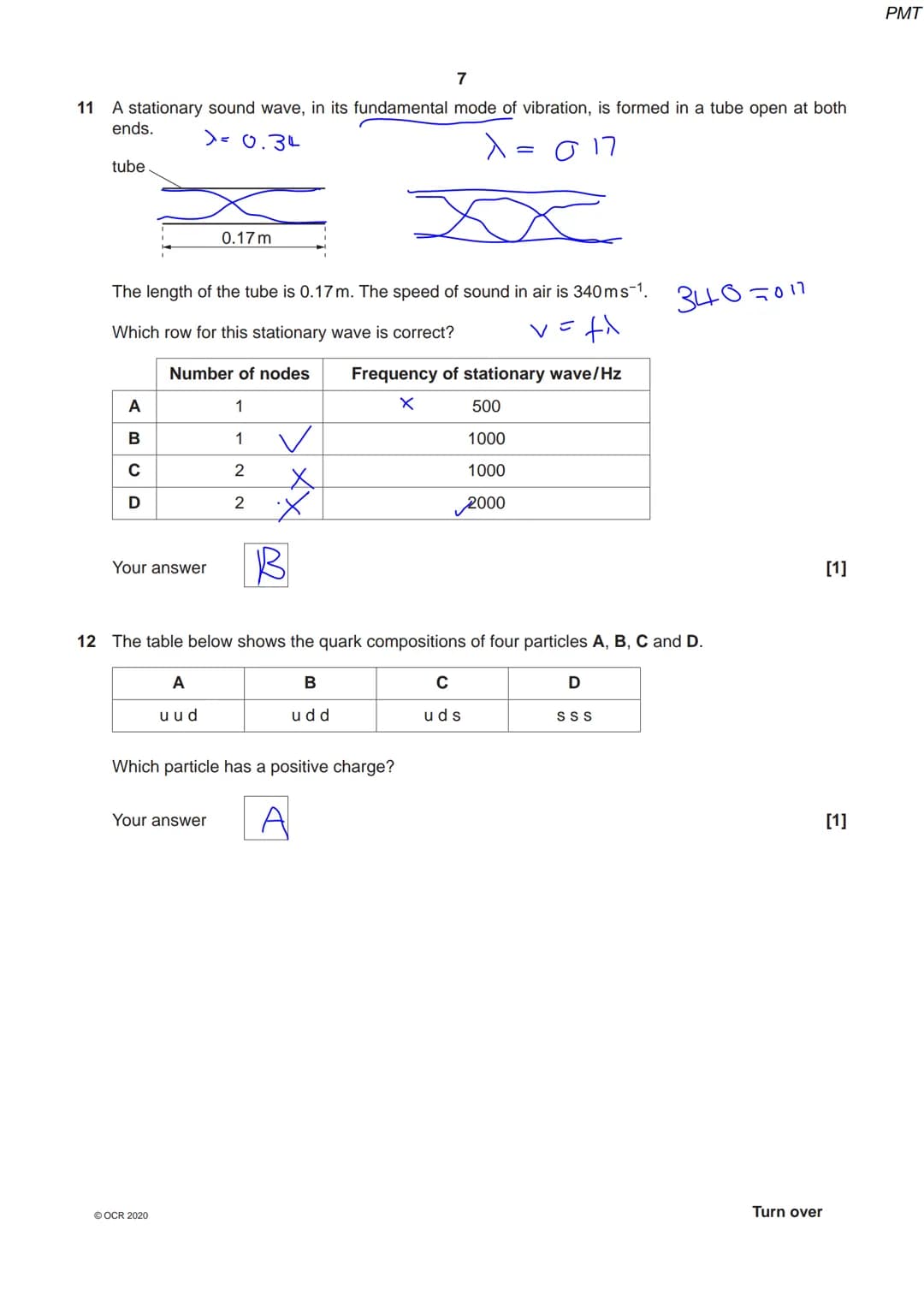

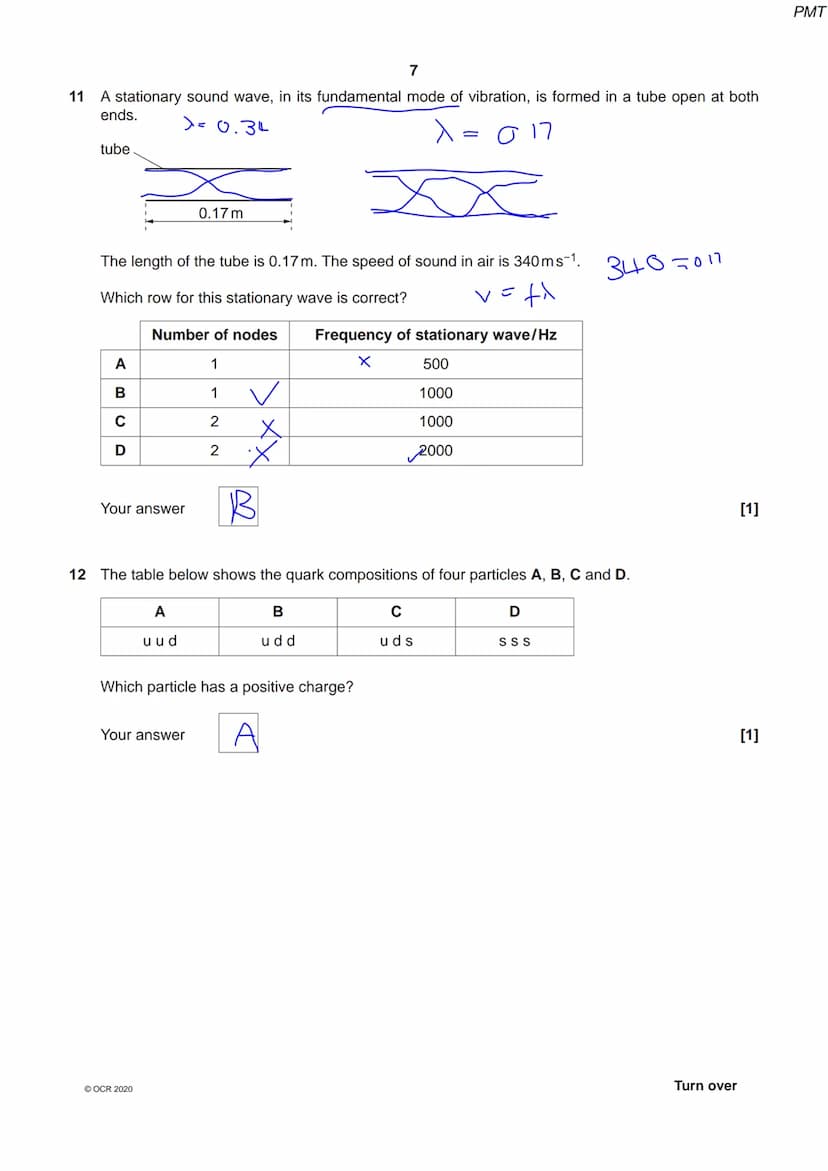

Vocabulary: A node in a stationary wave is a point where the amplitude remains zero at all times, while an antinode is a point where the amplitude oscillation is maximum.

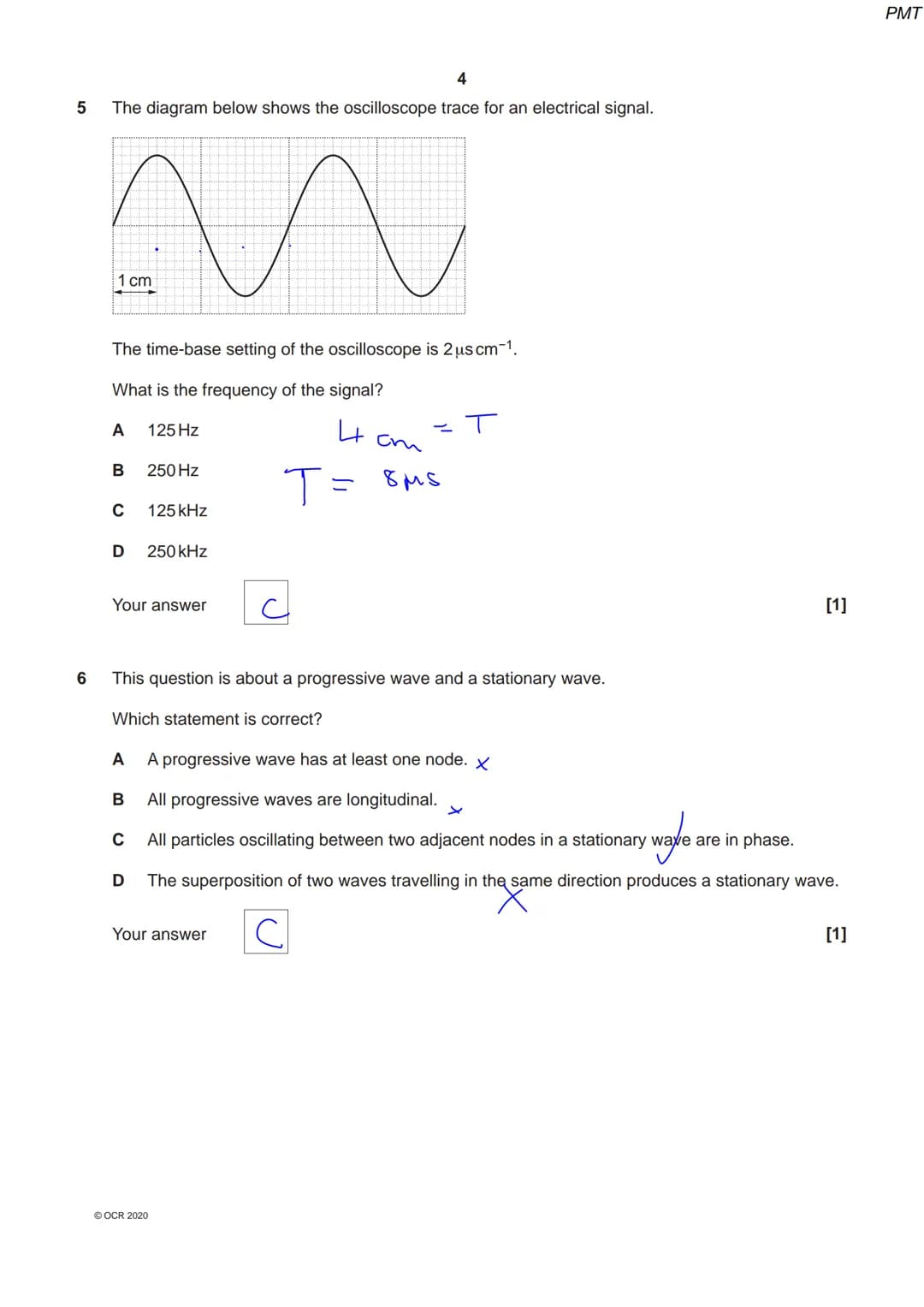

When analyzing waves using an oscilloscope, students must be able to interpret time-base settings and calculate frequencies. For example, with a time-base setting of 2 μs/cm and a wave period spanning multiple centimeters, the frequency can be determined using the relationship f = 1/T.

The behavior of particles in stationary waves follows specific patterns, with all particles between adjacent nodes oscillating with different phase relationships. This concept is crucial for understanding wave mechanics and their applications in various physical systems.

Electric Potential and Energy Calculations

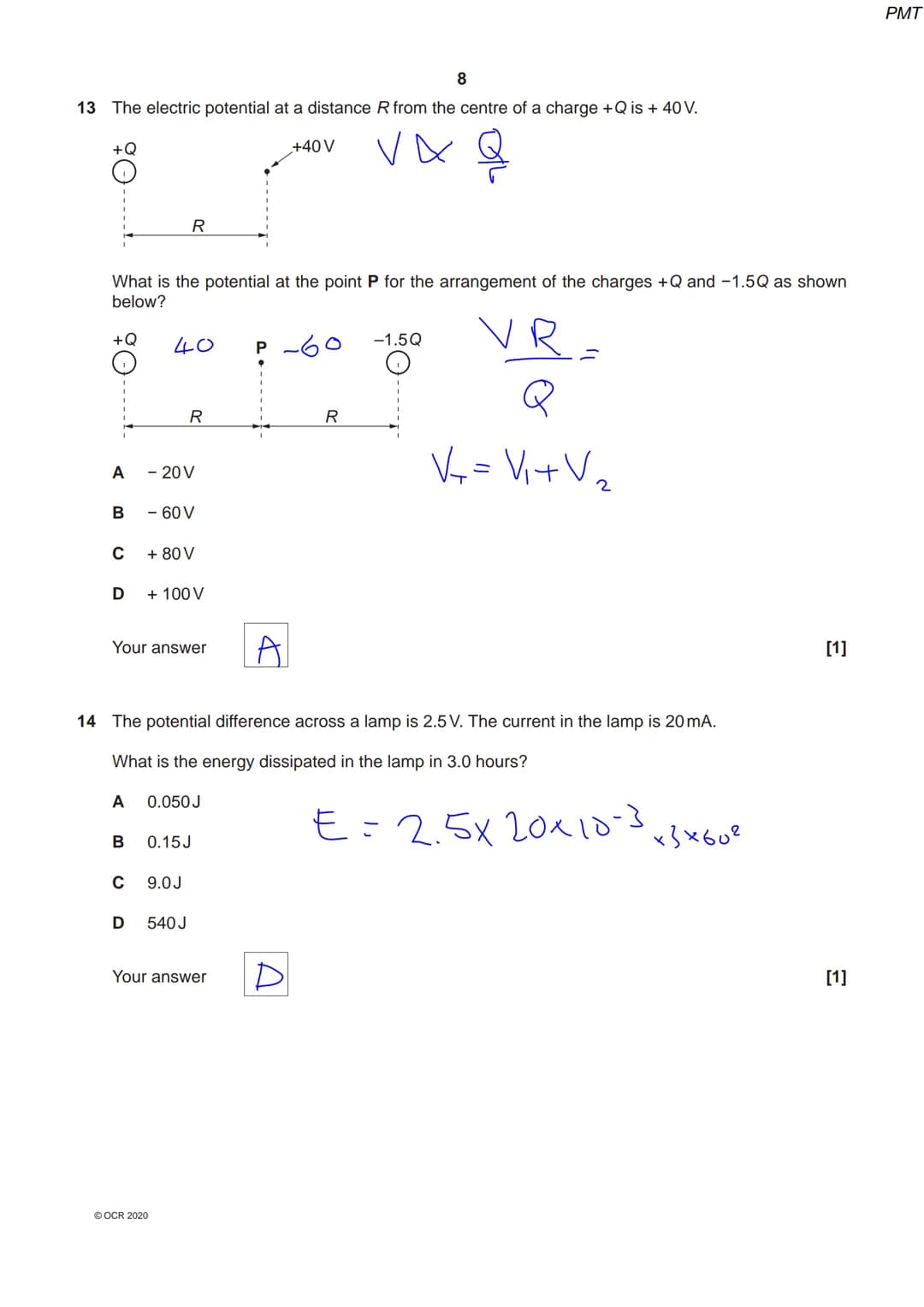

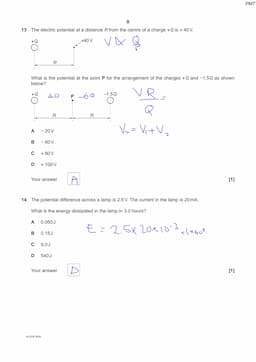

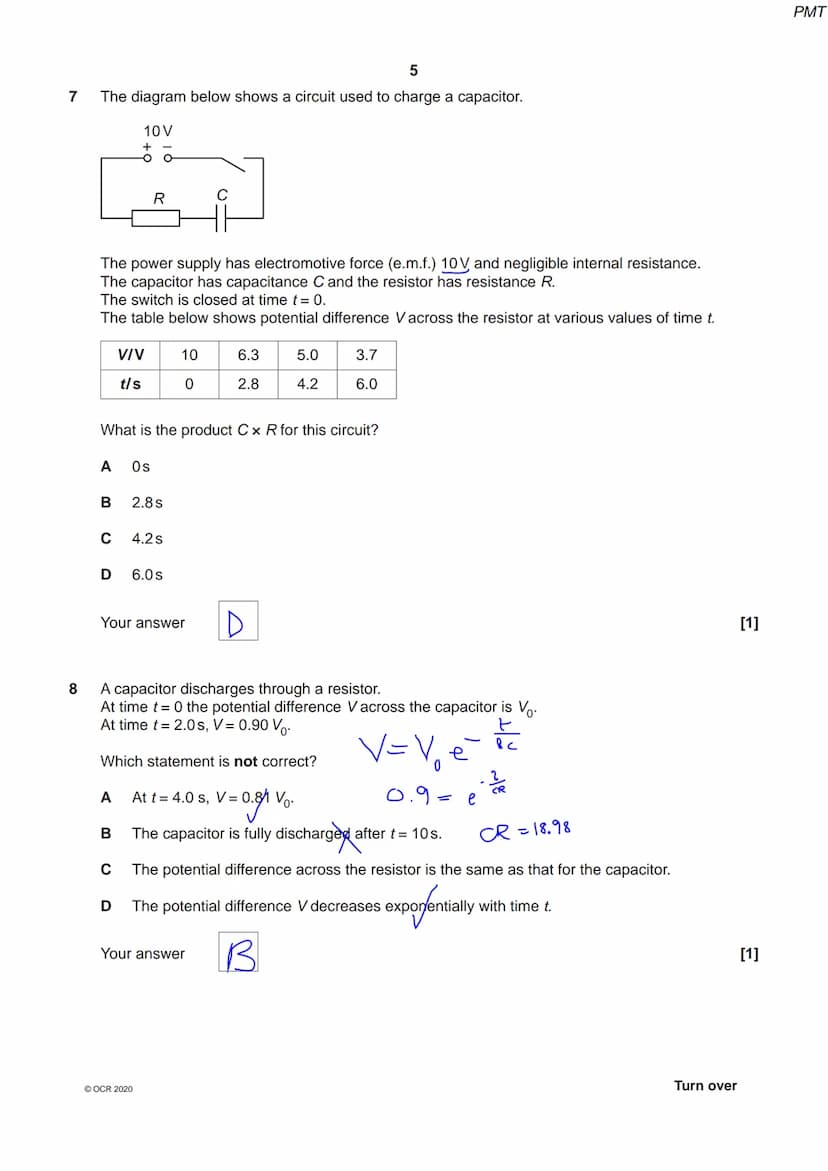

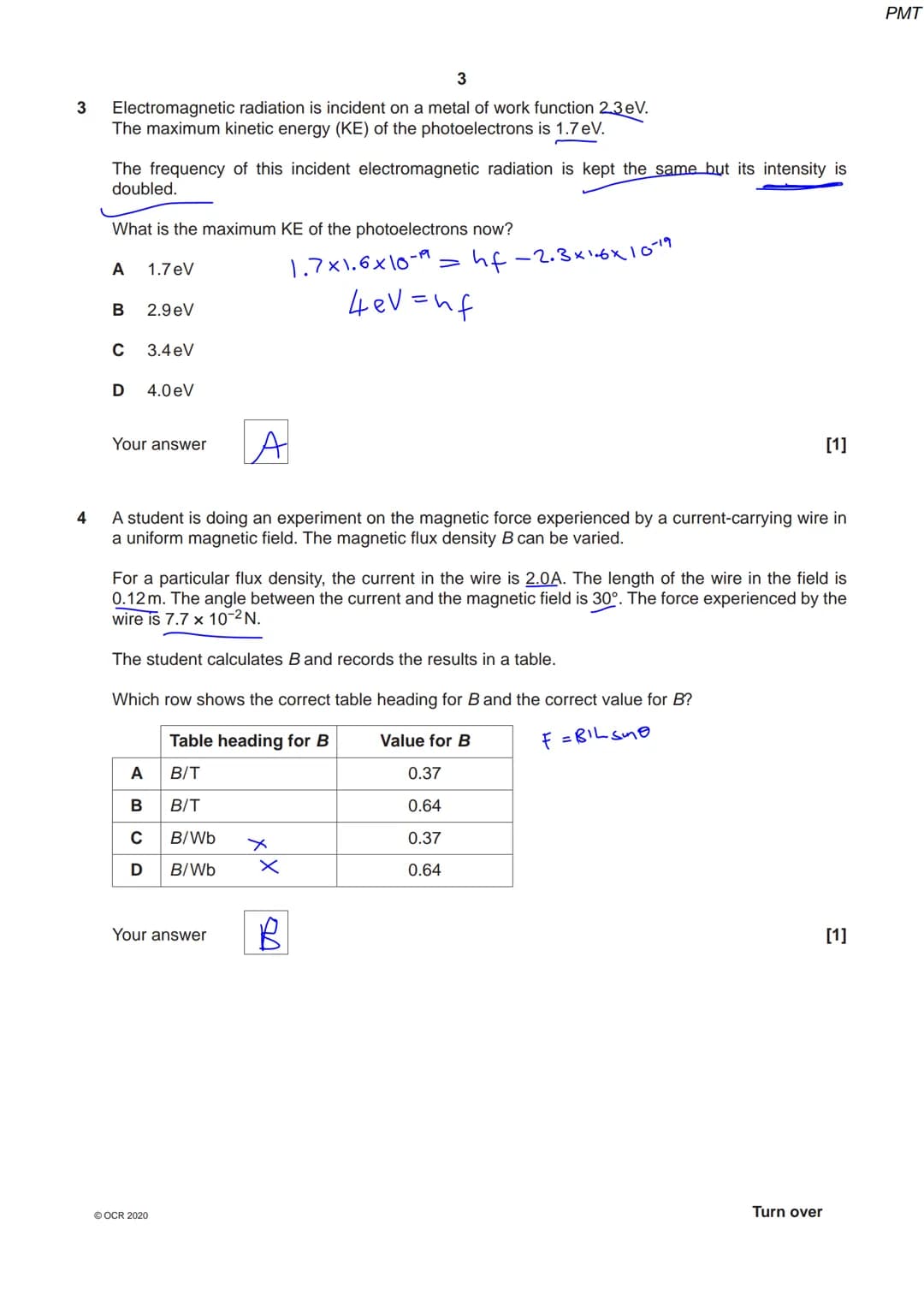

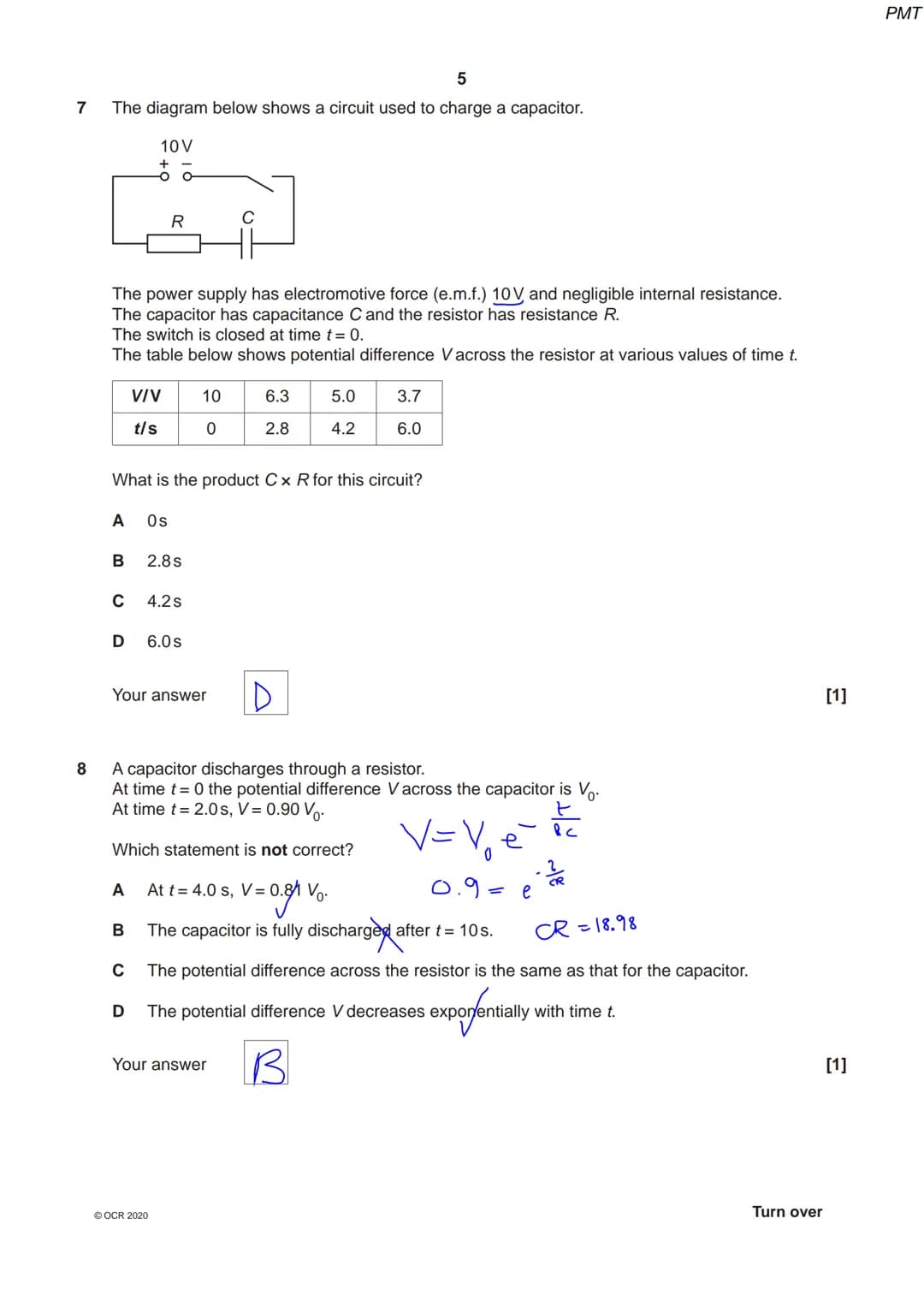

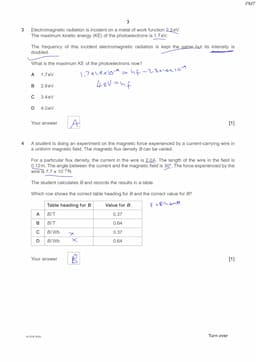

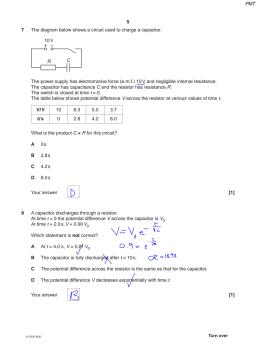

Electric potential calculations involve understanding how charged particles create electric fields and potential differences. When multiple charges are present, the total potential at any point equals the sum of individual potentials from each charge.

For practical applications like electrical devices, energy calculations involve the relationship between potential difference, current, and time. The energy dissipated in electrical components follows E = VIt, where V is voltage, I is current, and t is time.

Vocabulary: Electric potential at a point represents the work done per unit charge to move a positive test charge from infinity to that point.

Understanding these relationships is crucial for designing efficient electrical systems and calculating energy consumption in various devices. The principles apply to both simple circuits and complex electrical systems.

Advanced Physics Concepts in Medical Imaging

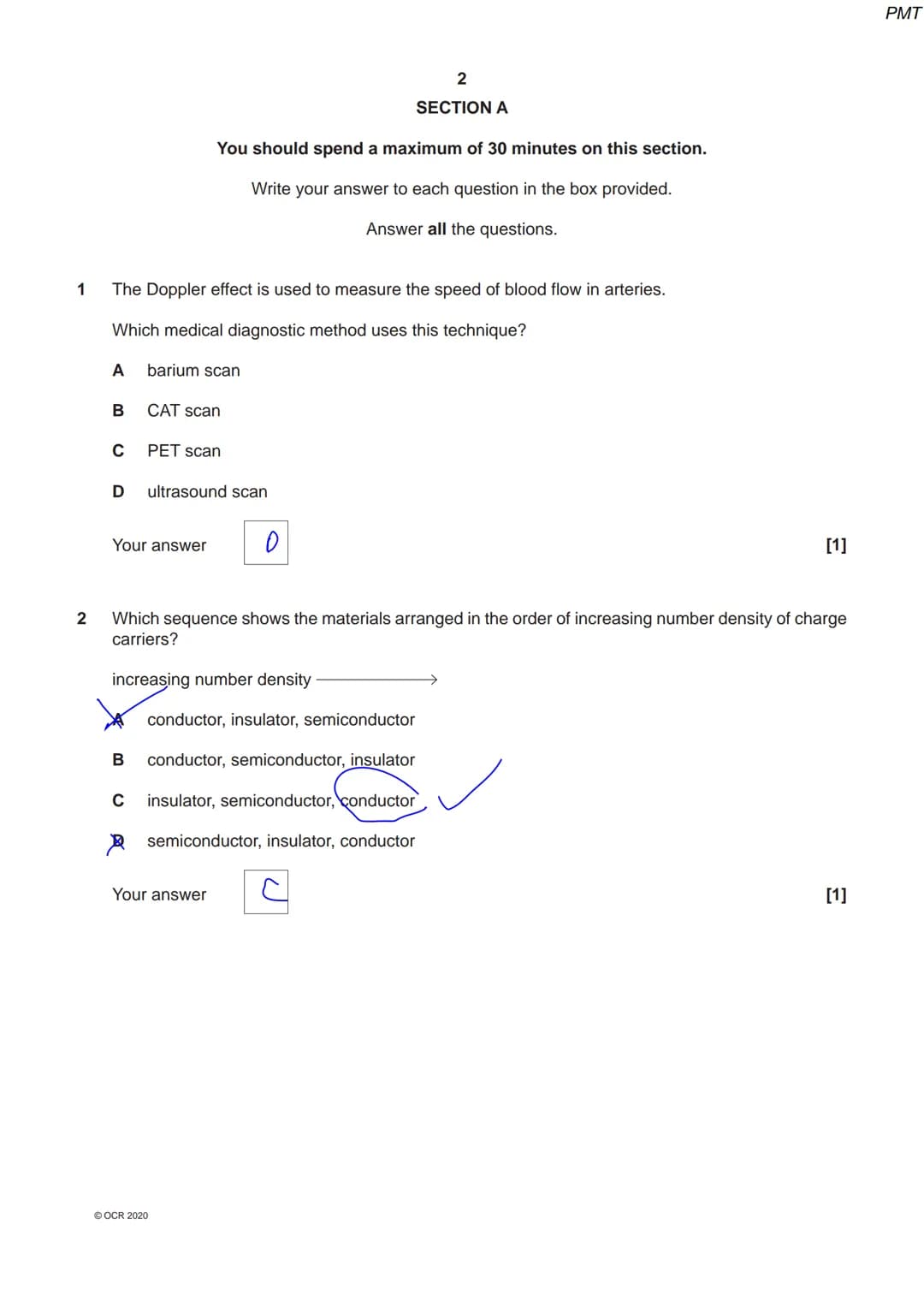

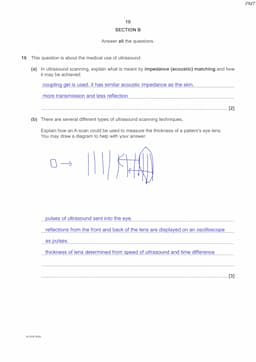

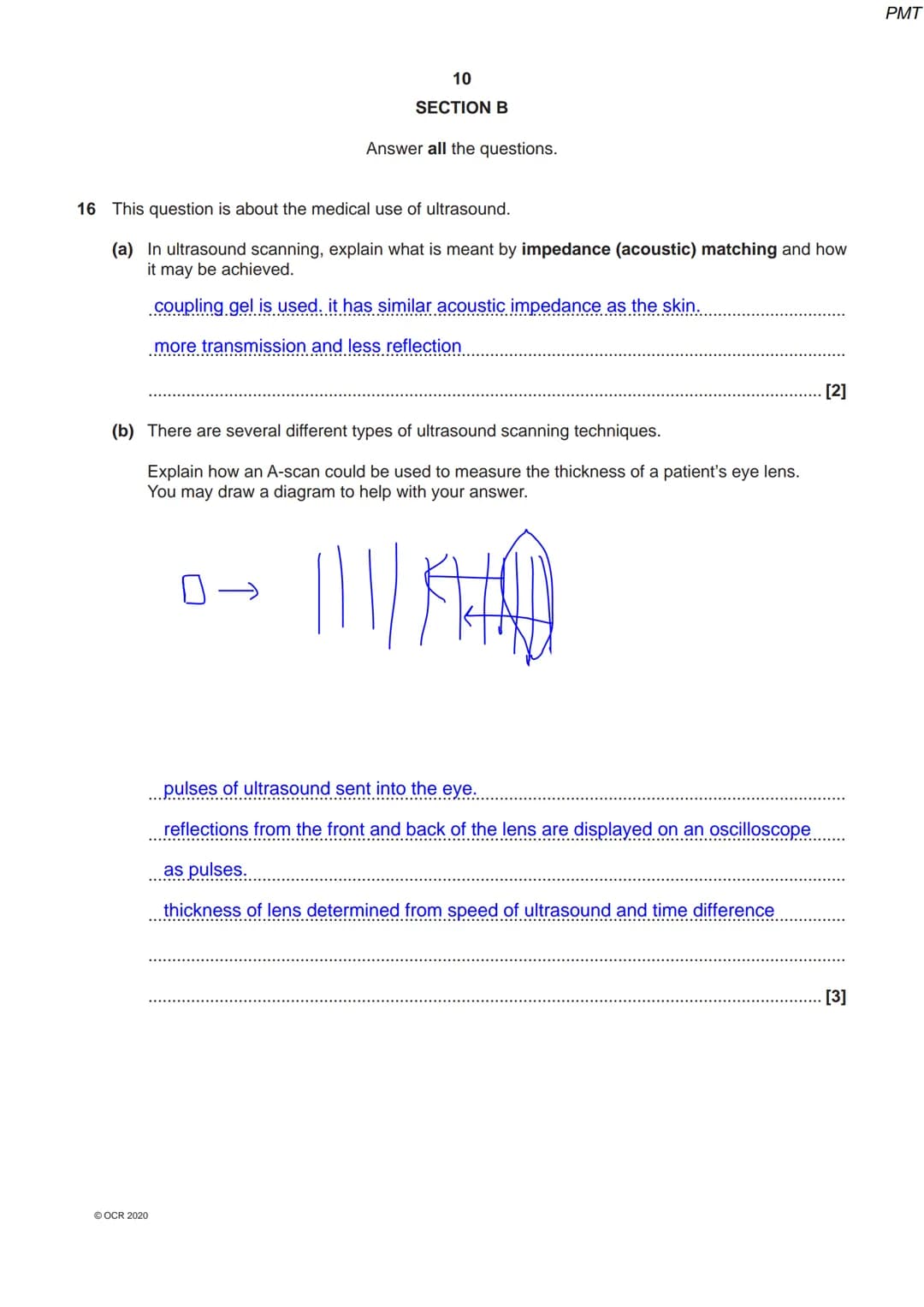

The application of Doppler effect medical application ultrasound extends beyond simple imaging to include blood flow measurement and cardiac function assessment. This sophisticated use of ultrasound technology relies on the Doppler shift principle, where the frequency of reflected waves changes based on the movement of the reflecting surface.

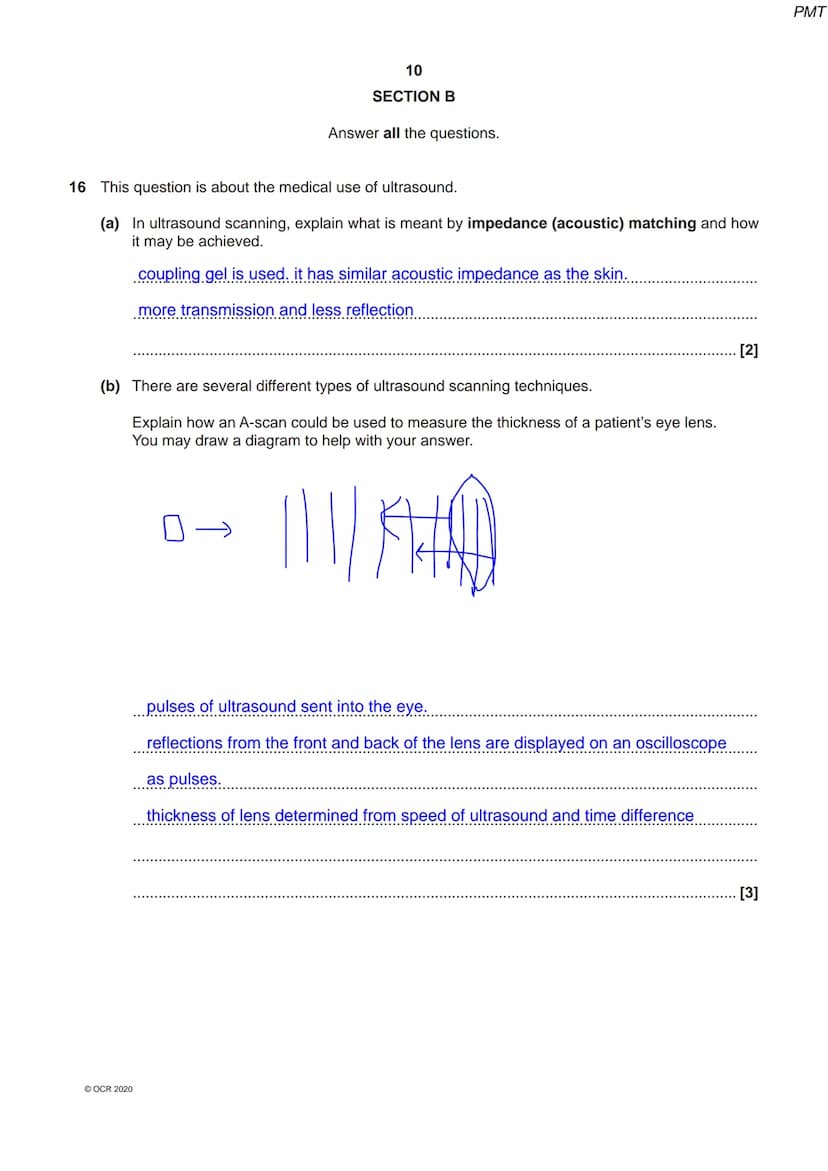

Understanding wave behavior in biological tissues requires knowledge of multiple physics concepts. When ultrasound waves travel through different body tissues, they encounter varying acoustic impedances, which affect their transmission and reflection patterns. This principle is fundamental to creating detailed medical images and obtaining accurate diagnostic information.

Highlight: The success of medical ultrasound imaging depends on three key factors: proper impedance matching, accurate timing of reflected signals, and understanding of wave behavior in biological tissues.

Medical professionals must consider several technical parameters when performing ultrasound scans, including frequency selection, pulse duration, and power output. These factors significantly influence image resolution and tissue penetration depth. Higher frequencies provide better resolution but less penetration, while lower frequencies offer deeper penetration but reduced resolution. This trade-off must be carefully balanced based on the specific diagnostic requirements.

Vocabulary: Pulse duration refers to the length of time each ultrasound burst lasts, typically measured in microseconds. This parameter affects both the axial resolution of the image and the total energy delivered to the tissue.
