Understanding Electricity - National 5 Physics

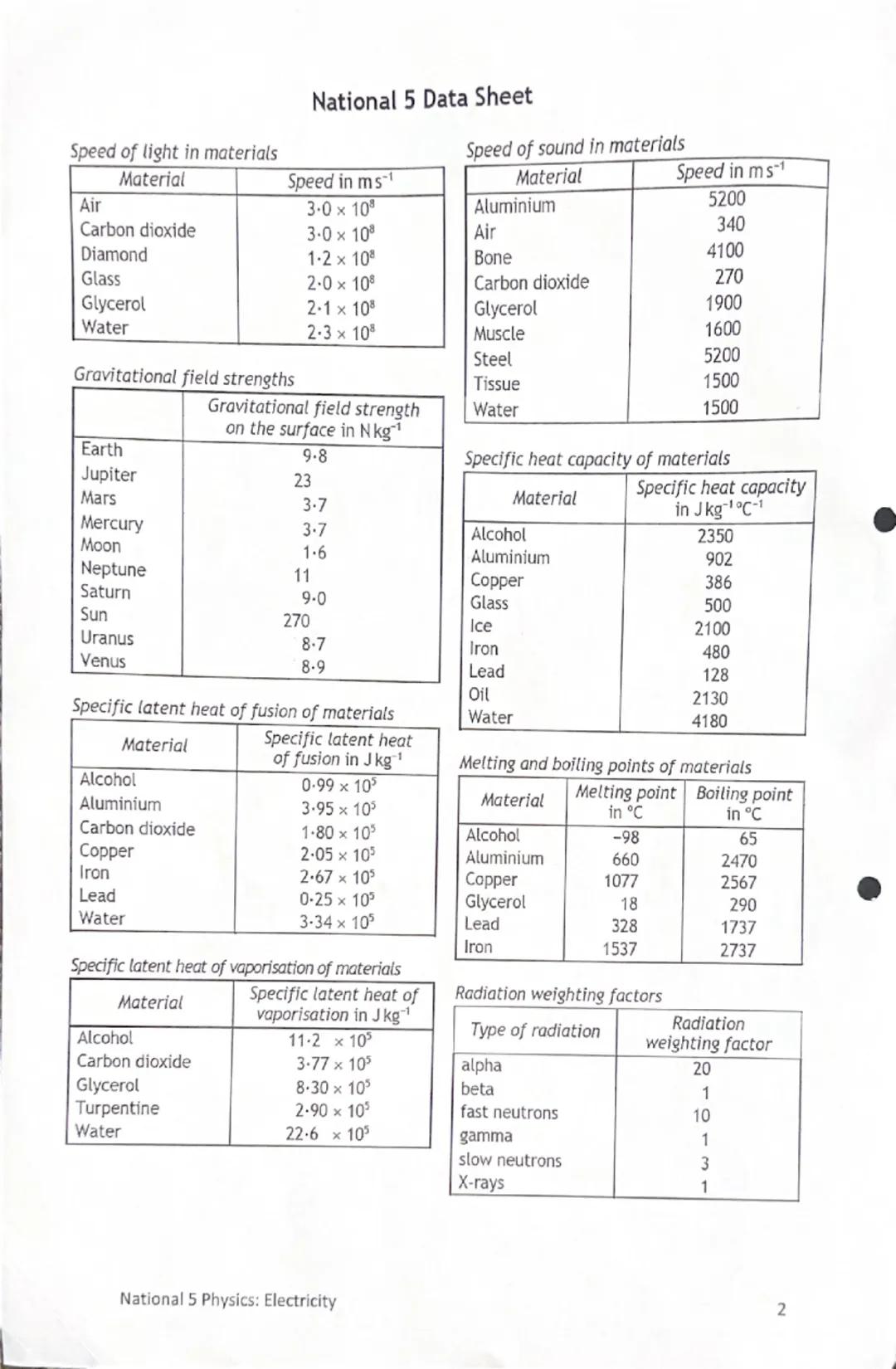

Physics Data Reference Sheet

Your National 5 Physics data sheet is basically your best mate during exams - it's packed with all the crucial values you'll need for calculations. You don't need to memorise these numbers, but you absolutely need to know how to use them.

The sheet includes speed of light values for different materials (like 3.0 × 10⁸ m/s in air), gravitational field strengths for planets (Earth's is 9.8 N/kg), and loads of material properties like specific heat capacities and melting points. Water's specific heat capacity of 4180 J/kg°C⁻¹ is particularly important - it's why water is so good at storing heat energy.

Quick Tip: Get familiar with where everything is on this sheet before your exam. You don't want to waste precious time hunting for values during a test.

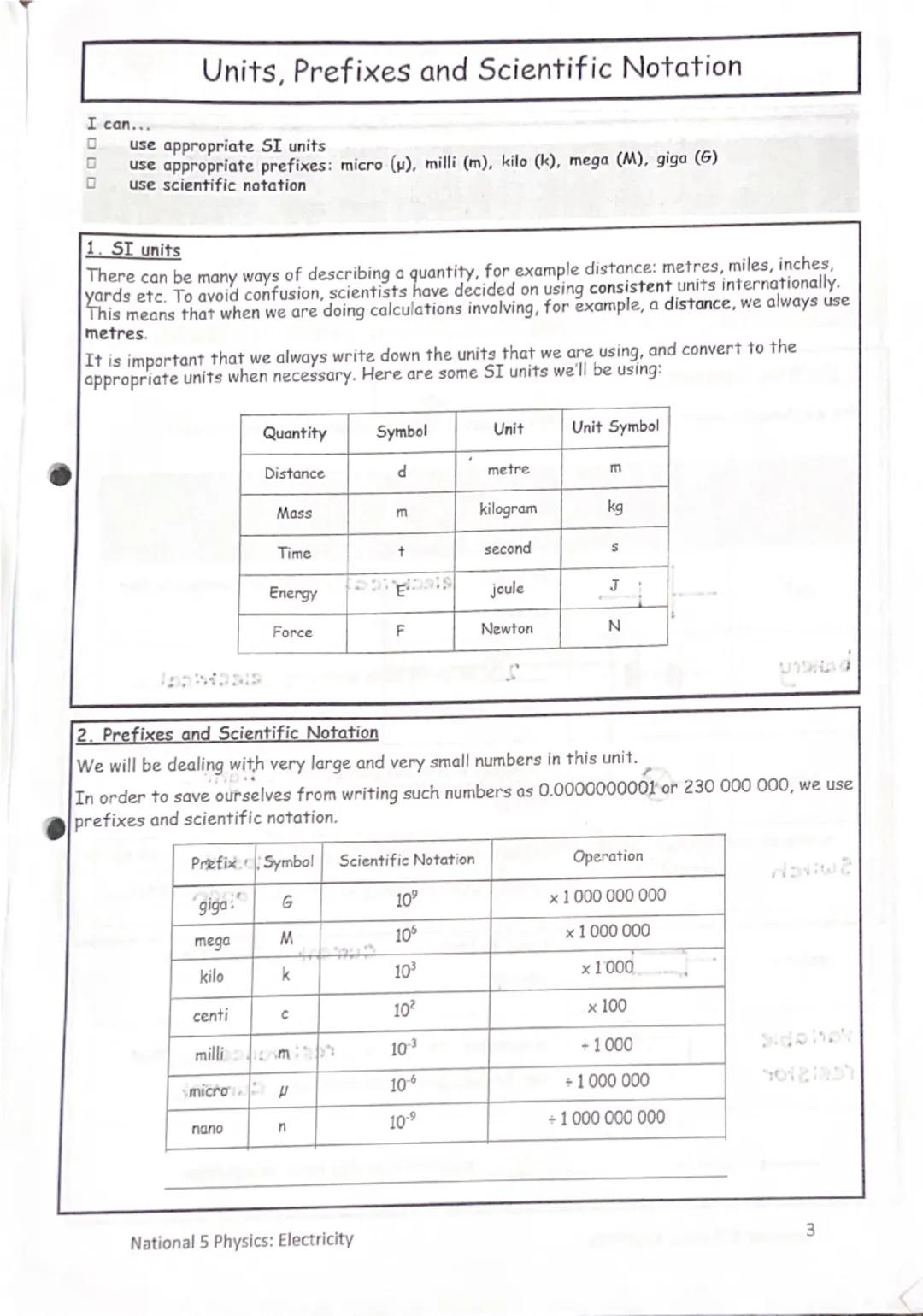

Units, Prefixes and Scientific Notation

Getting your units right is absolutely crucial in physics - mess these up and your brilliant calculation becomes worthless. The SI units you'll use most are metres $m$, kilograms (kg), seconds $s$, joules (J), and newtons (N).

Scientific notation and prefixes save you from writing ridiculously long numbers. Instead of writing 0.000001, you can use 1 × 10⁻⁶ or simply 1μ (micro). The key prefixes are: giga (G) = × 10⁹, mega (M) = × 10⁶, kilo $k$ = × 10³, milli $m$ = × 10⁻³, and micro (μ) = × 10⁻⁶.

Remember: Always convert everything to standard SI units before doing calculations - it'll save you loads of headaches!

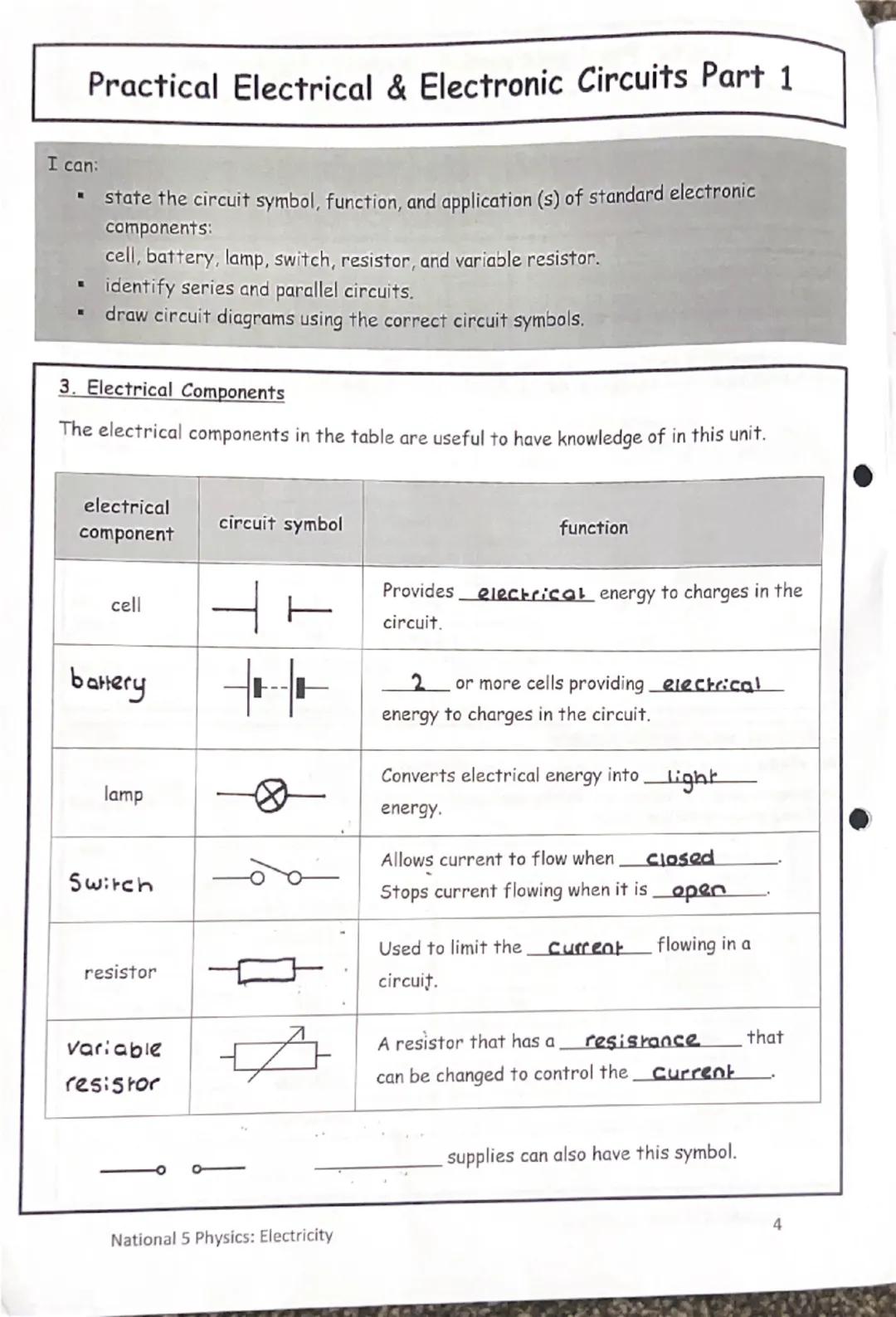

Circuit Components and Symbols

Every electrical component has a specific job and a standard symbol that you need to recognise instantly. Cells and batteries provide the electrical energy that drives everything, whilst resistors control how much current flows through the circuit.

Lamps convert electrical energy into light, switches control whether current can flow, and variable resistors let you adjust the current flow. Think of a variable resistor like a volume control on your headphones - it gives you precise control over the circuit's behaviour.

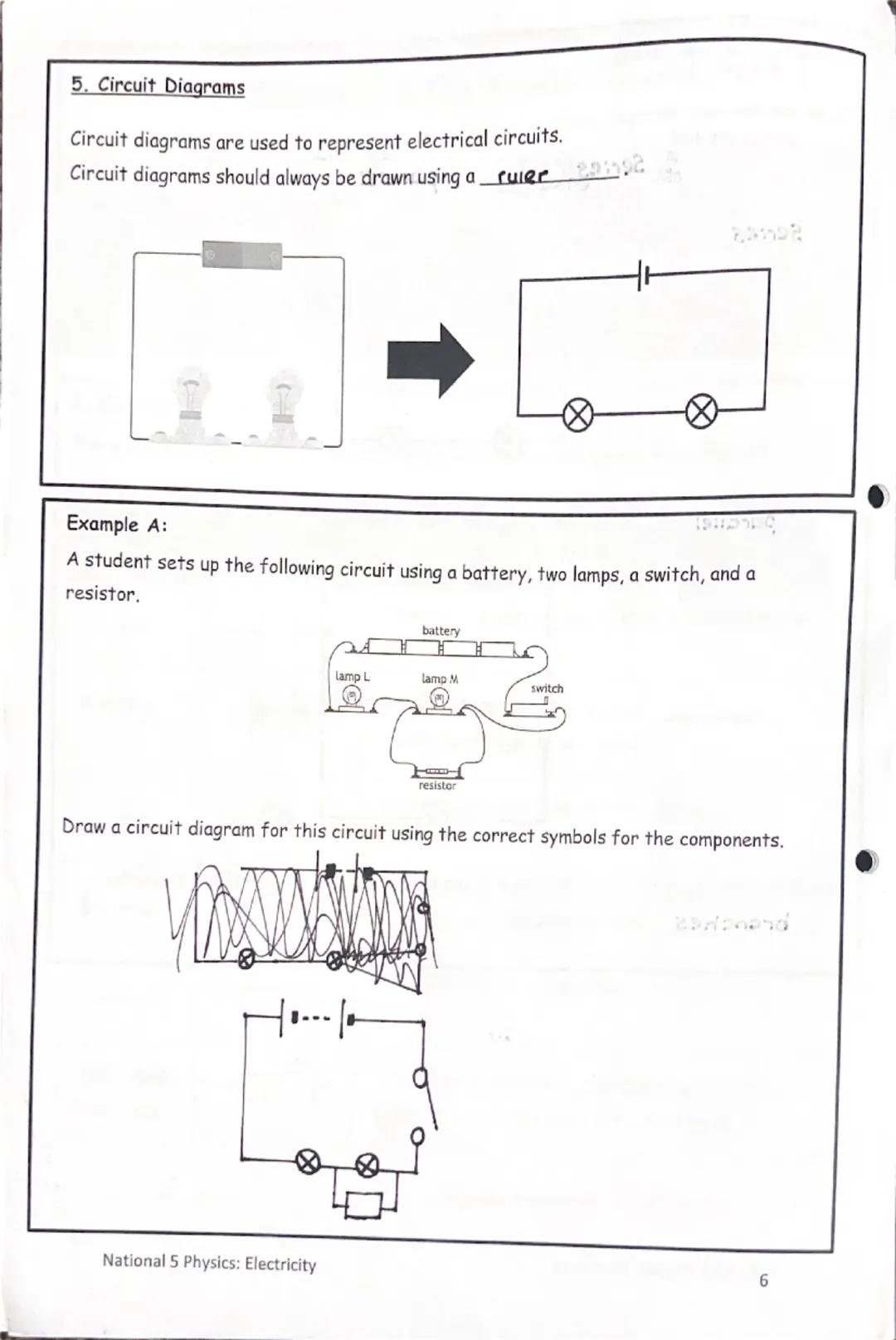

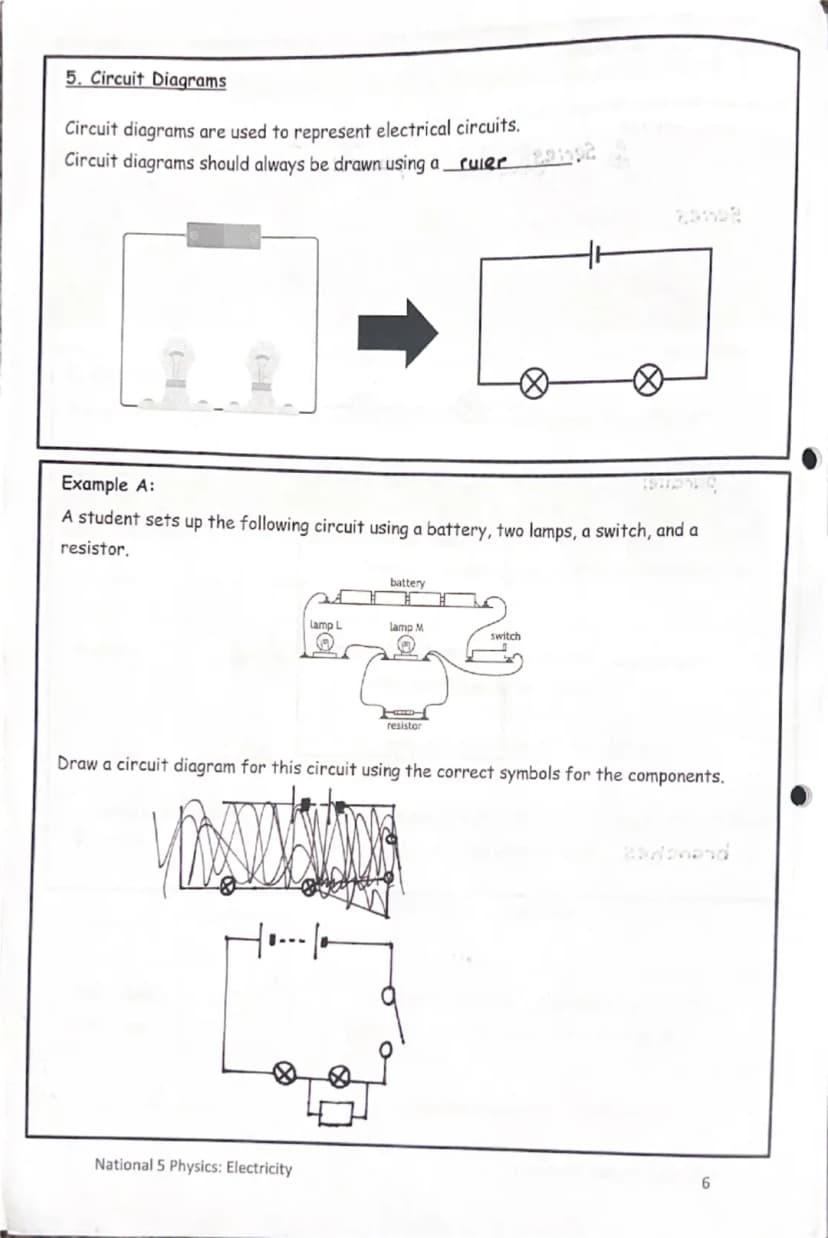

Drawing circuit diagrams properly is essential - always use a ruler and the correct symbols. Your diagrams need to be clear enough that someone else could build the actual circuit from your drawing.

Pro Tip: Practice drawing circuit symbols until they become second nature - you'll need this skill for every electricity question!

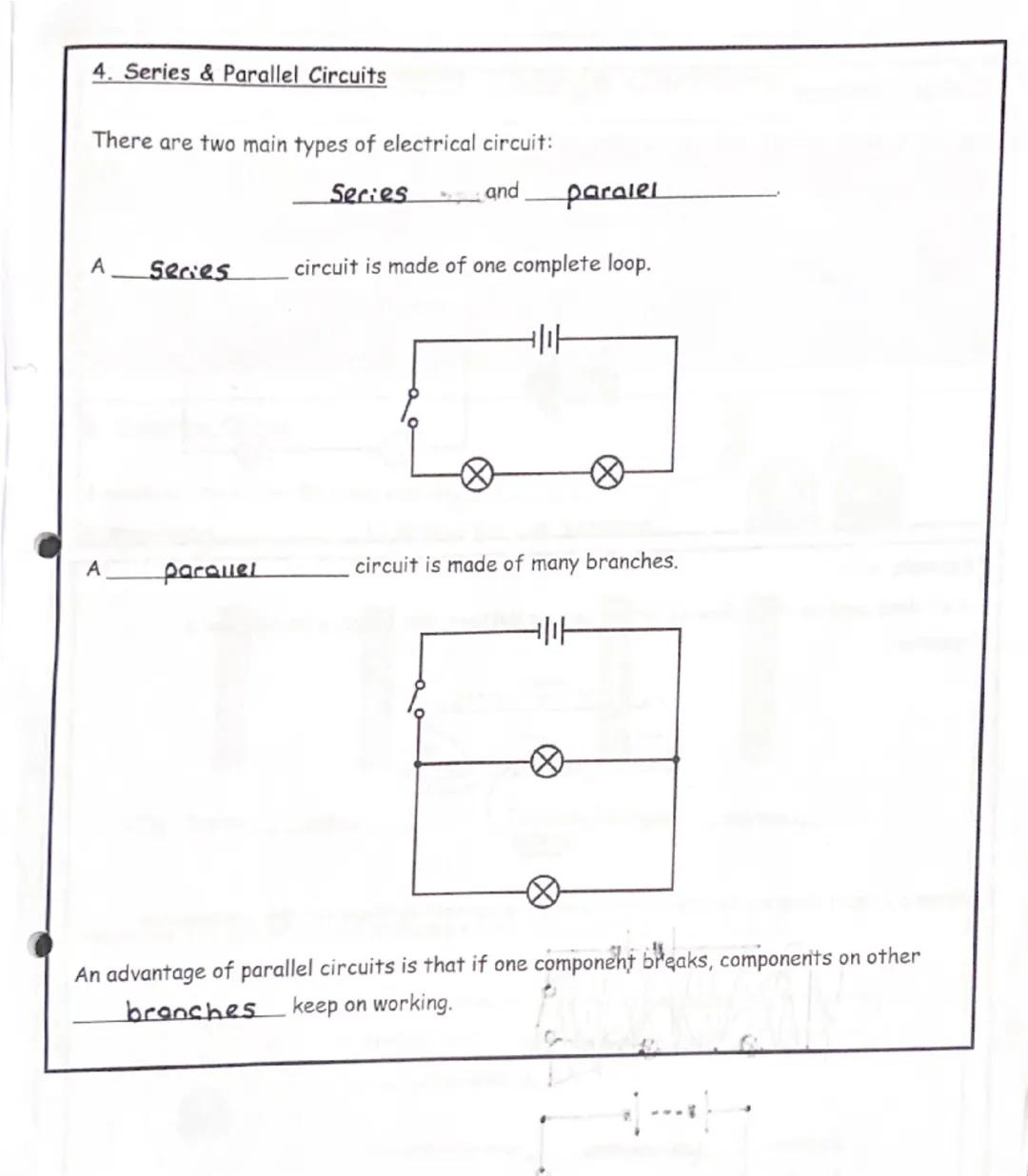

Series vs Parallel Circuits

Understanding the difference between series and parallel circuits is absolutely fundamental to electricity. A series circuit has just one loop - if you break the circuit anywhere, everything stops working. It's like old-fashioned Christmas lights where one bulb going out killed the whole string.

Parallel circuits have multiple branches, and this is where things get interesting. If one branch fails, the others keep working perfectly. This is why your house lights don't all go out when one bulb blows - they're wired in parallel.

The advantage of parallel circuits is obvious when you think about it - imagine if your bedroom light going out meant your kitchen light stopped working too! That's exactly what would happen with series wiring.

Real-world connection: Almost everything in your house uses parallel circuits - from lights to plug sockets to your phone charger.

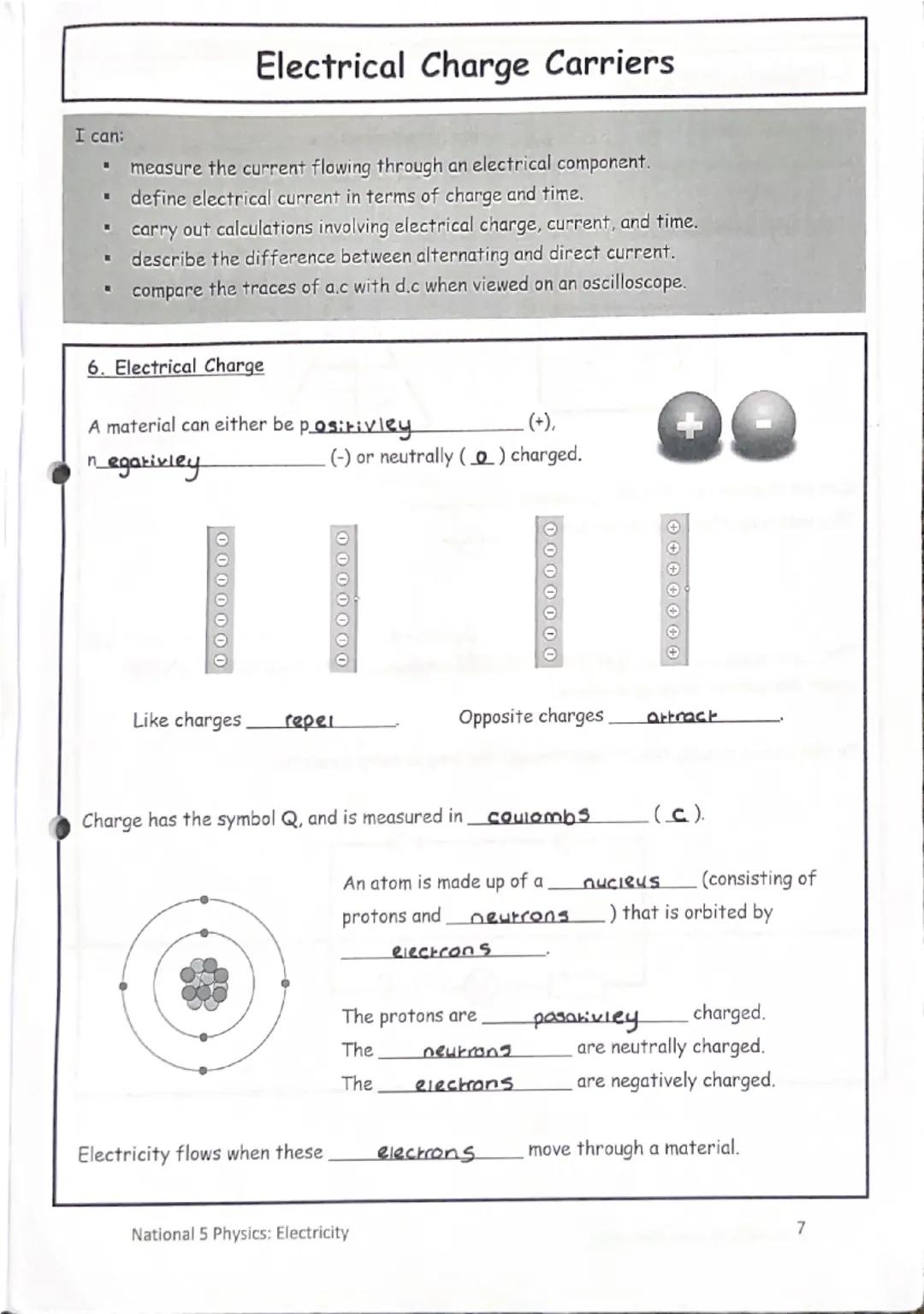

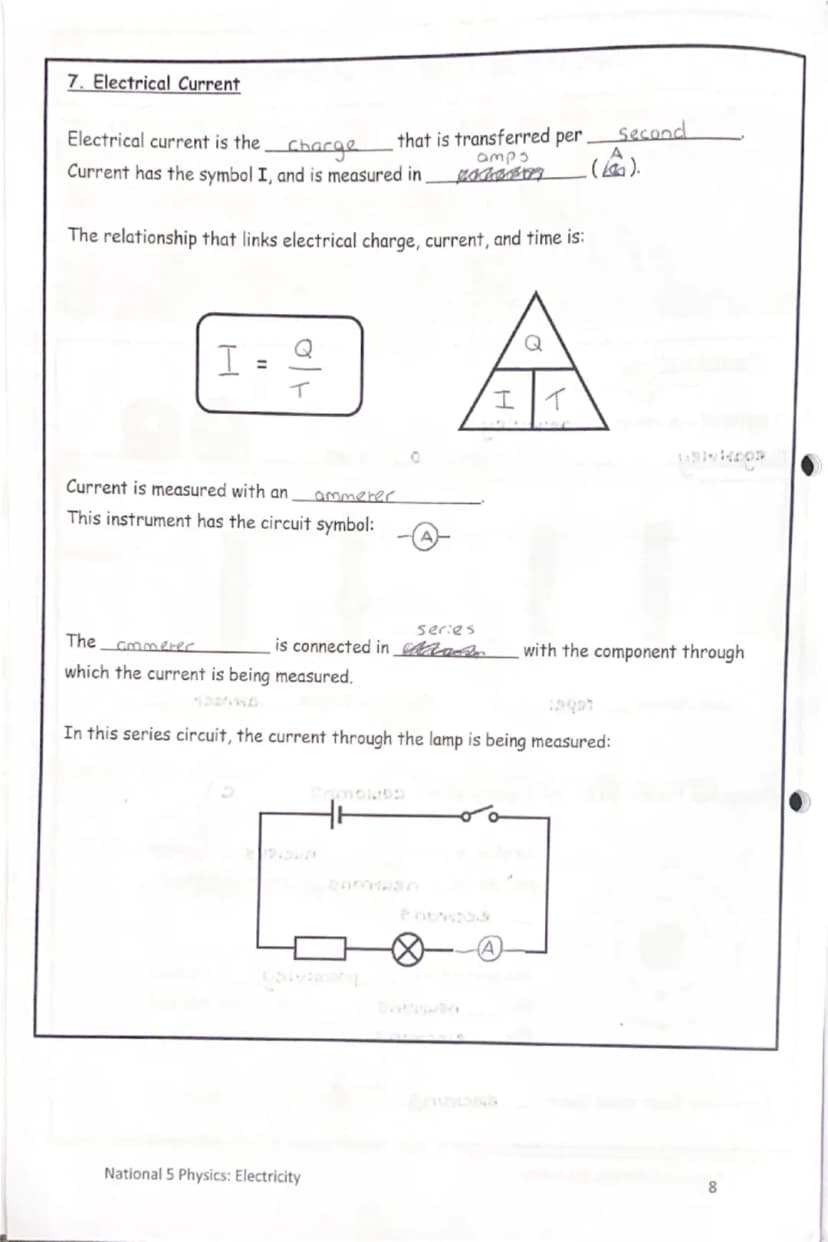

Electric Charge and Current

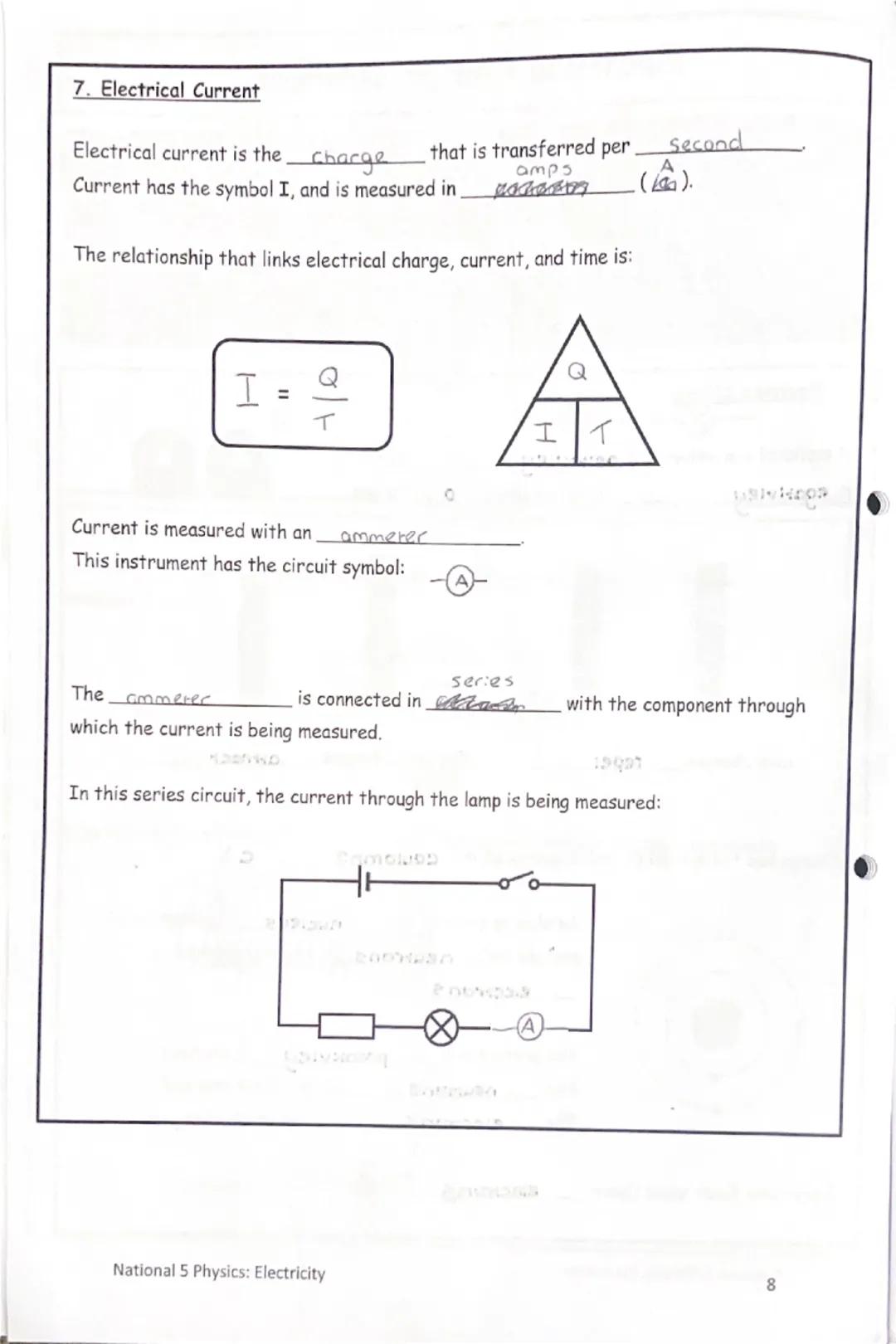

Electric current is simply the amount of charge flowing past a point every second. Think of it like water flowing through a pipe - current tells you how much water passes a specific point each second.

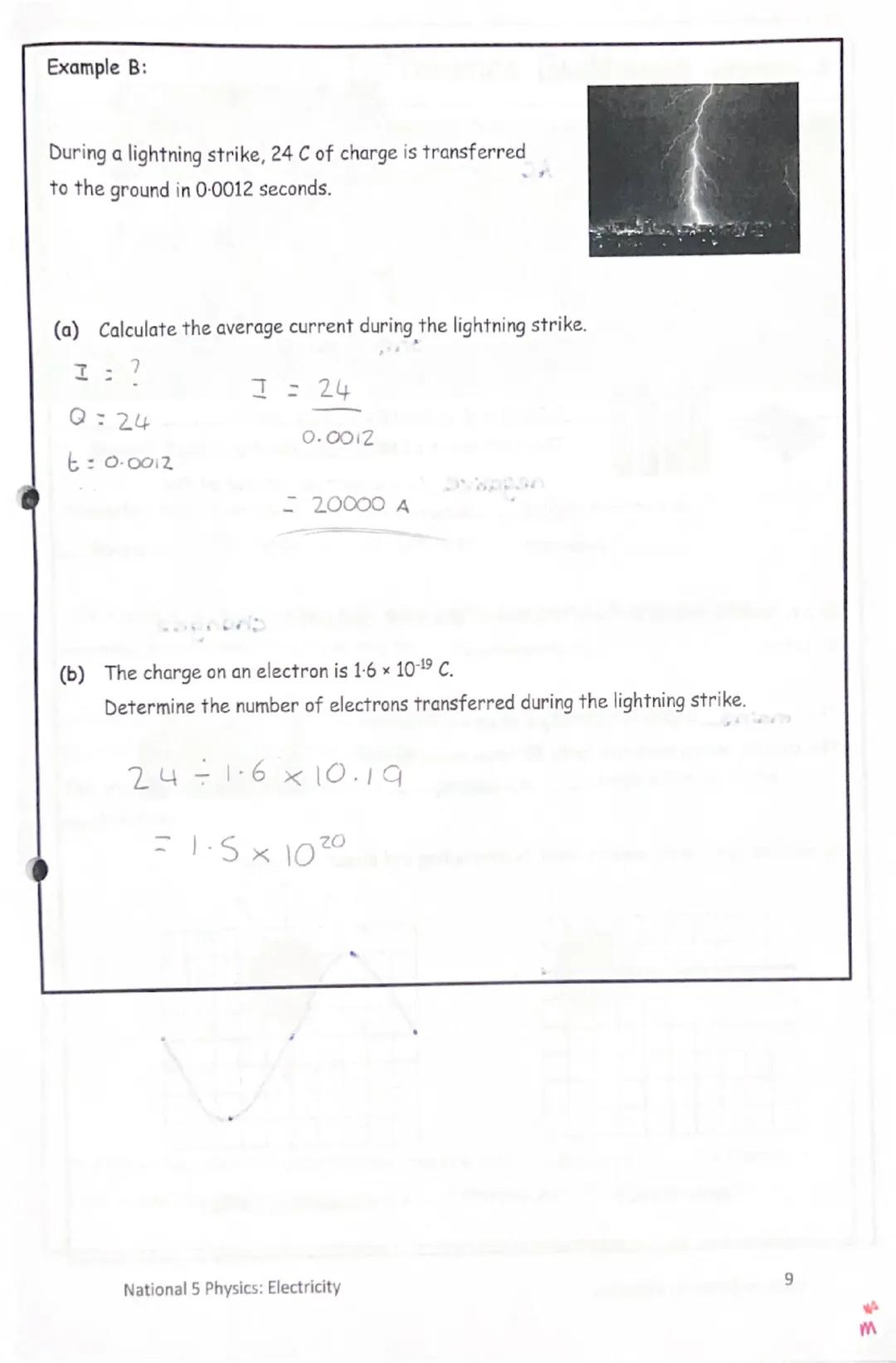

The relationship is beautifully simple: I = Q/t, where I is current (amps), Q is charge (coulombs), and t is time (seconds). When 24 coulombs flow past a point in 12 seconds, you get 2 amps of current.

Ammeters measure current and must be connected in series with whatever you're measuring. This makes sense - to measure how much water flows through a pipe, you'd put your measuring device in the pipe, not beside it.

Memory trick: Think of current as "electrical traffic flow" - ammeters count how many charges pass by, just like traffic counters on roads.

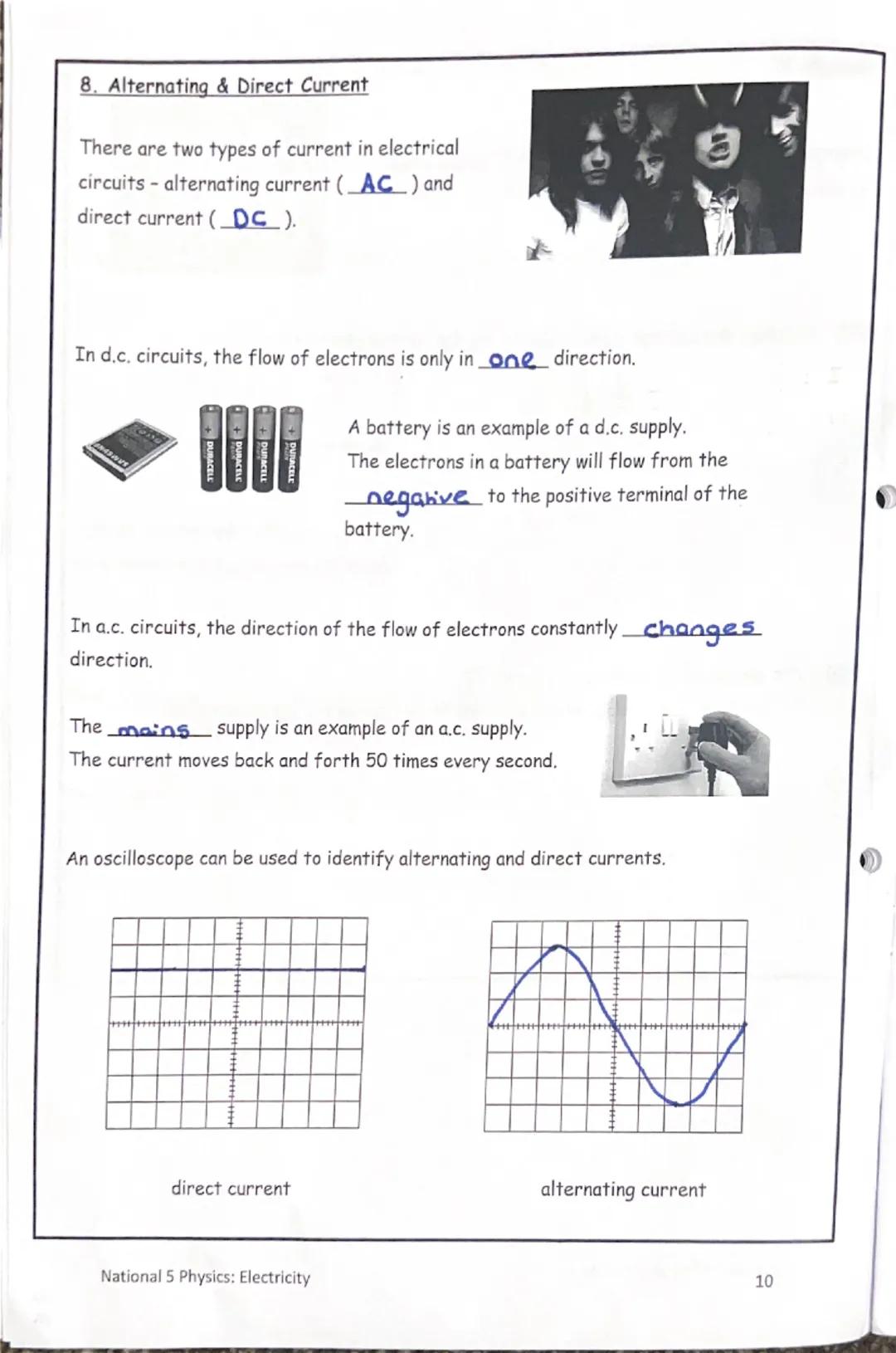

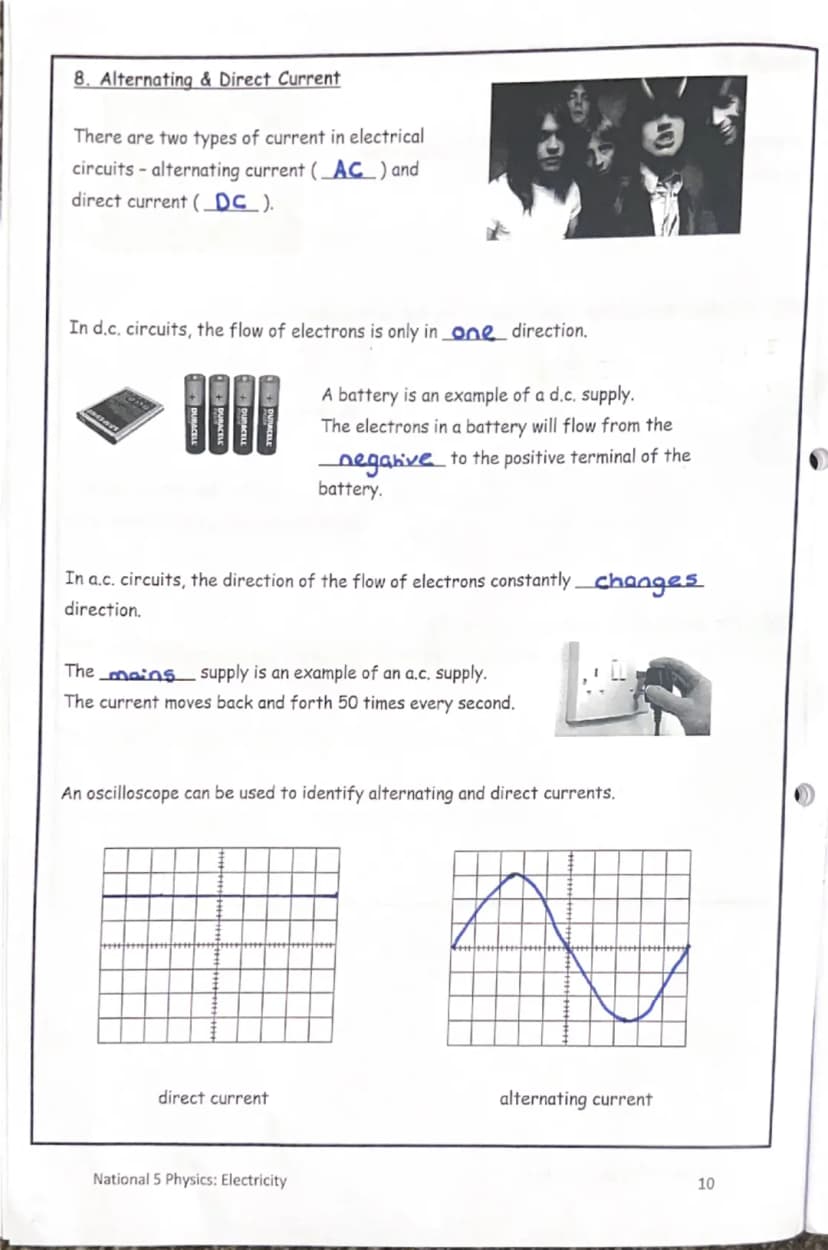

AC vs DC Current

The difference between alternating current (AC) and direct current (DC) is all about direction. In DC circuits, electrons flow steadily in one direction from negative to positive, like water flowing down a river.

AC current is completely different - the electrons constantly change direction, flowing back and forth 50 times every second in the UK. It's like a river that changes direction 50 times every second!

An oscilloscope shows this difference clearly: DC appears as a straight horizontal line, whilst AC creates a wave pattern. Your phone battery provides DC, but the mains electricity in your house is AC.

Think about it: AC is used for mains electricity because it's much easier to change voltage levels for efficient long-distance transmission.
