Understanding Electromagnetic Radiation in N5 Physics Waves
1 / 6

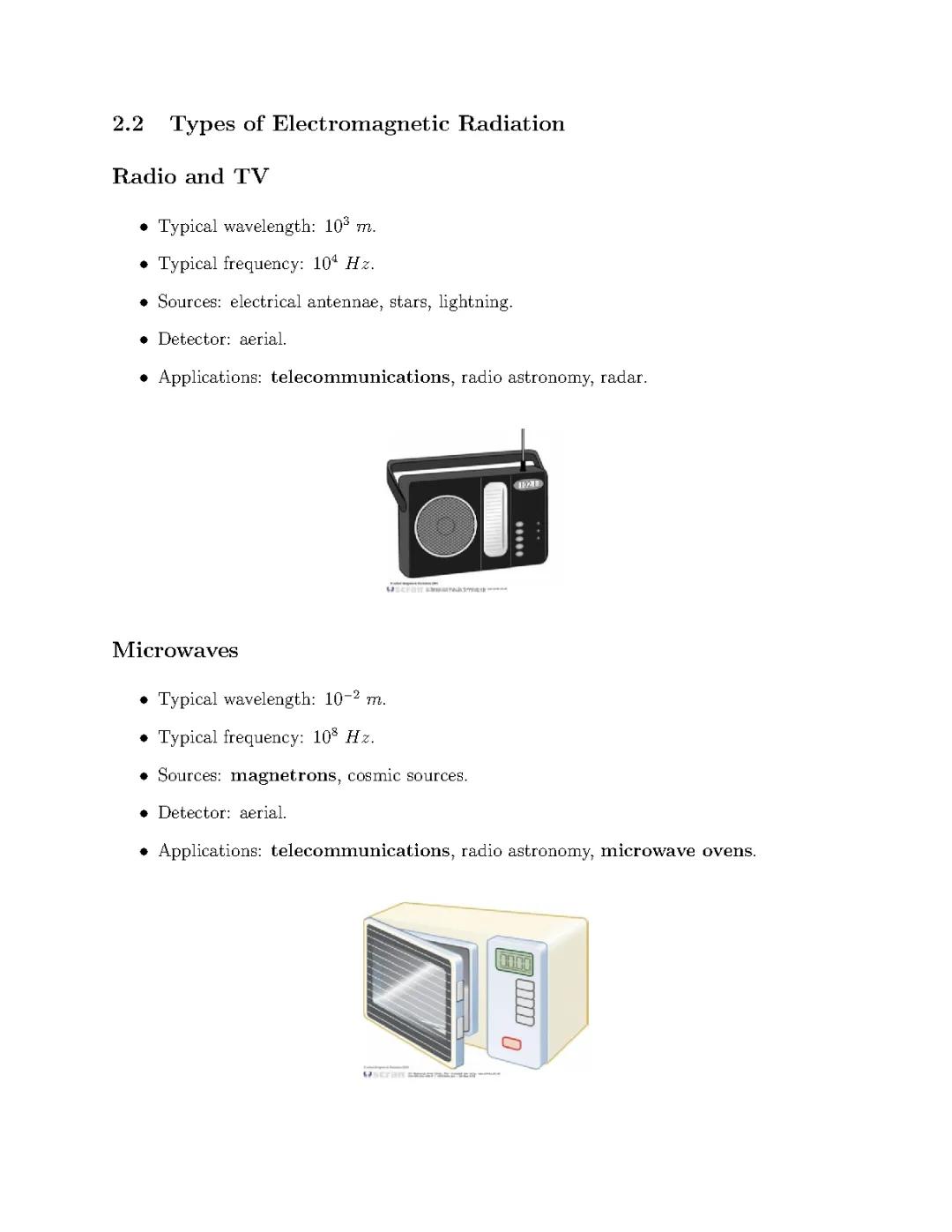

Radio Waves and Microwaves
Radio and TV waves are the longest electromagnetic waves you'll encounter, with wavelengths around 1000 metres and frequencies of about 10⁴ Hz. They're produced by electrical antennae, stars, and even lightning strikes, then picked up by aerials on your devices.
These waves power our connected world through telecommunications, radio astronomy, and radar systems. Microwaves are much shorter at 0.01 metres with higher frequencies of 10⁸ Hz, generated by magnetrons and cosmic sources.
Quick Tip: Remember that longer wavelengths mean lower frequencies - they're inversely related!
Microwaves don't just heat your dinner; they're crucial for mobile communications, satellite links, and help astronomers study distant galaxies.

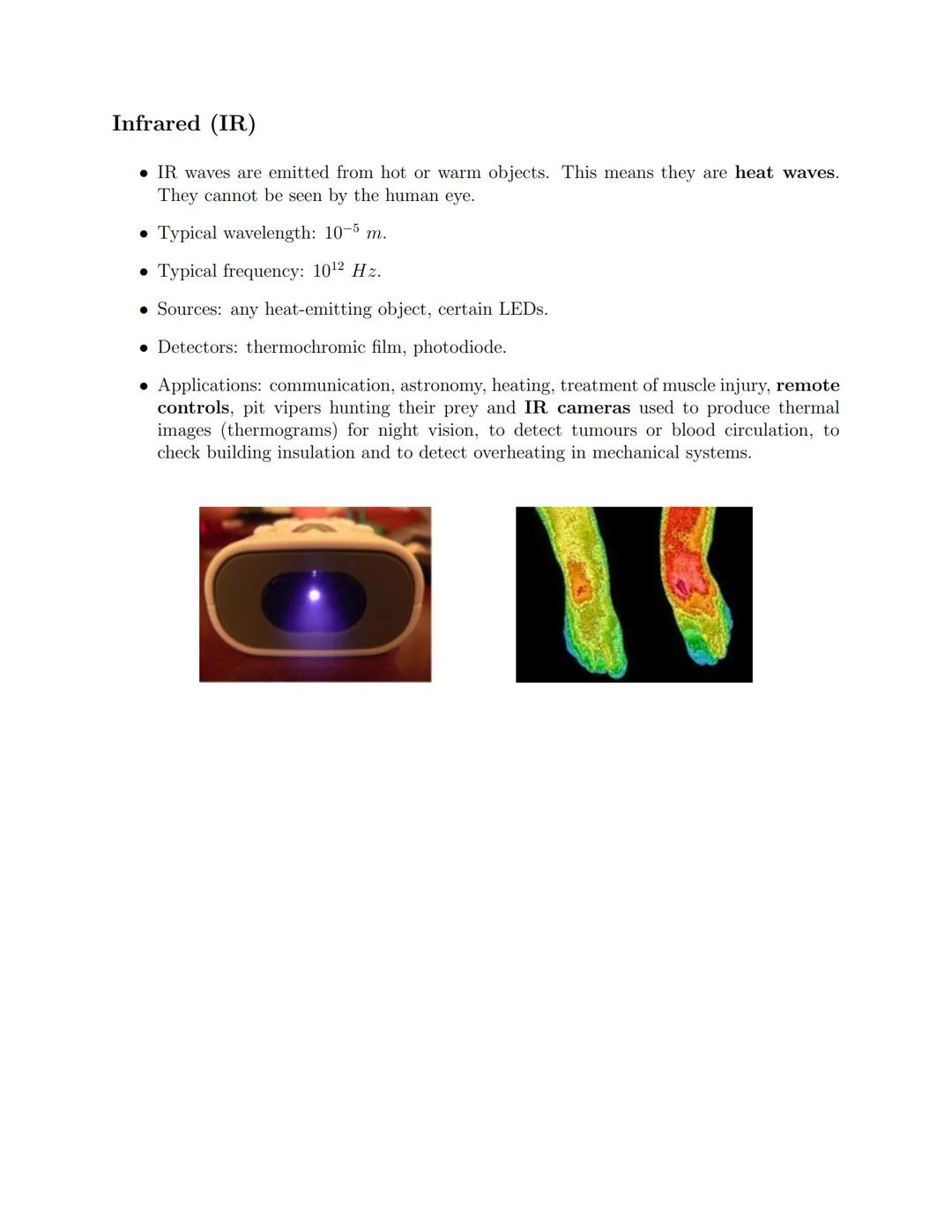

Infrared Radiation
Infrared (IR) waves are essentially heat waves that you can't see but definitely feel. Any warm or hot object emits these waves, making them incredibly common in daily life.
With wavelengths around 10⁻⁵ metres and frequencies of 10¹² Hz, IR radiation bridges the gap between microwaves and visible light. Heat-emitting objects and certain LEDs produce IR waves, which can be detected using thermochromic film or photodiodes.
The applications are brilliant - from TV remote controls to thermal cameras that help doctors detect tumours. Pit vipers use natural IR detection to hunt prey, whilst engineers use thermal imaging to check building insulation and spot overheating machinery.
Real-World Connection: Your body constantly emits infrared radiation - that's how thermal cameras can "see" you in complete darkness!

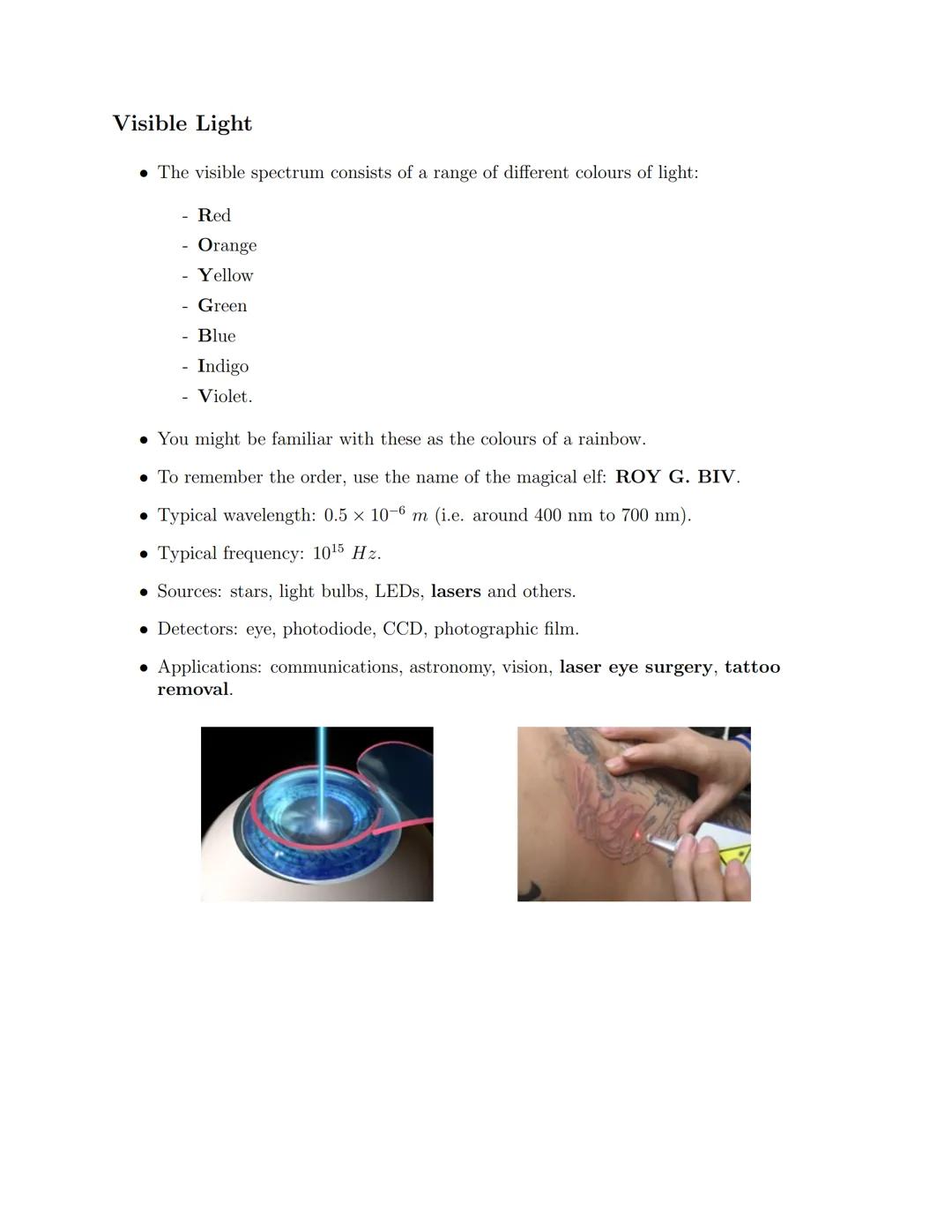

Visible Light
Visible light is the only electromagnetic radiation your eyes can naturally detect. The visible spectrum contains all the colours of the rainbow: Red, Orange, Yellow, Green, Blue, Indigo, and Violet.
Use "ROY G. BIV" to remember the colour order from longest to shortest wavelength. Visible light has wavelengths between 400-700 nanometres (about 0.5 × 10⁻⁶ metres) and frequencies around 10¹⁵ Hz.
Stars, light bulbs, LEDs, and lasers all produce visible light, which we detect with our eyes, photodiodes, or cameras. Beyond just seeing the world, visible light enables fibre optic communications, astronomical observations, laser eye surgery, and even tattoo removal.
Exam Tip: Red light has the longest wavelength and lowest frequency, whilst violet has the shortest wavelength and highest frequency in the visible spectrum.

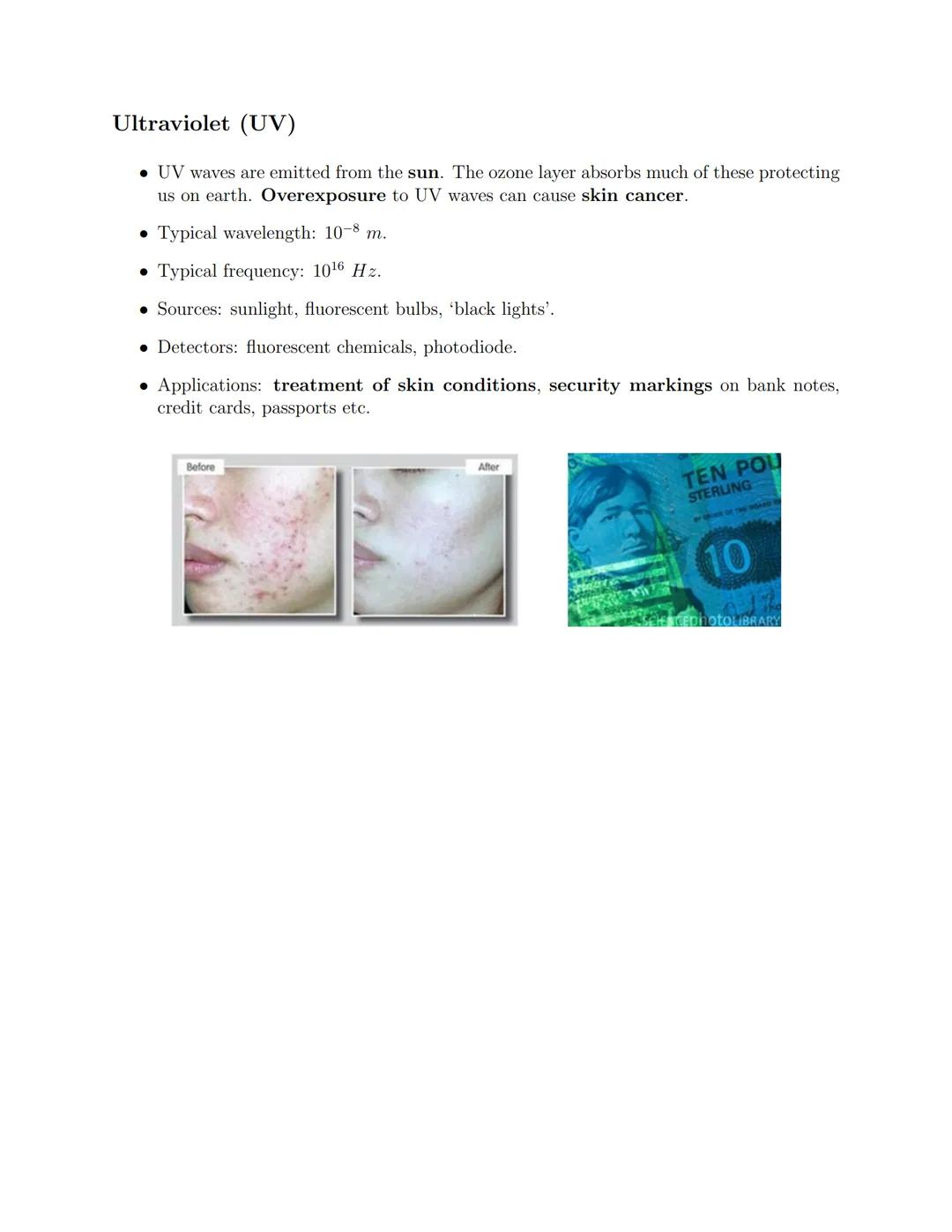

Ultraviolet Radiation
Ultraviolet (UV) radiation from the sun is both beneficial and dangerous. Thankfully, Earth's ozone layer absorbs most harmful UV rays, but overexposure can still cause skin cancer.
UV waves have wavelengths around 10⁻⁸ metres and frequencies of 10¹⁶ Hz. The sun produces most UV radiation, though fluorescent bulbs and 'black lights' also emit these waves.
Fluorescent chemicals and photodiodes can detect UV radiation, making it useful for treating skin conditions and creating security features. You'll find UV-reactive inks on banknotes, credit cards, and passports - they're invisible under normal light but glow under UV lamps.
Safety Note: Always protect your skin from excessive UV exposure - it's much more energetic than visible light and can damage cells.

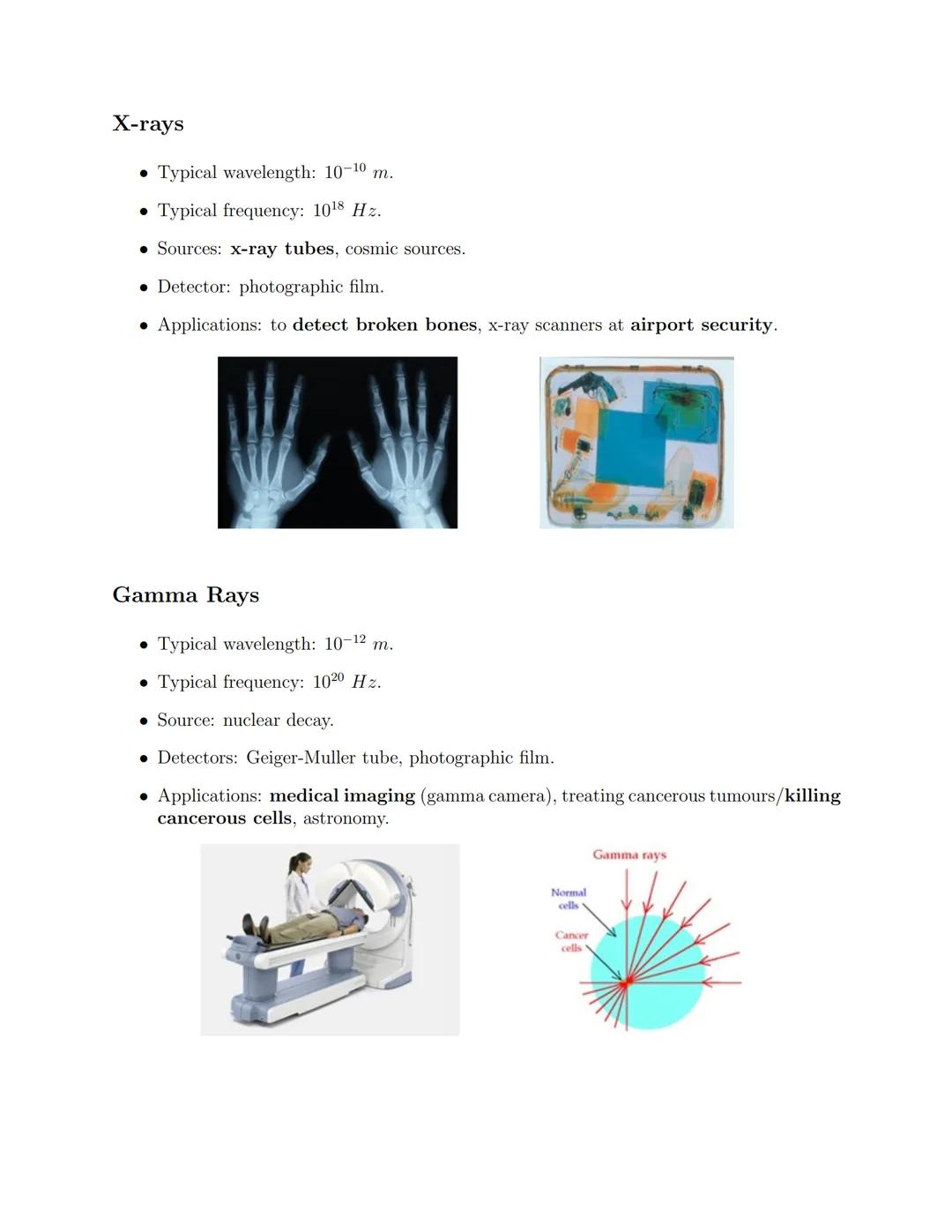

X-rays and Gamma Rays
X-rays pack serious energy with wavelengths of 10⁻¹⁰ metres and frequencies around 10¹⁸ Hz. X-ray tubes and cosmic sources produce these penetrating waves, which photographic film readily detects.
You're probably familiar with medical X-rays for detecting broken bones, but they're also essential for airport security scanners. Gamma rays are even more powerful, with the shortest wavelengths (10⁻¹² metres) and highest frequencies (10²⁰ Hz) in the electromagnetic spectrum.
Nuclear decay produces gamma rays, which Geiger-Muller tubes and photographic film can detect. In medicine, gamma cameras create detailed body images, whilst focused gamma rays destroy cancerous tumours by targeting diseased cells whilst minimising damage to healthy tissue.
Physics Insight: Higher frequency electromagnetic radiation carries more energy - that's why gamma rays can kill cancer cells but radio waves can't.
Summary Table
This handy reference shows all electromagnetic radiation types from lowest to highest frequency. Notice how wavelength decreases as frequency increases across the spectrum.
Each type has specific sources, detection methods, and applications that make them uniquely useful. Radio waves excel at long-distance communication, whilst gamma rays provide powerful medical treatments.
The electromagnetic spectrum demonstrates how the same fundamental phenomenon - electromagnetic waves - can behave so differently based purely on frequency and wavelength. Understanding these patterns will help you predict properties and applications of any electromagnetic radiation.
Revision Strategy: Create your own summary table without looking - it's a perfect way to test your knowledge before exams!
