Understanding Materials in A-Level Physics
Poppy
@poppy.21.11
1 / 9

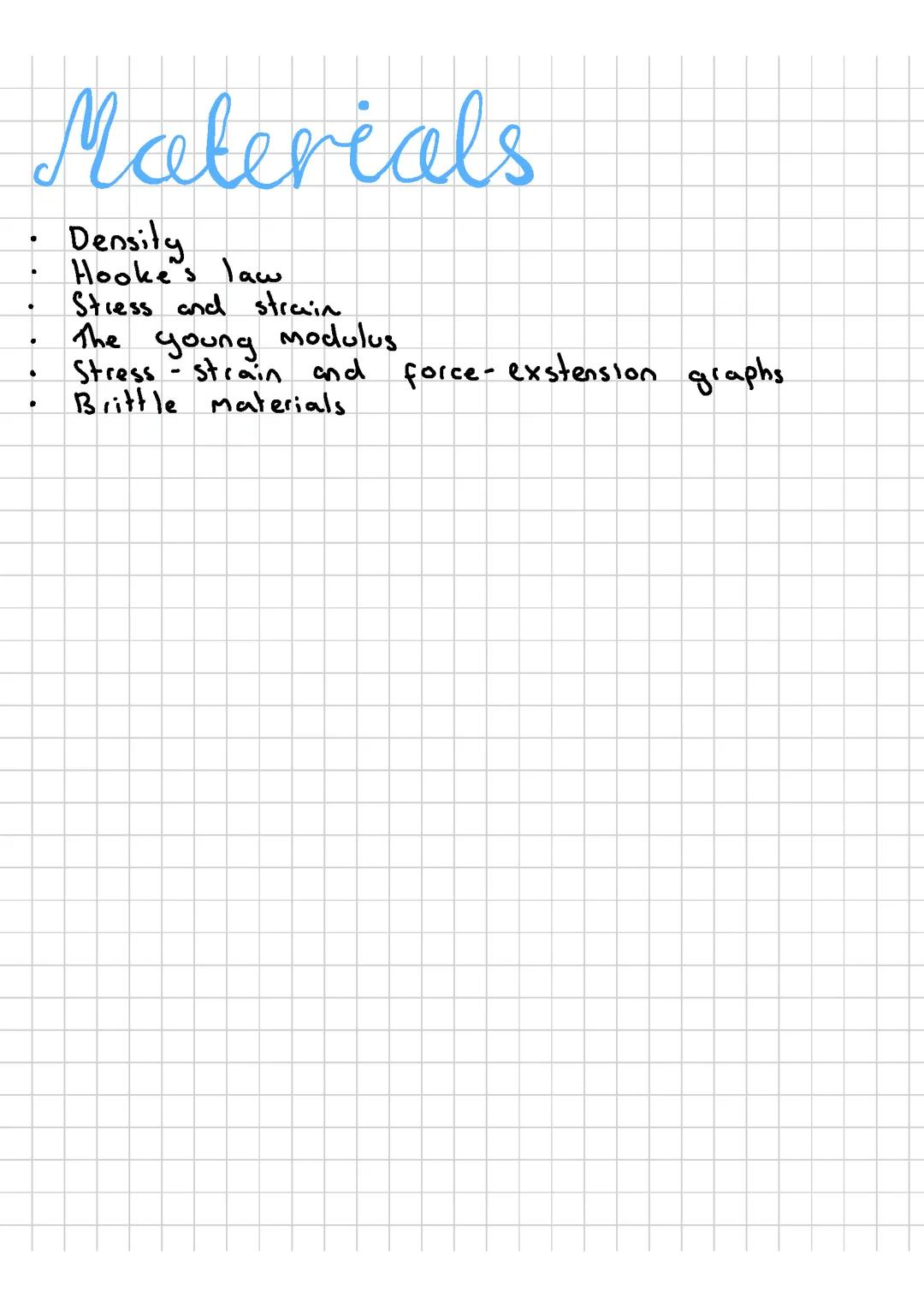

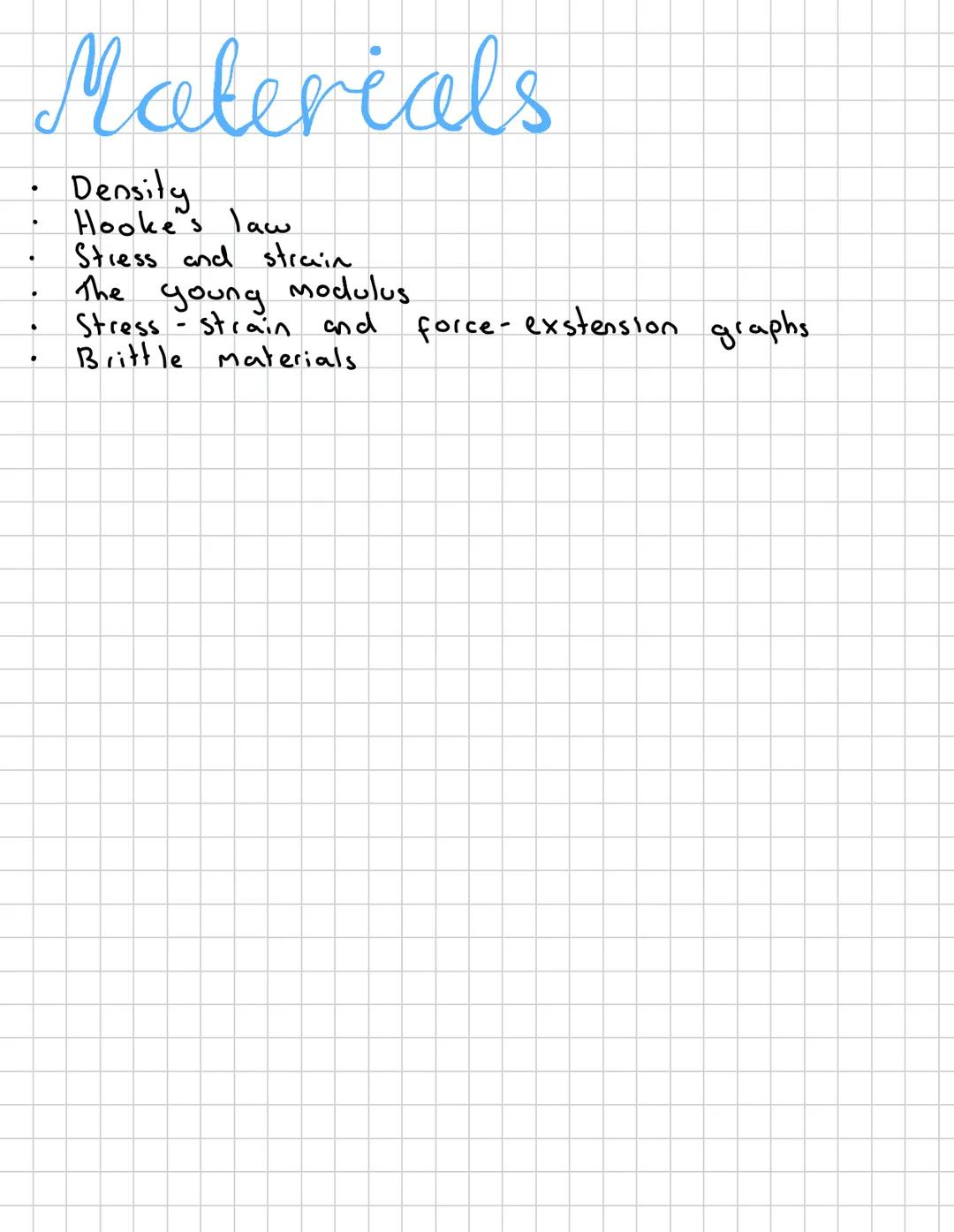

Materials Overview
You'll be diving into six key areas that explain how materials respond to forces and loads. Density tells us about mass distribution, whilst Hooke's law describes how springs and elastic materials behave under tension.
Stress and strain measurements help engineers predict when materials might fail. The Young modulus gives us a way to compare how stiff different materials are.
Understanding stress-strain graphs and force-extension graphs will help you visualise material behaviour. Finally, brittle materials have their own unique way of breaking that's quite different from metals and plastics.
Quick Tip: These concepts build on each other, so mastering the basics like density and Hooke's law will make the more complex topics much easier to understand.

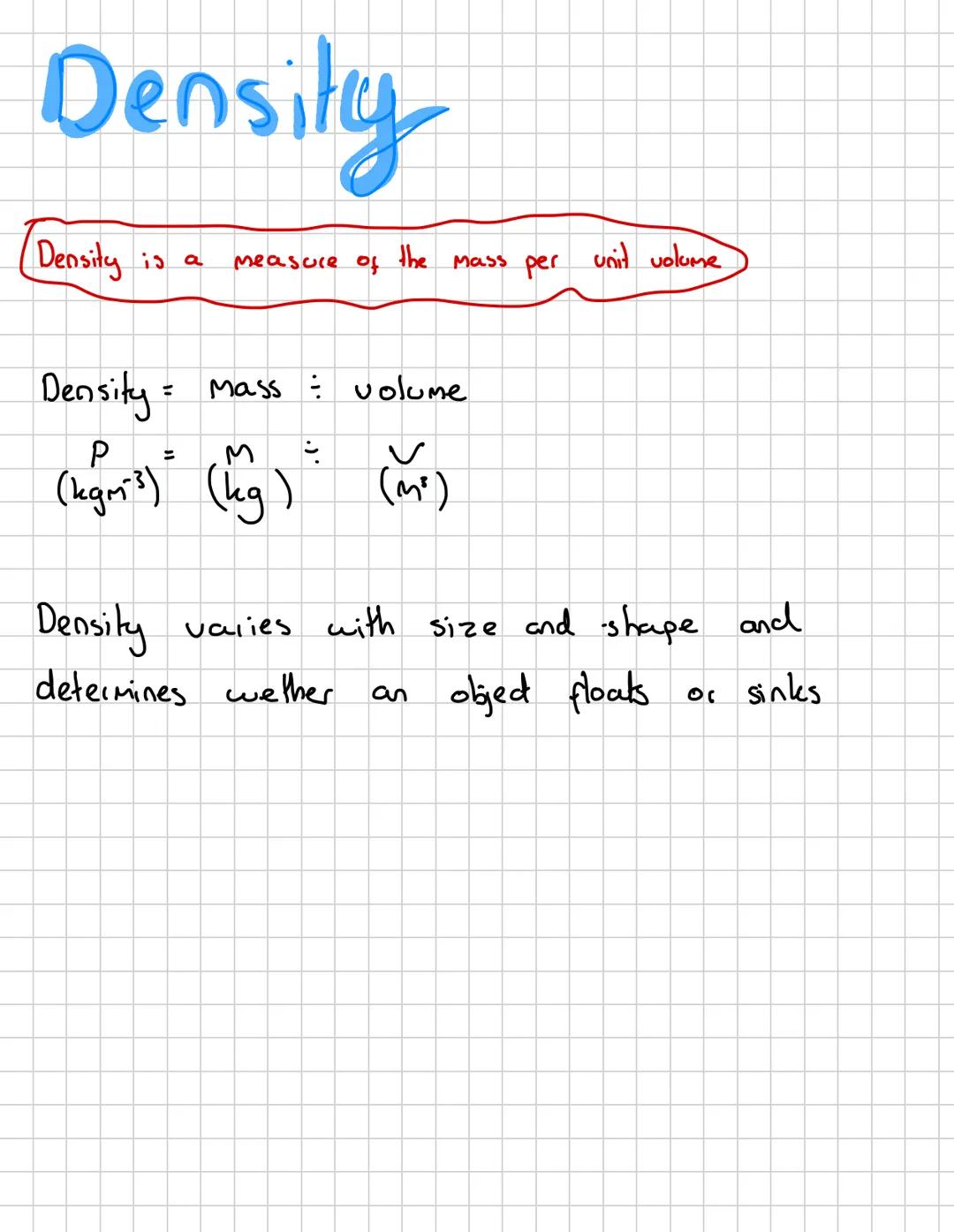

Density
Think about why a small piece of lead feels heavier than a large piece of polystyrene - that's density in action. It's simply how much mass you've got packed into a given volume.
The formula is straightforward: Density = mass ÷ volume . The units are kg/m³, which tells you how many kilograms fit into each cubic metre of material.
Density doesn't change based on the size or shape of an object - a tiny gold nugget has the same density as a massive gold bar. This property determines whether objects float or sink, making it essential for designing ships, submarines, and even hot air balloons.
Remember: Water has a density of 1000 kg/m³, so anything denser will sink, and anything less dense will float.

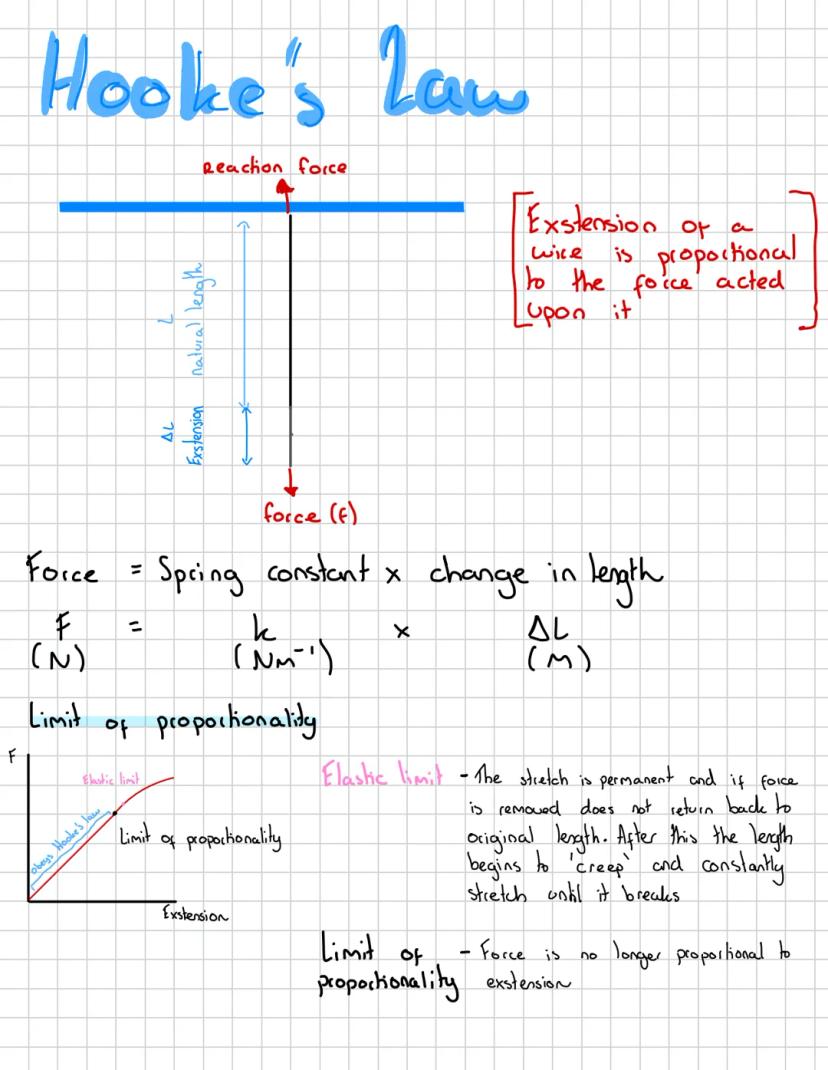

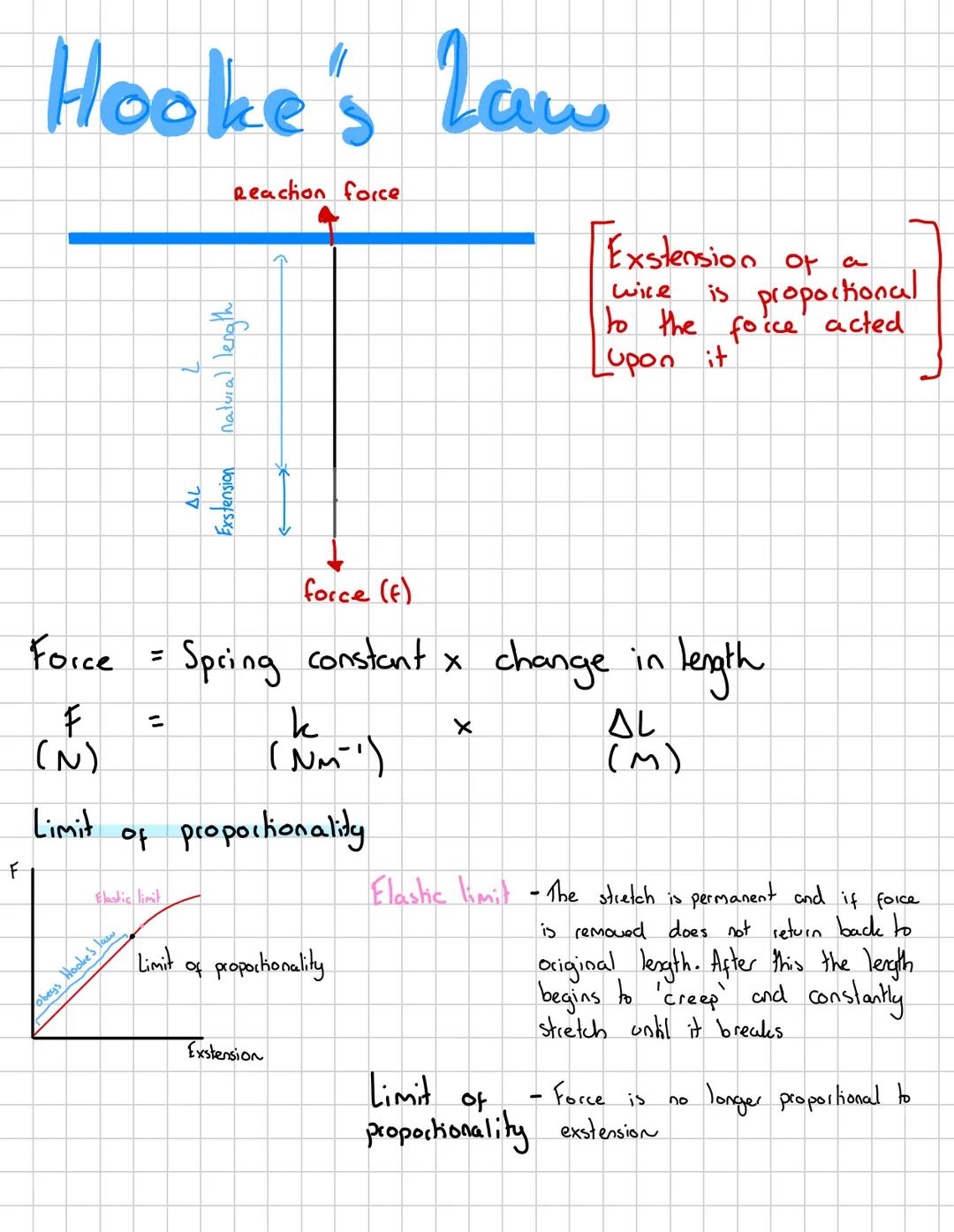

Hooke's Law
Hooke's law describes the relationship between force and extension in elastic materials like springs and rubber bands. The equation is: F = k × ΔL, where k is the spring constant and ΔL is the change in length.
This law only works up to the limit of proportionality, where force and extension are directly proportional. Beyond this point, the material doesn't follow the simple linear relationship anymore.
The elastic limit is even more important - once you stretch past this point, the material won't return to its original length when you remove the force. After the elastic limit, materials begin to 'creep' and stretch continuously until they eventually break.
Key Point: Most exam questions focus on the region before the elastic limit, where Hooke's law applies and materials behave predictably.

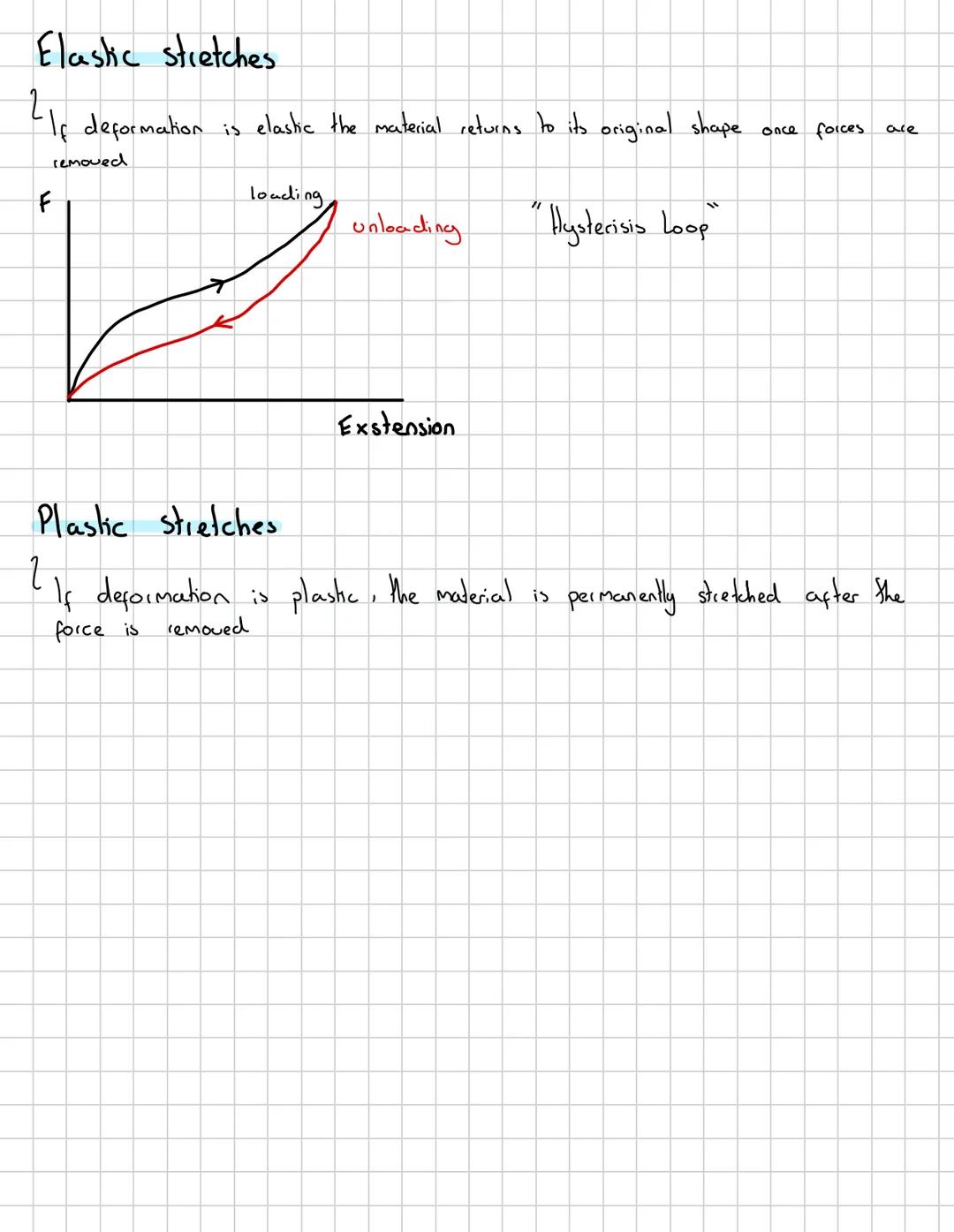

Elastic and Plastic Deformation
Materials can stretch in two fundamentally different ways. Elastic deformation means the material springs back to its original shape when you remove the force - like a rubber band or guitar string.
Plastic deformation is permanent stretching. Once you've bent a paper clip or stretched a piece of plasticine, it stays in that new shape even after removing the force.
On force-extension graphs, elastic behaviour shows the loading and unloading curves following the same path. Plastic behaviour creates a hysteresis loop, where the unloading curve follows a different path, showing that some deformation is permanent.
Real-world Connection: Car crumple zones are designed to deform plastically, absorbing crash energy whilst the passenger compartment remains elastically deformable.

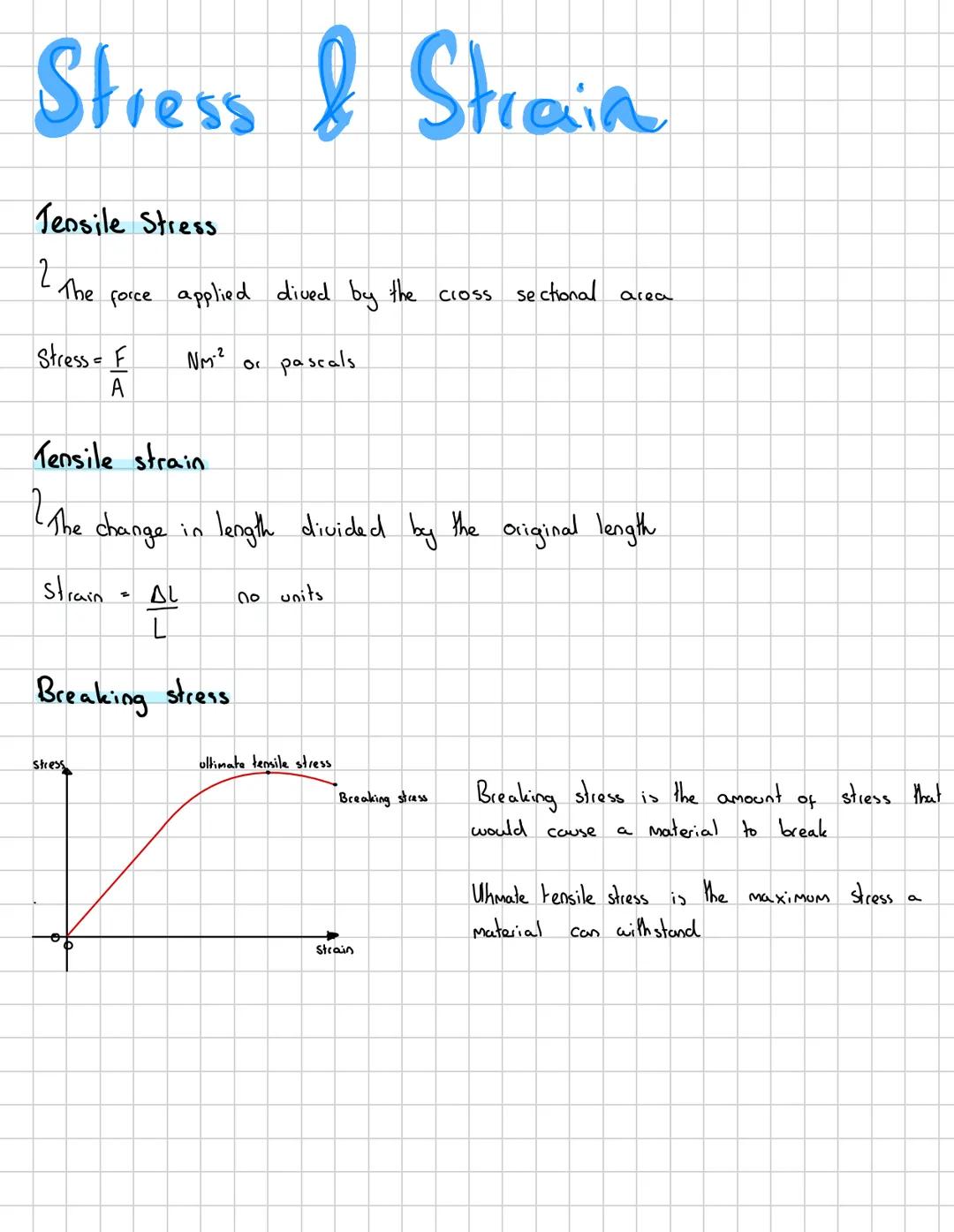

Stress and Strain
Stress and strain allow us to compare materials regardless of their size. Tensile stress is force divided by cross-sectional area , measured in pascals or N/m².
Tensile strain is the change in length divided by original length . Strain has no units because it's a ratio - it tells you the percentage change in length.
Breaking stress is the stress level that causes complete failure, whilst ultimate tensile stress is the maximum stress a material can handle before it starts to weaken. These values help engineers choose appropriate materials for different applications.
Exam Tip: Remember that stress depends on the cross-sectional area, so thicker wires can handle more force before breaking.

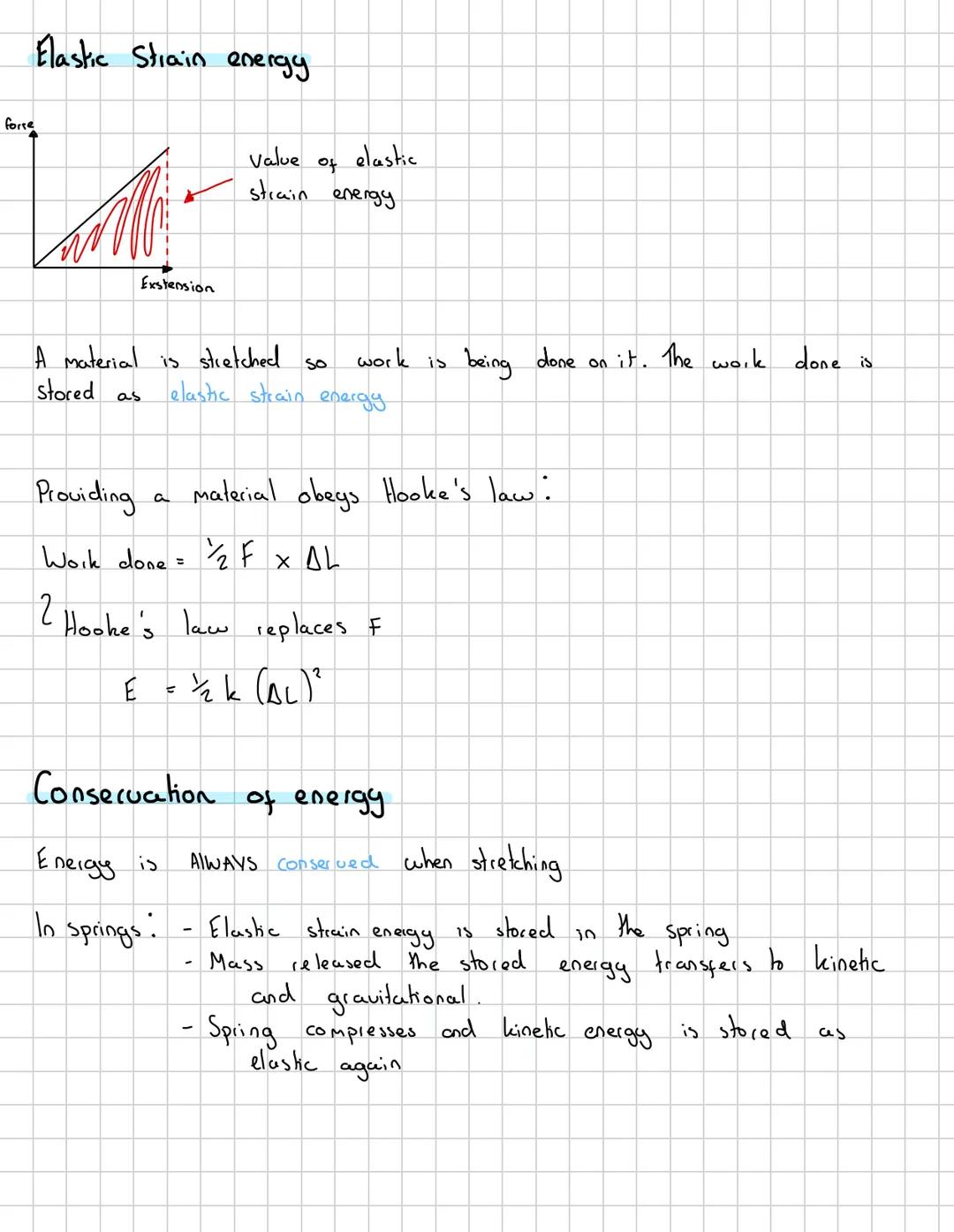

Elastic Strain Energy
When you stretch a material, you're doing work against the internal forces, and this energy gets stored as elastic strain energy. For materials obeying Hooke's law, the work done equals ½FΔL or ½k(ΔL)².
This stored energy can be released when the material returns to its original shape. Springs in car suspension systems work this way - they store energy when compressed and release it to smooth out bumps.
Conservation of energy applies throughout the stretching process. In oscillating springs, energy constantly converts between elastic strain energy, kinetic energy, and gravitational potential energy, but the total remains constant (ignoring friction).
Practical Application: Understanding elastic strain energy is crucial for designing everything from trampolines to earthquake-resistant buildings.

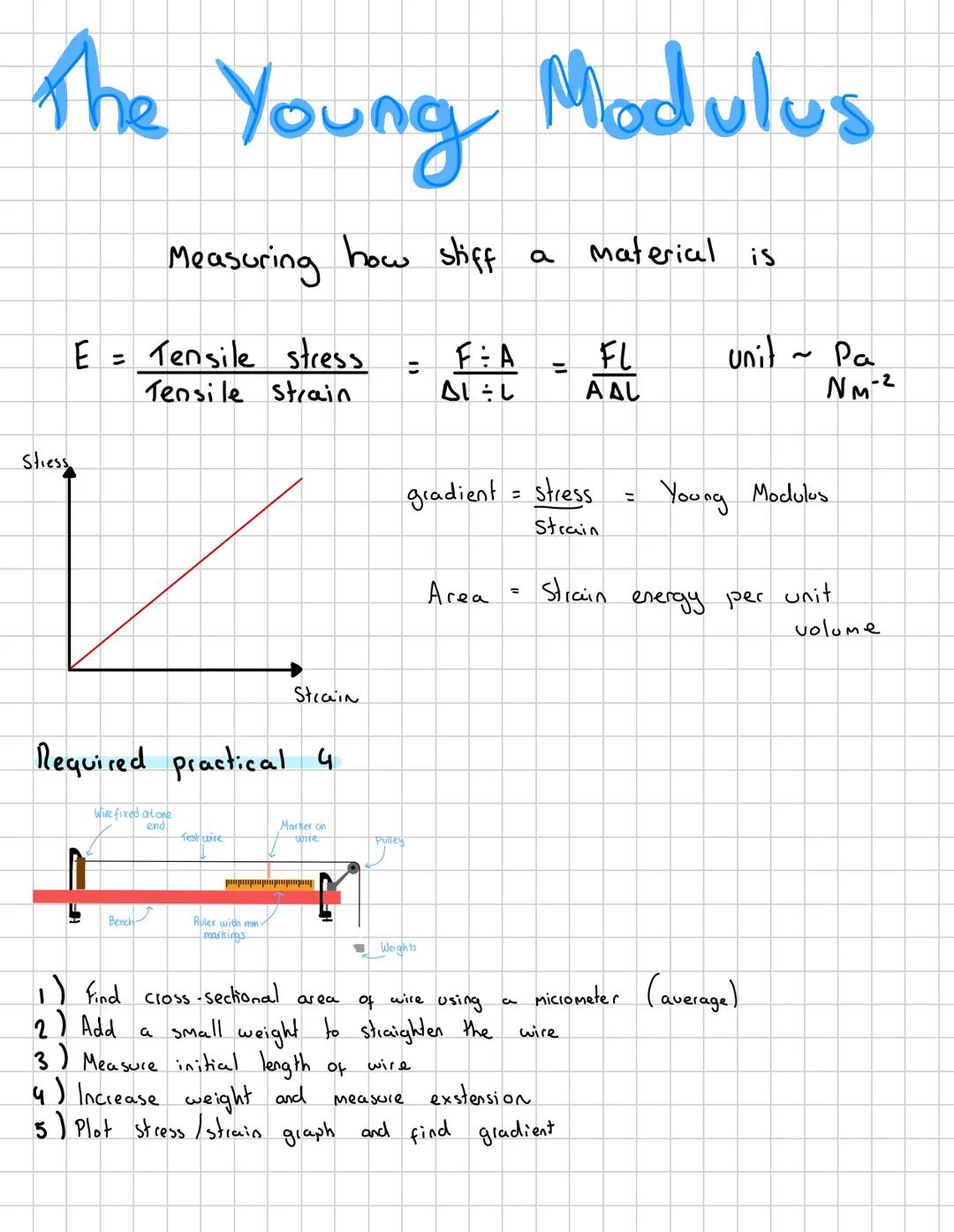

The Young Modulus
The Young modulus measures material stiffness - how much a material resists stretching. The formula is E = stress/strain = FL/(AΔL), with units of pascals.
On a stress-strain graph, the Young modulus is the gradient of the linear portion. Stiffer materials like steel have high Young modulus values, whilst flexible materials like rubber have low values.
Required Practical 4 involves measuring the Young modulus of a wire. You'll need to find the cross-sectional area with a micrometer, measure extensions for different loads, and plot stress against strain to find the gradient.
Method Tip: Take multiple diameter measurements and average them - wire isn't perfectly circular, so this improves accuracy significantly.

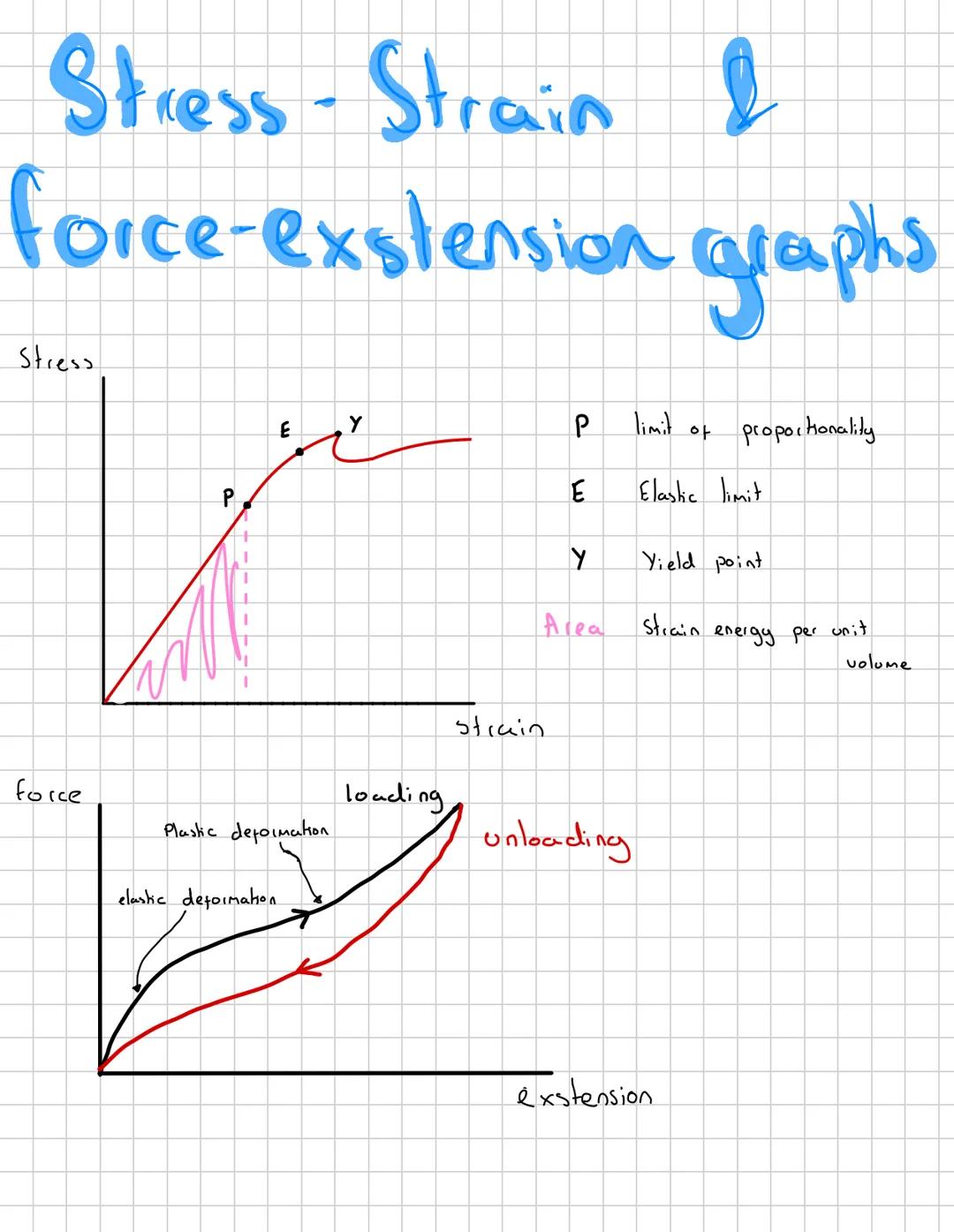

Stress-Strain and Force-Extension Graphs
These graphs reveal everything about how materials behave under load. Key points include P (limit of proportionality), E (elastic limit), and Y (yield point, where rapid plastic deformation begins).
The area under a stress-strain curve represents strain energy per unit volume - incredibly useful for comparing energy storage in different materials. The area under a force-extension curve gives the total energy stored.
Loading and unloading curves help distinguish between elastic and plastic behaviour. Elastic materials follow the same path both ways, whilst plastic deformation creates loops showing permanent stretching.
Graph Skills: Practice identifying these key points on different materials - they're frequently tested and essential for understanding material behaviour.

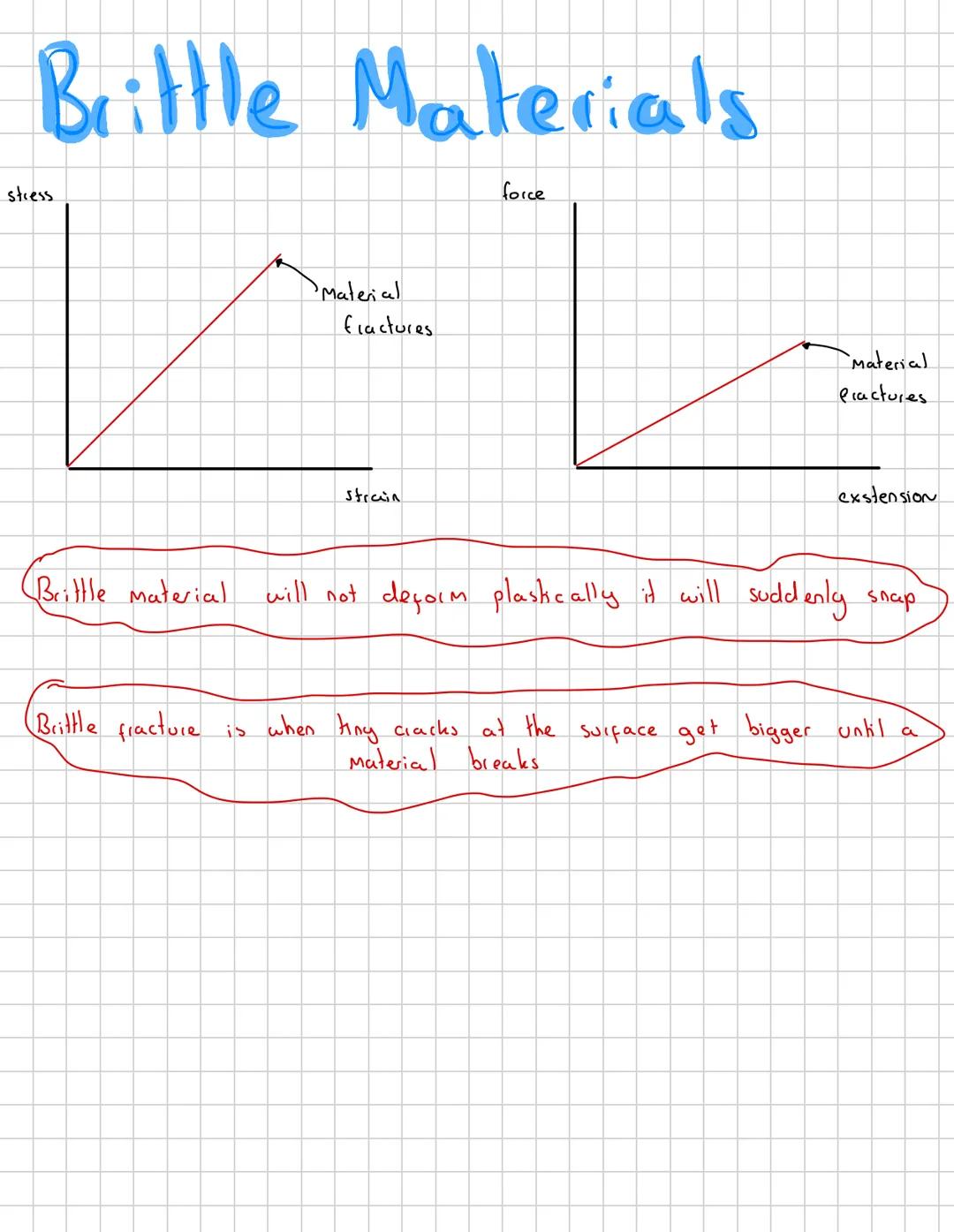

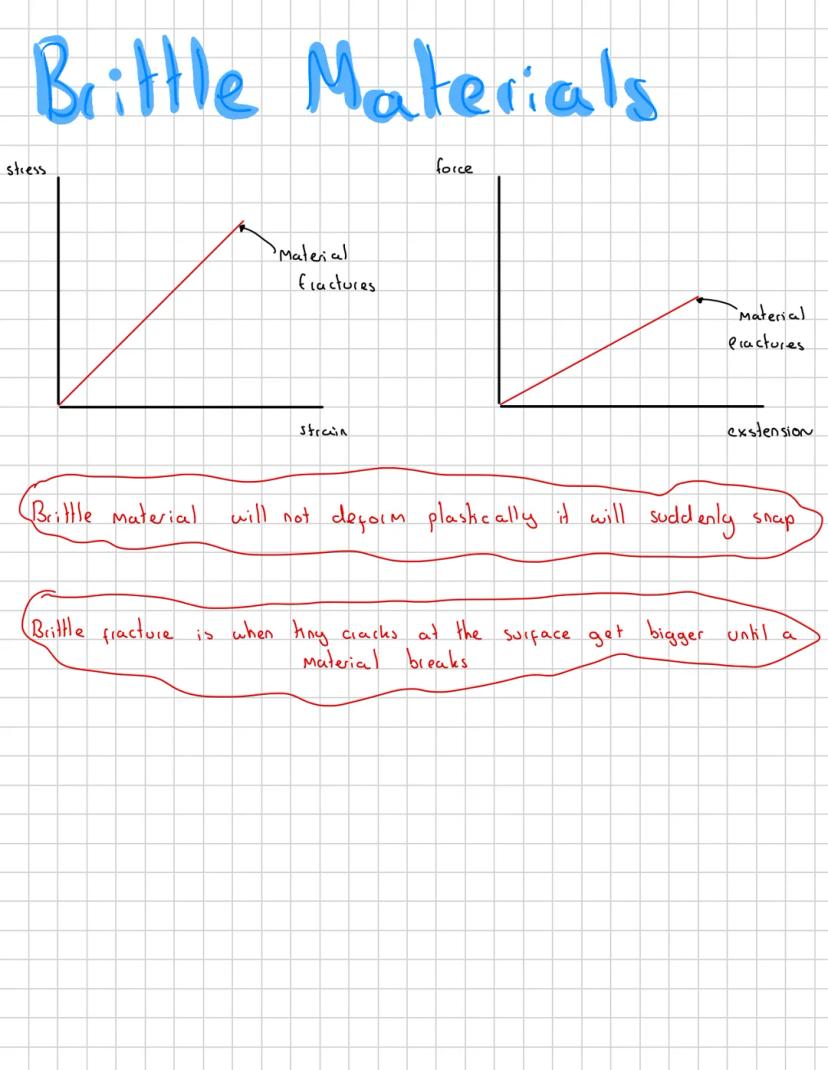

Brittle Materials
Brittle materials like glass, ceramics, and cast iron behave very differently from metals and plastics. They don't deform plastically - instead, they suddenly snap with little warning.
Brittle fracture occurs when tiny surface cracks grow rapidly until the material fails completely. This makes brittle materials unpredictable and potentially dangerous in structural applications.
On stress-strain graphs, brittle materials show a steep linear relationship followed by sudden failure. There's no plastic deformation region - they go straight from elastic behaviour to complete fracture.
Safety Note: Brittle materials can store significant elastic energy before failing, making their sudden fracture potentially dangerous in engineering applications.
