Understanding Forces in GCSE Physics: Core Concepts and Calculations

Forces are fundamental to understanding how objects interact in the physical world. When studying Forces GCSE Physics questions, it's essential to grasp both basic and complex concepts that govern force interactions.

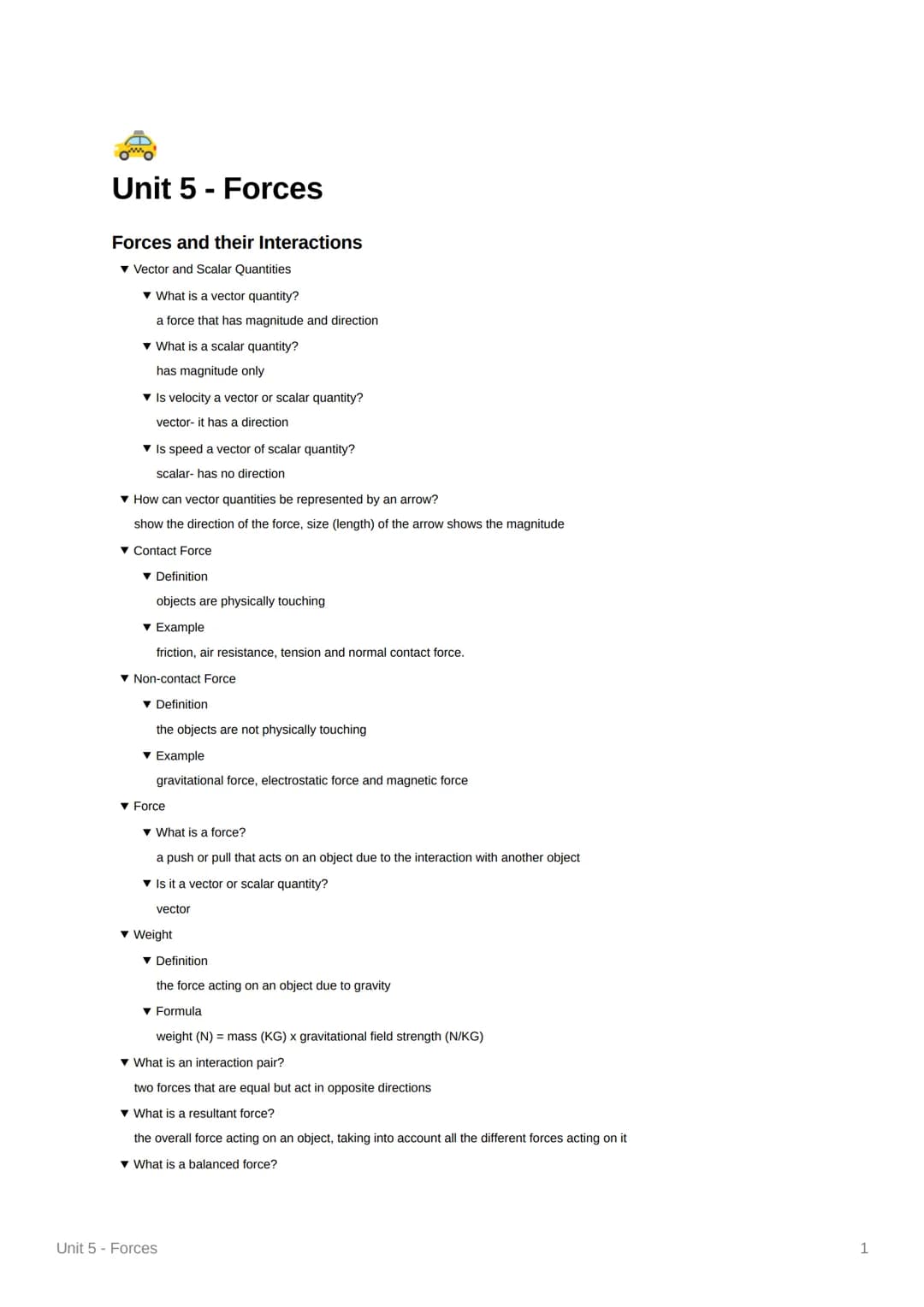

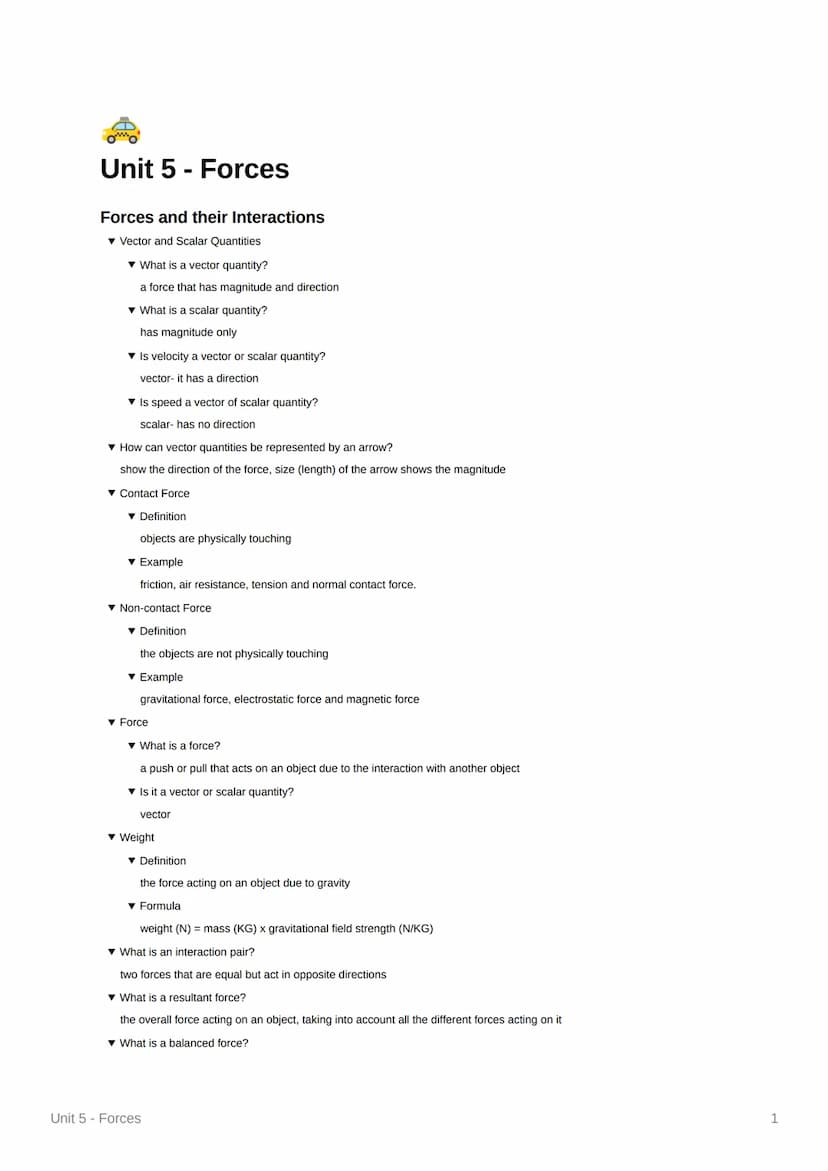

Definition: A force is a push or pull that acts on an object due to interaction with another object. Forces are vector quantities, meaning they have both magnitude and direction.

Vector and scalar quantities form the foundation of force measurements. Vector quantities like velocity and force have both magnitude and direction, while scalar quantities like speed and distance only have magnitude. This distinction is crucial when solving Forces GCSE Physics Combined problems.

When representing forces visually, arrows are used to show both direction and magnitude. The length of the arrow indicates the force's strength, while its orientation shows the direction. This visual representation helps in understanding resultant force calculations, which is the overall force acting on an object when multiple forces are involved.

Example: When pushing a box across a floor, multiple forces act simultaneously:

• The push force in the horizontal direction
• Friction force opposing the motion
• The weight force acting downward
• The normal reaction force from the floor acting upward

Forces and Their Interactions: Contact and Non-Contact Forces

Understanding the different types of forces and their interactions is crucial for mastering AQA GCSE Physics Forces questions and answers. Forces can be classified into two main categories: contact forces and non-contact forces.

Vocabulary: Contact forces occur when objects physically touch each other, including:

• Friction
• Air resistance
• Tension
• Normal contact force

Non-contact forces act between objects without physical contact. These include gravitational force, electrostatic force, and magnetic force. This concept is particularly important when studying resultant force GCSE problems and understanding force field interactions.

The concept of interaction pairs is fundamental to force analysis. These are equal but opposite forces acting between two objects, following Newton's Third Law. This principle is essential when solving how to calculate resultant force with mass and acceleration problems.

Force Calculations and Practical Applications

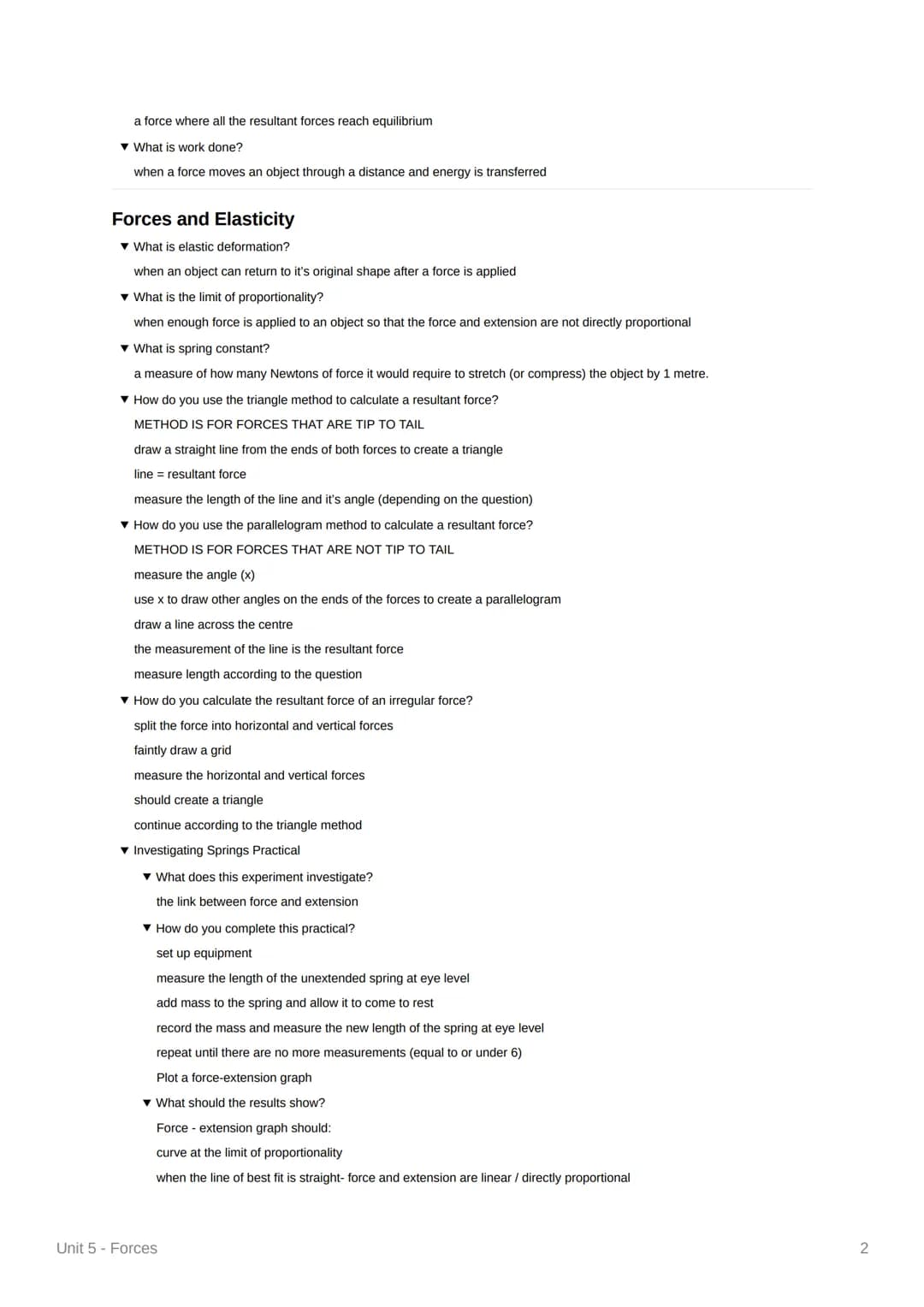

When working with resultant force formula calculations, several methods can be employed depending on the force arrangement. The triangle method works for tip-to-tail force arrangements, while the parallelogram method is used when forces act from a common point.

Highlight: The formula for weight calculation is: Weight (N) = Mass (kg) × Gravitational field strength $N/kg$

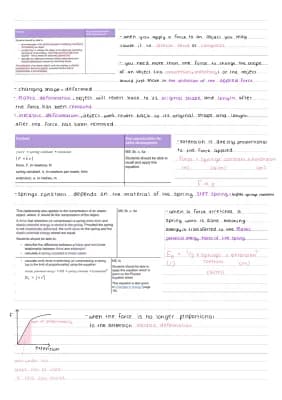

Understanding elastic deformation and spring constants is crucial for practical applications. The spring constant (k) represents how many Newtons of force are needed to stretch or compress an object by one meter. This relates to Hooke's Law and is essential for solving Forces GCSE Physics questions.

Example: When investigating springs:

1. Measure unextended spring length
2. Add masses incrementally
3. Record extension for each mass
4. Plot force-extension graph
5. Calculate spring constant from gradient

Advanced Force Concepts and Motion

Motion analysis involves understanding the relationship between various quantities. What is resultant force in Physics becomes clear when studying the relationships between force, mass, and acceleration.

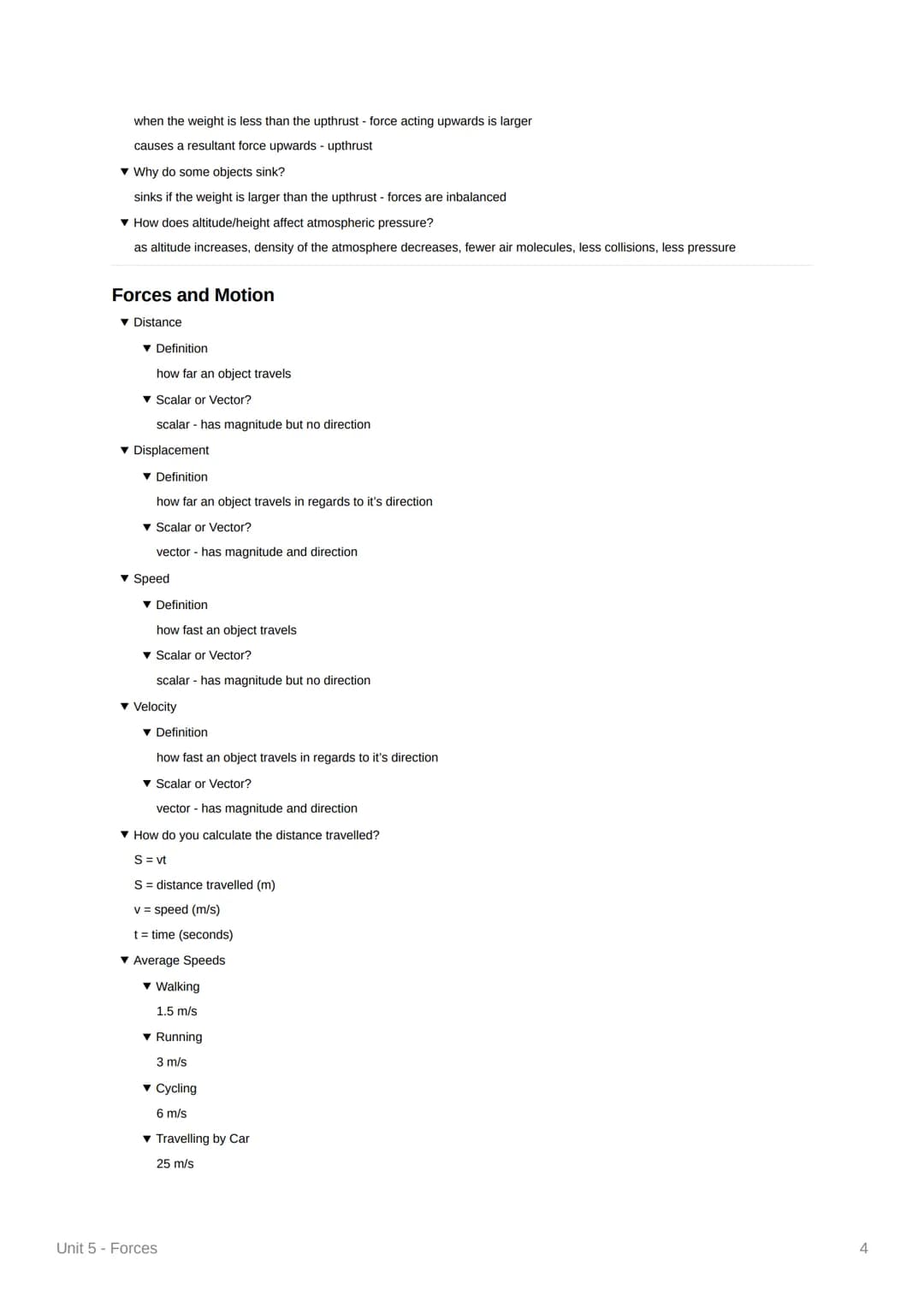

Definition: Speed is a scalar quantity measuring how fast an object travels, while velocity is a vector quantity including both speed and direction.

Typical average speeds provide context for motion problems:

• Walking: 1.5 m/s
• Running: 3 m/s
• Cycling: 6 m/s
• Car travel: 25 m/s

Understanding pressure calculations and fluid dynamics completes the force concept framework. Pressure depends on force and area according to the formula P = F/A, where pressure is measured in Pascals, force in Newtons, and area in square meters.

Understanding Forces and Motion in GCSE Physics

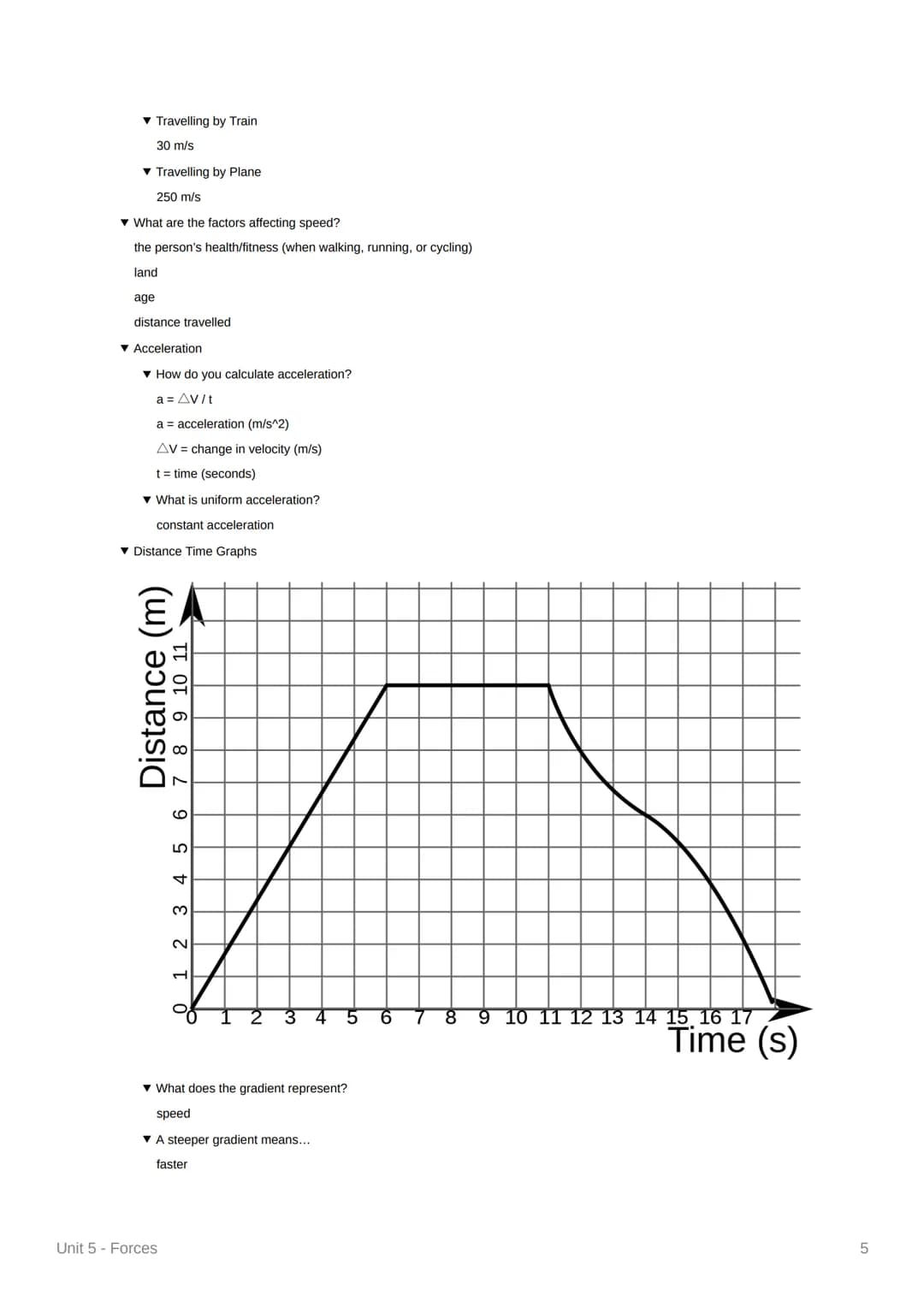

Forces and motion form fundamental concepts in GCSE Physics forces revision notes. When studying motion, we first need to understand speed and velocity. Different modes of transportation demonstrate varying speeds - trains typically travel at 30 m/s while planes cruise at approximately 250 m/s. Several factors influence speed, including terrain conditions, distance covered, and in the case of human movement, physical fitness and age.

Definition: Acceleration is the rate of change of velocity over time, calculated using the formula a = Δv/t, where 'a' is acceleration $m/s²$, 'Δv' is change in velocity $m/s$, and 't' is time in seconds.

Understanding graphs is crucial for analyzing motion. Distance-time graphs show the relationship between distance traveled and time taken. The gradient of these graphs represents speed - a steeper gradient indicates faster motion. When the line is horizontal, the object is stationary, while a straight upward line indicates constant speed. Curved lines suggest acceleration or deceleration.

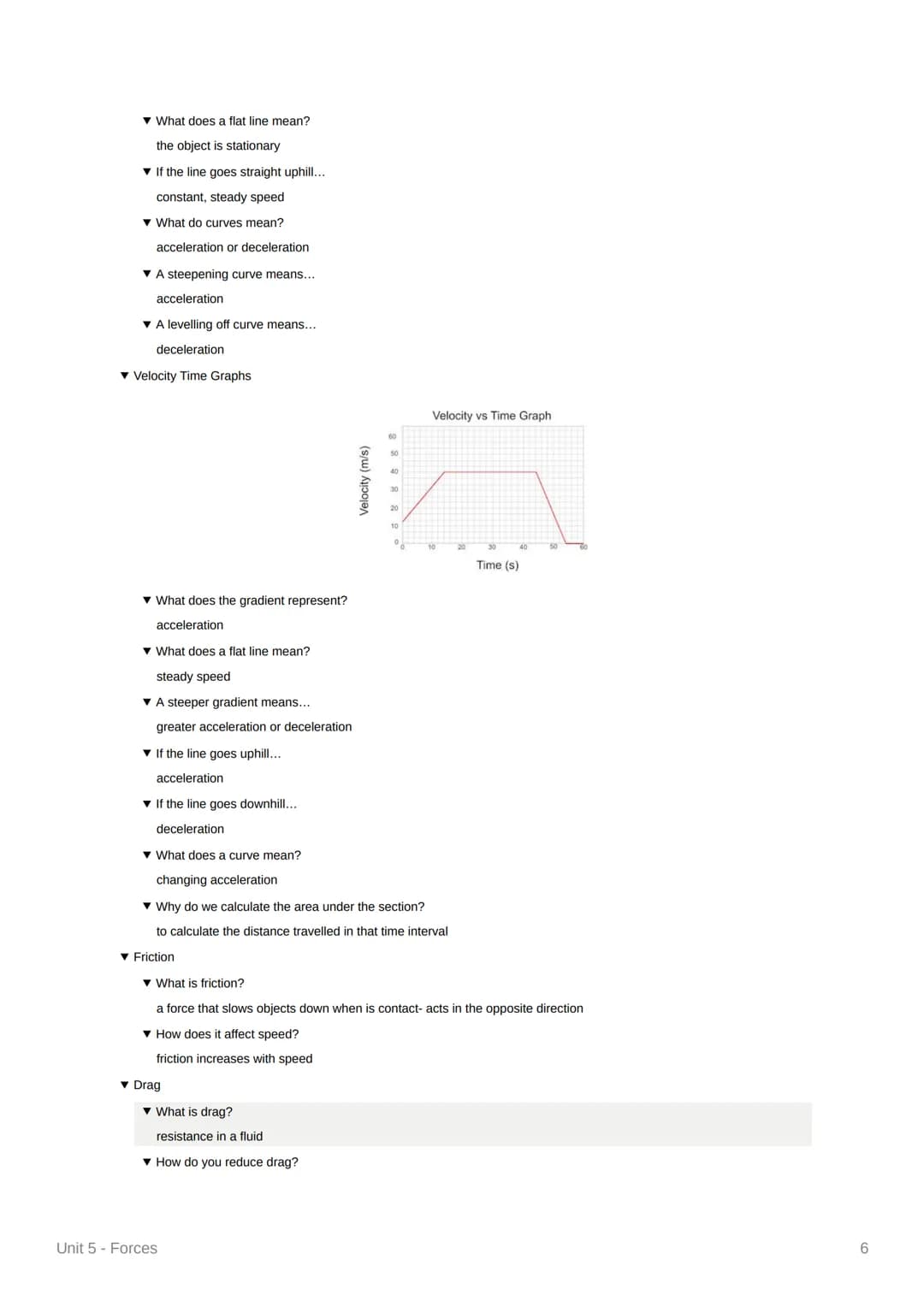

Example: In a velocity-time graph, the gradient represents acceleration. A horizontal line shows constant velocity, while upward slopes indicate acceleration and downward slopes show deceleration. The area under the curve gives the total distance traveled.

Forces and Their Effects on Motion

Resultant force GCSE concepts are essential for understanding motion. The formula for resultant force with angle helps calculate the overall force acting on an object. Friction and drag are two important forces that affect motion in opposite directions to movement.

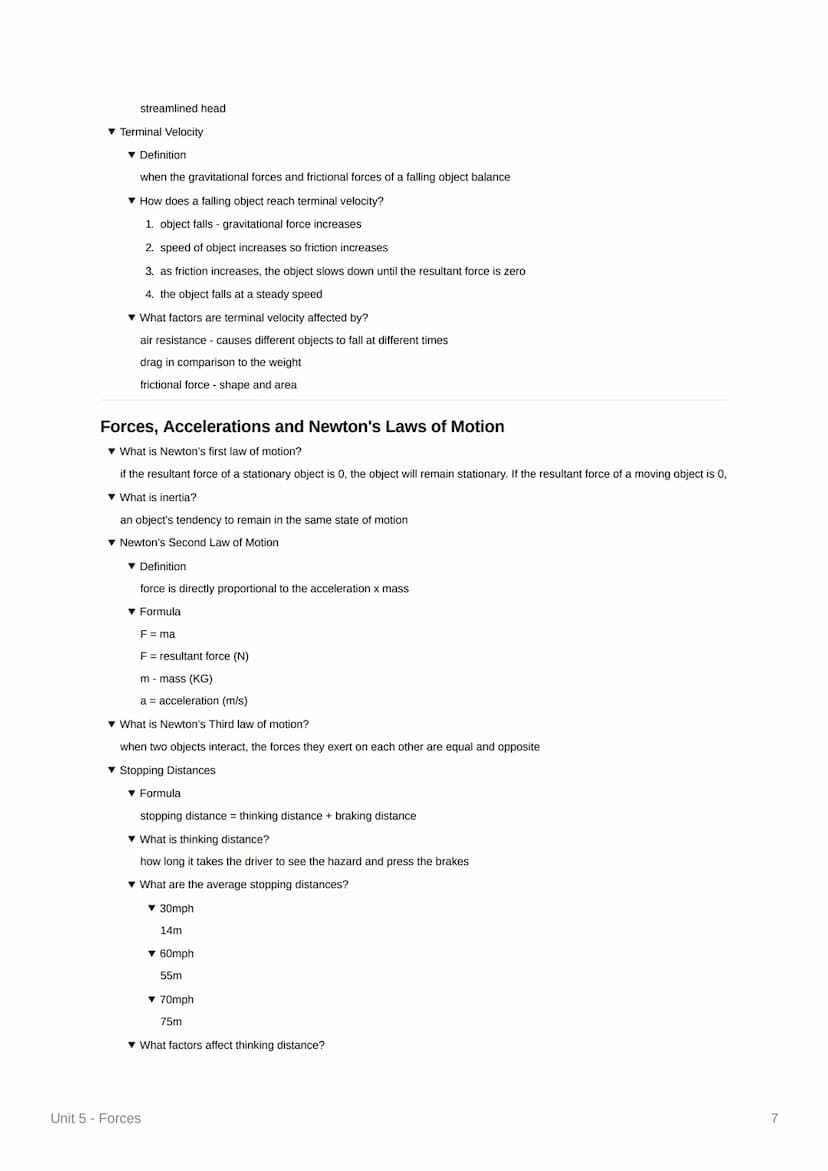

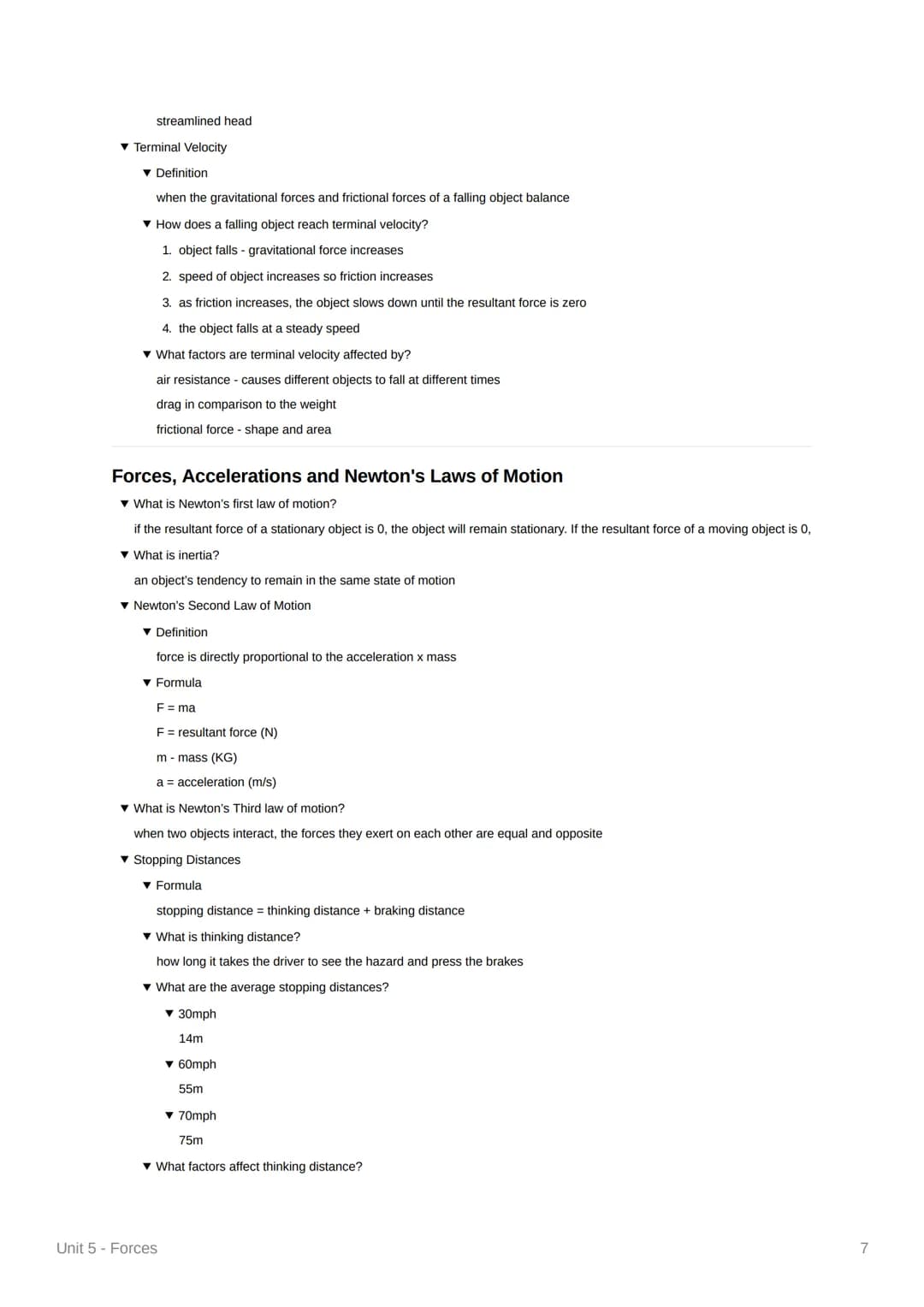

Highlight: Terminal velocity occurs when gravitational forces balance with frictional forces on a falling object. This happens through a process where:

1. The object initially accelerates due to gravity
2. Air resistance increases with speed
3. Eventually, forces balance and the object maintains constant velocity

Newton's Laws of Motion provide the foundation for understanding force relationships. The First Law introduces inertia - an object's tendency to maintain its state of motion. The Second Law, expressed as F = ma, shows how resultant force formula relates to mass and acceleration. The Third Law states that forces always occur in equal and opposite pairs.

Vocabulary: Inertia is the property of matter that causes it to resist changes in its state of motion.

Stopping Distances and Safety in Motion

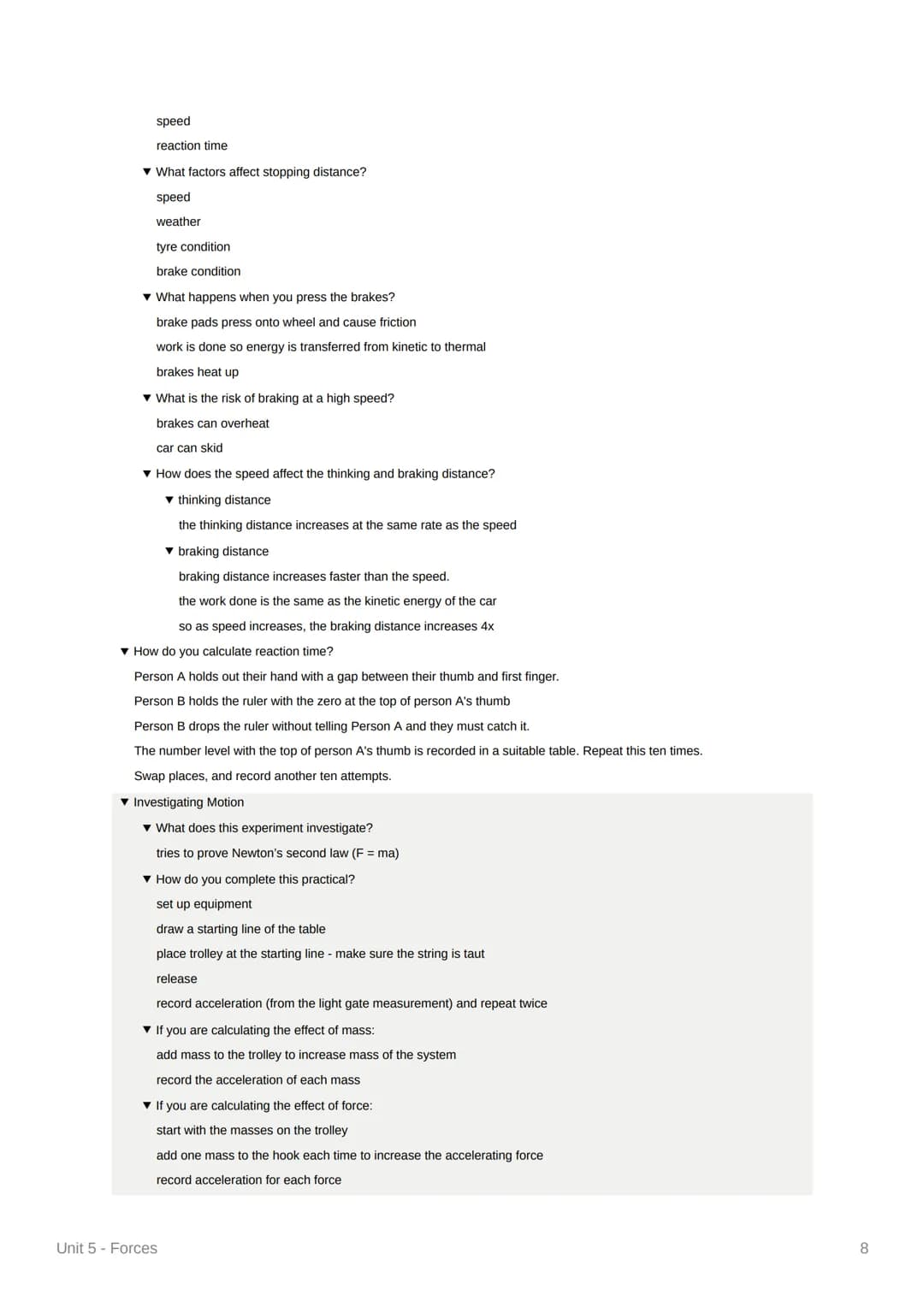

Understanding stopping distances is crucial for Forces GCSE Physics Combined studies. The total stopping distance equals thinking distance plus braking distance. At 30 mph, the average stopping distance is 14m, increasing to 55m at 60 mph and 75m at 70 mph.

Definition: Thinking distance is the distance traveled while the driver processes the hazard and initiates braking action. Braking distance is the distance needed for the vehicle to stop completely once brakes are applied.

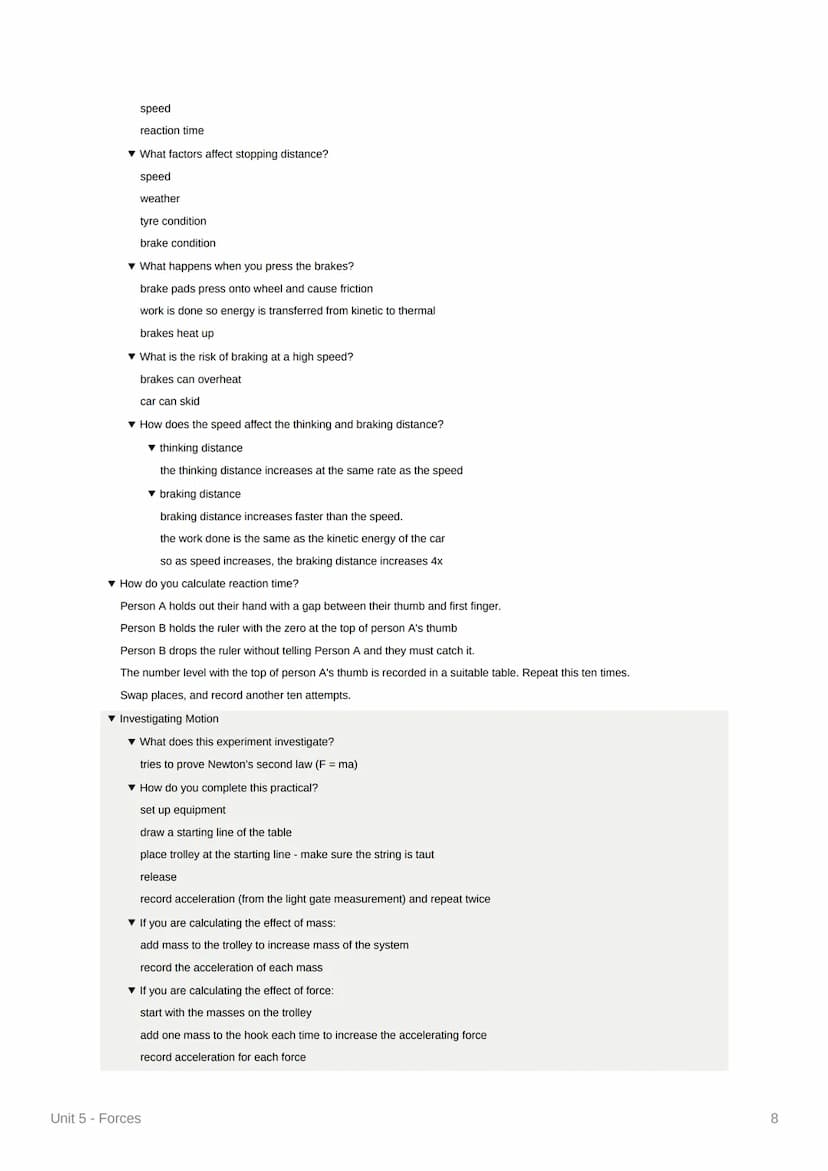

Various factors affect stopping distances. Speed significantly impacts both thinking and braking distances - while thinking distance increases linearly with speed, braking distance increases quadratically. Weather conditions, tire condition, and brake effectiveness also play crucial roles.

Example: When speed doubles, thinking distance doubles, but braking distance quadruples because it depends on the kinetic energy, which is proportional to velocity squared.

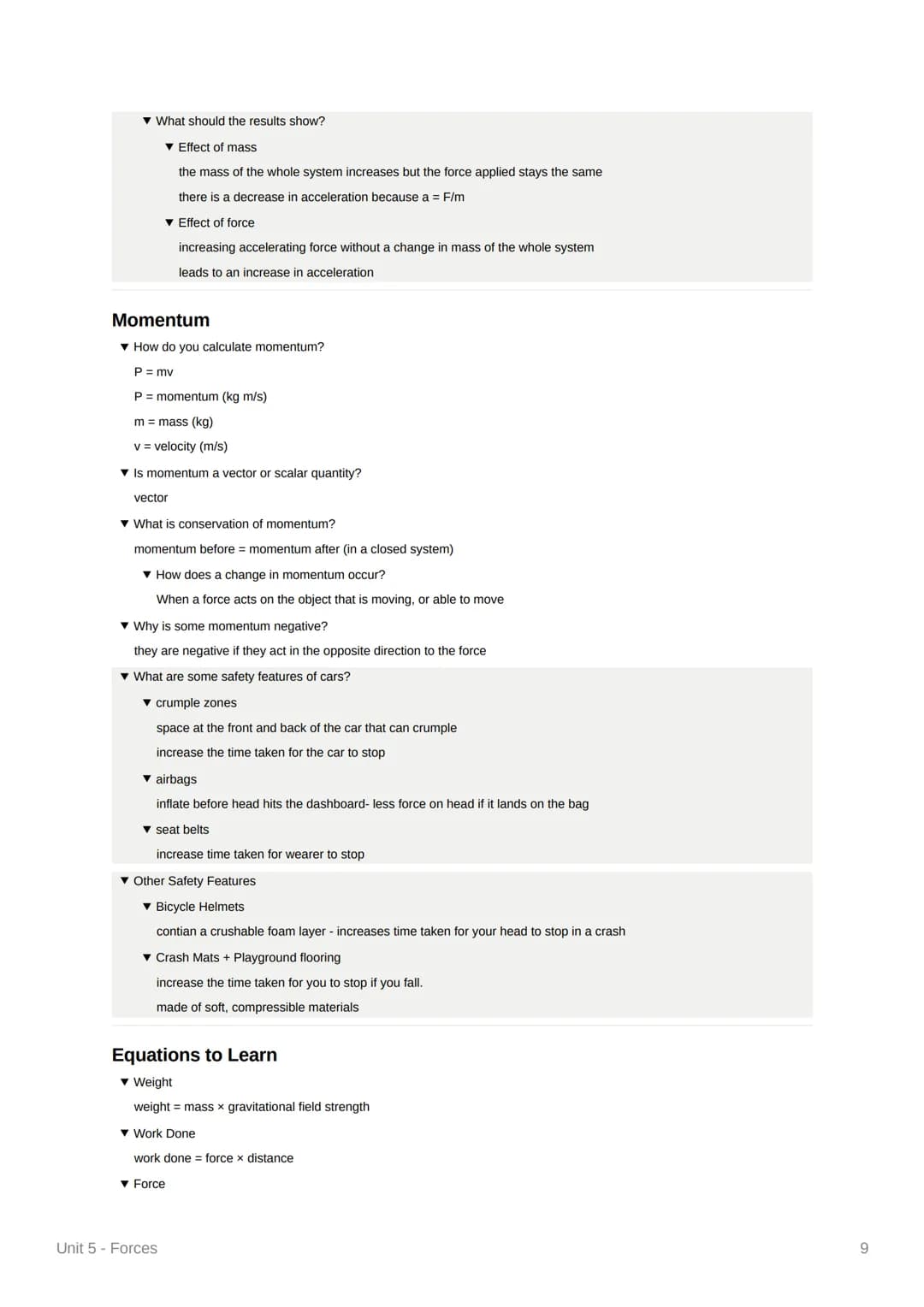

Momentum and Safety Features

In AQA GCSE Physics Forces questions and answers, momentum calculations play a vital role. Momentum (P) is calculated using P = mv, where 'm' is mass in kg and 'v' is velocity in m/s. The conservation of momentum principle states that total momentum remains constant in a closed system.

Highlight: Safety features in vehicles work by manipulating momentum changes:

• Crumple zones extend the time of impact
• Airbags reduce the force of impact by increasing stopping time
• Seatbelts distribute the stopping force over a larger area

Vehicle safety features demonstrate practical applications of force and momentum principles. Crumple zones and airbags increase the time taken for a change in momentum, reducing the force experienced during collisions. Similar principles apply to bicycle helmets and playground safety equipment.

Definition: Conservation of momentum states that in a closed system, the total momentum before an interaction equals the total momentum after the interaction.

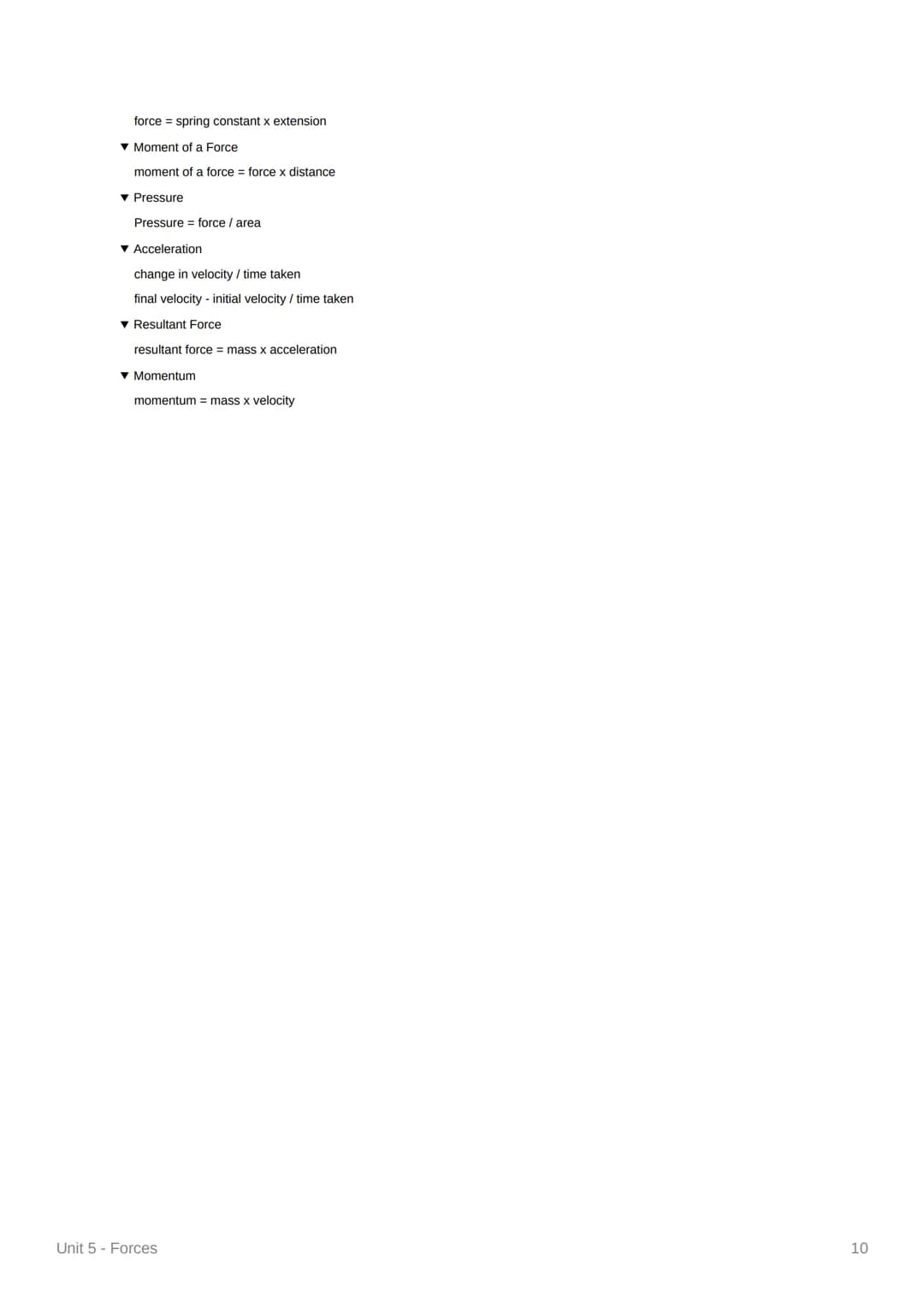

Understanding Key Force Equations in Physics

The study of forces in GCSE Physics forces involves several crucial equations that help us understand how objects interact and move. The relationship between force and extension in springs follows Hooke's Law, where the force exerted equals the spring constant multiplied by the extension. This fundamental principle helps explain everything from car suspensions to bungee jumping.

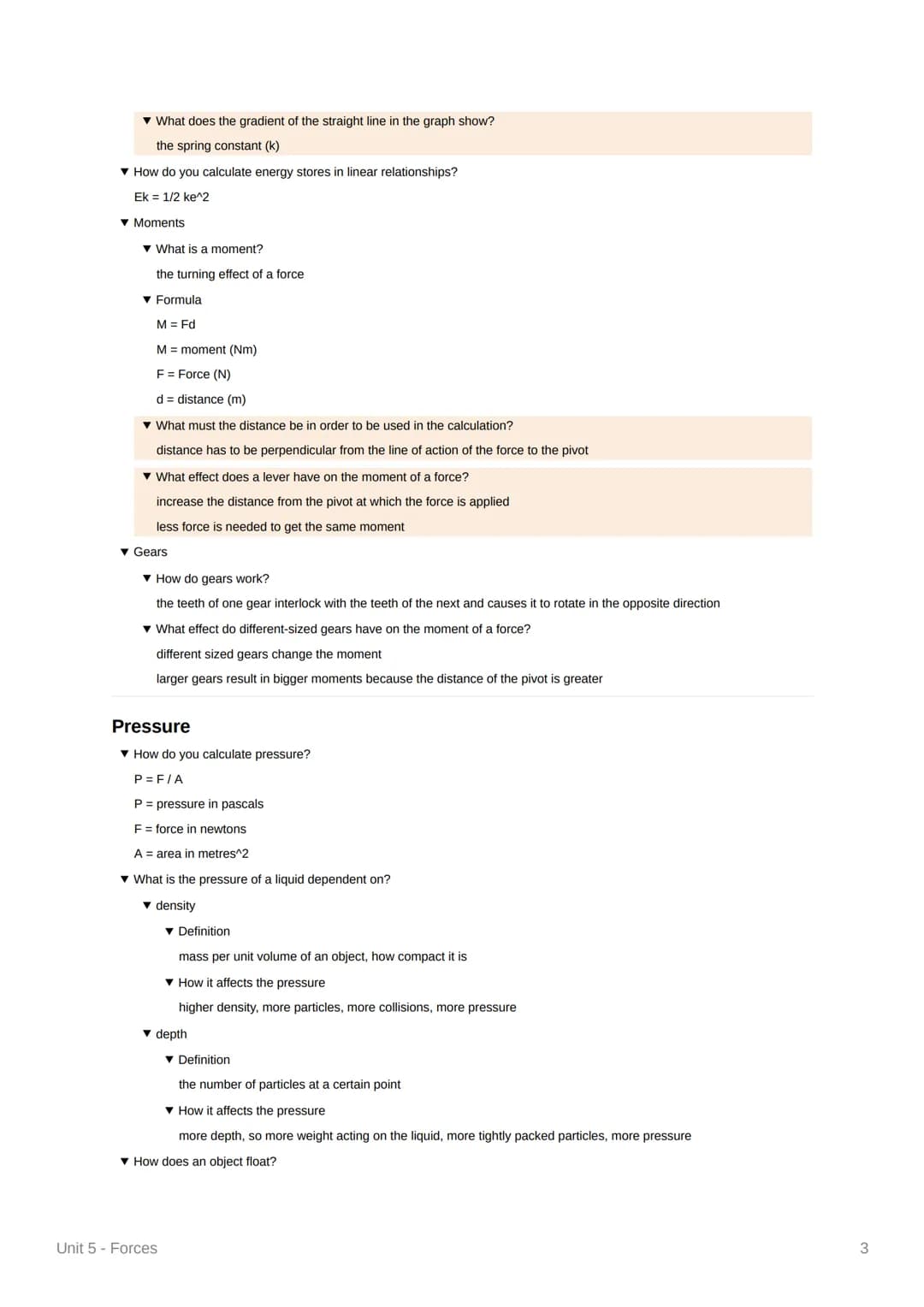

Definition: The moment of a force is the turning effect of a force, calculated by multiplying the force by the perpendicular distance from the pivot point to the line of action of the force.

When examining pressure in Forces GCSE Physics, we find it's calculated by dividing force by area. This explains why sharp objects exert more pressure than blunt ones - the same force concentrated over a smaller area results in higher pressure. Understanding pressure is crucial for engineering applications, from designing buildings to creating efficient tires.

Acceleration, a key concept in AQA GCSE Physics Forces questions and answers, represents the rate of change in velocity over time. It can be calculated either as the change in velocity divided by time taken or as $final velocity - initial velocity$/time taken. This understanding is essential for analyzing motion in everything from vehicles to falling objects.

Example: When calculating the resultant force on an object, we use the equation F = ma $Force = mass × acceleration$. For instance, a 2kg object accelerating at 3 m/s² experiences a resultant force of 6N.

The concept of momentum, defined as mass multiplied by velocity, helps us understand collisions and conservation of motion. This principle is particularly important in Forces GCSE Physics Combined studies, as it connects various aspects of motion and force interactions.

Advanced Applications of Force Concepts

Understanding resultant force GCSE concepts requires deep knowledge of how multiple forces interact. The resultant force formula helps us determine the overall effect of combined forces acting on an object. This is particularly useful when analyzing complex systems like bridges or mechanical devices.

Highlight: When solving how to calculate resultant force with mass and acceleration, remember that the resultant force is the net force causing acceleration. All other forces must balance out or contribute to this net force.

Resultant forces examples can be found everywhere in daily life. When pushing a shopping cart, the forward force must overcome friction and any other opposing forces to create motion. Understanding these interactions is crucial for engineering and practical applications, as highlighted in many GCSE Physics forces revision notes.

The study of forces extends beyond simple calculations to real-world applications. Whether examining resultant force questions in construction, transportation, or sports science, the principles remain consistent. These concepts form the foundation of mechanical engineering and structural design, making them essential for students pursuing technical careers.

Vocabulary: The term "resultant force" refers to the single force that has the same effect as all the individual forces acting on an object combined.
