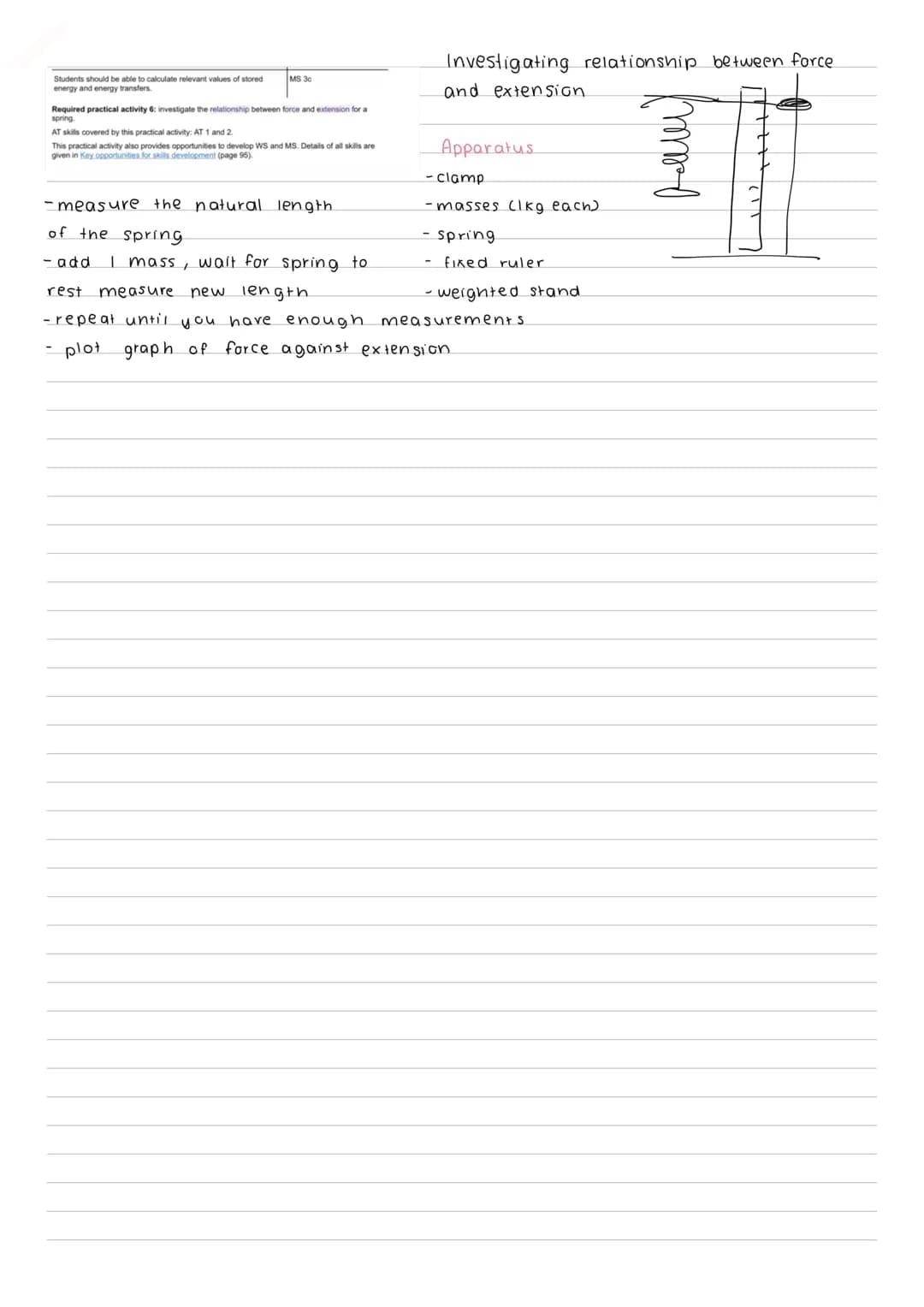

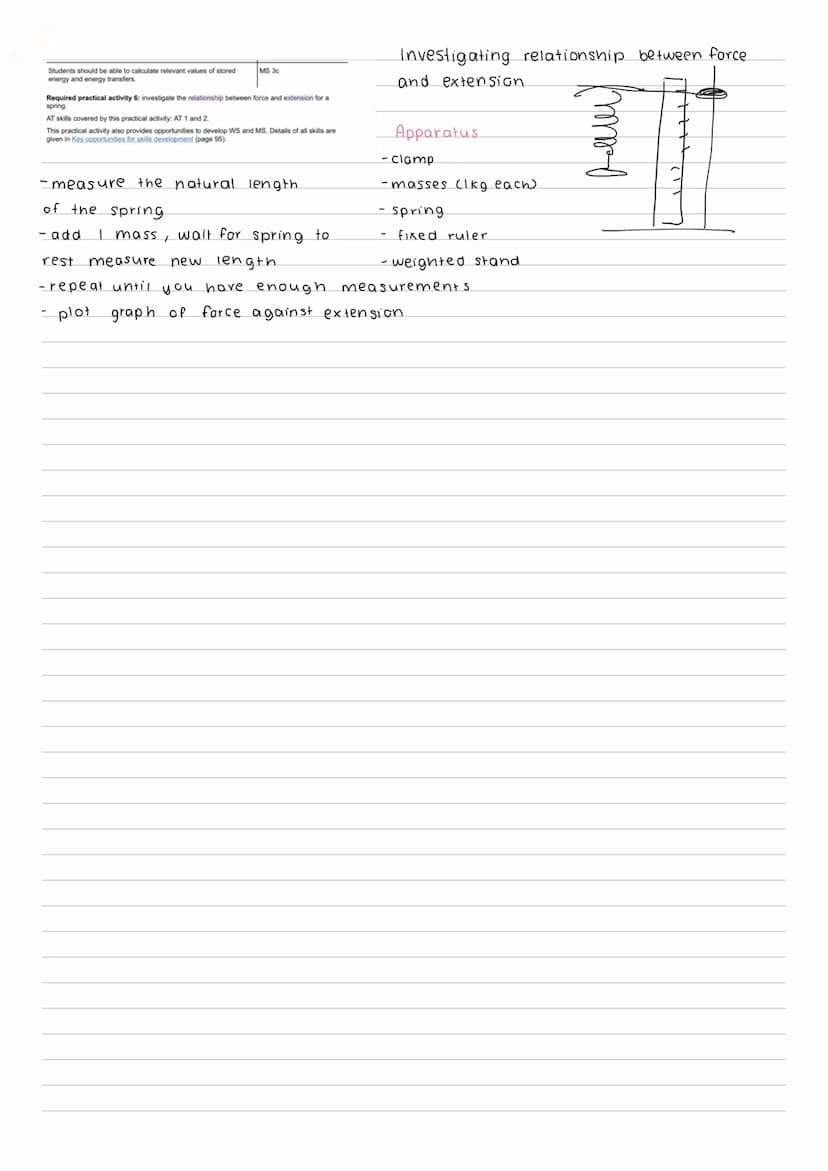

Practical Investigation and Energy Considerations

The practical investigation of force and extension relationships requires careful measurement and analysis. The procedure involves:

1. Measuring the spring's natural length
2. Adding masses incrementally
3. Recording length changes
4. Plotting force against extension

Definition: Elastic potential energy is the energy stored in a stretched or compressed elastic object.

Example: The energy stored in a spring can be calculated using the equation Ee = ½ke²

Highlight: The area under a force-extension graph represents the work done or energy stored in the spring.

Required equipment includes:

• Clamp
• Masses (1kg each)
• Spring
• Fixed ruler
• Weighted stand

Vocabulary: Extension is measured in metres $m$ and represents the change in length from the object's original size.

The practical activity develops essential scientific skills including measurement, data collection, and graphical analysis while demonstrating the fundamental principles of elasticity and force relationships.

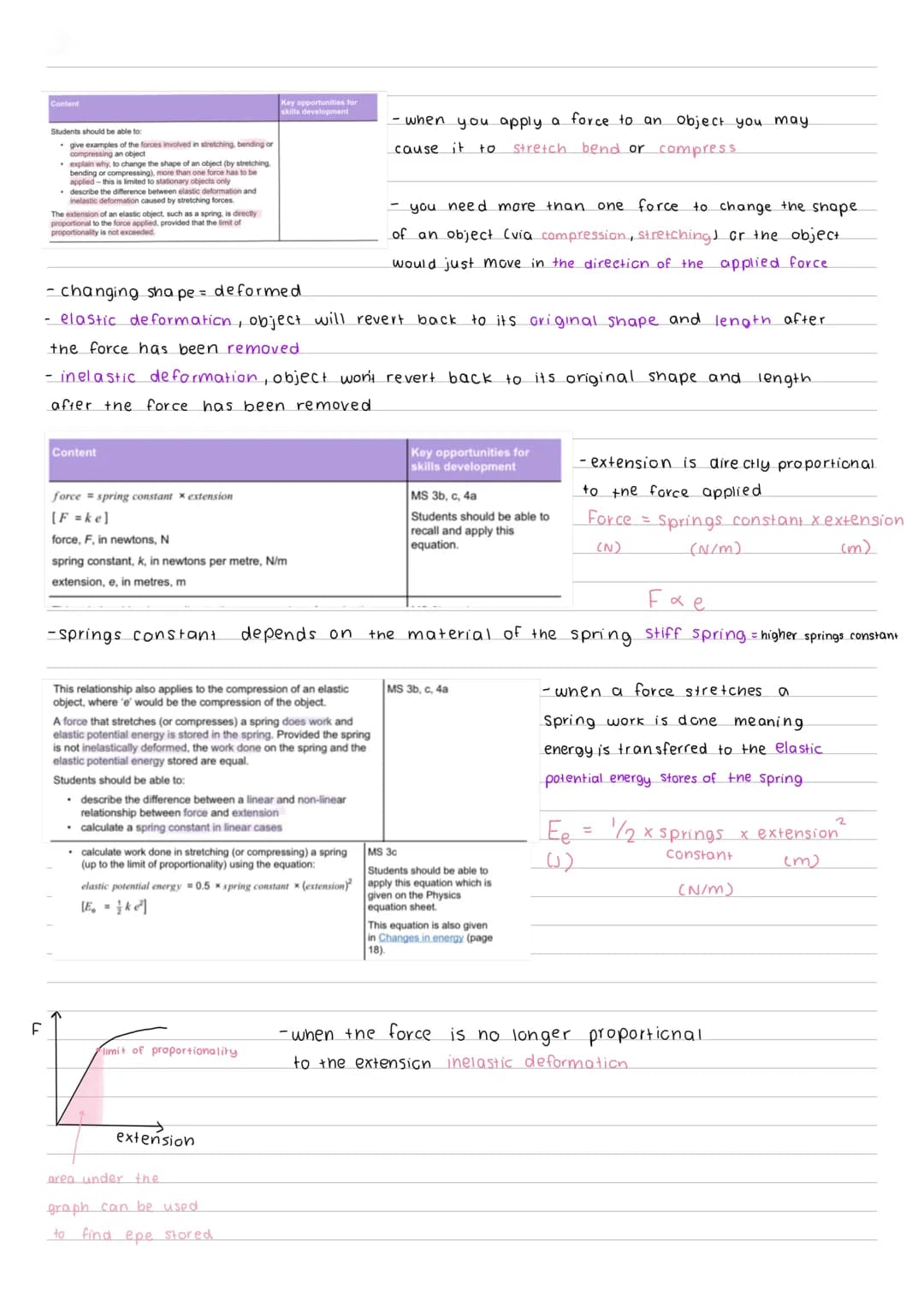

Forces and Deformation Fundamentals

When forces are applied to objects, they can cause various types of deformation including stretching, bending, and compression. To effectively change an object's shape, multiple forces must be applied simultaneously, otherwise the object would simply move in the direction of the single force.

Definition: Deformation occurs when an object's shape changes due to applied forces.

Vocabulary: The spring constant $k$ represents the stiffness of a spring, measured in newtons per metre (N/m).

Example: A rubber band exhibits elastic deformation when stretched within its limits, returning to its original shape when released.

The relationship between force and extension follows the equation F = ke, where:

• F is force in newtons (N)
• k is the spring constant in newtons per metre (N/m)
• e is extension in metres $m$

Highlight: The extension of an elastic object is directly proportional to the force applied, but only up to the limit of proportionality.

Two types of deformation exist:

1. Elastic deformation - temporary shape change with complete recovery
2. Inelastic deformation - permanent shape change without recovery
