GCSE Electromagnetic Waves Study Guide
Waffle ๐ด๐ต๐ธ
@amuslimah
1 / 4

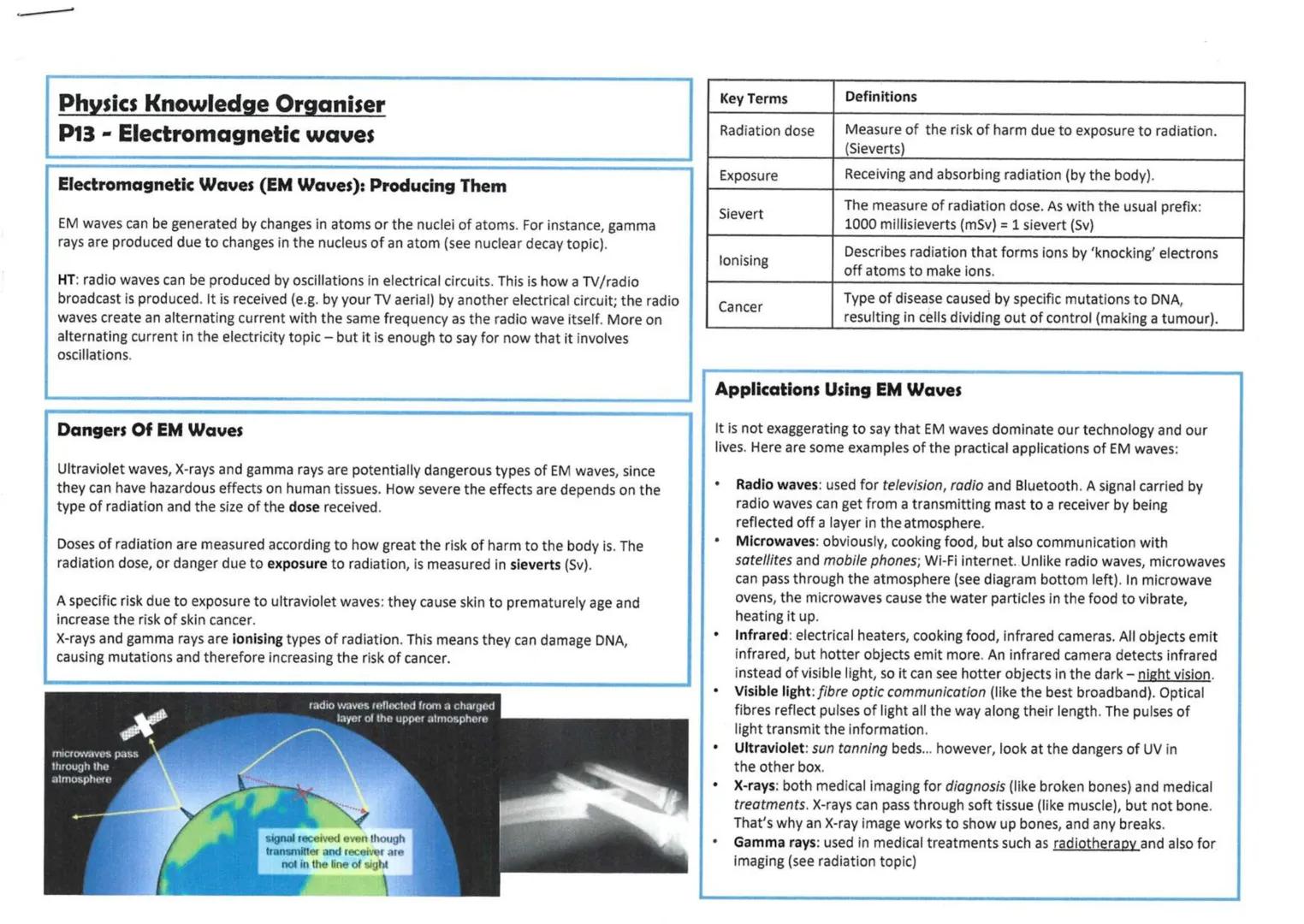

Understanding Electromagnetic Waves and Radiation Safety
Electromagnetic waves are created when atoms or their nuclei change - think of gamma rays bursting from radioactive atoms or radio waves generated by electrical circuits in your phone's transmitter. These waves are absolutely everywhere and power most of the technology you use daily.
When it comes to safety, some EM waves can be dangerous. Ionising radiation like X-rays and gamma rays pack enough energy to knock electrons off atoms, potentially damaging your DNA and increasing cancer risk. That's why we measure radiation dose in sieverts - it tells us how risky exposure actually is.
The most dangerous waves are ultraviolet (hello, sunburn and skin cancer), X-rays, and gamma rays. However, many EM waves are completely safe - radio waves bounce harmlessly off your body, while microwaves in your oven only heat water molecules in food.
Quick Safety Tip: The higher the frequency of EM waves, the more energy they carry and the more dangerous they become to living tissue.

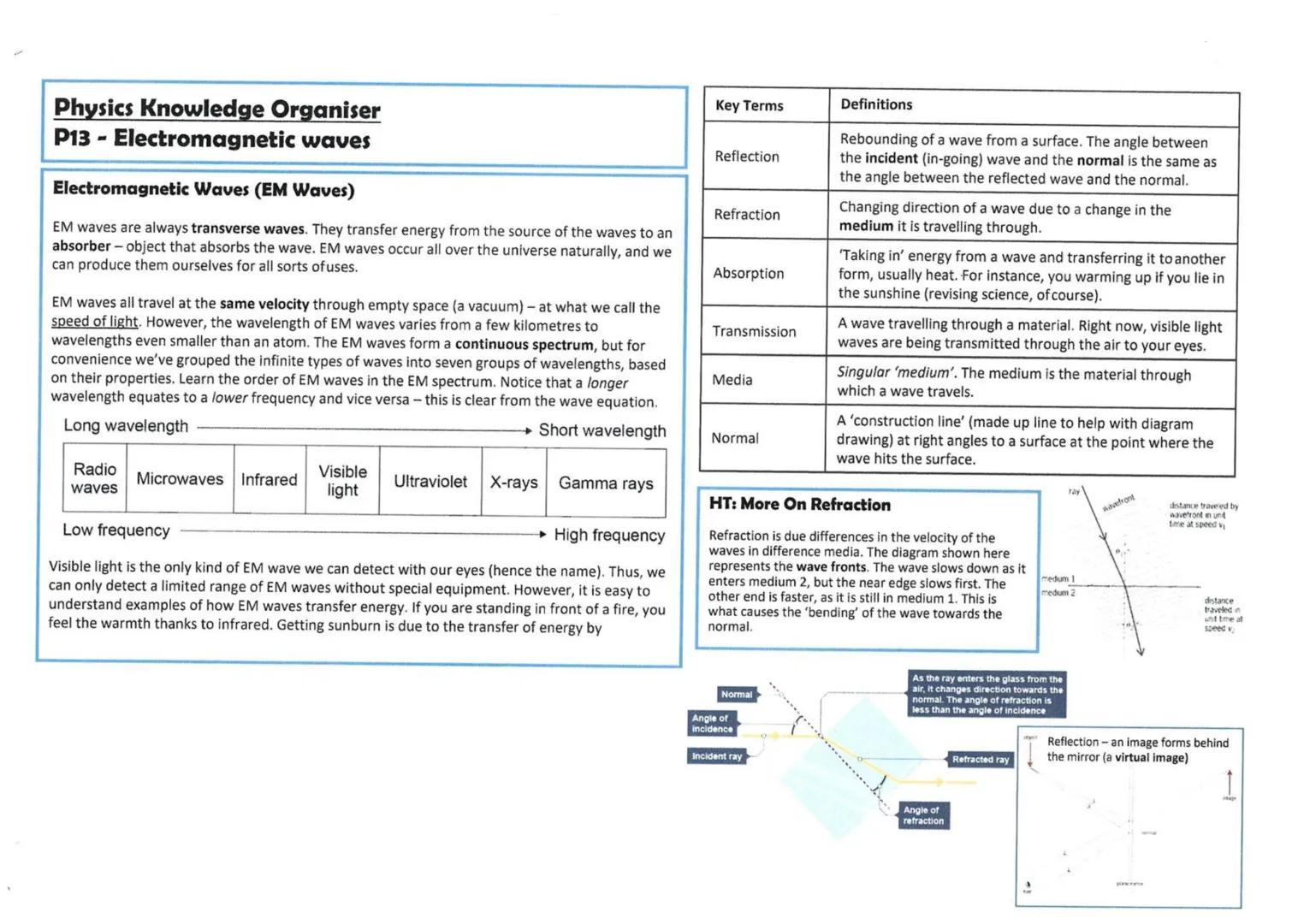

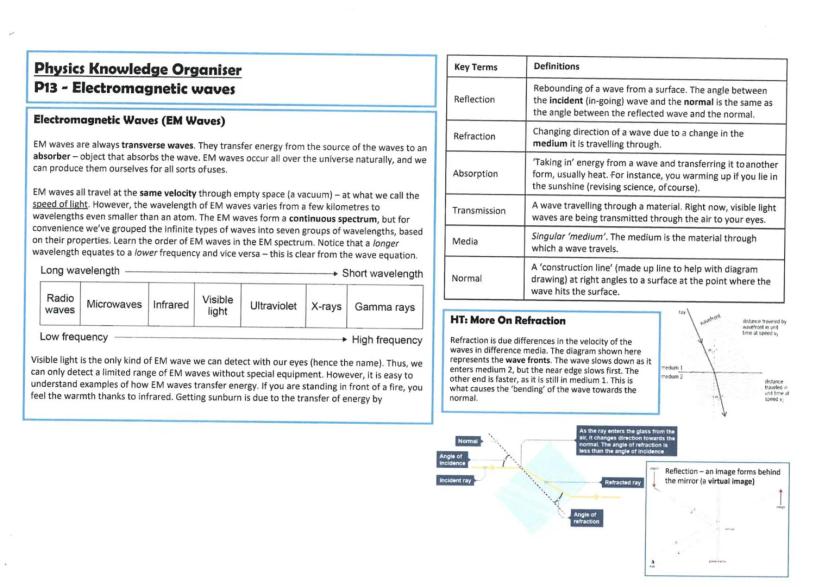

Wave Properties and the EM Spectrum
All electromagnetic waves are transverse waves that transfer energy at the speed of light through space. They can be reflected (bouncing off surfaces), refracted (bending when entering new materials), absorbed (energy converted to heat), or transmitted (passing straight through).
The EM spectrum runs from radio waves (longest wavelength, lowest frequency) through microwaves, infrared, visible light, ultraviolet, X-rays, to gamma rays (shortest wavelength, highest frequency). Remember: longer wavelength always means lower frequency.
Refraction happens because waves slow down in denser materials, causing them to bend towards the normal (an imaginary line perpendicular to the surface). This is why a straw looks bent in water - light waves change direction as they move from water to air.
Memory Trick: "Really Mad Insects Vex Ugly eXtra-terrestrial Gorillas" helps you remember the EM spectrum order from longest to shortest wavelength.
Practical Applications and Investigations
EM waves power our modern world in countless ways. Radio waves carry TV and Bluetooth signals, microwaves enable satellite communication and cook your food by vibrating water molecules, and infrared radiation lets you feel warmth from heaters and enables night-vision cameras.
Visible light travels through fibre optic cables to bring you super-fast internet, while X-rays help doctors spot broken bones because they pass through soft tissue but not bone. Gamma rays can destroy cancer cells in radiotherapy treatments.

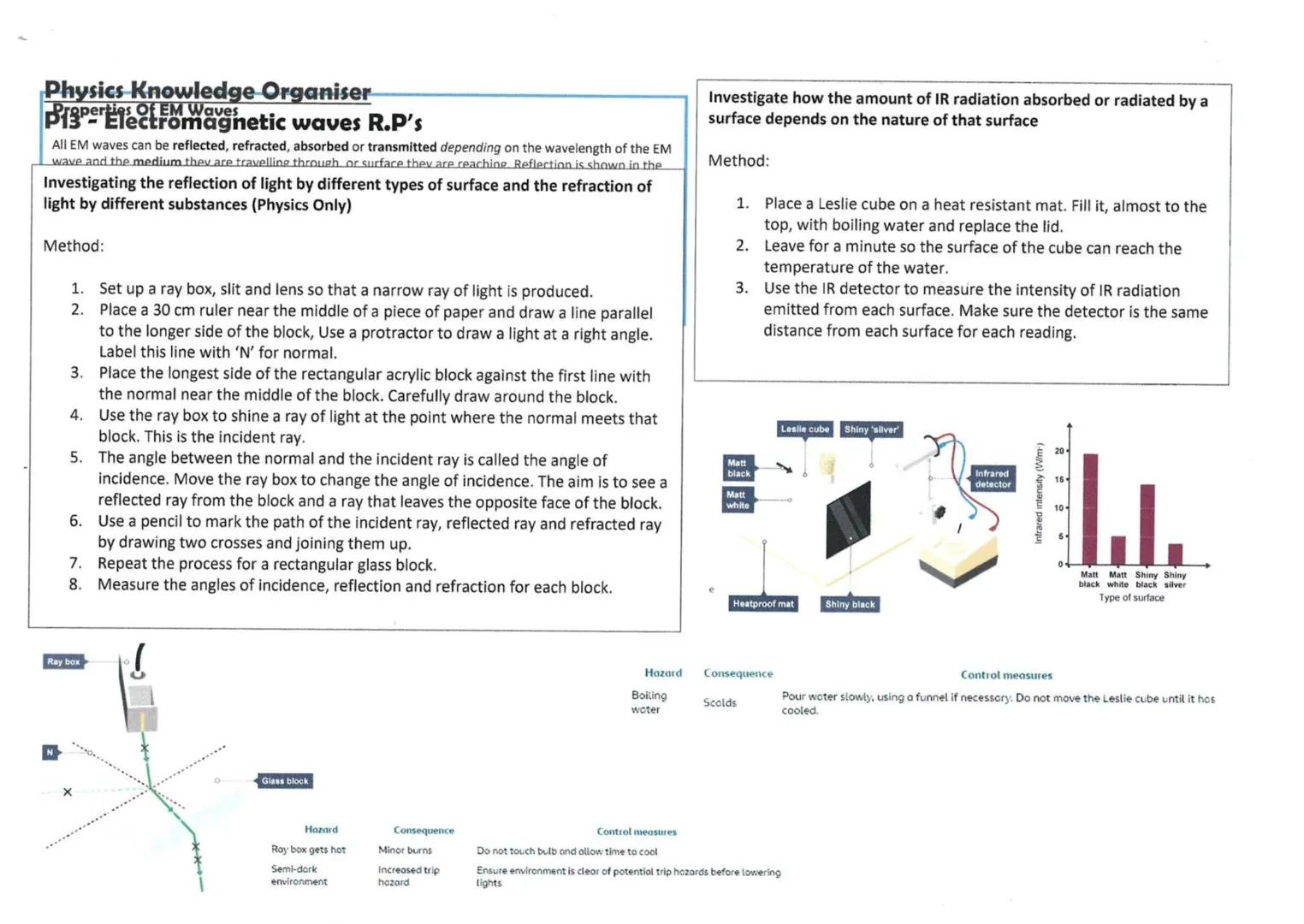

In lab investigations, you'll explore how different surfaces affect reflection and refraction using ray boxes and glass blocks. You'll also discover that matt black surfaces are brilliant at absorbing and emitting infrared radiation, whilst shiny surfaces reflect most radiation away.
Real-World Connection: The Leslie cube experiment explains why car radiators are painted black (better heat emission) and why emergency blankets are shiny (reflecting body heat back to you).
