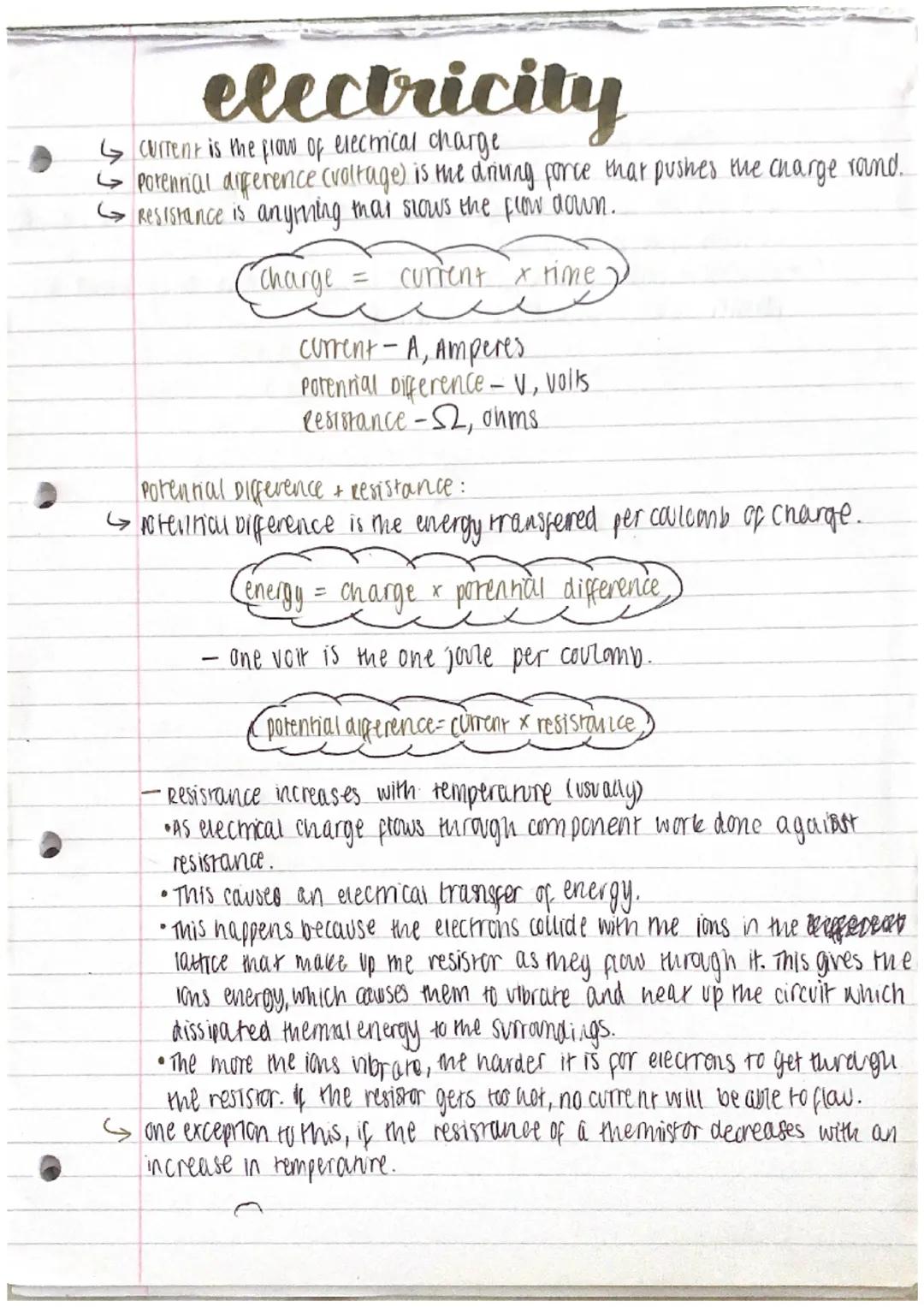

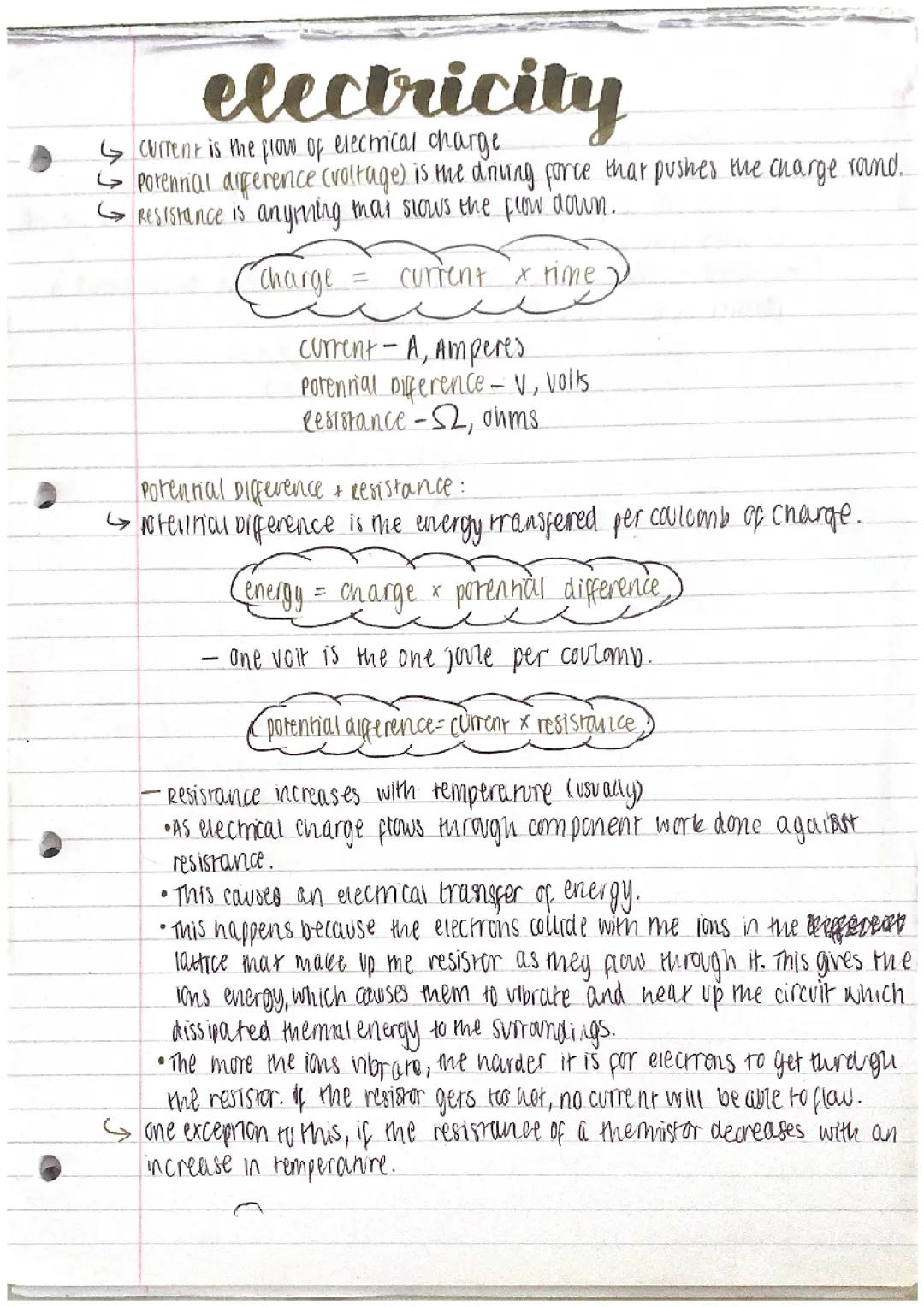

The Basics of Electricity

Think of electrical current like water flowing through a pipe - it's simply the flow of electrical charge measured in amperes (A). Just as water needs pressure to flow, electricity needs potential difference (voltage) to push the charge around a circuit, measured in volts (V).

Resistance acts like a narrow section in your pipe, slowing down the flow of electricity. It's measured in ohms (Ω) and follows a simple rule: potential difference = current × resistance. This relationship is crucial for understanding how circuits behave.

Here's something interesting - resistance usually increases when things heat up. As electrons flow through a component, they bump into ions, transferring energy and heating up the circuit. The hotter it gets, the harder it becomes for current to flow. However, thermistors are rebels that actually decrease their resistance when heated!

Key Formula: charge = current × time. This helps you calculate how much electrical charge flows in a given time period.

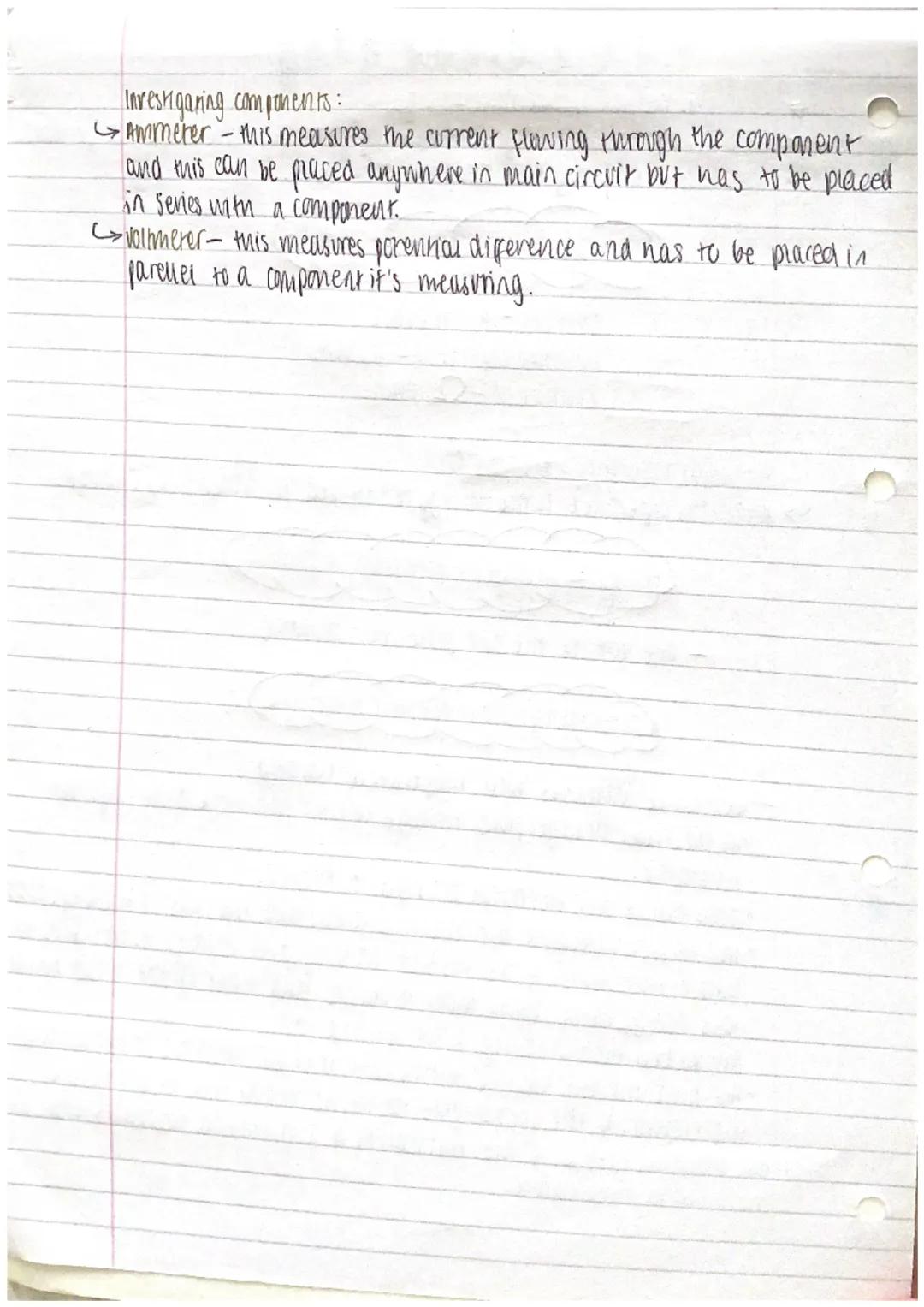

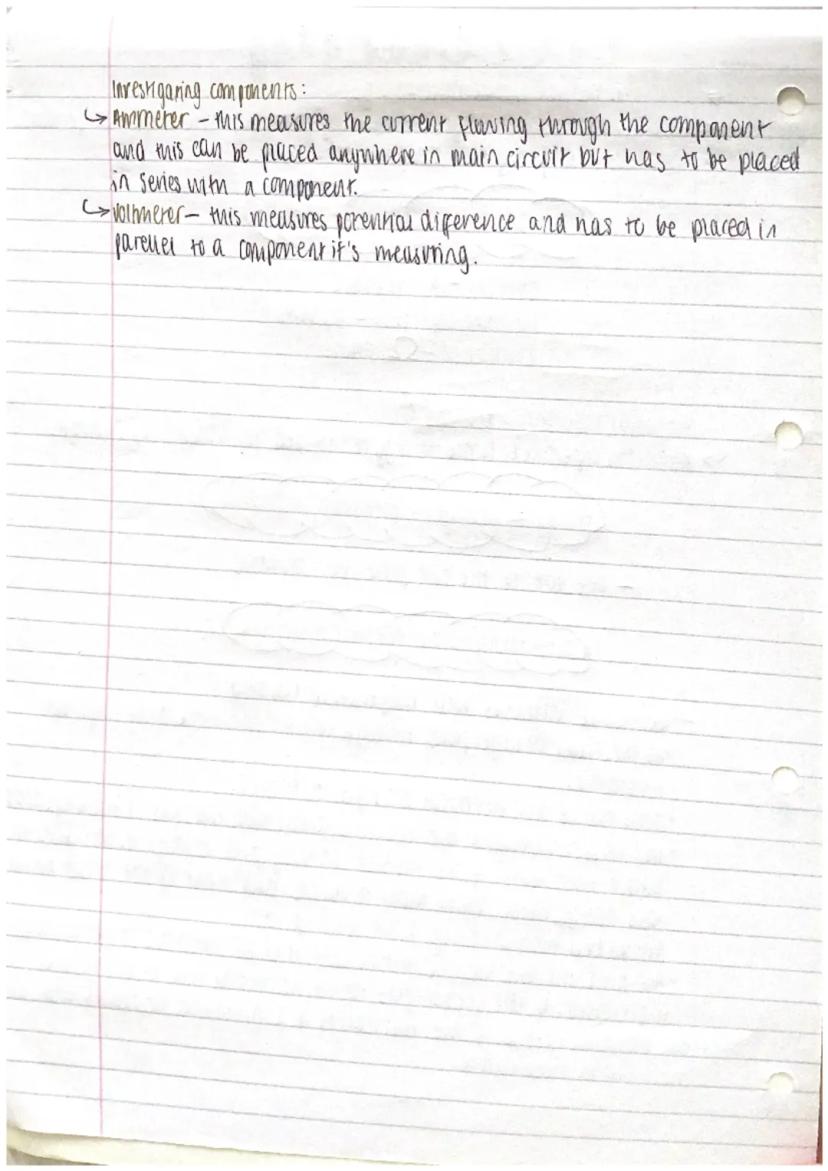

Measuring Electricity

To understand circuits properly, you need to measure what's happening inside them. Ammeters measure current and must be connected in series with components - think of them as traffic counters that need to be placed directly on the road.

Voltmeters measure potential difference and work completely differently. They connect in parallel to components, like speed cameras positioned beside the road rather than blocking it. Getting these connections wrong is a common mistake that can damage your equipment.

Remember this simple rule: ammeters go with the flow (series), voltmeters go beside the component (parallel). Master this concept and circuit analysis becomes much easier.

Pro Tip: Always double-check your meter connections before switching on - incorrect connections can blow fuses or damage sensitive equipment.

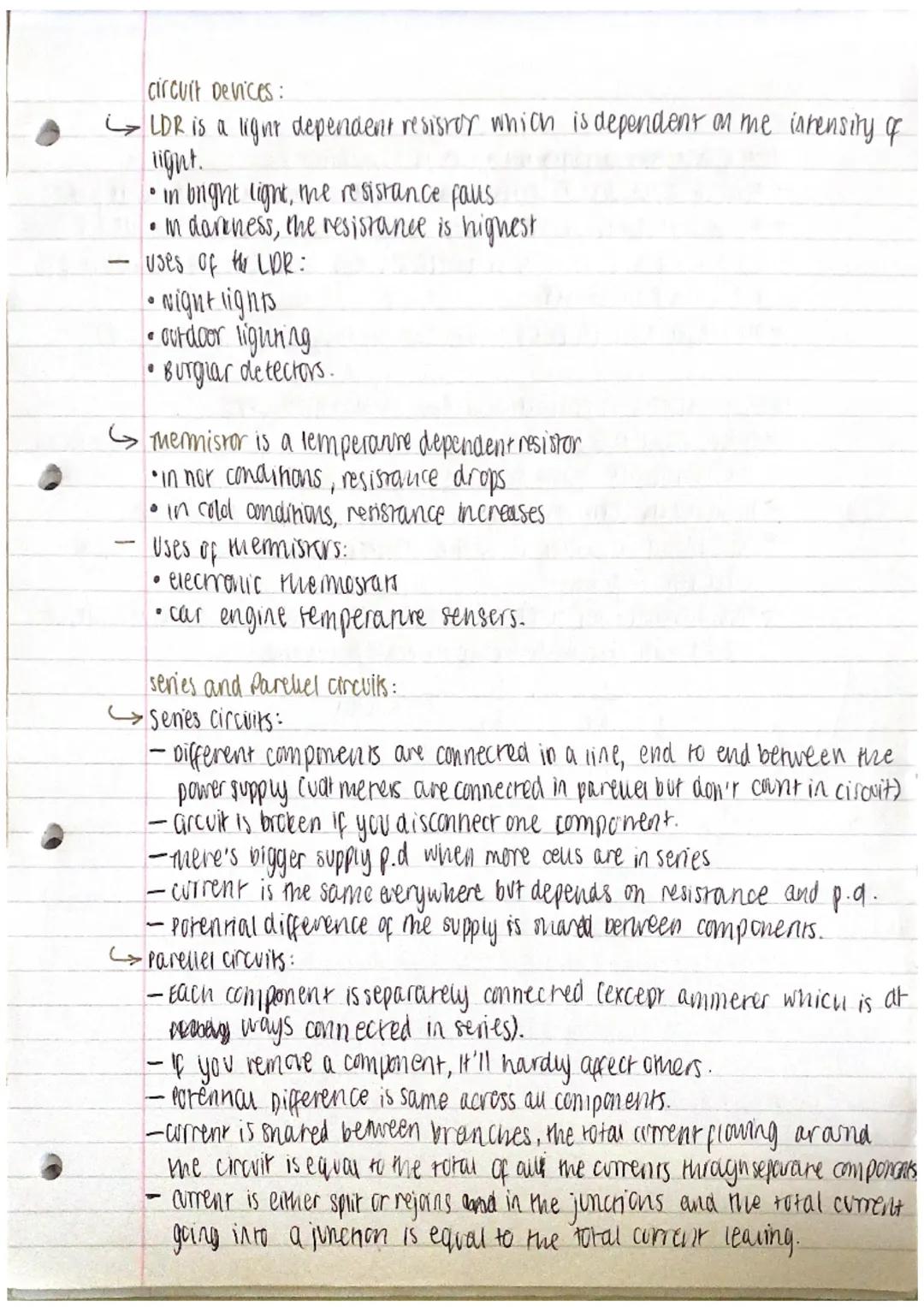

Circuit Components and Types

Light Dependent Resistors (LDRs) are brilliant components that change resistance based on light intensity. In bright conditions, resistance drops; in darkness, it increases dramatically. You'll find them in automatic night lights and burglar detectors.

Thermistors work similarly but respond to temperature changes. Hot conditions decrease their resistance, whilst cold conditions increase it. They're essential in electronic thermostats and car engine temperature sensors.

Series circuits connect components end-to-end like a chain. Current stays the same throughout, but voltage gets shared between components. Break one component and the whole circuit stops working - just like old Christmas lights.

Parallel circuits give each component its own separate path. Voltage stays the same across all components, but current splits between branches. Remove one component and the others keep working independently.

Memory Trick: Series = Same current, Shared voltage. Parallel = Same voltage, Shared current.

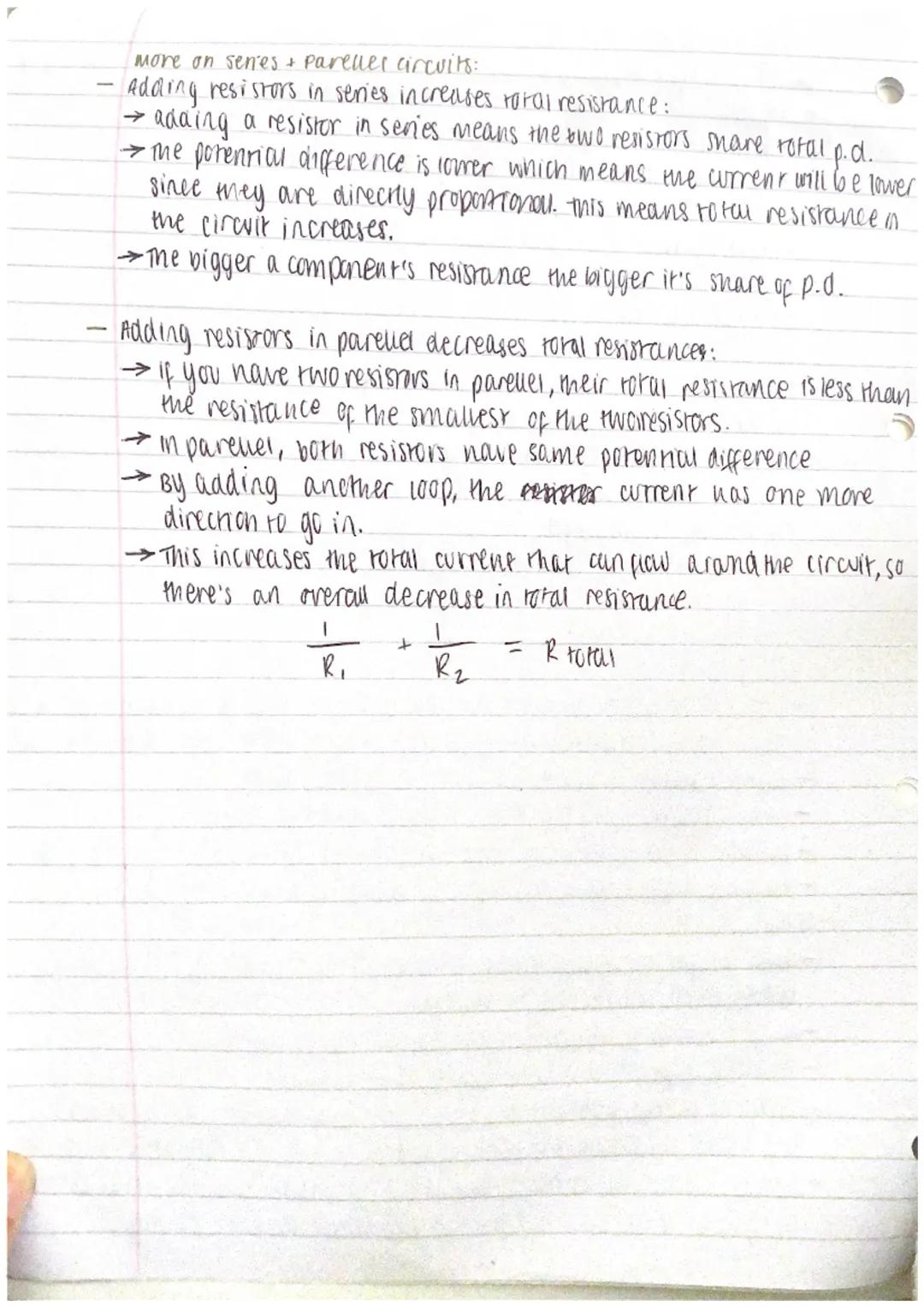

Resistance in Series and Parallel

Adding resistors in series increases total resistance because components must share the available voltage. With less voltage per resistor, current decreases, effectively increasing the circuit's overall resistance. The component with highest resistance gets the biggest share of voltage.

Parallel circuits work opposively - adding resistors actually decreases total resistance. Each new branch provides another path for current to flow, increasing total current and reducing overall resistance.

Here's the key formula for parallel resistance: 1/R₁ + 1/R₂ = 1/R_total. Notice that parallel resistance is always less than the smallest individual resistor - this might seem strange but makes perfect sense when you think about multiple pathways.

Understanding these principles helps you design circuits for specific purposes, whether you need high or low resistance for your application.

Quick Check: In parallel, total resistance is always smaller than the smallest individual resistance - if this surprises you, re-read the pathways explanation!

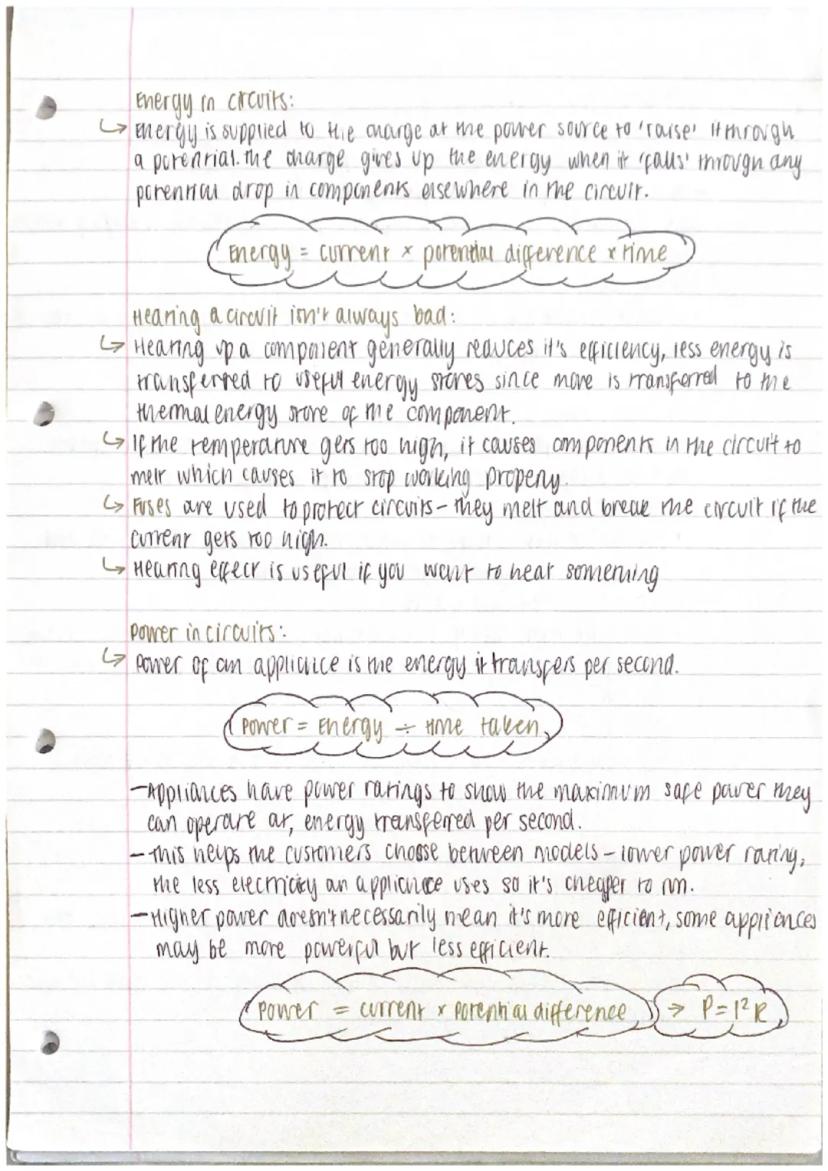

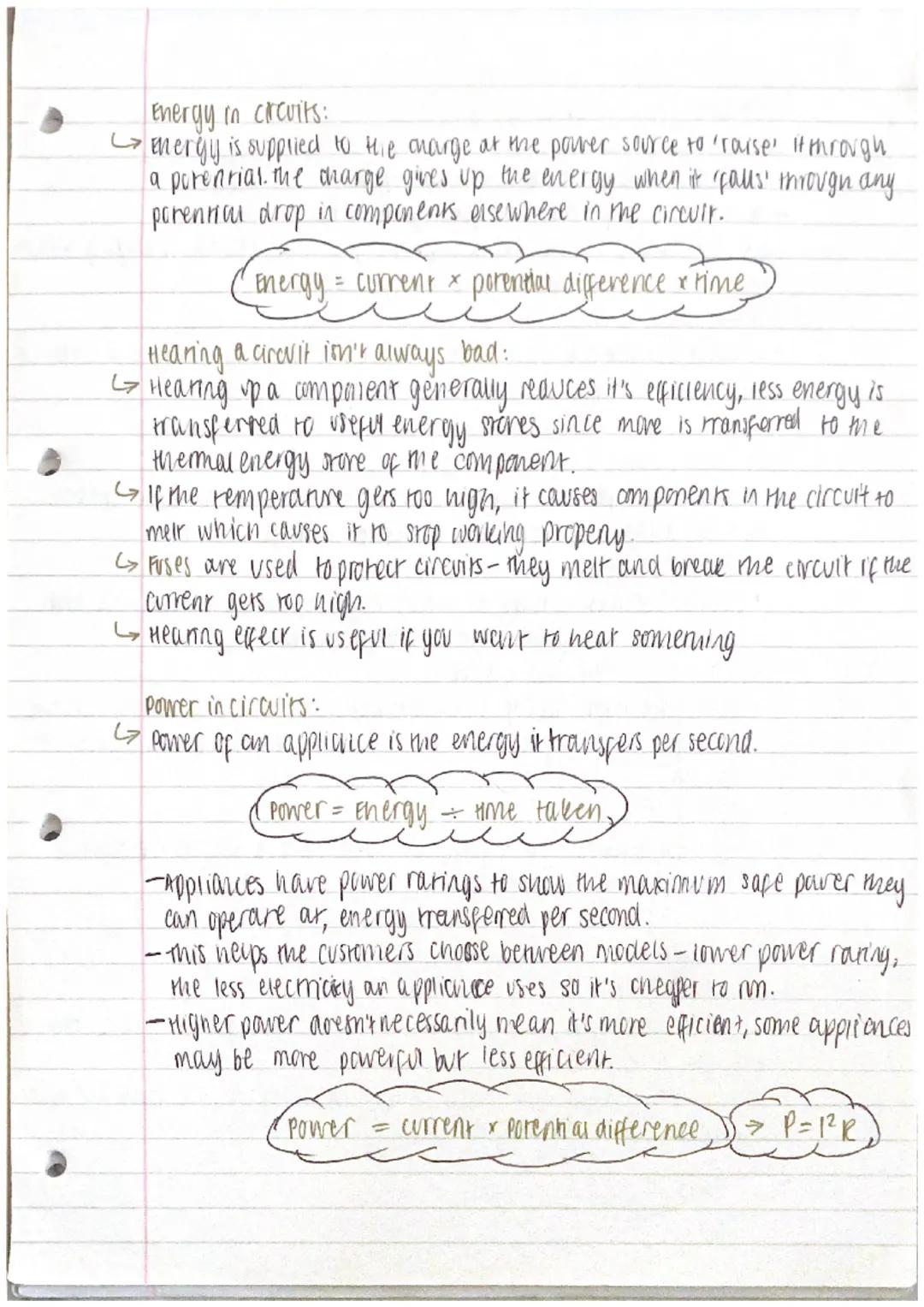

Energy and Power in Circuits

Energy transfer in circuits follows a simple pattern: the power source gives energy to electrical charges, which then release this energy when flowing through circuit components. Calculate energy using: Energy = current × potential difference × time.

Circuit heating isn't always problematic. Whilst it reduces efficiency by converting useful energy to thermal energy, this heating effect powers kettles, toasters, and heaters. Fuses protect circuits by melting when current gets dangerously high.

Power ratings tell you how much energy an appliance transfers per second. Lower power ratings mean cheaper running costs, but don't confuse power with efficiency - a high-power appliance might actually be less efficient than a lower-power alternative.

Use these power formulas: Power = current × potential difference and P = I²R. These help you calculate running costs and choose appropriate components for your circuits.

Real-world Application: Check appliance power ratings when buying - a 2000W kettle costs twice as much to run as a 1000W kettle for the same time period.

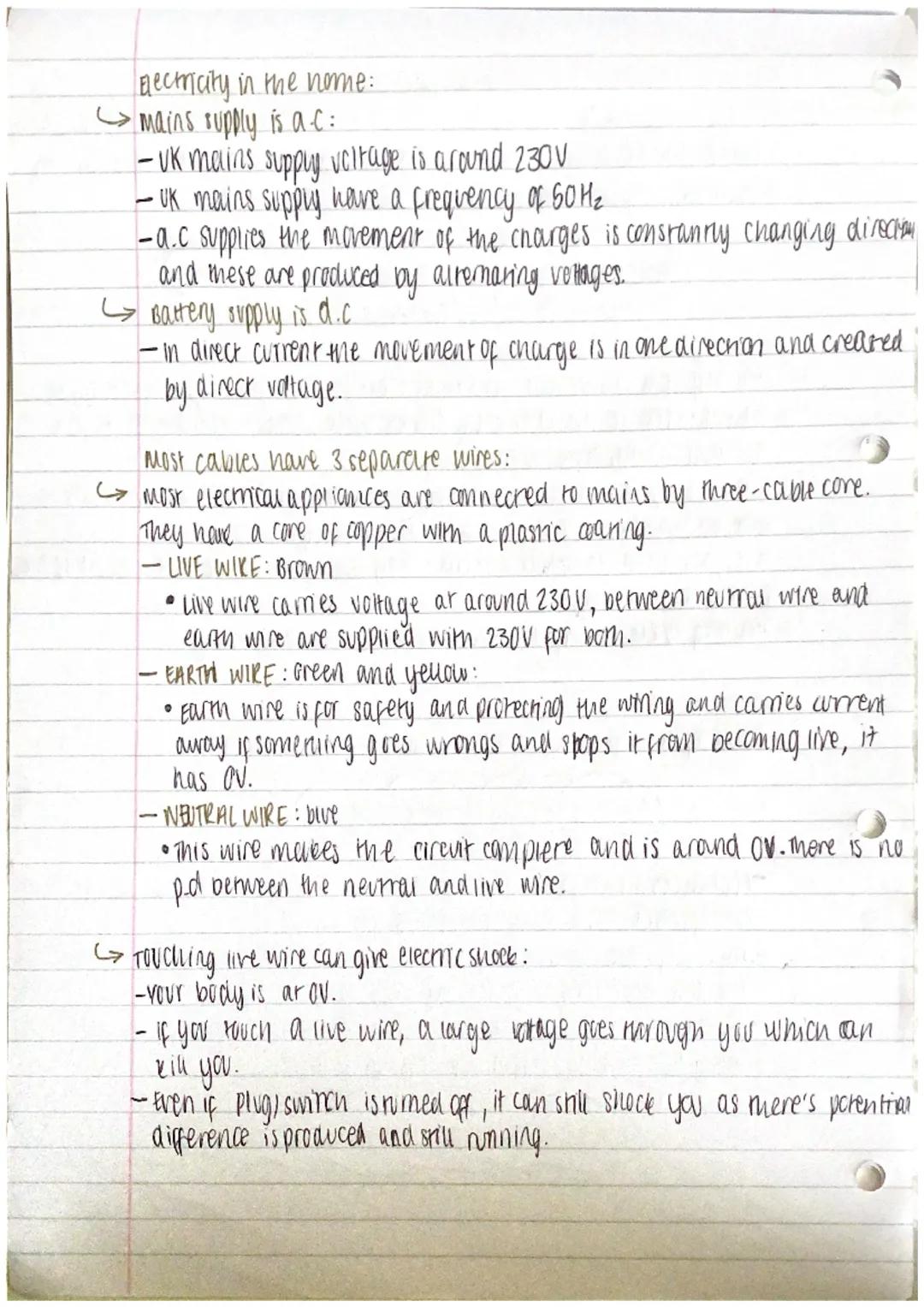

Mains Electricity and Safety

UK mains electricity supplies 230V at 50Hz using alternating current (AC), where charge direction constantly changes. This differs from direct current (DC) from batteries, where current flows in one direction only.

Most appliances connect via three-core cables with specific colour coding: brown (live wire) carries 230V, blue (neutral wire) completes the circuit at 0V, and green/yellow (earth wire) provides safety protection.

The live wire poses serious danger because your body is at 0V. Touching it creates a potentially fatal 230V difference across your body. Even with appliances switched off, the live wire can still be dangerous.

Always respect electrical safety - never work on circuits without proper training, and remember that even "off" appliances can still have dangerous voltages present.

Safety Warning: The potential difference between live wire and your body (230V) is more than enough to cause serious injury or death - treat all mains electricity with extreme caution.
