What is a Capacitor?

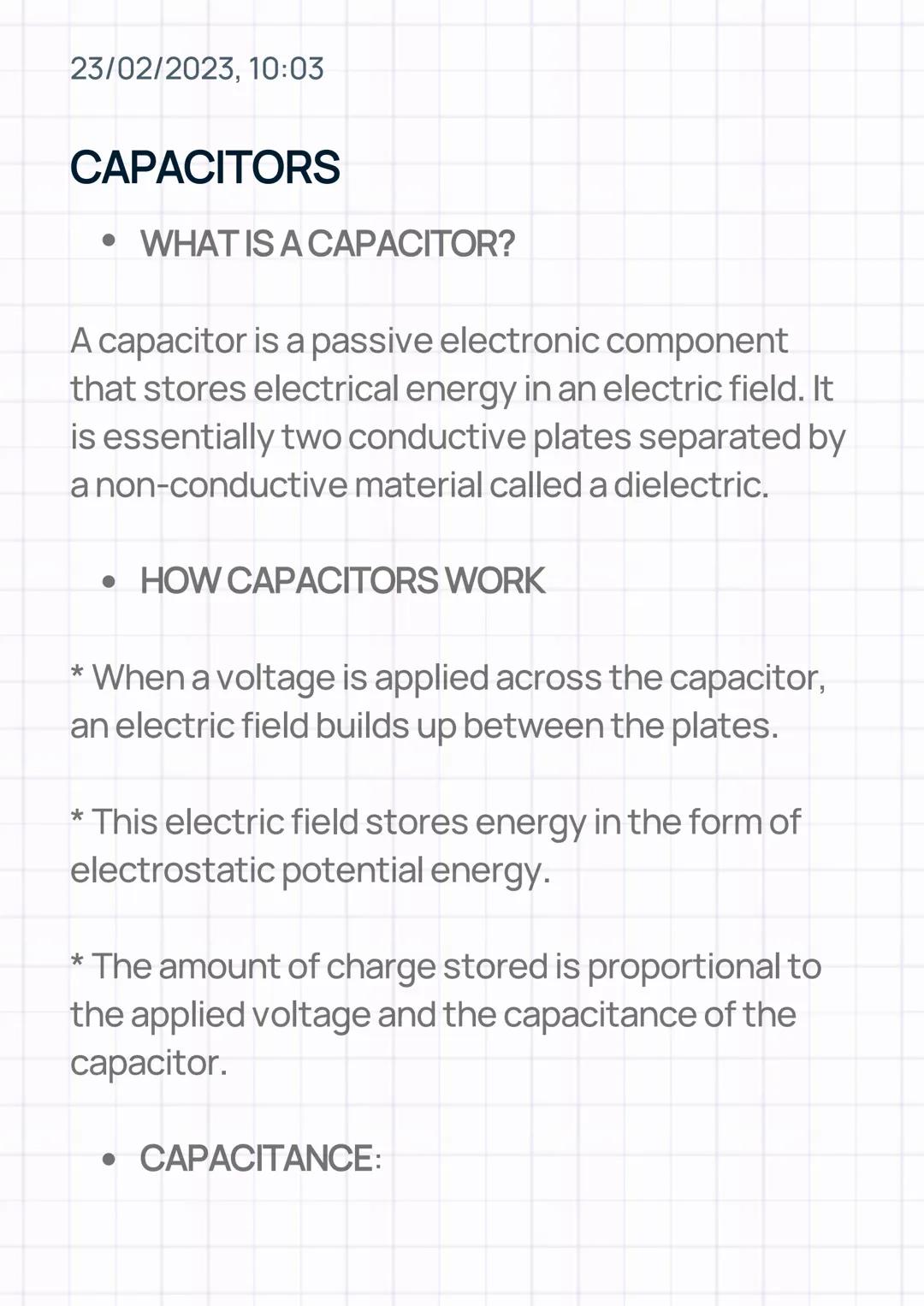

A capacitor stores electrical energy in an electric field between two conductive plates. These plates are separated by a non-conductive material called a dielectric. This simple structure allows capacitors to perform various crucial functions in electronic circuits.

When voltage is applied to a capacitor, an electric field forms between the plates. This field stores energy as electrostatic potential energy - think of it like stretching a spring that wants to return to its original position. The amount of charge a capacitor can store is directly proportional to both the applied voltage and the capacitance.

Quick Fact: Capacitors are one of the most common components in electronics - your smartphone contains hundreds of them!

Capacitance and Types

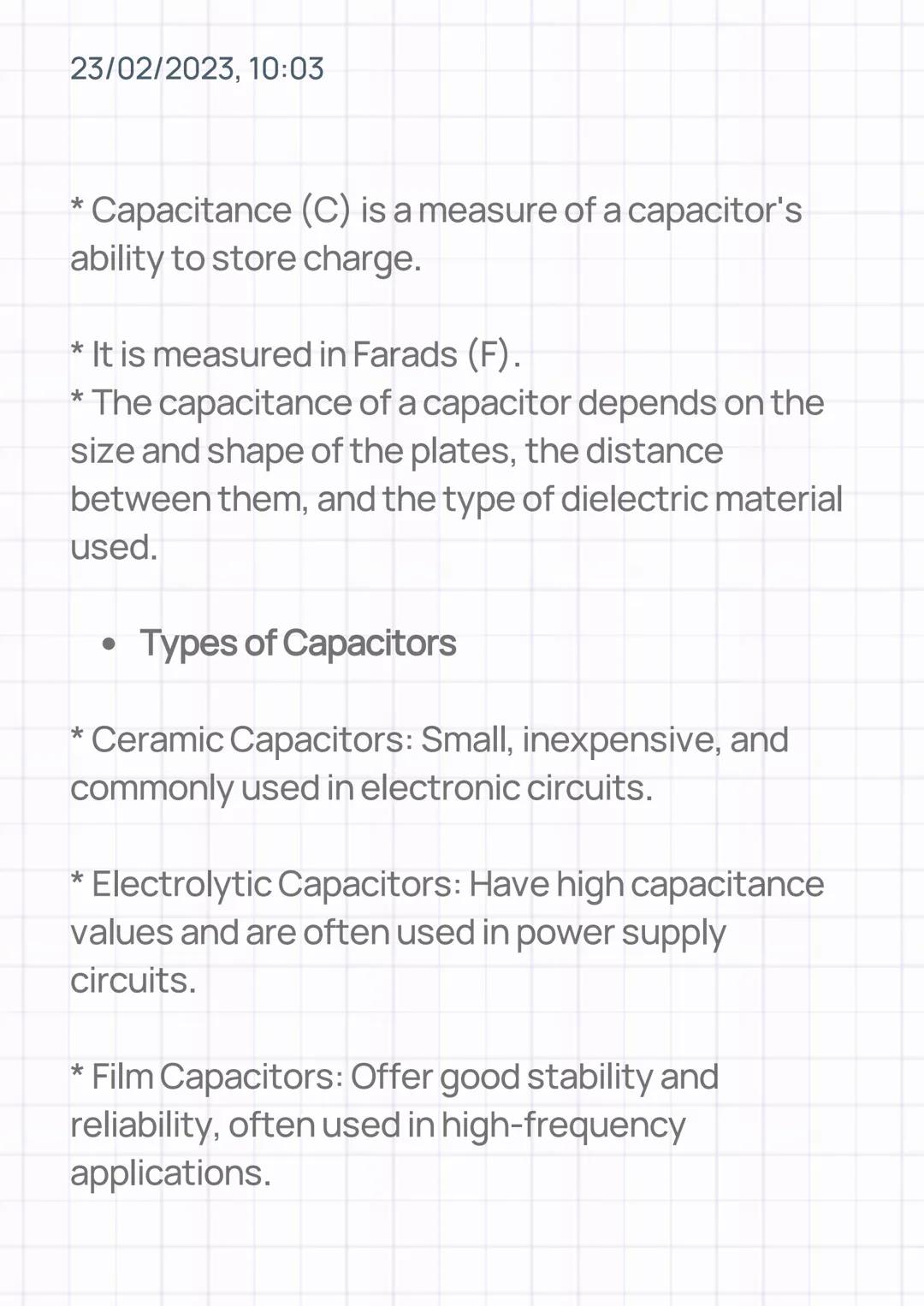

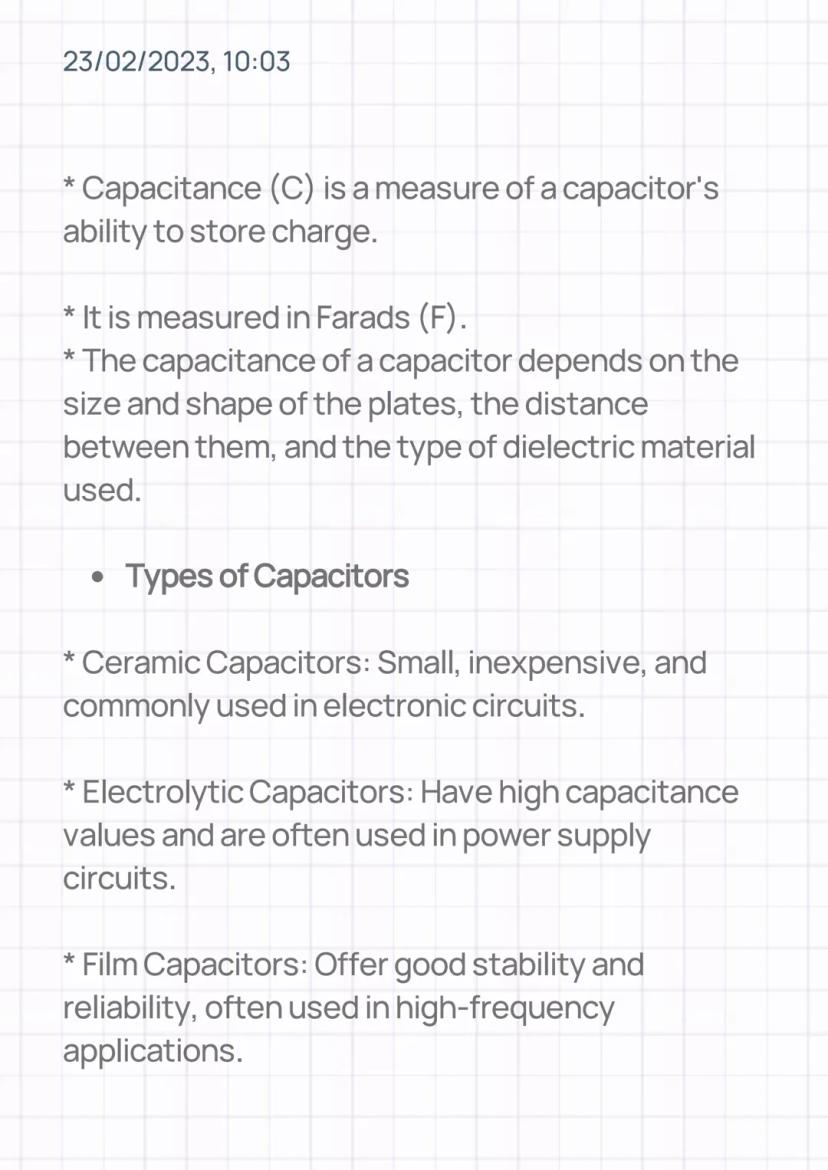

Capacitance measures a capacitor's ability to store charge and is measured in Farads (F). The capacitance depends on the plates' size and shape, the distance between them, and the dielectric material used. Most practical capacitors use microfarads (μF) or picofarads (pF) since one Farad is quite large.

Capacitors come in several varieties, each suited for different applications:

• Ceramic capacitors are small, inexpensive, and common in everyday circuits
• Electrolytic capacitors provide high capacitance values for power supply circuits
• Film capacitors offer excellent stability and reliability for high-frequency applications
• Variable capacitors allow manual adjustment of capacitance for tuning circuits

Different capacitor types trade off properties like size, cost, stability, and maximum voltage rating. Choosing the right type is crucial for proper circuit operation.

Applications of Capacitors

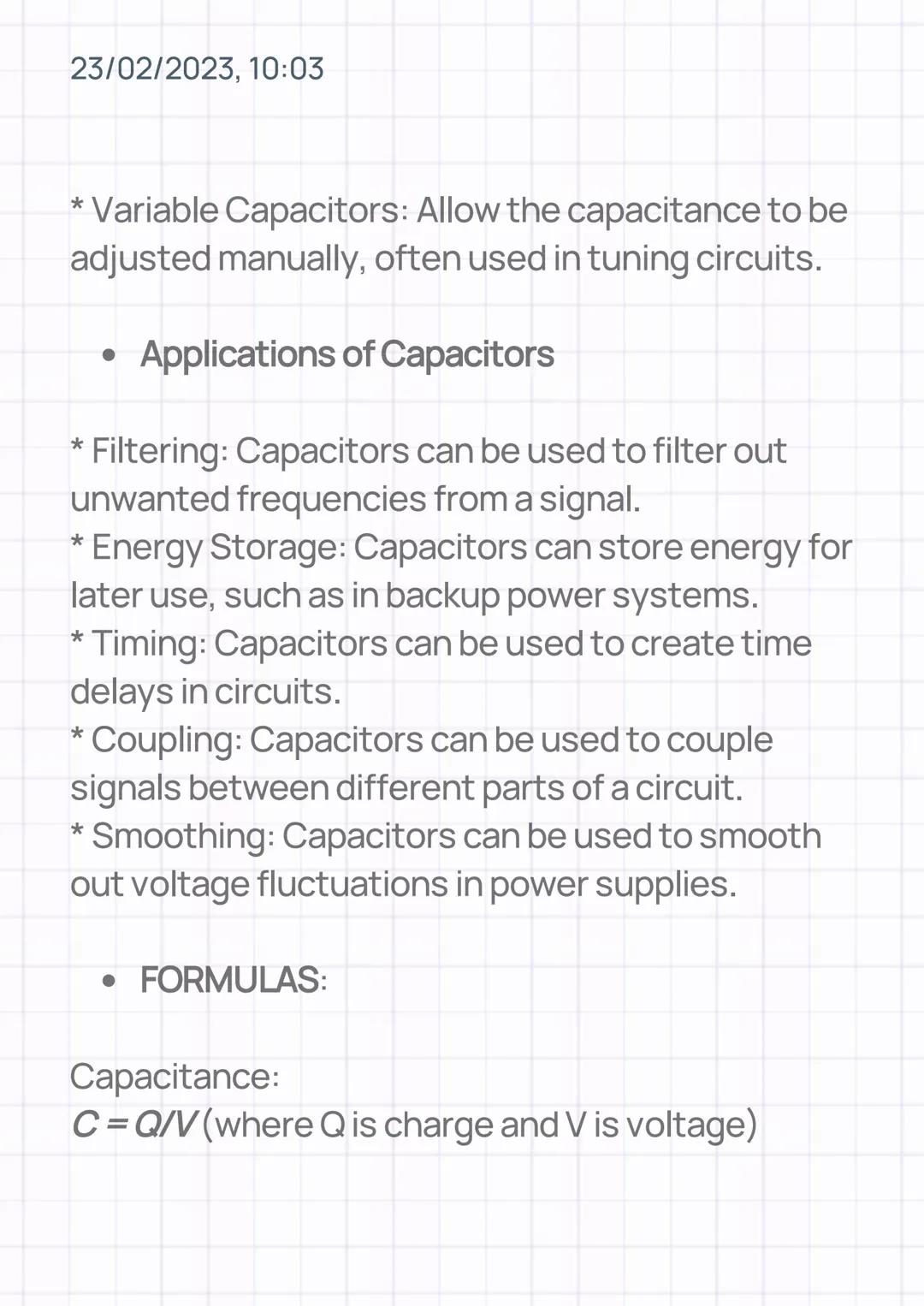

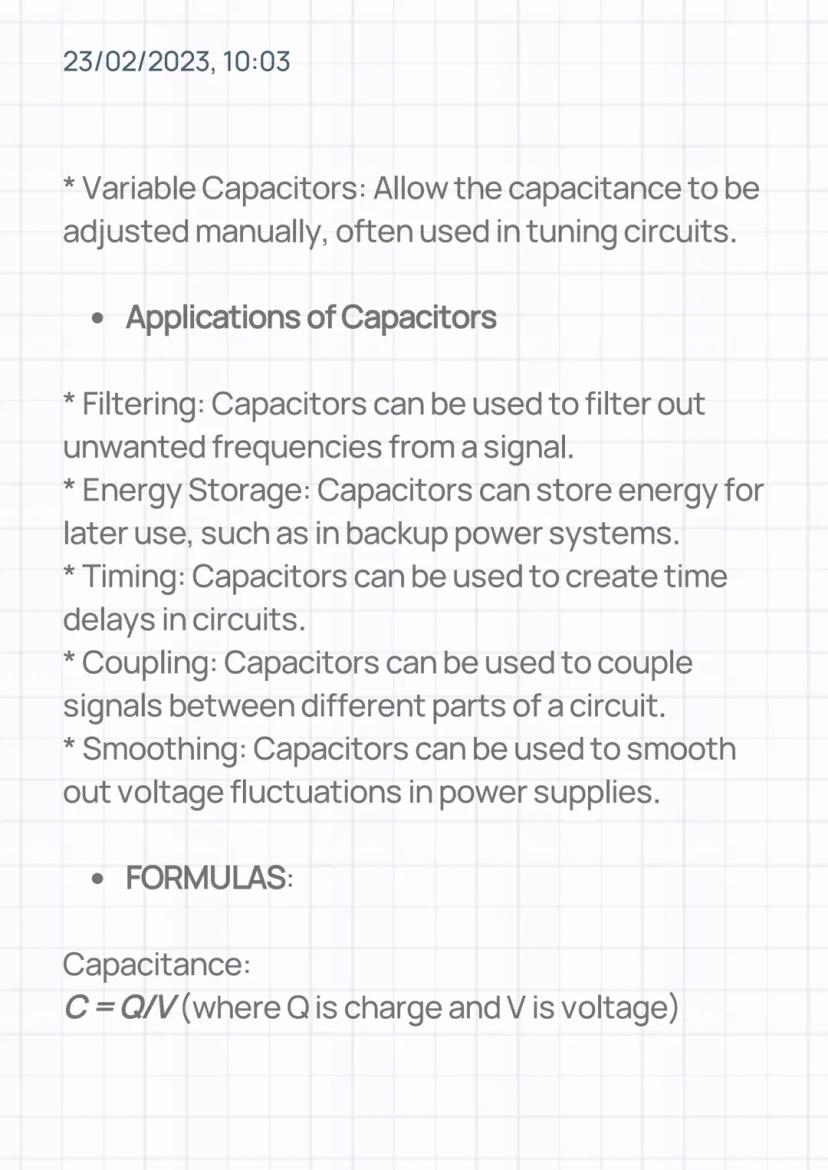

Capacitors are incredibly versatile components used across countless applications. They excel at filtering out unwanted frequencies from signals, helping to clean up audio or radio transmissions. In power supplies, they smooth out voltage fluctuations, ensuring your devices receive stable power.

Energy storage is another key function - capacitors can rapidly discharge stored energy, which is perfect for camera flashes or emergency backup systems. They're also brilliant for timing circuits, creating precise delays in everything from traffic lights to microwave ovens.

Capacitors also serve as coupling devices, allowing AC signals to pass between different parts of a circuit while blocking DC components. This ability makes them crucial for audio equipment, radio receivers, and signal processing circuits.

Remember: Unlike batteries that store energy chemically, capacitors store energy in an electric field, allowing for much faster charging and discharging!

Capacitor Formulas and Considerations

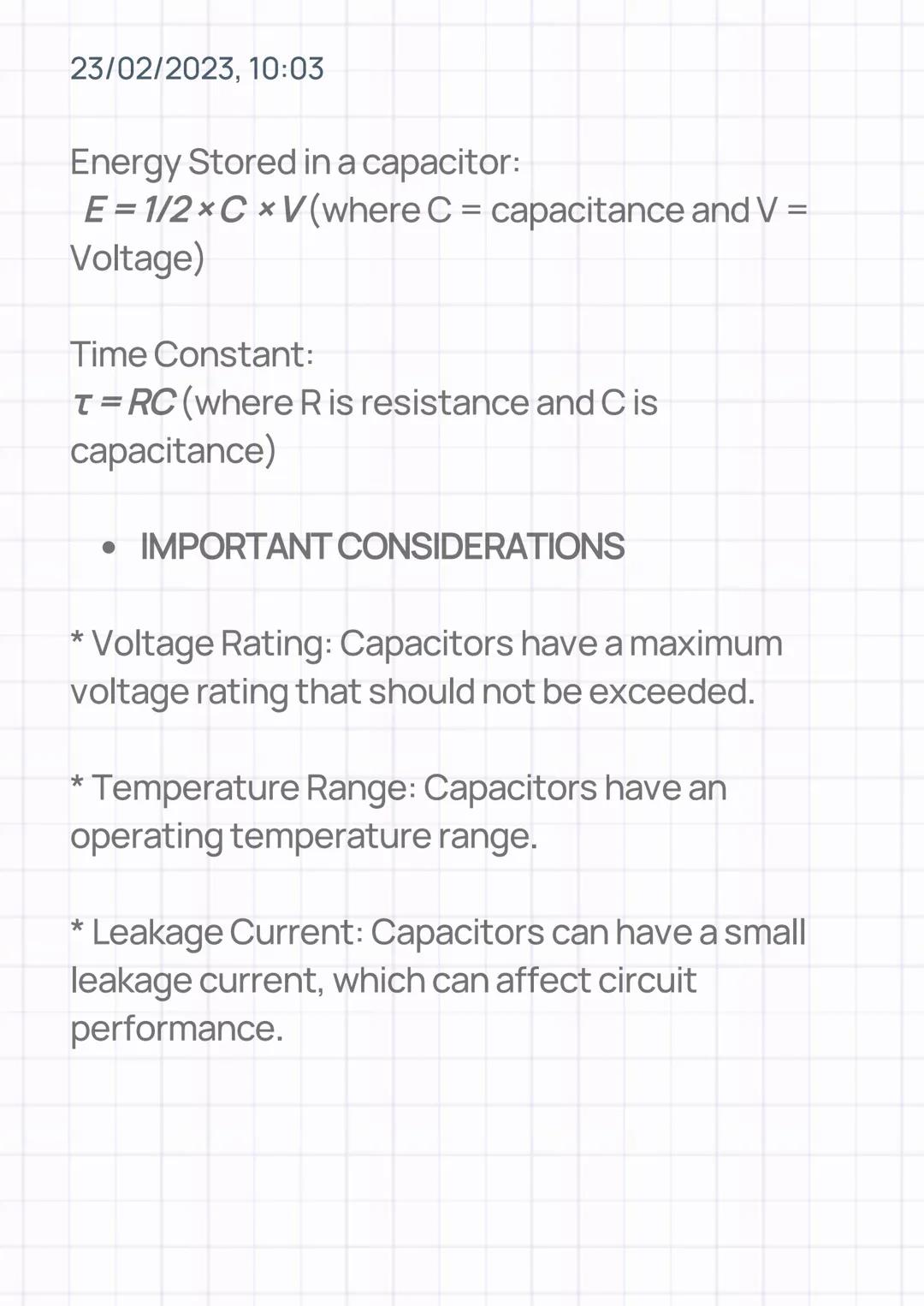

The relationship between charge, voltage, and capacitance is defined by the formula C = Q/V, where C is capacitance, Q is charge, and V is voltage. When you need to calculate the energy stored in a capacitor, use E = ½CV².

The time constant of a capacitor-resistor circuit is given by τ = RC. This tells you how quickly a capacitor charges or discharges through a resistor - a crucial concept for timing circuits. After one time constant, a capacitor charges to about 63% of the full voltage.

When working with capacitors, always check the voltage rating - exceeding this can damage or destroy the component. Also consider the operating temperature range, as capacitors can behave differently at extreme temperatures. Finally, be aware that real capacitors have some leakage current where charge slowly drains away, which can affect long-term circuit performance.
