AQA A Level Physics: Comprehensive Guide to Nuclear Physics

Nikolay

@nikolay

Nuclear physics explores the fascinating world inside atoms, where tiny... Show more

1 / 5

$# NUCLEAR # PHYSICS Alpha particle: Helium nudeus n P n P $\frac{4}{2}\alpha$ Rutherford's gold leaf experiment$

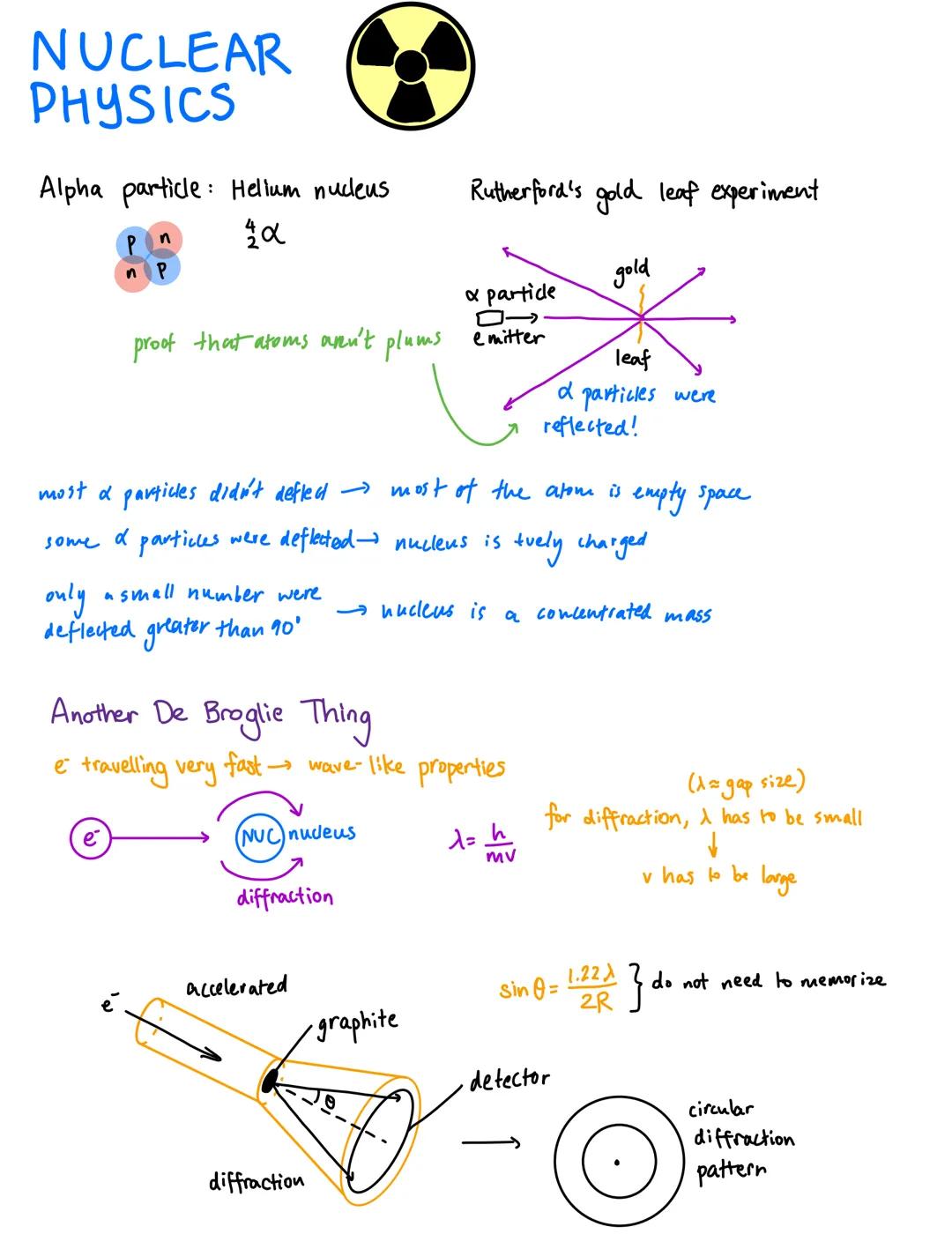

Nuclear Basics and Structure

Nuclear physics starts with understanding what's actually inside an atom's nucleus. An alpha particle is essentially a helium nucleus containing 2 protons and 2 neutrons, which you'll see written as ₄²α in nuclear equations.

Rutherford's gold leaf experiment was the groundbreaking investigation that first revealed the nuclear structure of atoms. This experiment showed that atoms aren't just "plum puddings" of charge, but have dense, tiny nuclei at their centres.

Key Insight: The nucleus is incredibly small compared to the whole atom, yet contains nearly all the atom's mass.

This experiment laid the foundation for our modern understanding of atomic structure and nuclear physics.

$# NUCLEAR # PHYSICS Alpha particle: Helium nudeus n P n P $\frac{4}{2}\alpha$ Rutherford's gold leaf experiment$

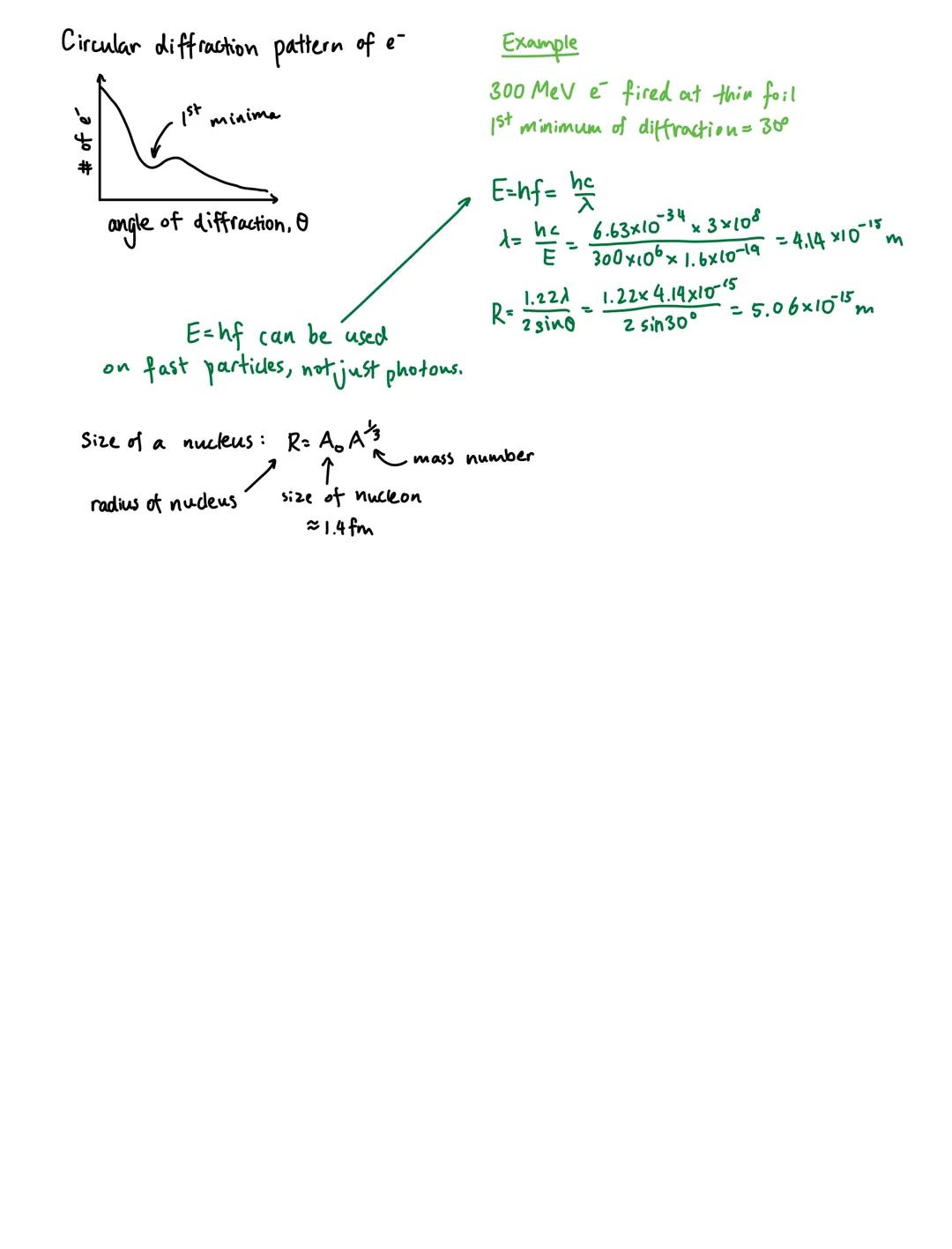

Measuring Nuclear Size with Electron Diffraction

You can actually measure how big a nucleus is by firing high-energy electrons at it and watching the diffraction pattern that forms. When electrons hit the nucleus, they create circular patterns with dark spots called minima.

The key formula for nuclear radius is R = A₀A^(1/3), where A₀ ≈ 1.4 fm (femtometres) and A is the mass number. This tells us that bigger nuclei aren't just scaled-up versions of smaller ones.

Here's how the maths works: if you fire 300 MeV electrons and get your first minimum at 30°, you can calculate the wavelength using E = hf = hc/λ. Then use R = 1.22λ/(2sinθ) to find the nuclear radius.

Pro Tip: Remember that E = hf works for particles too, not just photons - this is crucial for electron diffraction calculations.

$# NUCLEAR # PHYSICS Alpha particle: Helium nudeus n P n P $\frac{4}{2}\alpha$ Rutherford's gold leaf experiment$

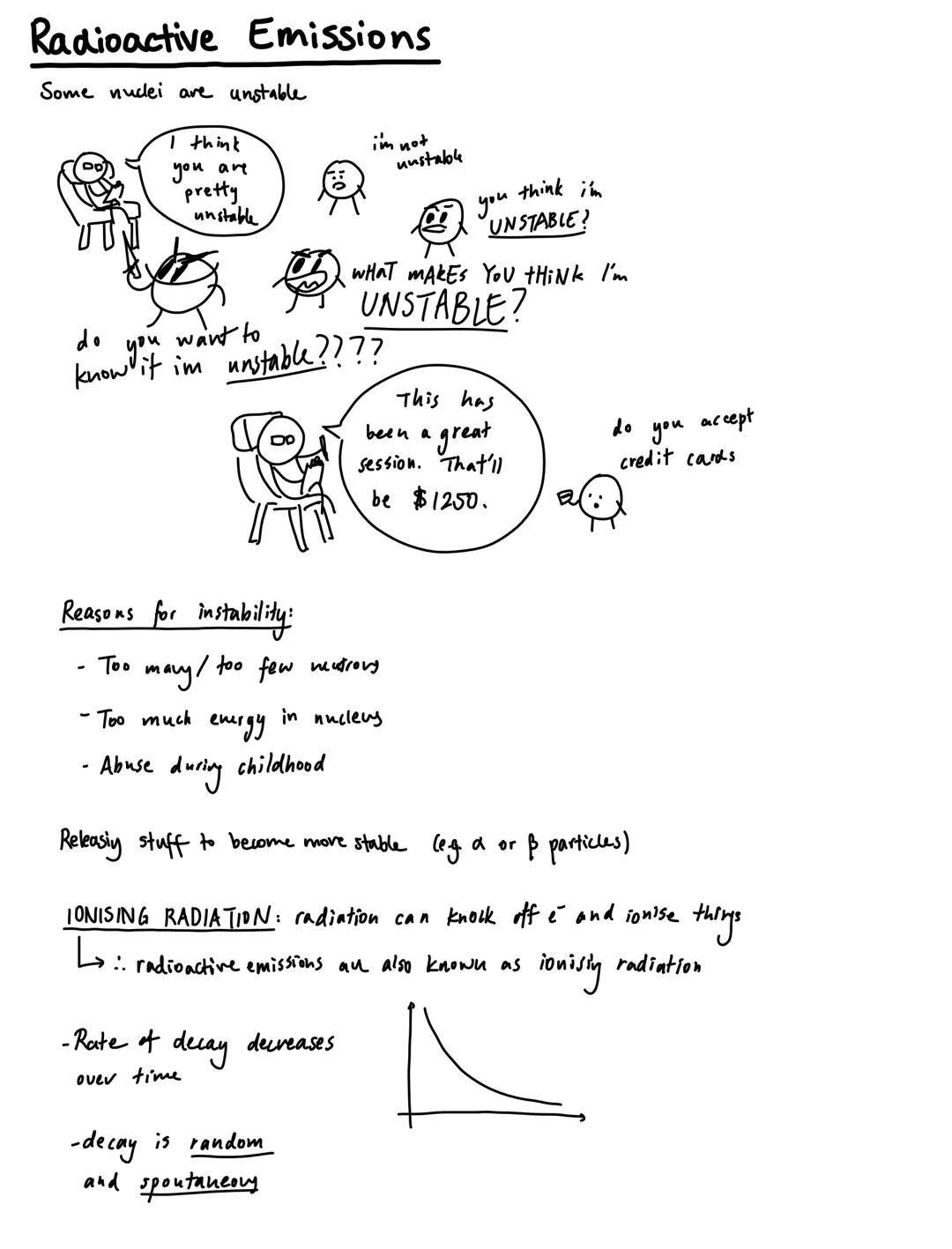

Radioactive Emissions and Nuclear Instability

Some nuclei are naturally unstable and will spontaneously break apart to become more stable. Think of it like a wobbly chair that eventually tips over - it's inevitable, but you can't predict exactly when.

Nuclear instability happens for several reasons: too many or too few neutrons, or simply too much energy packed into the nucleus. When nuclei decay, they release particles or energy to reach a more stable state.

This process creates ionising radiation - radiation powerful enough to knock electrons off atoms and damage living tissue. The decay rate decreases over time, but each individual decay is completely random and spontaneous.

Remember: Radioactive decay is like popcorn popping - you know roughly how long the whole process takes, but you can't predict which kernel pops next.

$# NUCLEAR # PHYSICS Alpha particle: Helium nudeus n P n P $\frac{4}{2}\alpha$ Rutherford's gold leaf experiment$

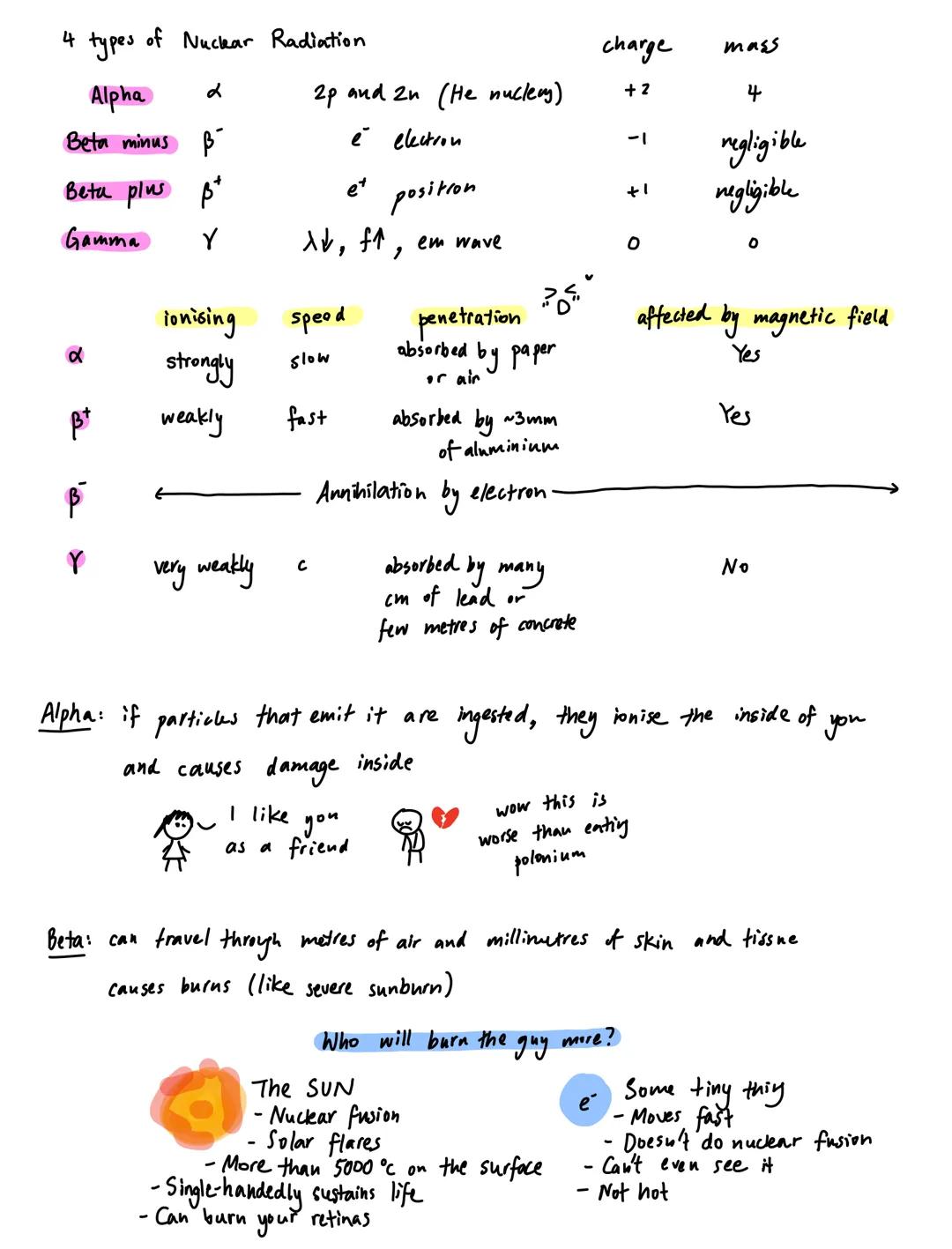

Types of Nuclear Radiation

There are four main types of nuclear radiation, each with different properties and dangers. Alpha particles (α) are heavy helium nuclei with +2 charge - they're slow but highly ionising and easily stopped by paper or skin.

Beta particles come in two flavours: beta-minus (β⁻) are electrons, while beta-plus (β⁺) are positrons. Both are much faster than alpha particles and can penetrate several millimetres of aluminium.

Gamma rays (γ) are electromagnetic waves with no mass or charge. They travel at the speed of light and can penetrate deep into materials - you need thick lead or concrete to stop them.

Safety Alert: Alpha particles are most dangerous when ingested because they cause massive internal damage, while gamma rays can harm you from a distance.

The penetrating power increases dramatically: paper stops alpha, aluminium stops beta, but only dense materials like lead can stop gamma radiation effectively.

$# NUCLEAR # PHYSICS Alpha particle: Helium nudeus n P n P $\frac{4}{2}\alpha$ Rutherford's gold leaf experiment$

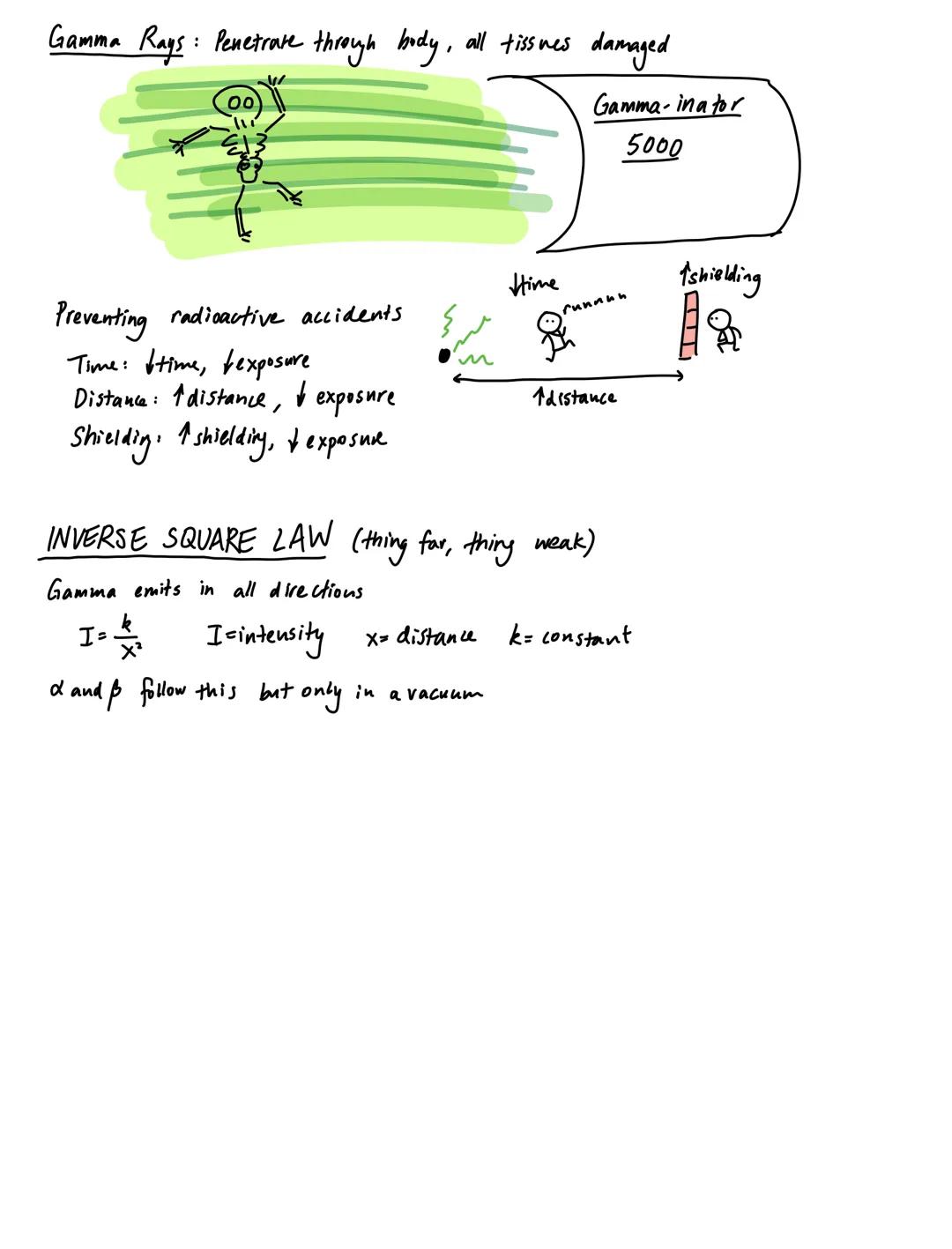

Radiation Protection and the Inverse Square Law

Protecting yourself from radiation exposure follows three simple principles: time, distance, and shielding. Spend less time near sources, stay further away, and put barriers between you and the radiation.

The inverse square law explains why distance is so effective: I = k/x². This means if you double your distance from a radiation source, the intensity drops to just one-quarter of its original value.

This law works perfectly for gamma rays and applies to alpha and beta particles too, but only in a vacuum. In air, alpha and beta particles lose energy through collisions, so they don't travel as far.

Real-world Application: This is why nuclear workers use long-handled tools and work behind thick shields - small increases in distance provide huge safety benefits.

Remember that gamma radiation spreads in all directions from its source, making the inverse square law particularly important for calculating safe working distances.
