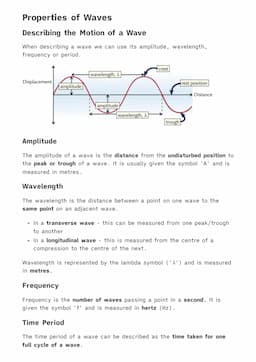

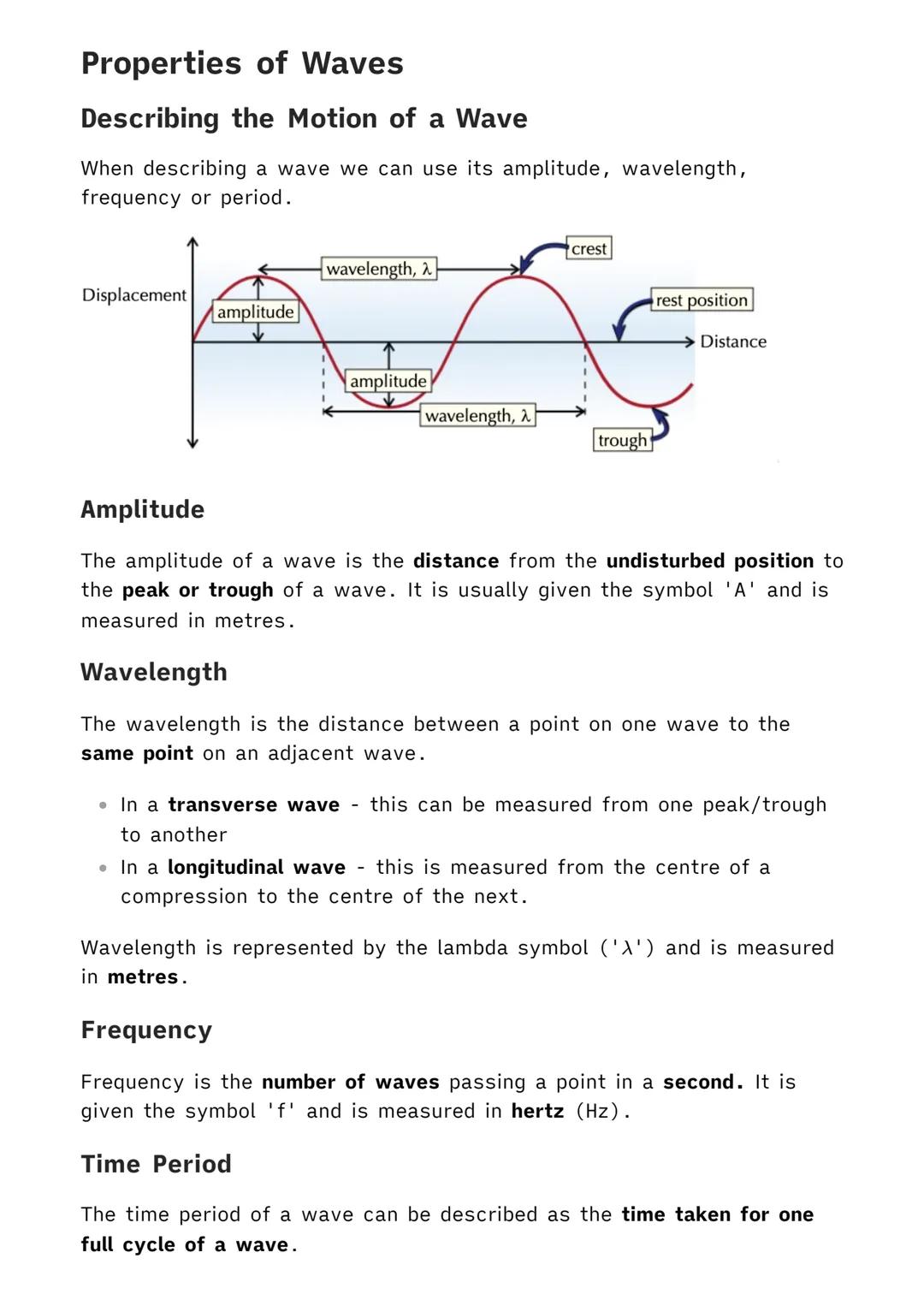

Properties of Waves

This section covers the key properties used to describe wave motion in GCSE Physics waves Questions and answers.

When describing a wave, we use four main properties:

1. Amplitude

   • Distance from the undisturbed position to the peak or trough of a wave
   • Symbol: A
   • Measured in meters

2. Wavelength

   • Distance between corresponding points on adjacent waves
   • Symbol: λ (lambda)
   • Measured in meters

Definition: For transverse waves, wavelength is measured from peak to peak or trough to trough. For longitudinal waves, it's measured from the center of one compression to the center of the next.

3. Frequency

   • Number of waves passing a point in one second
   • Symbol: f
   • Measured in hertz (Hz)

4. Time Period

   • Time taken for one complete wave cycle
   • Symbol: T
   • Measured in seconds

Formula: Time period = 1 / frequency

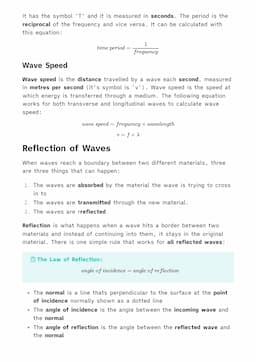

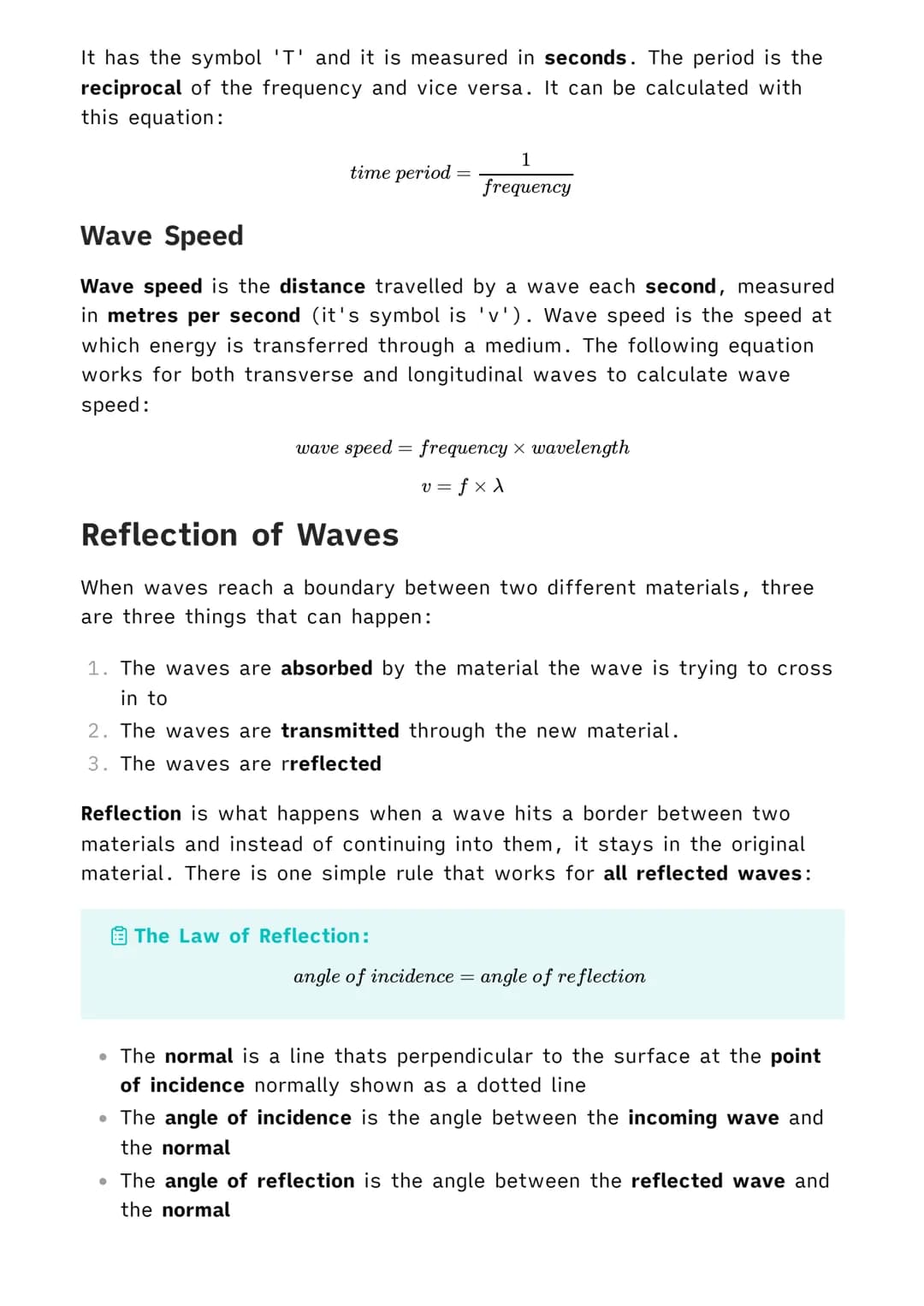

Wave Speed

• Distance traveled by a wave each second
• Symbol: v
• Measured in meters per second $m/s$

Formula: Wave speed = frequency × wavelength $v = f × λ$

Highlight: This formula applies to both transverse and longitudinal waves and is crucial for solving GCSE Physics waves in air fluids solids questions.

Reflection of Waves

This section explores how waves behave when they encounter boundaries between different materials, focusing on reflection.

When waves reach a boundary, three outcomes are possible:

1. Absorption by the new material
2. Transmission through the new material
3. Reflection back into the original medium

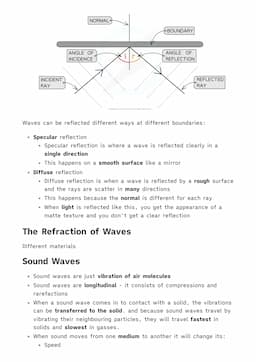

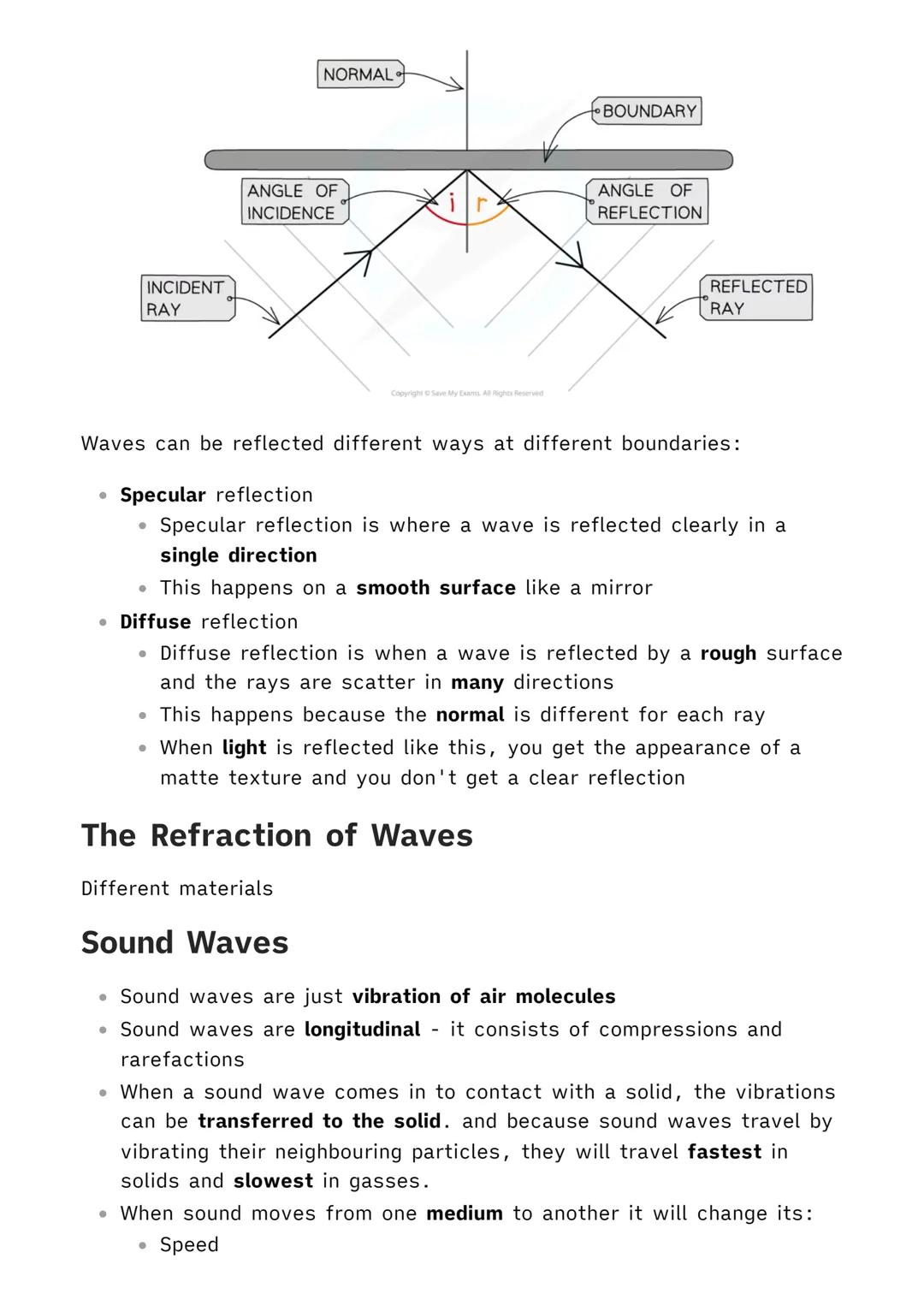

The Law of Reflection

Definition: The angle of incidence equals the angle of reflection

Key terms:

• Normal: A line perpendicular to the surface at the point of incidence
• Angle of incidence: Angle between the incoming wave and the normal
• Angle of reflection: Angle between the reflected wave and the normal

Types of reflection:

1. Specular reflection

   • Wave is reflected clearly in a single direction
   • Occurs on smooth surfaces like mirrors

2. Diffuse reflection

   • Wave is scattered in many directions upon reflection
   • Occurs on rough surfaces
   • Results in a matte appearance without clear reflections

Highlight: Understanding wave reflection is crucial for answering GCSE Physics electromagnetic waves questions.

The Refraction of Waves and Sound Waves

This section briefly introduces wave refraction and the characteristics of sound waves.

Refraction of Waves

• Occurs when waves pass between different materials
• Changes in wave speed can cause changes in direction

Sound Waves

• Vibrations of air molecules
• Longitudinal waves consisting of compressions and rarefactions
• Can transfer vibrations to solids upon contact

Highlight: Sound waves travel fastest in solids and slowest in gases due to the proximity of particles in these mediums.

Example: This explains why you can hear a train coming by putting your ear to the railway track before you can hear it through the air.

Understanding these concepts is essential for tackling GCSE Physics waves in air fluids solids questions and mastering the topic of Waves (GCSE Physics).

Page 5: Wave Behavior and Sound

This page examines different types of reflection and introduces sound waves, particularly relevant for understanding Examples of longitudinal waves.

Vocabulary: Specular reflection occurs on smooth surfaces, while diffuse reflection happens on rough surfaces.

Definition: Sound waves are longitudinal vibrations of air molecules, consisting of compressions and rarefactions.

Highlight: Sound waves travel fastest in solids and slowest in gases due to particle arrangement and density.

Wave Reflection

This section examines how waves interact with boundaries and surfaces.

Vocabulary:

• Specular reflection: Clear reflection in a single direction
• Diffuse reflection: Scattered reflection in multiple directions

Example: A mirror produces specular reflection, while a rough surface creates diffuse reflection.

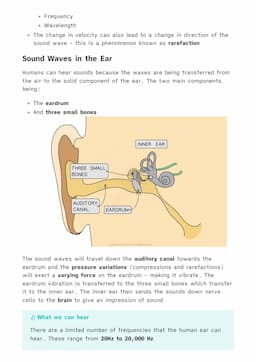

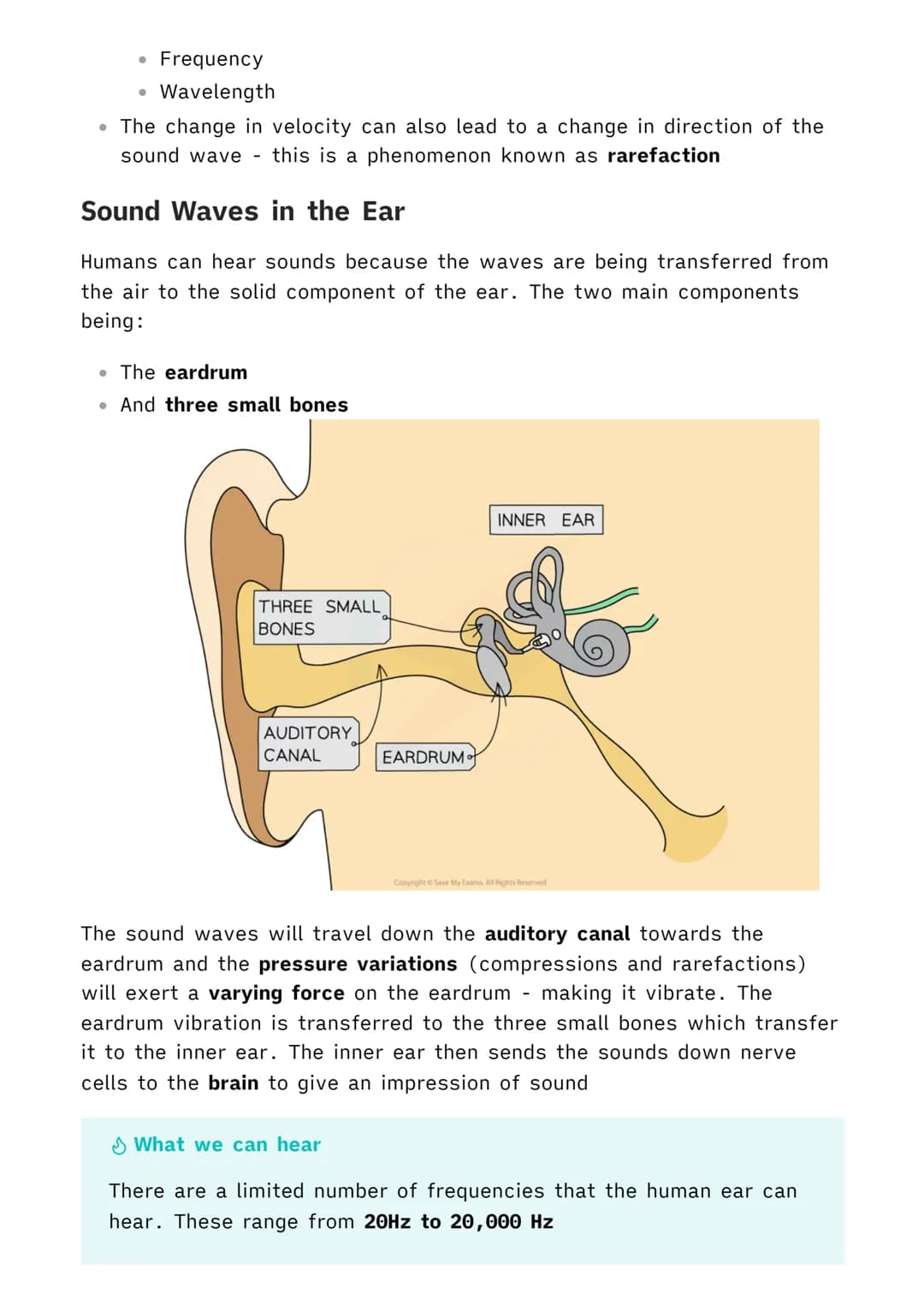

Sound Waves and the Ear

This section explores how sound waves interact with human hearing apparatus.

Highlight: Sound waves transfer from air to solid components in the ear through the eardrum and three small bones.

Definition: Sound waves create areas of compression and rarefaction as they travel through media.

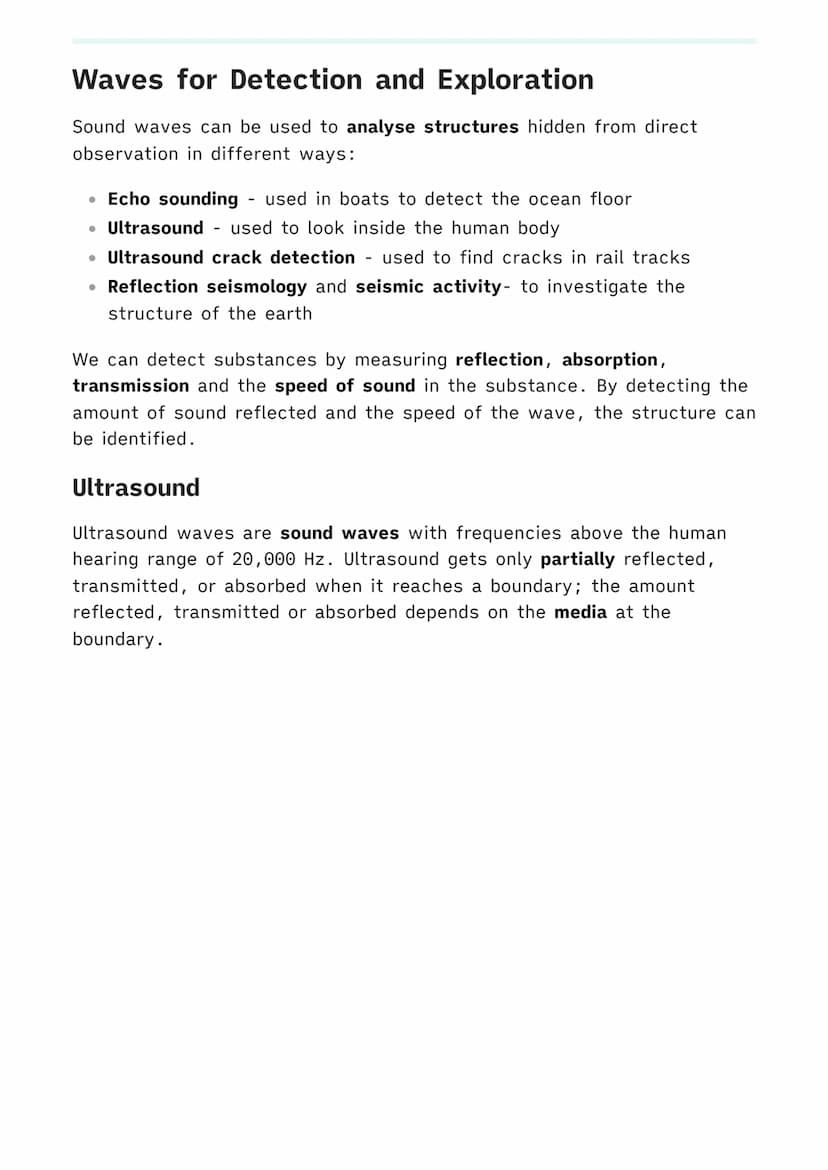

Wave Detection Applications

This section covers practical applications of waves in various fields.

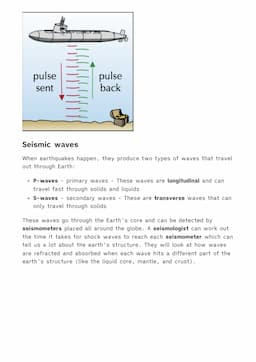

Example: Applications include:

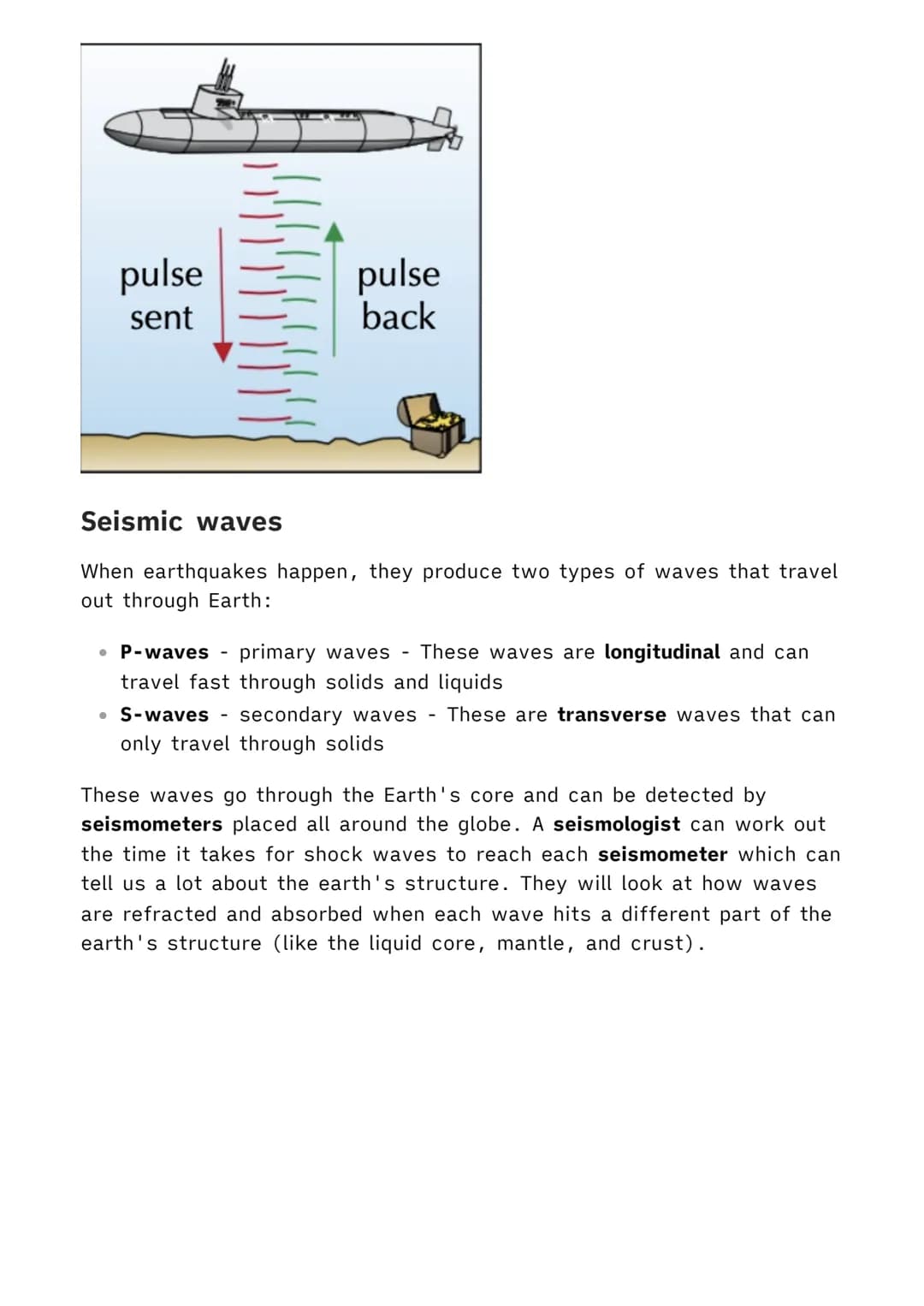

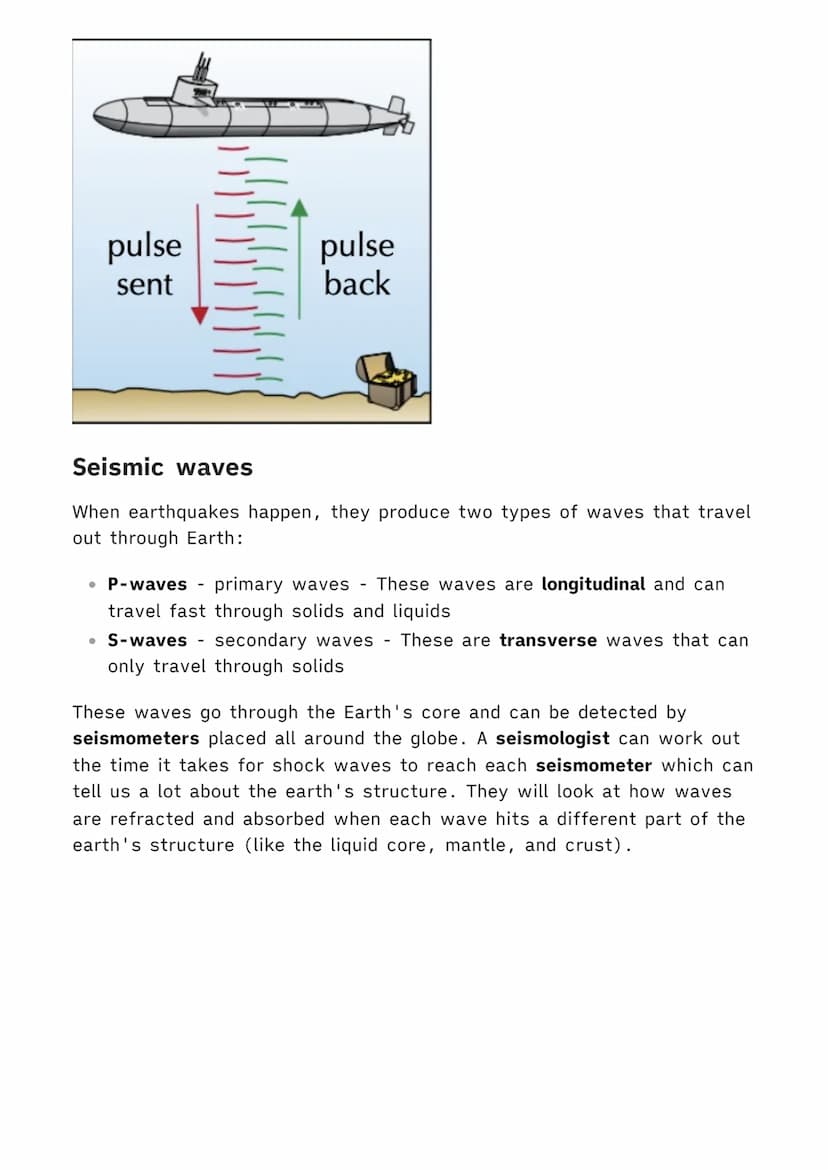

• Echo sounding for ocean floor detection
• Ultrasound for medical imaging
• Crack detection in rail tracks
• Seismic activity monitoring

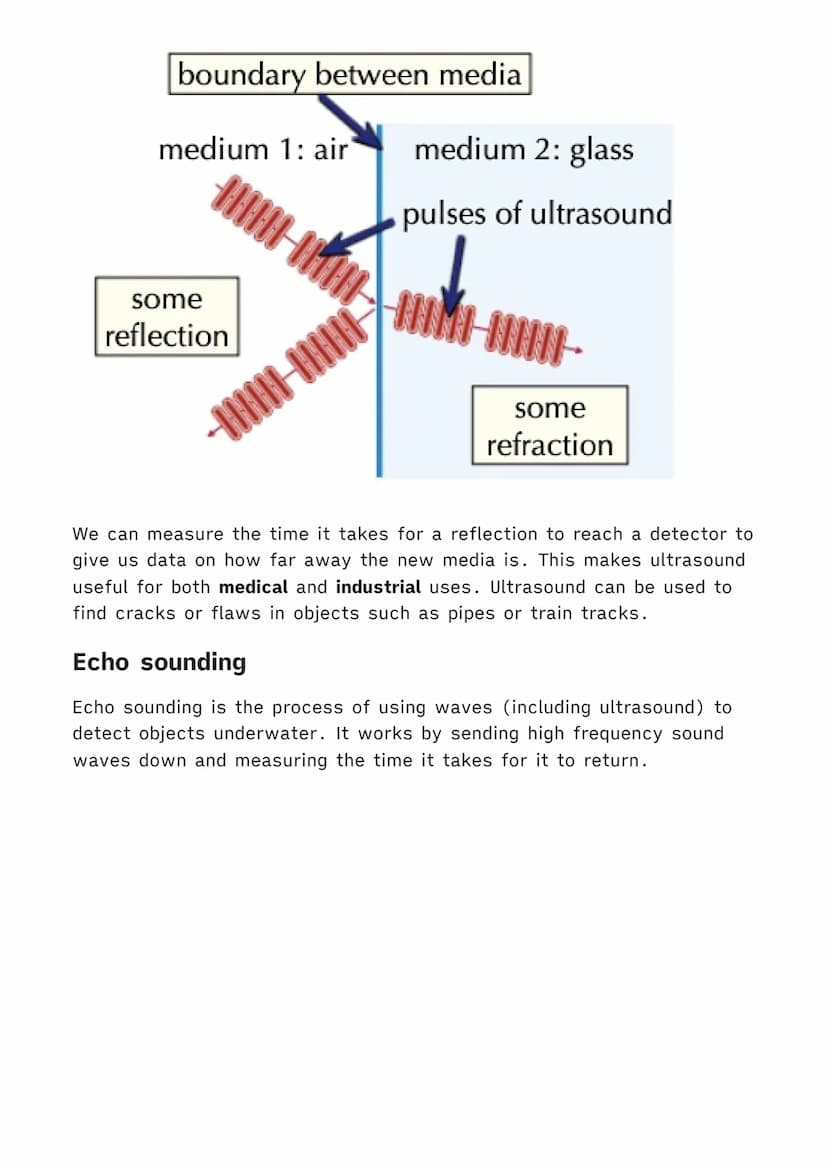

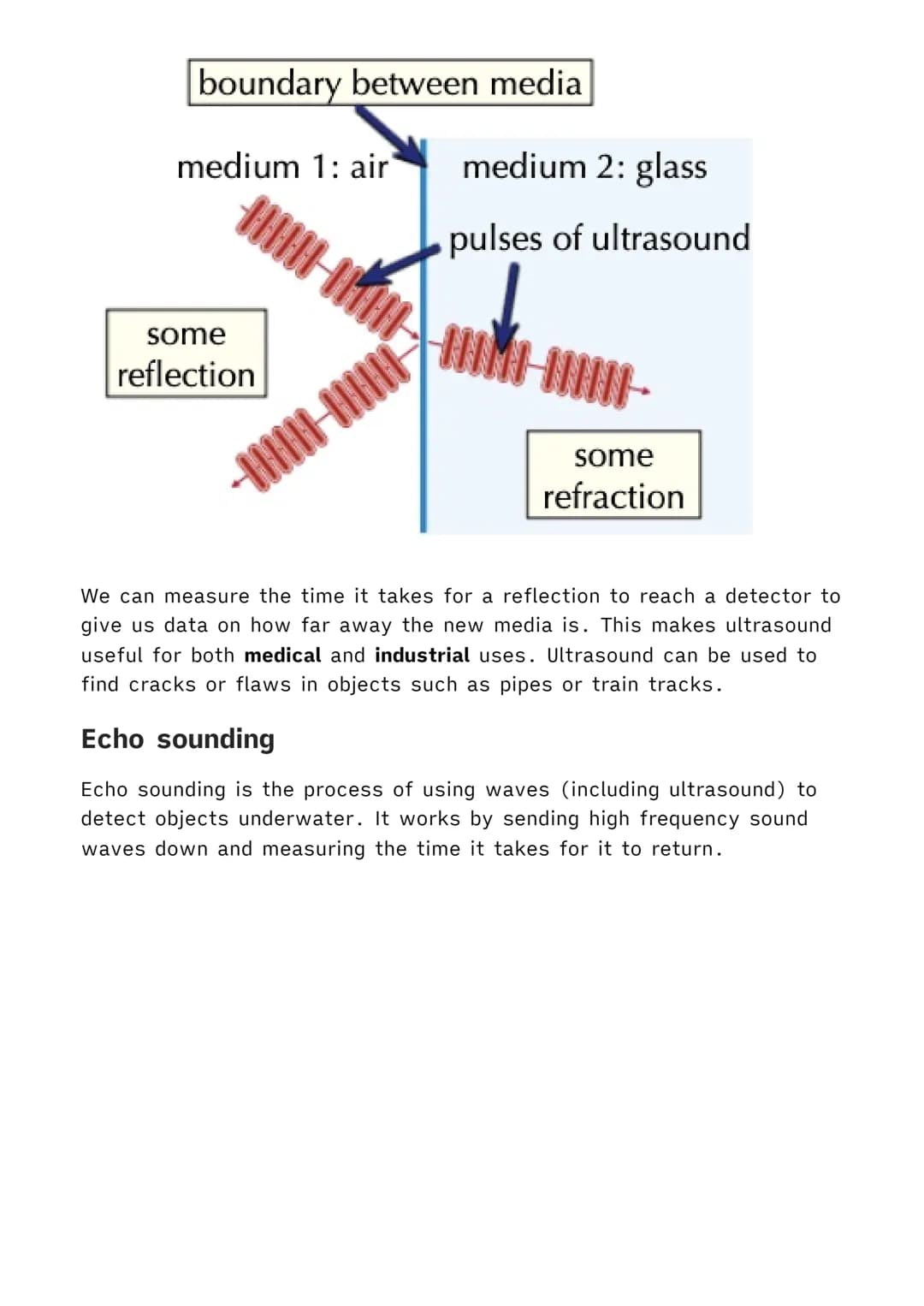

Ultrasound Applications

This section details specific uses of ultrasound waves in different contexts.

Definition: Ultrasound uses high-frequency sound waves to detect objects and boundaries between different media.

Highlight: The time taken for reflections to return can determine the distance to detected objects.

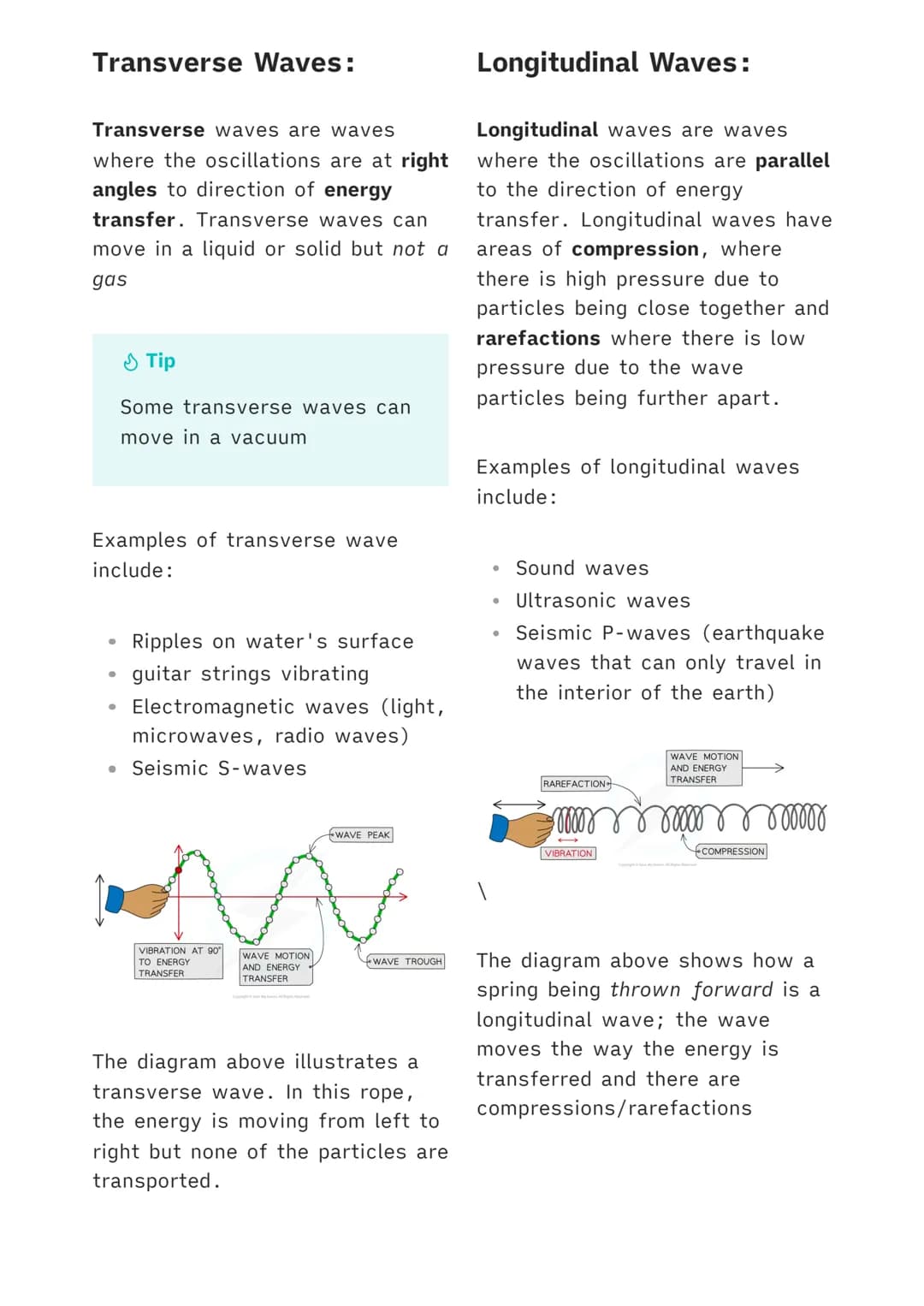

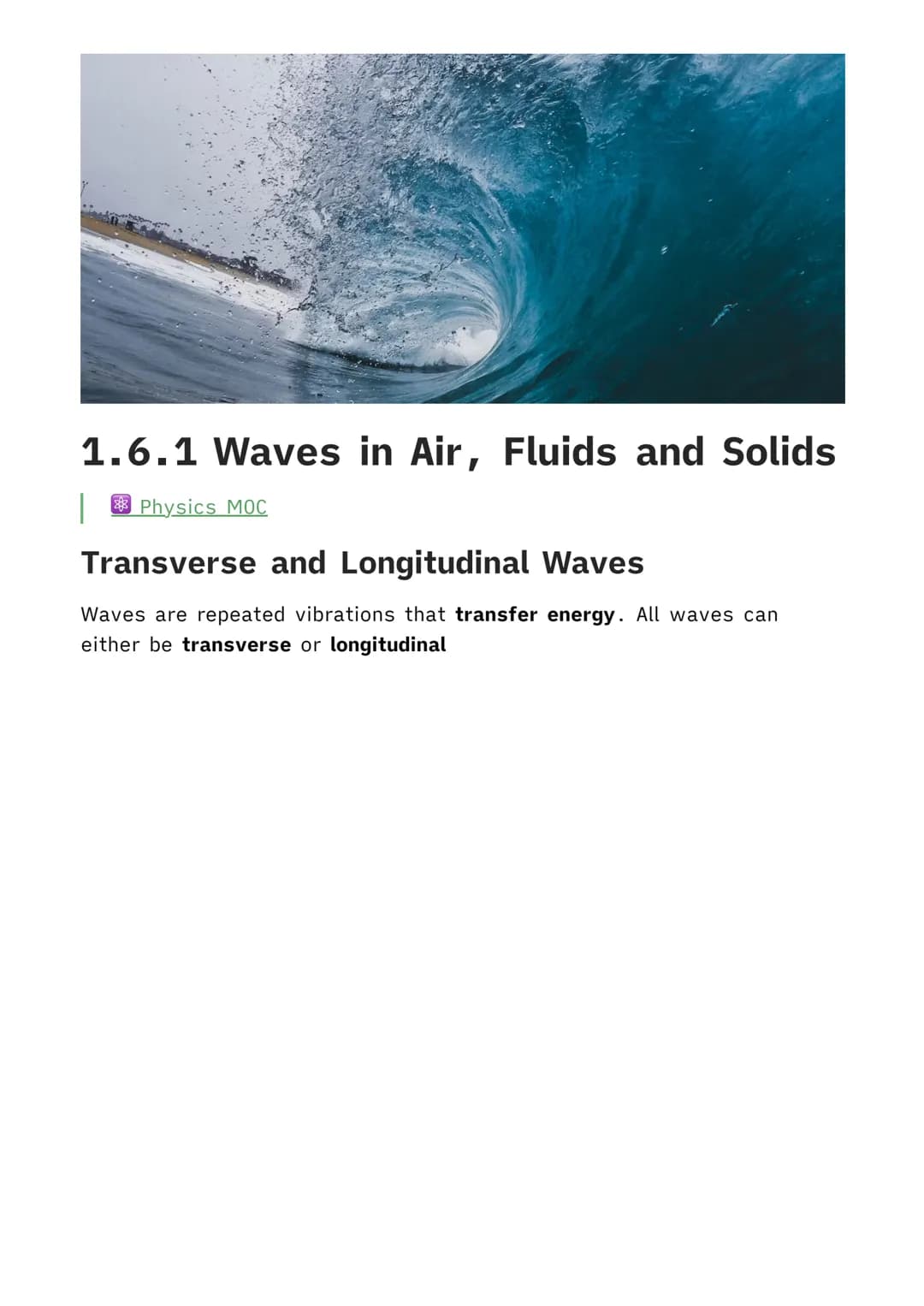

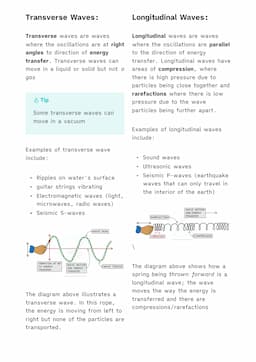

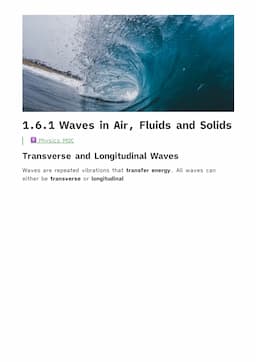

Transverse and Longitudinal Waves

This section introduces the two main types of waves studied in GCSE Physics waves: transverse and longitudinal waves.

Waves are defined as repeated vibrations that transfer energy. All waves can be classified as either transverse or longitudinal.

Transverse Waves:

• Oscillations occur perpendicular to the direction of energy transfer
• Can move through liquids and solids, but not gases
• Some transverse waves can move through a vacuum

Examples: Ripples on water, vibrating guitar strings, electromagnetic waves (light, radio waves), seismic S-waves

Highlight: In transverse waves, energy moves in one direction while particles oscillate at right angles to this direction.

Longitudinal Waves:

• Oscillations occur parallel to the direction of energy transfer
• Characterized by areas of compression (high pressure) and rarefaction (low pressure)

Examples: Sound waves, ultrasonic waves, seismic P-waves

Vocabulary: Rarefaction - Area of low pressure in a longitudinal wave where particles are further apart

Vocabulary: Compression - Area of high pressure in a longitudinal wave where particles are closer together

Highlight: Longitudinal waves exhibit a pattern of compressions and rarefactions as they propagate through a medium.
