Logic diagrams and truth tables are essential tools in understanding...
Other172 views·Updated 23 Aug 2026·4 pagesUnderstanding Logic Gates and Truth Tables in GCSE Computer Science
Toby king@tobyugbor_lcqq
1 / 4
1
of 4

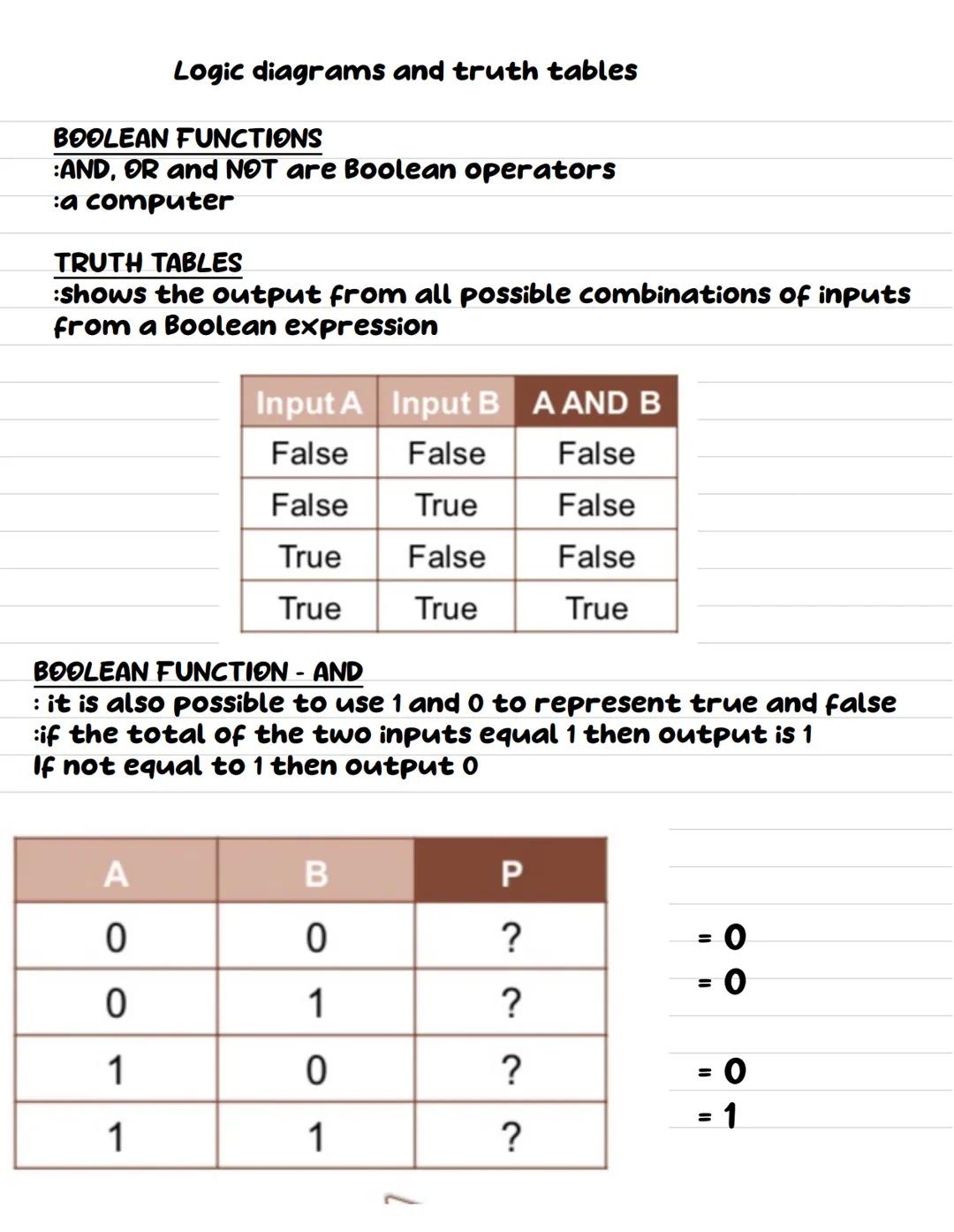

Boolean Functions and Truth Tables
Truth tables are practical tools that show all possible outputs from combinations of inputs in a Boolean expression. They're incredibly useful for understanding how logical operations work in computers.
When working with Boolean logic, we can represent values as either True/False or as 1/0. For the AND operator, both inputs must be True (or 1) for the output to be True. This is why only the combination of True AND True results in True.
In binary form (using 0 and 1), the AND function only outputs 1 when both inputs are 1. All other combinations result in 0.
💡 Think of the AND operator like a strict teacher - you only get approval (true) when both conditions are satisfied. If either condition fails, the result is always false.
2
of 4

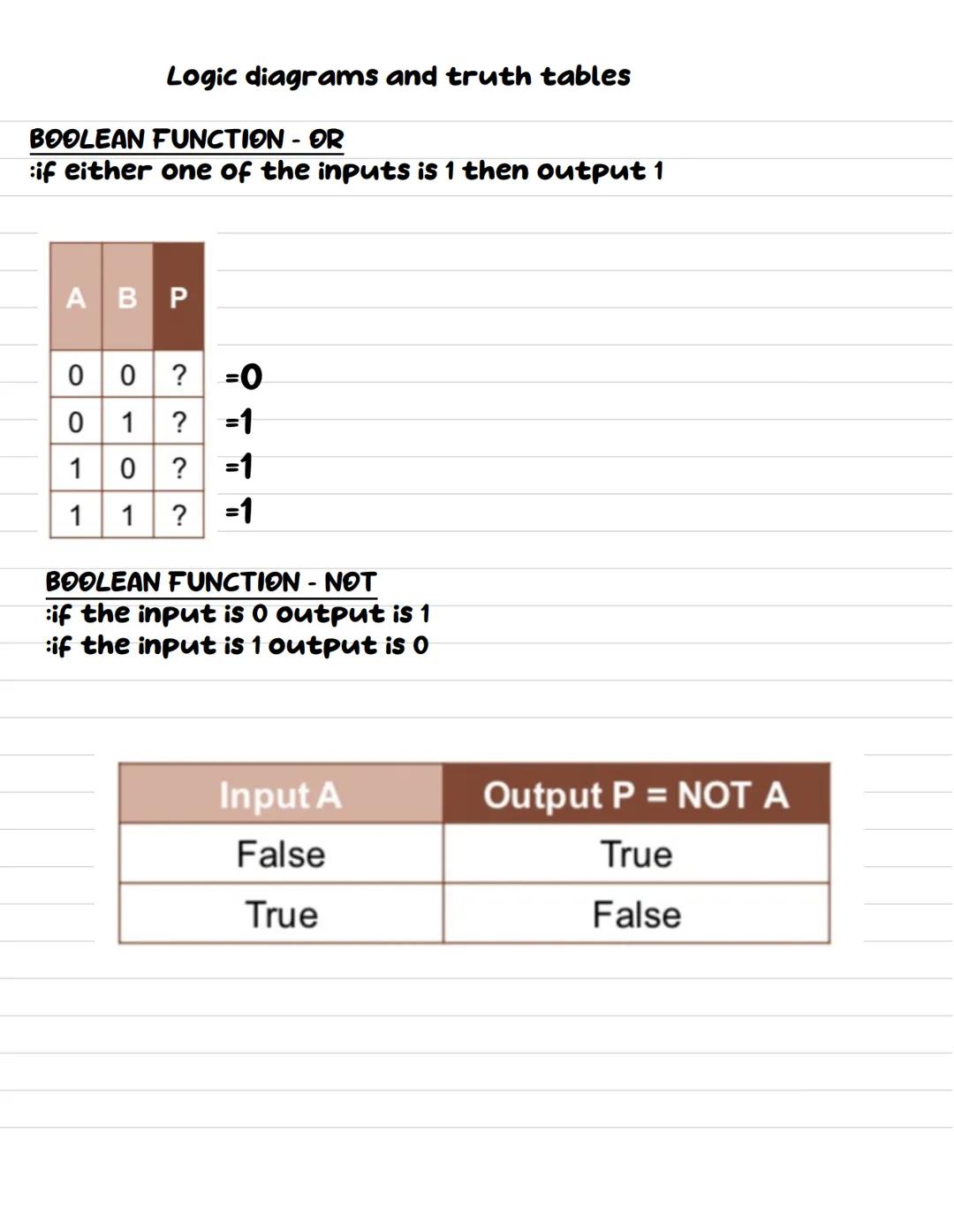

OR and NOT Functions
The OR operator is much more lenient than AND. It outputs True (or 1) if either one or both inputs are True. Only when both inputs are False (0) will the OR function output False.
The NOT operator is the simplest of all - it just reverses whatever input it receives. If you give it True, it outputs False. If you give it False, it outputs True. This is also called an inverter.
When using binary, NOT turns every 0 into 1, and every 1 into 0. It's like flipping a switch to the opposite position.
💡 The OR operator is like having two ways to unlock a door - if either key works, you get in. The NOT operator is simply a logical opposite - think of it as turning "yes" into "no" and "no" into "yes".
3
of 4

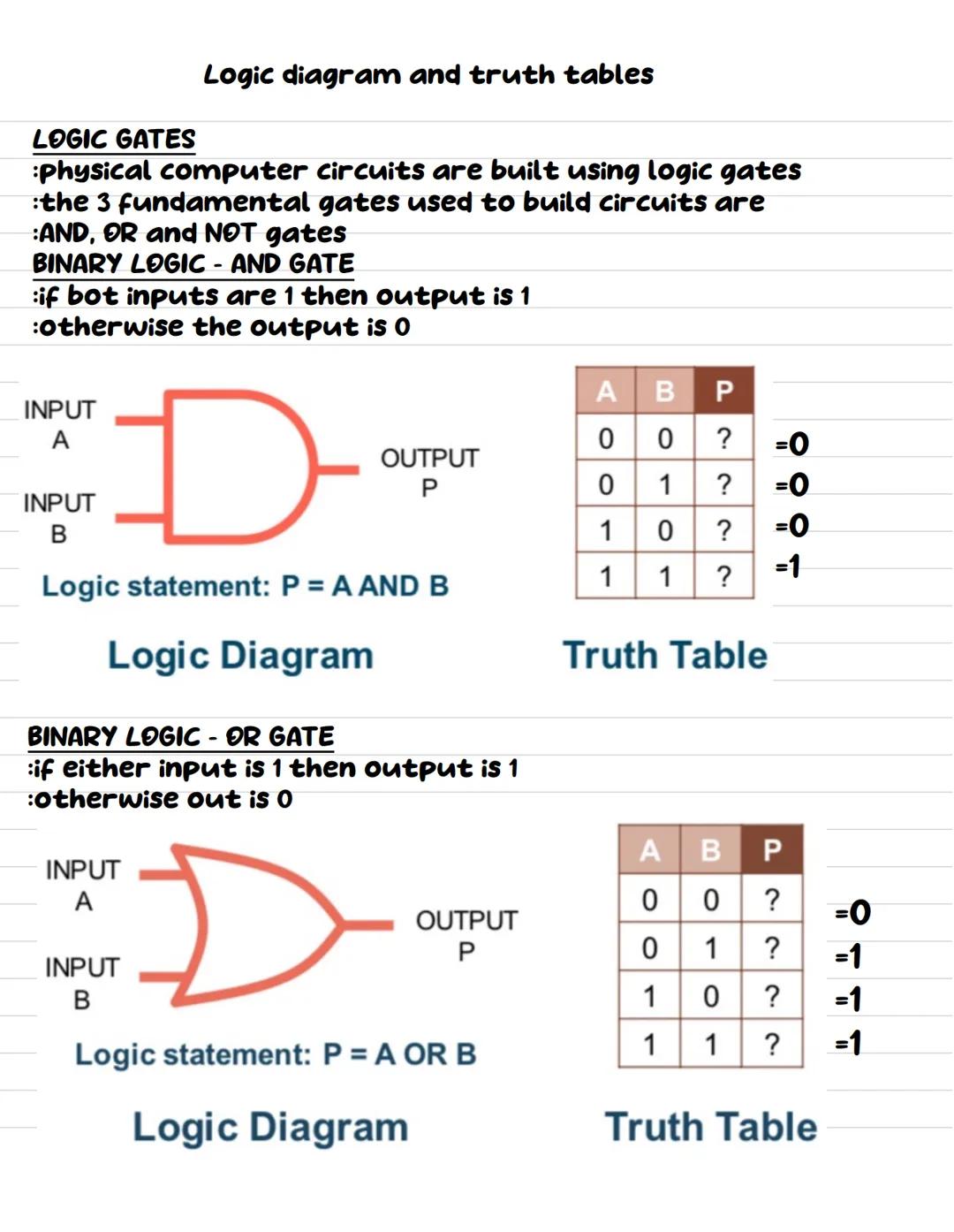

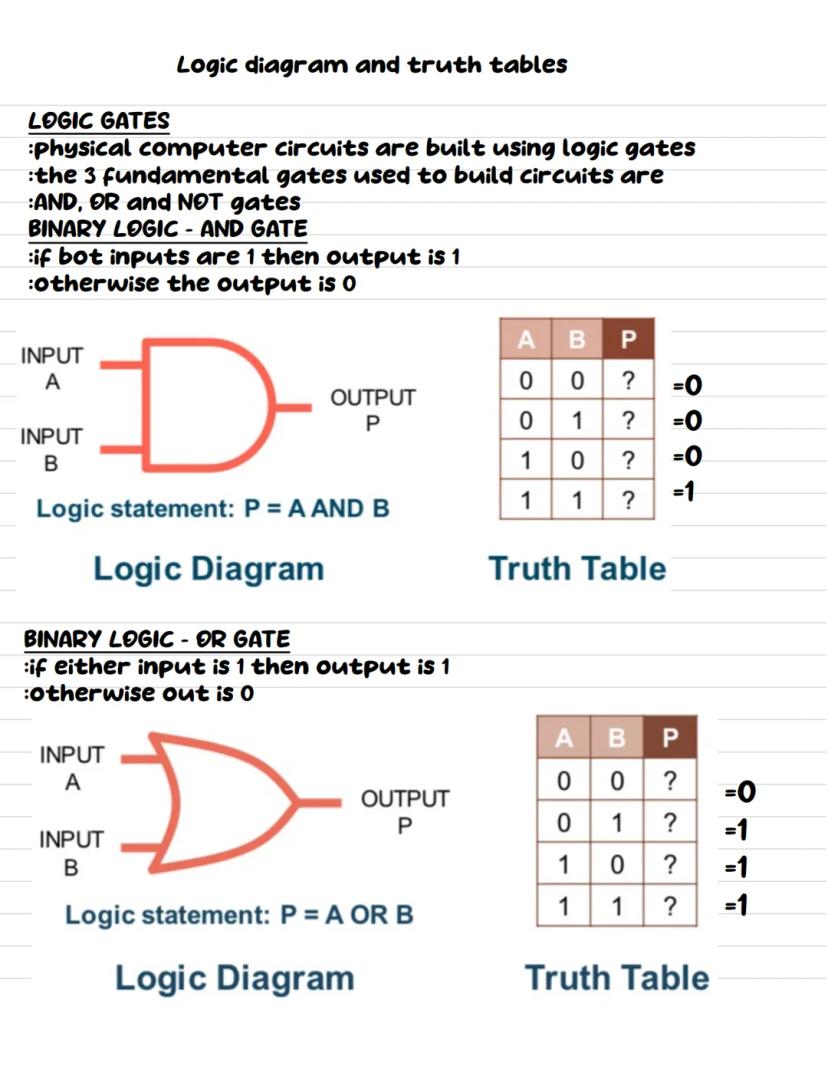

Logic Gates
Computers actually implement Boolean functions using physical components called logic gates. The three fundamental gates are AND, OR, and NOT gates - these are the building blocks of all computer circuits.
The AND gate outputs 1 only when both inputs are 1, otherwise it outputs 0. This is represented in circuit diagrams with a specific symbol that looks like a D-shaped gate. The truth table for AND gates shows all possible combinations of inputs and their resulting outputs.
Similarly, the OR gate outputs 1 if either input is 1, and its symbol looks different from the AND gate. Each gate's behavior is summarized in its truth table and can be expressed as a logic statement (like P = A OR B).
💡 Logic gates are the physical embodiment of Boolean operations - they're the actual electronic components that make decisions inside your computer's processor!
4
of 4

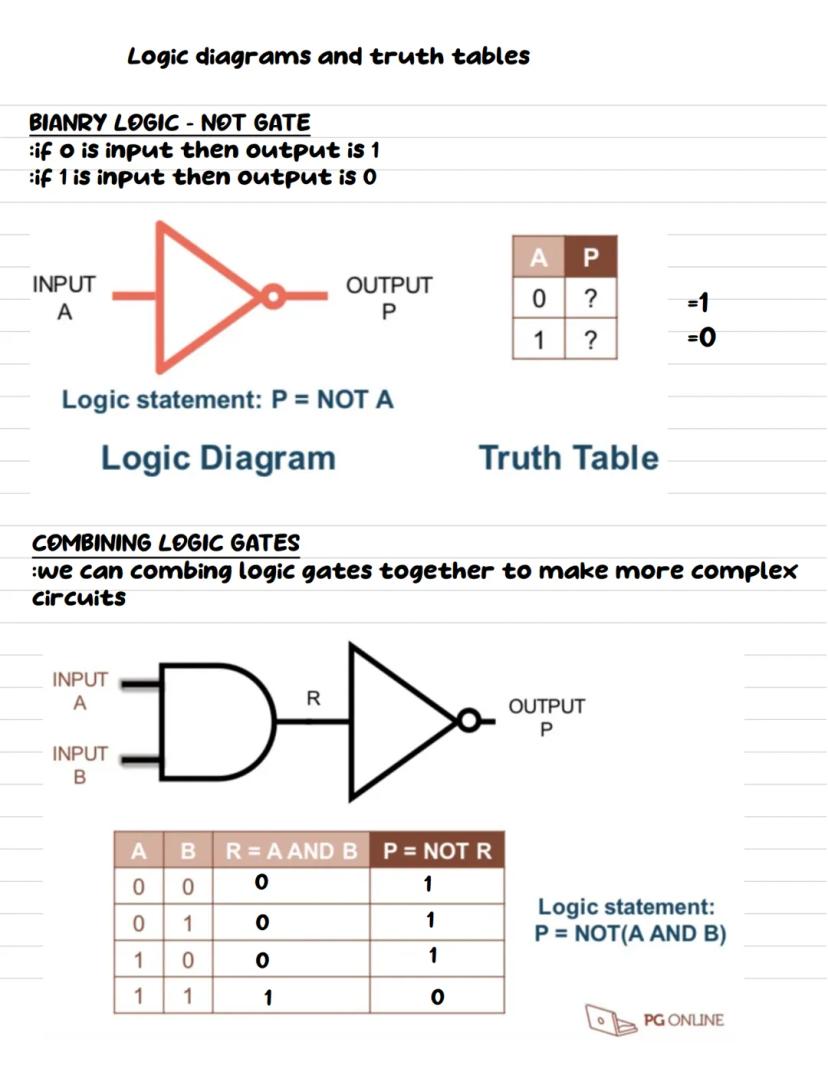

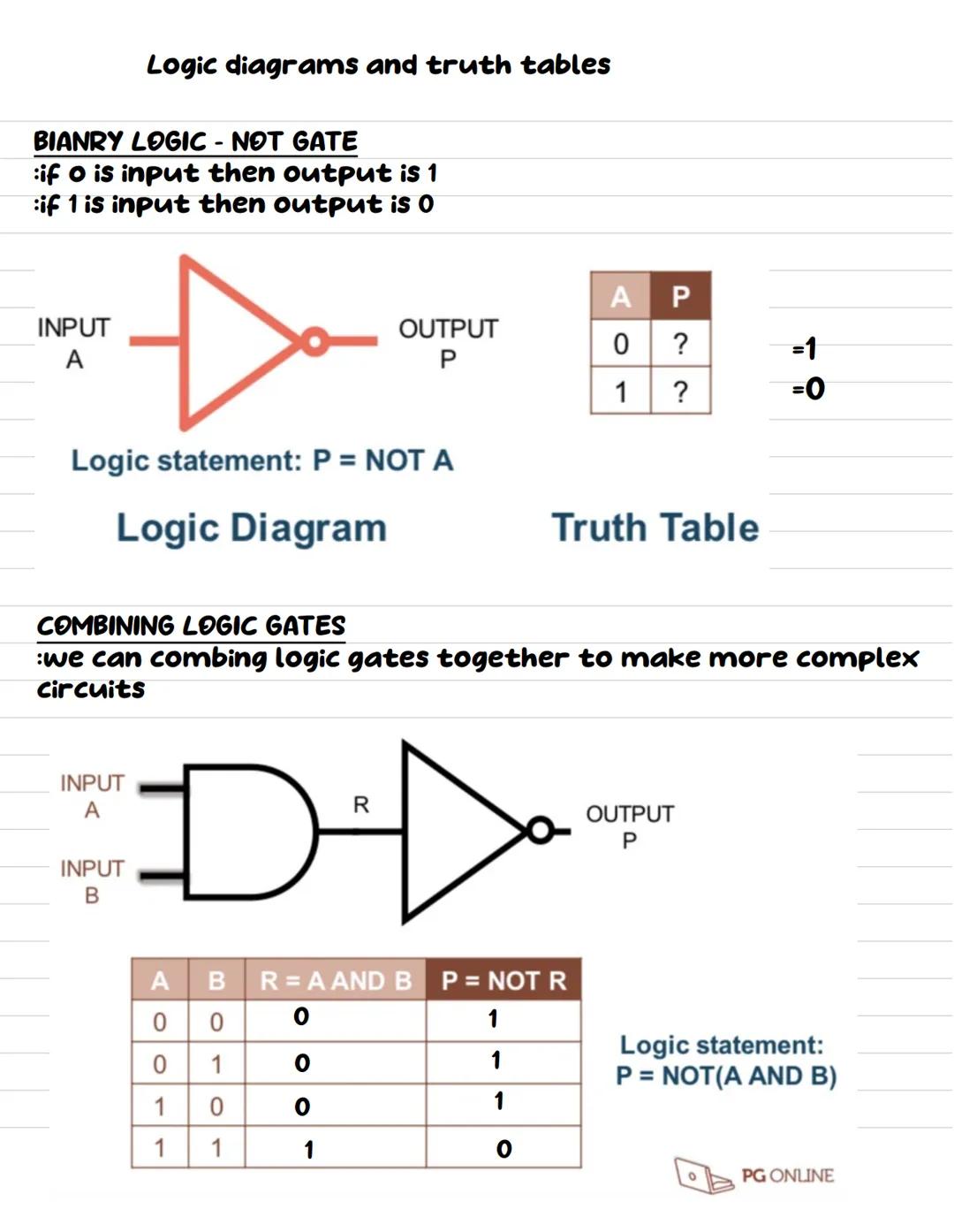

NOT Gates and Combined Circuits
The NOT gate (or inverter) has just one input and one output. It flips the input value - changing 0 to 1 and 1 to 0. Its symbol typically includes a small circle representing the inversion operation.
What makes logic gates truly powerful is our ability to combine them into more complex circuits. By connecting multiple gates together, we can create circuits that perform sophisticated operations.
For example, a circuit might combine an AND gate with a NOT gate to create what's called a NAND function. The logic statement for this would be P = NOT(A AND B). This means the inputs go through the AND operation first, and then the result is inverted.
💡 Most modern computer processors contain billions of logic gates combined in incredibly complex ways, but they all still operate on these same basic principles you're learning now!
