Easy Math: Circle Arcs, Cylinder Areas, and Sphere Volumes

A comprehensive guide to geometric calculations covering circles, pressure, and various 3D shapes. The material explains essential formulas and practical applications for calculating arc length of a circle, formula for surface area of a cylinder, and volume calculation for a sphere.

Introduces fundamental circle components including radius, diameter, arc, segment, and tangent
Details pressure calculations with clear relationships between force, pressure, and area
Covers arc length and sector area calculations with step-by-step examples
Explains surface area calculations for cylinders, cones, and spheres
Concludes with volume calculations for cones and spheres with practical examples

07/05/2023

Radius
chard

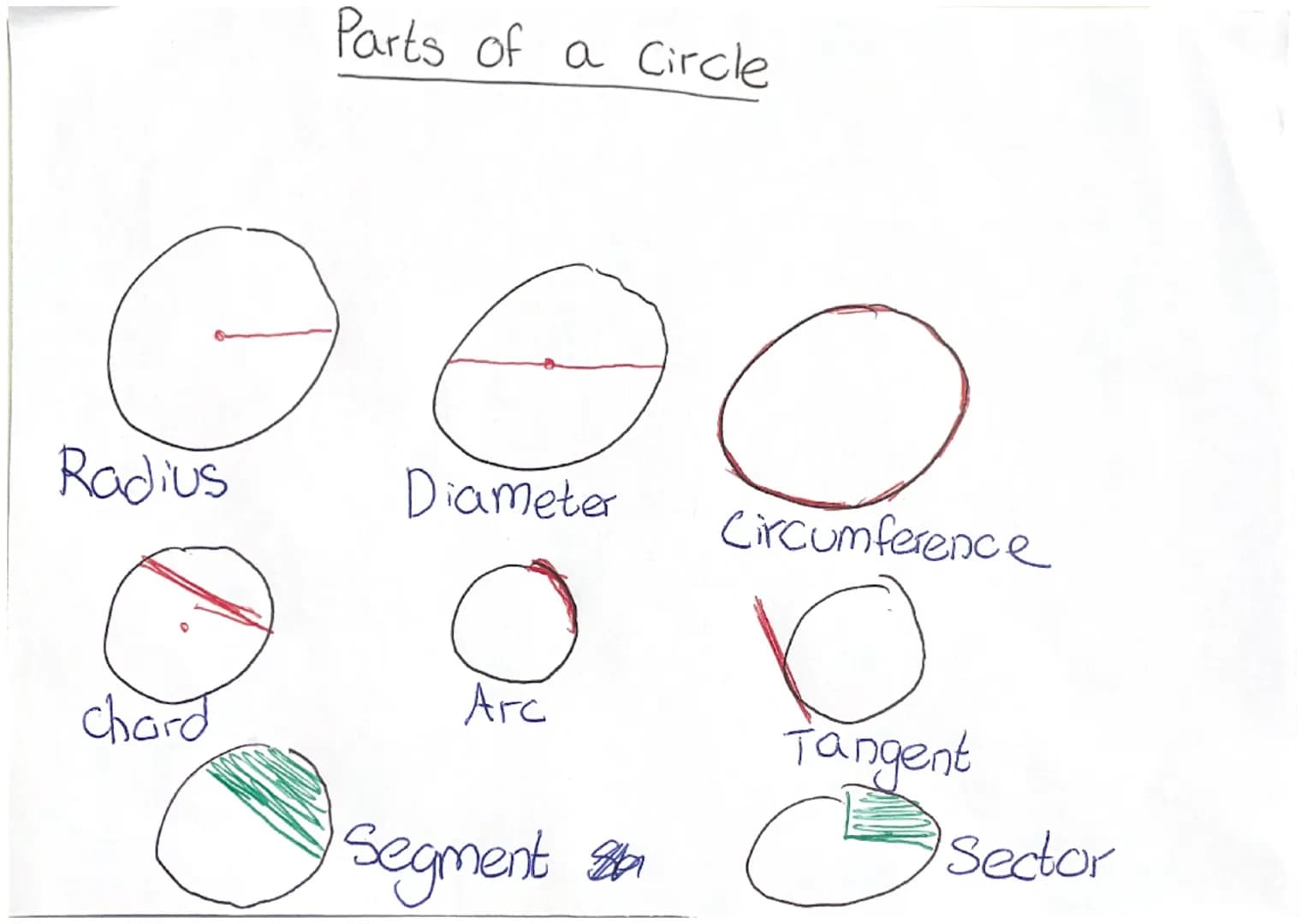

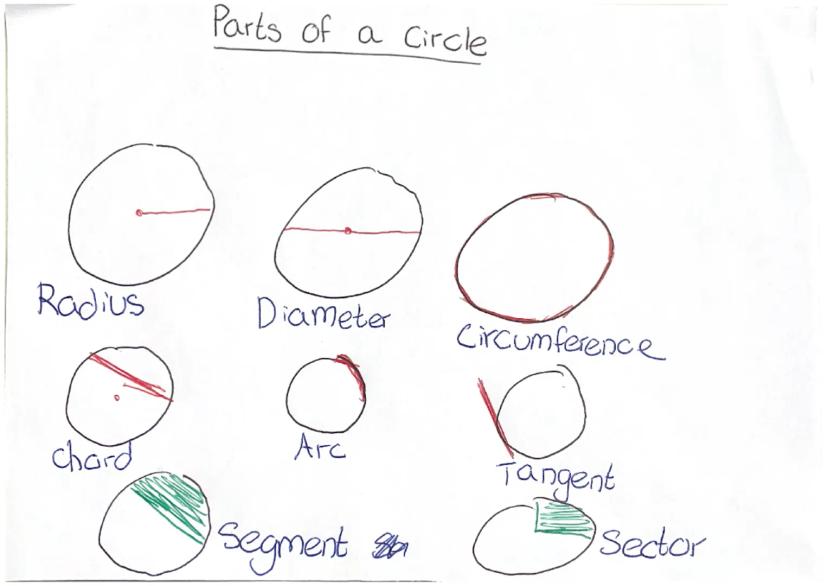

Parts of a Circle
Diameter
Arc
Segment
Ba
O
Circumference
о
Tangent
C
Sector F
"PA

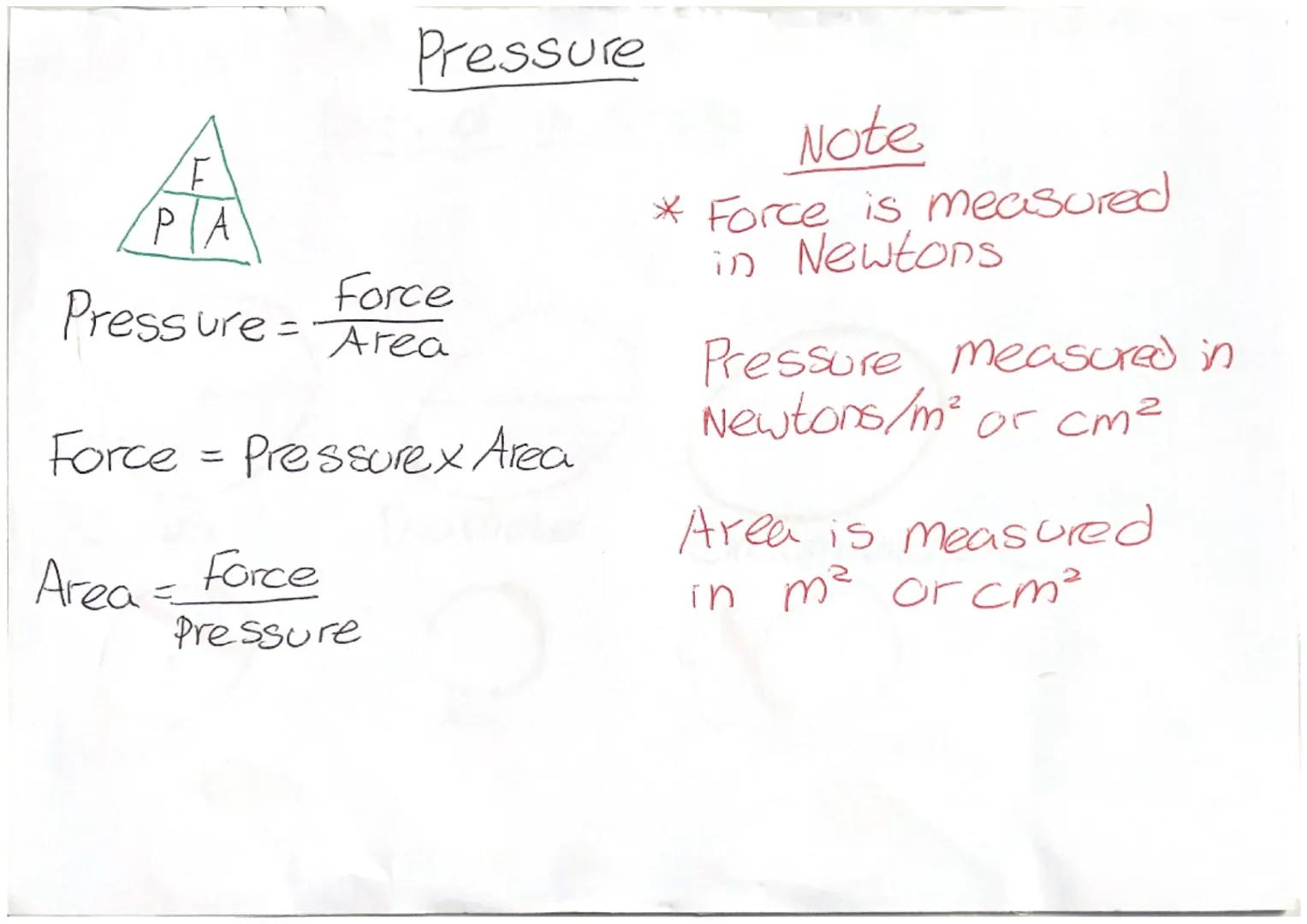

Pressure =
Pressure
Force
Area
Force = Press

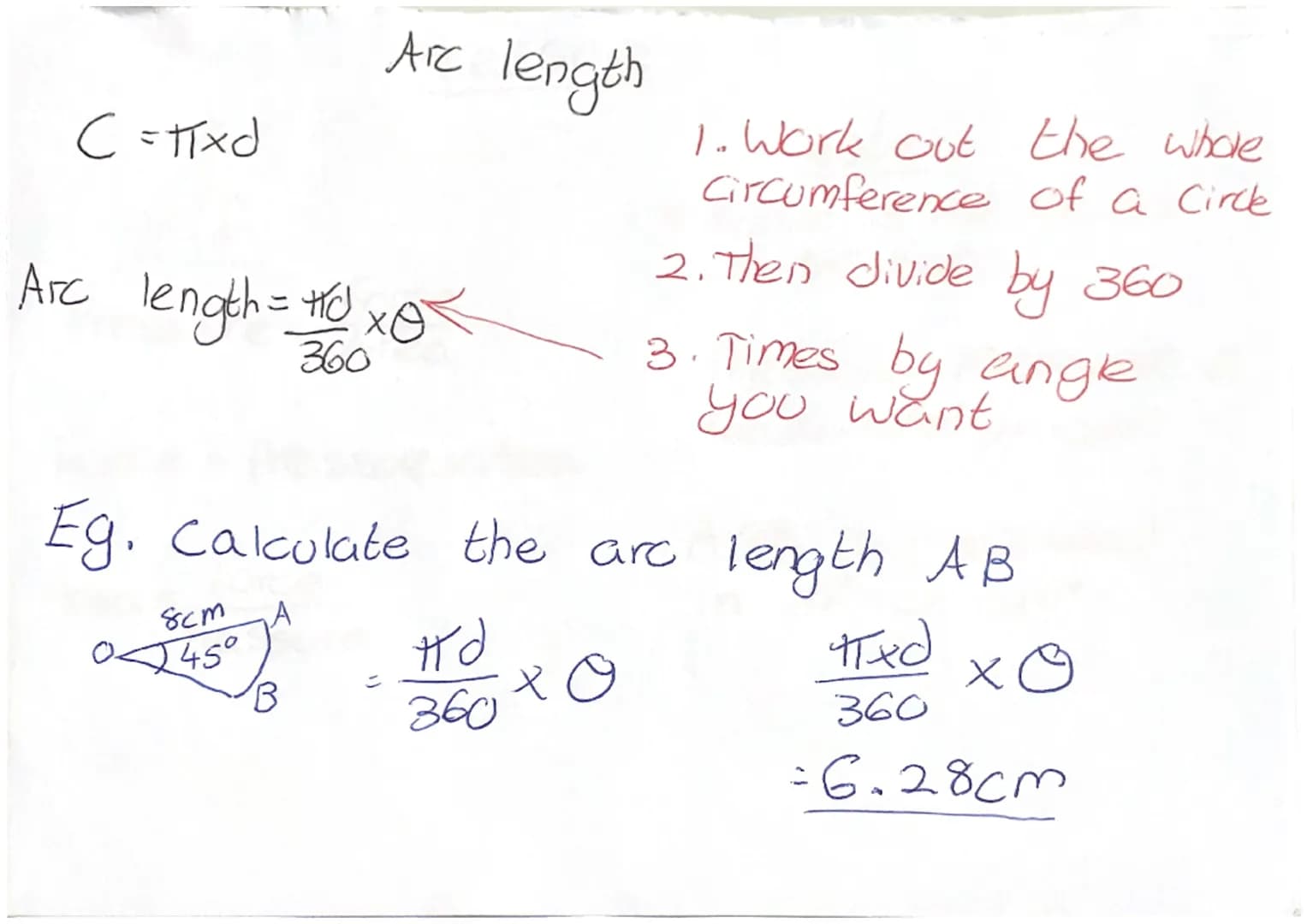

Calculating Arc Length

This page focuses on calculating arc length of a circle, which is a crucial skill in geometry and practical applications.

The process for calculating arc length is broken down into three steps:

Calculate the entire circumference of the circle using the formula C = π × d, where d is the diameter.
Divide the circumference by 360° to find the length of one degree of the circle.
Multiply this value by the angle of the arc you want to measure.

Example: Calculate the arc length AB for a circle with a diameter of 8cm and an arc angle of 45°.

Circumference = π × 8 = 25.13cm
Length of 1° = 25.13 / 360 = 0.0698cm
Arc length = 0.0698 × 45 = 3.14cm

Highlight: The formula for arc length can be expressed as: Arc length = (θ / 360°) × πd, where θ is the angle of the arc in degrees.

This method allows for accurate calculation of any arc length when the diameter and angle are known.

View

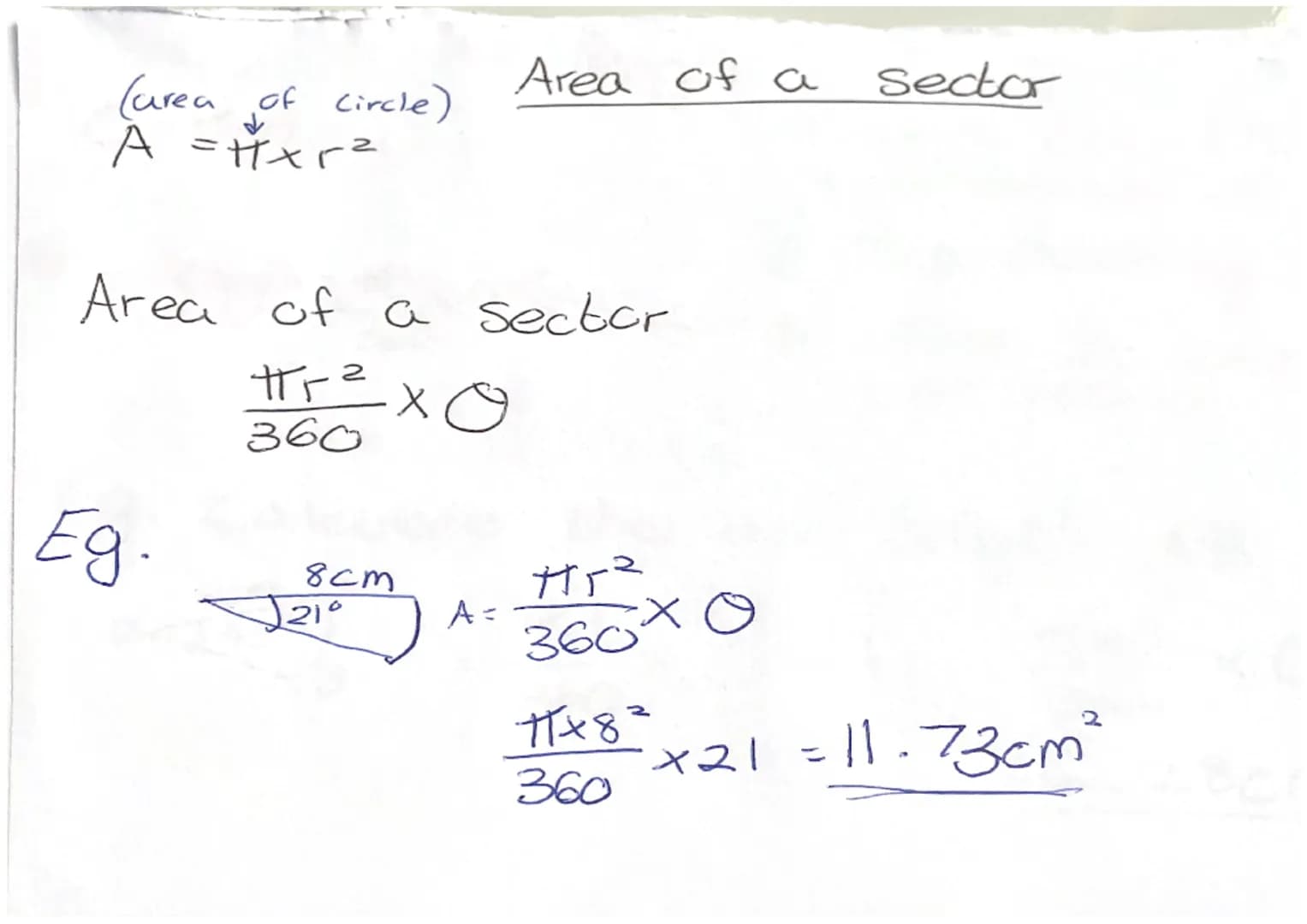

Area of a Sector

This page explains how to calculate the area of a sector, which is a portion of a circle enclosed by two radii and an arc.

The formula for the area of a sector is derived from the area of a full circle:

Definition: Area of a sector = (θ / 360°) × πr², where θ is the angle of the sector in degrees and r is the radius of the circle.

This formula can be understood as taking the fraction of the full circle's area that corresponds to the angle of the sector.

Example: Calculate the area of a sector with a radius of 8cm and an angle of 21°.

Area of sector = (21 / 360) × π × 8² = 11.73cm²

The page provides a step-by-step solution to this example, demonstrating how to apply the formula in practice.

Highlight: This method can be used to calculate the area of any sector, regardless of its size or the dimensions of the circle it's part of.

Understanding how to calculate sector areas is essential for more advanced geometric problems and real-world applications involving circular segments.

View

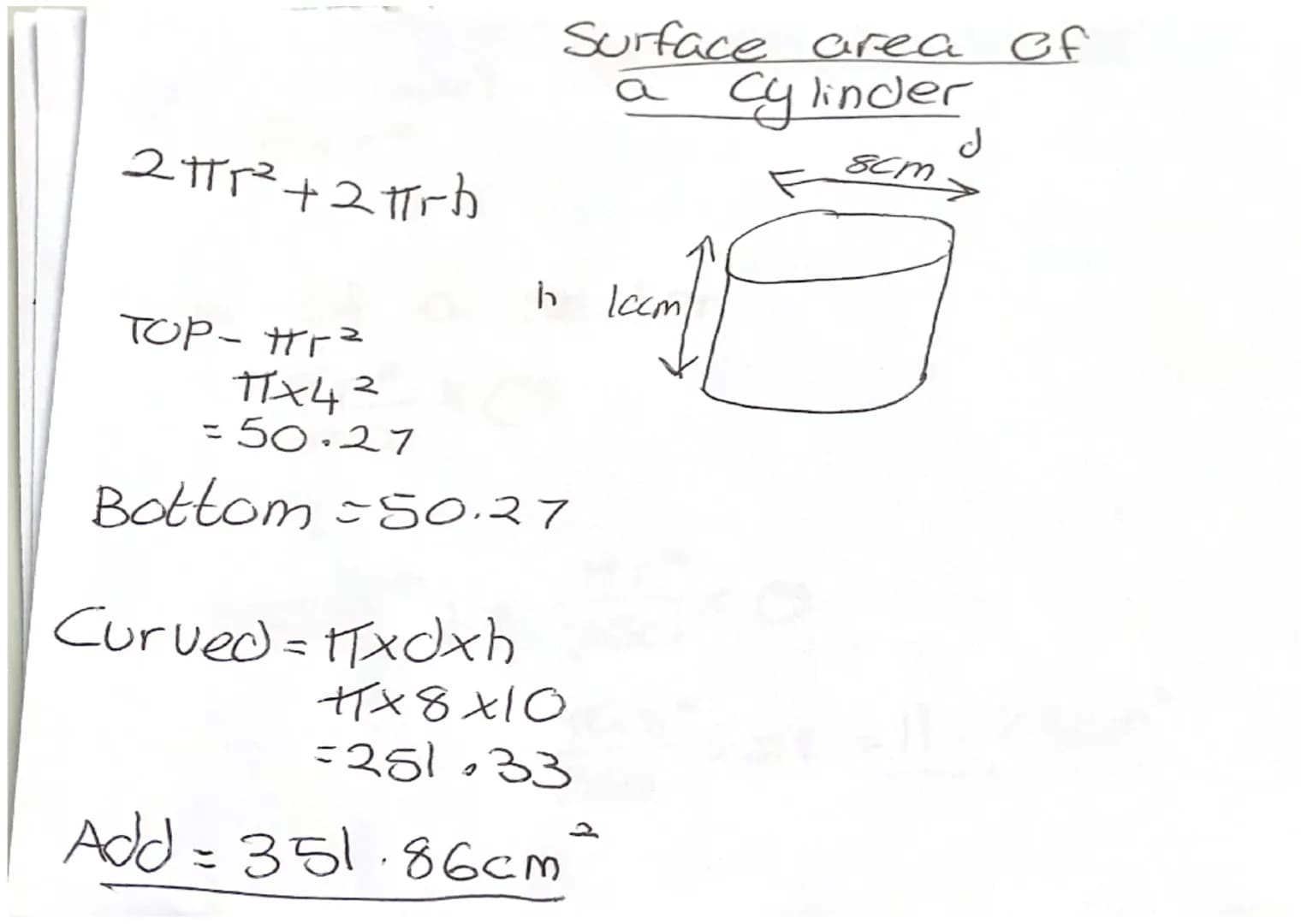

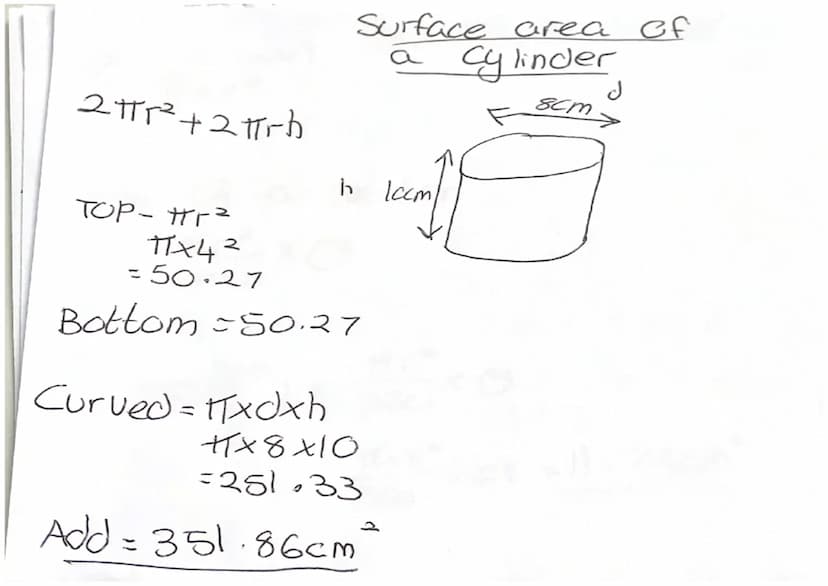

Surface Area of a Cylinder

This page introduces the formula for surface area of a cylinder and demonstrates its application through a practical example.

The surface area of a cylinder consists of three parts:

The top circular face
The bottom circular face
The curved lateral surface

Definition: Total surface area of a cylinder = 2πr² + 2πrh, where r is the radius of the base and h is the height of the cylinder.

This formula can be broken down as follows:

Area of top and bottom circles: 2πr²
Area of curved surface: 2πrh

Example: Calculate the surface area of a cylinder with a diameter of 8cm and a height of 10cm.

Area of top circle: πr² = π × 4² = 50.27cm²
Area of bottom circle: 50.27cm² (same as top)
Curved surface area: 2πrh = 2π × 4 × 10 = 251.33cm²
Total surface area: 50.27 + 50.27 + 251.33 = 351.86cm²

Highlight: When calculating the surface area of a cylinder, remember to use the radius (half the diameter) for the circular faces, but the full height for the curved surface.

This method allows for accurate calculation of the surface area of any cylinder, which is useful in various fields including engineering, architecture, and manufacturing.

View

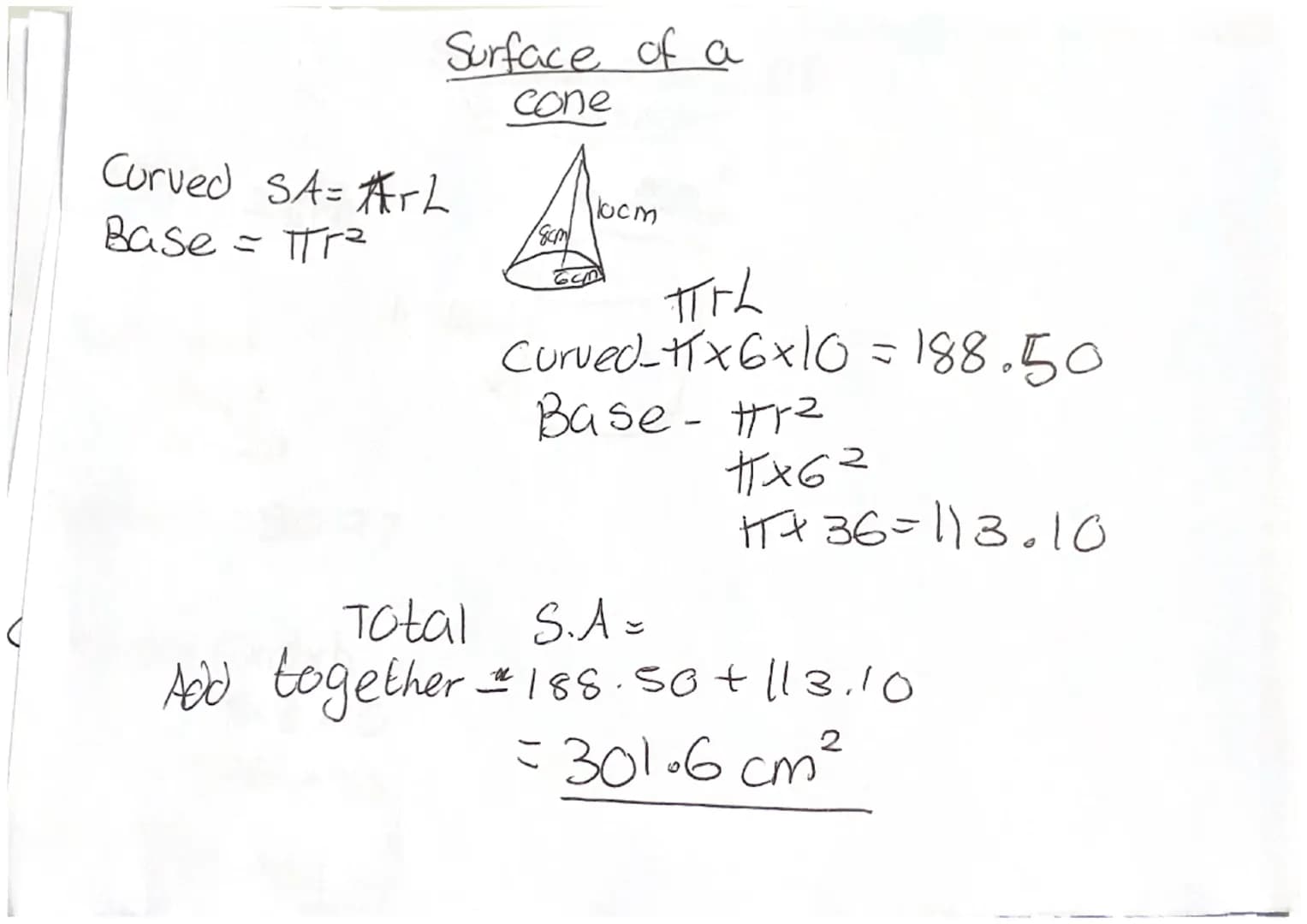

Surface Area of a Cone

This page explains how to calculate the surface area of a cone, which consists of a circular base and a curved lateral surface.

The total surface area of a cone is the sum of:

The area of the circular base
The area of the curved surface

Definition: Surface area of a cone = πr² + πrl, where r is the radius of the base and l is the slant height of the cone.

The page provides a step-by-step example for calculating the surface area of a cone:

Example: Calculate the surface area of a cone with a base radius of 6cm and a slant height of 10cm.

Area of the base: πr² = π × 6² = 113.10cm²
Area of the curved surface: πrl = π × 6 × 10 = 188.50cm²
Total surface area: 113.10 + 188.50 = 301.60cm²

Highlight: The slant height (l) is different from the vertical height of the cone. It's the distance from the apex to any point on the circumference of the base.

Understanding how to calculate the surface area of a cone is crucial for various applications in geometry, engineering, and design. This formula allows for accurate measurements of conical structures and objects.

View

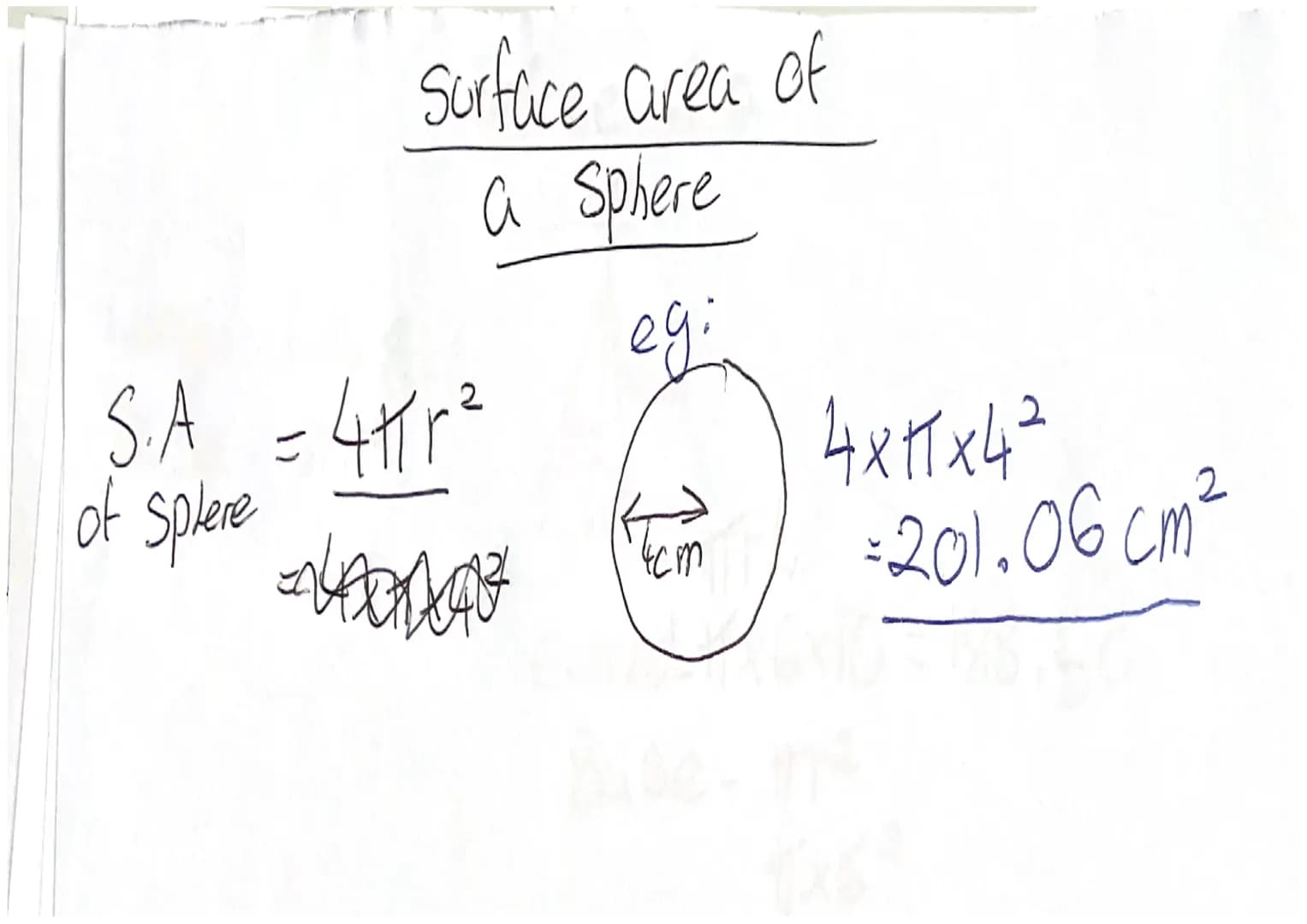

Surface Area of a Sphere

This page introduces the formula for calculating the surface area of a sphere and demonstrates its application.

Definition: The surface area of a sphere is given by the formula: S.A. = 4πr², where r is the radius of the sphere.

This elegant formula encapsulates the entire surface area of a sphere in a simple expression.

Example: Calculate the surface area of a sphere with a radius of 4cm.

Surface Area = 4π × 4² = 201.06cm²

Highlight: The surface area of a sphere is exactly four times the area of its great circle (the largest circle that can be drawn on the sphere's surface).

This formula is derived from advanced calculus, but its simplicity makes it easy to apply in various practical situations. Understanding how to calculate the surface area of a sphere is crucial in fields such as astronomy, physics, and engineering, where spherical objects or concepts are common.

The page also includes a helpful diagram illustrating a sphere and its radius, which aids in visualizing the concept.

View

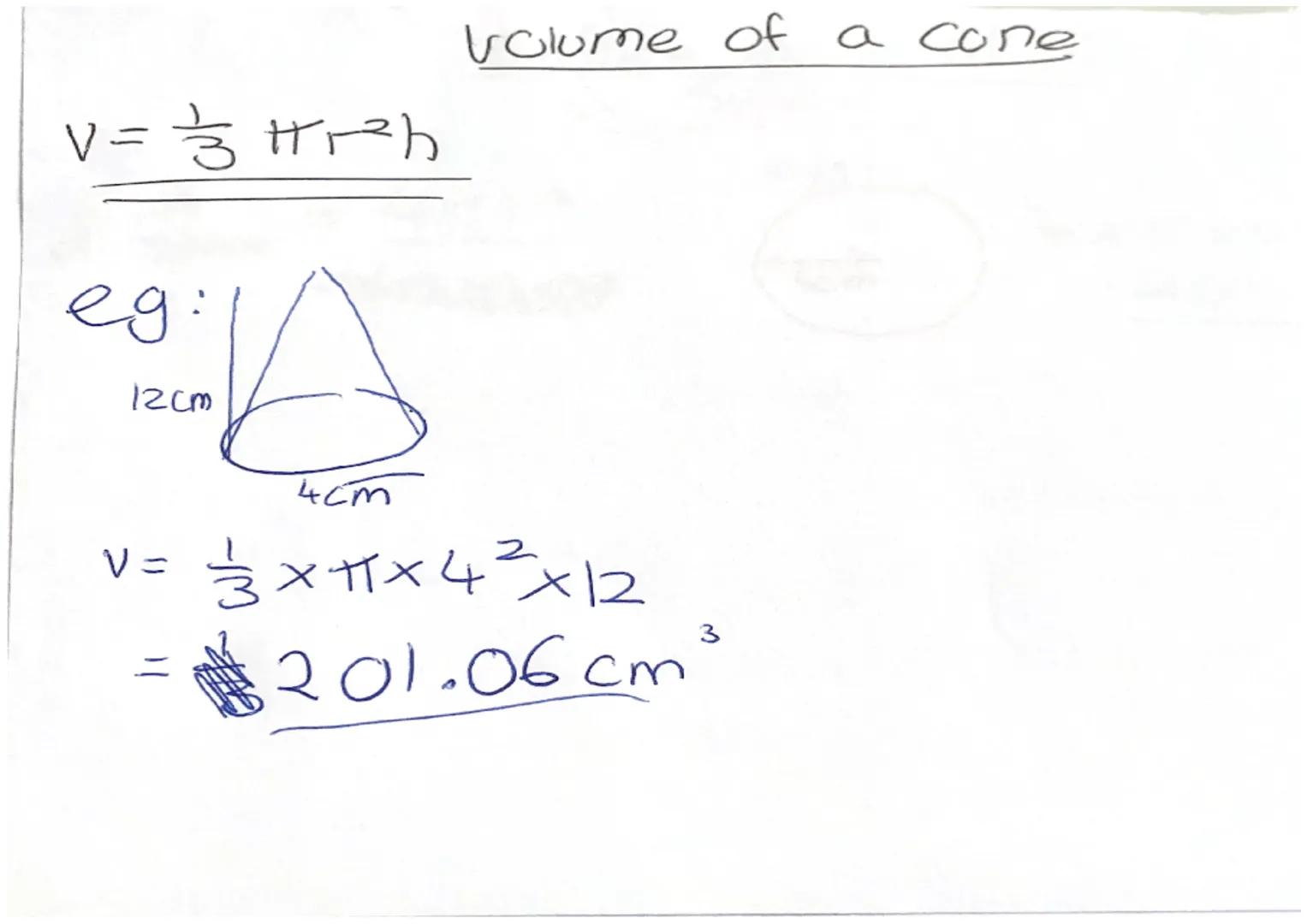

Volume of a Cone

This page explains how to calculate the volume of a cone and provides a practical example.

Definition: The volume of a cone is given by the formula: V = (1/3)πr²h, where r is the radius of the base and h is the height of the cone.

This formula can be understood as one-third of the volume of a cylinder with the same base radius and height.

Example: Calculate the volume of a cone with a base radius of 4cm and a height of 12cm.

Volume = (1/3) × π × 4² × 12 = 201.06cm³

The page provides a step-by-step solution to this example, demonstrating how to apply the formula in practice.

Highlight: The height used in this formula is the perpendicular height from the center of the base to the apex of the cone, not the slant height used for surface area calculations.

Understanding how to calculate the volume of a cone is essential for various applications in geometry, engineering, and design. This formula allows for accurate measurements of conical containers, structures, and natural formations.

View

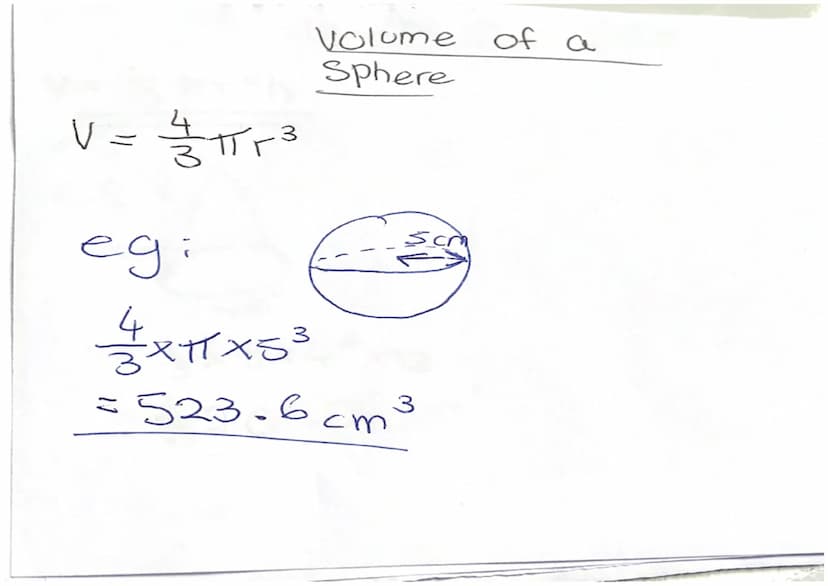

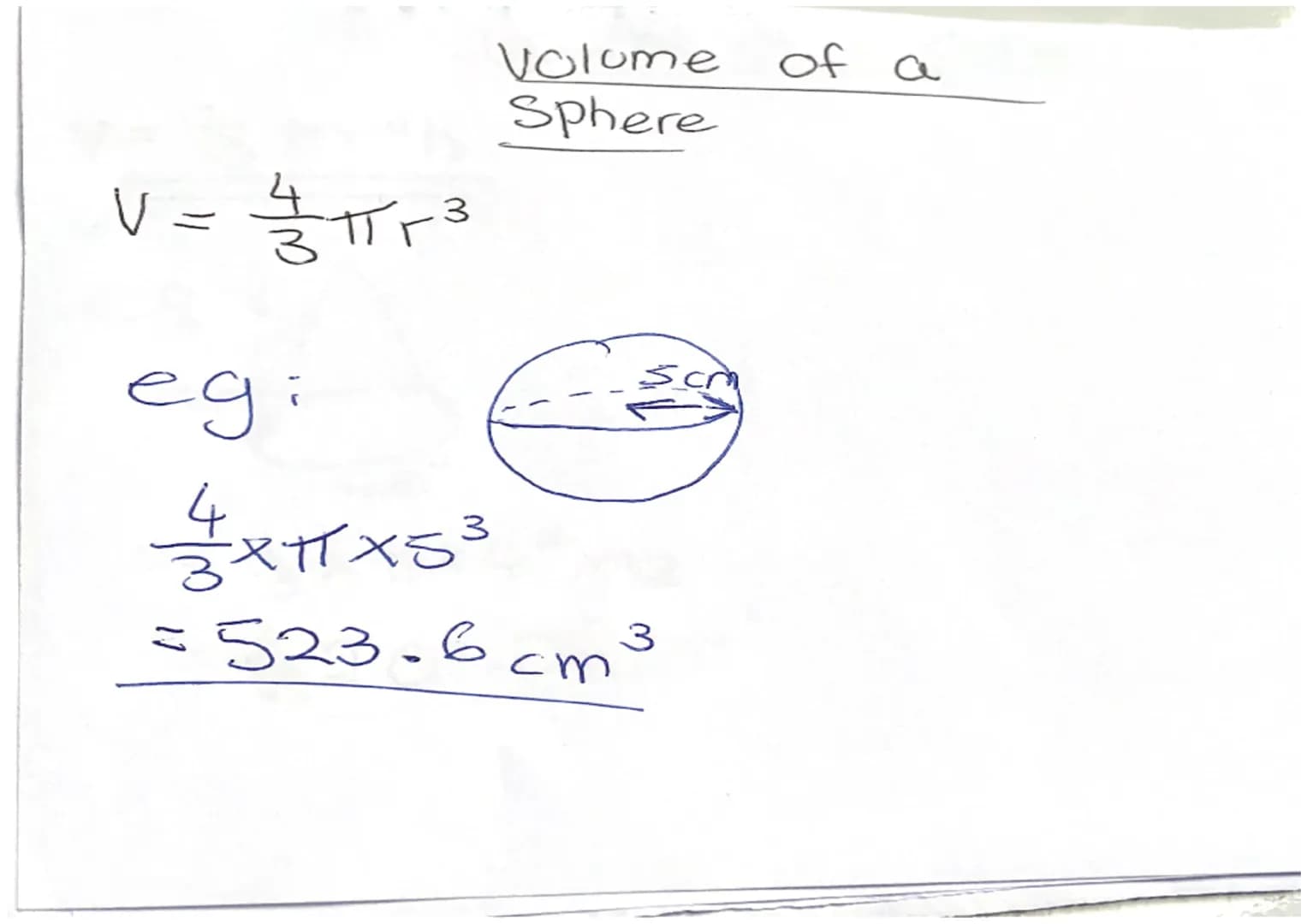

Volume of a Sphere

This final page covers the volume calculation for a sphere, providing the formula and a practical example.

Definition: The volume of a sphere is given by the formula: V = (4/3)πr³, where r is the radius of the sphere.

This formula represents the amount of space enclosed within the spherical surface.

Example: Calculate the volume of a sphere with a radius of 5cm.

Volume = (4/3) × π × 5³ = 523.6cm³

The page includes a clear diagram of a sphere with its radius labeled, which helps in visualizing the concept.

Highlight: The volume of a sphere increases cubically with its radius, meaning a small increase in radius results in a large increase in volume.

Understanding how to calculate the volume of a sphere is crucial in many fields, including physics, astronomy, and engineering. This formula is used to determine the volume of planets, stars, and various spherical objects or containers in everyday life.

The simplicity of this formula belies its power in describing the volume of any perfect sphere, regardless of its size.

View

Sphere Volume

The final page covers the calculation of sphere volume.

Formula: Volume = (4/3)πr³

Example: For a sphere with radius 5cm: Volume = (4/3)π × 5³ = 523.6cm³

Highlight: This formula is one of the most fundamental in three-dimensional geometry.
