A Level Maths: Mechanics - Understanding Projectiles

Understanding Projectile Motion

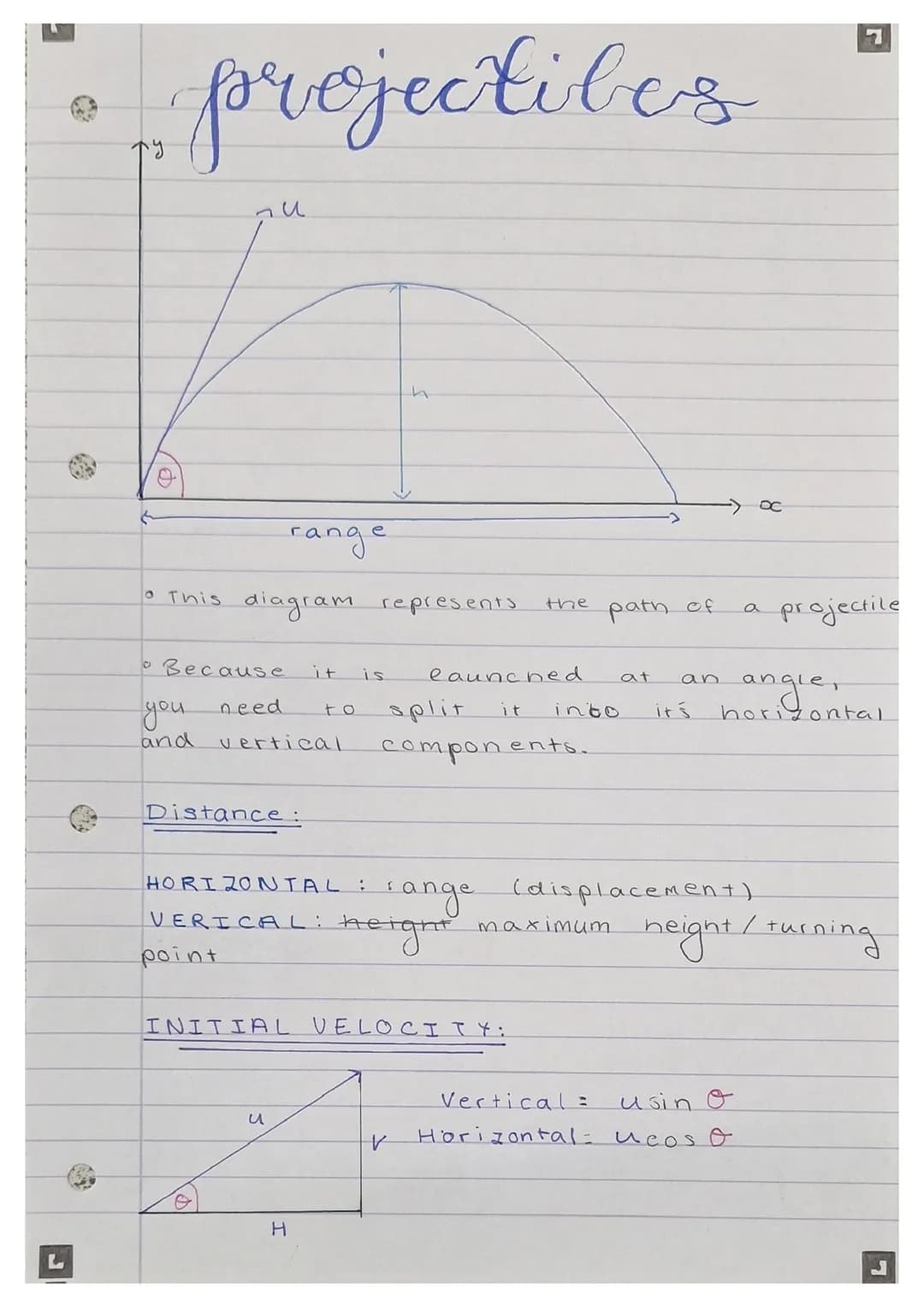

When you throw a ball at an angle, it follows a curved path through the air - this is called projectile motion. The key to solving these problems is realising that you need to treat the horizontal and vertical movements completely separately.

Think of it like this: the ball moves forward at a steady pace whilst simultaneously moving up and then down due to gravity. These two motions happen at the same time but don't affect each other.

For distance measurements, you'll work with range (how far it travels horizontally) and maximum height (the highest point it reaches). The initial velocity gets split using trigonometry: u sin θ for the vertical component and u cos θ for the horizontal component, where θ is the launch angle.

Quick Tip: Always draw a diagram and label your horizontal and vertical components - it makes everything clearer!

Key Properties and SUVAT Equations

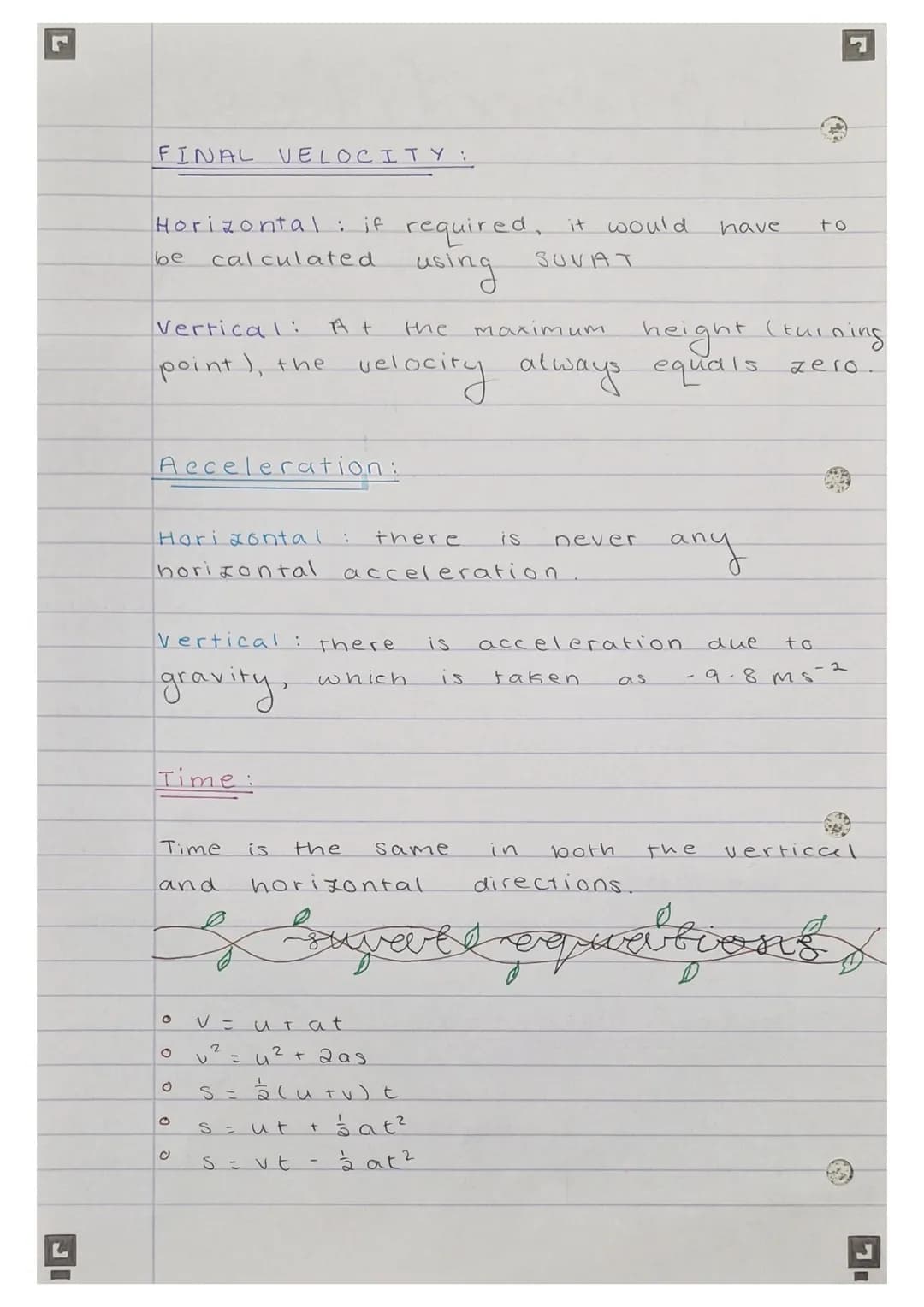

Here's what makes projectile motion predictable: the horizontal velocity stays constant throughout the entire flight because there's no horizontal acceleration. However, the vertical velocity changes due to gravity pulling the object downward at -9.8 ms⁻².

At the highest point of the trajectory, something important happens - the vertical velocity becomes zero for just a moment before the object starts falling back down. This is your turning point and often the key to solving problems.

The time of flight is crucial because it's the same for both horizontal and vertical calculations. You can find the time using the vertical motion, then use that same time value for horizontal calculations.

You'll use the SUVAT equations to solve these problems: v = u + at, v² = u² + 2as, s = ½$u+v$t, s = ut + ½at², and s = vt - ½at². Pick the equation that contains the variables you know and the one you're trying to find.

Remember: Time is your connecting factor between horizontal and vertical motion - find it first!
