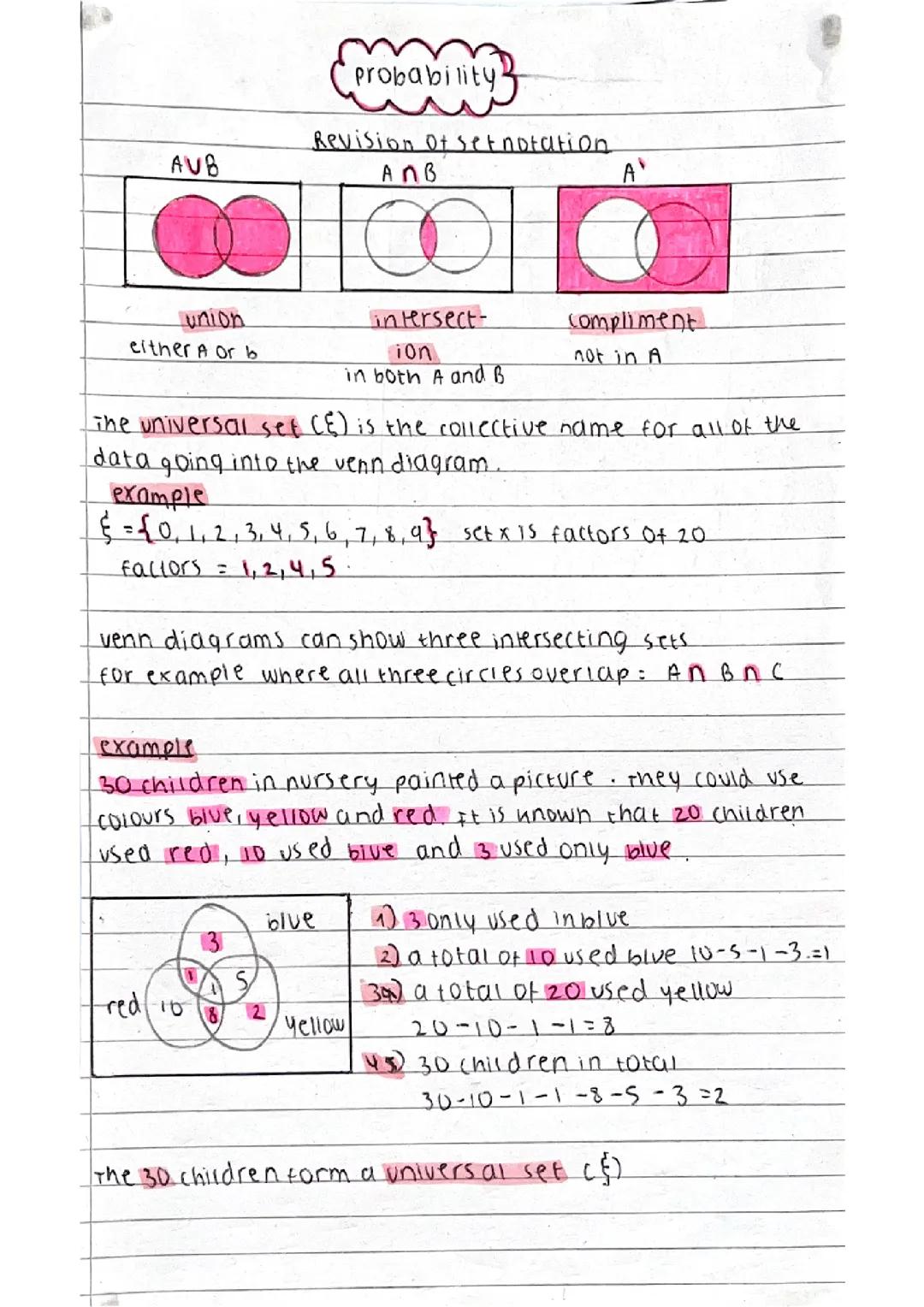

Probability and Set Notation

When working with probability, you'll need to understand basic set notation to describe how different groups relate to each other. The key symbols include AUB (union: elements in either A or B), A∩B (intersection: elements in both A and B), and A' (complement: elements not in A).

Venn diagrams are visual tools that help us see these relationships clearly. The universal set (ξ) contains all possible elements being considered in a given scenario. For instance, if ξ = {0, 1, 2, 3, 4, 5, 6, 7, 8, 9} and set X represents factors of 20, then X would contain 1, 2, 4, and 5.

You can represent up to three intersecting sets in a Venn diagram, showing all possible combinations. The area where all three circles overlap represents A∩B∩C - elements that belong to all three sets simultaneously.

Top Tip: When solving Venn diagram problems, start by filling in the regions with exclusive memberships (like "only blue") first, then work your way to the overlapping regions using the total numbers given.

For example, in a nursery with 30 children painting with blue, yellow and red colours, we can systematically fill in the Venn diagram. If 3 children used only blue, 20 used red, and 10 used blue in total, we can determine how many children are in each region by working through the constraints one by one.
