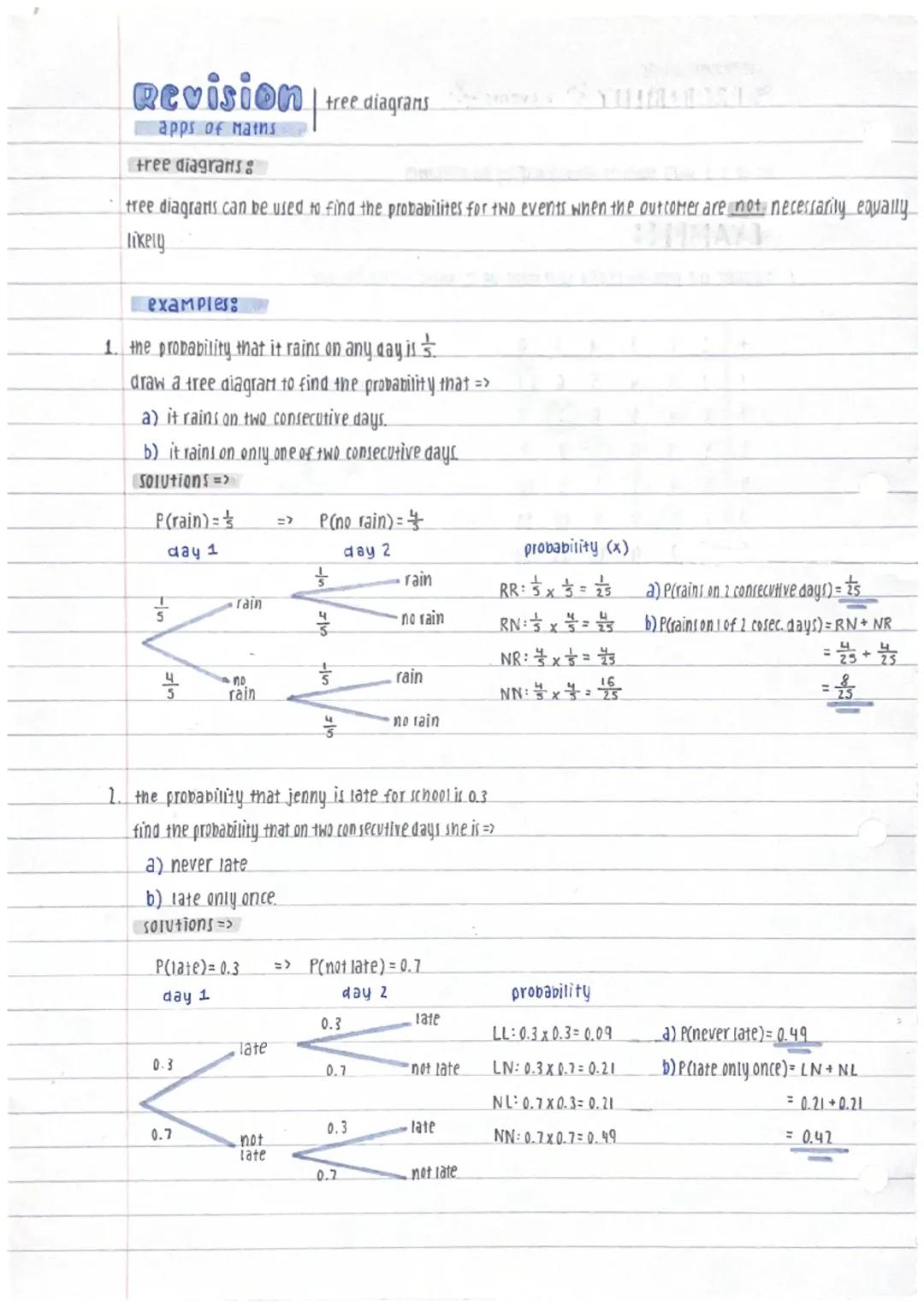

Understanding Maths: Tree Diagrams Simplified
ava๐ชฑ
@avasnotes
Tree diagrams are brilliant visual tools that help you calculate probabilities when events happen one after another, especially when the outcomes aren't equally likely. They're perfect for working out complex probability questions step-by-step.
Tree Diagrams for Consecutive Events
Ever wondered how to calculate the chances of it raining two days in a row? Tree diagrams make these tricky probability problems much easier to solve.
When you're dealing with two events happening consecutively, tree diagrams help you map out all possible outcomes. You multiply probabilities along each branch to find the chance of that specific sequence happening. Remember, if P(rain) = 1/5, then P(no rain) = 4/5 since probabilities must add up to 1.
For the rain example, you get four possible outcomes: rain-rain (1/25), rain-no rain (4/25), no rain-rain (4/25), and no rain-no rain (16/25). To find the probability of rain on exactly one day, you add the probabilities of the two ways this can happen: 4/25 + 4/25 = 8/25.
Quick tip: Always check your final probabilities add up to 1 - it's a great way to spot mistakes!
The same method works with decimals too. If Jenny's late with probability 0.3, then she's on time with probability 0.7. Following the branches shows that she's never late on consecutive days with probability 0.49, and late exactly once with probability 0.42.
