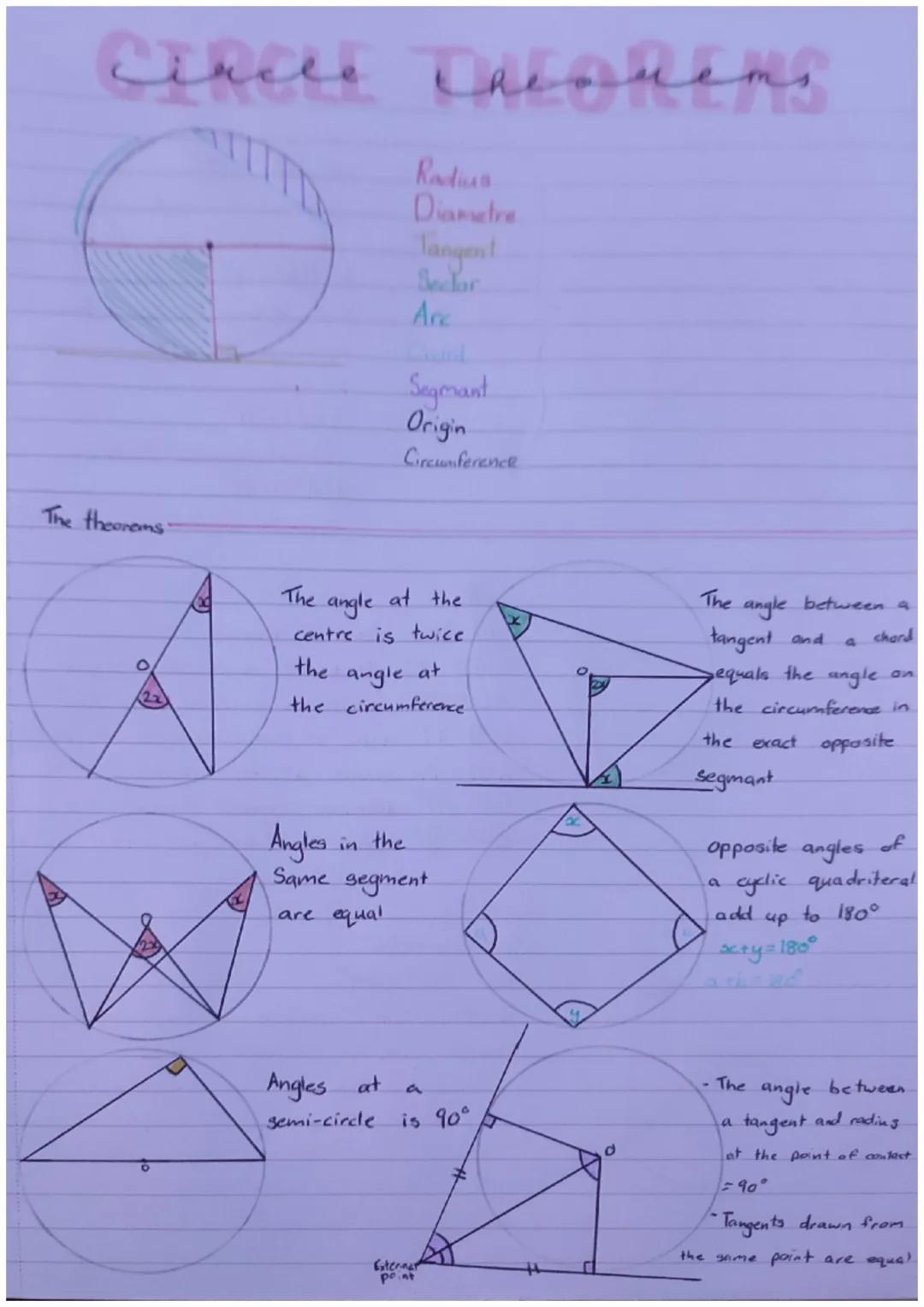

Circle Theorems - The Essential Seven
Ever wondered why certain angles in circles behave predictably? Circle theorems give you the power to work out missing angles using reliable geometric rules.
First, let's sort out the key parts of a circle. The radius goes from centre to edge, whilst the diameter crosses the whole circle through the centre. A tangent touches the circle at exactly one point, and a chord connects two points on the circumference.
Here are the seven theorems you absolutely must know. The angle at the centre is twice the angle at the circumference when they subtend the same arc. Angles in the same segment are equal - this means angles that "look at" the same arc from the circumference will always match.
The alternate segment theorem states that the angle between a tangent and chord equals the angle in the opposite segment. Opposite angles in a cyclic quadrilateral add up to 180°, whilst any angle in a semicircle equals 90°. Finally, tangents from the same external point are equal in length, and the angle between a tangent and radius at the point of contact is 90°.
Remember: These theorems work every single time - no exceptions! Learning to spot which theorem applies is half the battle.
2
of 2

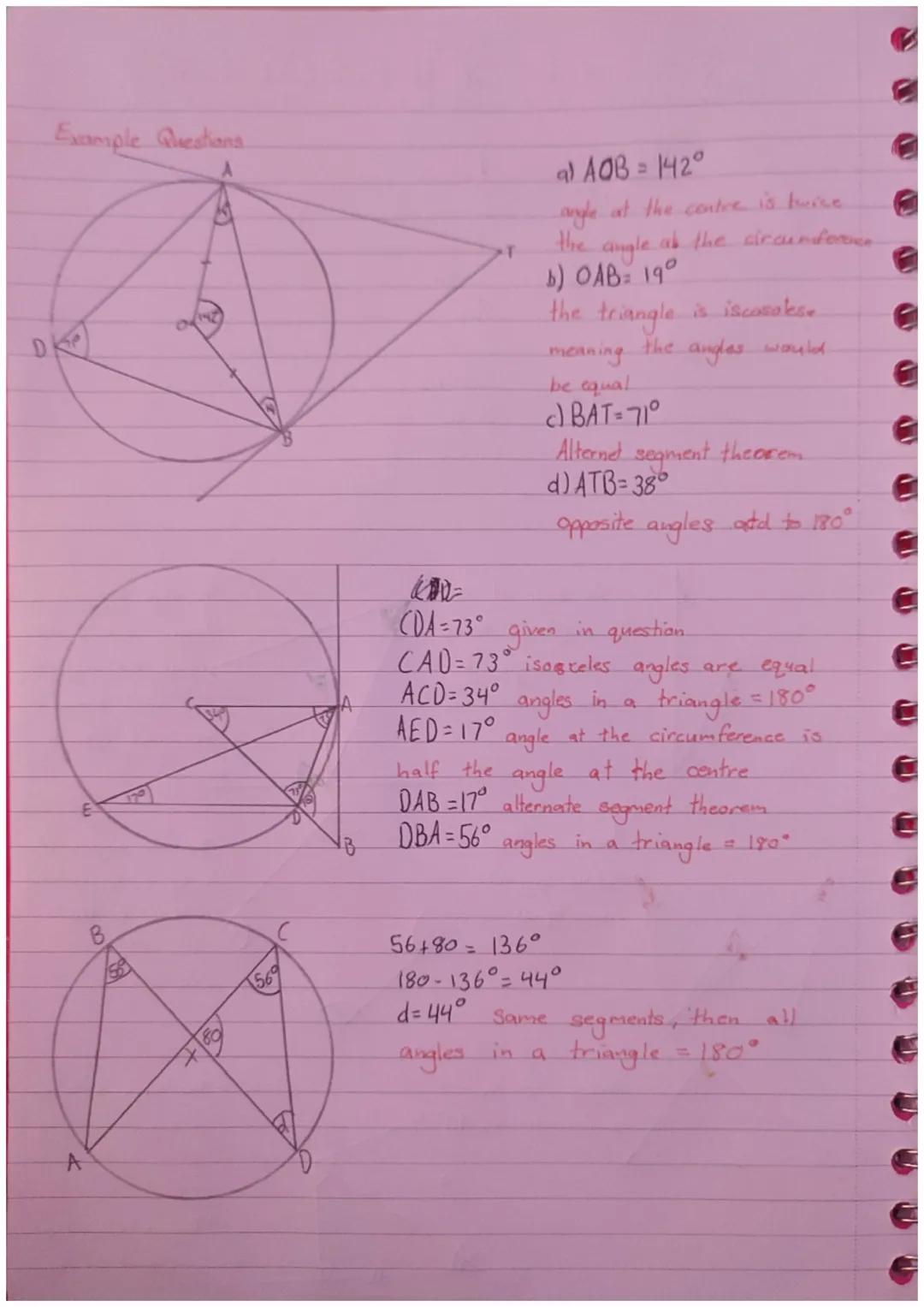

Solving Circle Problems Like a Pro
Tackling circle theorem questions becomes straightforward once you develop a systematic approach. The secret lies in identifying which theorem applies and working step by step.
Look at the worked examples carefully. When angle AOB = 142°, you can find the circumference angle by halving it (using the centre-circumference theorem). For triangle OAB, remember it's isosceles since both OA and OB are radii - so the base angles are equal.
The alternate segment theorem appears frequently in exams. When you see a tangent meeting a chord, the angle between them equals the angle in the opposite segment. This theorem often unlocks the whole question.
Cyclic quadrilaterals (four-sided shapes in circles) have opposite angles that always add to 180°. Spot the cyclic quadrilateral, identify opposite angles, and you're sorted. Don't forget that angles in any triangle total 180° - this basic rule combines powerfully with circle theorems.
Top Tip: Always mark equal angles and equal lengths on your diagram as you work. Visual cues help you spot the next step and avoid silly mistakes.
