Circle geometry combines coordinate geometry with the properties of circles,...
Further Maths134 views·Updated 13 Sept 2026·4 pagesMastering Circle Geometry for GCSE Maths
K
Kate Robinson@katerobinson_rafs
1 / 4
1
of 4

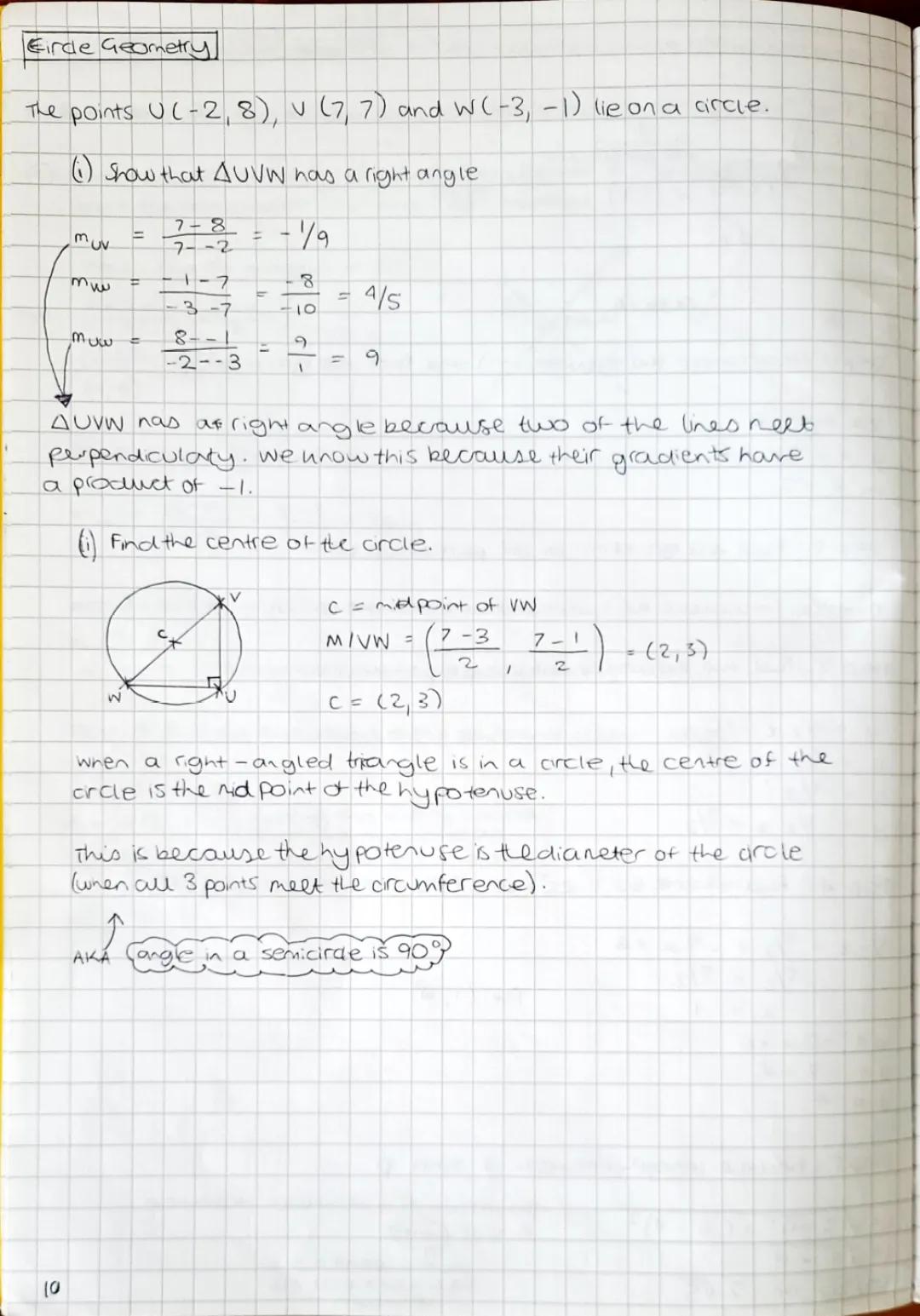

Right-Angled Triangles in Circles
Ever wondered why certain triangles inscribed in circles always have right angles? When three points lie on a circle and form a triangle, you can spot a right angle by checking if two sides have gradients that multiply to give -1.
To find gradients, use the formula: gradient = /. If two gradients multiply to equal -1, those lines are perpendicular, creating your right angle.
Here's the brilliant bit: when a right-angled triangle sits inside a circle with all vertices on the circumference, the hypotenuse is always a diameter. This means the circle's centre is simply the midpoint of the hypotenuse - no complex calculations needed!
Quick Tip: This is called the "angle in a semicircle" theorem, and it's a real time-saver in exams.
2
of 4

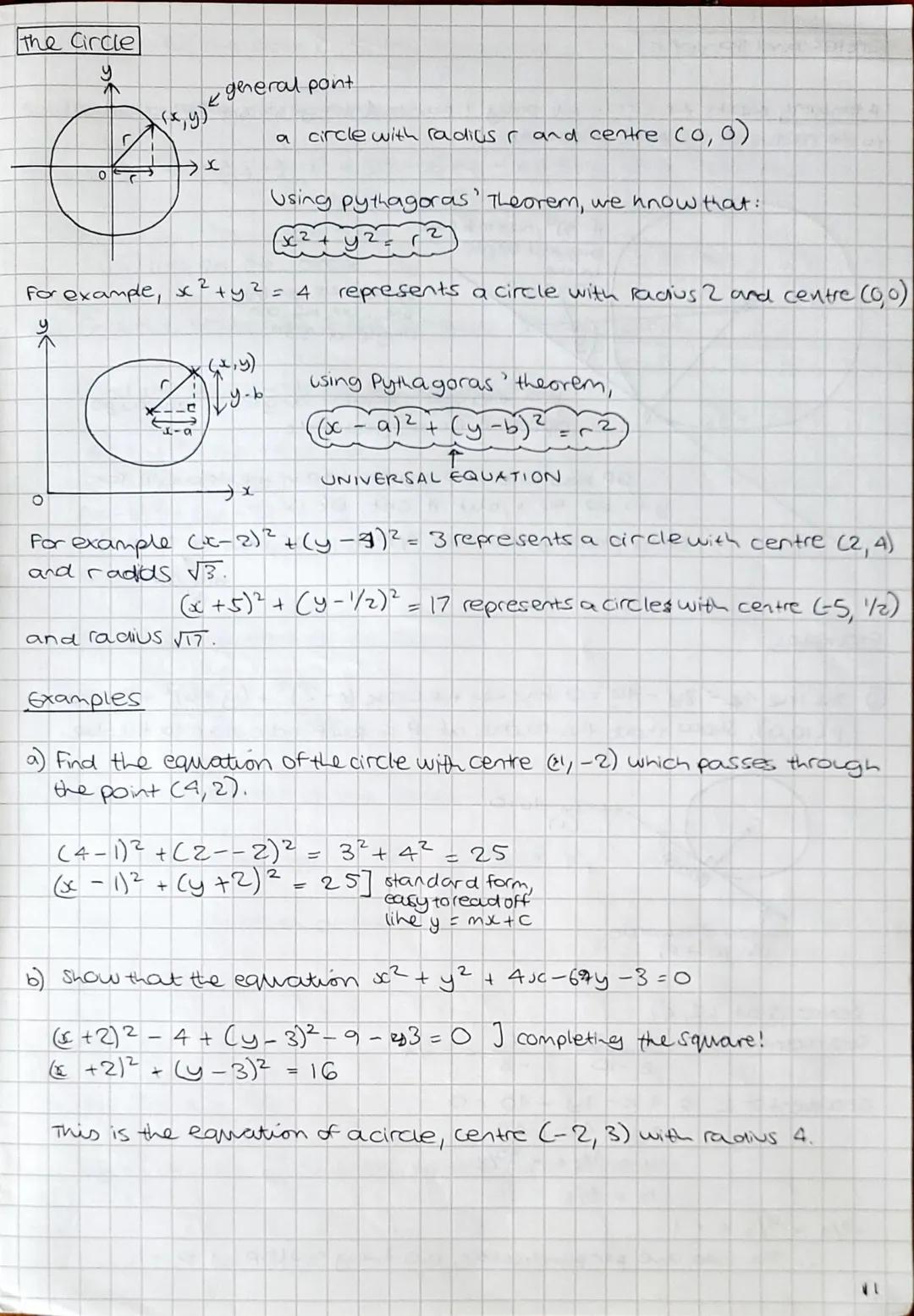

Circle Equations Made Simple
The universal circle equation ² + ² = r² is your best friend for circle problems. The centre sits at (a, b) and the radius equals √r².
When the circle's centred at the origin, the equation becomes even simpler: x² + y² = r². For example, x² + y² = 25 gives you a circle with centre (0, 0) and radius 5.
Sometimes you'll encounter expanded forms like x² + y² + 4x - 6y - 3 = 0. Don't panic! Use completing the square to convert it back to standard form, making it dead easy to read off the centre and radius.
Exam Hack: Always rearrange to standard form first - it prevents silly mistakes and saves precious time.
3
of 4

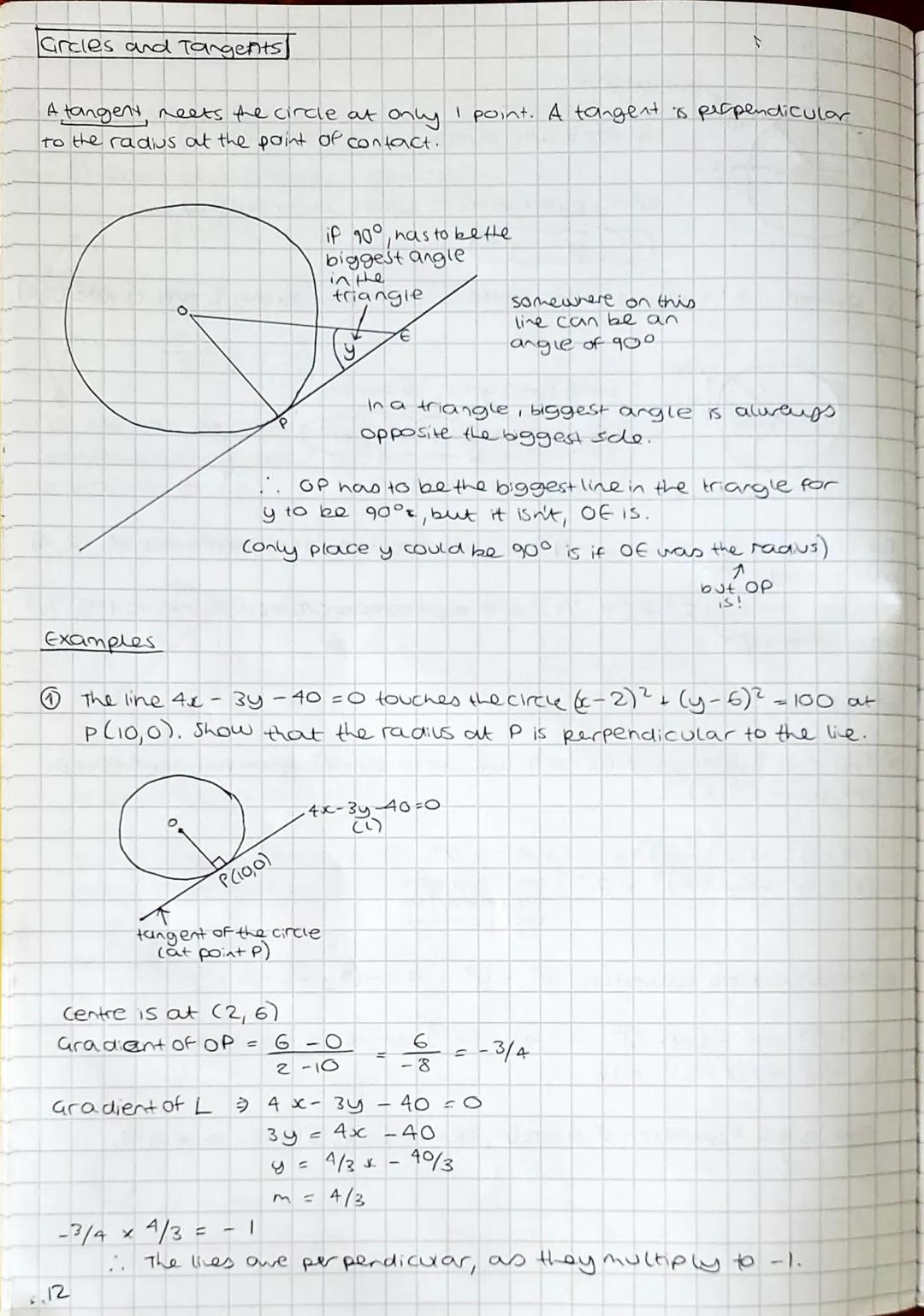

Tangents and Perpendicular Lines
A tangent touches a circle at exactly one point and always meets the radius at 90°. This perpendicular relationship is the key to solving tangent problems.
To prove lines are perpendicular, show their gradients multiply to equal -1. First, find the gradient of the radius from the centre to the point of contact. Then calculate the tangent's gradient - it'll be the negative reciprocal of the radius gradient.
This perpendicular property isn't just theoretical - it's your main tool for proving tangent relationships and solving coordinate geometry problems involving circles.
Remember: If two gradients multiply to give -1, the lines are definitely perpendicular.
4
of 4

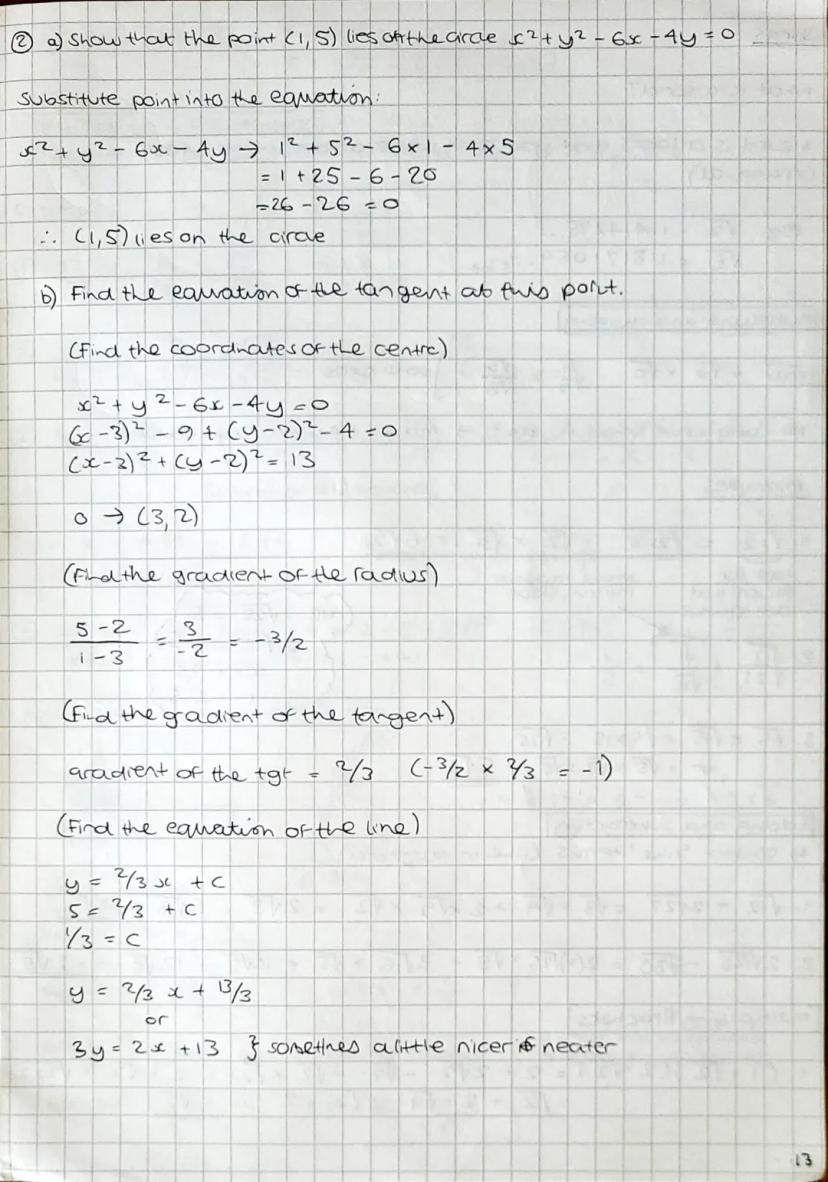

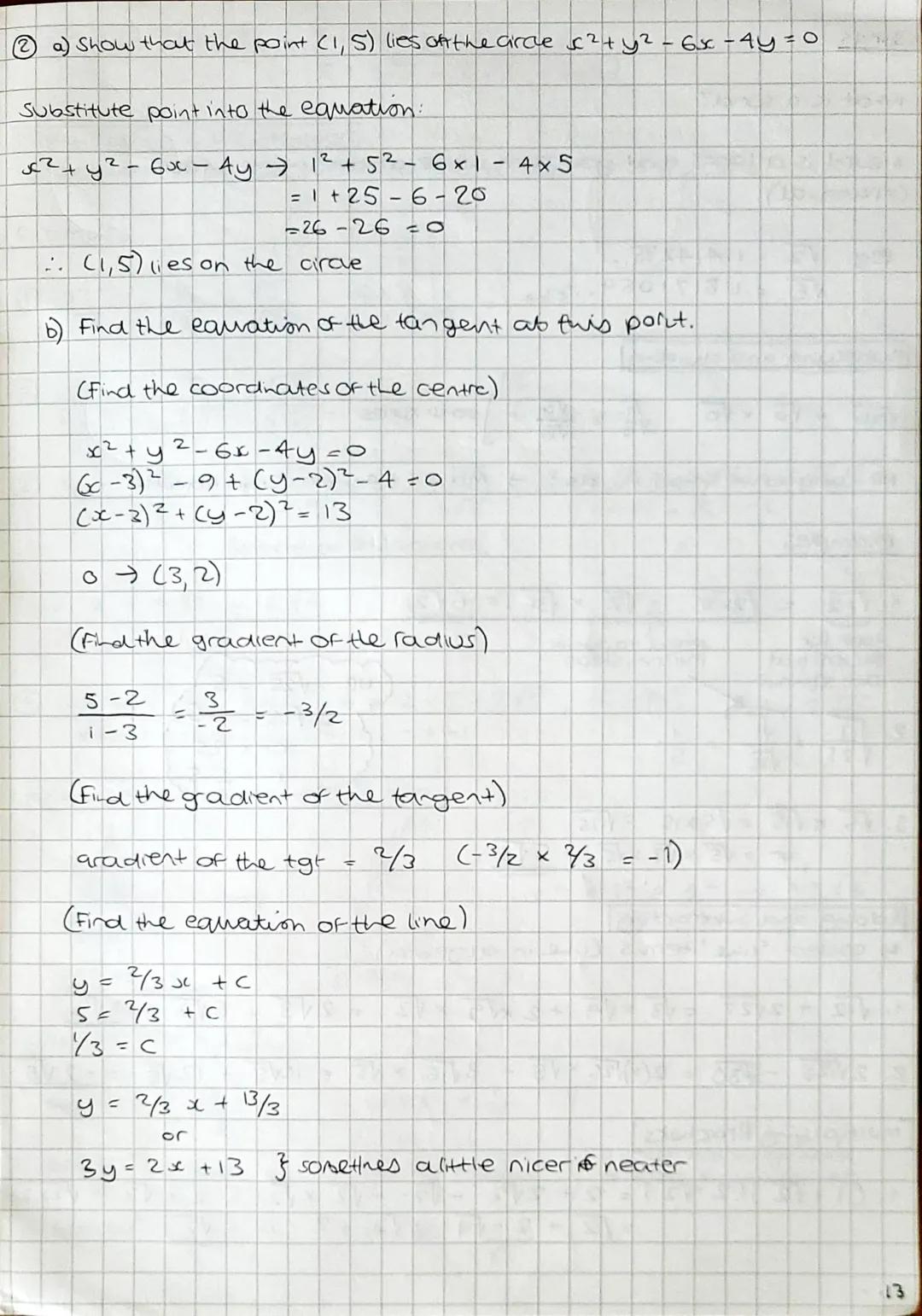

Finding Tangent Equations
To find a tangent equation, you'll need to work systematically through several steps. Start by checking if your given point actually lies on the circle by substituting coordinates into the circle equation.
Next, convert the circle equation to standard form using completing the square if needed. This reveals the centre coordinates, which you'll use to find the radius gradient to your point.
The tangent gradient is the negative reciprocal of the radius gradient. Once you've got this, use the point-slope form y = mx + c, substituting your known point to find c. Finally, rearrange into your preferred format.
Pro Tip: Double-check your tangent gradient by confirming it multiplies with the radius gradient to give -1.
