Page 5: Industrial Printing Processes

This section focuses on industrial screen printing methods, including flat bed and rotary screen printing techniques. It explains the role of squeegees and automated component placement.

Vocabulary: Squeegees are metal rods that distribute printing material across screens.

Example: Pick and place machines use suction cups to position components precisely.

Highlight: Each color in screen printing requires its own separate screen.

Page 7: Fabric Processing and CAM

This section covers fabric finishing techniques and computer-aided manufacturing applications in textile production. It explains how modern technology has improved efficiency in fabric processing.

Vocabulary: Overlockers are machines that finish fabric edges to prevent fraying.

Example: CAM embroidery machines automatically change needles for different colored threads.

Highlight: Computer-aided systems allow for quick design changes and efficient fabric cutting.

Page 1: Measurement and Quality Control Tools

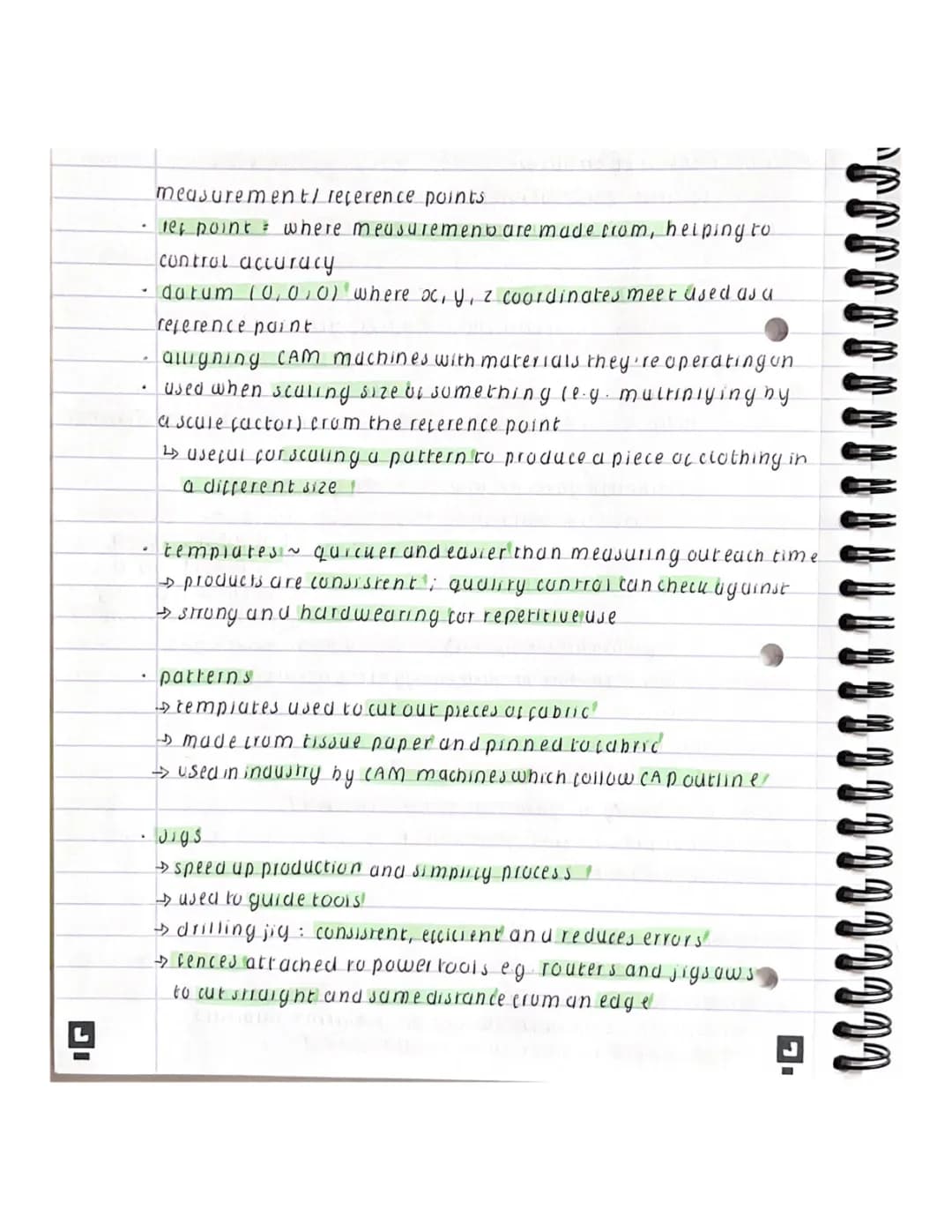

This page explores fundamental measurement and quality control tools in manufacturing. The content details how reference points and datum coordinates (0,0,0) are essential for precise manufacturing operations and scaling. Templates and jigs are introduced as critical tools for maintaining consistency in production.

Definition: Datum points are the (0,0,0) coordinates where x, y, and z axes intersect, serving as fundamental reference points for measurements.

Example: Templates in clothing manufacturing allow patterns to be consistently cut from fabric, whether manually or using CAM machines.

Highlight: Jigs are particularly important for ensuring drilling accuracy and maintaining consistent cutting distances in power tools.
