Computer networks can be organised in different topologies - patterns...
Computer Science307 views·Updated Jun 8, 2026·4 pagesUnderstanding Network Topologies for GCSE Studies
I
isaac@isaac_pcpe
1 / 4
1
of 4

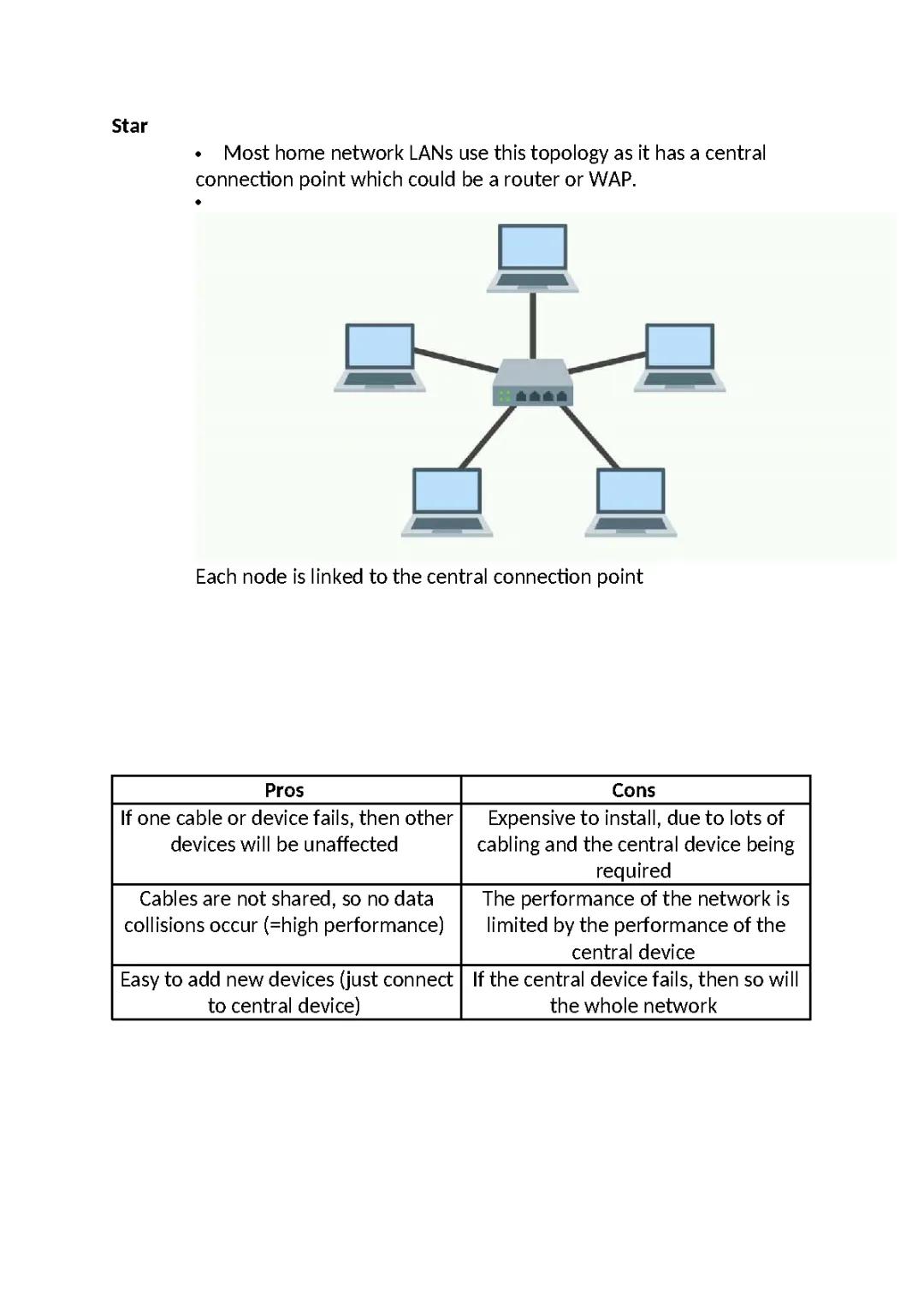

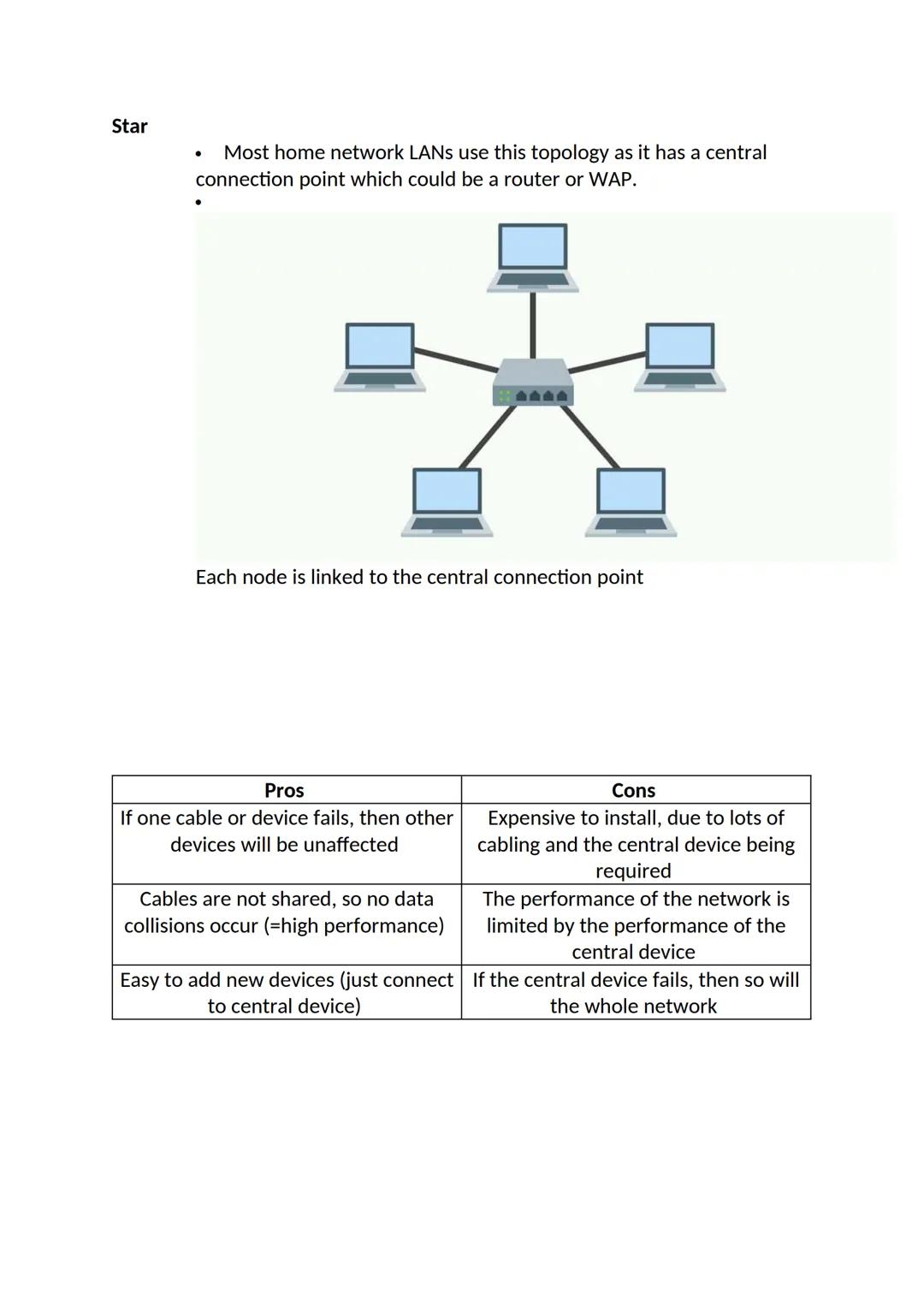

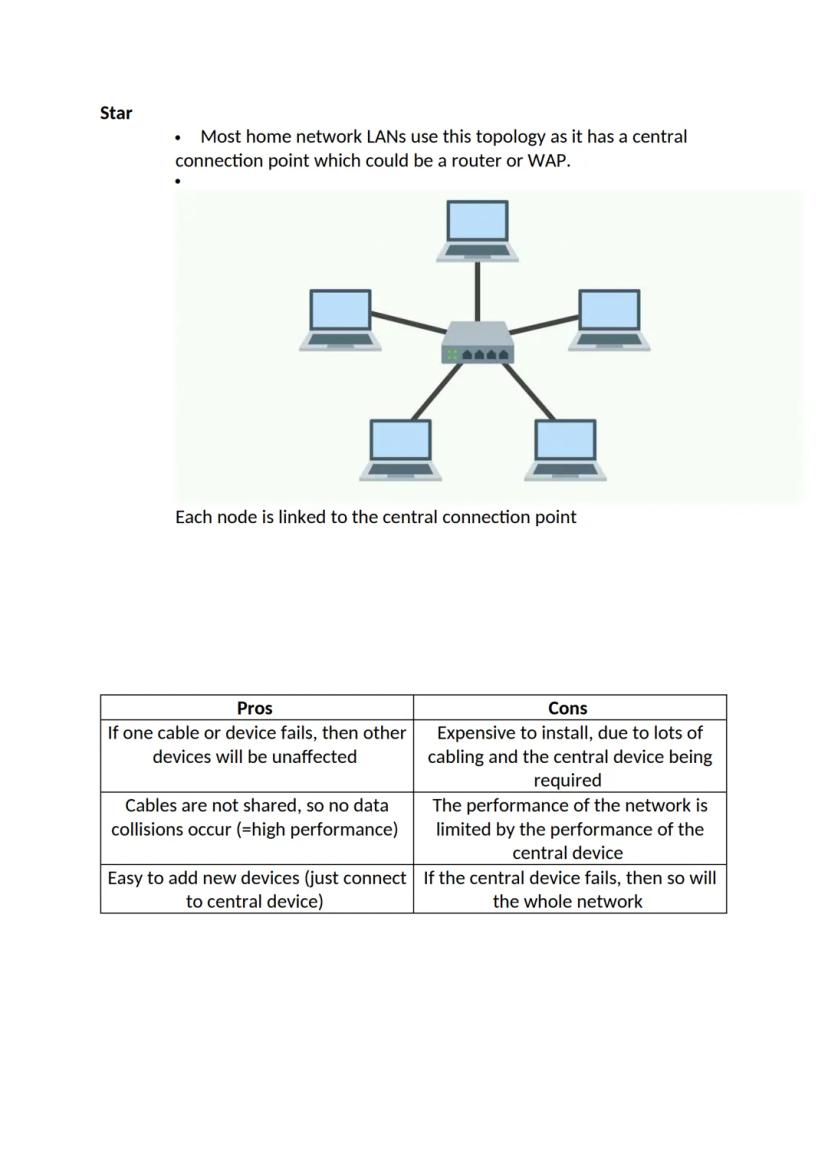

Star Topology
The star topology is the most common arrangement for home networks. In this setup, all devices connect to a central point like a router or wireless access point (WAP). Each device has its own dedicated connection to this central hub.
This arrangement offers excellent reliability since one device failure won't affect others on the network. Because each device has its own dedicated connection, there are no data collisions, resulting in better performance. Adding new devices is straightforward - simply connect them to the central hub.
However, star networks can be expensive due to the amount of cabling required and the cost of the central device. The network's overall performance depends entirely on the central device's capabilities. Perhaps most critically, if the central device fails, the entire network goes down.
Remember this: In a star topology, the central device is both the greatest strength and the greatest weakness of the network.
2
of 4

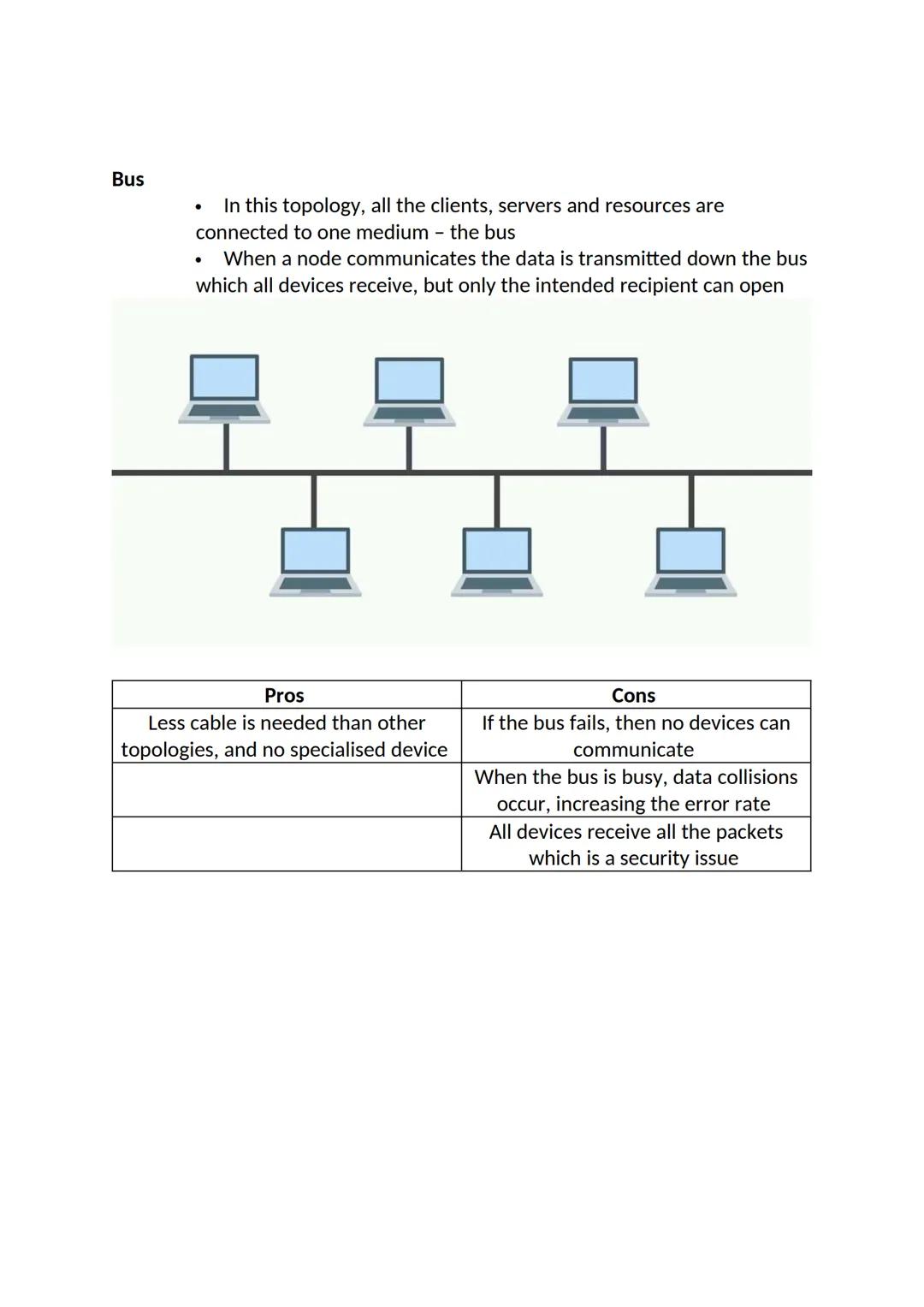

Bus Topology
In a bus topology, all network devices connect to a single communication line (the bus). When a device sends data, it travels along this shared line, and while all devices receive the signal, only the intended recipient processes it.
This design uses less cabling than other arrangements and doesn't require special networking devices, making it more affordable. You'll find this setup is straightforward to understand and implement for small networks.
The drawbacks become apparent when you consider reliability and performance. If the main bus cable fails, the entire network stops working. Data collisions occur frequently when multiple devices try to communicate simultaneously, leading to errors and slower performance. There's also a security concern since all devices see all network traffic.
Quick tip: Bus topologies are simpler but less reliable than star networks - they're like having everyone talk through one shared telephone line!
3
of 4

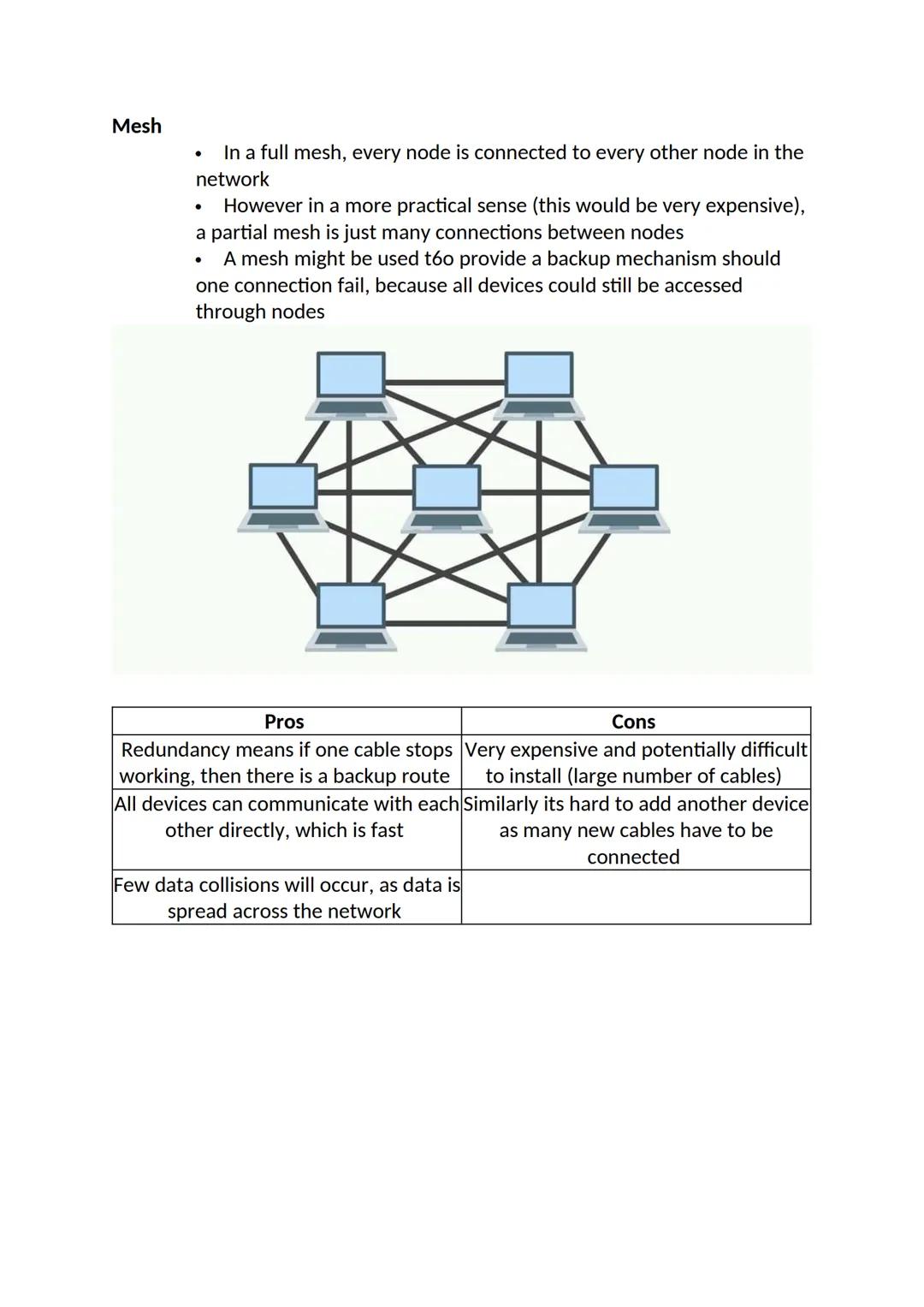

Mesh Topology
A mesh topology creates multiple paths between network devices. In a full mesh, every device connects directly to every other device, while a partial mesh has some devices with multiple connections but not to every other node.
The standout feature of mesh networks is reliability through redundancy. If one connection fails, data can still reach its destination through alternative routes. Devices can communicate directly with each other rather than going through a central point, which improves speed. With traffic spread across many paths, data collisions are minimised.
The downsides? Mesh networks are expensive and complex to install due to the large number of cables required. Adding new devices becomes increasingly complicated as each addition may require multiple new connections. This makes mesh topologies better suited for critical networks where reliability trumps cost concerns.
Worth noting: Mesh networks are like having multiple backup plans - they're more complex but can handle failures better than other topologies.
4
of 4

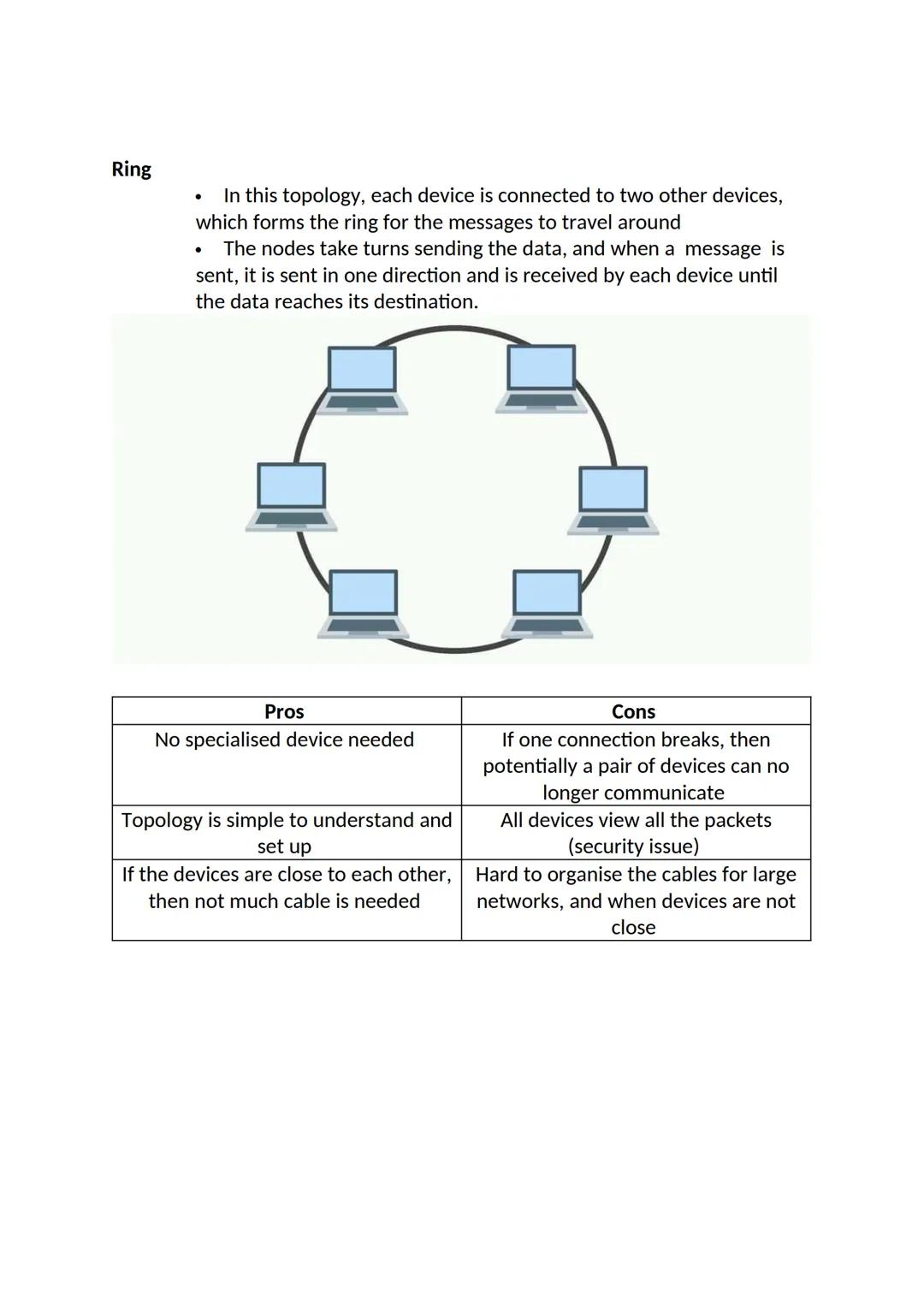

Ring Topology
In a ring topology, each device connects to exactly two others, forming a closed loop. Data travels in one direction around the ring, with each device receiving and then passing on messages until they reach their destination.
This arrangement doesn't need any specialised networking equipment, making it simpler to implement. The design is straightforward to understand, and if devices are positioned close together, you won't need much cabling.
The ring's weakness is its vulnerability to disruption. If just one connection breaks, communication between devices can be completely severed. Like the bus topology, all devices can see all network packets, creating potential security issues. For large networks or when devices are physically distant from each other, cable organisation becomes challenging.
Important insight: Ring topologies are like passing notes around a circle - efficient when everything works perfectly, but one broken link can stop the message from reaching its destination.
